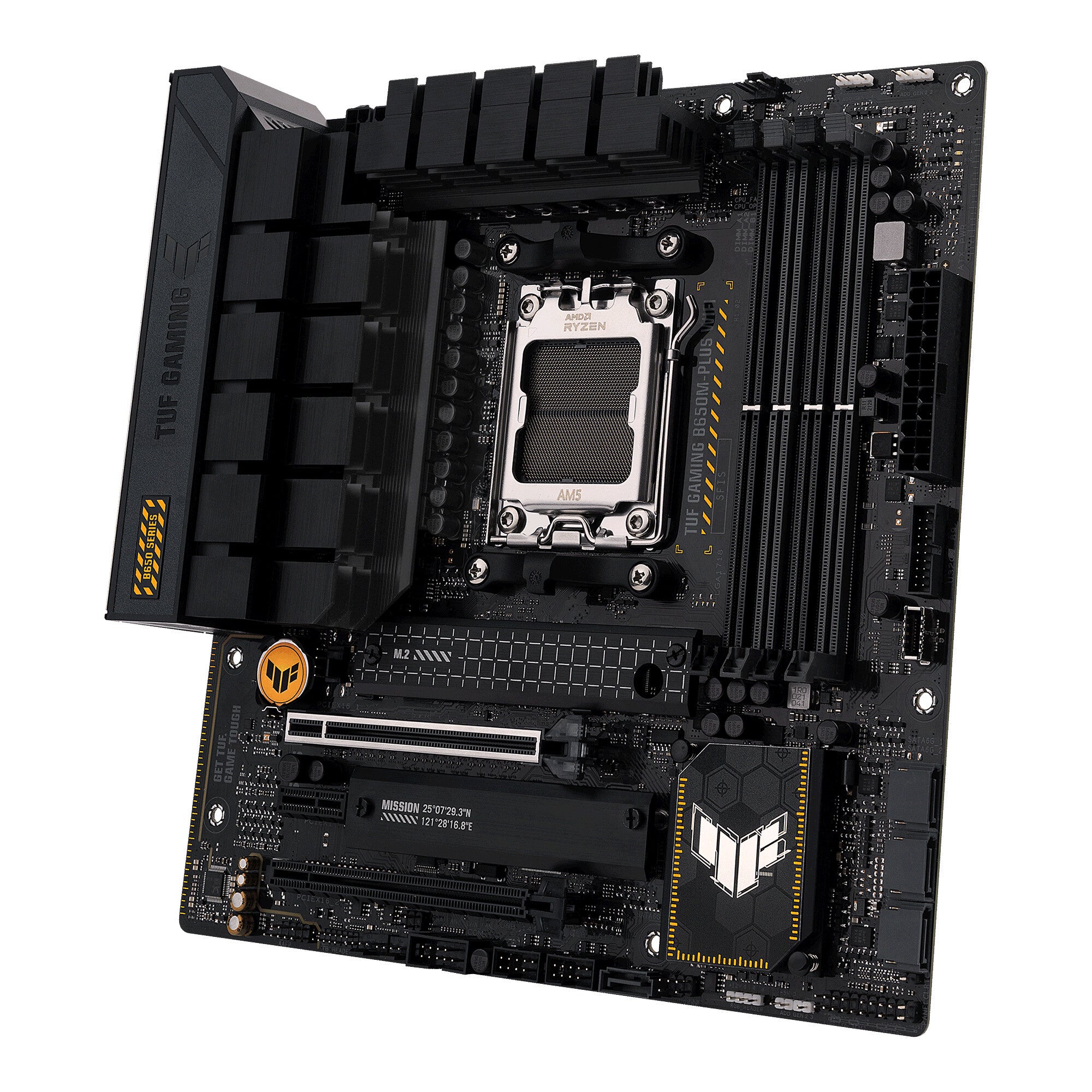

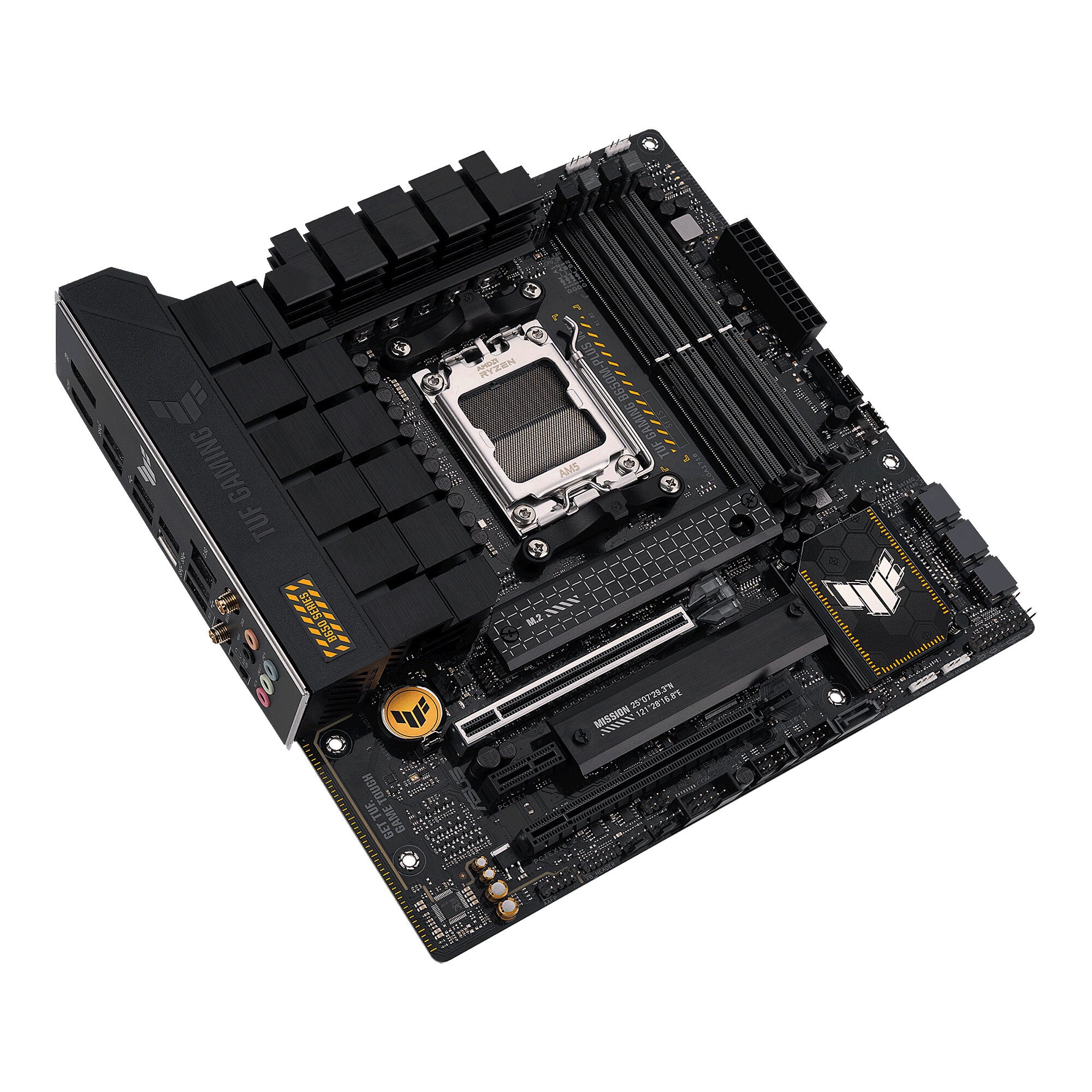

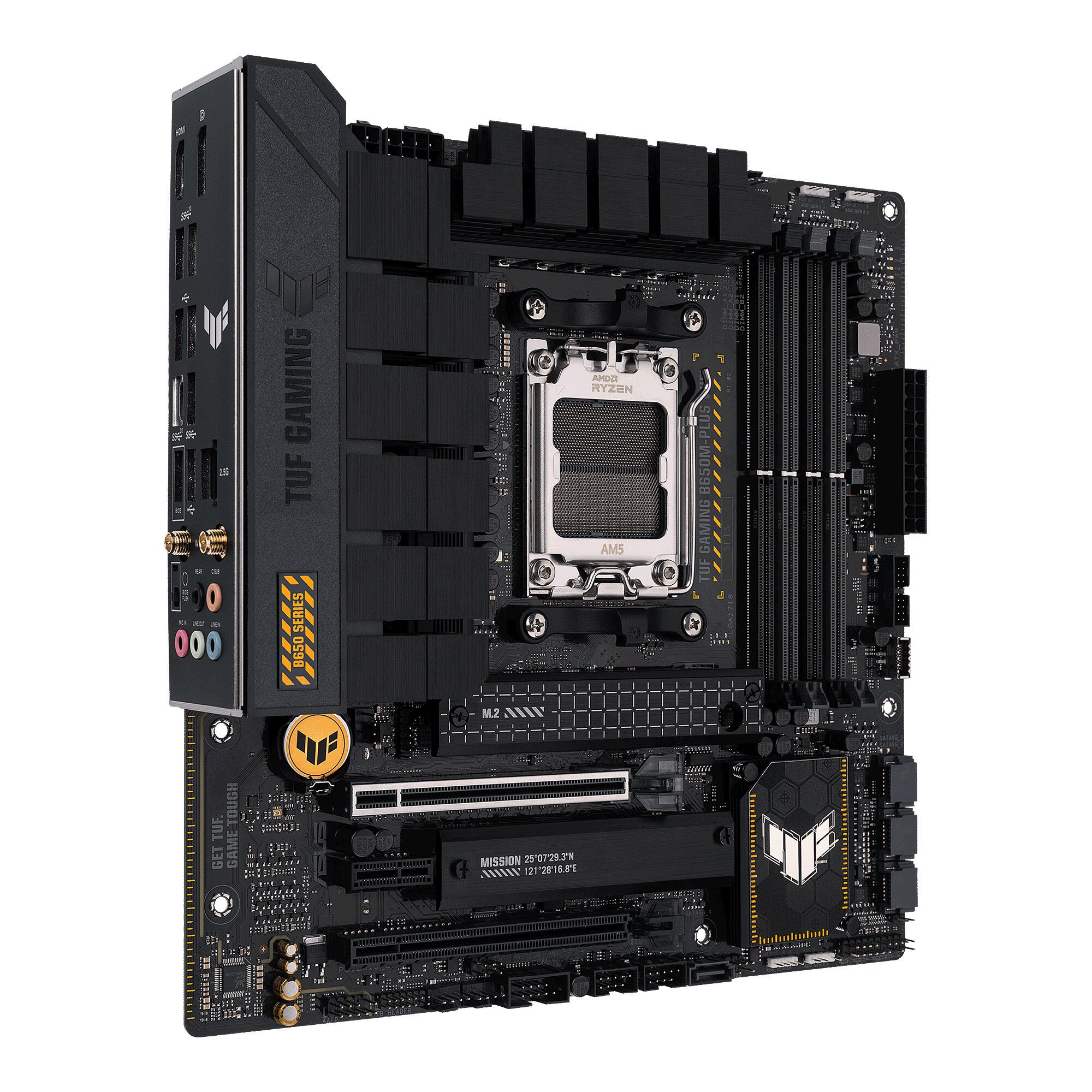

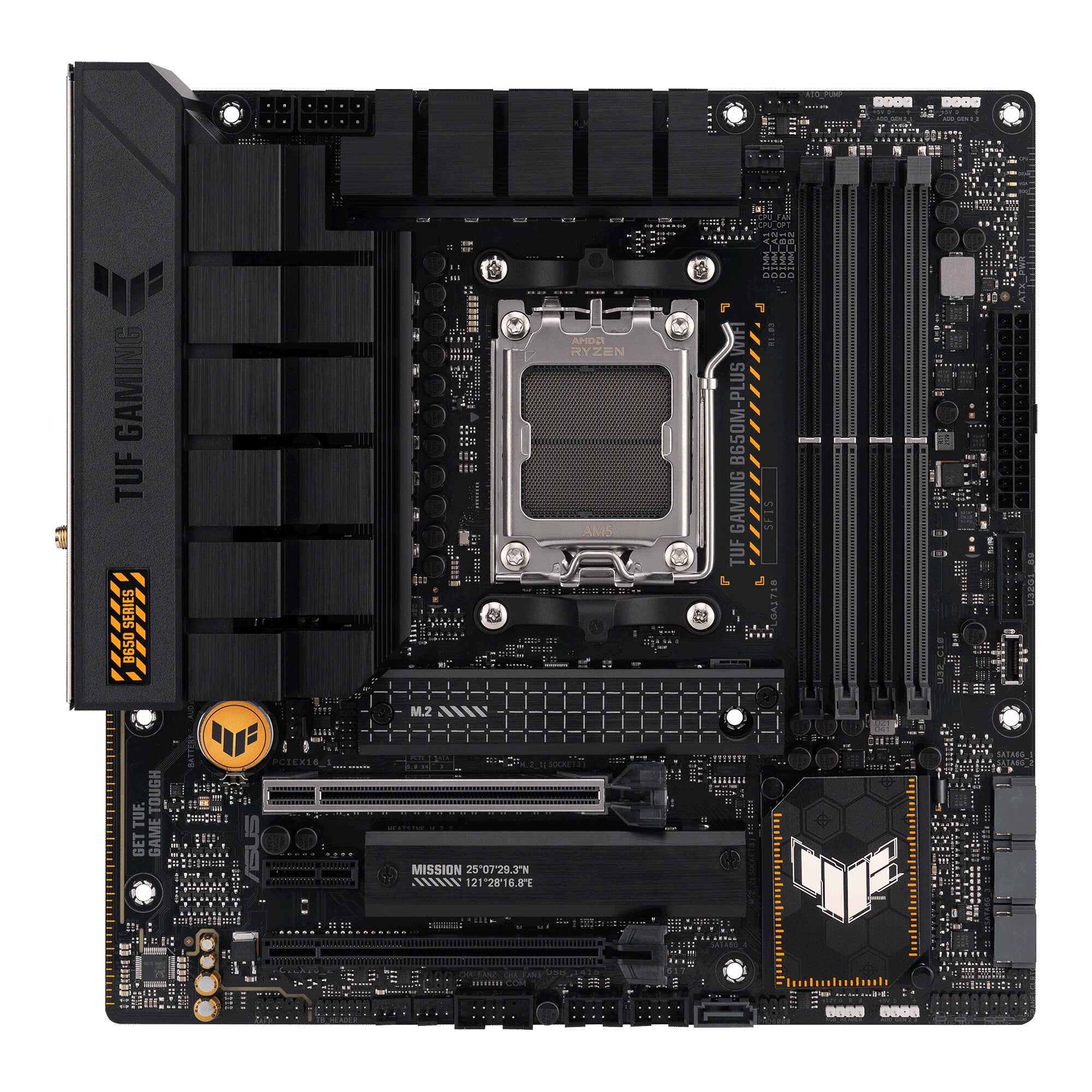

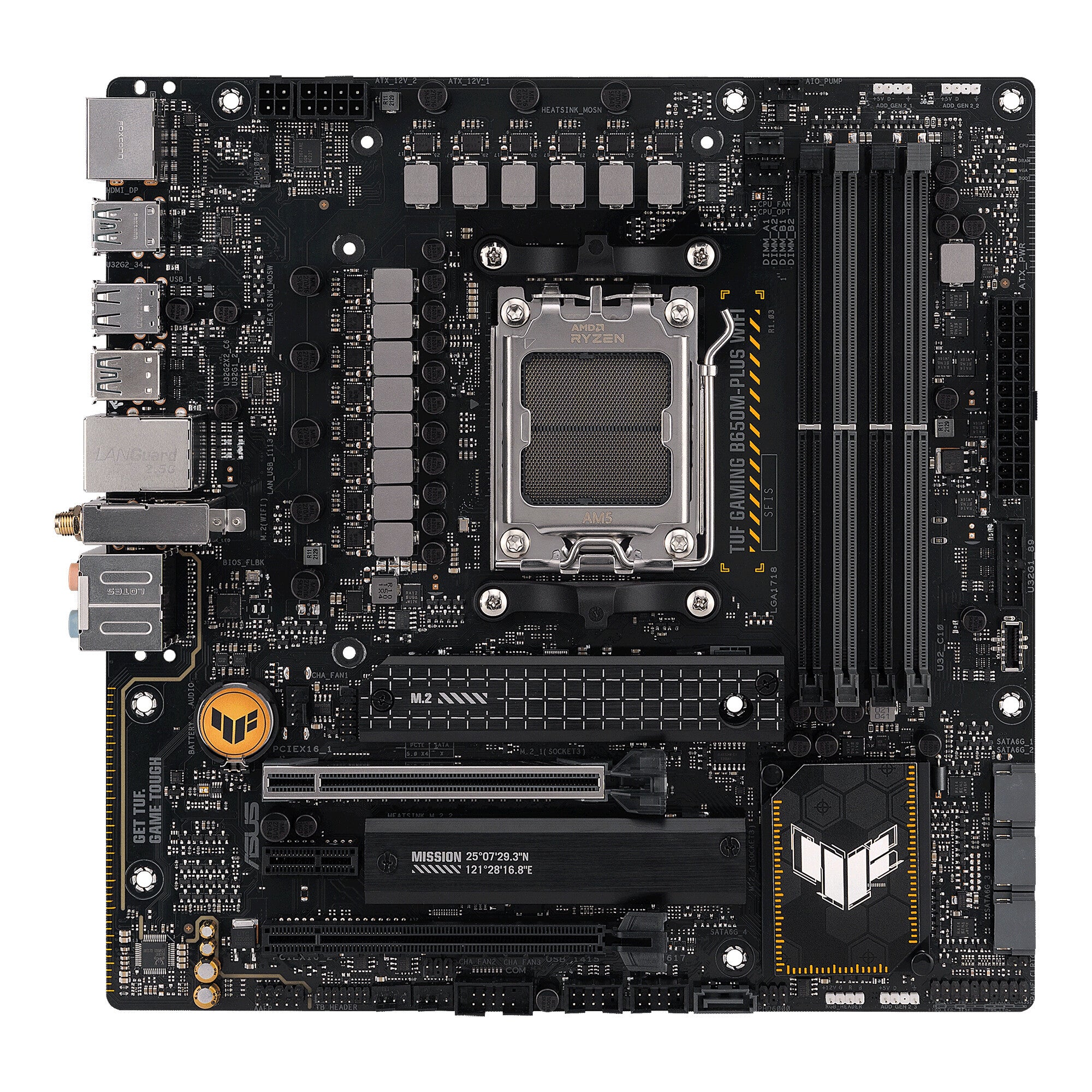

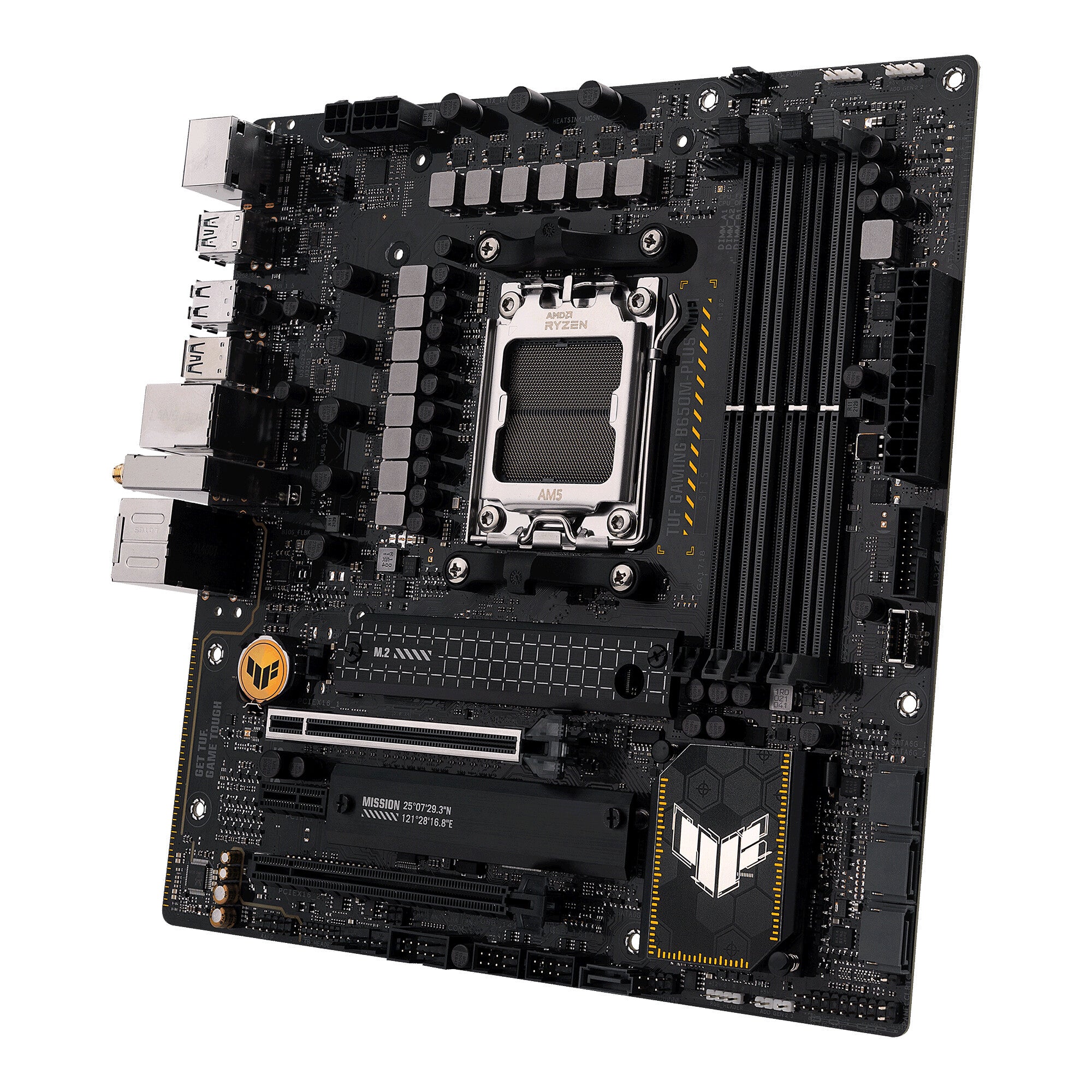

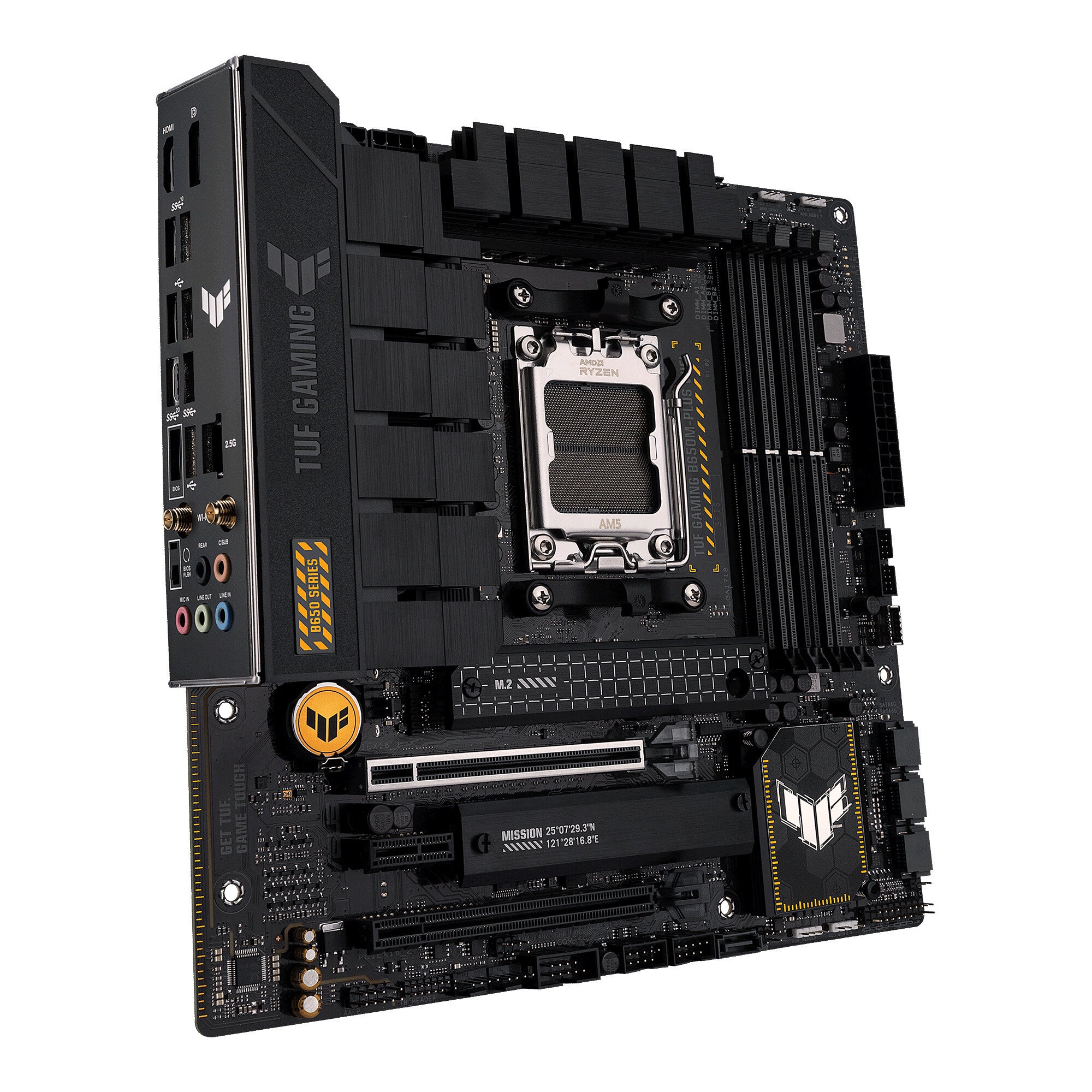

ASUS TUF GAMING B650M-PLUS WIFI mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
KEY FEATURES
- AMD Socket AM5
- PC micro ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS TUF GAMING B650M-PLUS WIFI?
How much memory can the ASUS TUF GAMING B650M-PLUS WIFI support?
Does this motherboard support WiFi 6?
ASUS TUF GAMING B650M-PLUS WIFI mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
Description

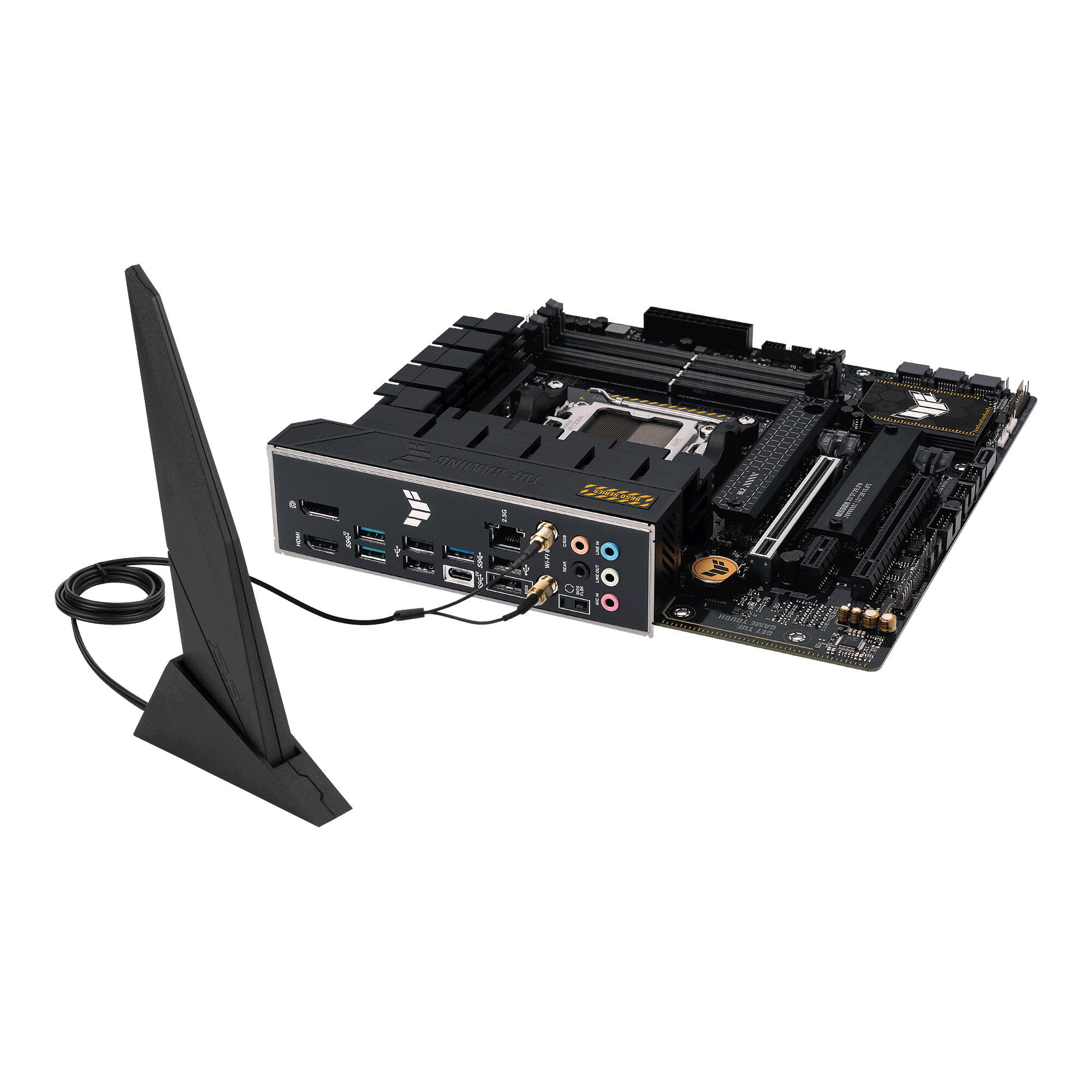

The ASUS TUF GAMING B650M-PLUS WIFI brings AMD's B650 chipset to a compact mATX form factor, making it an excellent choice for builders who want modern AM5 performance without needing a full-size ATX case. This mainstream board supports the latest AMD Ryzen 7000 series processors and provides a solid foundation for both gaming and productivity builds. The TUF Gaming series focuses on durability and reliability, with military-grade components tested to withstand demanding conditions.
Memory support extends up to 128GB across four DDR5 DIMM slots, with speeds reaching 6400MHz when using compatible modules and EXPO memory profiles for easy overclocking. Two PCIe 4.0 x16 slots provide flexibility for multi-GPU setups or additional expansion cards, while a single PCIe 4.0 x1 slot handles smaller add-in cards. Connectivity is comprehensive with built-in Wi-Fi 6 for wireless networking, 2.5Gb Ethernet for high-speed wired connections, and Realtek 7.1 audio for immersive sound.
Setup is straightforward thanks to ASUS's UEFI BIOS interface and support for DDR5 EXPO profiles that automatically configure memory timings for optimal performance. The board includes essential accessories like an I/O shield and user documentation to get you started. RGB lighting enthusiasts will appreciate the dedicated RGB LED pin header for connecting compatible lighting strips and creating custom lighting effects that sync with other ASUS Aura-compatible components.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

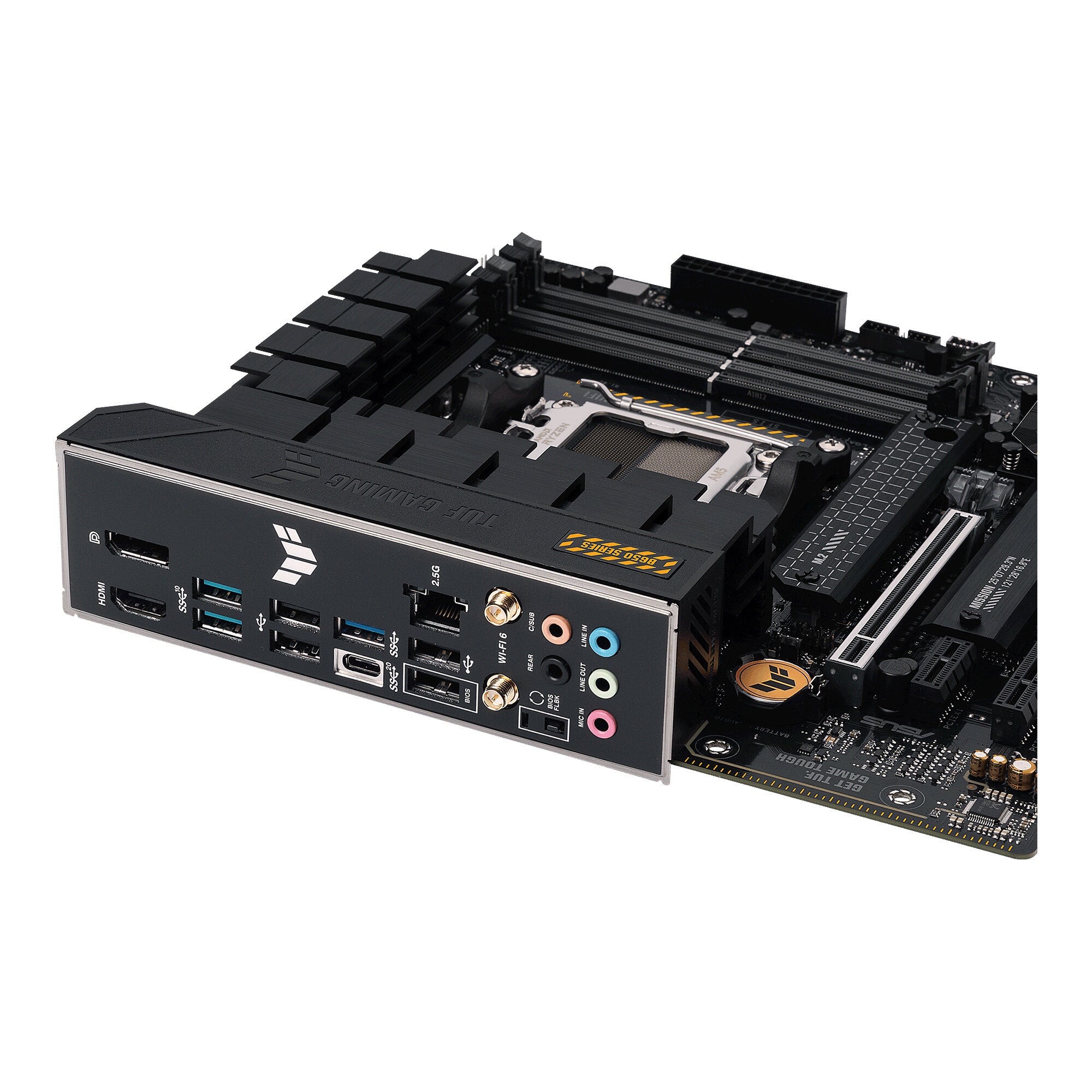

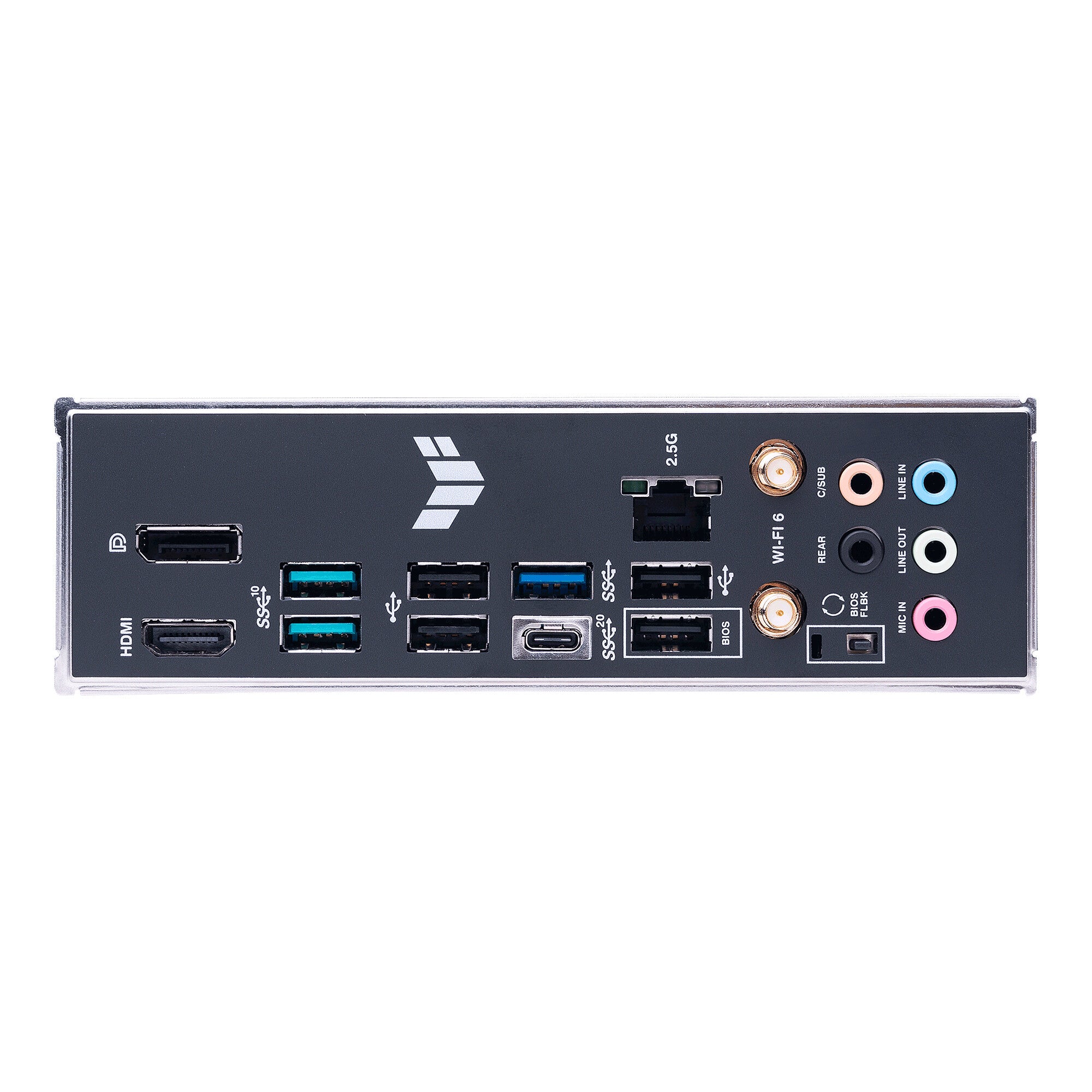

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
