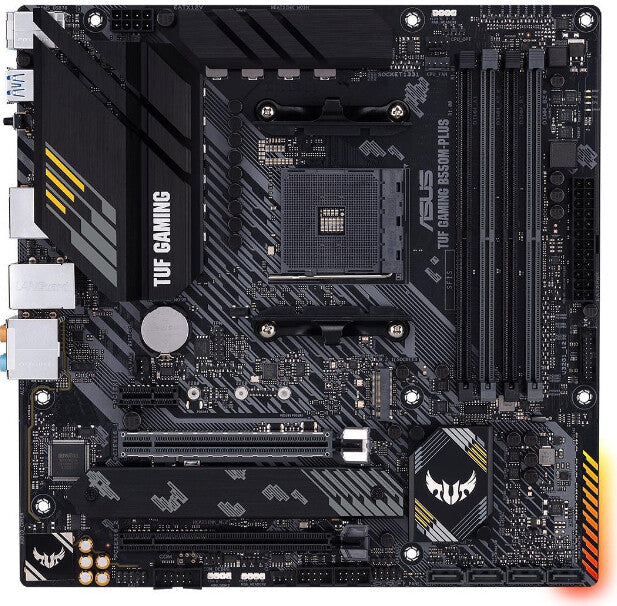

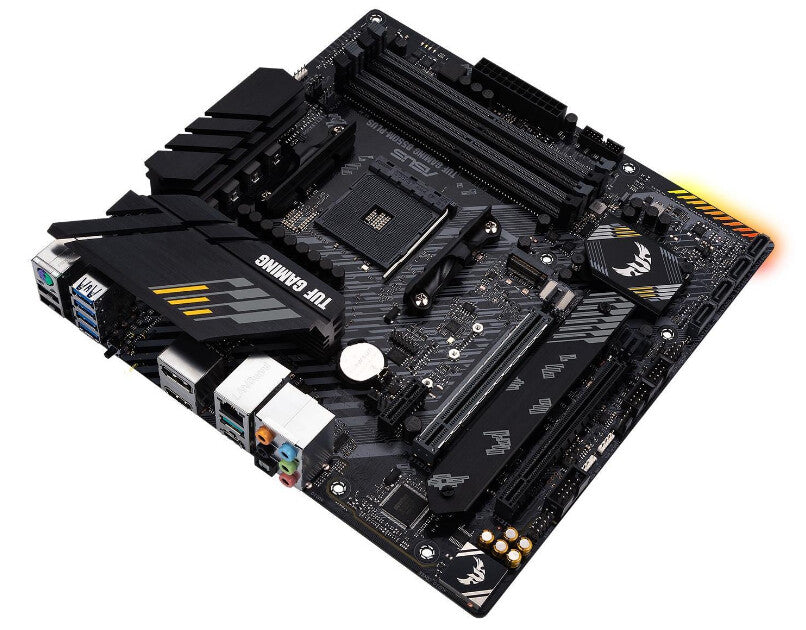

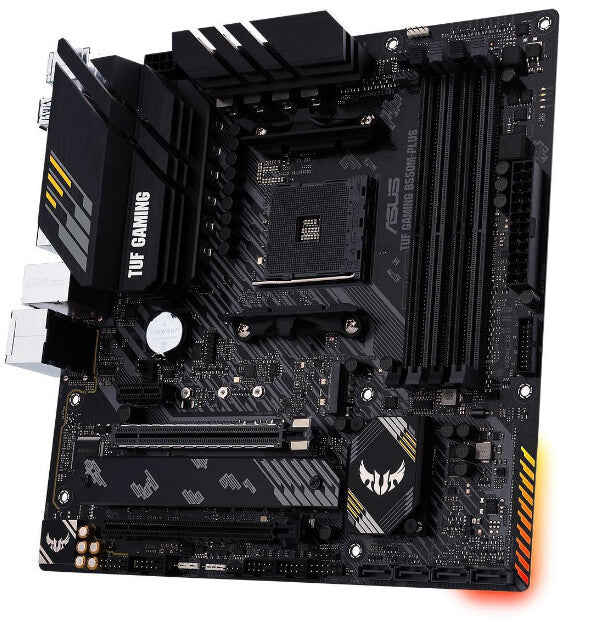

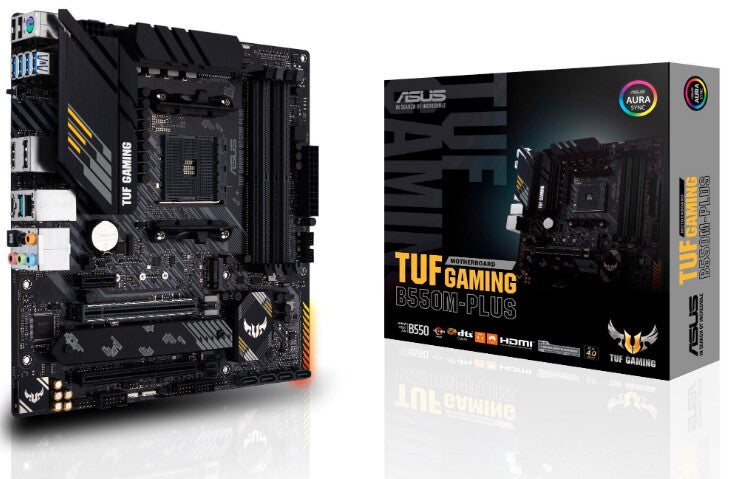

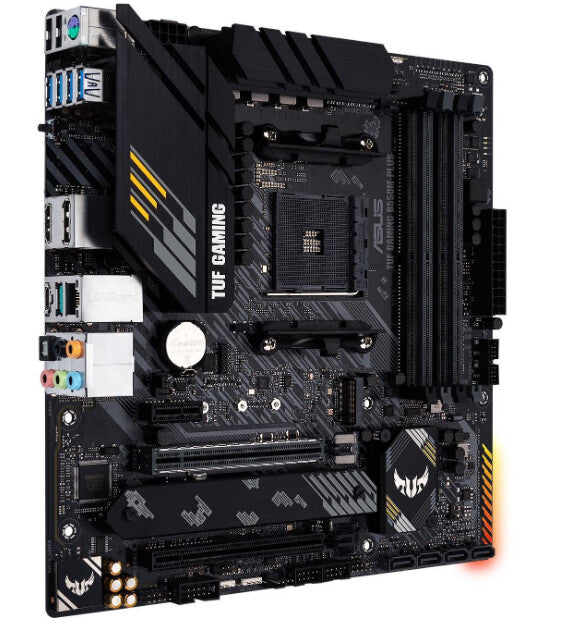

ASUS TUF GAMING B550M PLUS mATX Motherboard | AM4 | 4x DDR4 Slots
KEY FEATURES
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: Provides crystal-clear in-game voice communication
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does the motherboard have?
What is the maximum internal memory supported?
Does this motherboard support RGB lighting?
ASUS TUF GAMING B550M PLUS mATX Motherboard | AM4 | 4x DDR4 Slots
Description
The ASUS TUF GAMING B550M PLUS is a micro ATX motherboard built on AMD's B550 chipset, designed for Ryzen 3000 series processors and AM4 socket builds. This mainstream gaming board delivers solid performance in a compact form factor, making it ideal for smaller PC builds without sacrificing essential features. The B550 chipset brings PCIe 4.0 support to the table, ensuring compatibility with the latest graphics cards and high-speed NVMe drives.
Memory support extends up to 128GB of DDR4 across four DIMM slots, with speeds ranging from standard 2133MHz up to impressive 4600MHz when using compatible modules and XMP profiles. The board includes dual M.2 slots for fast NVMe storage expansion, while PCIe 4.0 compatibility means your graphics card and storage devices can operate at maximum bandwidth. Connectivity options include 2.5 Gigabit Ethernet for faster network speeds, plus a comprehensive selection of USB 3.2 ports including both Type-A and Type-C connectors.
The power delivery system features 10 DrMOS stages, providing stable power to your Ryzen processor even under demanding workloads. Display outputs include both HDMI and DisplayPort connections for integrated graphics users, while Aura Sync RGB lighting support lets you customize the board's appearance to match your build theme. The package includes the essential accessories you need to get started, including the I/O shield and necessary cables for connecting SATA drives.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| Graphics | |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 4 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 5 |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Harmonized System (HS) code | 84733020 |
| BIOS | |
|---|---|
| BIOS type | UEFI |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 67 mm |
| Other features | |
|---|---|
| Weight | 845 g |
