ASUS TUF Gaming B550-PLUS ATX Motherboard | AM4 | 4x DDR4 Slots
KEY FEATURES
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- AI noise-cancelling microphone: Provides crystal-clear in-game voice communication
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does the ASUS TUF Gaming B550-PLUS have?
What is the benefit of the 2.5 Gigabit Ethernet on this motherboard?
Is the ASUS TUF Gaming B550-PLUS easy to install for beginners?
ASUS TUF Gaming B550-PLUS ATX Motherboard | AM4 | 4x DDR4 Slots
Description

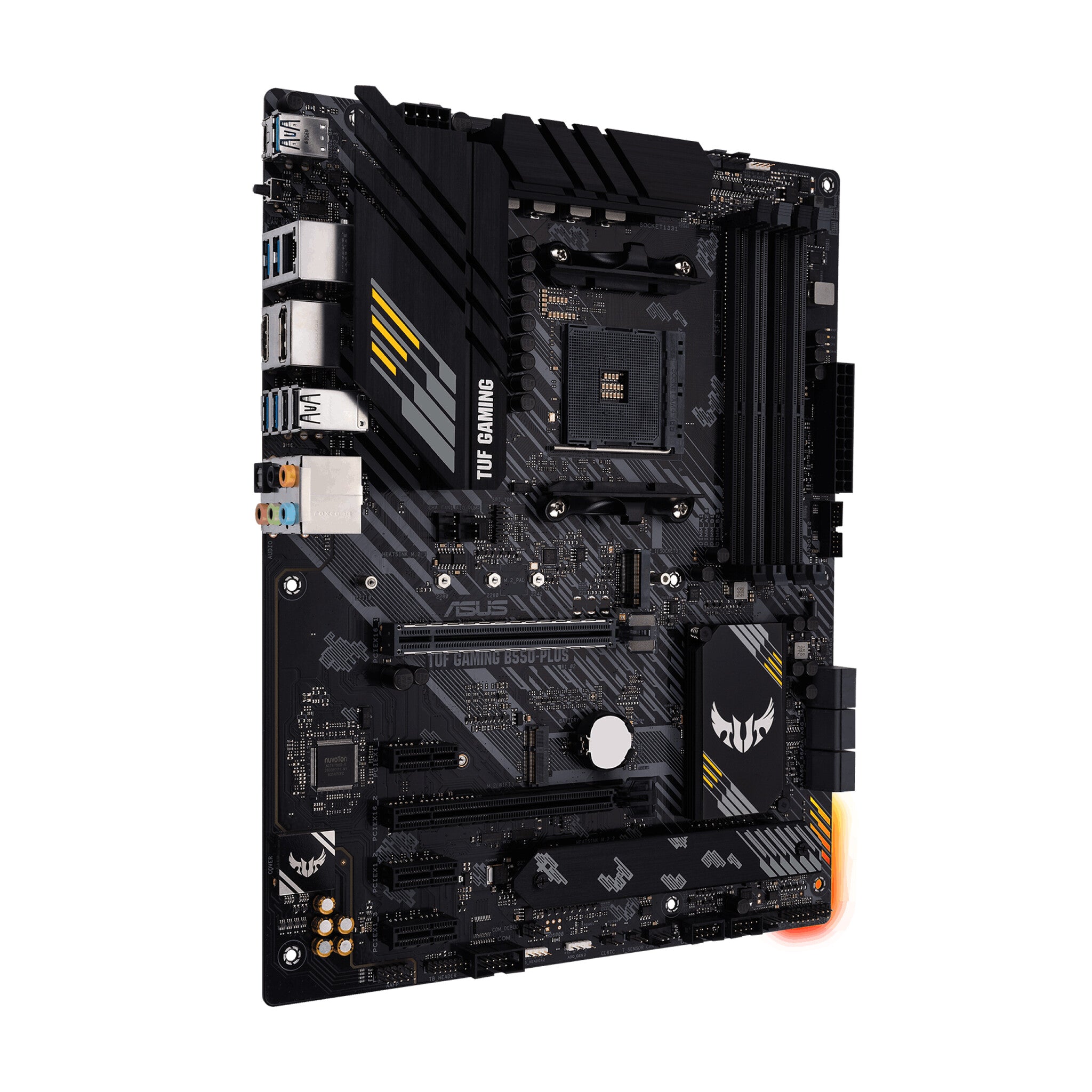

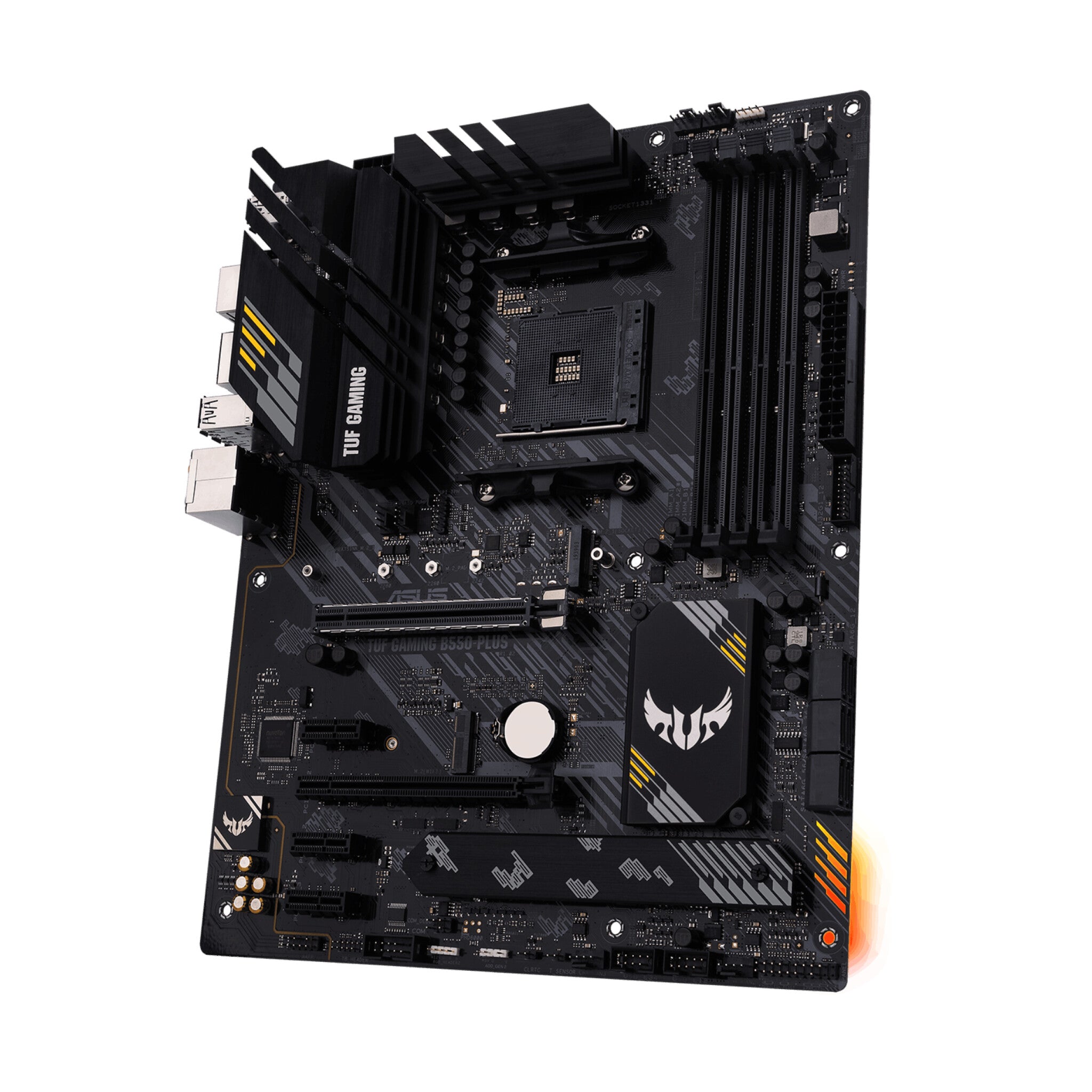

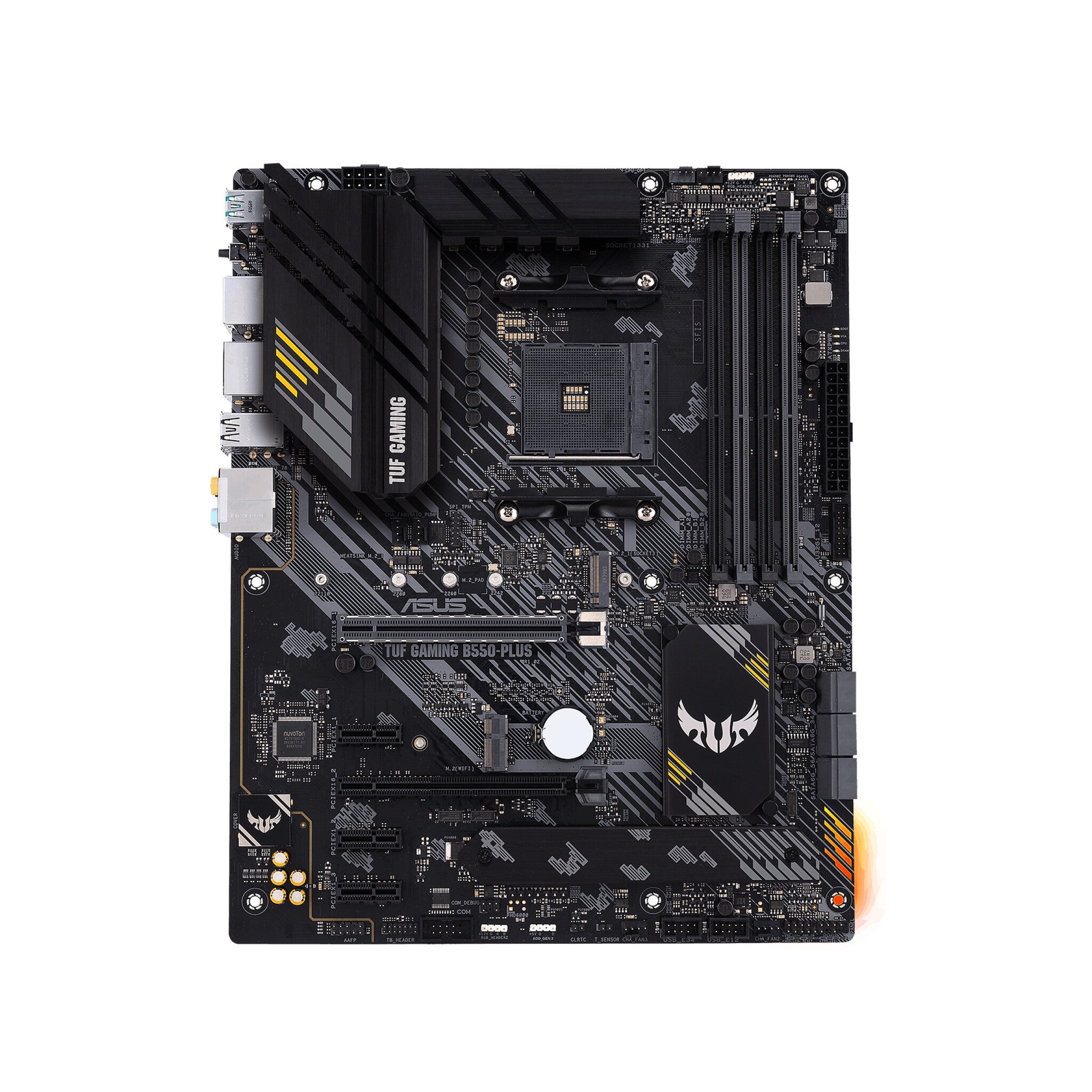

The ASUS TUF Gaming B550-PLUS is an ATX motherboard built around AMD's B550 chipset, designed to handle the latest AM4 processors including Ryzen 3000 and 5000 series CPUs. This mainstream board strikes a practical balance between performance and value, making it well-suited for gaming builds, productivity workstations, and general-purpose PCs that need reliable performance without premium pricing.

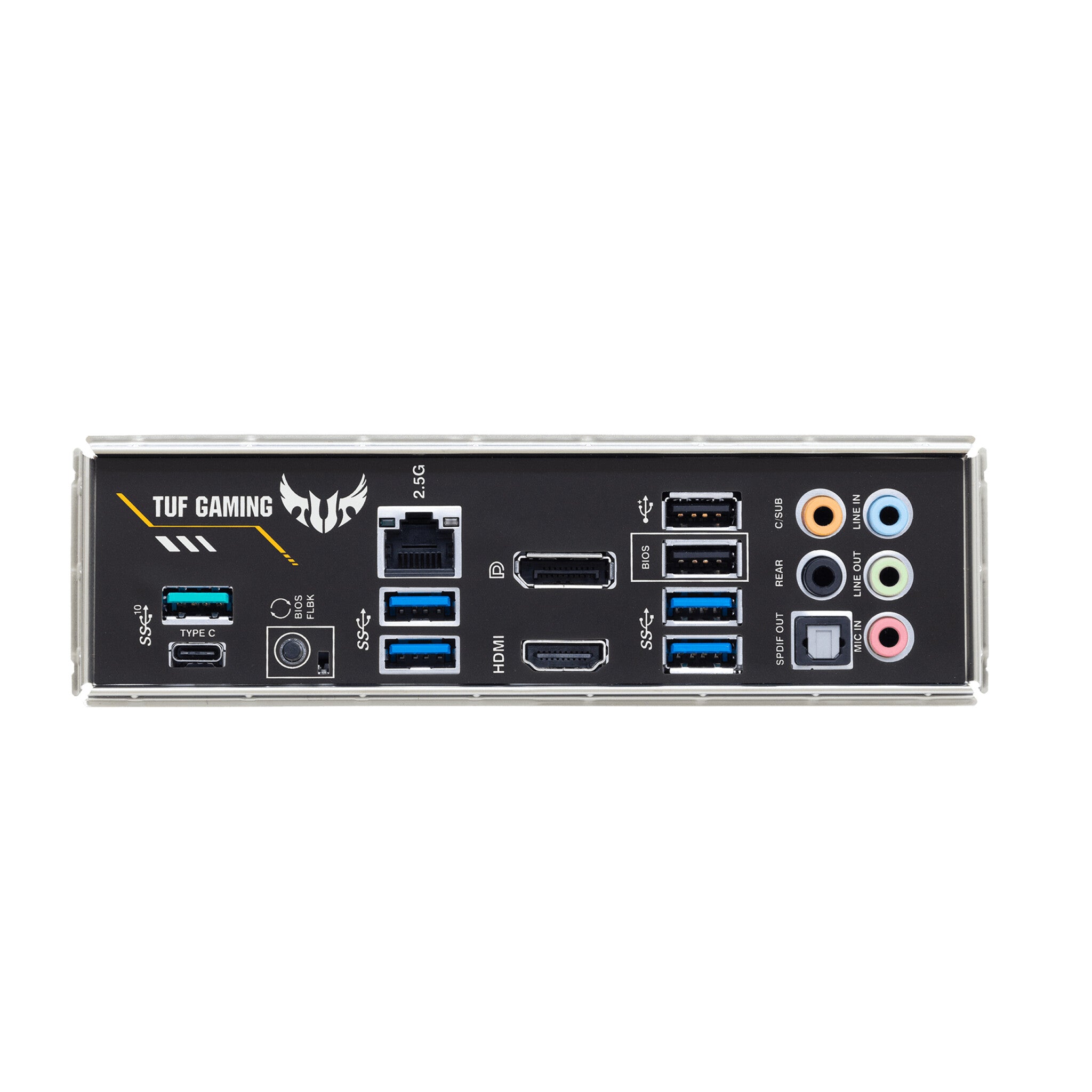

Memory support extends up to 128GB across four DDR4 DIMM slots, with speeds reaching 4600MHz when overclocked through AMD's EXPO profiles. The board features a single PCIe 4.0 x16 slot for your graphics card, plus three PCIe 3.0 x1 slots for expansion cards. Dual M.2 slots provide fast SSD storage options, while traditional SATA connections handle additional drives. Connectivity includes 2.5 Gigabit Ethernet for faster network speeds, USB 3.2 Gen 2 ports in both Type-A and Type-C formats, and video outputs via HDMI and DisplayPort for processors with integrated graphics.
Setup benefits from ASUS's straightforward BIOS interface and memory compatibility testing that takes the guesswork out of DDR4 overclocking. The TUF Gaming series emphasizes durability with military-grade components and enhanced cooling designs. Your purchase includes the motherboard, I/O shield, SATA cables, M.2 mounting hardware, and a detailed user guide to walk you through the installation process.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Nettop |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC S1200A |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 945 g |
