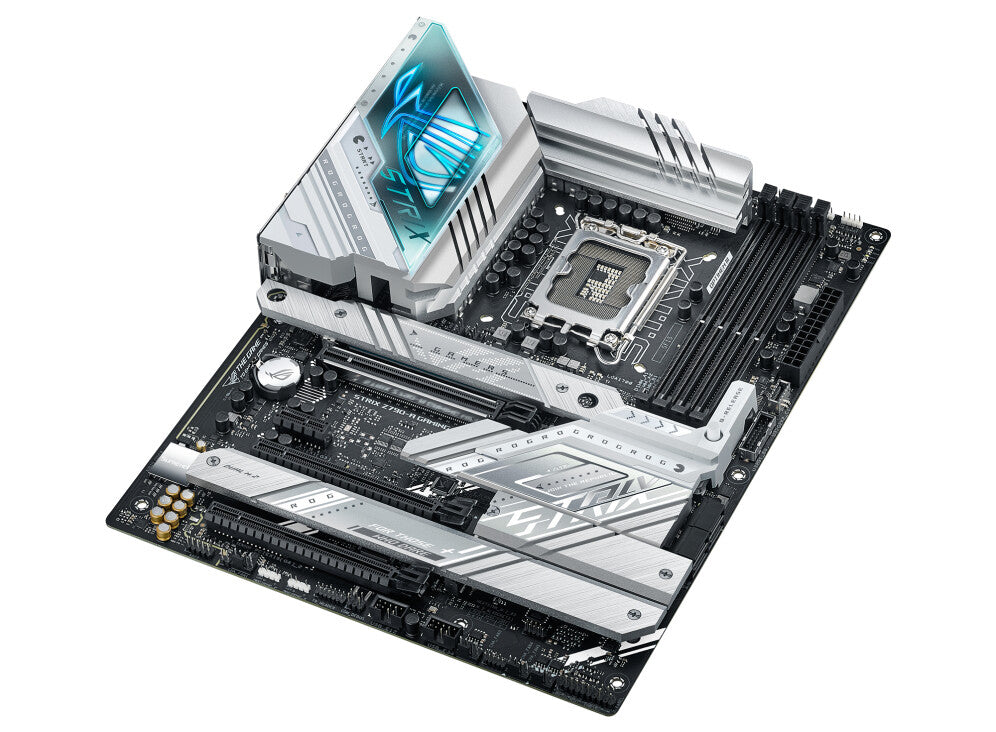

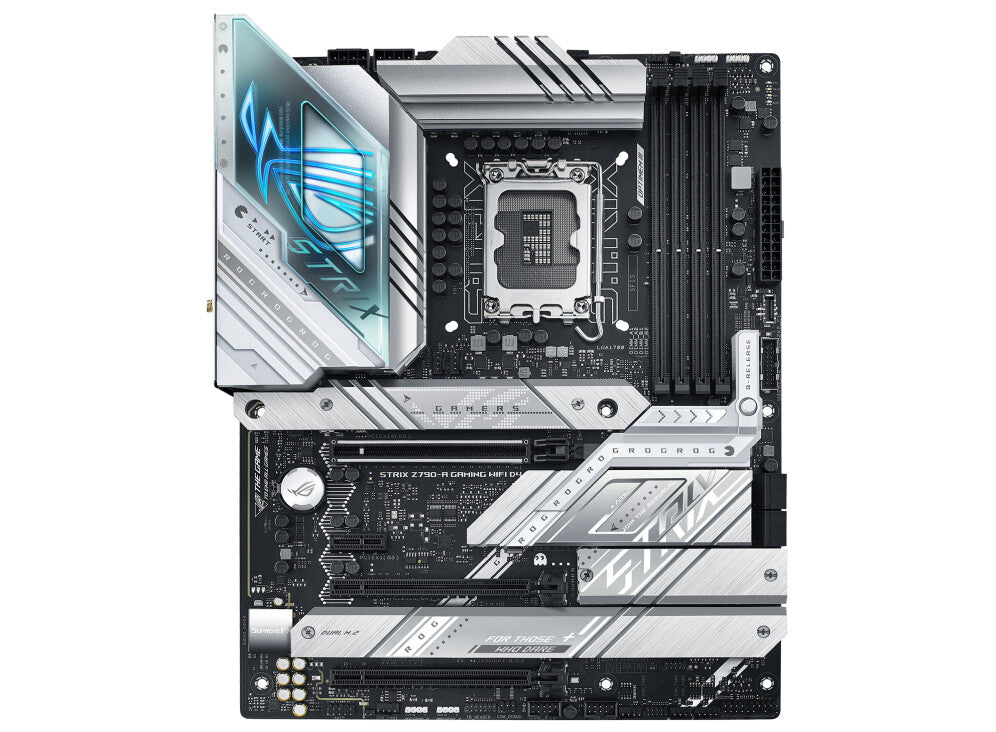

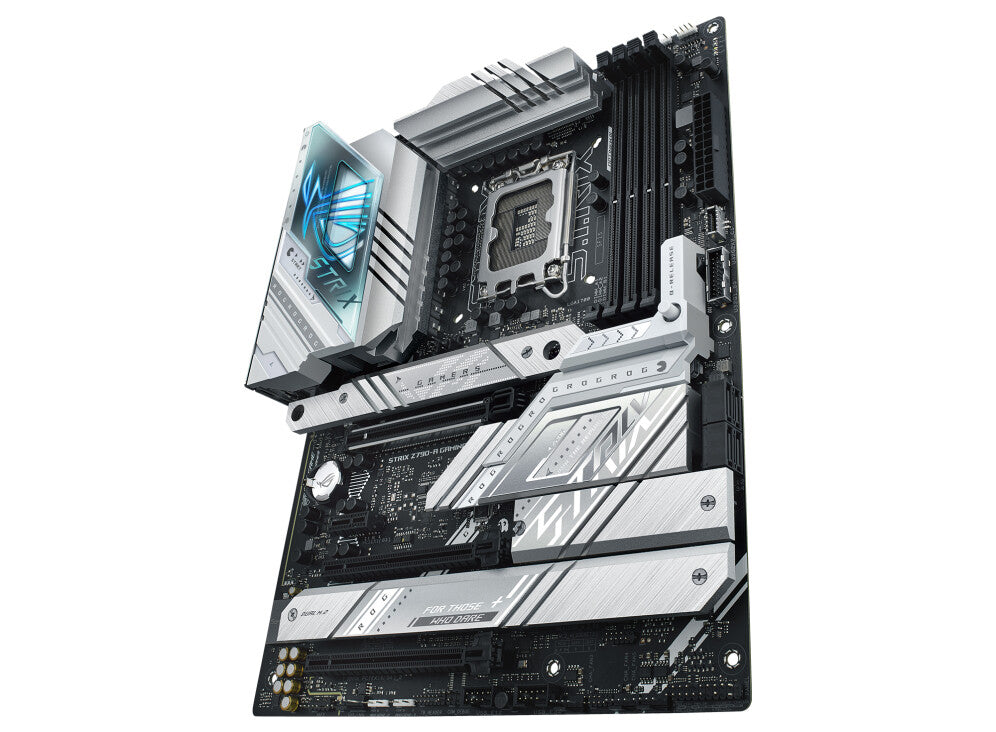

ASUS ROG STRIX Z790-A GAMING WIFI D4 ATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6E
KEY FEATURES
- AMD LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC ATX Intel Z790 Realtek ALC4080 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does the ASUS ROG STRIX Z790-A have?
Does this motherboard support WiFi 6E?
What is the advantage of the PCIe 5.0 slot?
ASUS ROG STRIX Z790-A GAMING WIFI D4 ATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6E
Description

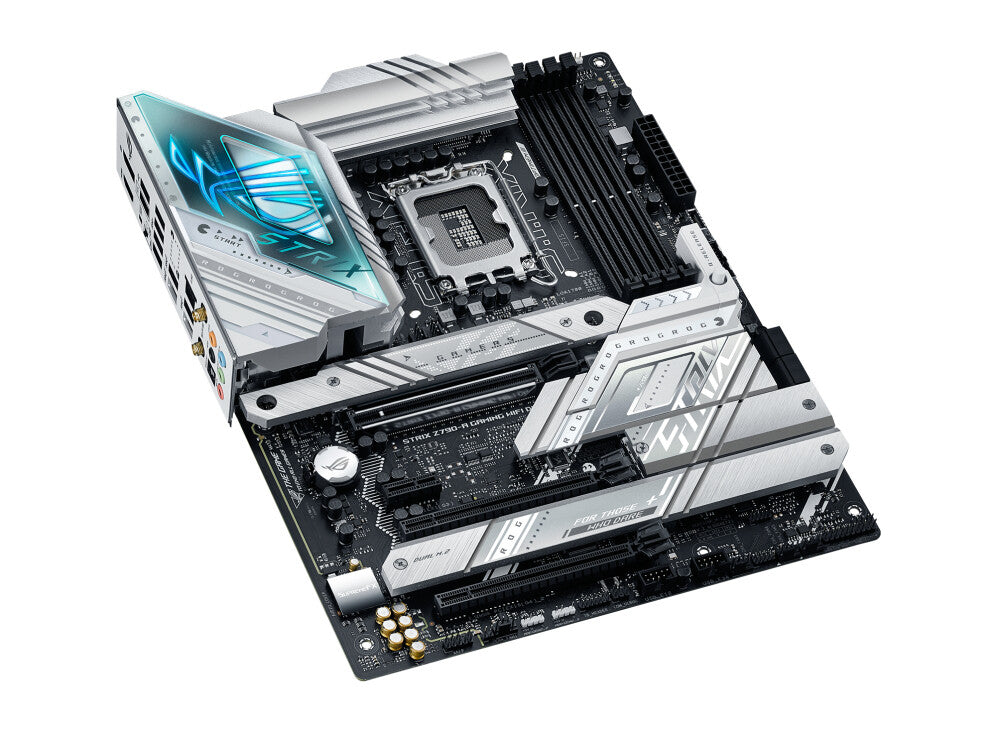

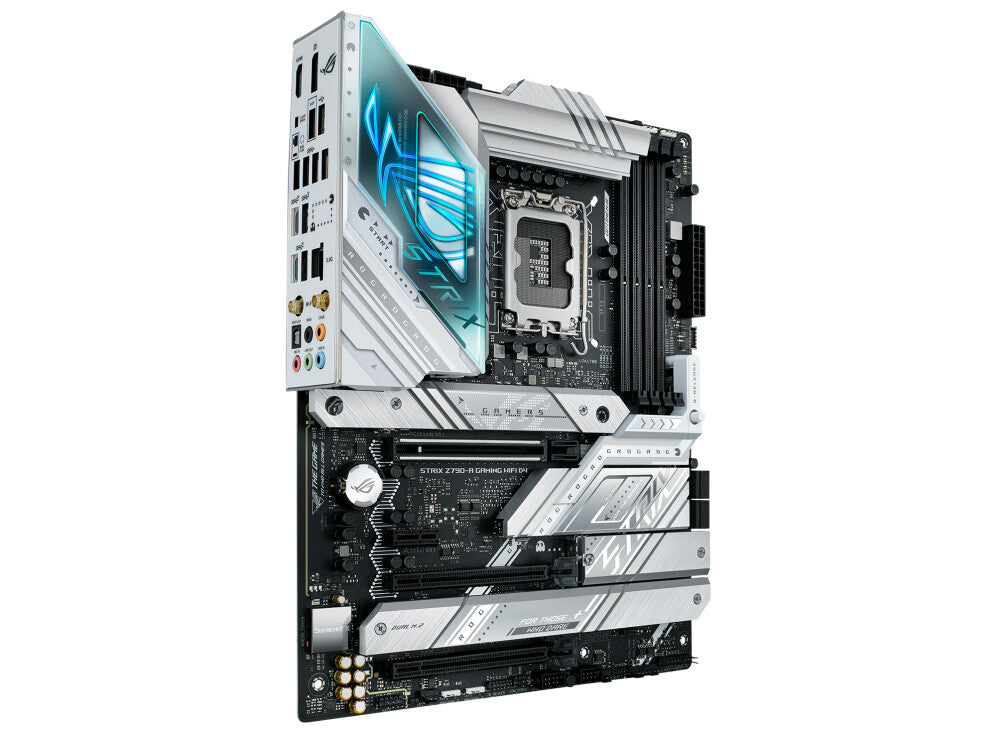

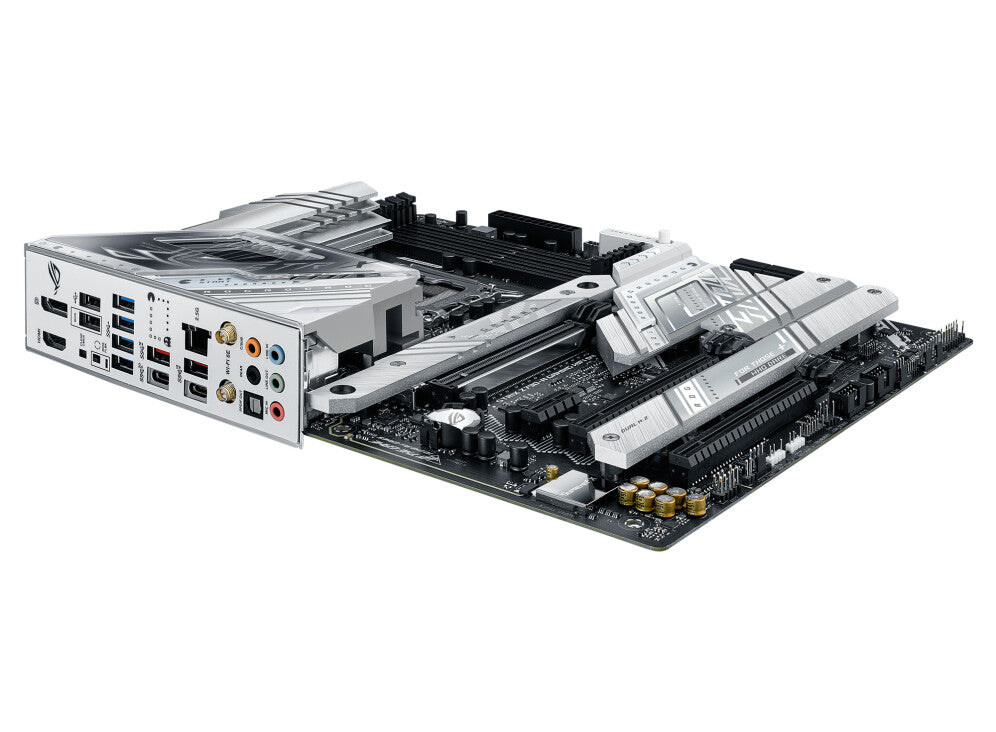

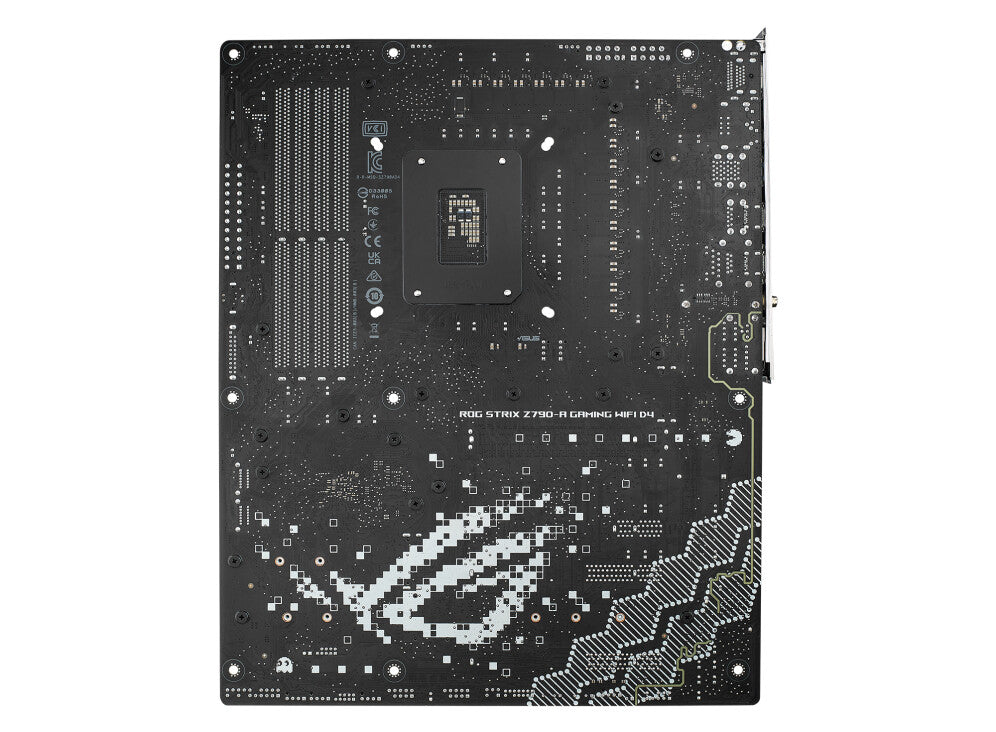

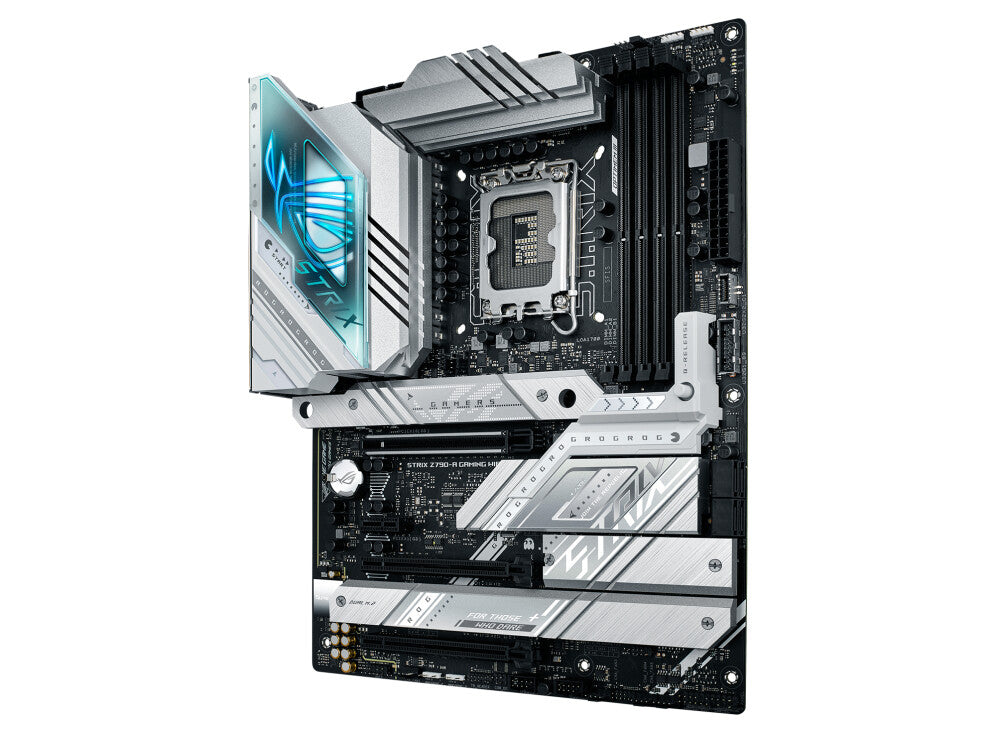

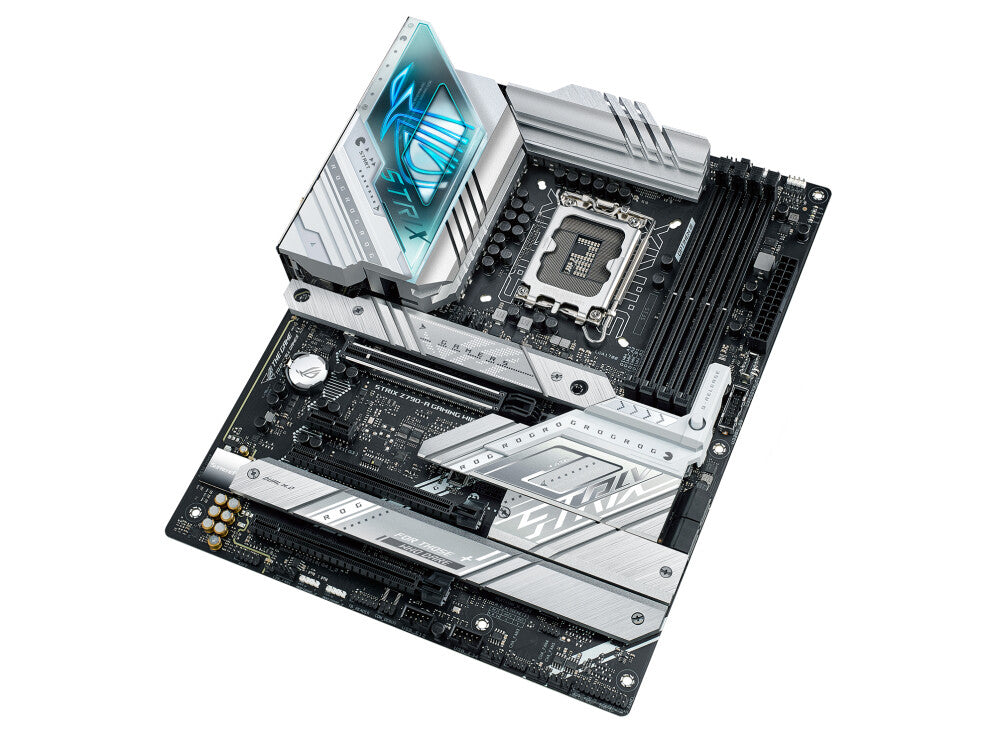

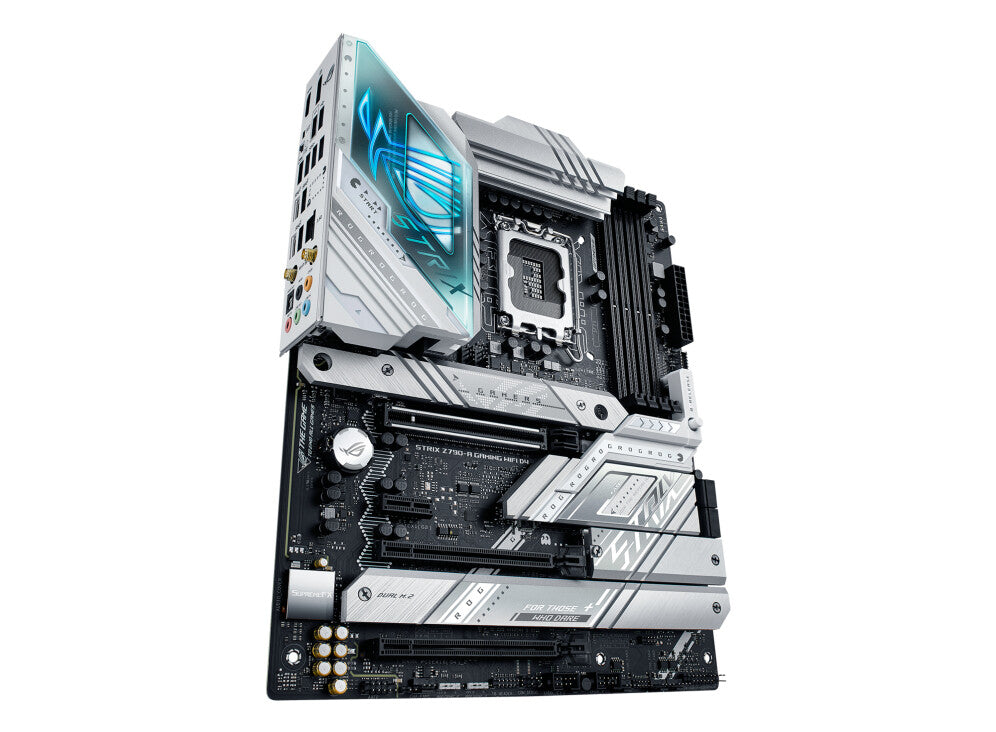

The ASUS ROG STRIX Z790-A GAMING WIFI D4 is an ATX motherboard built around Intel's Z790 chipset and LGA1700 socket. This enthusiast-tier board supports 13th and 12th Gen Intel Core processors, from budget Celeron chips up to flagship Core i9 models. The Z790 chipset brings overclocking capabilities and premium features, making this board well-suited for gaming builds and performance-focused systems where you want room to upgrade and expand.

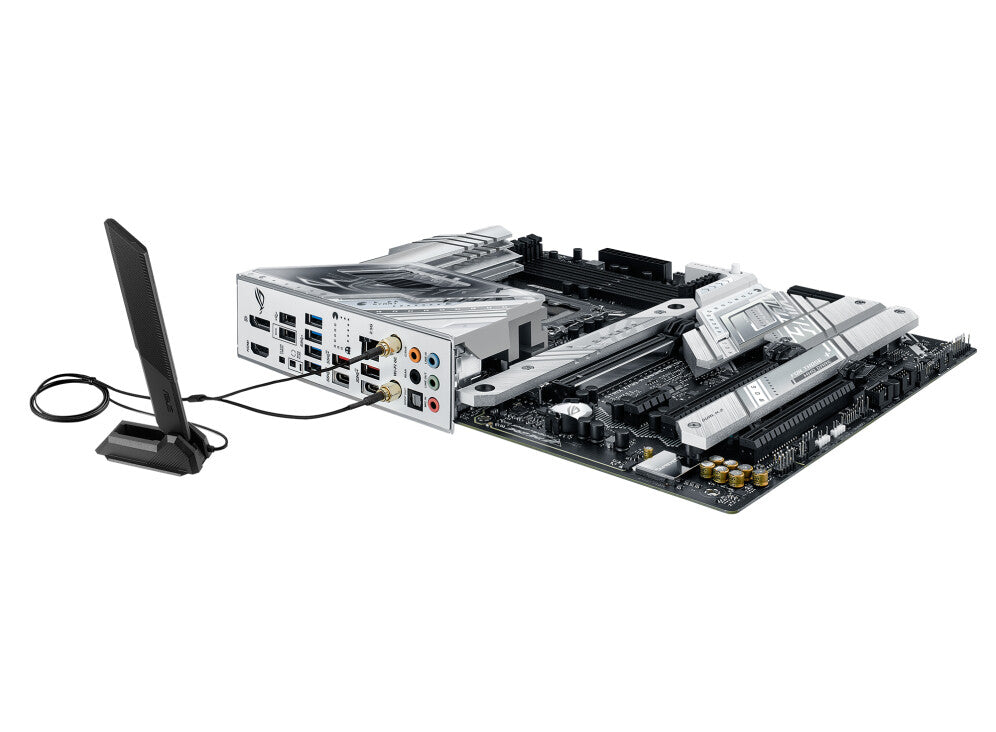

Memory support centers on DDR4 with four DIMM slots accommodating up to 128GB. The board handles DDR4 speeds from standard 3000MHz up to 5333MHz, with support for Intel XMP profiles to achieve these higher speeds with compatible memory kits. For graphics and expansion, you get three PCIe x16 slots total: one PCIe 5.0 x16 for the latest GPUs, two PCIe 4.0 x16 slots for multi-GPU setups or high-bandwidth cards, plus a PCIe 3.0 x1 slot. The onboard Wi-Fi eliminates the need for separate wireless cards.
RGB lighting headers let you customize system aesthetics with compatible LED strips and fans. The board includes standard accessories like an I/O shield and user documentation to get your build started. With its combination of current-gen features, extensive expansion options, and DDR4 memory support for builders who want to reuse existing RAM, this ROG Strix board delivers the performance foundation that gaming and enthusiast systems demand.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5066,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 368 mm |
| Package depth | 293 mm |
| Package height | 290 mm |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Back-to-BIOS button | Yes |
Frequently Asked Questions
How many memory slots does the ASUS ROG STRIX Z790-A have?
Does this motherboard support WiFi 6E?
What is the advantage of the PCIe 5.0 slot?
What processors are compatible with the ASUS ROG STRIX Z790-A?
