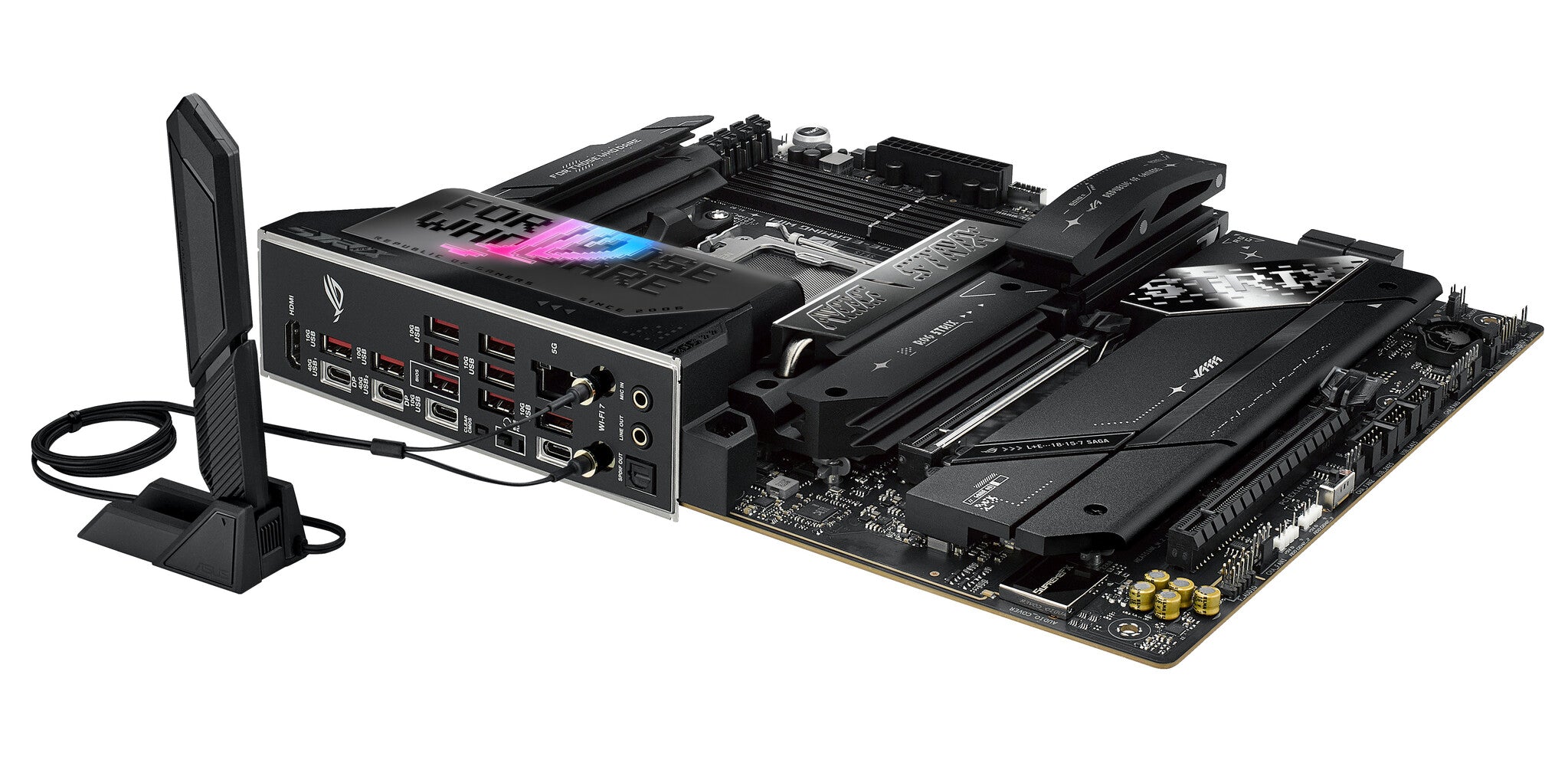

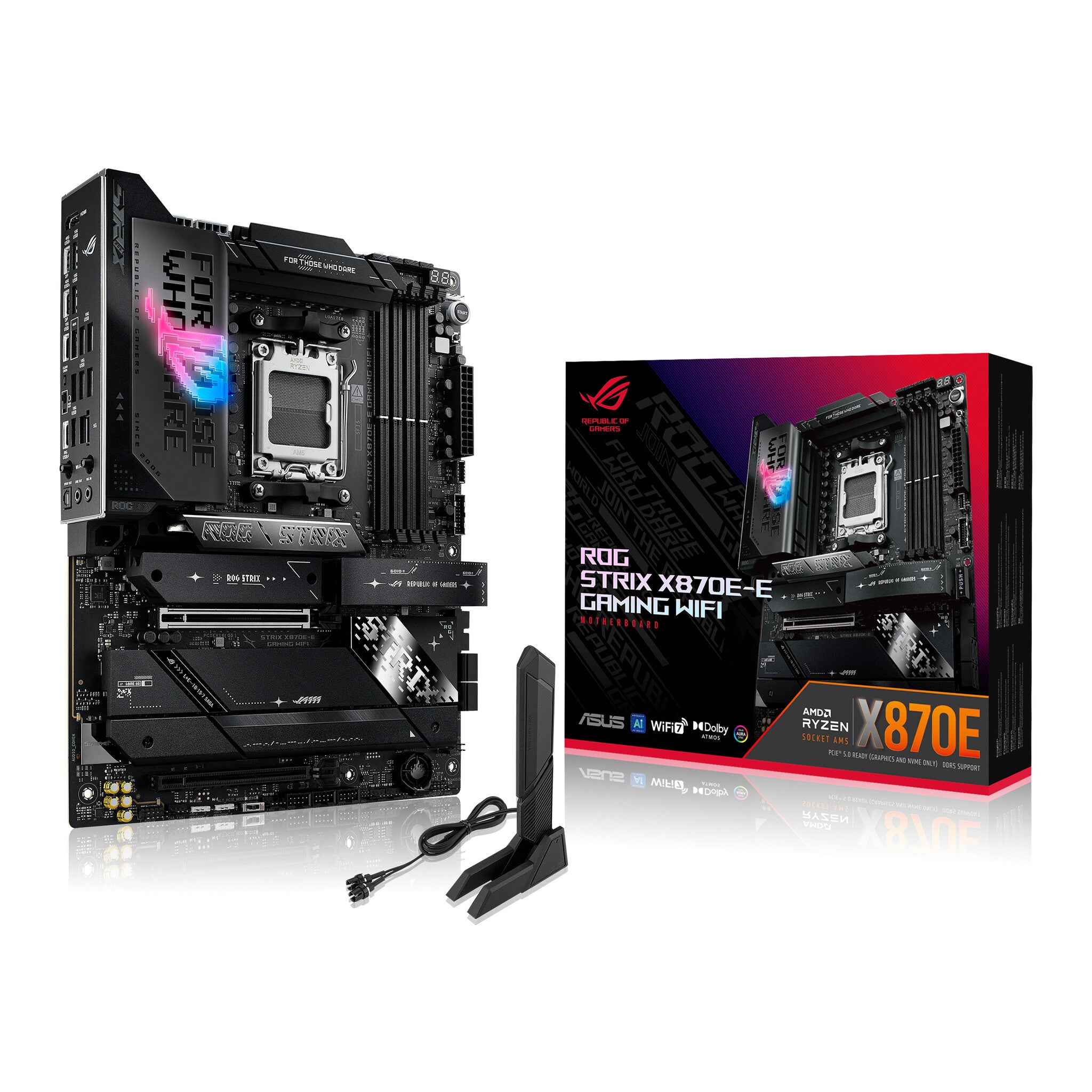

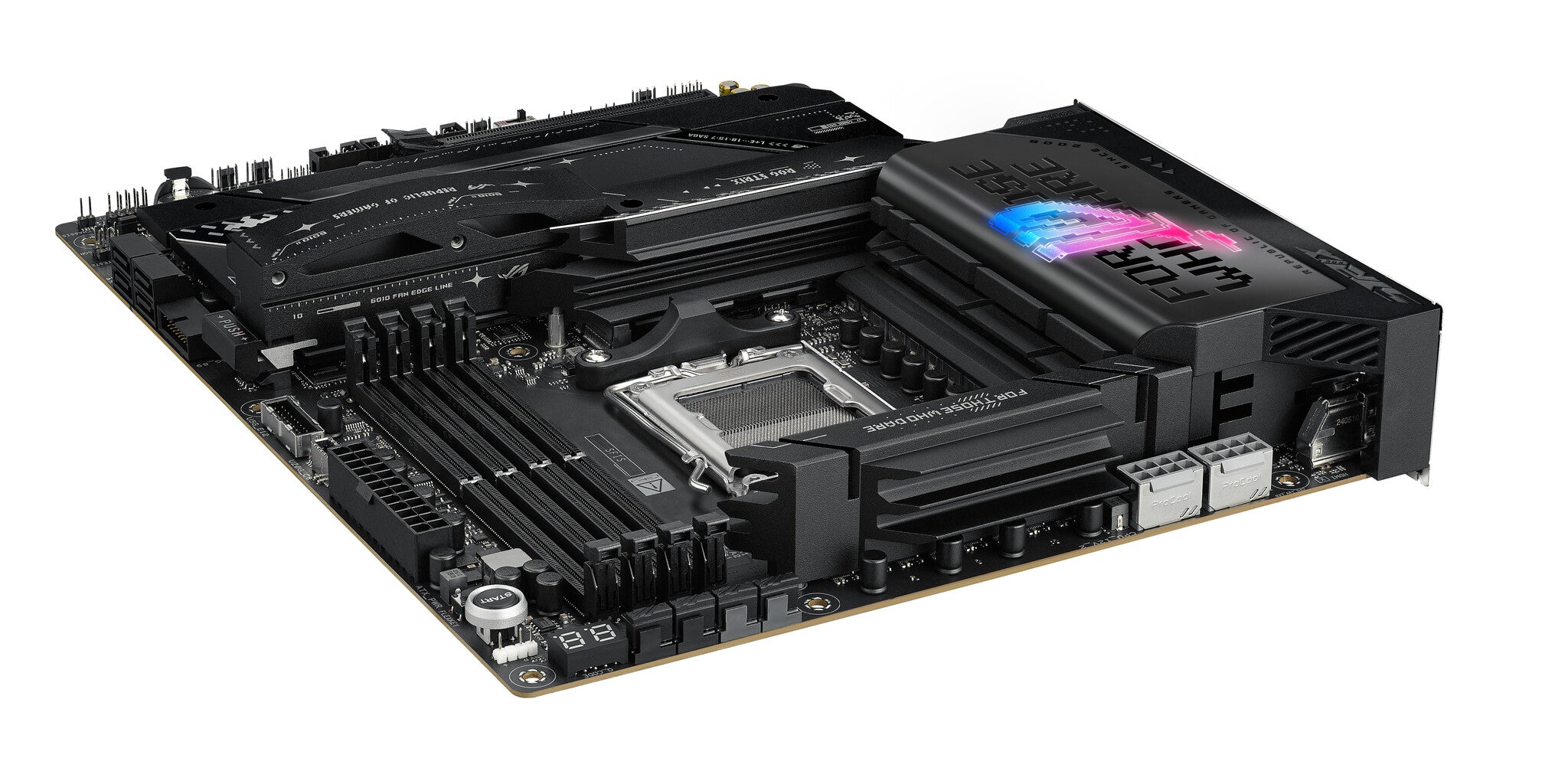

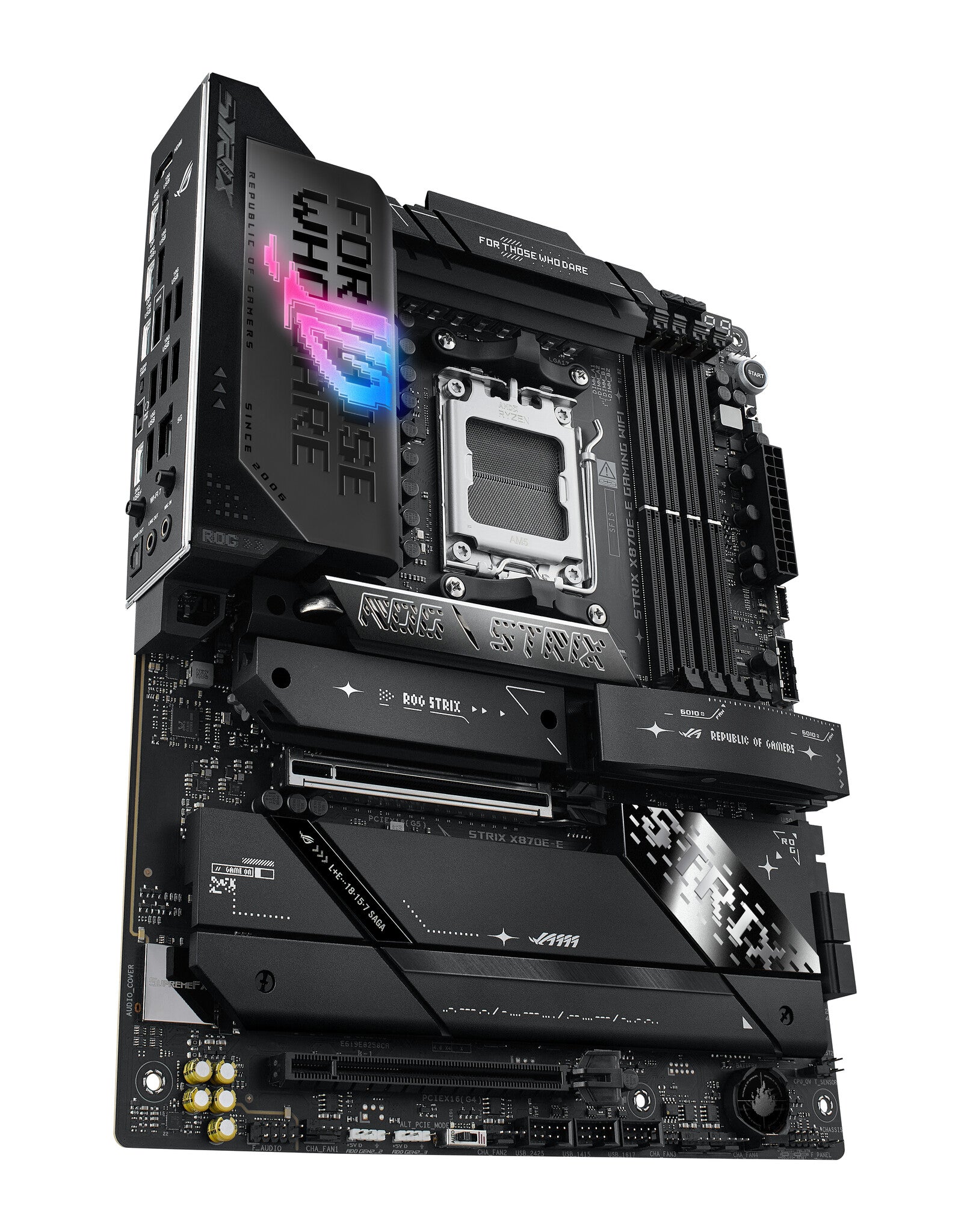

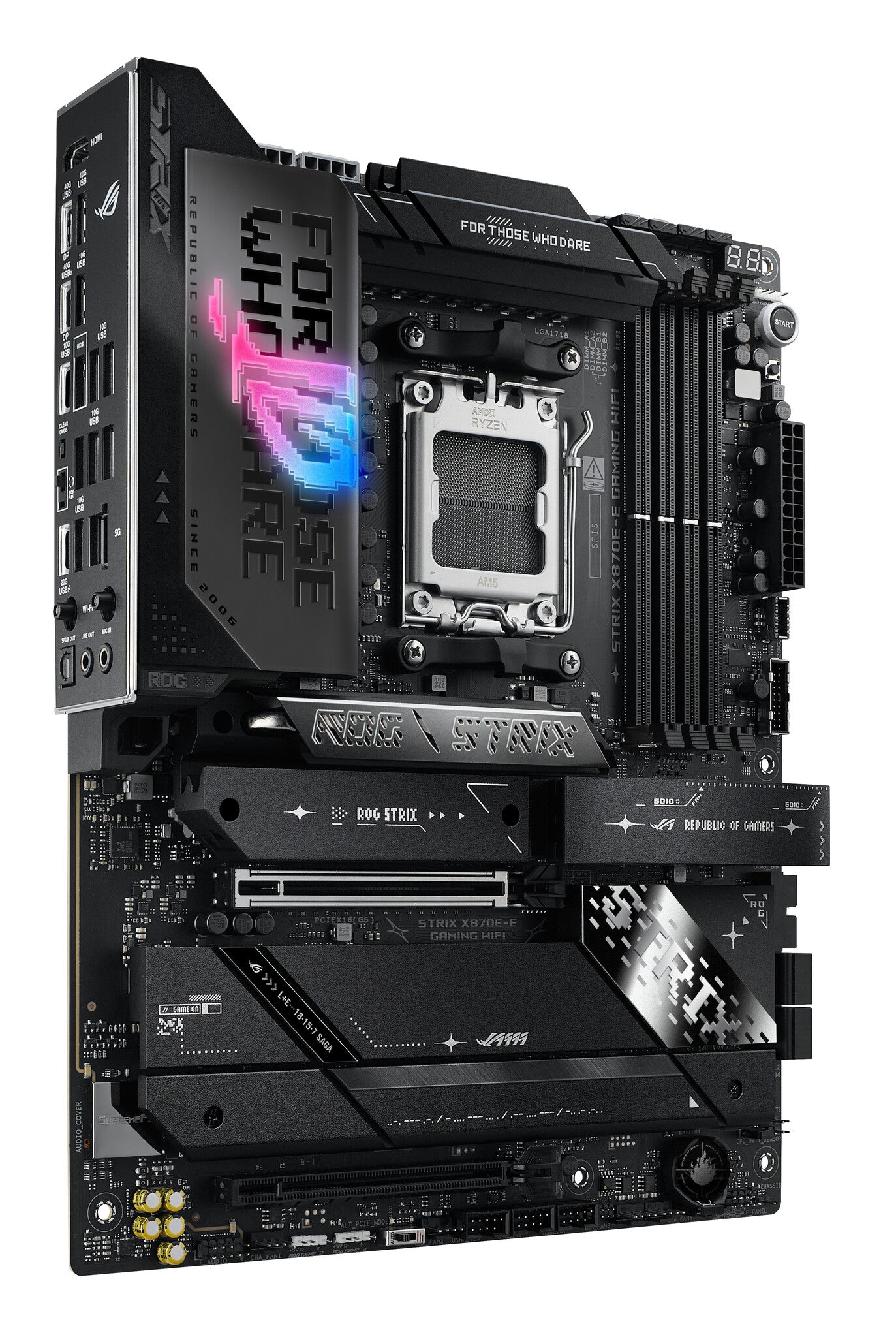

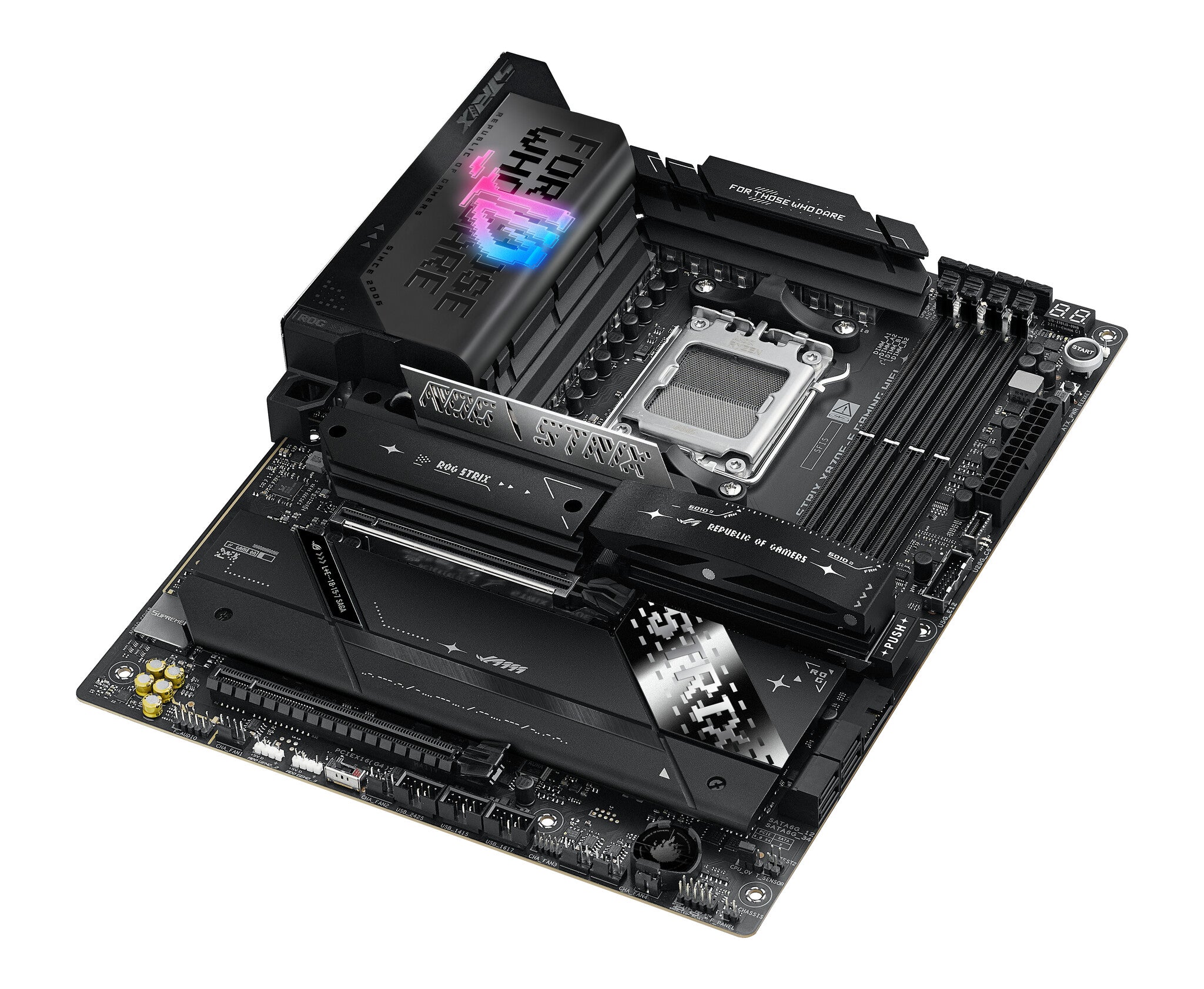

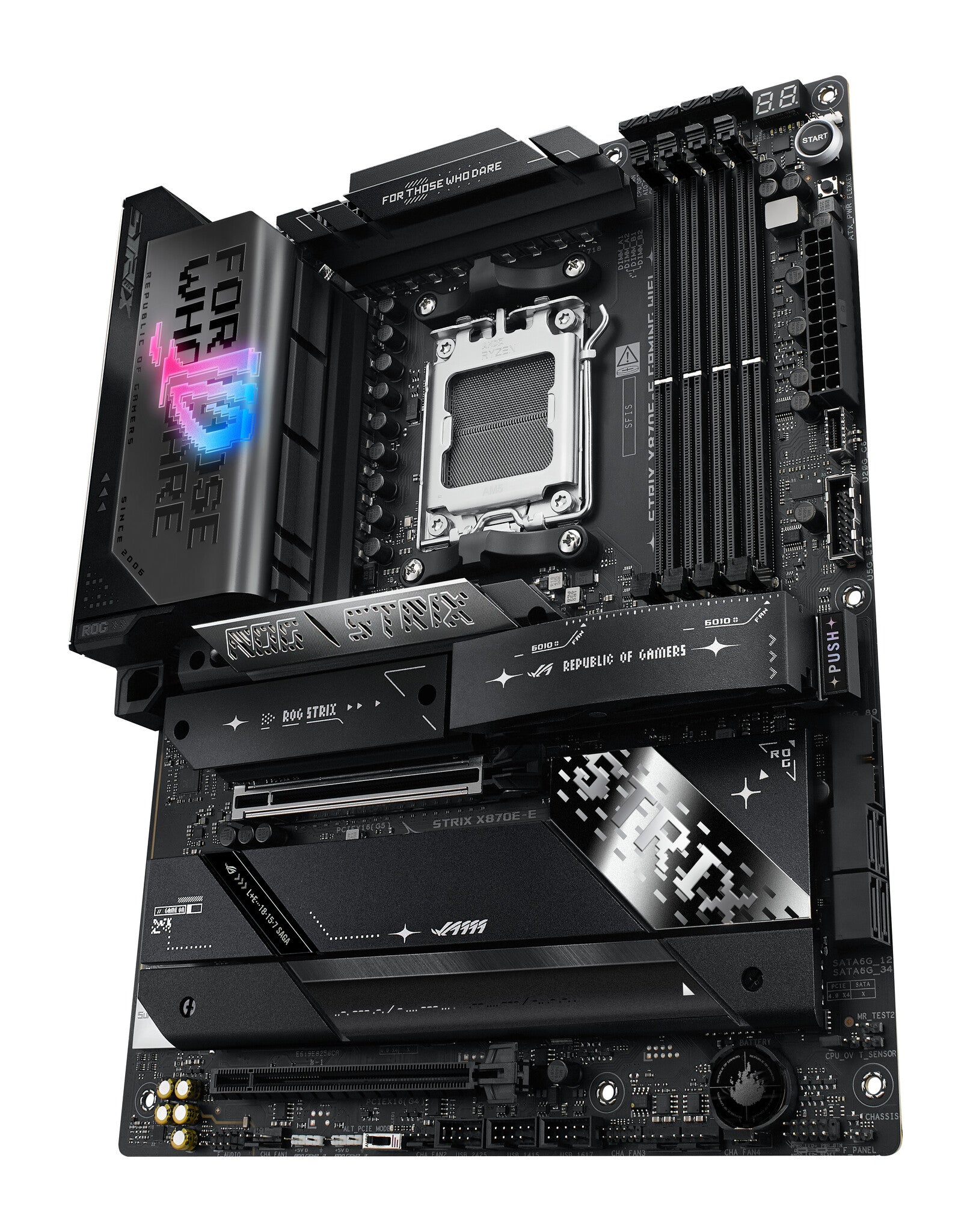

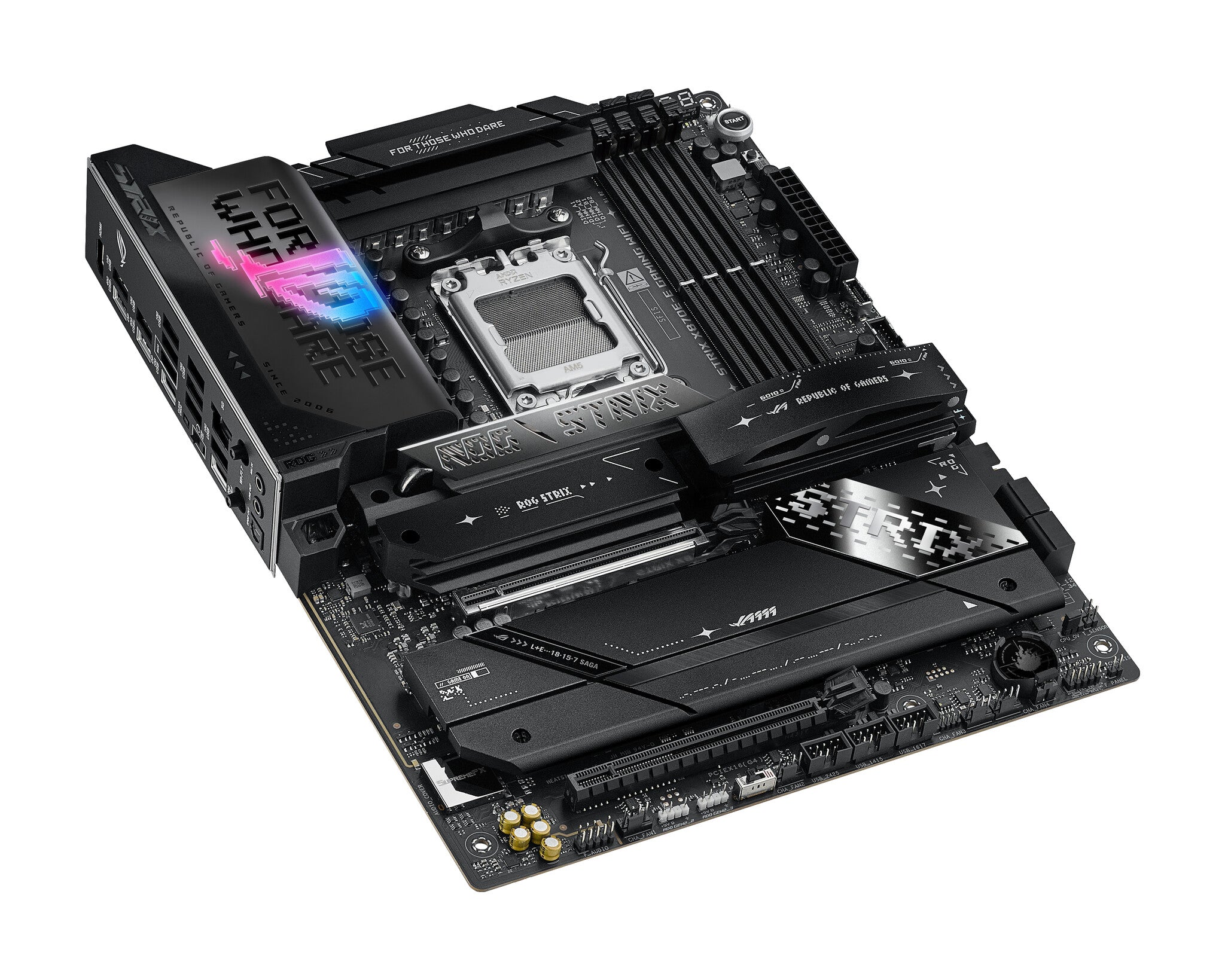

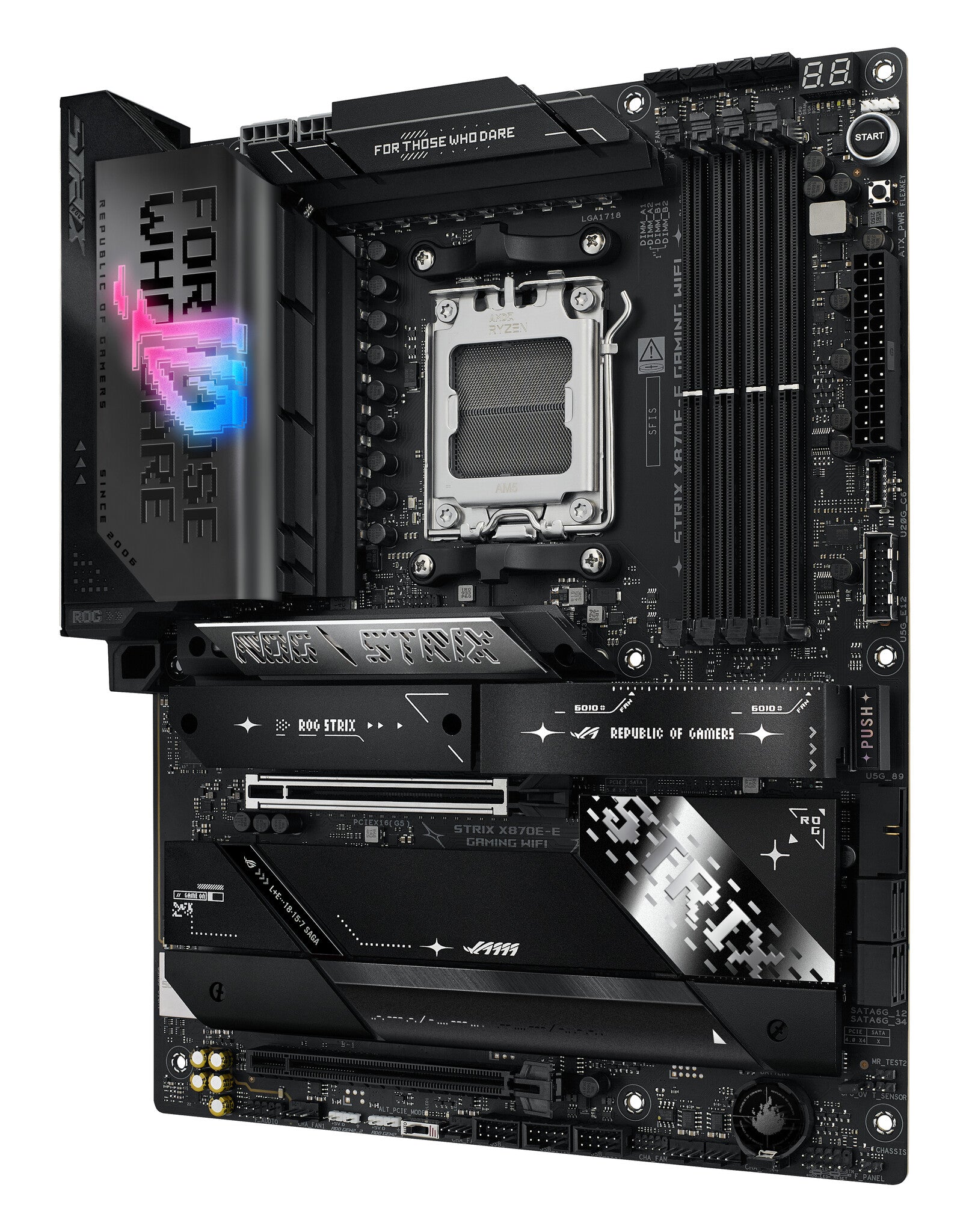

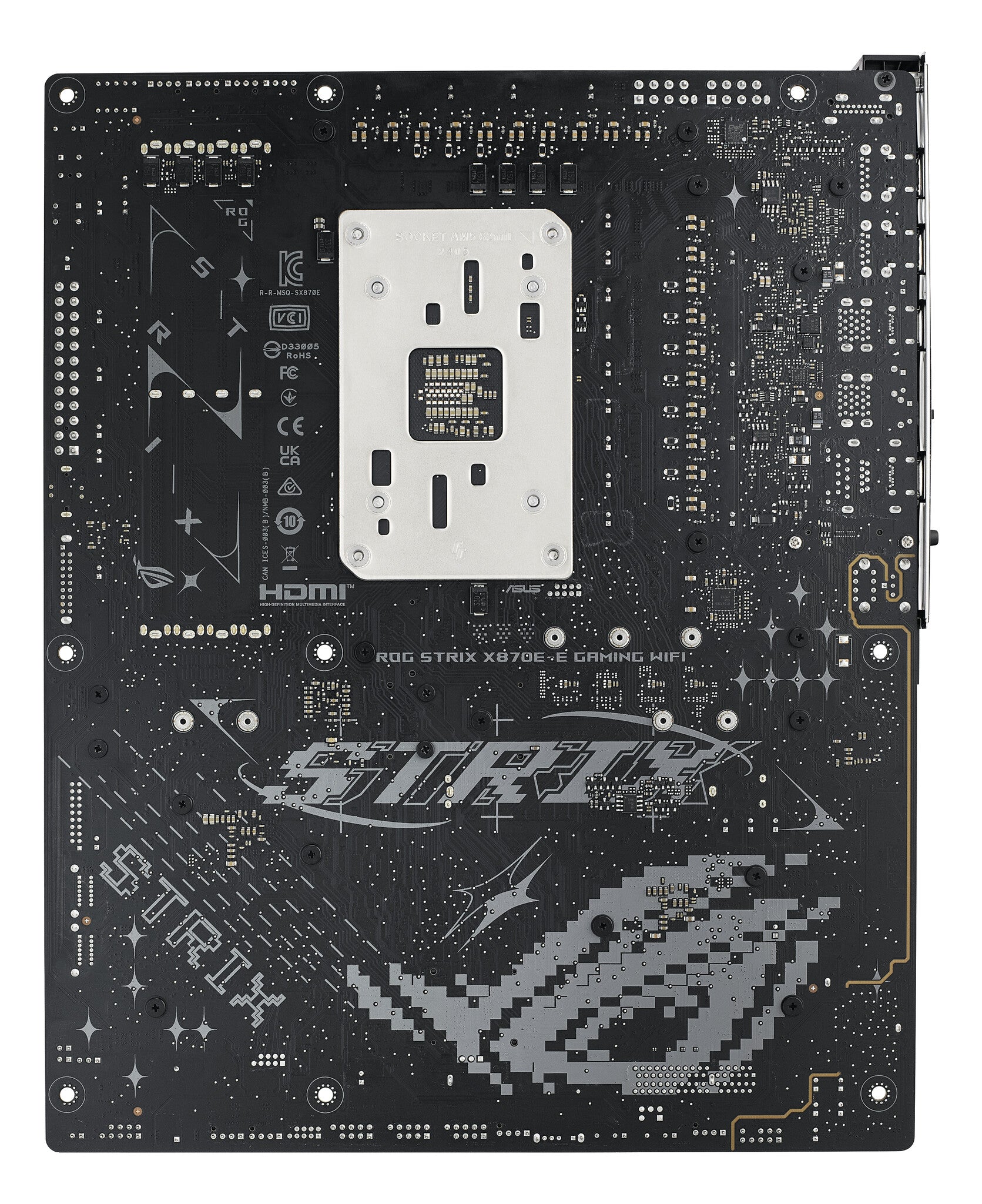

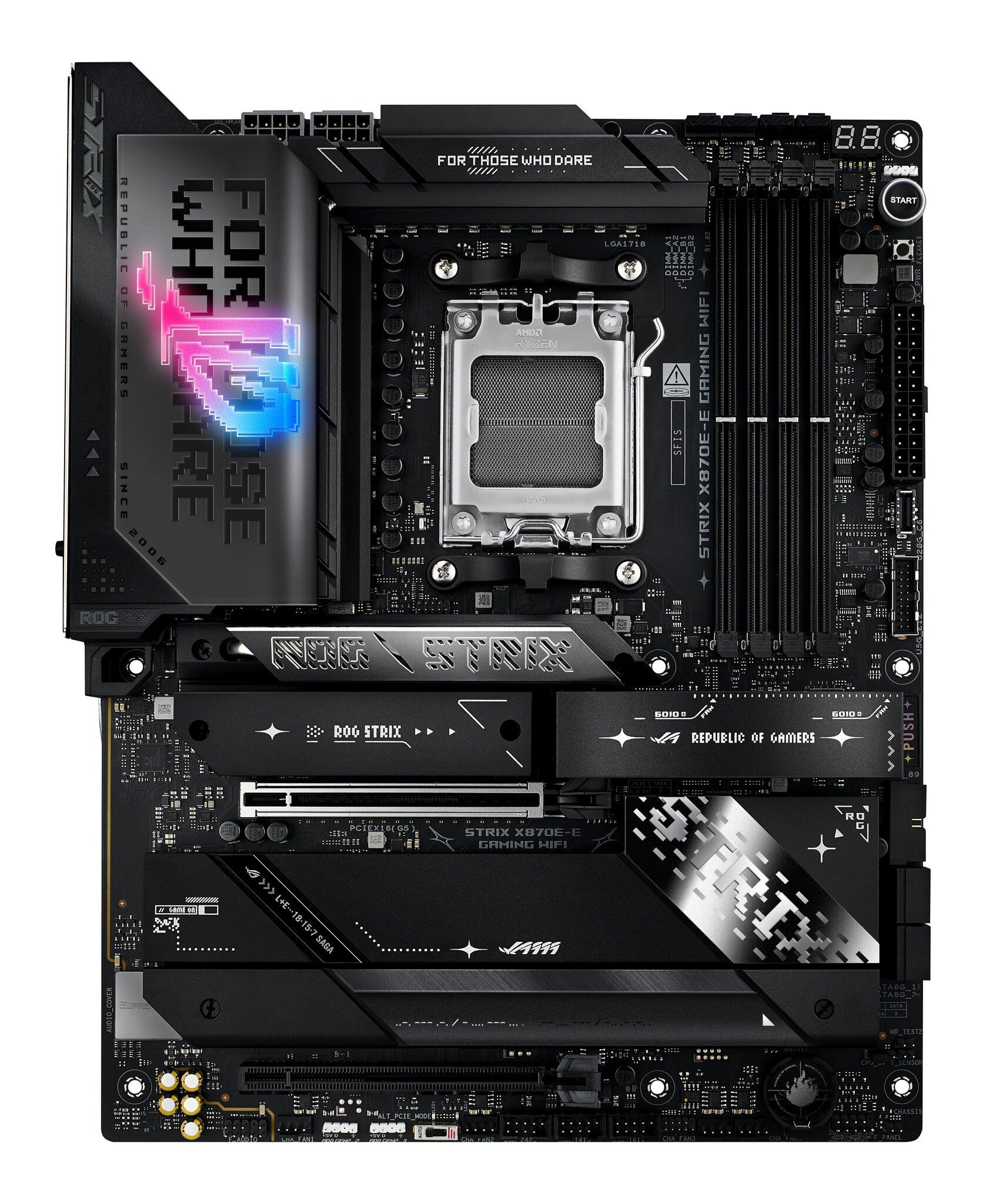

ASUS ROG STRIX X870E-E GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5
- PC ATX AMD X870E Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What is the form factor of this motherboard?
Does it support overclocking?
ASUS ROG STRIX X870E-E GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The ASUS ROG STRIX X870E-E GAMING WIFI uses AMD's flagship X870E chipset to deliver enthusiast-class performance for Socket AM5 builds. This ATX motherboard works with the latest AMD Ryzen 9000, 8000, and 7000 series processors, combining the premium ROG Strix gaming pedigree with cutting-edge connectivity. The X870E chipset represents the top tier of AMD's current motherboard offerings, providing maximum expansion options and future-ready features for high-performance gaming systems and content creation workstations.
Memory performance gets serious attention with support for DDR5 across four DIMM slots, reaching up to 192GB total capacity. The board includes both PCIe 4.0 and PCIe 5.0 x16 slots, giving you flexibility to run current graphics cards at full speed while preparing for next-generation GPU upgrades. USB 3.2 Gen 2x2 connectivity delivers 20Gbps transfer speeds for external storage and peripherals. Built-in Wi-Fi eliminates the need for separate wireless adapters, while ECC memory compatibility adds data integrity options for professional workloads.

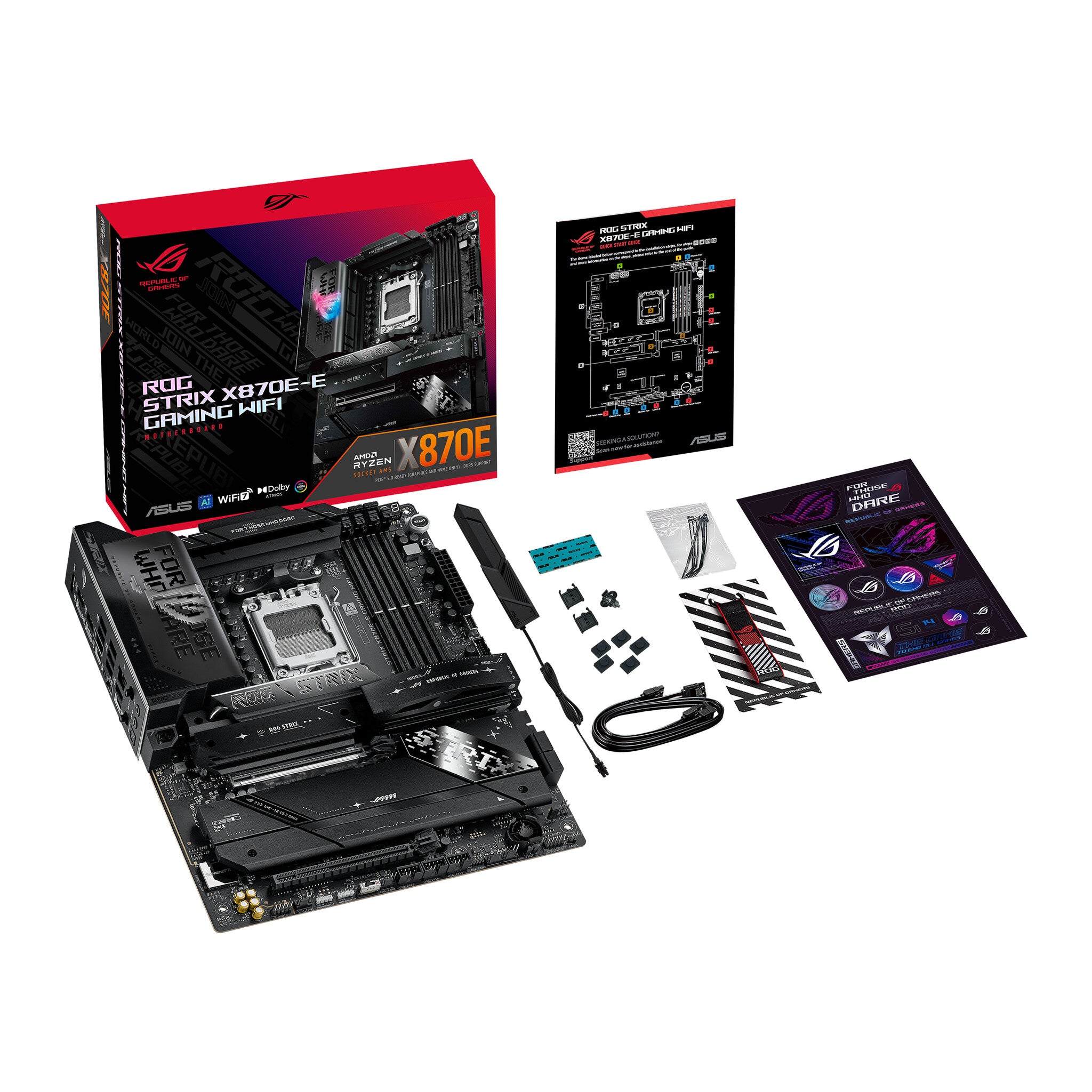

ASUS includes comprehensive setup support with XMP memory profiles for DDR5, allowing easy overclocking without manual timing adjustments. The package comes complete with an I/O shield, SATA cables for storage connections, M.2 mounting hardware, and a detailed user guide. The black ATX design fits standard mid-tower and full-tower cases, with ROG Strix styling that complements gaming builds. This motherboard targets enthusiasts who want maximum expansion capability and premium features for their AMD Ryzen system.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 9 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10, 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| 12V power connector | Yes |

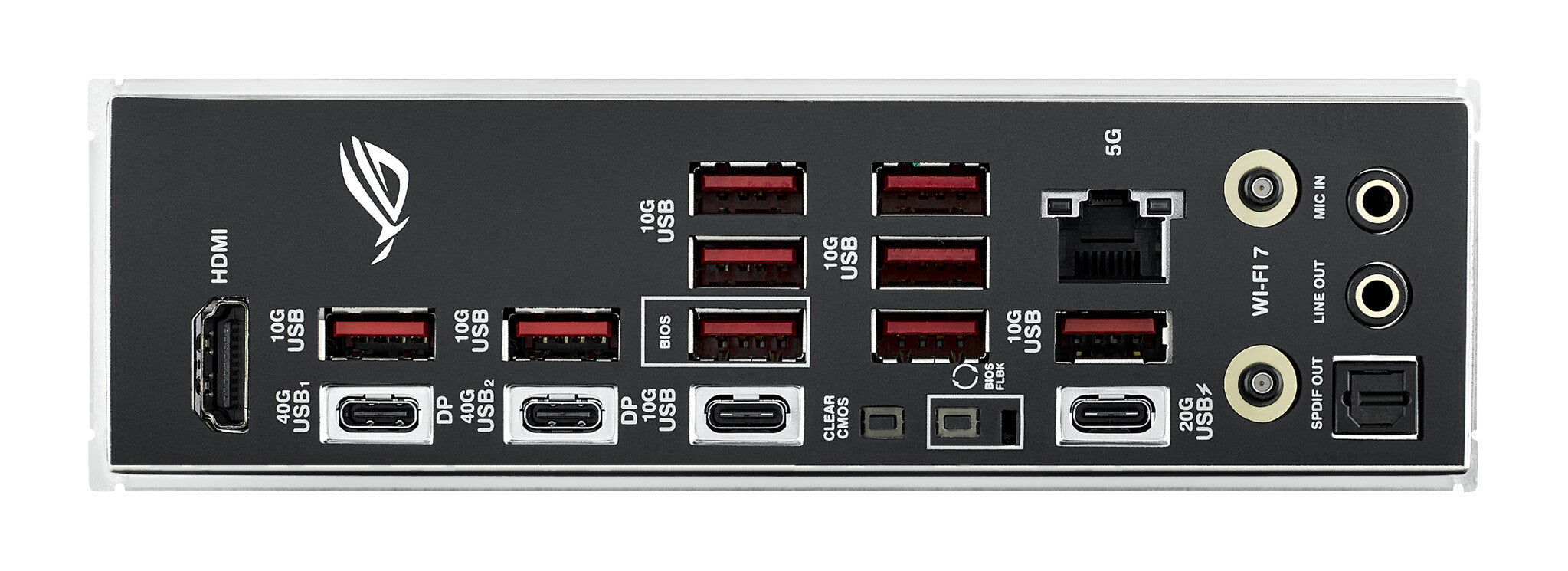

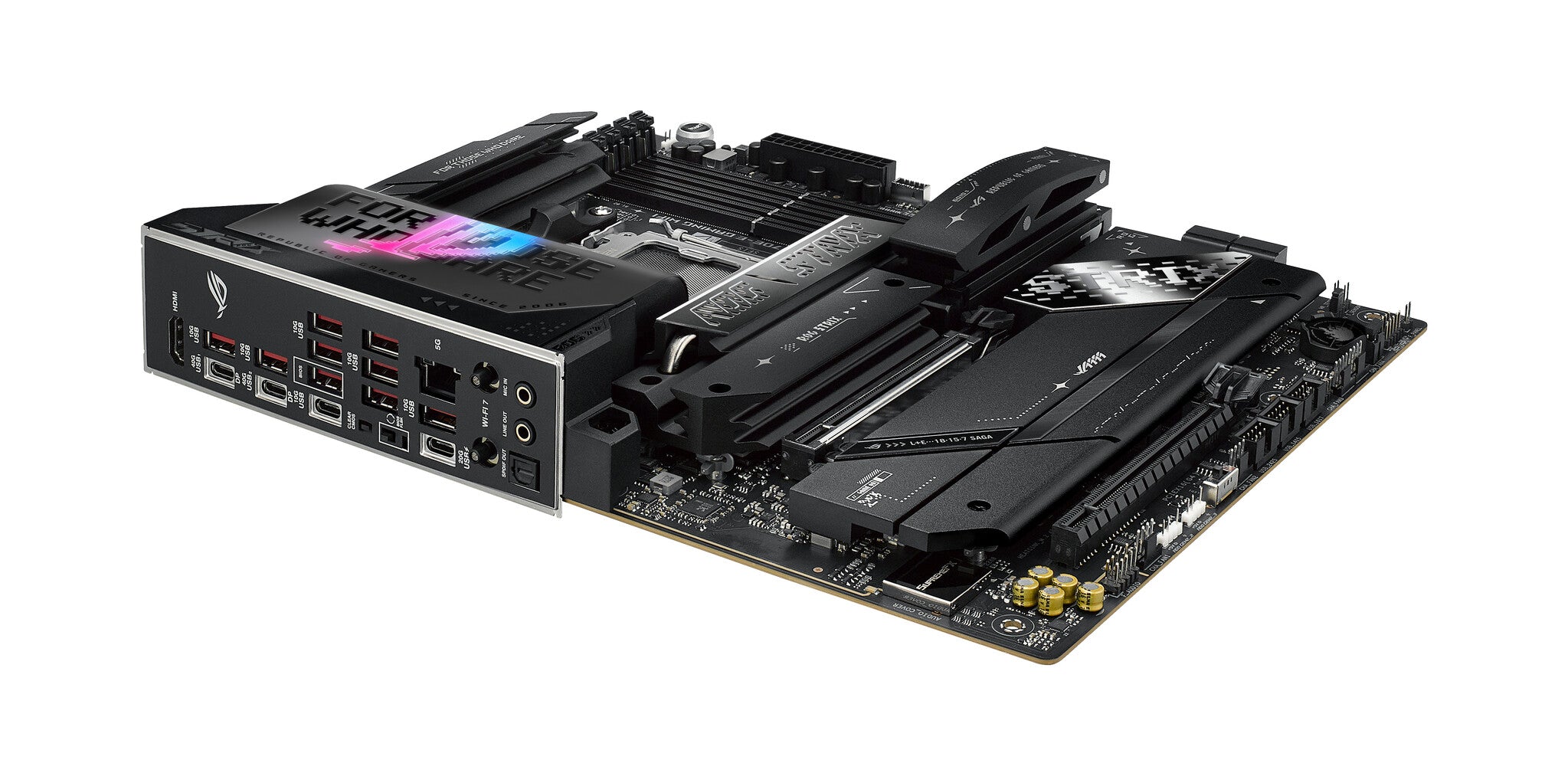

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 9 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 365 mm |
| Package depth | 281 mm |
| Package height | 87 mm |
| Package weight | 3.02 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 2.06 kg |
