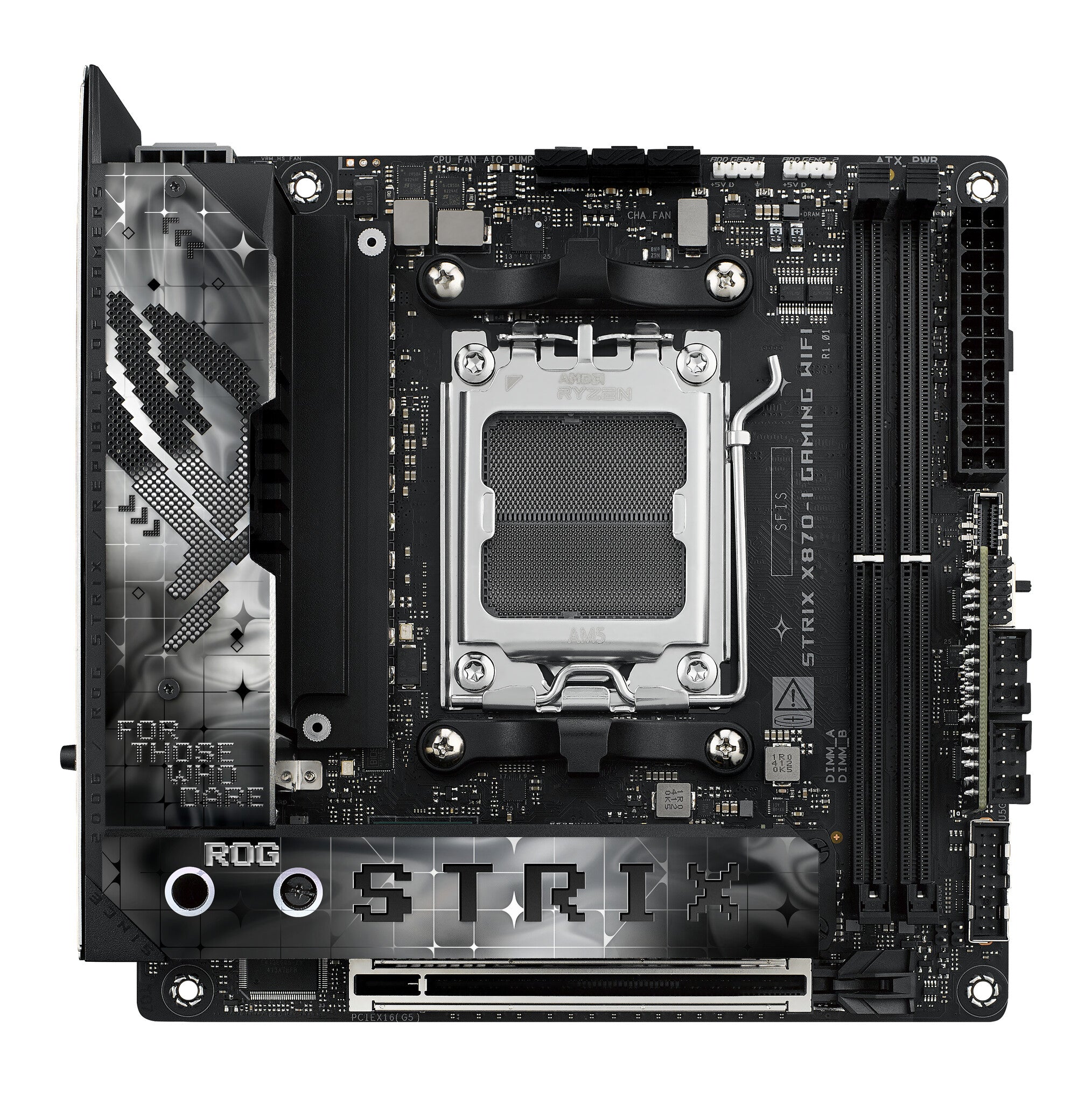

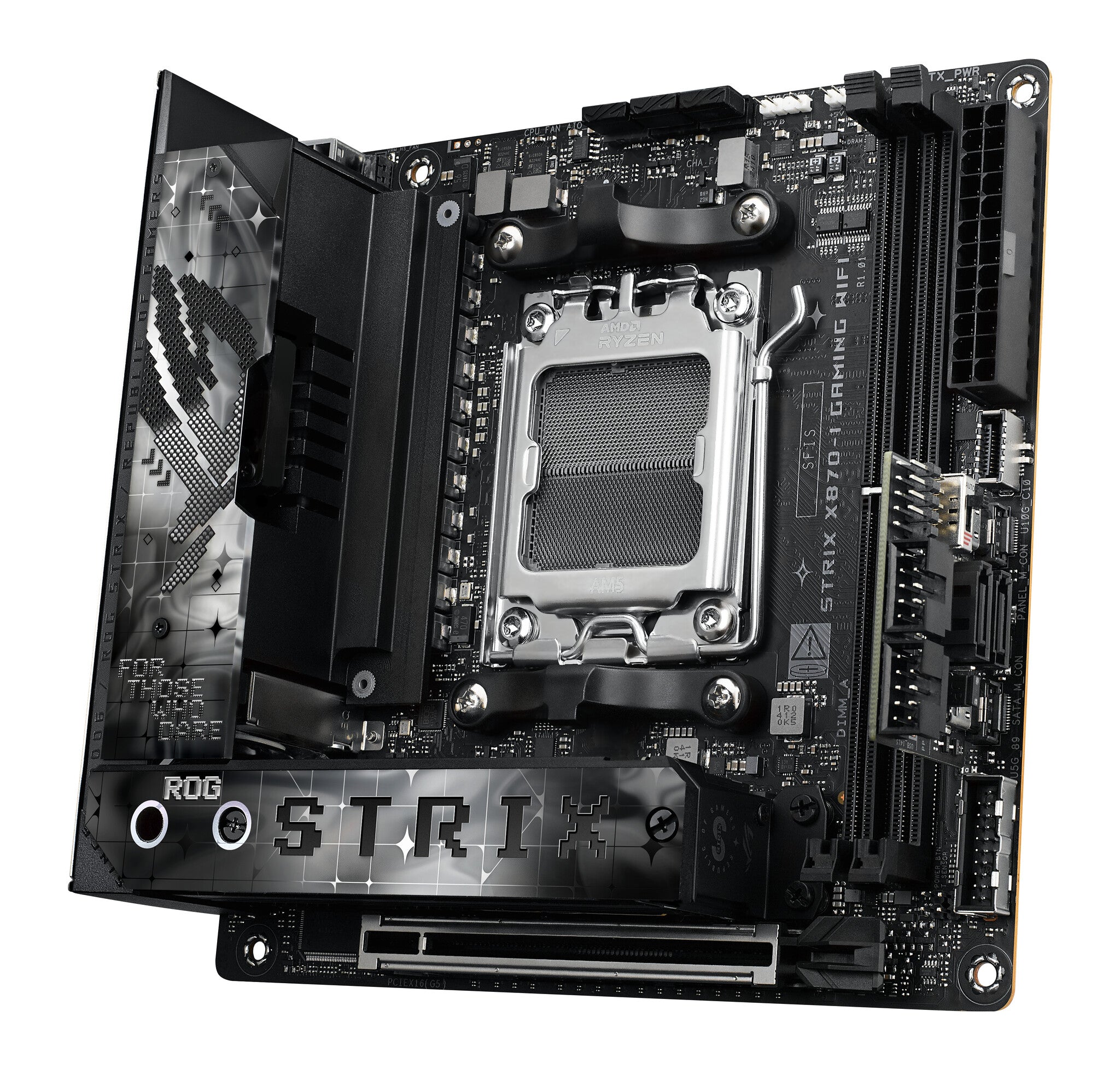

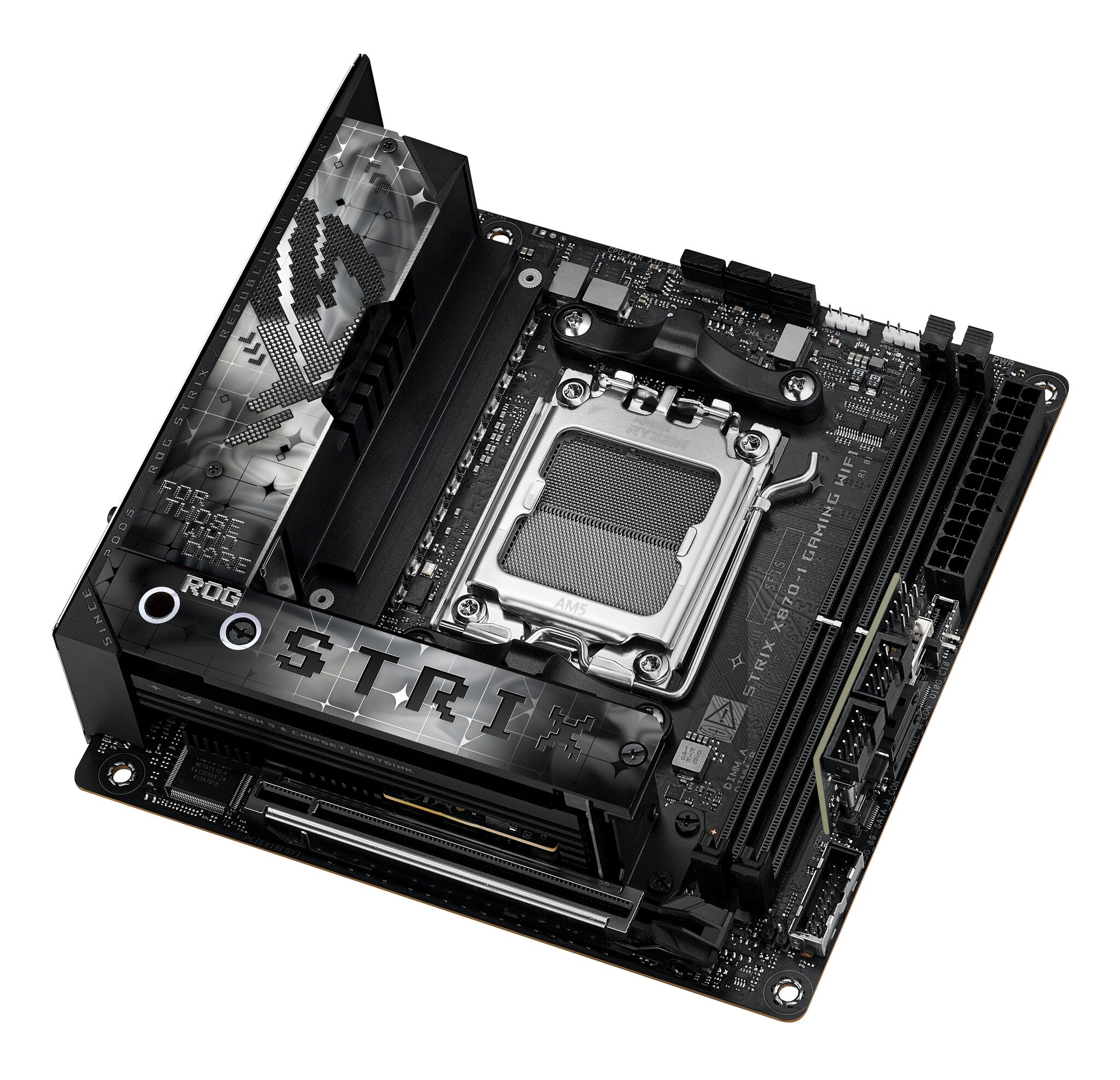

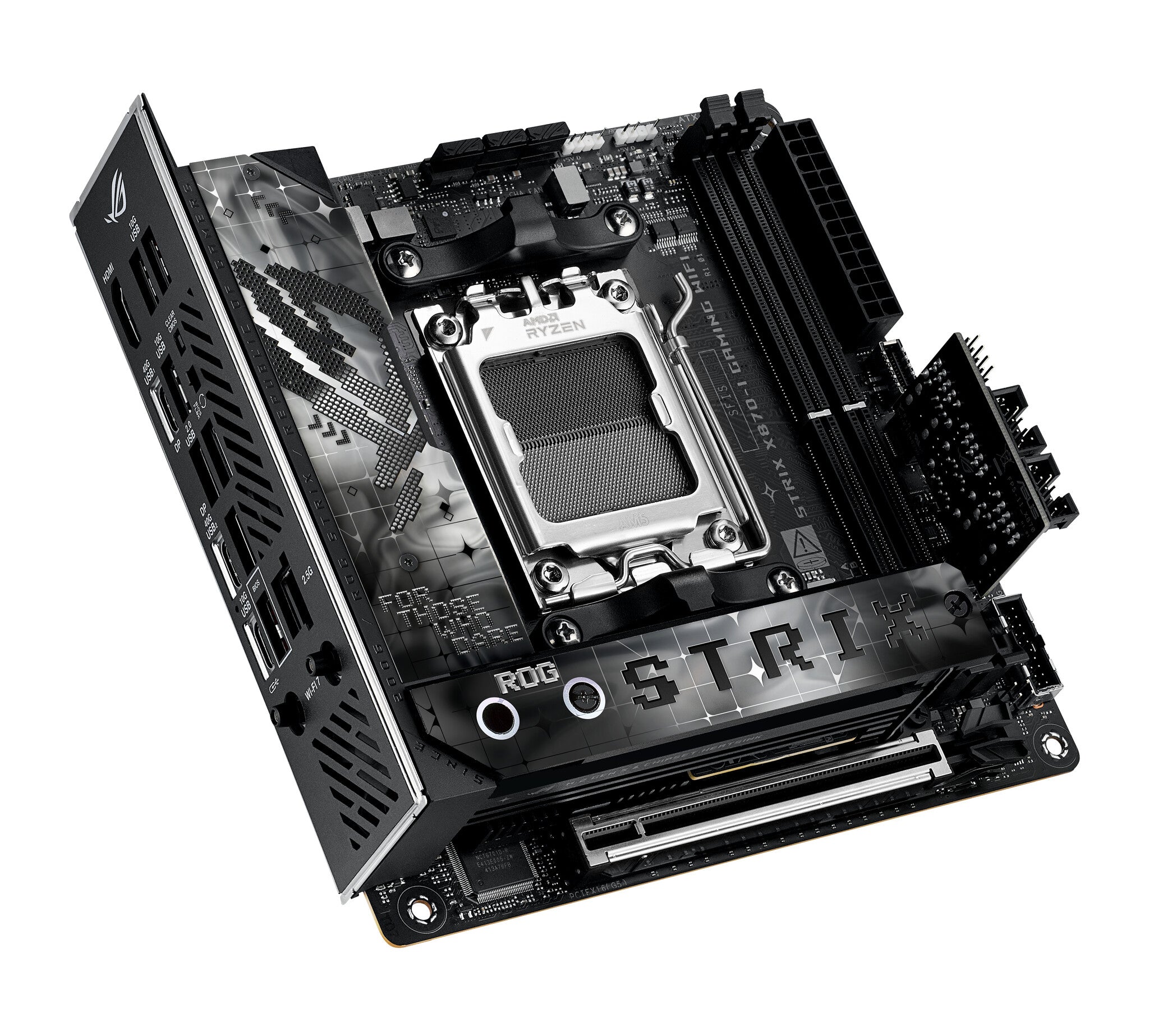

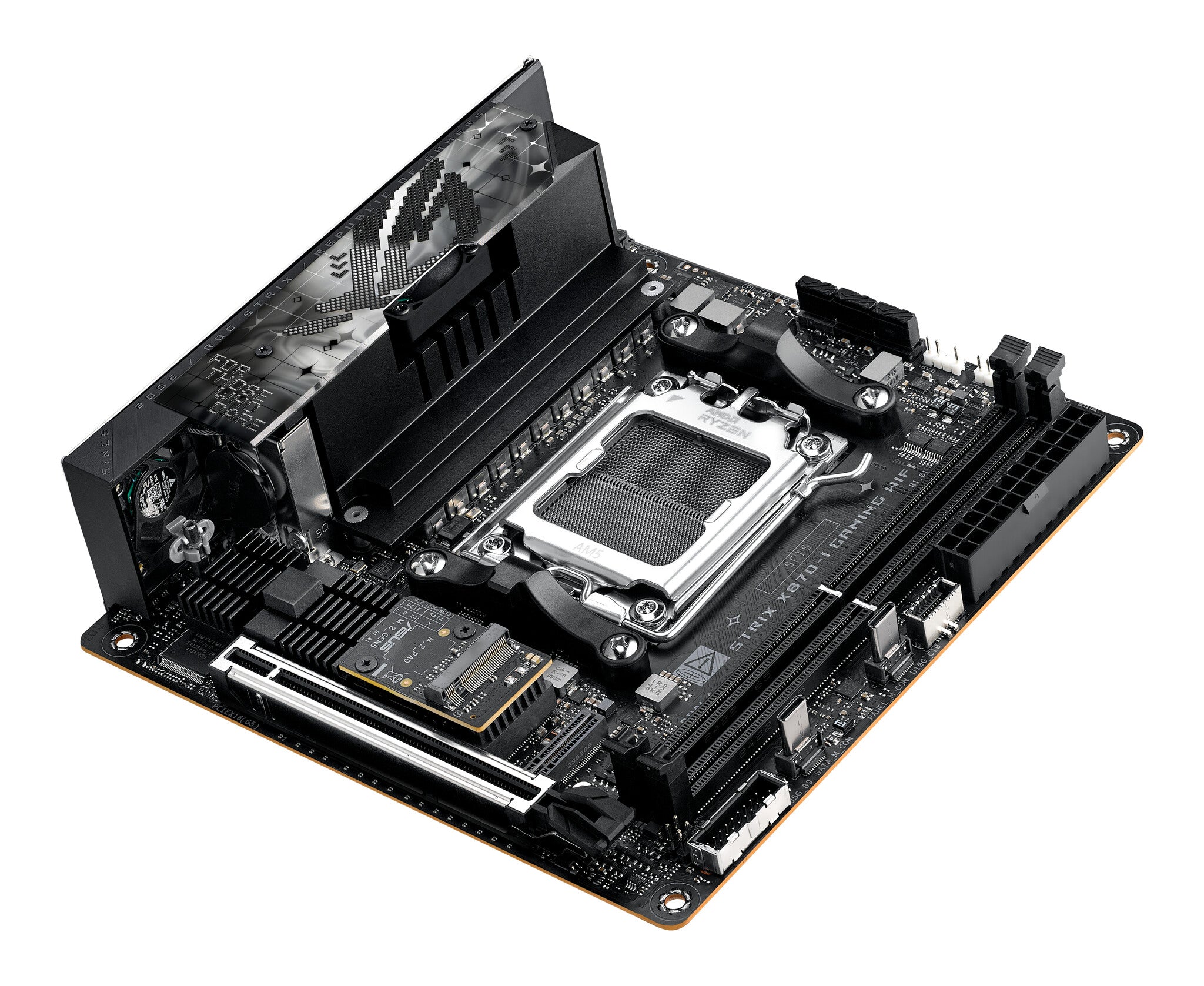

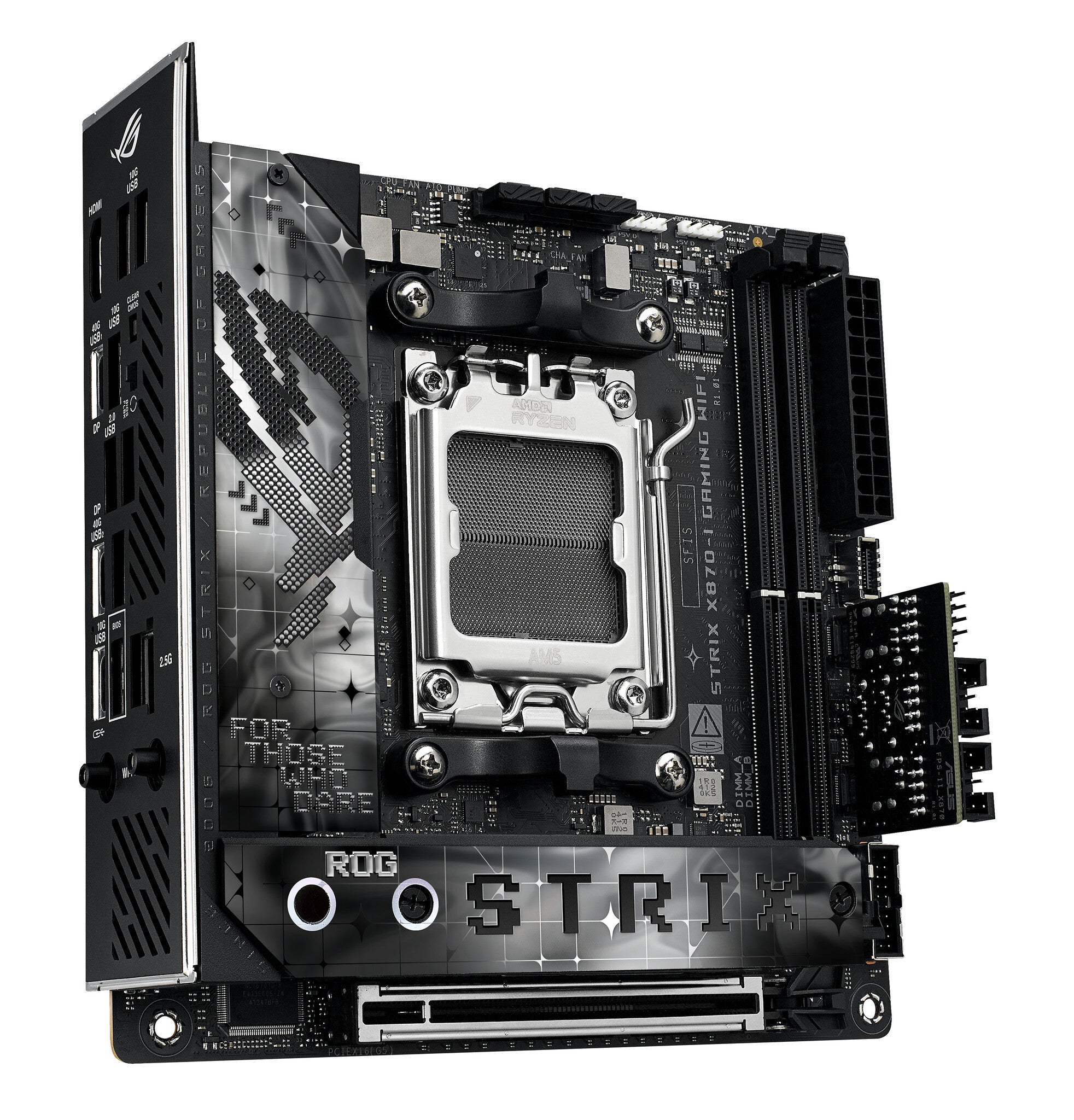

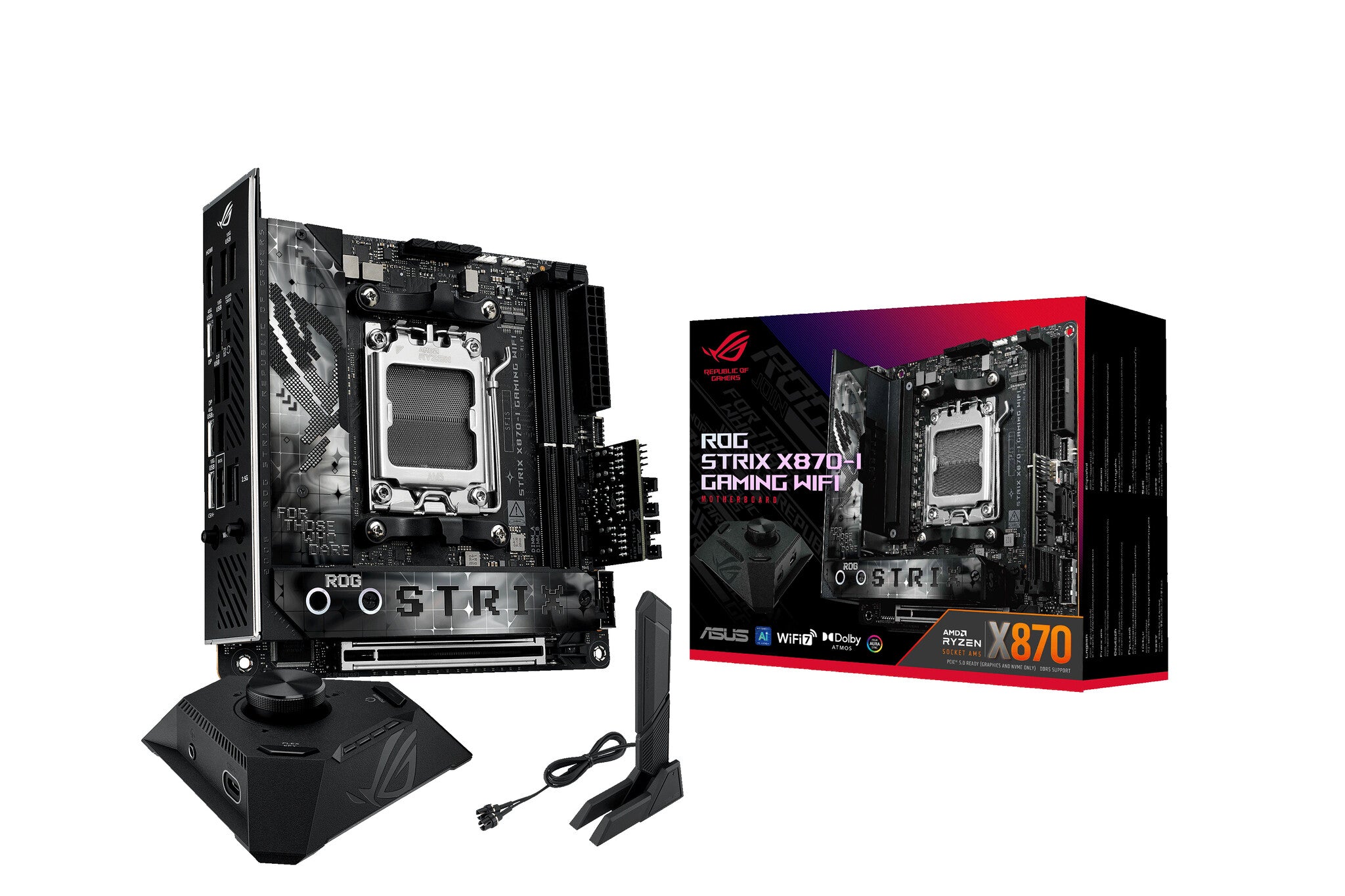

ASUS ROG STRIX X870-I GAMING WIFI Mini-ITX Motherboard | AM5 | 2x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC mini ITX AMD X870
- DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does this motherboard support WiFi?
What is the form factor of the ASUS ROG STRIX X870-I?
ASUS ROG STRIX X870-I GAMING WIFI Mini-ITX Motherboard | AM5 | 2x DDR5 Slots | Wi-Fi 7
Description
The ASUS ROG STRIX X870-I GAMING WIFI brings high-end AMD X870 chipset features to a compact Mini-ITX form factor, making it an excellent choice for small form factor gaming builds and space-conscious enthusiasts. Despite its 6.7-inch footprint, this board supports the latest AM5 processors from AMD's Ryzen 7000, 8000, and 9000 series, delivering flagship performance in a tiny package. The X870 chipset positions this as a premium option with cutting-edge connectivity and overclocking capabilities.
Memory performance stands out with support for DDR5 up to 8600MHz across two DIMM slots, accommodating up to 96GB total capacity with both ECC and non-ECC modules. The single PCIe 5.0 x16 slot provides maximum bandwidth for modern graphics cards, while the board's networking arsenal includes Intel 2.5Gb Ethernet and Wi-Fi 7 (802.11be) with Bluetooth 5.4 for wireless connectivity. This combination ensures future-ready performance whether you're gaming, streaming, or running demanding applications.

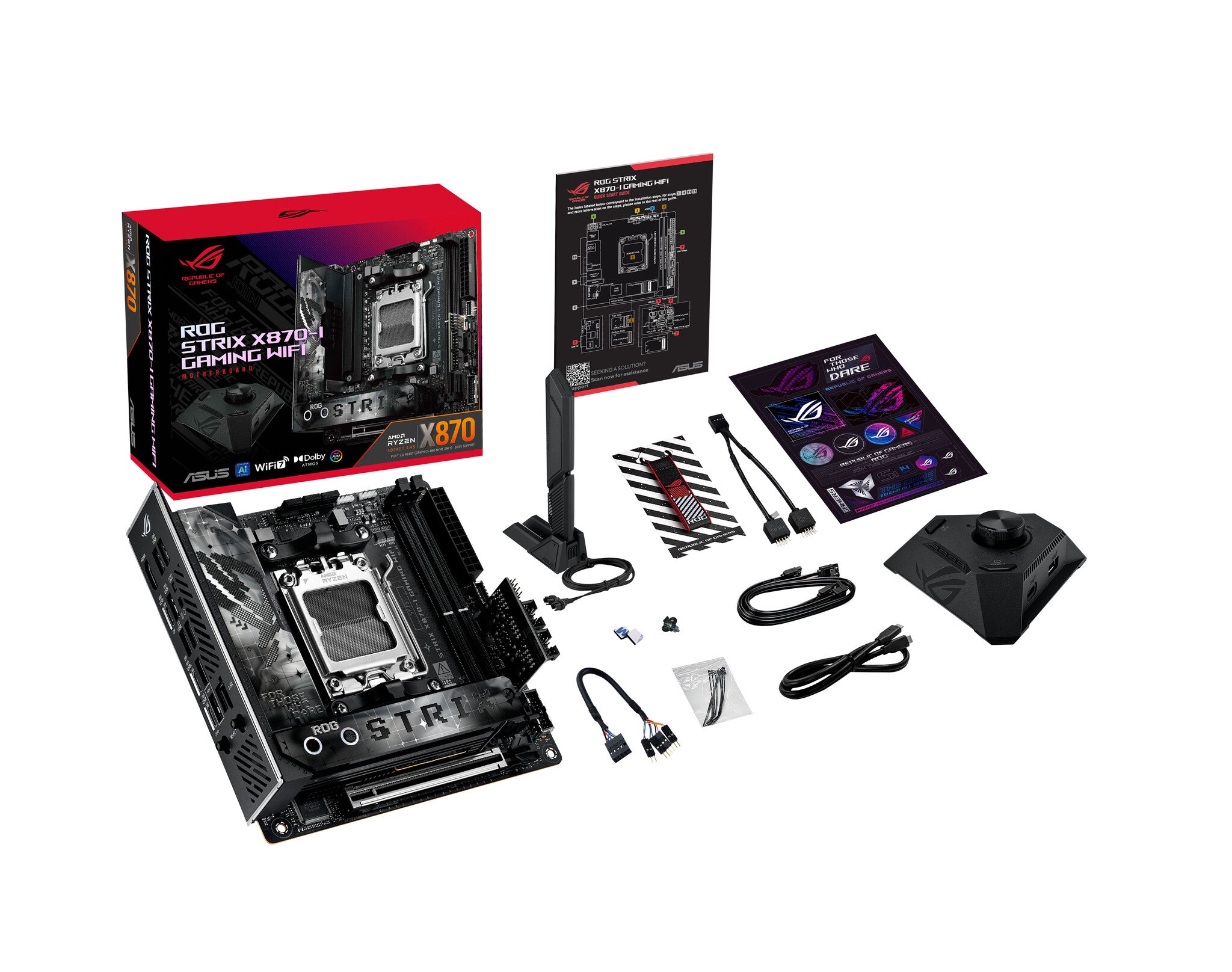

Setup benefits from ASUS's mature UEFI BIOS stored on 256MB flash ROM, providing comprehensive overclocking controls and system tuning options. The board ships with essential accessories including the rear I/O shield and user documentation to get your compact build running quickly. XMP memory profiles work seamlessly to achieve rated DDR5 speeds without manual timing adjustments, while the ROG STRIX design maintains the series' reputation for reliability in demanding gaming scenarios.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |

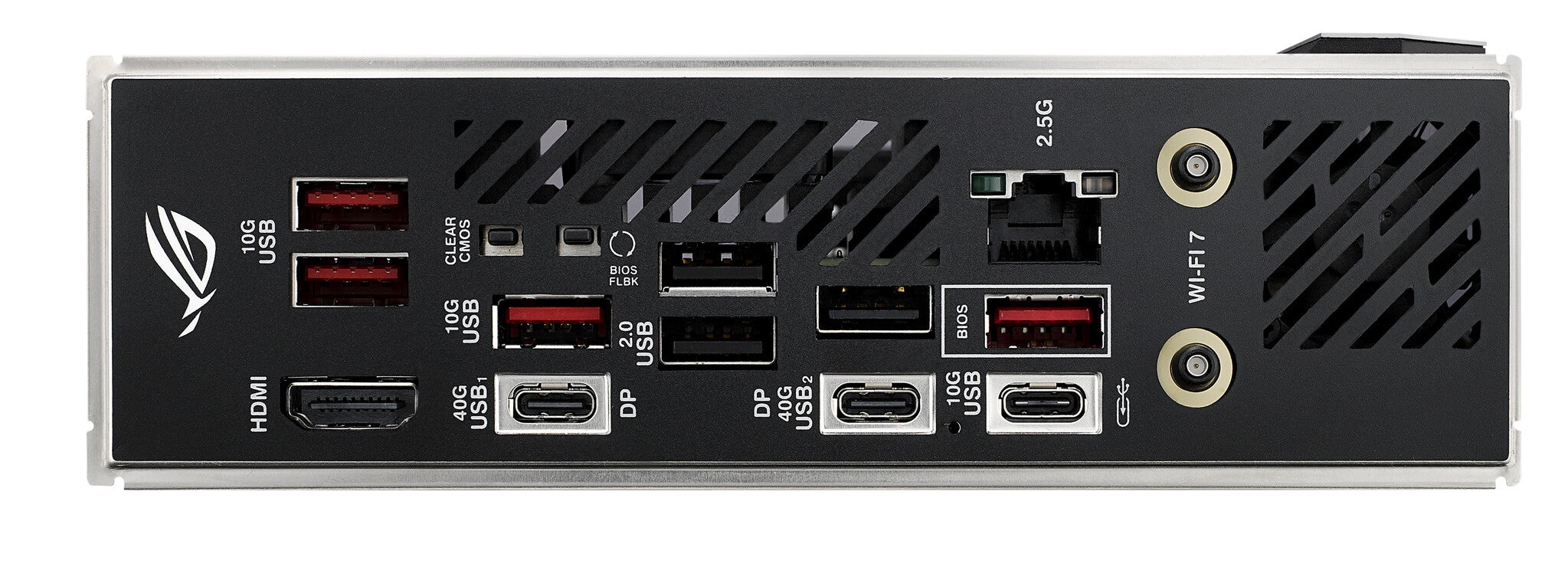

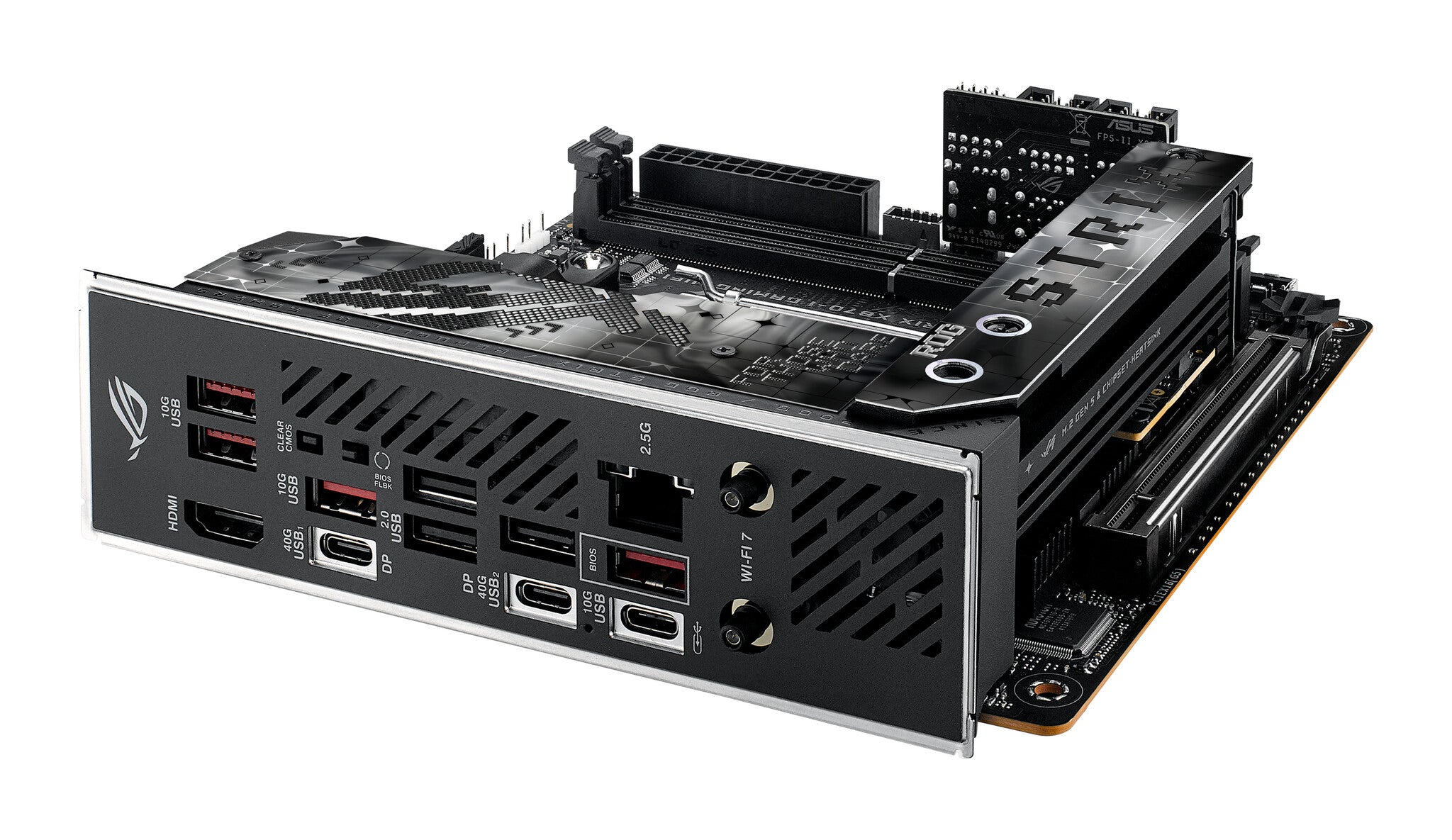

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
