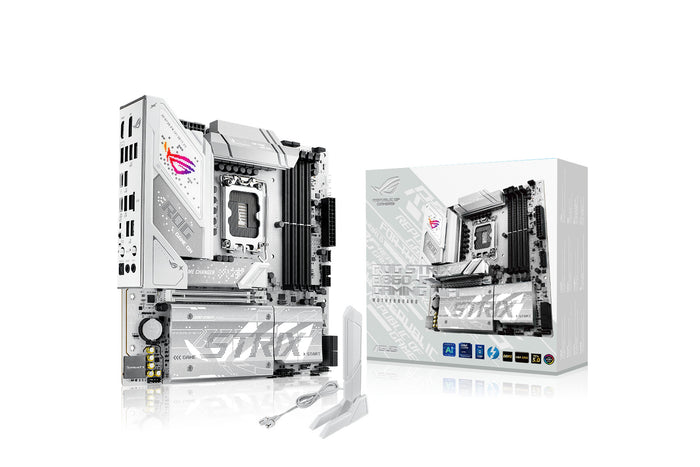

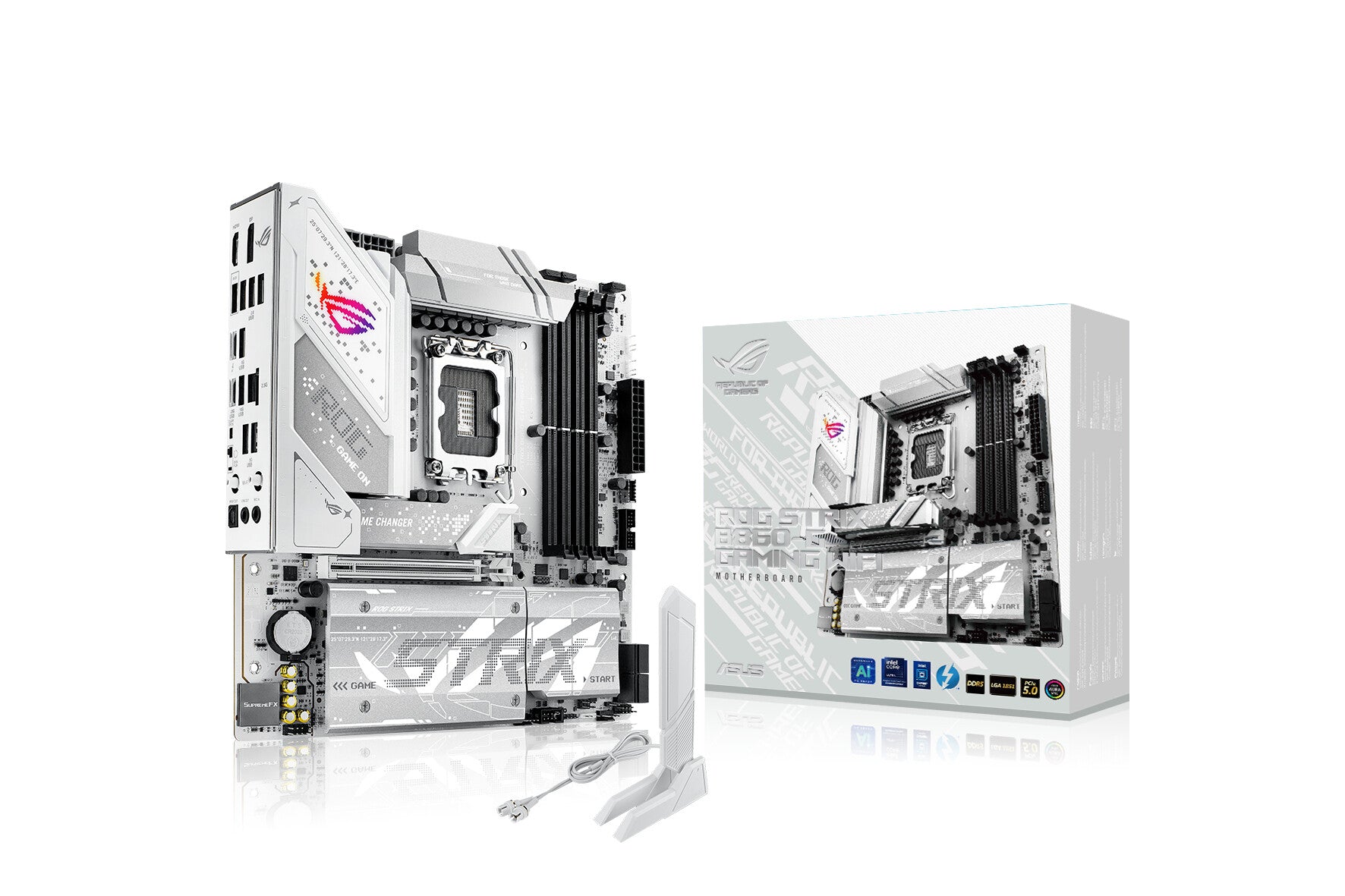

ASUS ROG STRIX B860-G GAMING WIFI mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel B860 Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What type of processors are compatible with the ASUS ROG STRIX B860-G?
How much memory can the ASUS ROG STRIX B860-G support?
Does the ASUS ROG STRIX B860-G support Wi-Fi?
ASUS ROG STRIX B860-G GAMING WIFI mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
Description

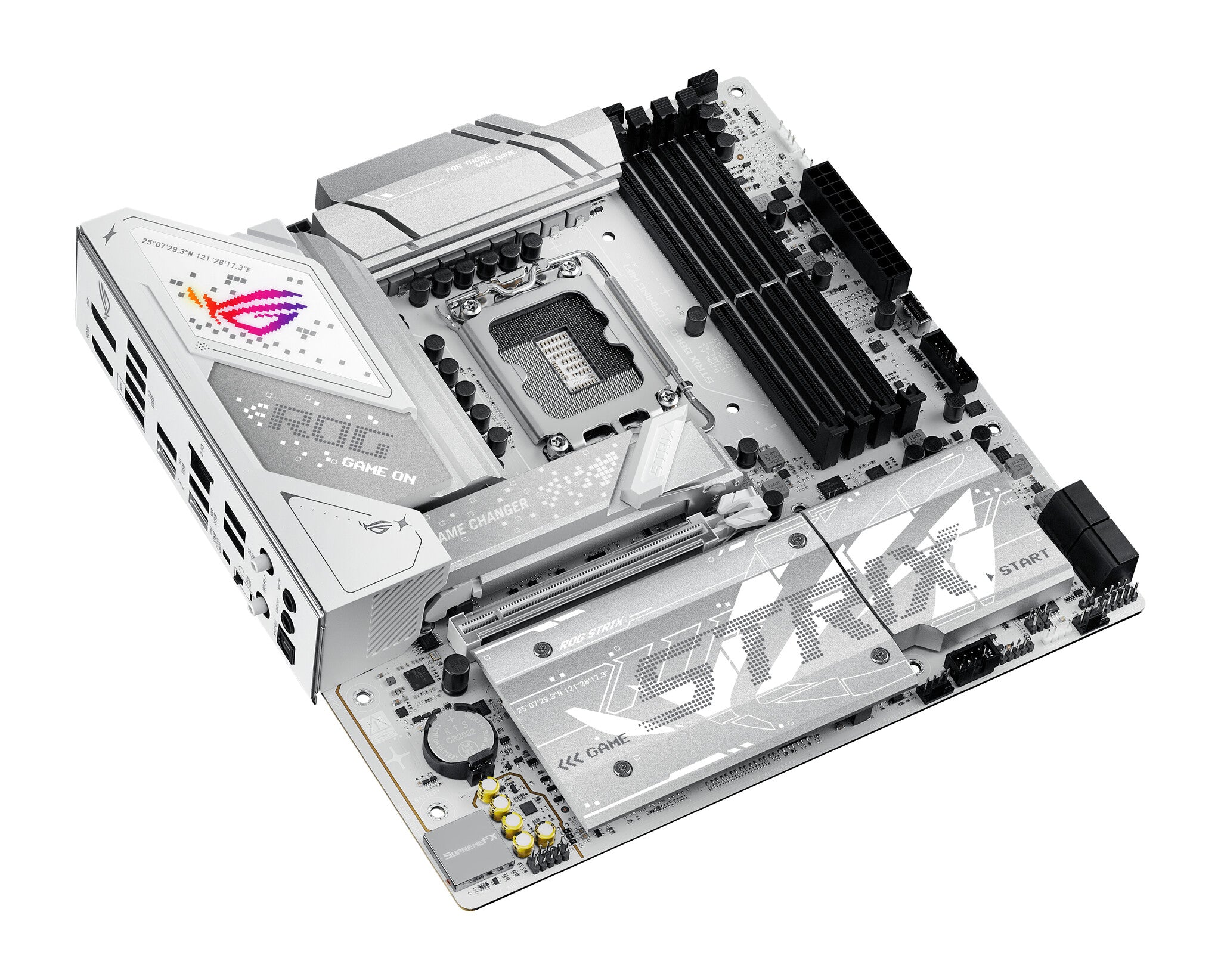

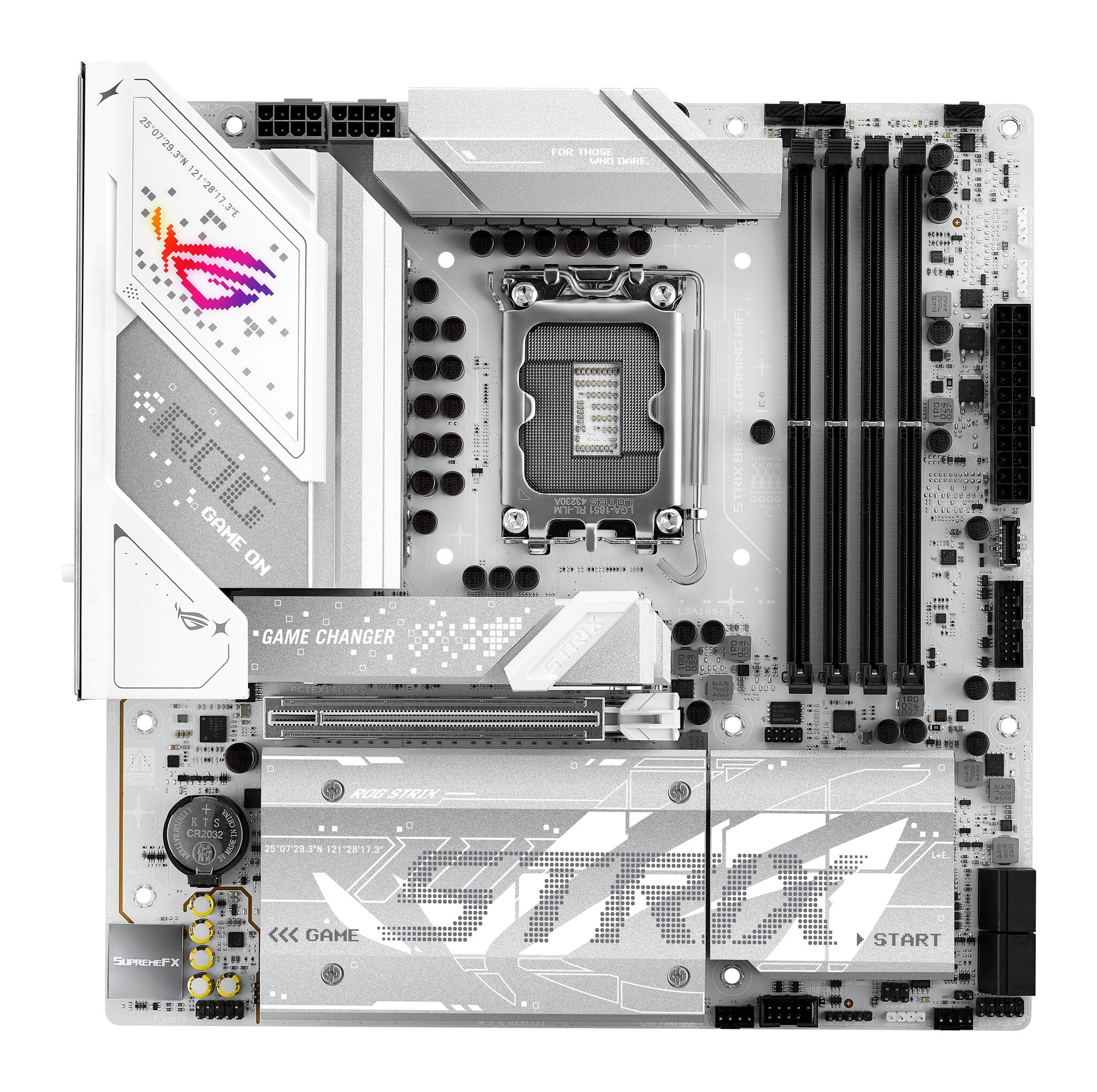

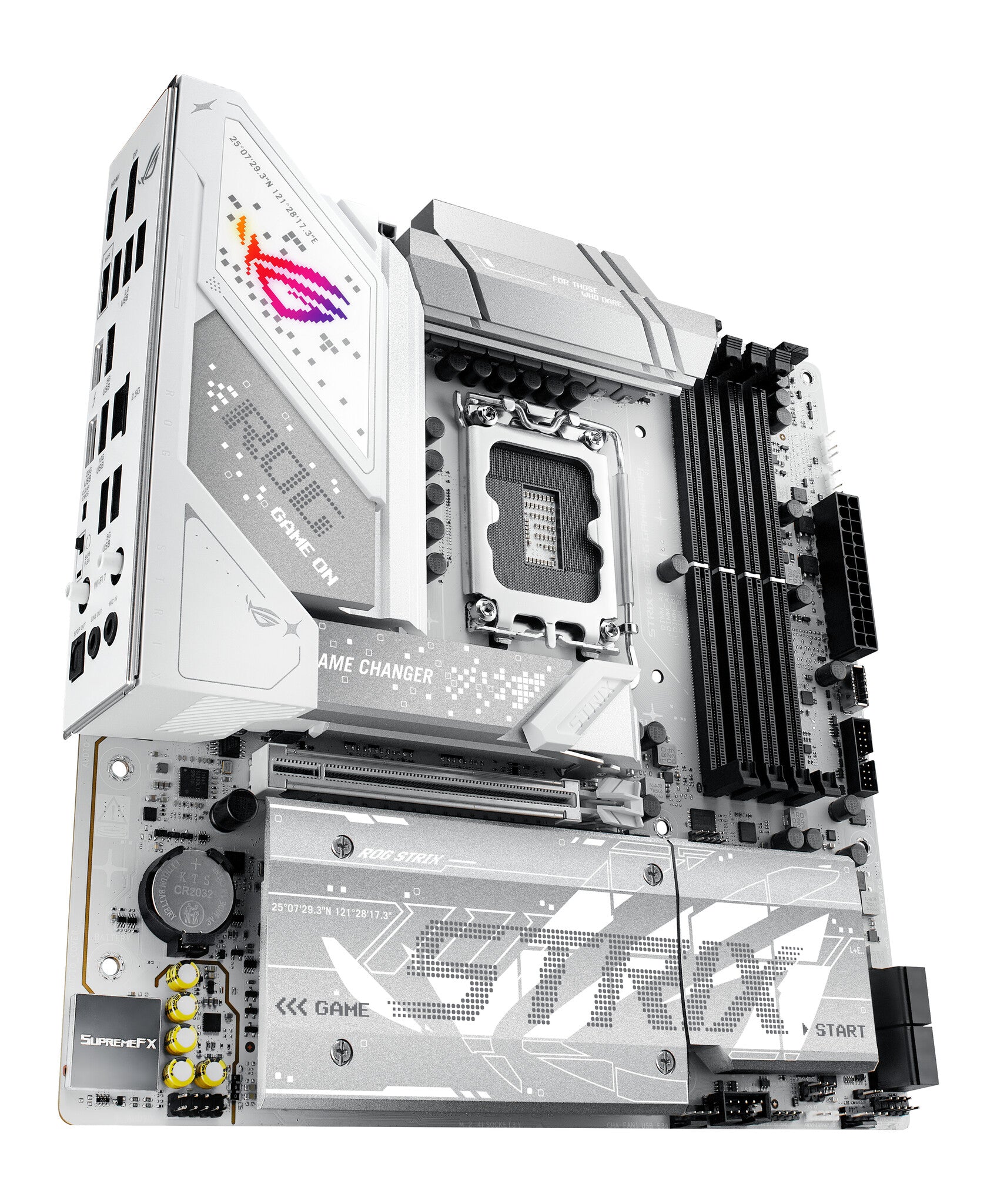

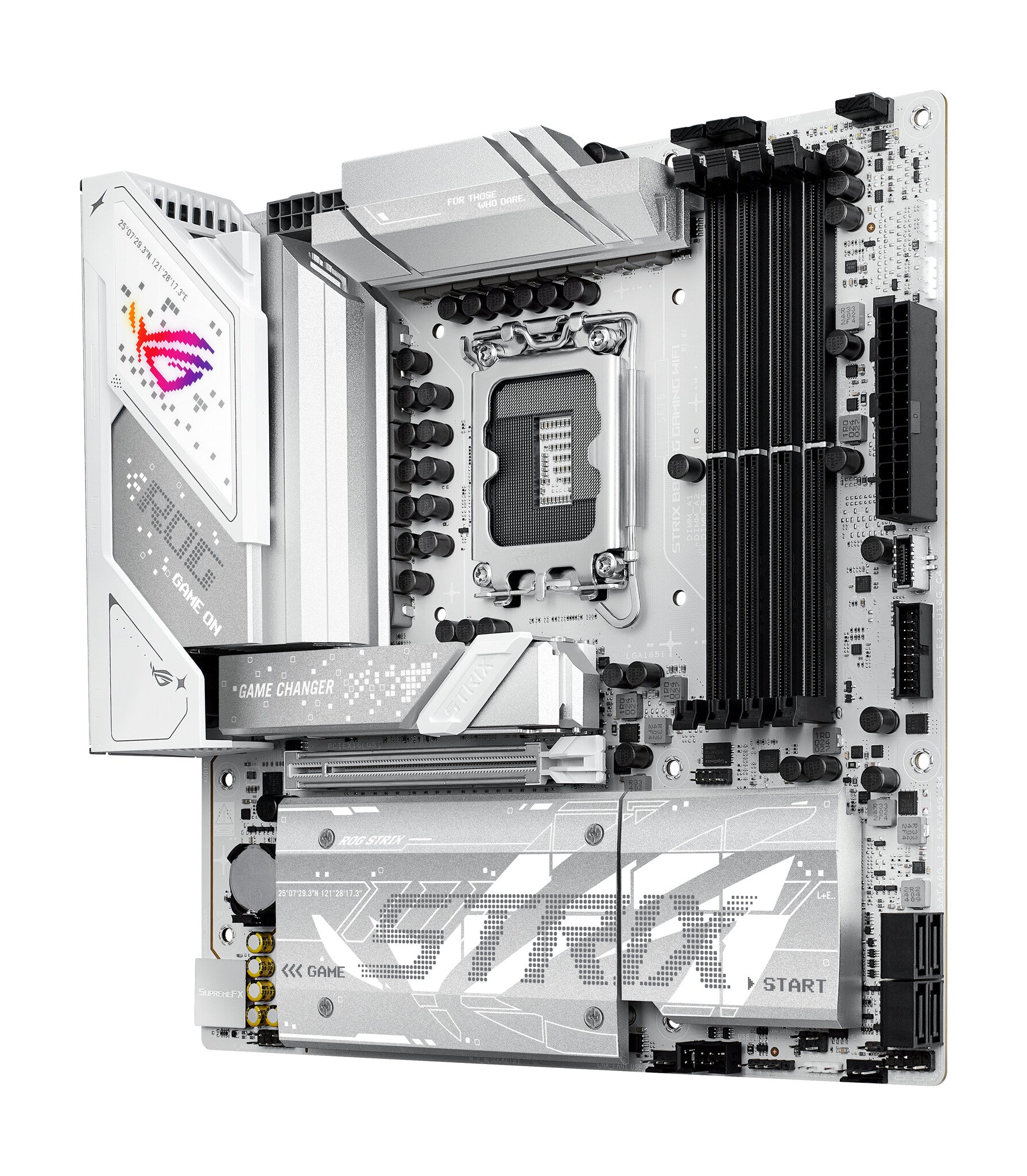

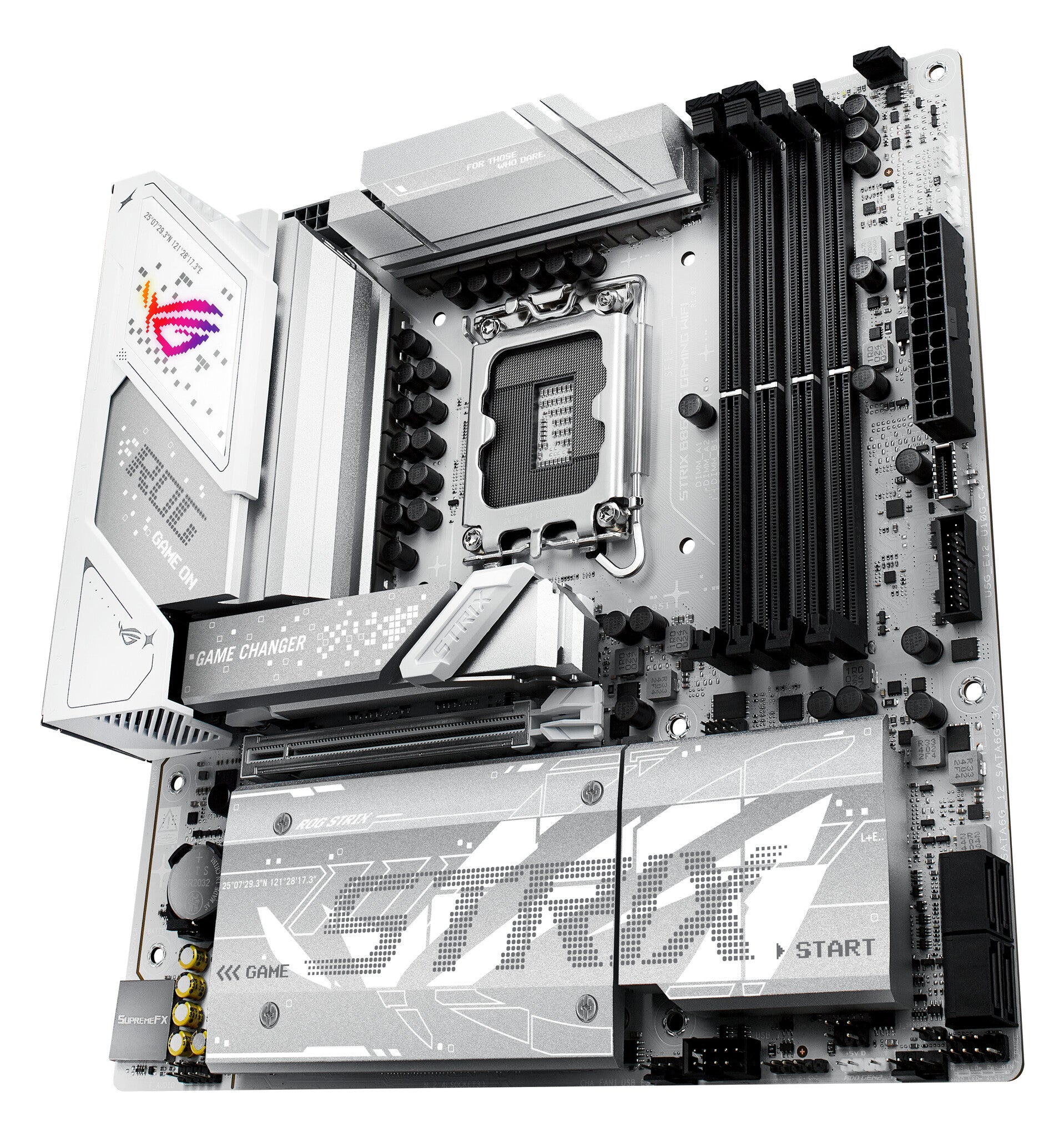

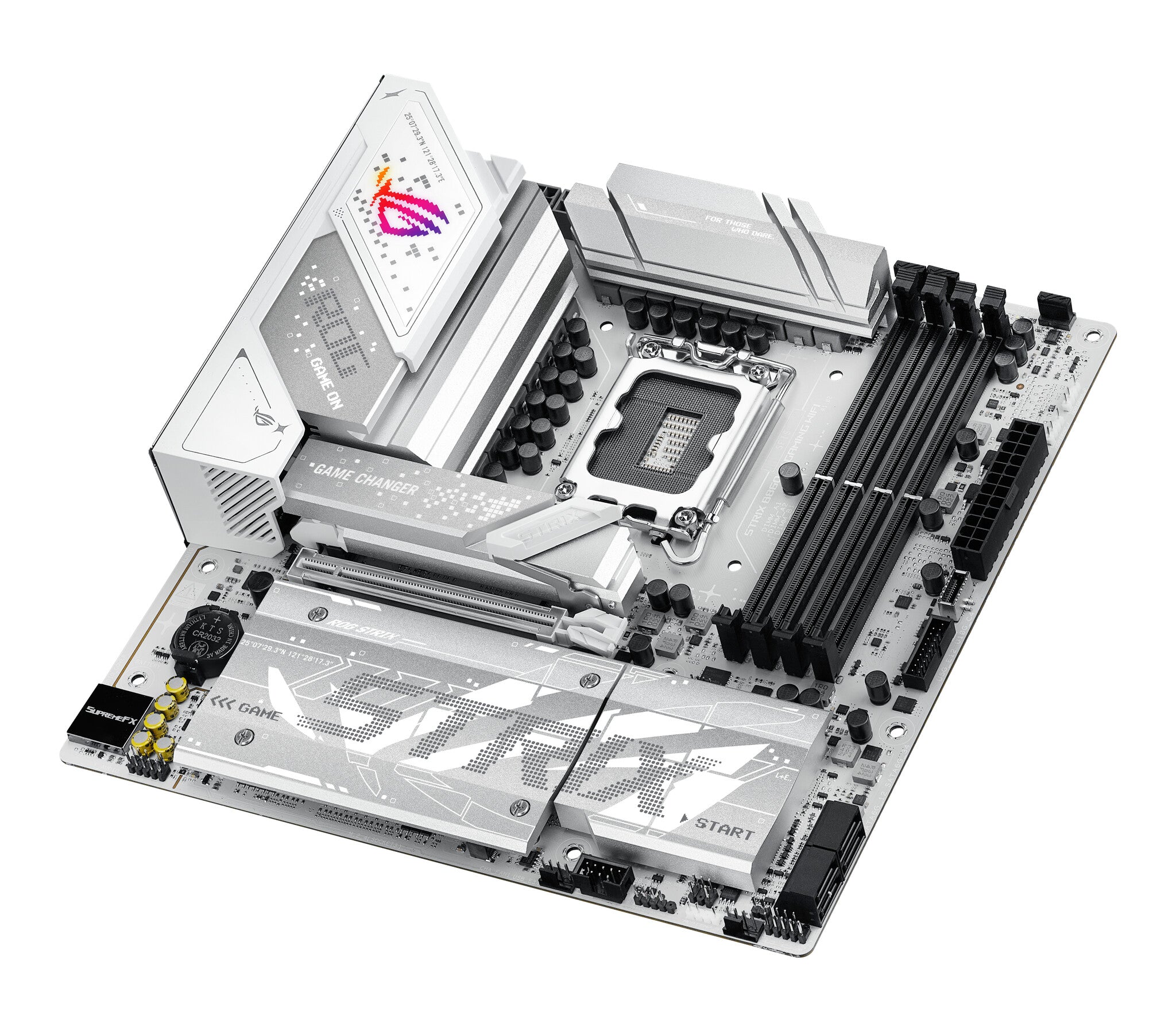

The ASUS ROG STRIX B860-G GAMING WIFI brings flagship-level features to a micro ATX package, making it ideal for compact gaming builds that don't want to sacrifice performance. Based on Intel's B860 chipset for the LGA1851 socket, this board supports Intel Core Ultra Series 2 processors and delivers serious gaming credentials in a smaller footprint. The white finish adds a clean aesthetic that works well with modern RGB builds or all-white themed systems.
Memory performance stands out with support for DDR5 up to 9066 MHz across four DIMM slots, allowing up to 256GB total capacity for demanding applications and future-proofing. The single PCIe 5.0 x16 slot handles the latest graphics cards without bottlenecks, while connectivity options include 2.5Gb Ethernet and Wi-Fi 7 (802.11be) with Bluetooth 5.4 for wireless networking that keeps pace with high-speed internet connections. The 256MB Flash ROM provides ample space for BIOS features and updates.
Setup is straightforward with ASUS's UEFI AMI BIOS interface and XMP support for easy memory overclocking. The micro ATX form factor saves space while maintaining full functionality, making this board perfect for ITX-style builds that need more expansion options than mini-ITX allows, or standard ATX cases where you want a cleaner look with fewer empty slots. The ROG STRIX branding indicates this board includes gaming-focused features and robust power delivery suitable for high-performance processors.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |

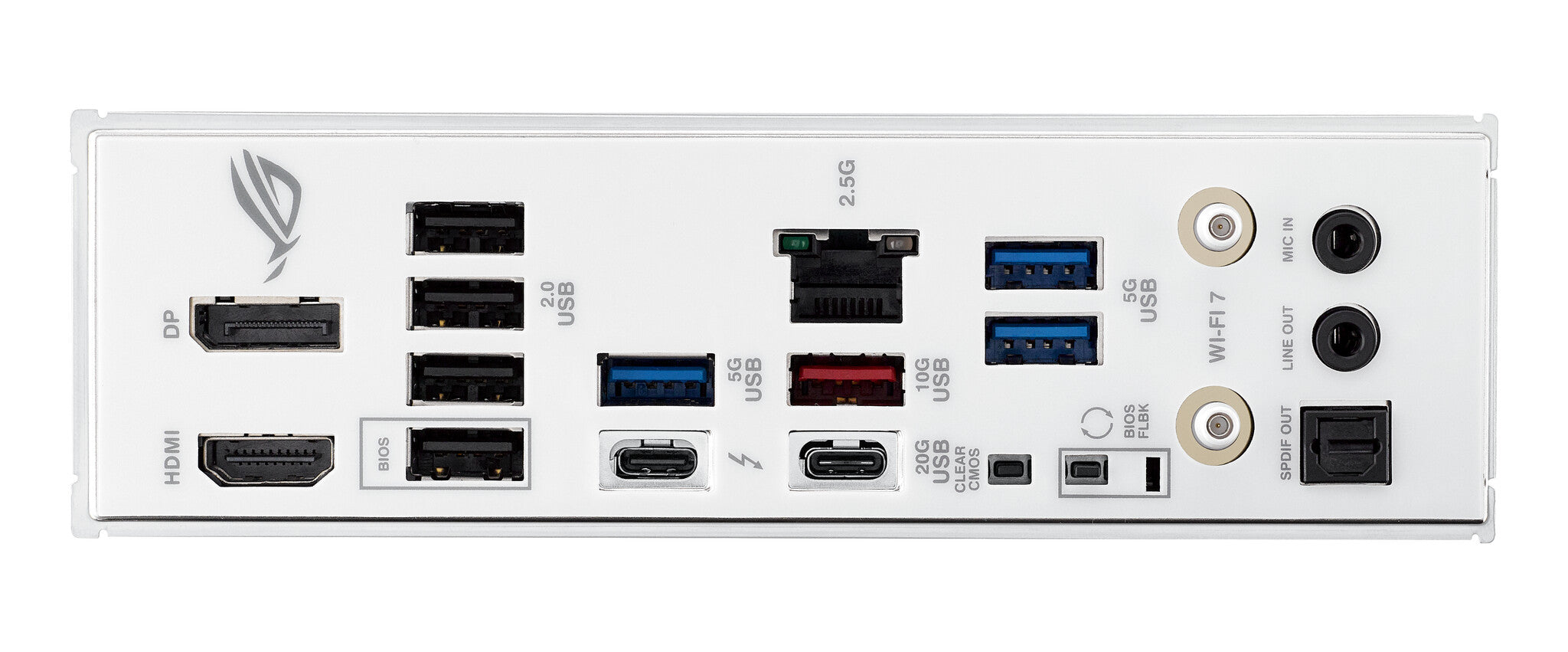

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 285 mm |
| Package depth | 274 mm |
| Package height | 72.5 mm |
| Package weight | 2.12 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Other features | |
|---|---|
| Weight | 1.23 kg |
