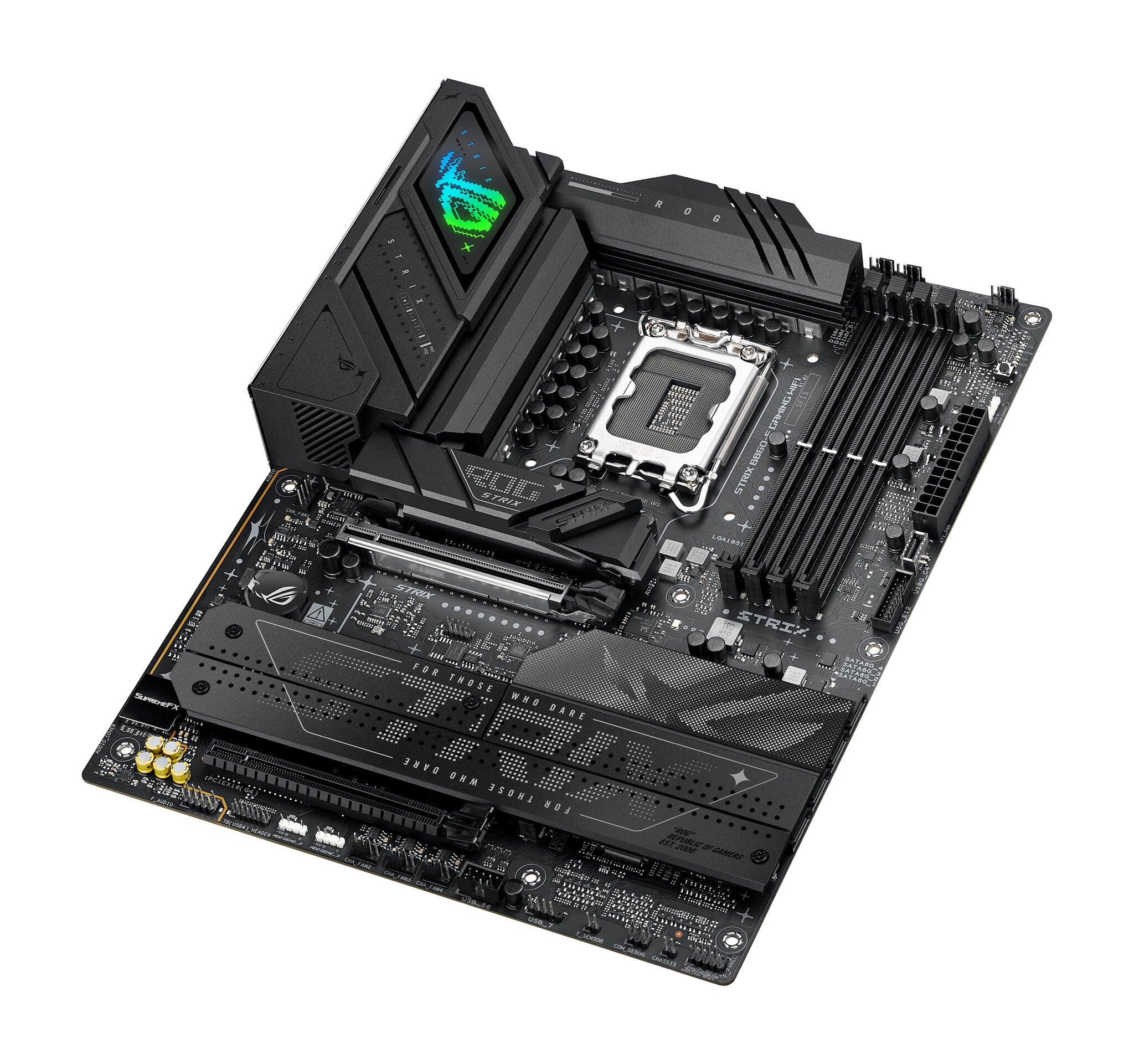

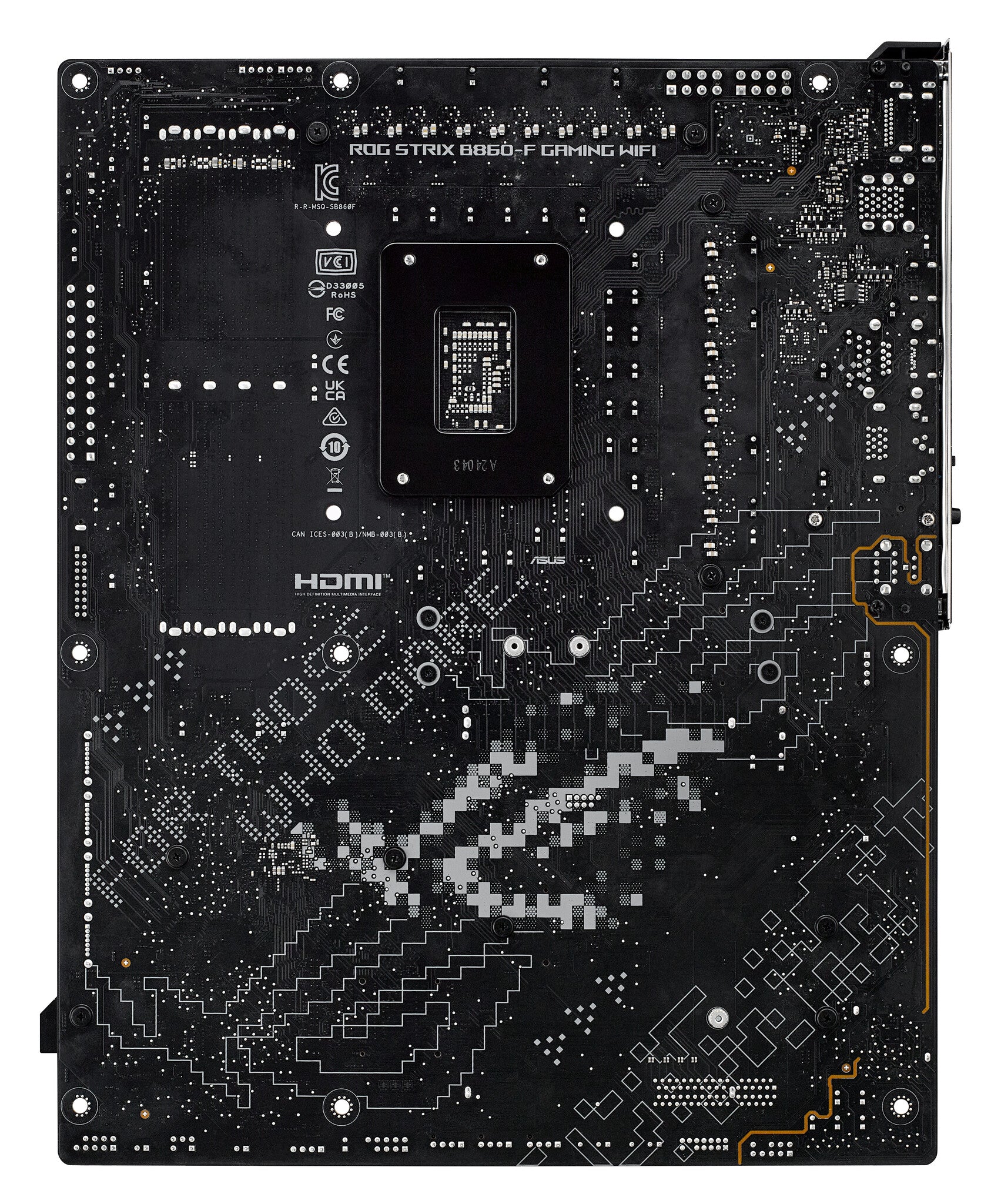

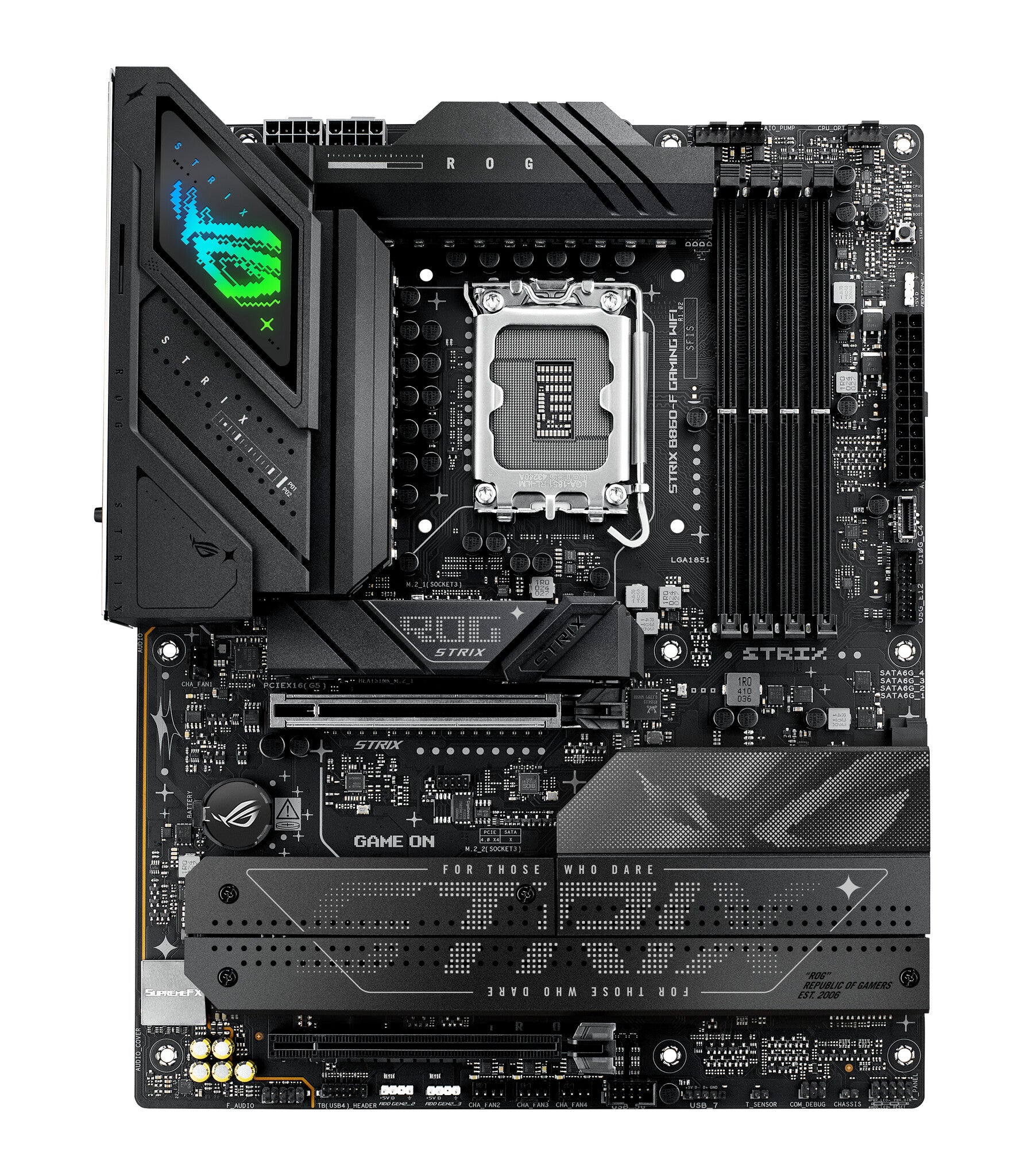

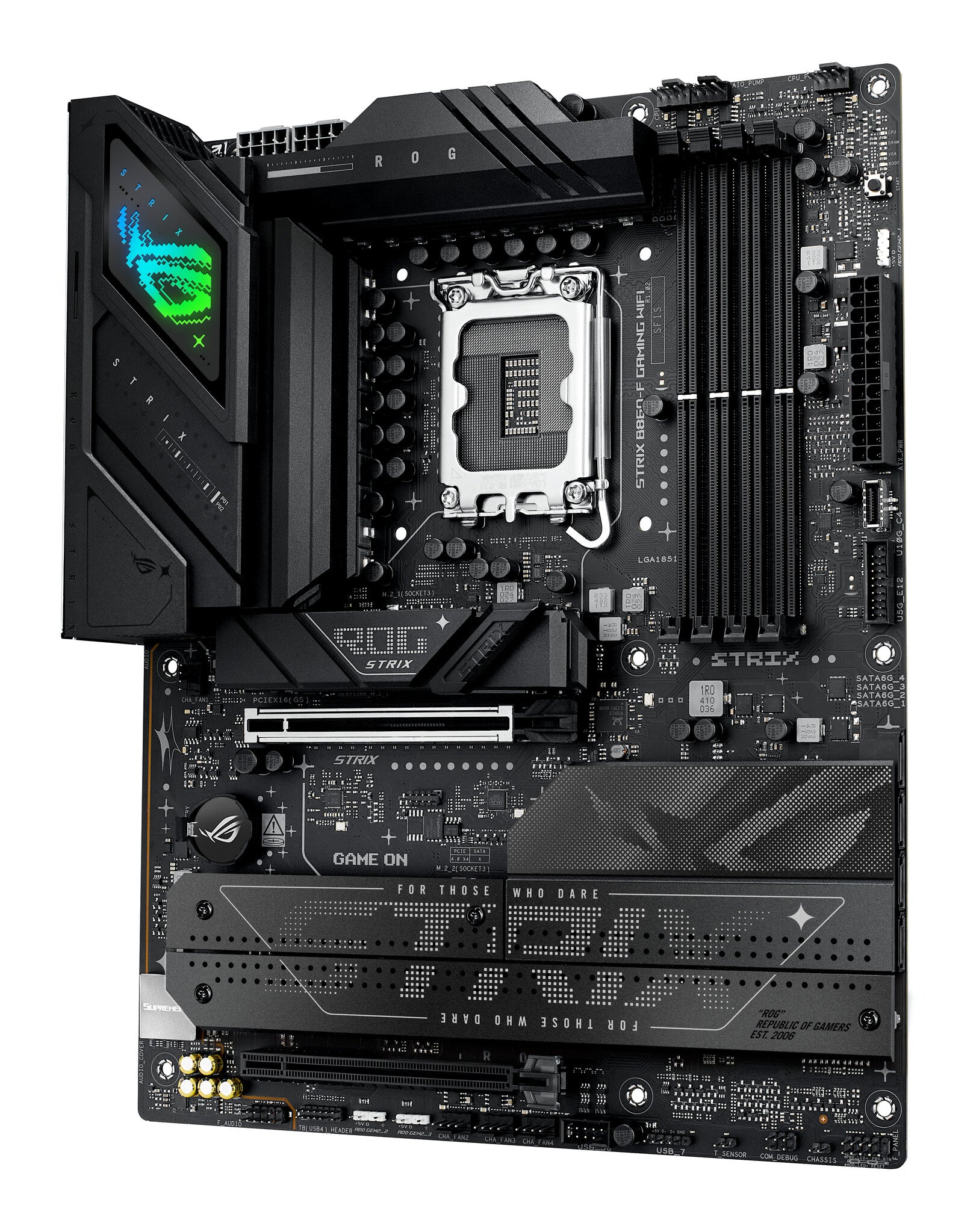

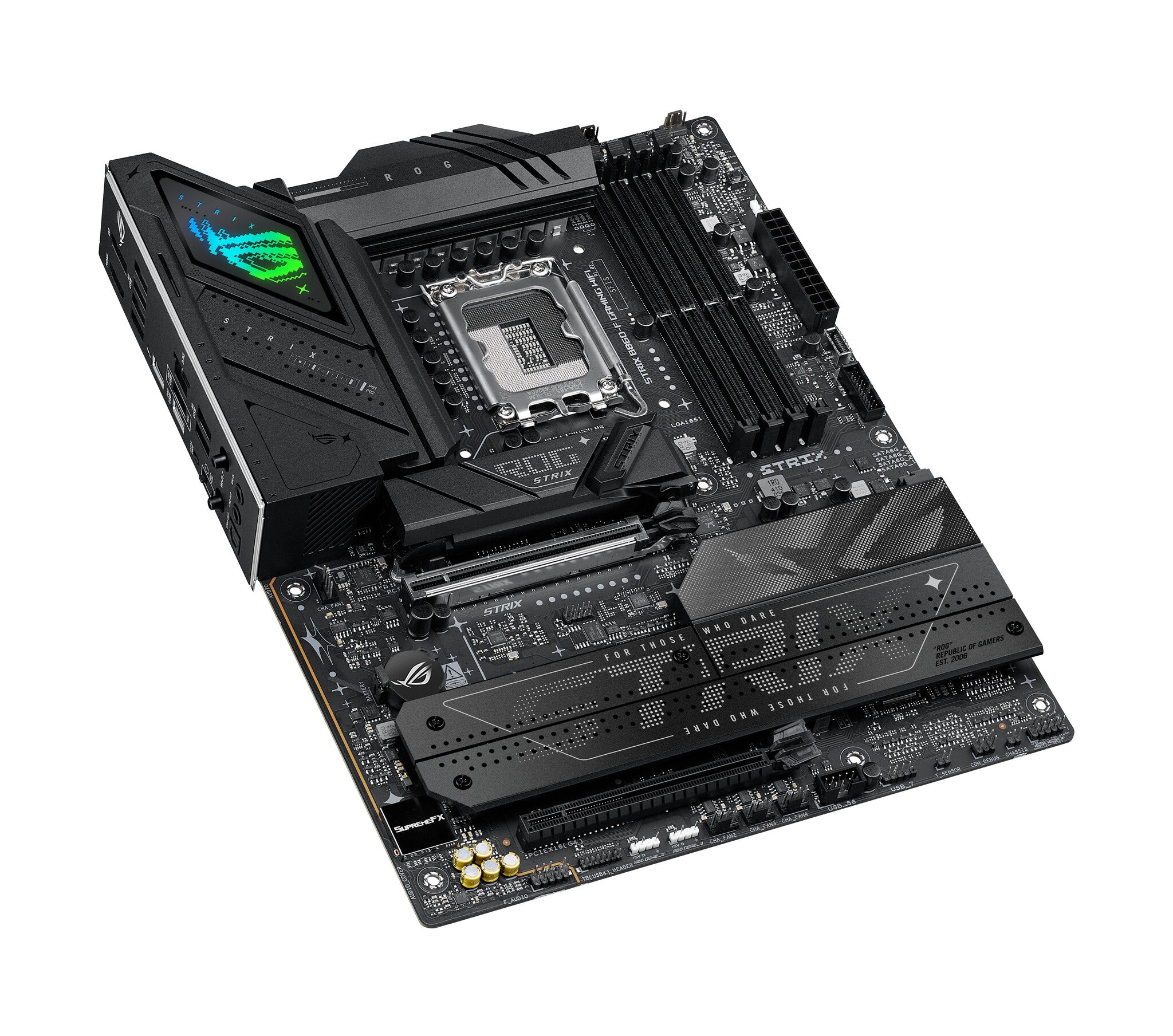

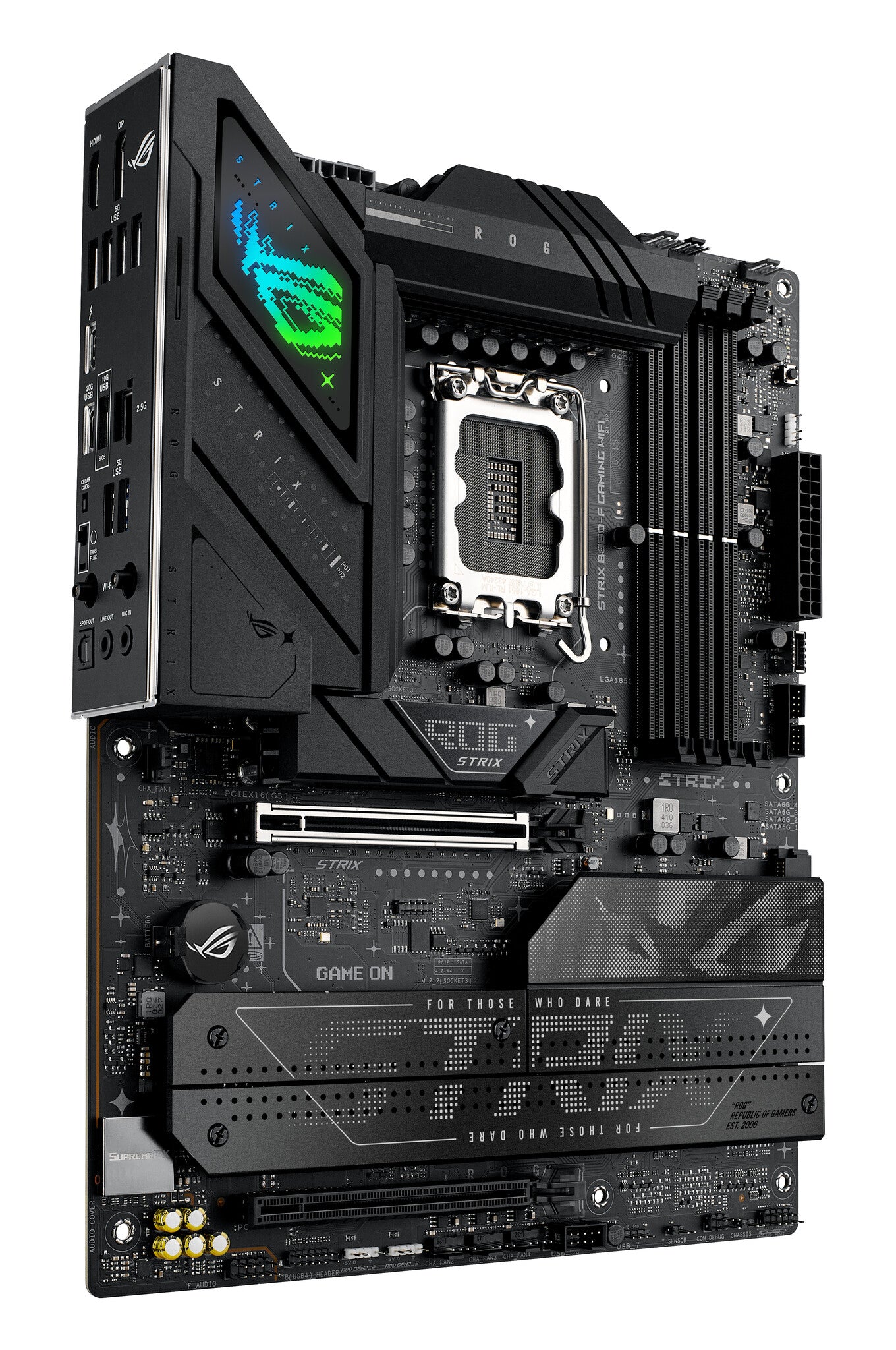

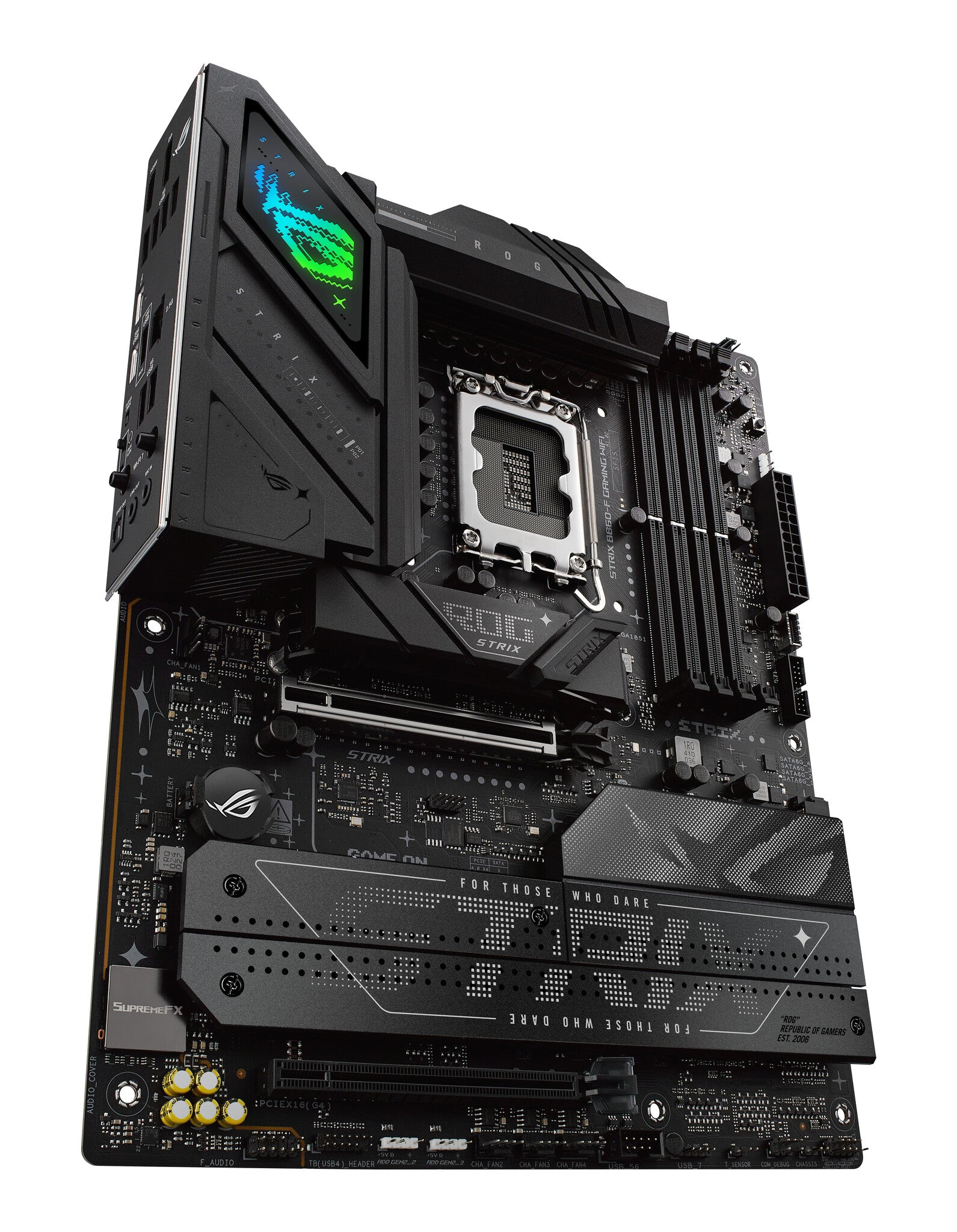

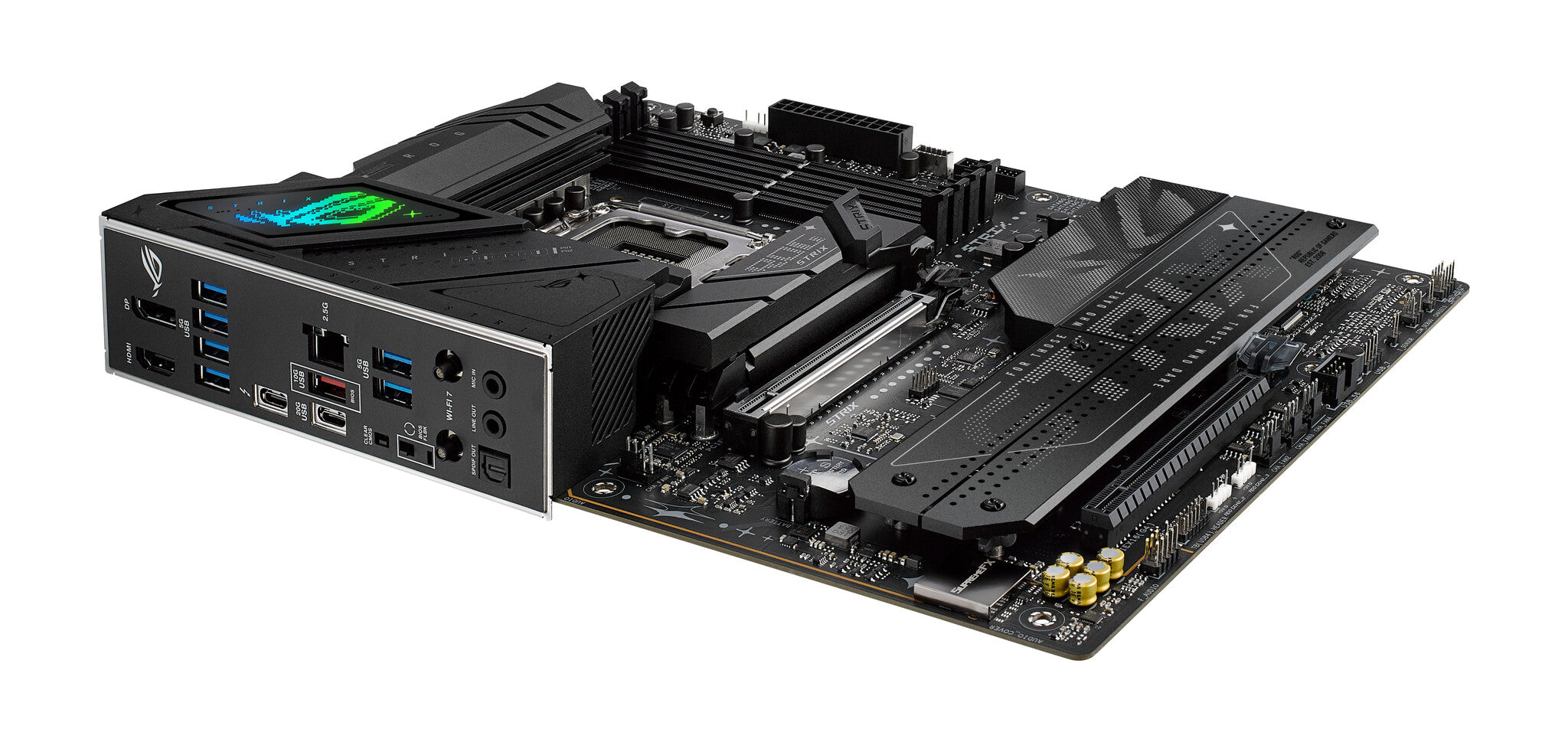

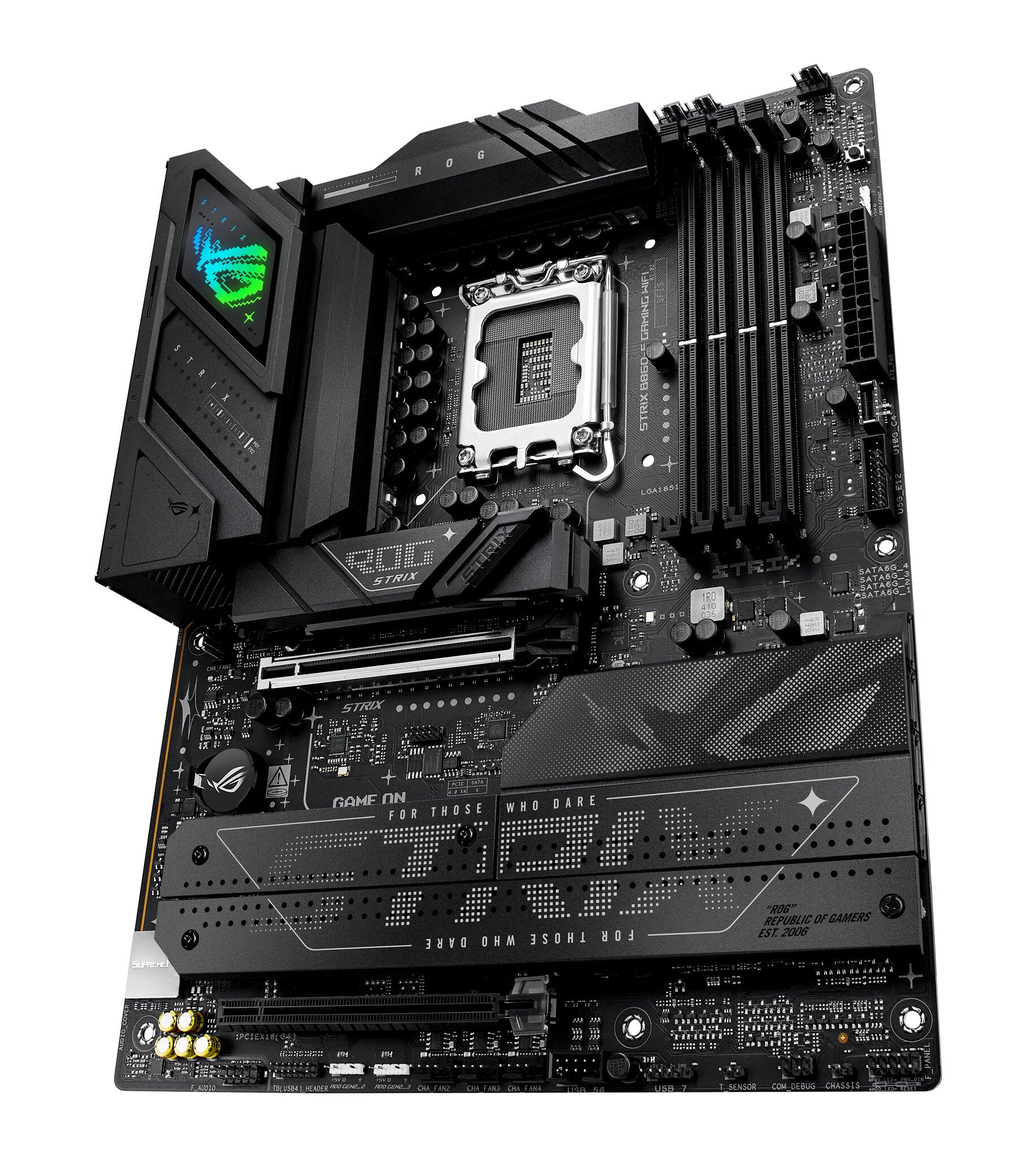

ASUS ROG STRIX B860-F GAMING WIFI ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel B860 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS ROG STRIX B860-F?
How much memory can the ASUS ROG STRIX B860-F support?
Does the ASUS ROG STRIX B860-F have built-in Wi-Fi?
ASUS ROG STRIX B860-F GAMING WIFI ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
Description
ASUS brings its premium ROG Strix gaming brand to Intel's latest B860 chipset with this ATX motherboard designed for LGA1851 processors. The B860 chipset represents a solid mainstream choice that balances features with value, delivering most of what builders need without the premium price of Z-series boards. This board supports Intel's newest Core Ultra Series 2 processors and handles up to 256GB of DDR5 memory across four DIMM slots, making it suitable for serious gaming builds and content creation workstations that demand substantial system memory.

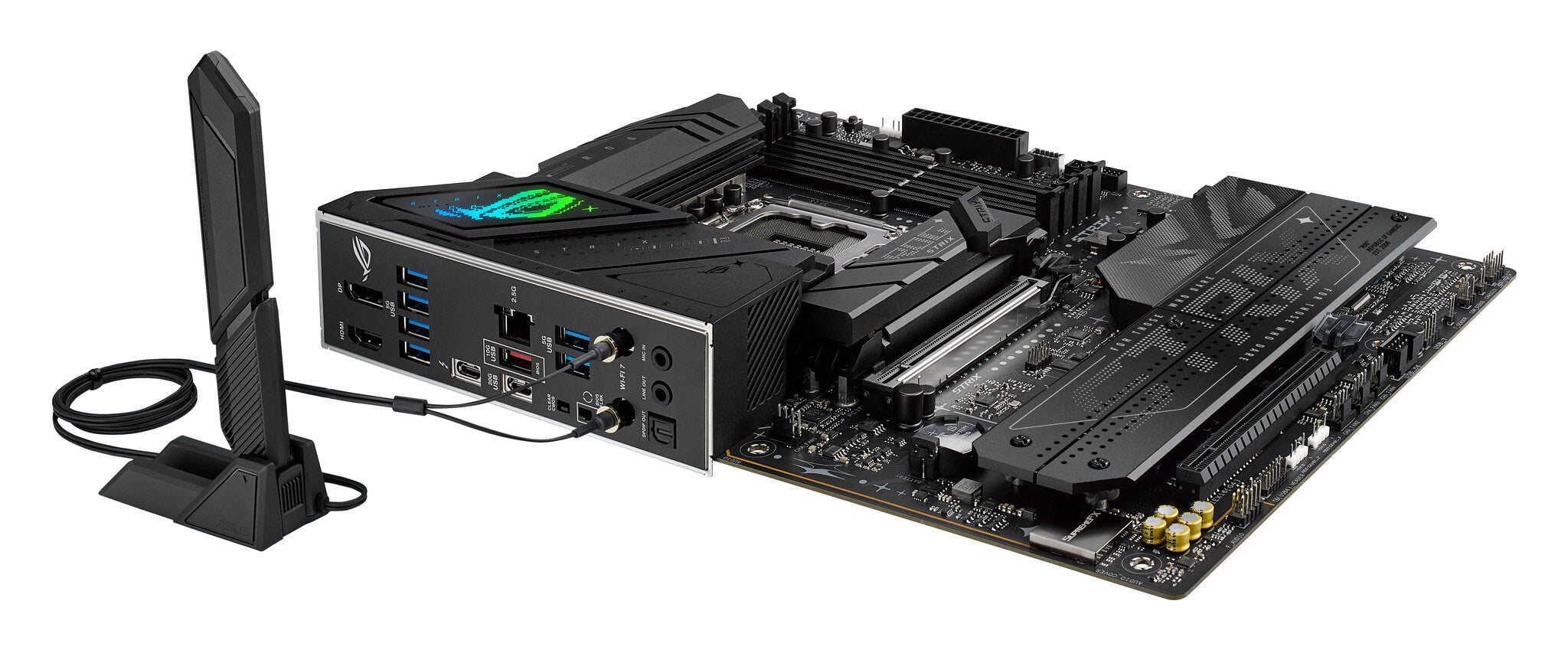

Memory performance reaches impressive heights with support for DDR5 speeds up to 9066MHz when using compatible modules with memory overclocking profiles. The single PCIe x16 Gen 4 slot provides full bandwidth for modern graphics cards, while 2.5Gb Ethernet ensures fast wired networking that won't bottleneck high-speed internet connections. Wireless connectivity comes via Wi-Fi 7 (802.11be) in a 2x2 configuration alongside Bluetooth 5.4, covering both current and future wireless standards with excellent range and throughput.

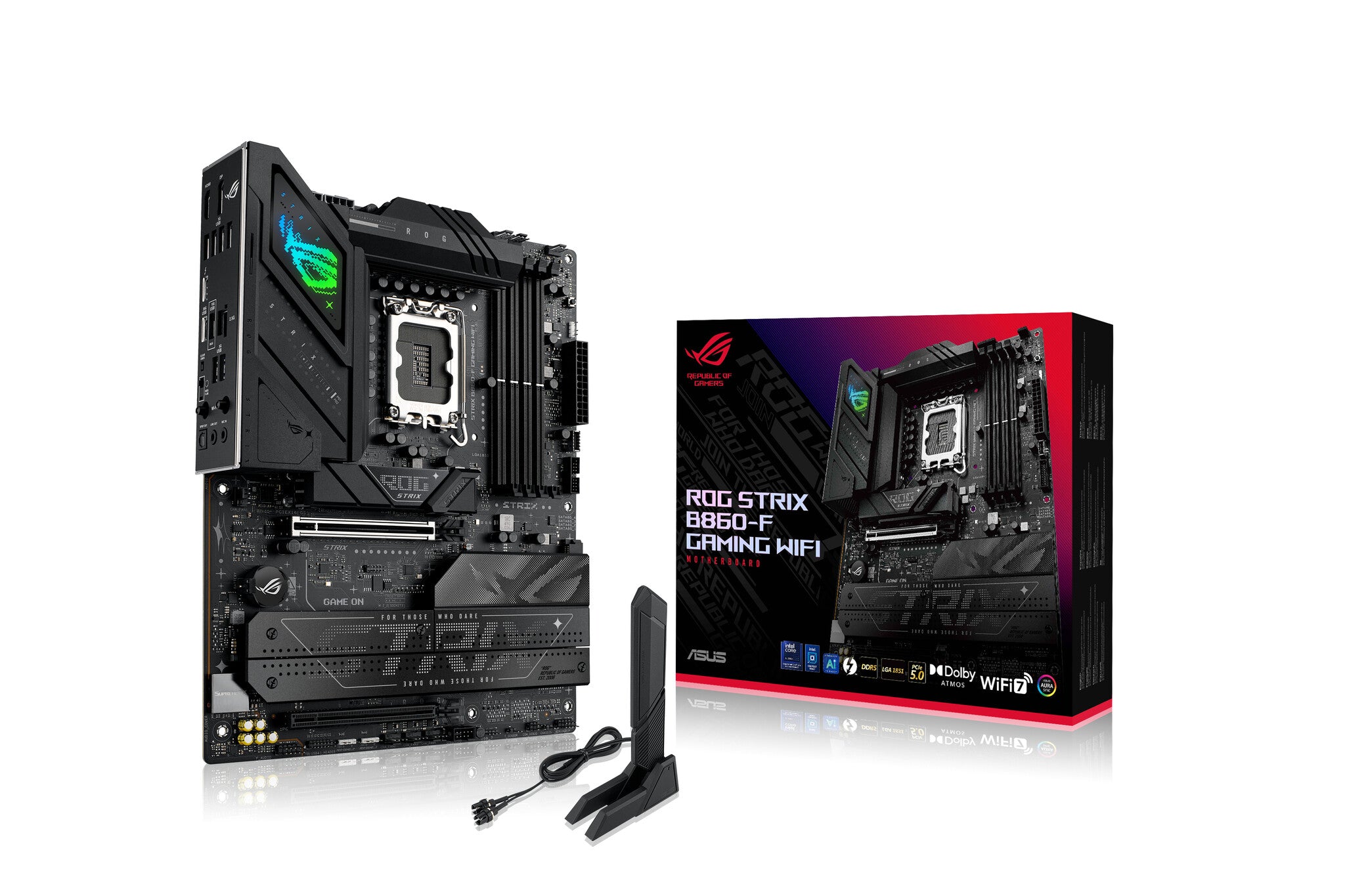

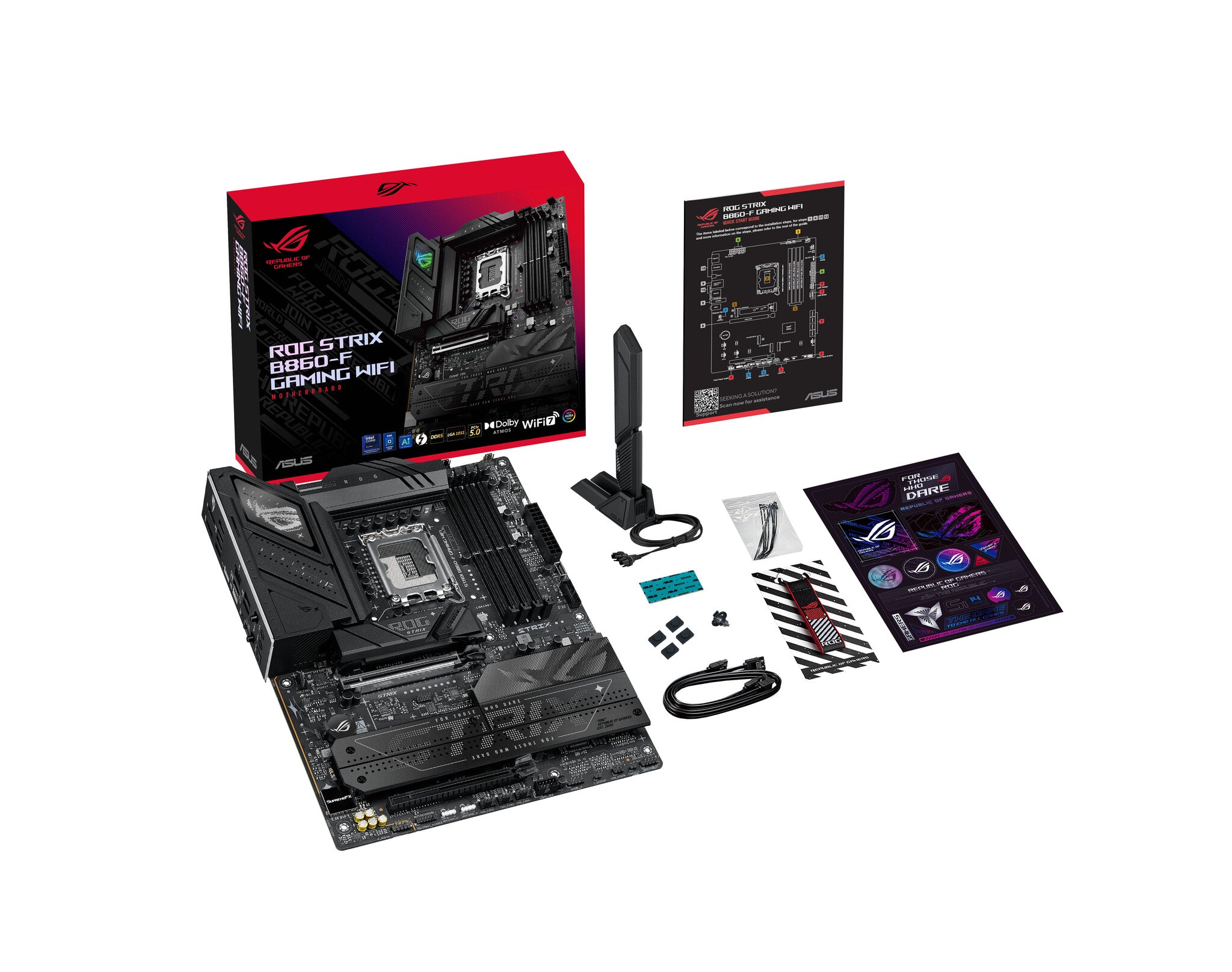

Setup begins with the UEFI AMI BIOS stored on 256MB of flash memory, providing a modern interface for system configuration and memory profile activation. The board includes standard accessories like an I/O shield and user documentation to get your build started. With ROG Strix styling and a practical feature set that covers gaming essentials without unnecessary complexity, this B860 board serves as a capable foundation for Intel's latest platform.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 350 mm |
| Package depth | 265 mm |
| Package height | 71 mm |
| Package weight | 2.29 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Other features | |
|---|---|
| Weight | 1.51 kg |
