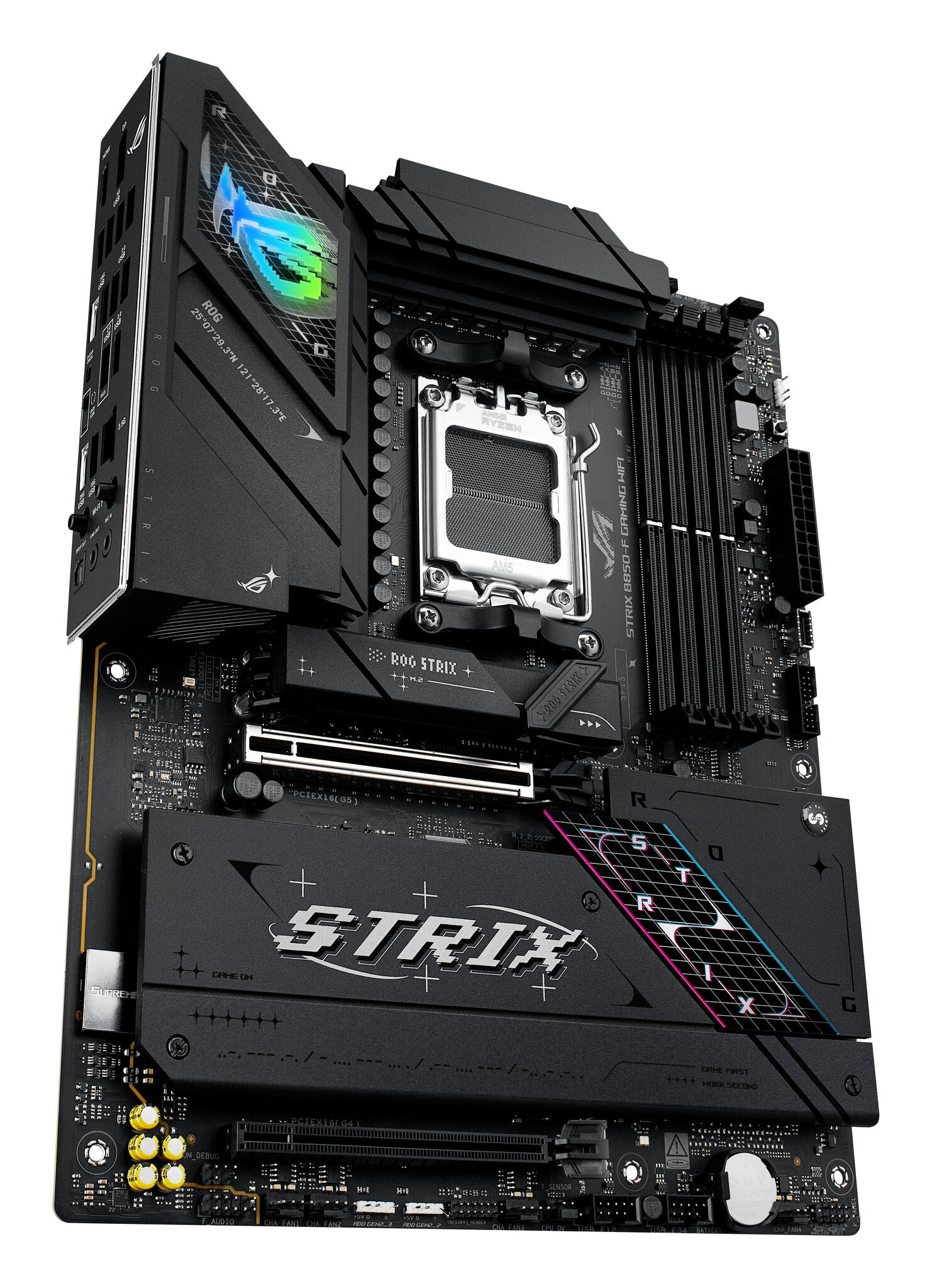

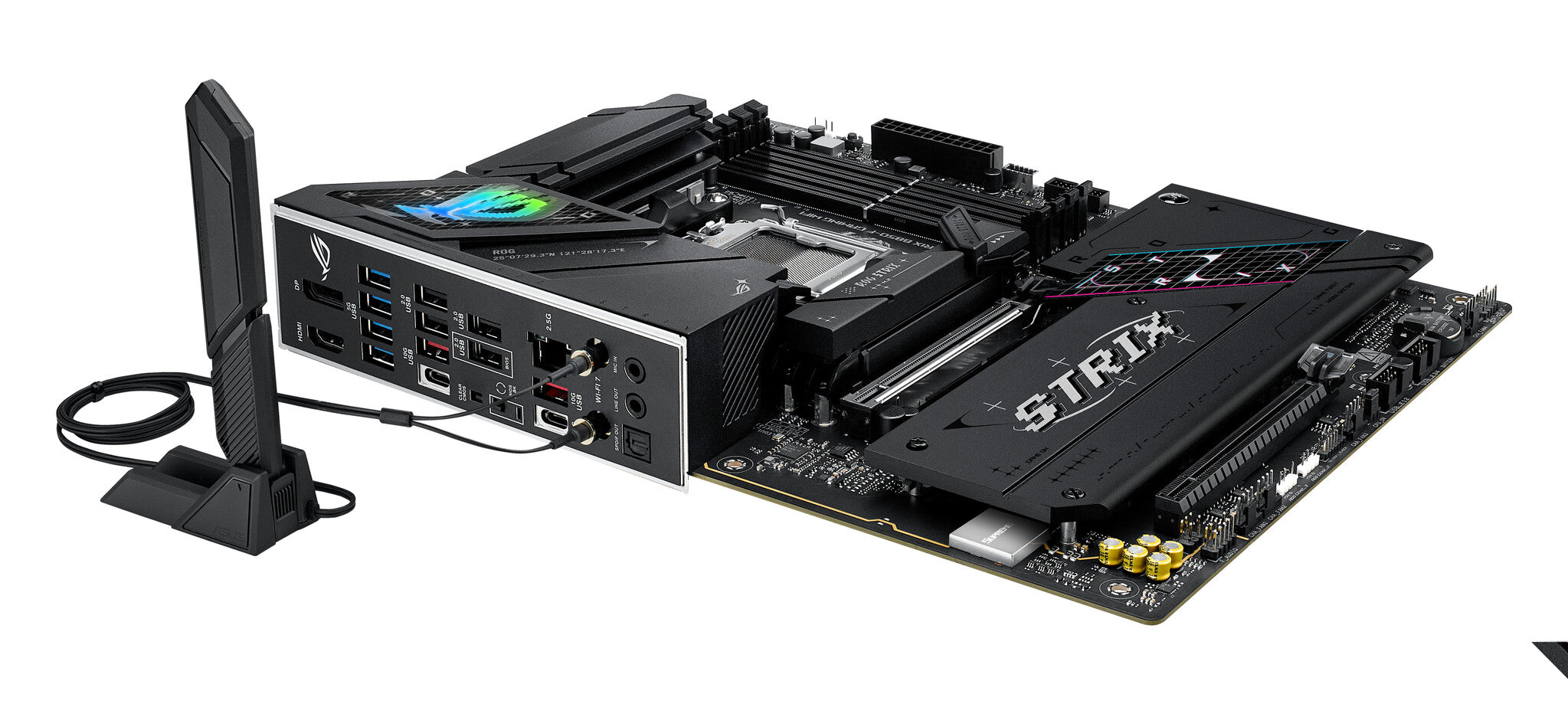

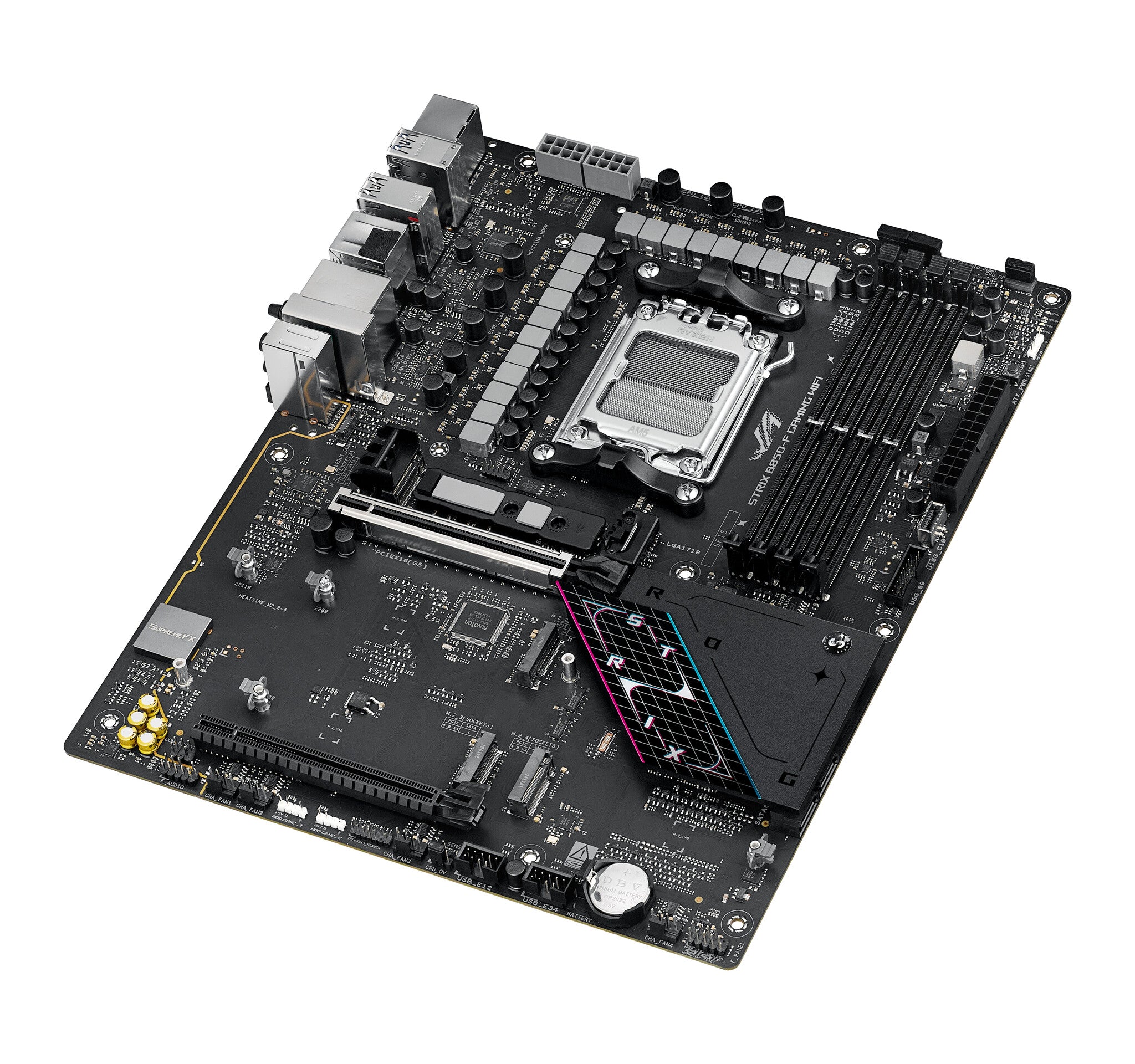

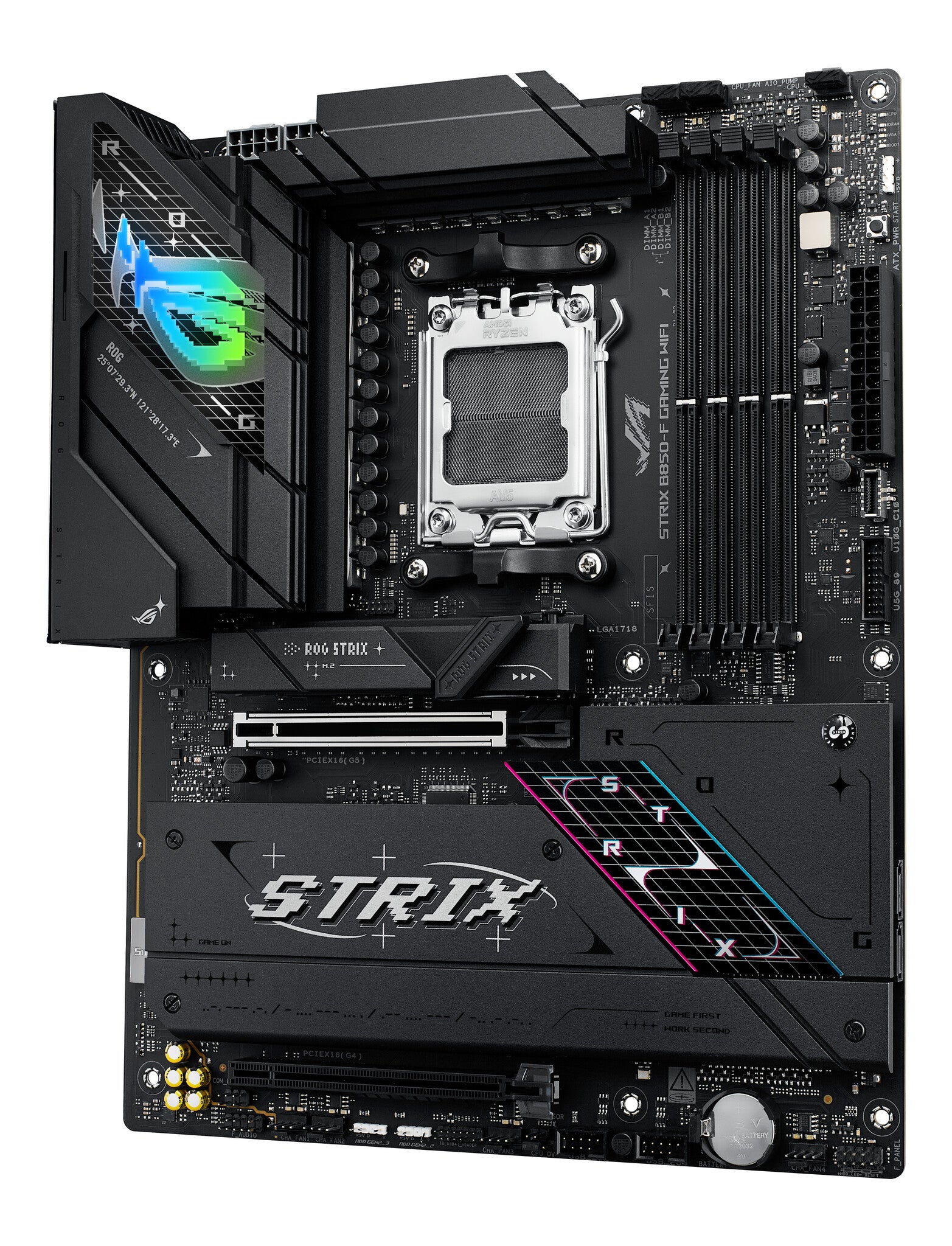

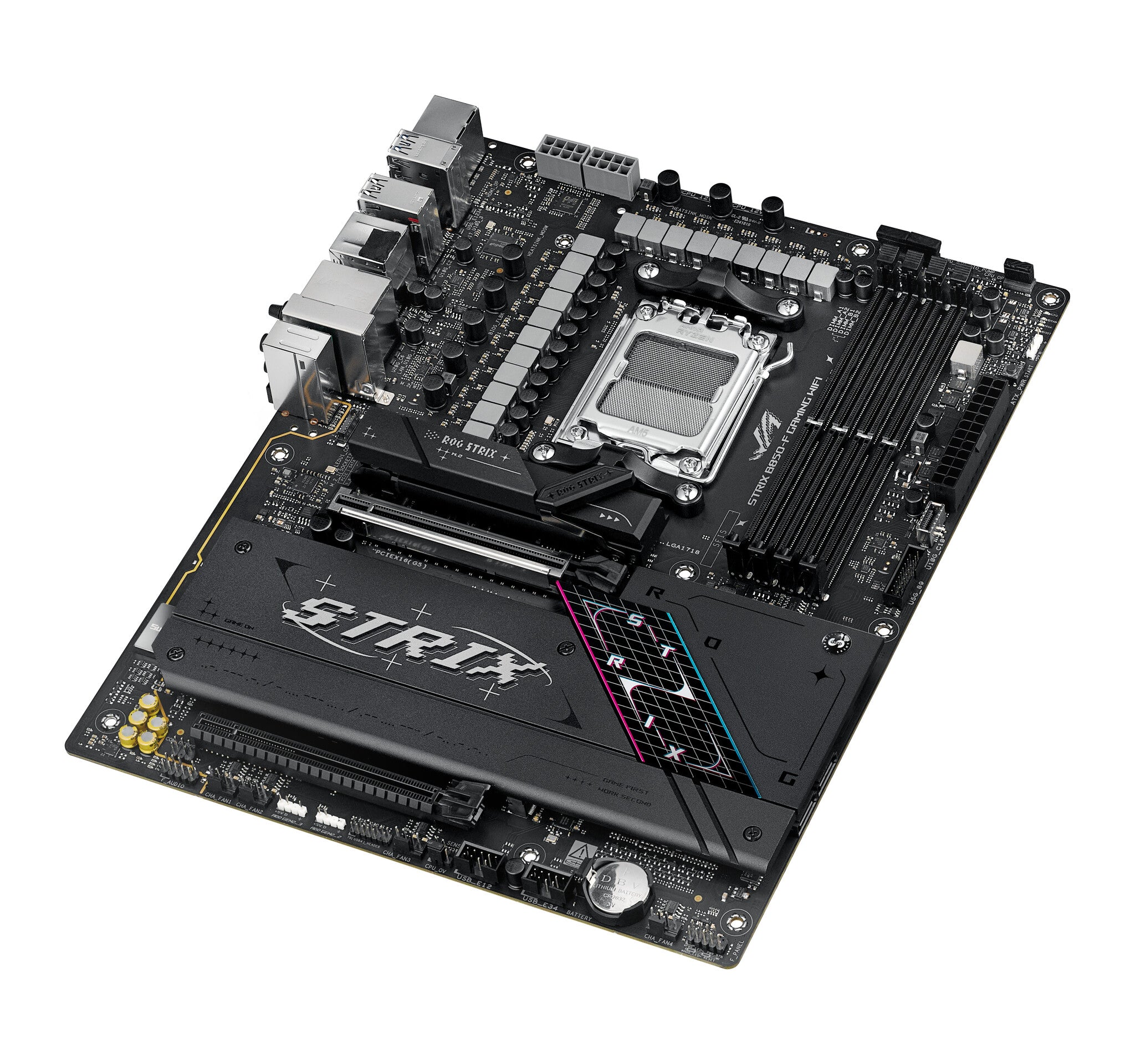

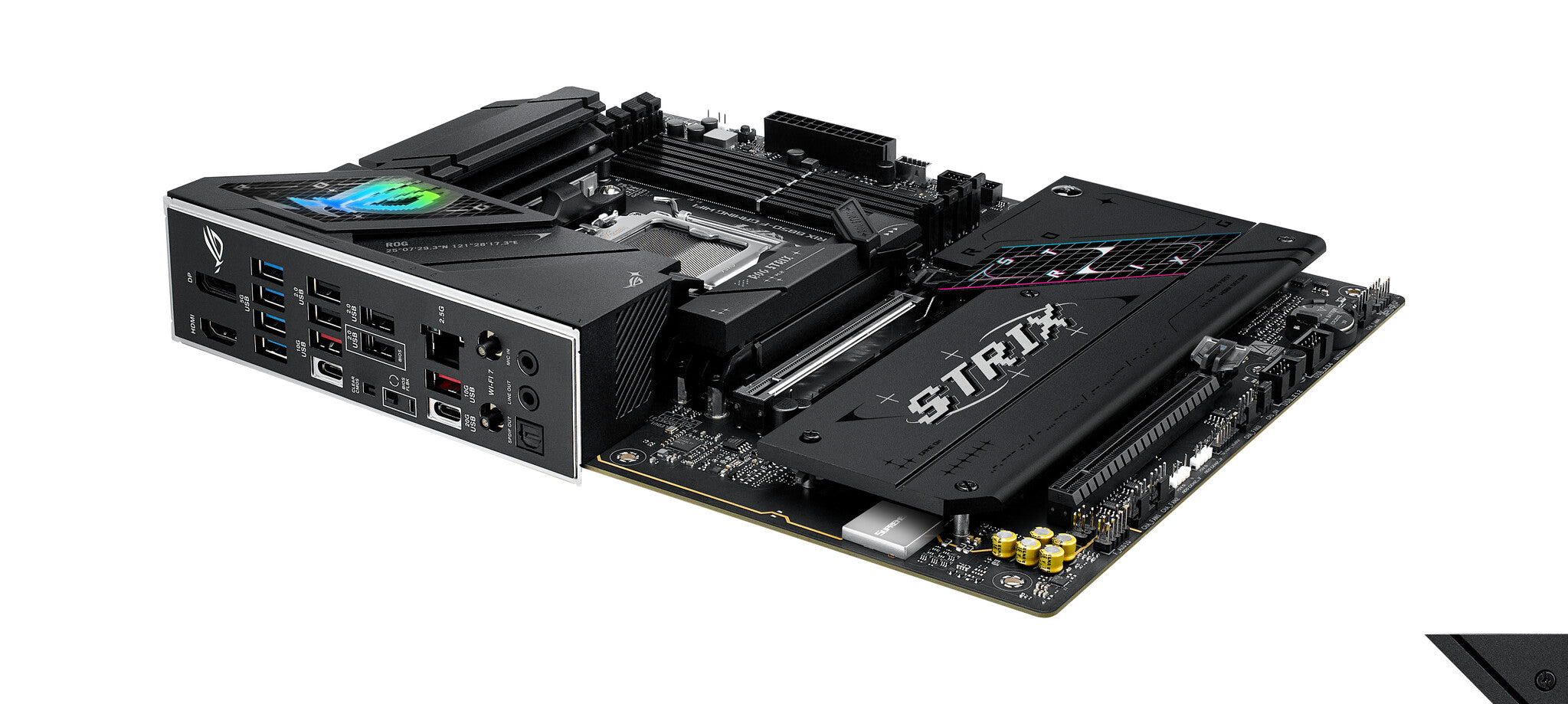

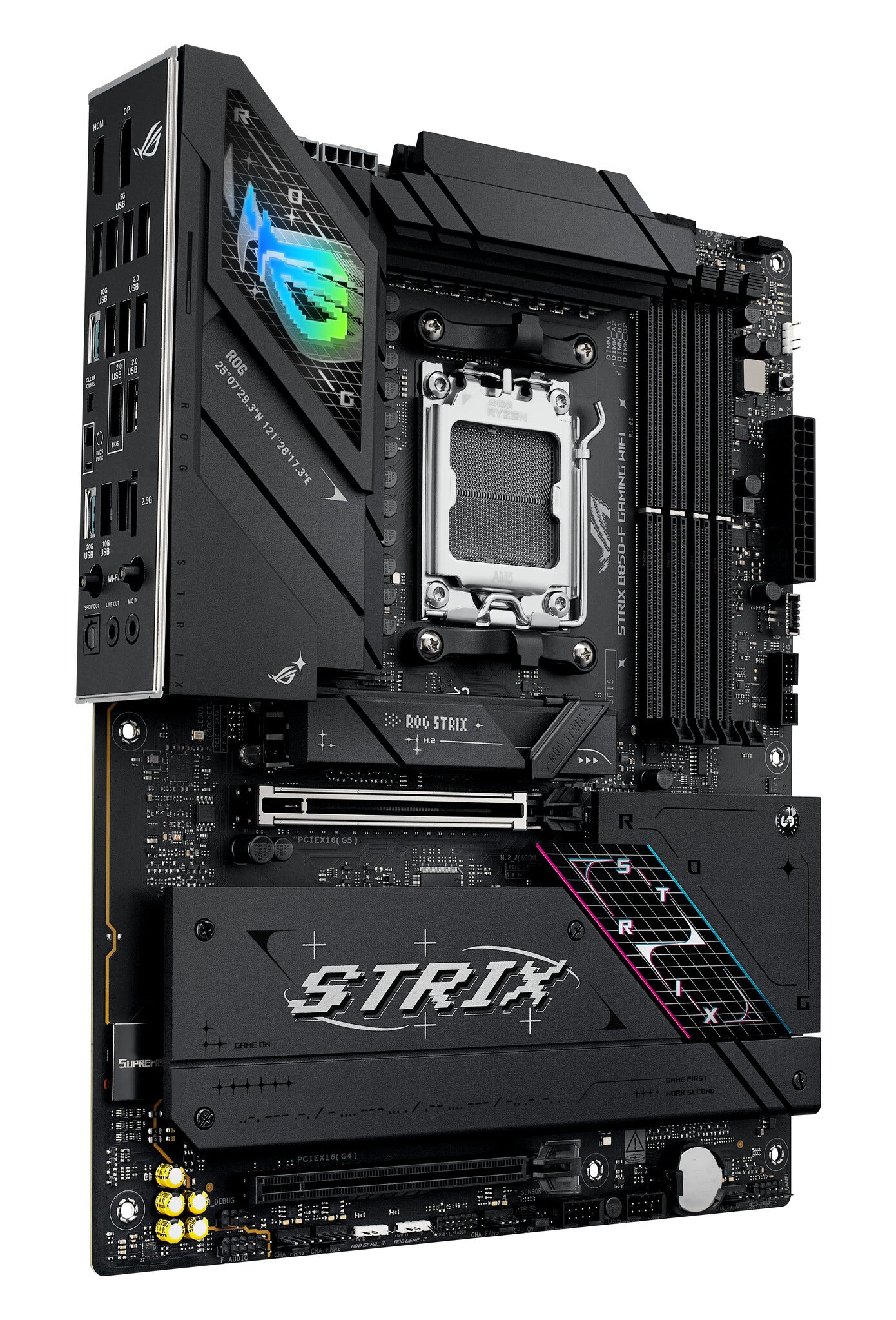

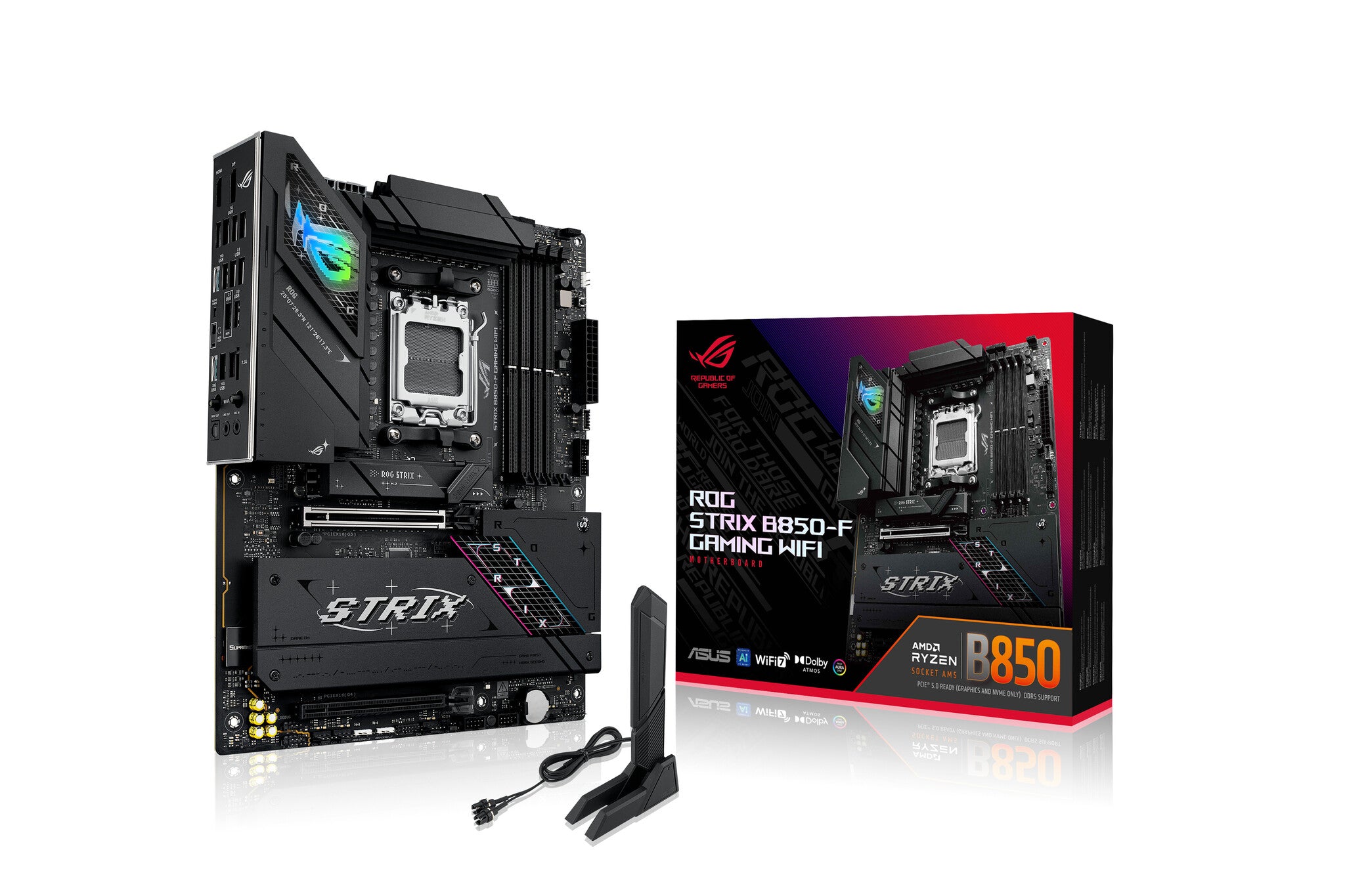

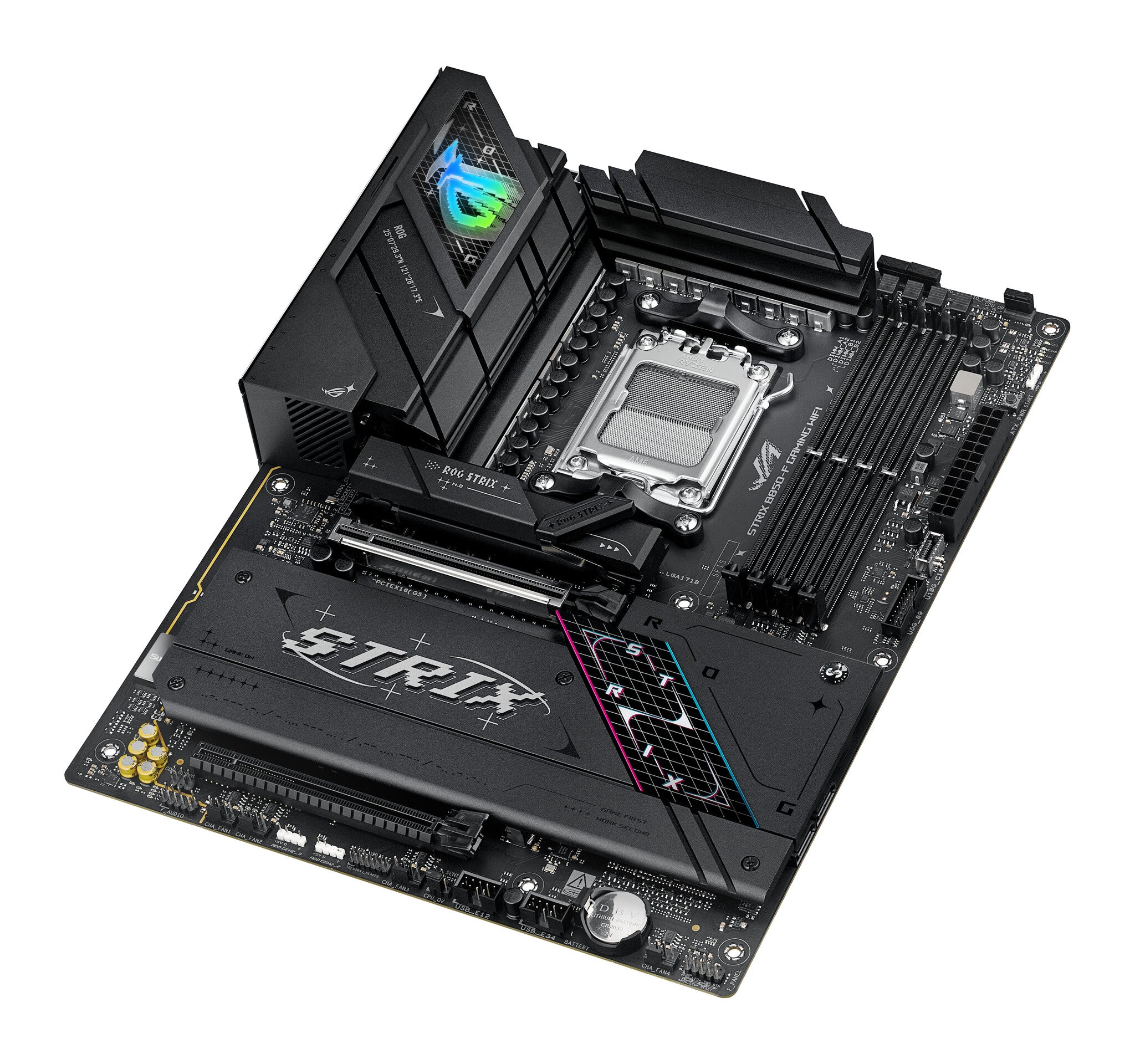

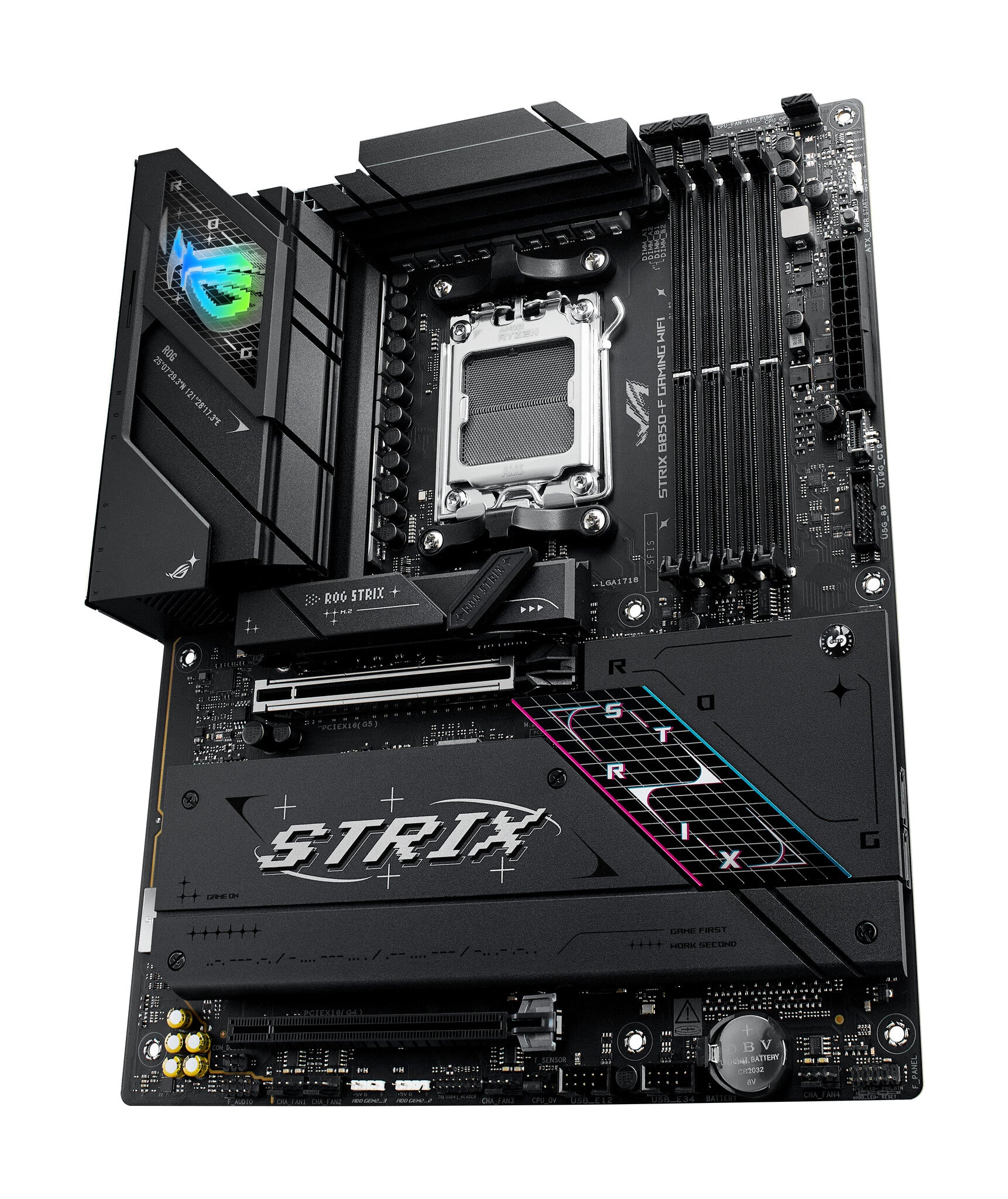

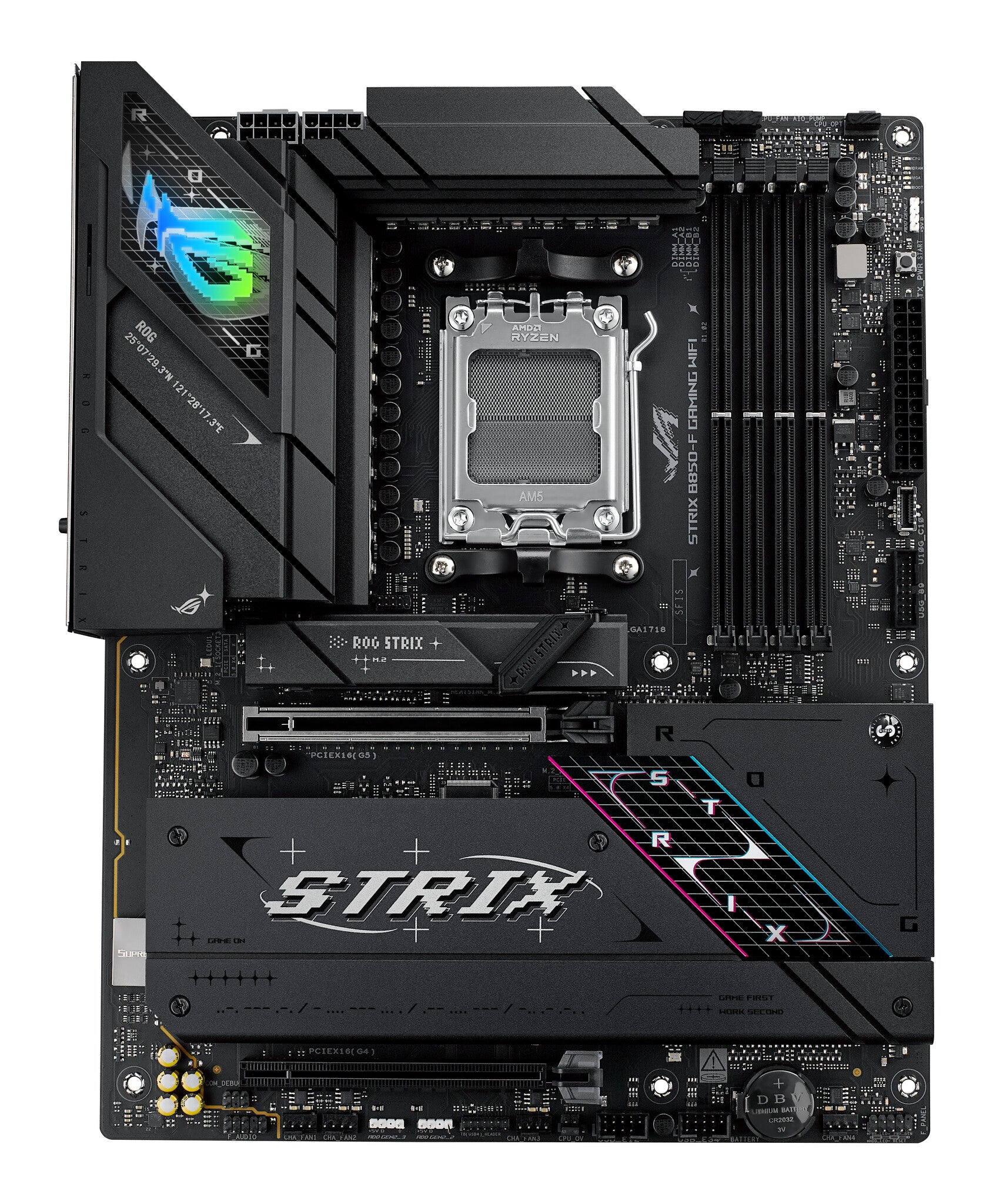

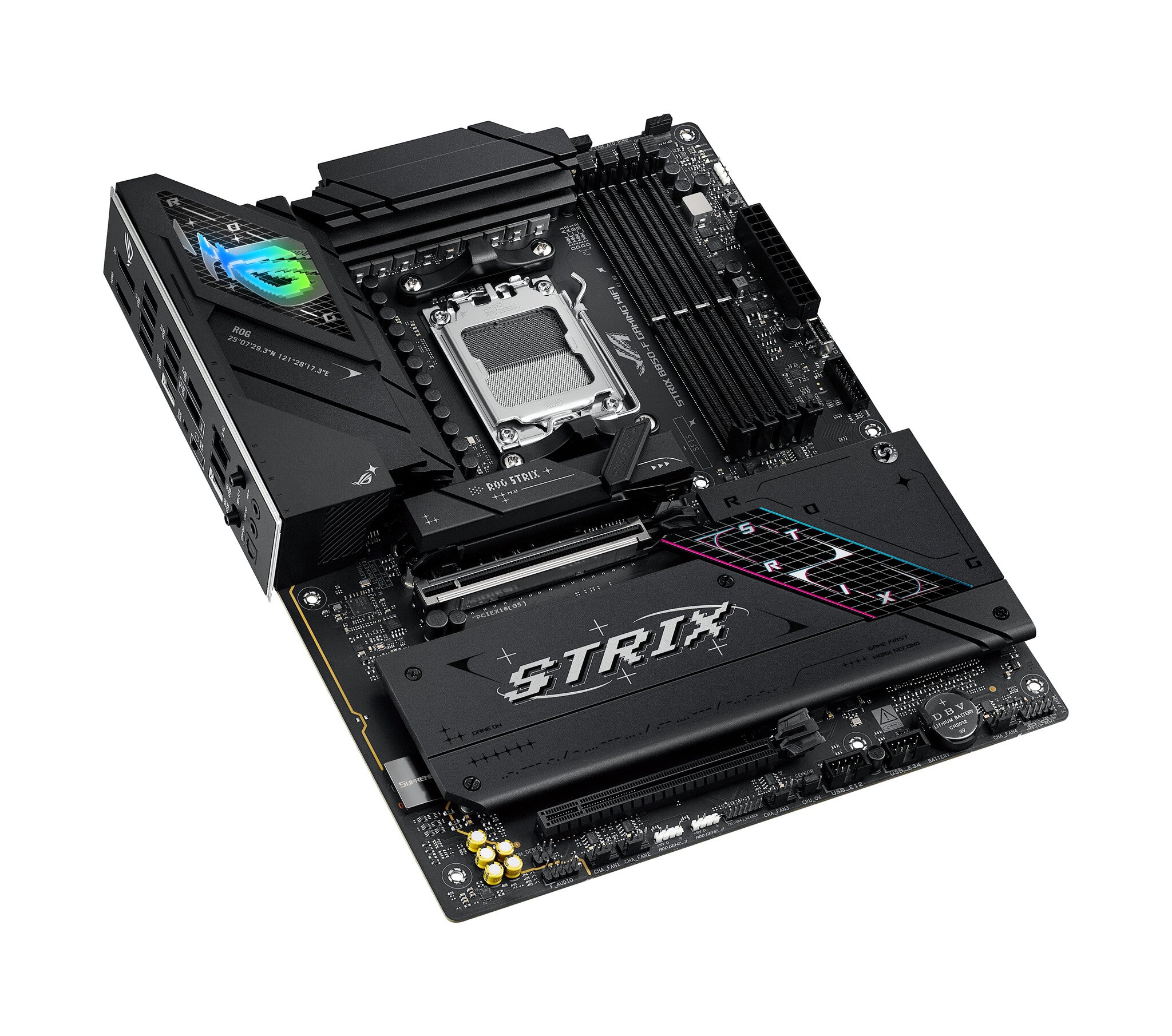

ASUS ROG STRIX B850-F GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B850 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS ROG STRIX B850-F?
How many memory slots does the motherboard have?
Does the ASUS ROG STRIX B850-F support WiFi?
ASUS ROG STRIX B850-F GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The ASUS ROG STRIX B850-F Gaming WiFi represents a premium mainstream motherboard built around AMD's latest B850 chipset and AM5 socket. This ATX board targets enthusiast gamers and content creators who want flagship features without the extreme overclocking focus of X-series chipsets. Compatible with AMD's Ryzen 7000, 8000, and 9000 series processors, it balances performance capabilities with practical connectivity for demanding builds.
Memory support extends up to 192GB of DDR5 across four DIMM slots, with speeds reaching 8000MHz for high-performance kits. Storage flexibility comes from four M.2 slots - two PCIe 5.0 slots supporting drives up to 22110 length, plus two PCIe 4.0 slots for 2280 drives. Graphics expansion includes both PCIe 5.0 x16 and PCIe 4.0 x16 slots, accommodating multi-GPU setups or additional expansion cards. Built-in WiFi 7 eliminates the need for separate wireless cards, while comprehensive RGB headers and Aura Sync compatibility let builders coordinate lighting across components.

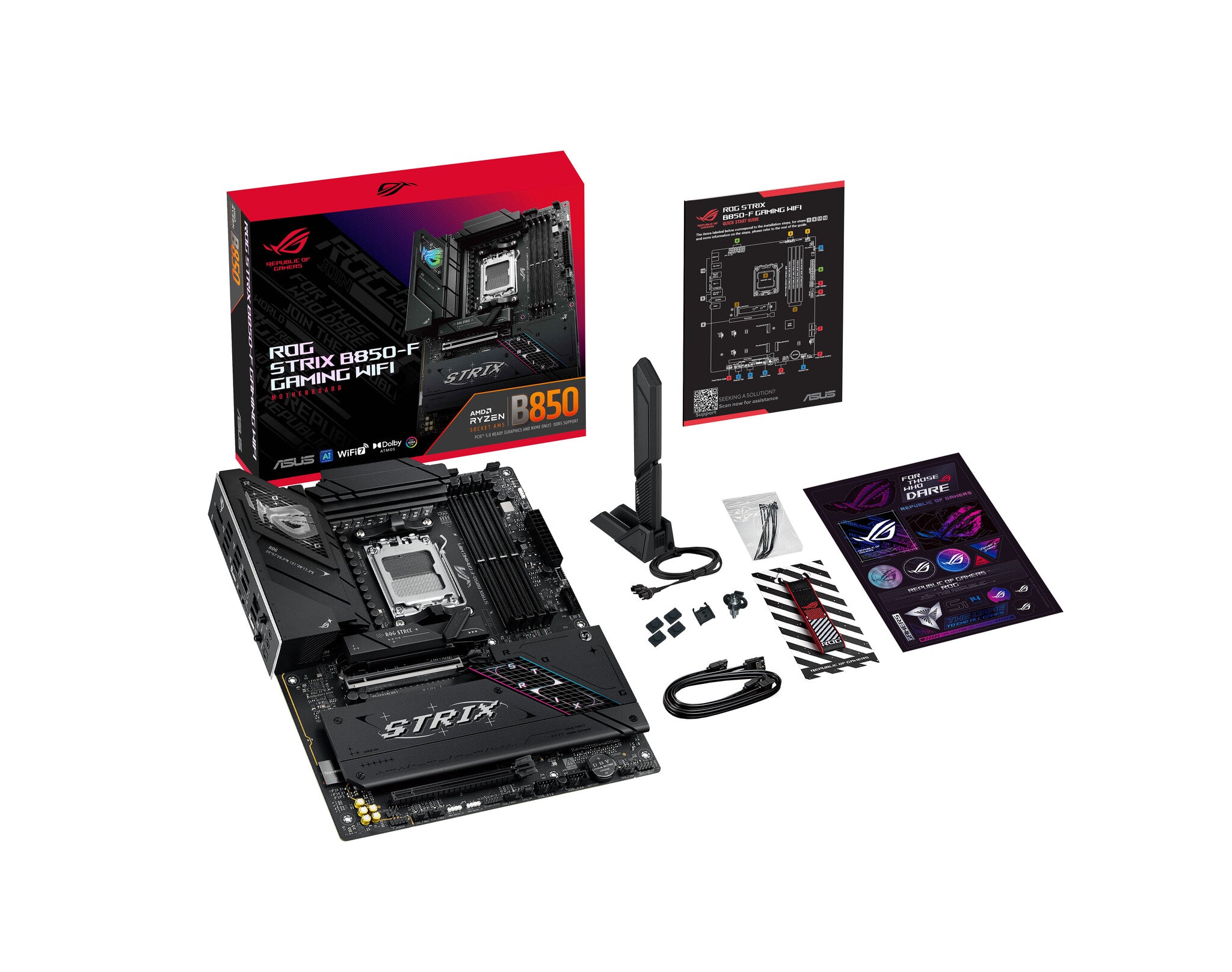

Power delivery comes through dual 8-pin EPS connectors for stable high-end CPU operation, complemented by multiple fan headers including dedicated CPU and pump connections for custom cooling loops. The board supports both ECC and standard memory modules, adding professional workstation flexibility. ASUS includes essential accessories like the rear I/O shield, SATA cables for storage connections, M.2 mounting hardware for all slots, and a detailed installation guide to streamline the build process.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Â ÂŁ6.99
- 2 days Delivery: ÂŁ4.99
- 3- 5 Days Shipping: ÂŁ3.99
- Orders Over ÂŁ99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 7680 x 4320 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 1 |
| Number of water pump connectors | 1 |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |

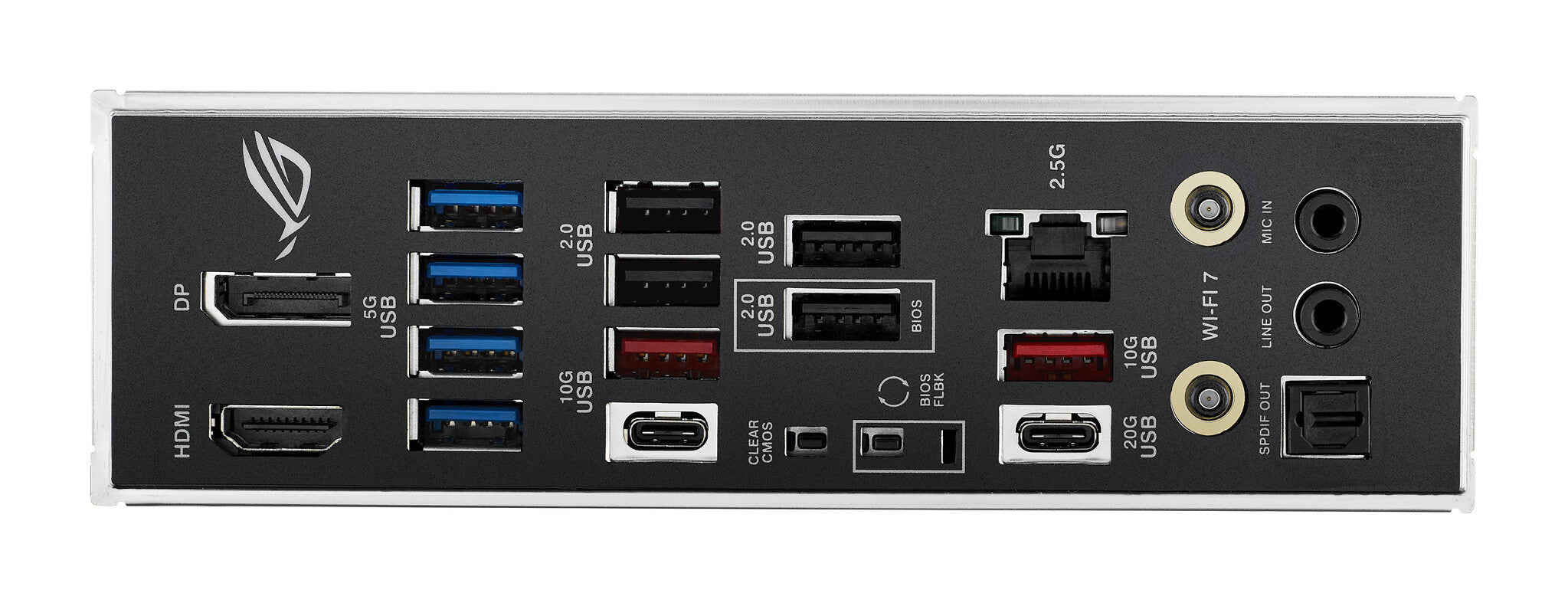

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
|---|---|
| Audio output |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Other features | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen⢠9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPOâ˘) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Special features |
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen⢠7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen⢠8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology Ryzen⢠9000 Series Processors: RAID 0/1/5/10 Ryzen⢠8000 Series Processors: RAID 0/1 Ryzen⢠7000 Series Processors: RAID 0/1/10 |
| Graphics output | 1 x DisplayPort* 1 x HDMI⢠port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution. |
