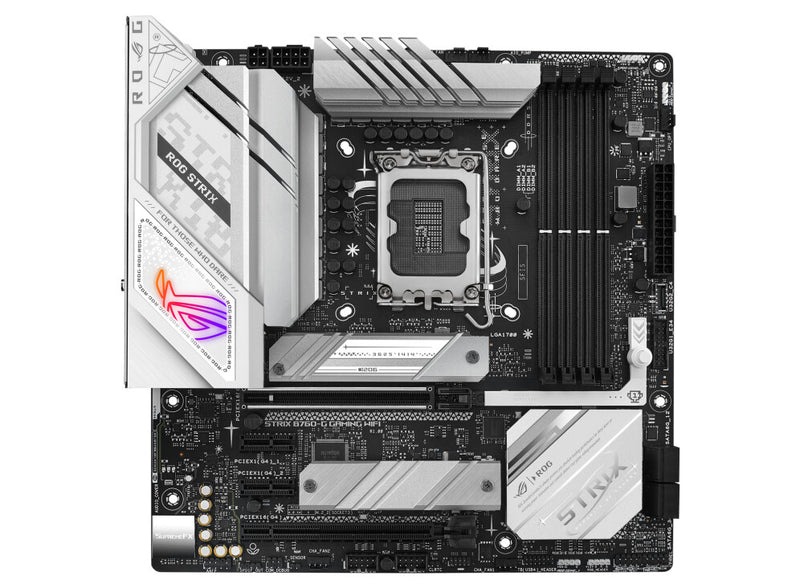

ASUS ROG STRIX B760-G GAMING WIFI mATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel B760 SupremeFX S1220A 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS ROG STRIX B760-G?
How much memory can the motherboard support?
Does it have built-in Wi-Fi?
ASUS ROG STRIX B760-G GAMING WIFI mATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description
This micro ATX board combines Intel's B760 chipset with Wi-Fi connectivity and gaming-focused features in a compact form factor. The ROG STRIX B760-G GAMING WIFI handles everything from budget Intel Celeron processors to high-end Core i9 chips through its LGA1700 socket, making it suitable for builds that need strong performance without the bulk of a full ATX board. ASUS positions this as a gaming-oriented option with RGB lighting support and enhanced connectivity options.
Memory support reaches up to 192GB across four DDR5 slots, with speeds up to DDR5-7800 when using compatible modules and XMP profiles. The board provides two PCIe x16 slots - one PCIe 5.0 and one PCIe 4.0 - giving flexibility for multi-GPU setups or adding high-bandwidth expansion cards alongside your primary graphics card. Two additional PCIe x1 slots handle smaller expansion needs like sound cards or network adapters.
Built-in Wi-Fi eliminates the need for separate wireless cards, while the RGB LED header lets you sync case lighting with compatible components. The board includes standard essentials like an I/O shield, SATA cables for storage connections, and mounting hardware for M.2 drives. UEFI firmware provides straightforward setup and overclocking options, with memory profile support to easily achieve rated DDR5 speeds without manual timing adjustments.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7800 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio chip | SupremeFX S1220A |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
