ASUS ROG STRIX B650E-I GAMING WIFI Mini-ITX Motherboard | AM5 | 2x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- AMD Socket AM5 AMD Ryzen™ 7
- PC mini ITX AMD B650 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS ROG STRIX B650E-I?
How much memory can the motherboard support?
What is the benefit of PCIe 5.0 support?
ASUS ROG STRIX B650E-I GAMING WIFI Mini-ITX Motherboard | AM5 | 2x DDR5 Slots | Wi-Fi 6E
Description

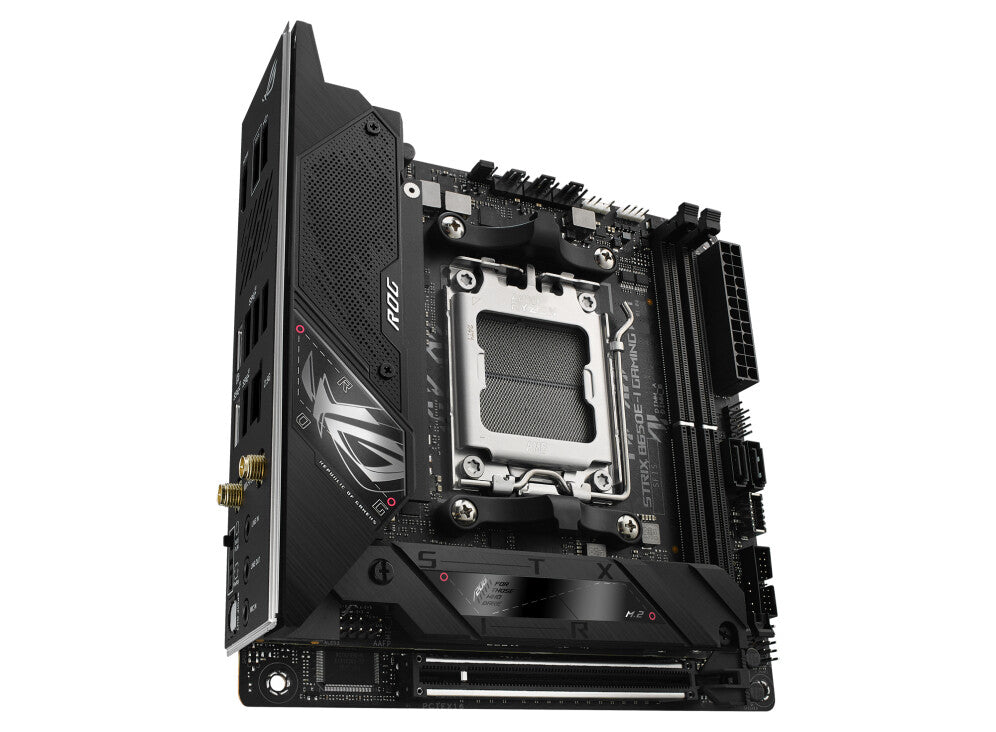

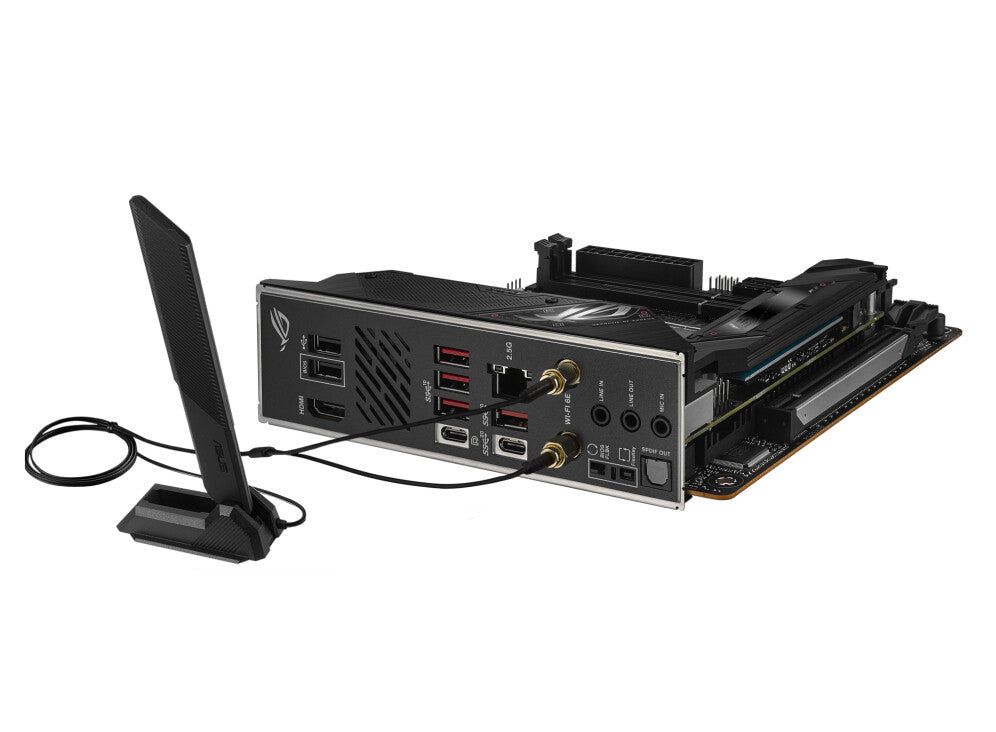

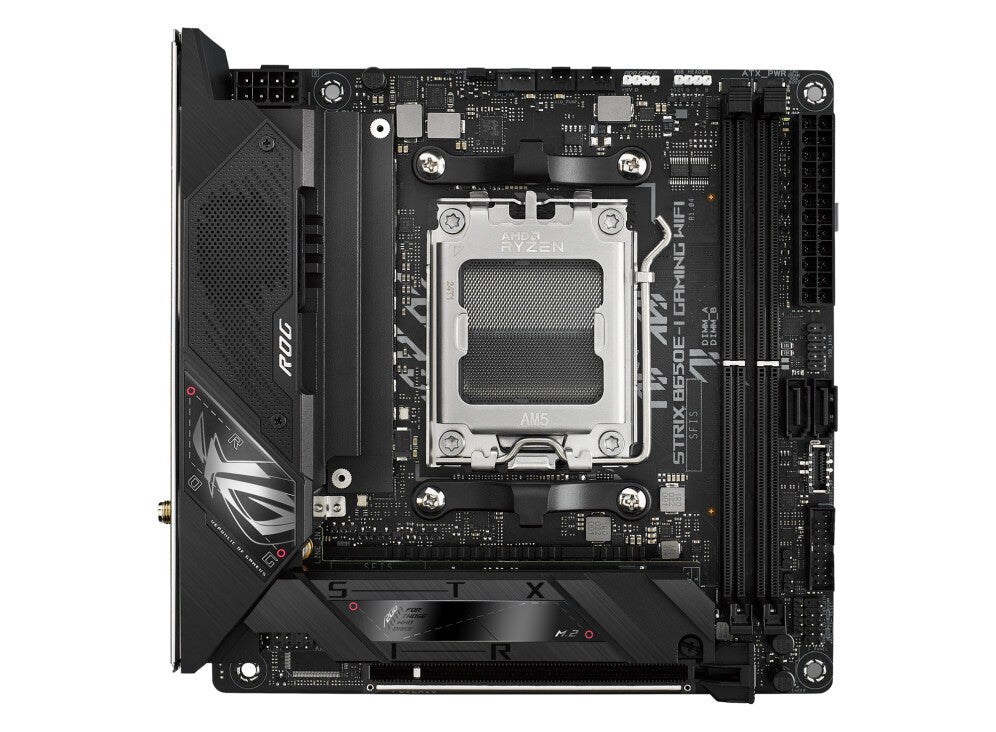

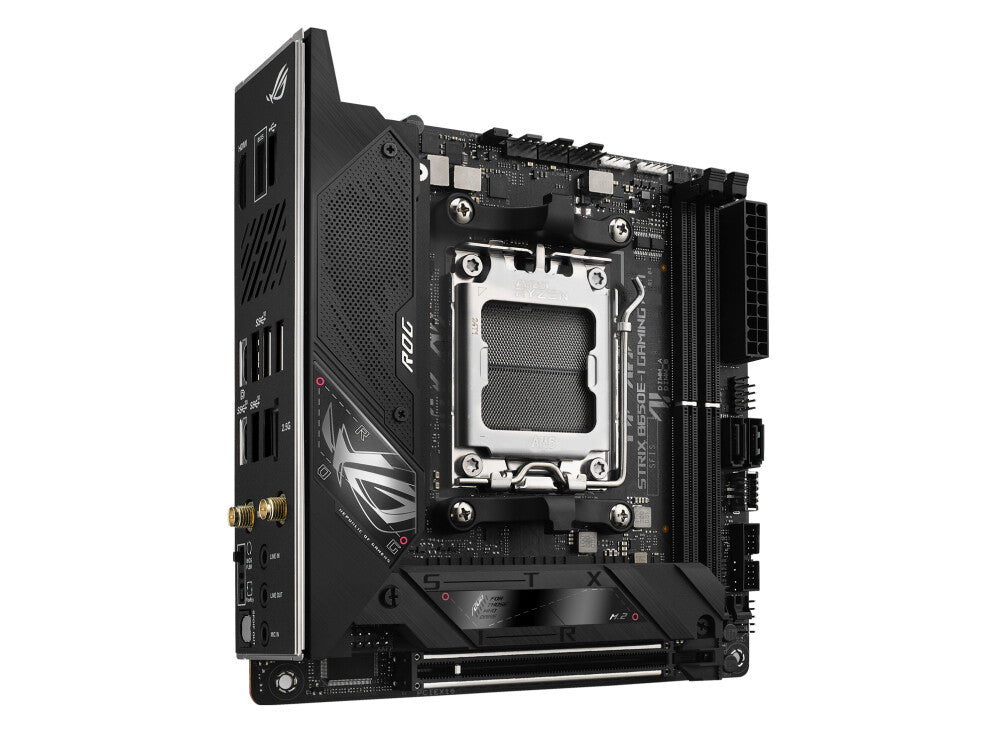

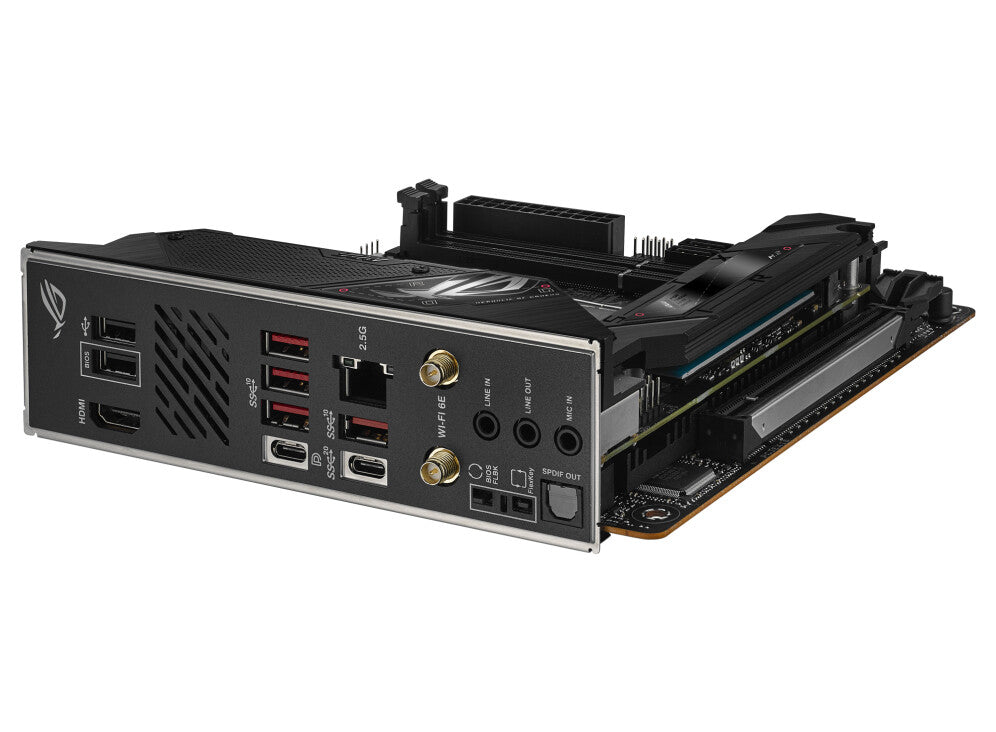

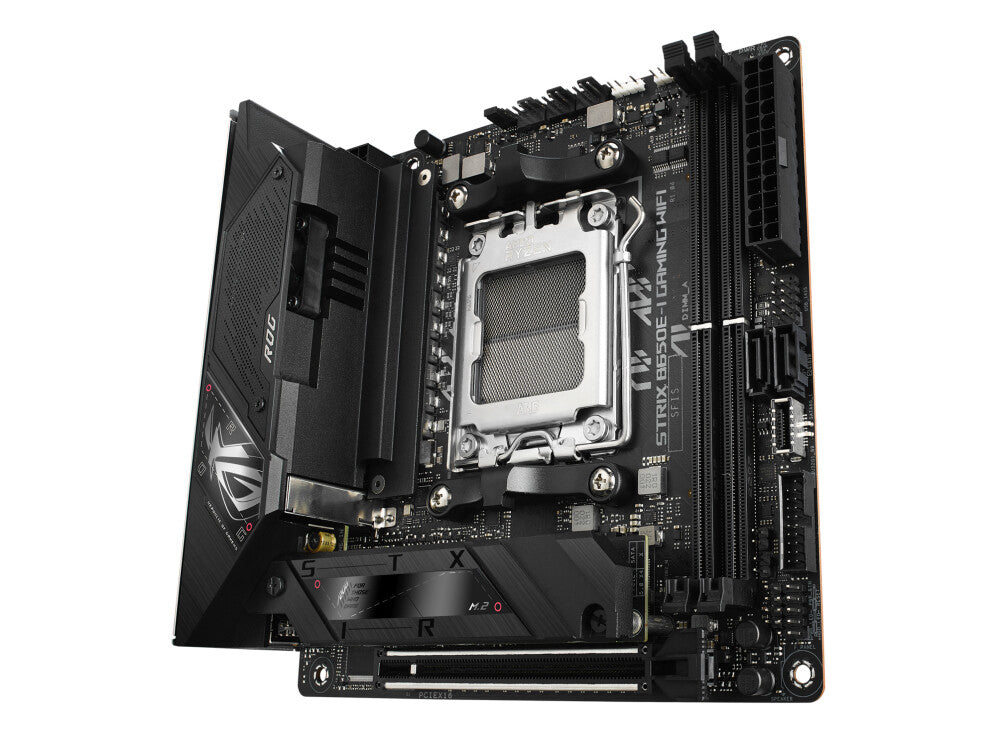

The ASUS ROG STRIX B650E-I GAMING WIFI is a premium Mini-ITX motherboard that delivers high-end features in an ultra-compact form factor. Built around AMD's B650E chipset and AM5 socket, it supports the latest AMD Ryzen 7000 series processors while offering enthusiast-grade capabilities typically found on larger boards. The 10+2 power stage design provides clean, stable power delivery for demanding processors, while the compact footprint makes it perfect for small form factor builds where space is at a premium.
Memory support is comprehensive, with two DDR5 DIMM slots supporting up to 64GB of system RAM at speeds ranging from DDR5-4800 all the way up to DDR5-6400. The single PCIe 5.0 x16 slot accommodates the most powerful modern graphics cards, ensuring no performance compromises despite the Mini-ITX size. Built-in WiFi 6E provides cutting-edge wireless connectivity, while multiple USB 3.2 ports including Gen 2 Type-C offer plenty of peripheral connectivity options.
Setup convenience comes through features like Q-Release for tool-free GPU removal and comprehensive memory profile support including AMD EXPO for easy DDR5 overclocking. The board includes RGB LED pin headers and Aura Sync compatibility for lighting customization. In the box, you'll find the motherboard with pre-installed I/O shield, SATA cables for storage connections, M.2 mounting hardware, and a detailed user guide to help with your build.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 222 mm |
| Package depth | 182 mm |
| Package height | 92 mm |
| Package weight | 8.58 kg |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
|---|---|
| Cables included | SATA, USB |
