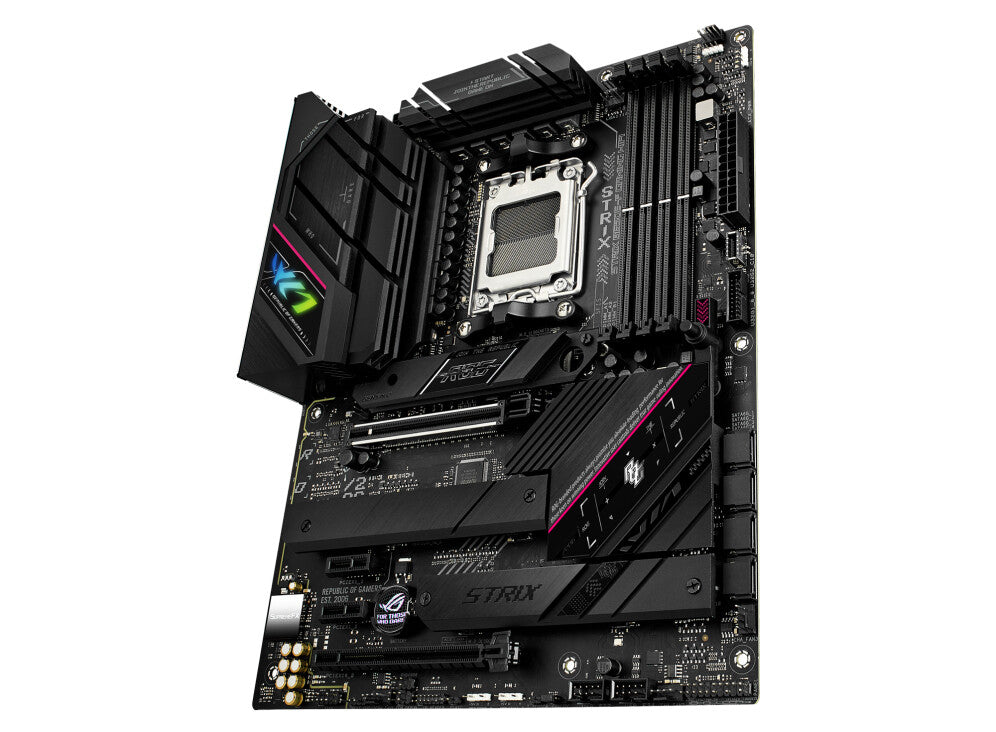

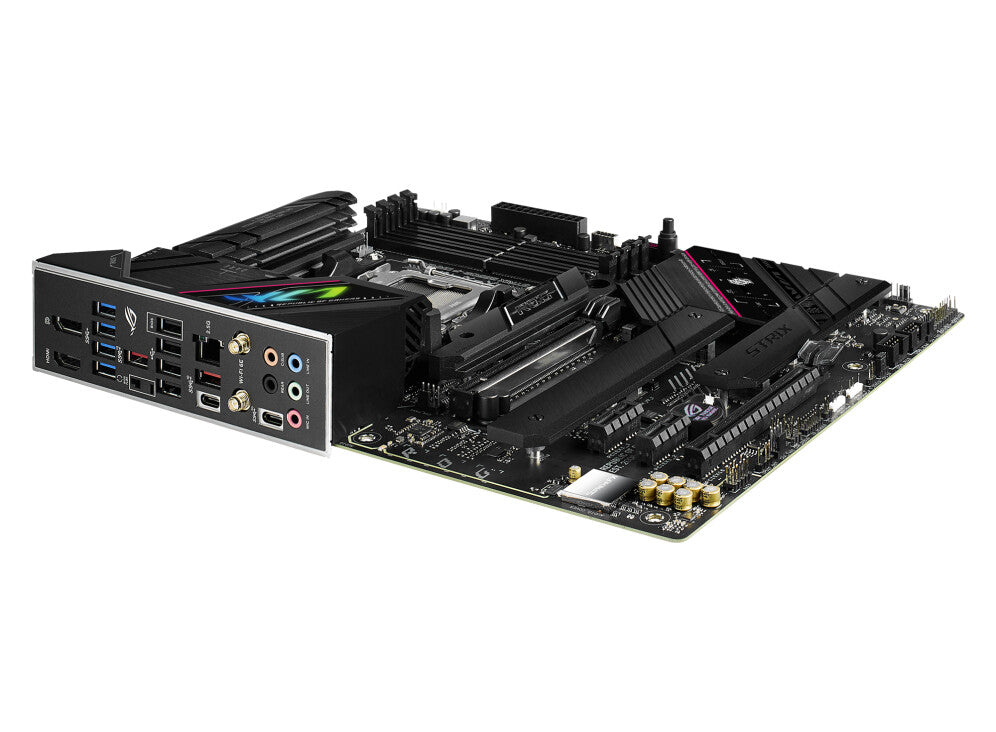

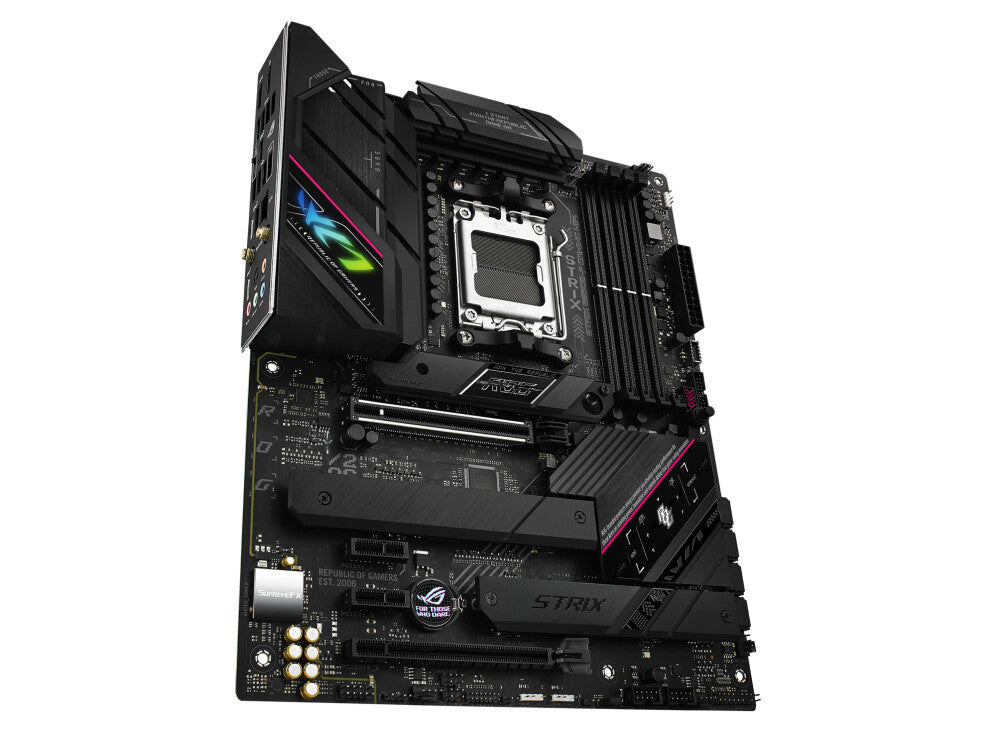

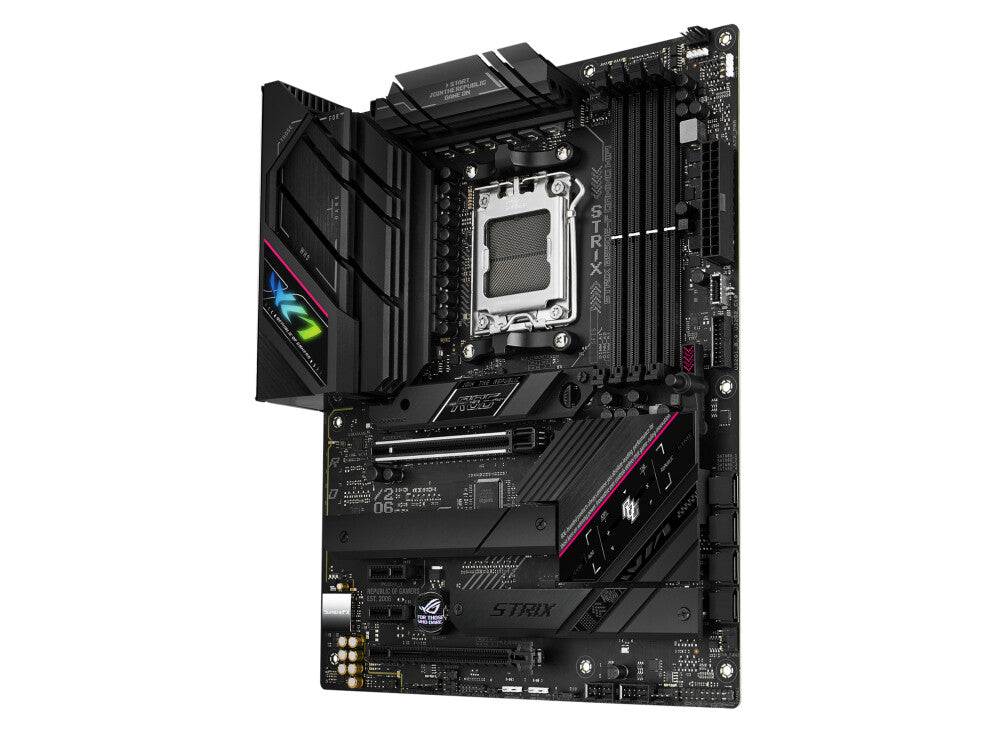

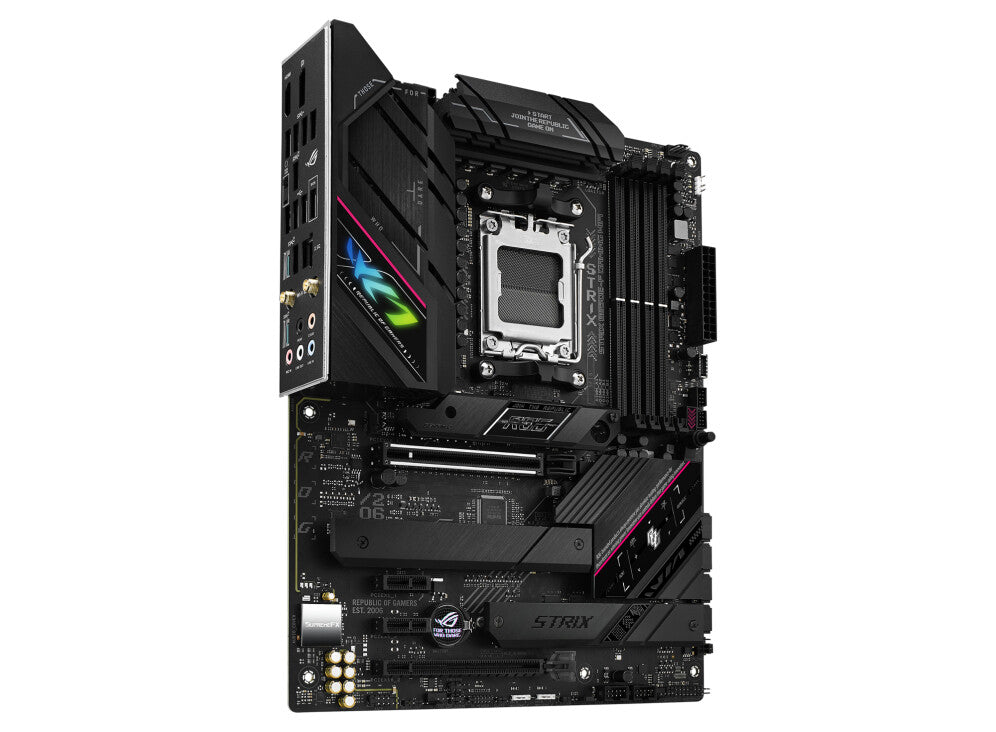

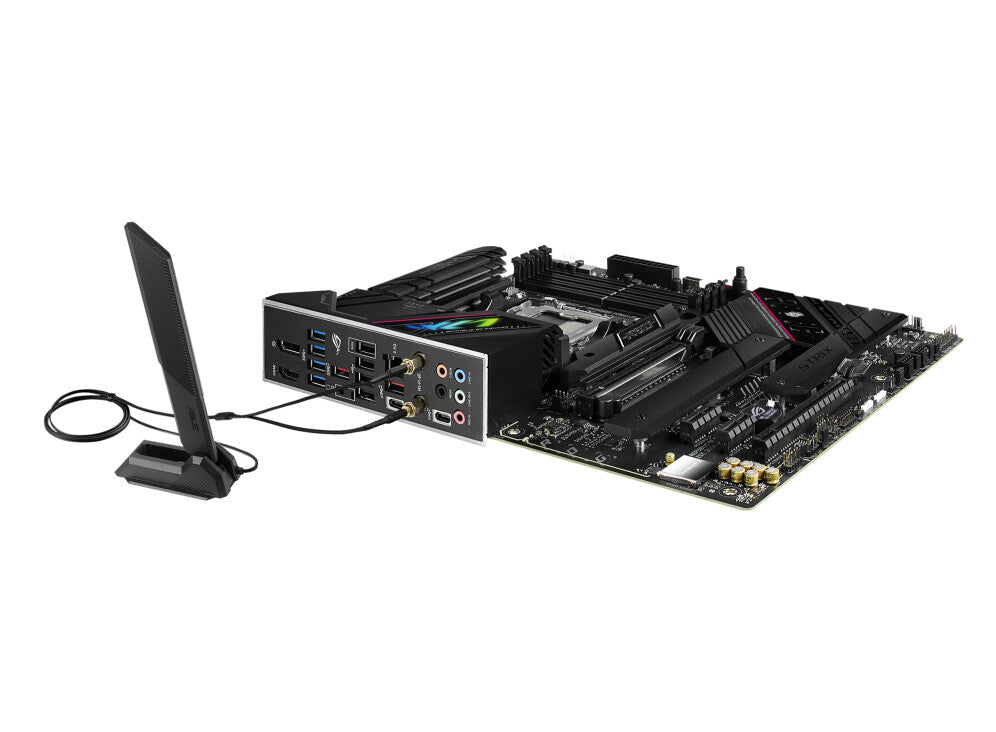

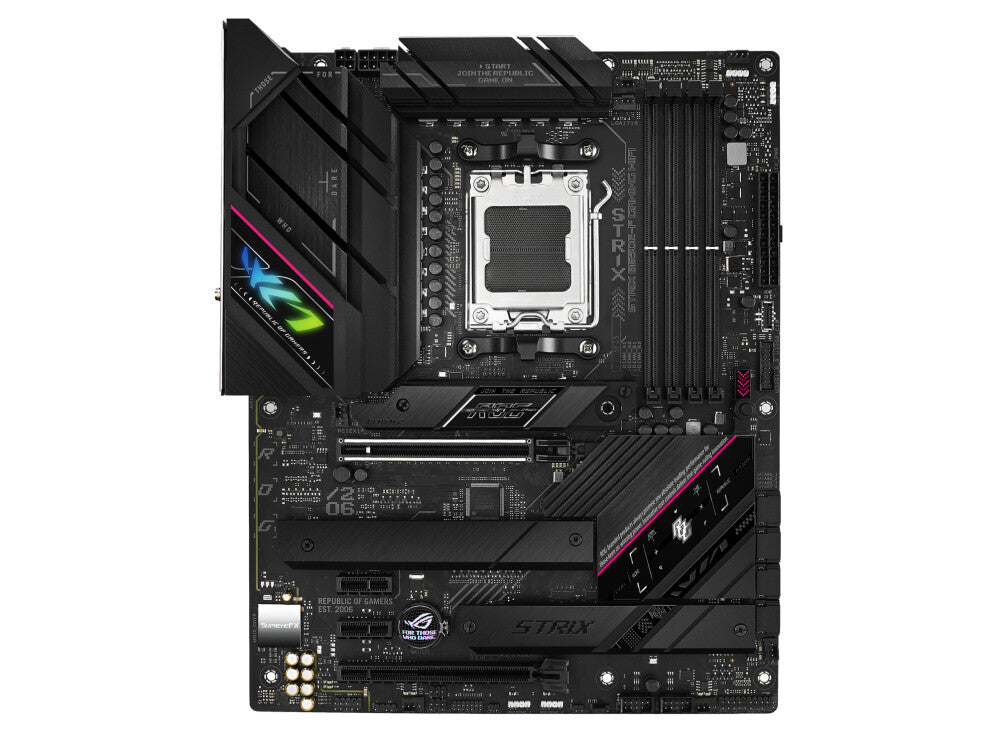

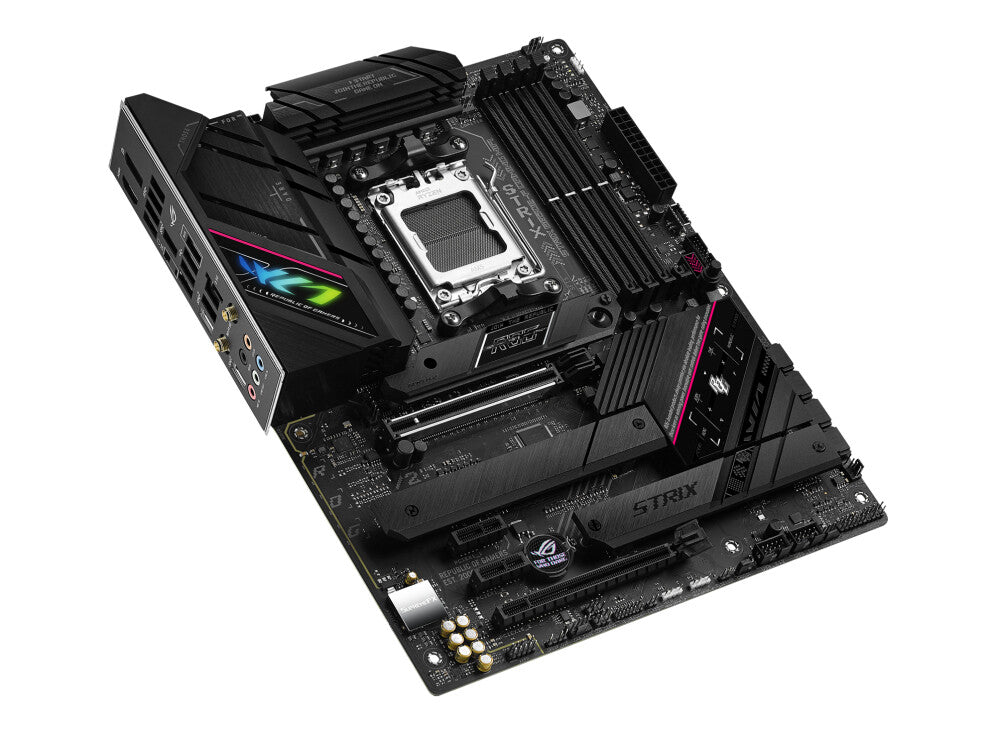

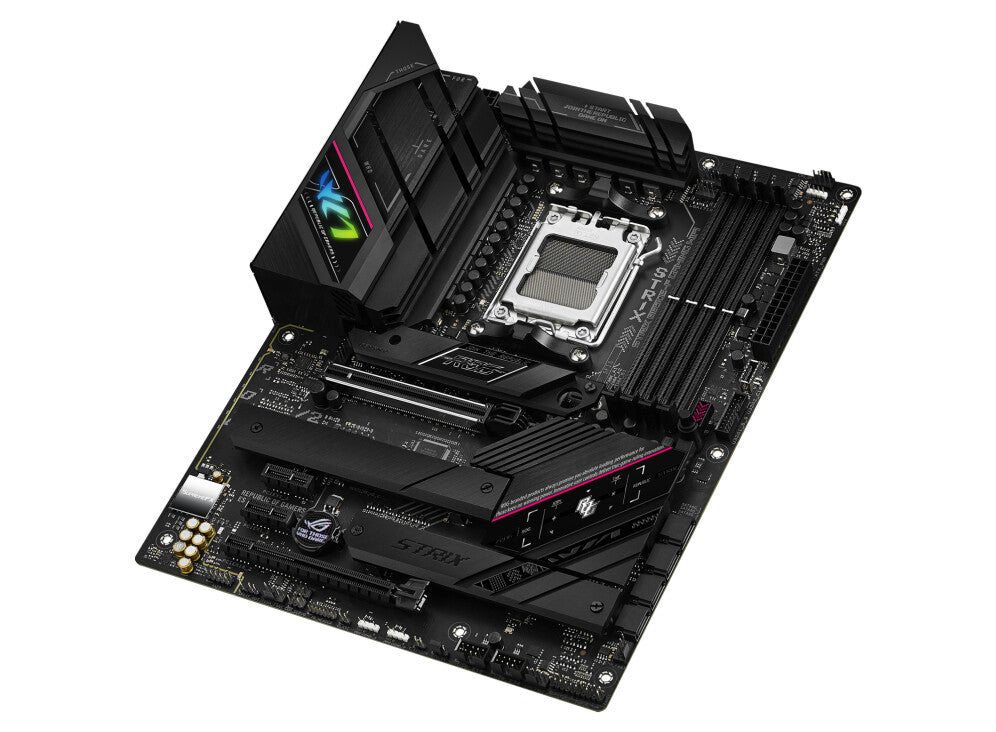

ASUS ROG STRIX B650E-F GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- AMD Socket AM5 AMD Ryzen™ 7
- PC ATX AMD B650 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS ROG STRIX B650E-F?
How many memory slots does the motherboard have?
What type of connectivity does this motherboard support?
ASUS ROG STRIX B650E-F GAMING WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
Description
The ASUS ROG STRIX B650E-F GAMING WIFI combines AMD's B650 chipset with premium features that bridge the gap between mainstream and high-end builds. This ATX board supports AMD's Ryzen 7000 series processors on the AM5 socket, making it an excellent foundation for modern gaming systems and productivity builds. The 12+2 power stage design provides clean power delivery for stable performance, while the B650E chipset brings PCIe 5.0 support and DDR5 memory compatibility to deliver future-ready connectivity.
Memory support extends up to 128GB of DDR5 across four DIMM slots, with EXPO profile support for speeds reaching 6400MHz. Storage flexibility comes from multiple M.2 slots supporting NVMe drives, while expansion options include both PCIe 4.0 x16 and PCIe 5.0 x16 slots for graphics cards and additional components. Connectivity covers all the essentials with Wi-Fi 6E for wireless networking, USB 3.2 Gen 2x2 Type-C for high-speed data transfers, and RGB LED headers for custom lighting setups through ASUS Aura Sync.
Setup benefits from ASUS's Q-Release mechanism for tool-free graphics card removal and comprehensive support for both ECC and standard memory configurations. The board ships with an I/O shield, SATA cables, M.2 mounting hardware, and documentation to get your build started. ROG STRIX B650E-F GAMING WIFI targets enthusiast builders who want premium features like PCIe 5.0 readiness and high-speed DDR5 support without stepping up to the most expensive X670 chipset options.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

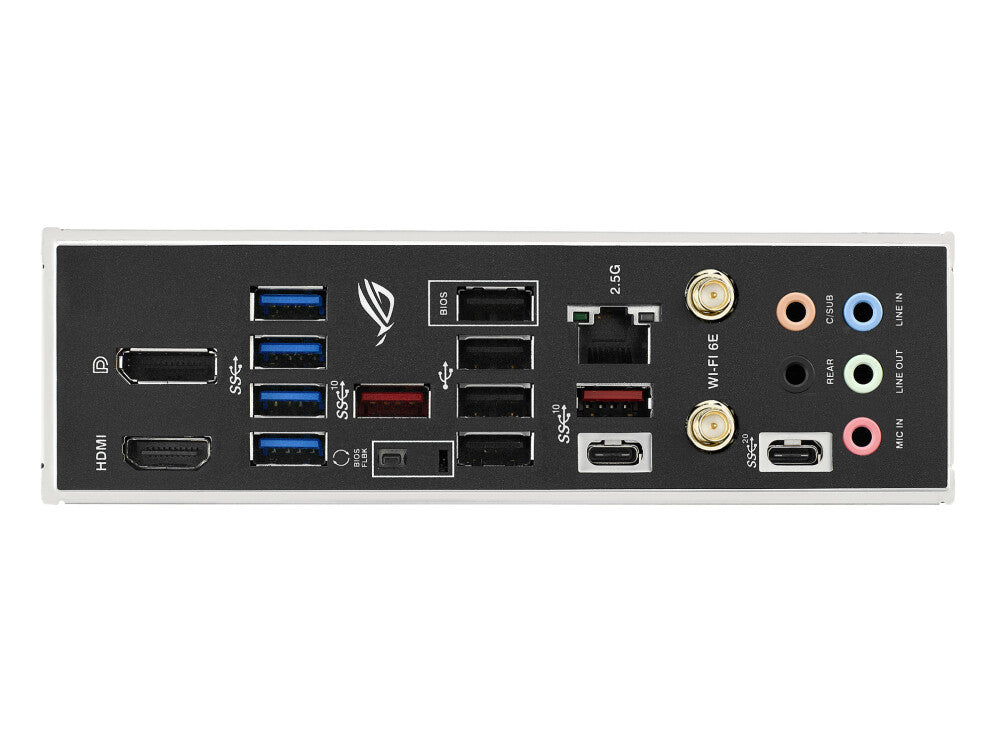

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 280 mm |
| Package depth | 265 mm |
| Package height | 71 mm |
| Package weight | 9.22 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
