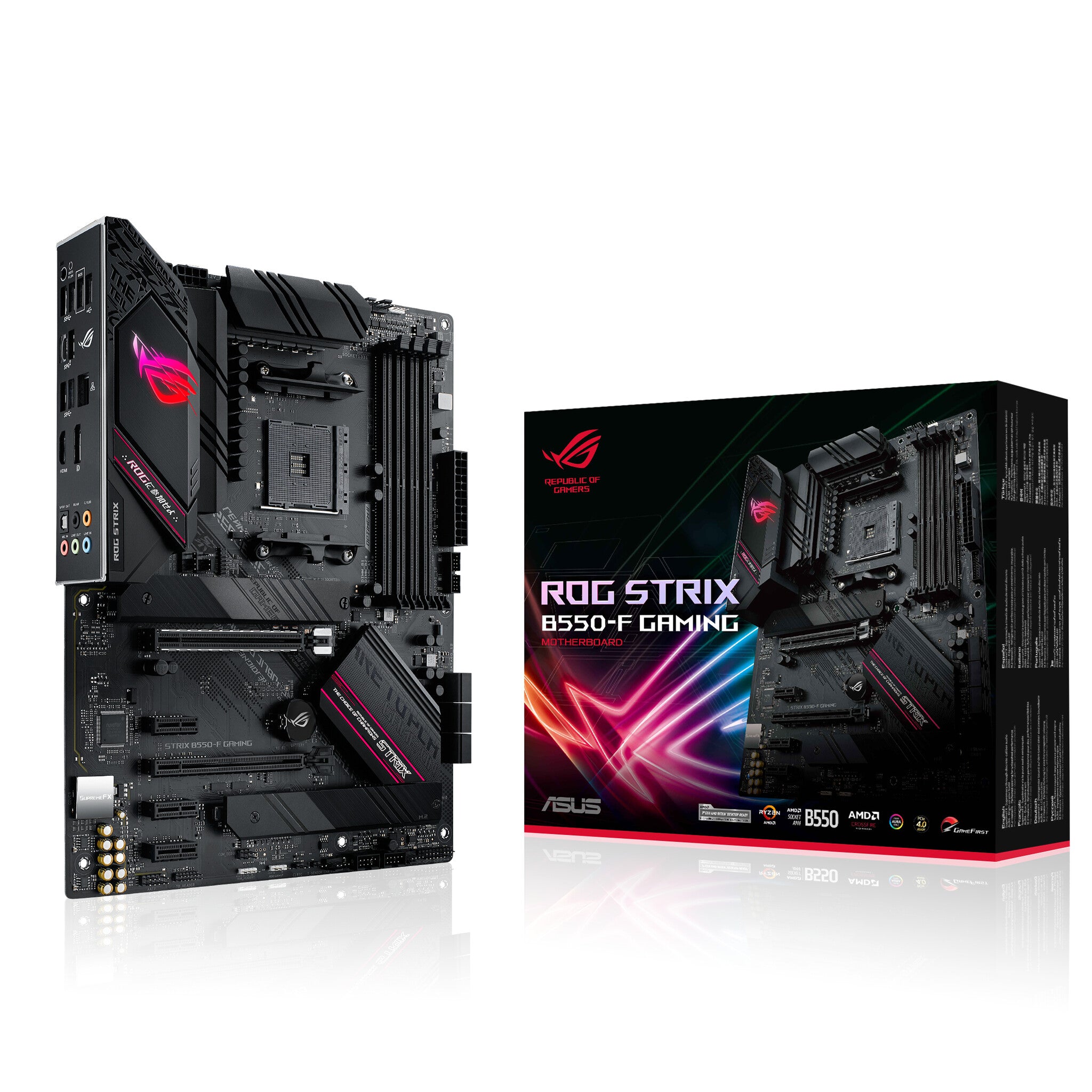

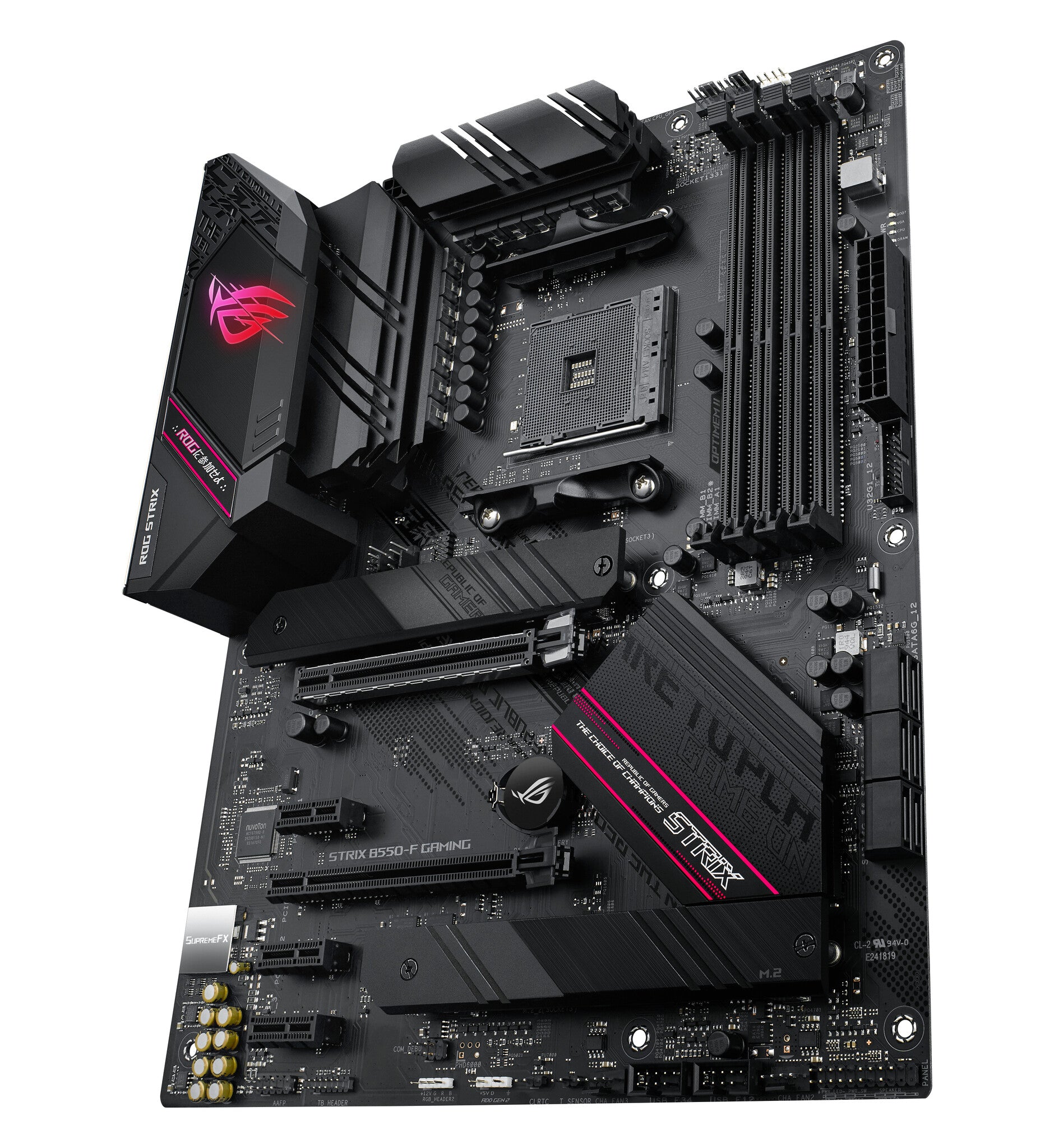

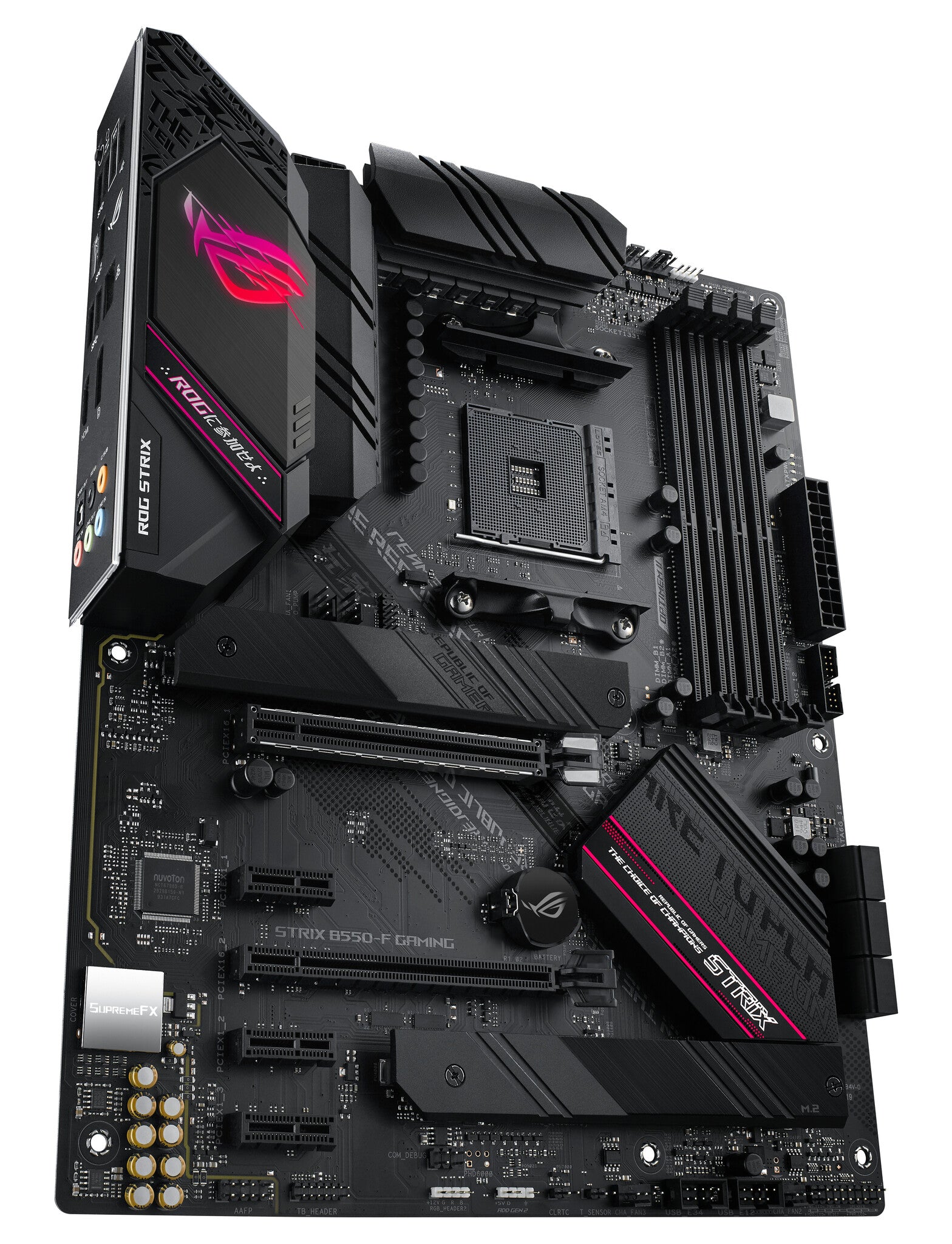

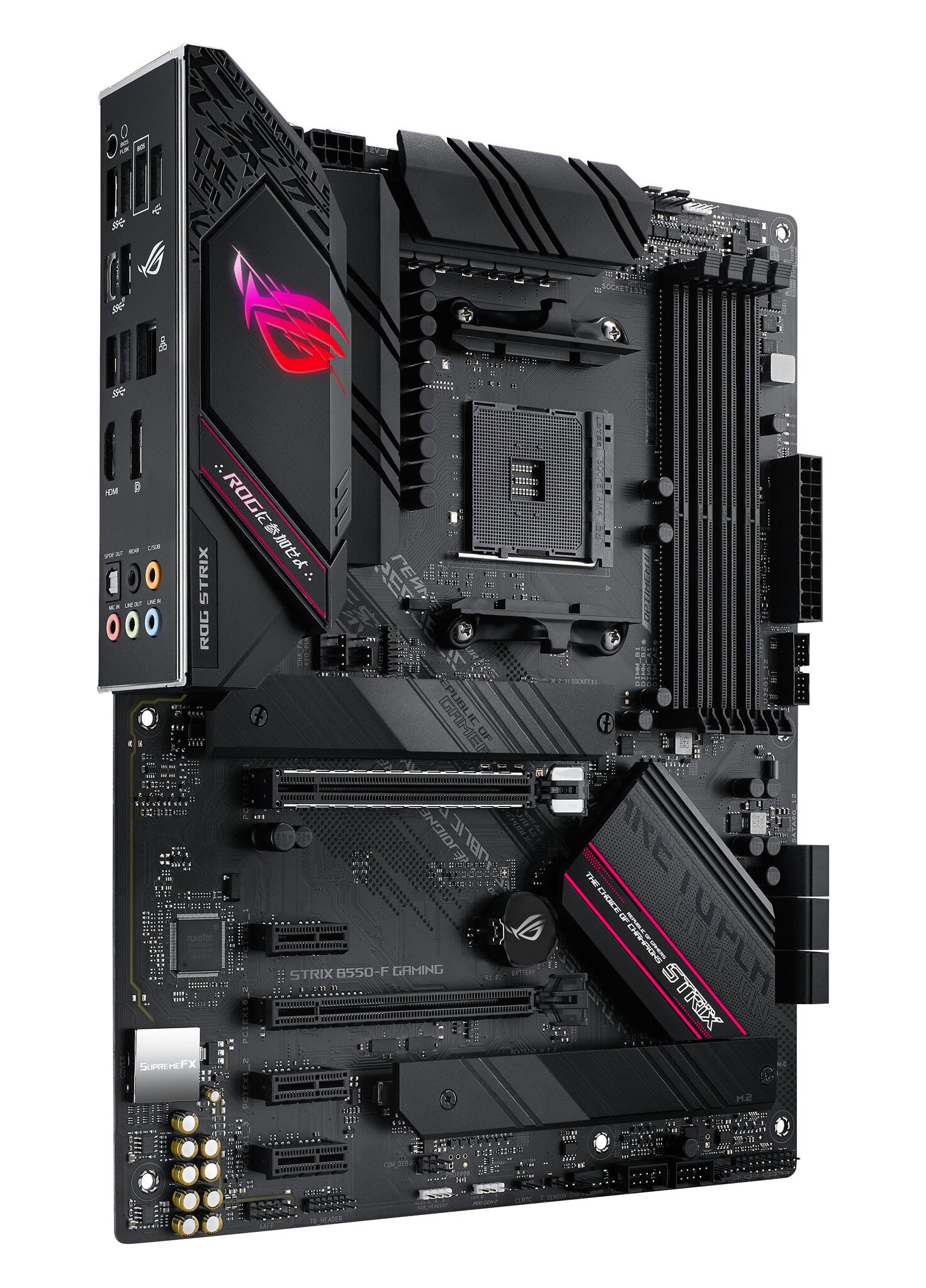

ASUS ROG STRIX B550-F GAMING ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS ROG STRIX B550-F support?
Does the motherboard support PCIe 4.0?
What form factor is the ASUS ROG STRIX B550-F?
ASUS ROG STRIX B550-F GAMING ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
Description
The ASUS ROG STRIX B550-F GAMING ATX AMD Motherboard is designed for gamers who demand the best. With its AM4 socket and support for the latest AMD Ryzen processors, this motherboard is built to elevate your gaming experience. Whether you're a casual gamer or a competitive player, the ROG STRIX B550-F offers the power and features you need to dominate the battlefield.
Key Benefits
- PCIe 4.0-Ready: With two M.2 slots, including one that supports PCIe 4.0, you can enjoy lightning-fast data speeds and maximum storage flexibility, ensuring your games load quickly and run smoothly.
- Robust Power Delivery: The motherboard features comprehensive cooling and robust power delivery, allowing you to push your Ryzen cores to their limits without overheating, making it ideal for high-performance gaming.
- Customisable Aesthetics: The cyberpunk-inspired design, complete with bold slashes and cybertext, lets you create a gaming rig that reflects your personal style. Pair it with other ROG products for a cohesive look.
- Intuitive Software Utilities: ROG-exclusive software provides audio tuning and gaming enhancements, allowing you to configure your setup exactly how you want it, enhancing your overall gaming experience.
- User-Friendly UEFI BIOS: The renowned ROG UEFI BIOS offers simplified options for newcomers and comprehensive features for seasoned builders, making it easy to tweak and tune your rig.
Addtional Features
The ASUS ROG STRIX B550-F GAMING motherboard supports up to 128 GB of DDR4-SDRAM across four DIMM slots, ensuring you have ample memory for multitasking and gaming. With 6 SATA-III 6Gbps ports and support for RAID levels 0, 1, and 10, you can configure your storage for optimal performance and redundancy. The motherboard also includes 2.5G Ethernet for ultra-fast networking and Bluetooth 5.1 for seamless connectivity with your devices.
Why Buy
Investing in the ASUS ROG STRIX B550-F GAMING ATX AMD Motherboard means investing in a platform that is not only powerful but also adaptable to your gaming needs. Its combination of cutting-edge technology, customisation options, and user-friendly features make it a top choice for gamers looking to enhance their performance and style. Elevate your gaming experience and build a system that stands out with this exceptional motherboard.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Parallel processing technology support | 2-Way CrossFireX |
| Internal I/O | |
|---|---|
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| Number of EATX power connectors | 1 |
| Number of SATA III connectors | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I225-V |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Cooling type | Active |
| Power source type | ATX |
| PC health monitoring | CPU, Fan |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI slots | 7 |
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| BIOS | |
|---|---|
| BIOS memory size | 256000 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Height | 68 mm |
| Depth | 244 mm |
| Width | 305 mm |

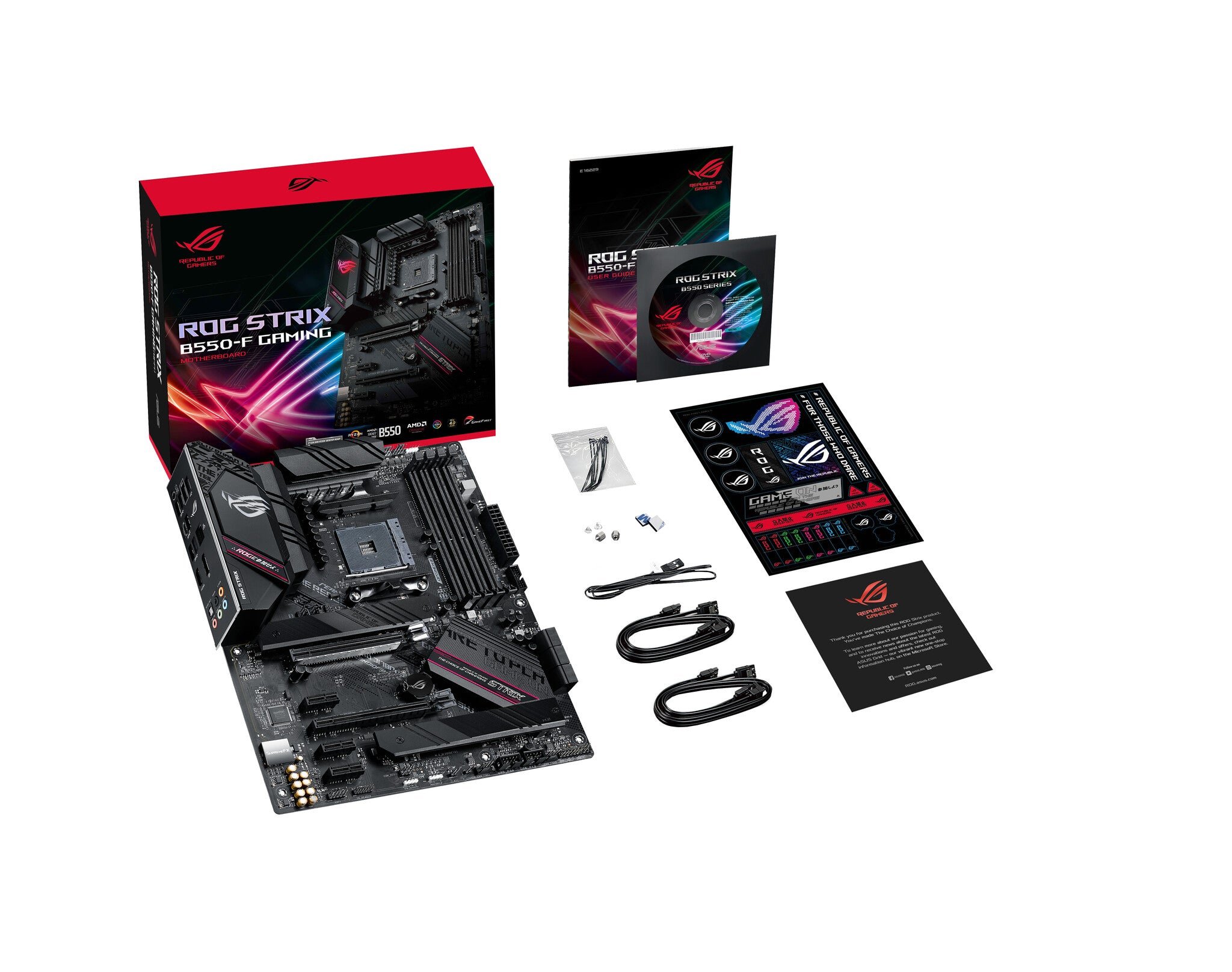

| Packaging content | |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 945 g |
