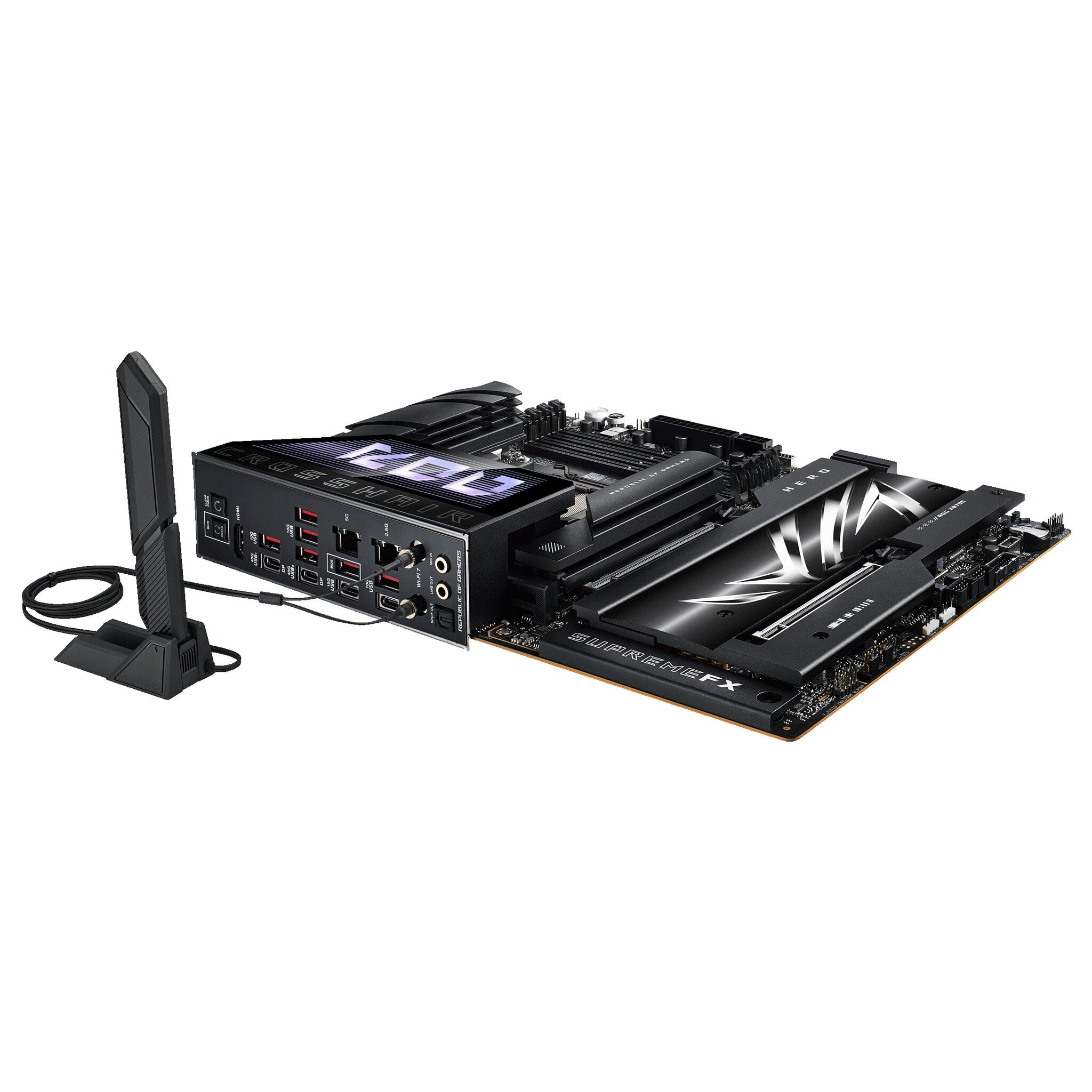

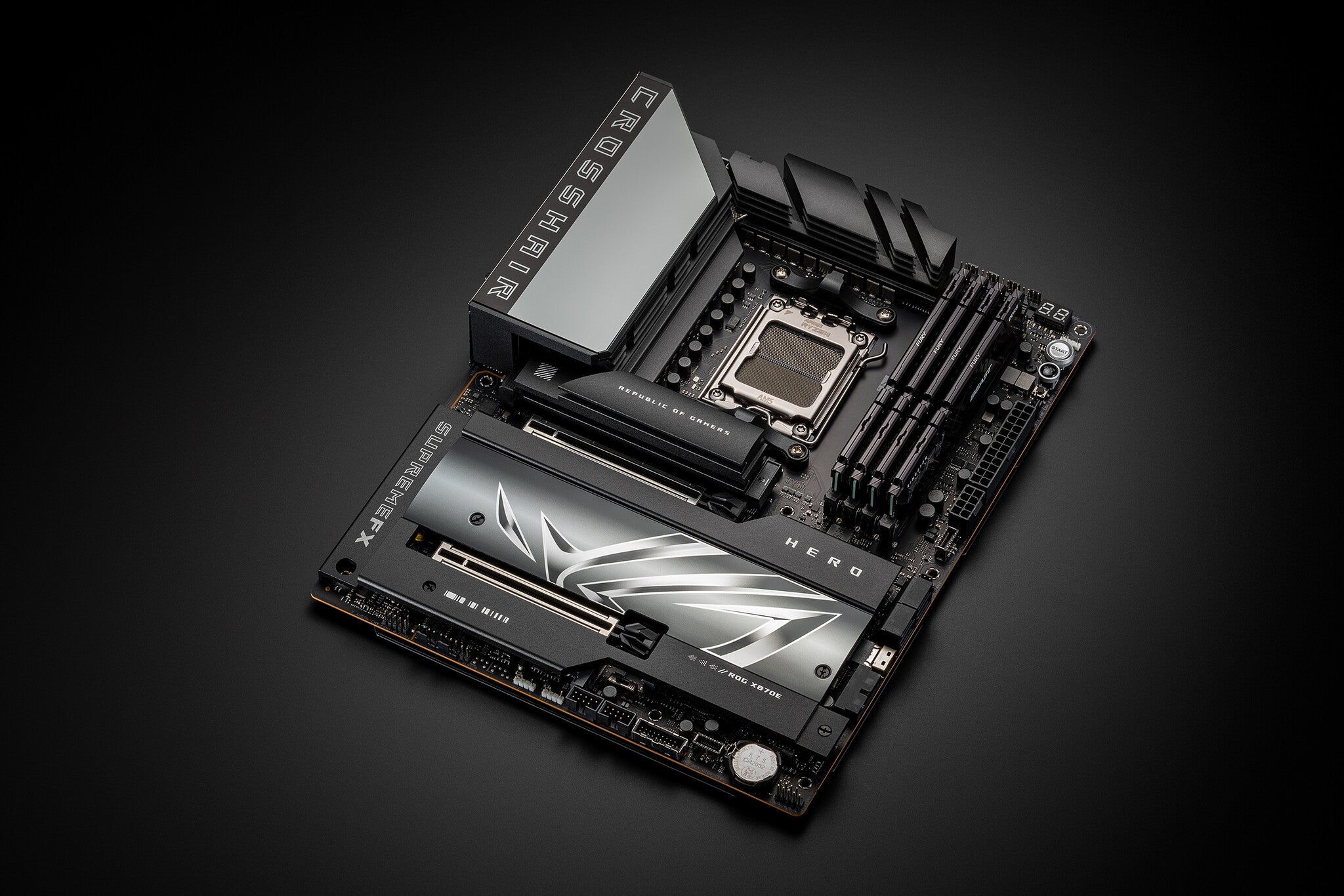

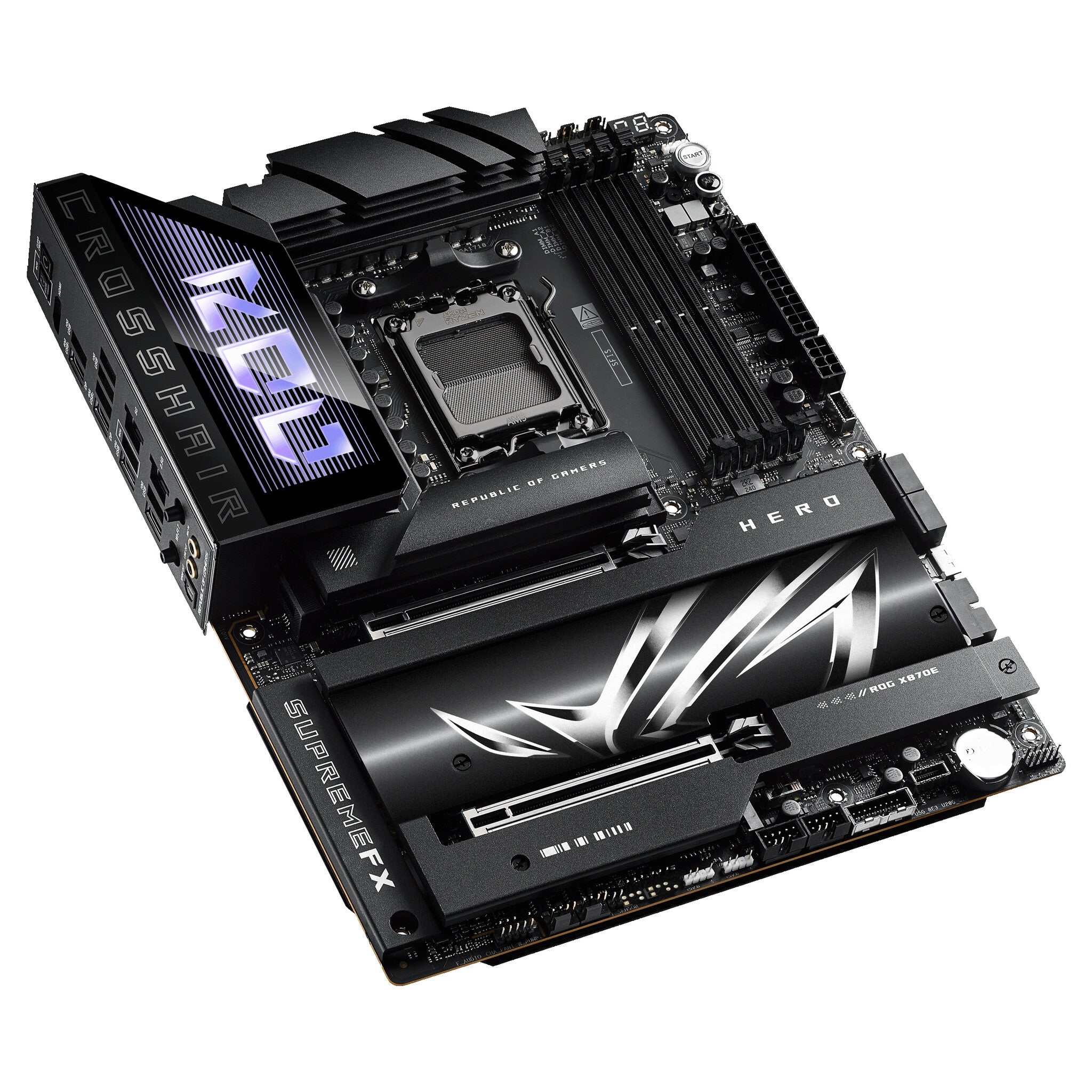

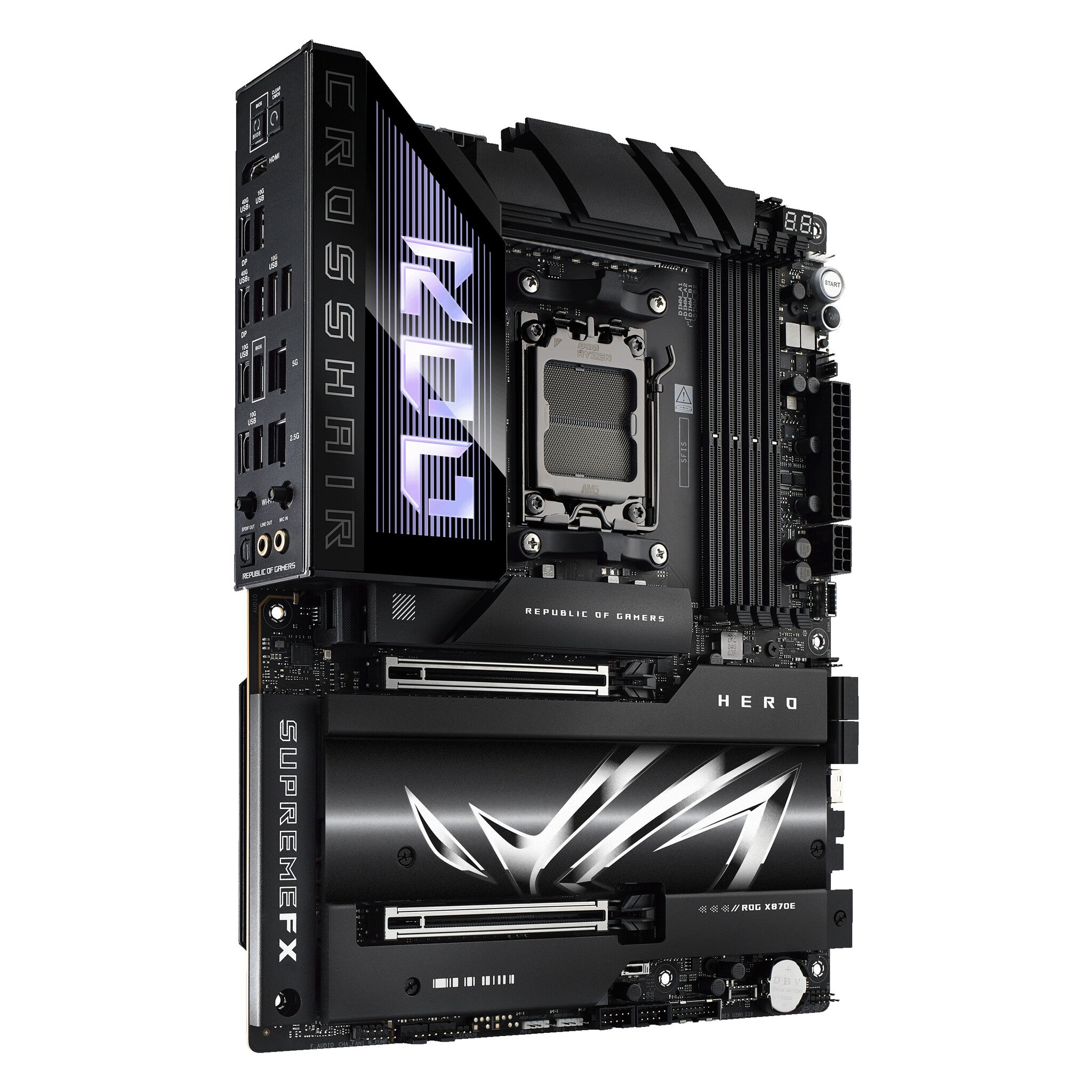

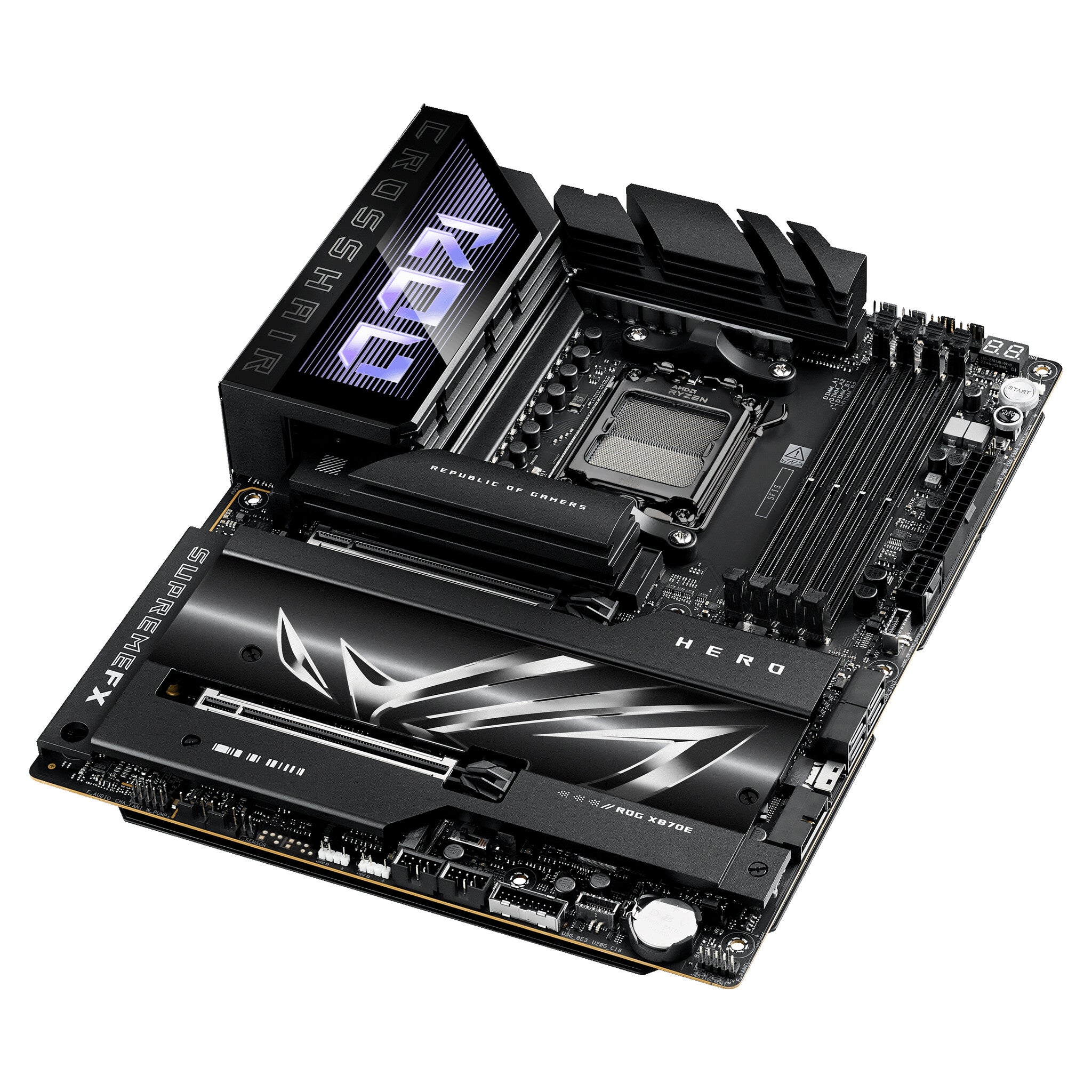

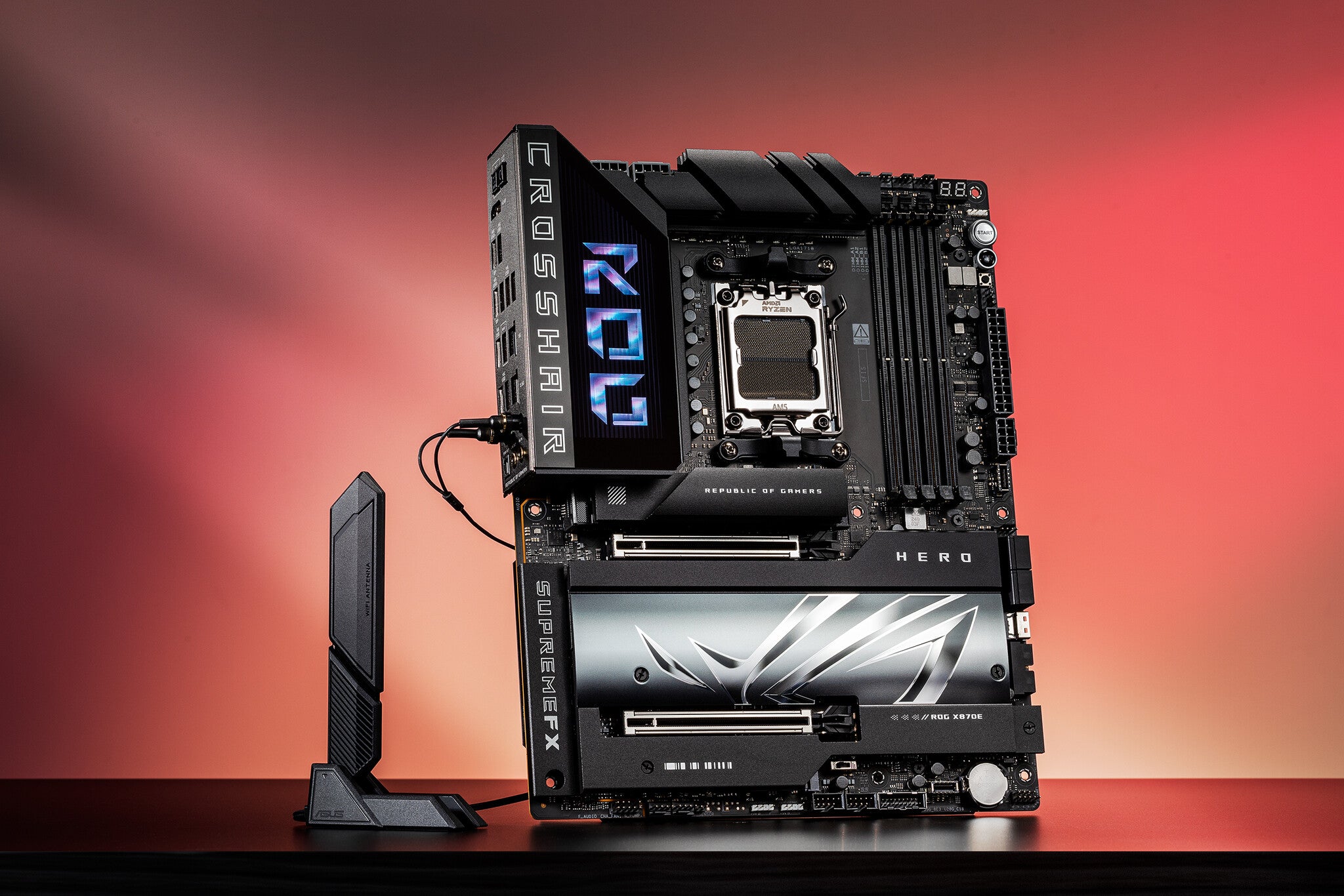

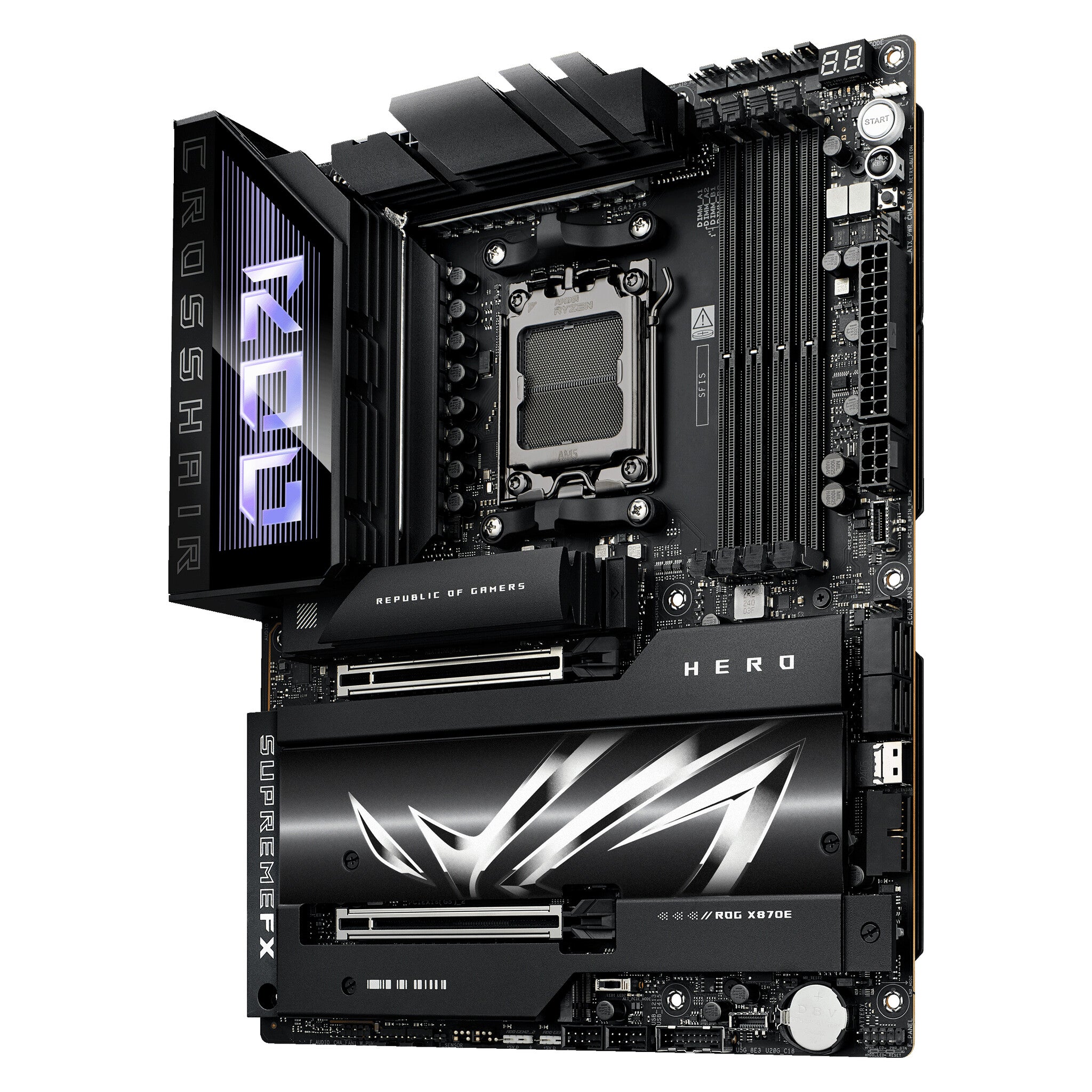

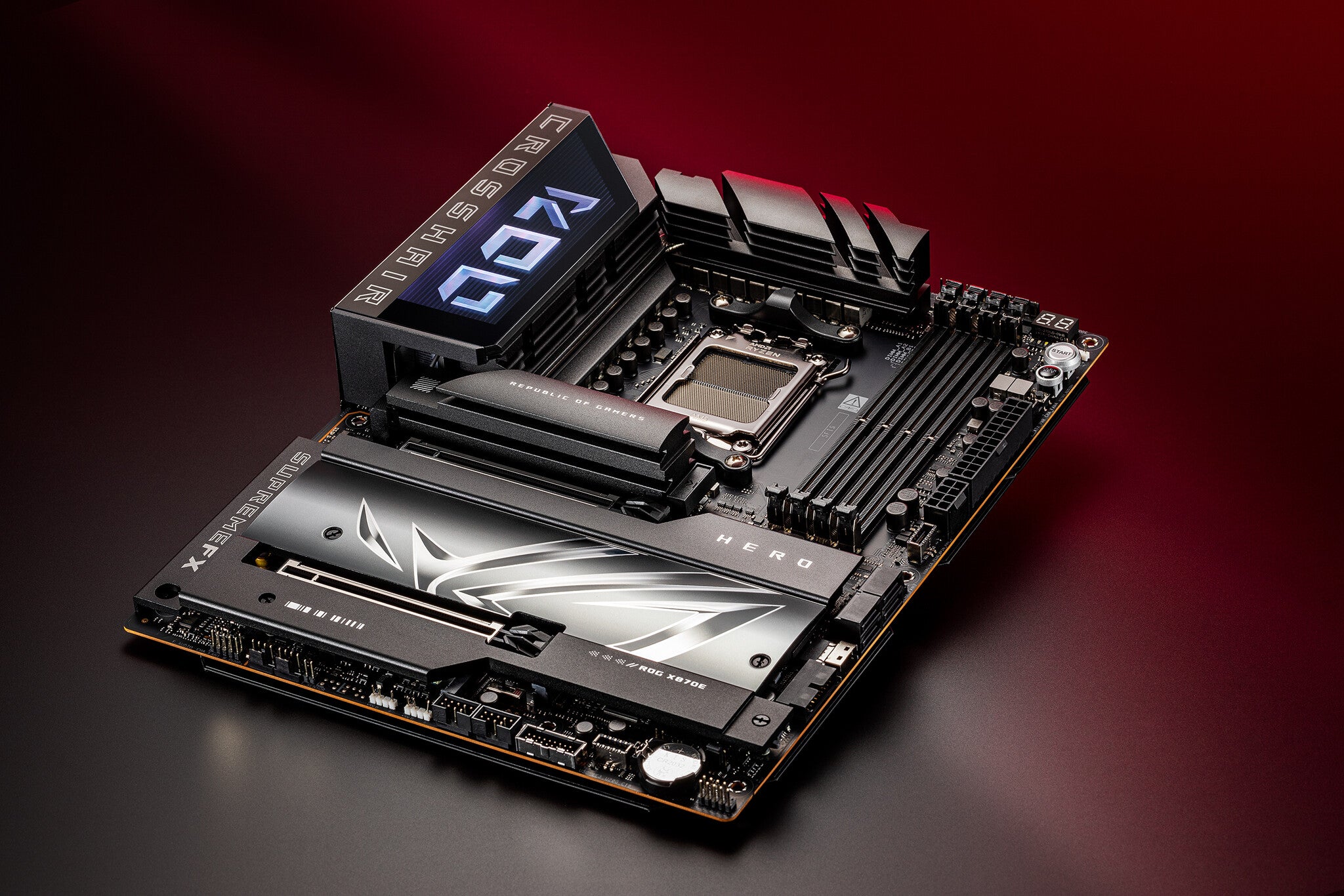

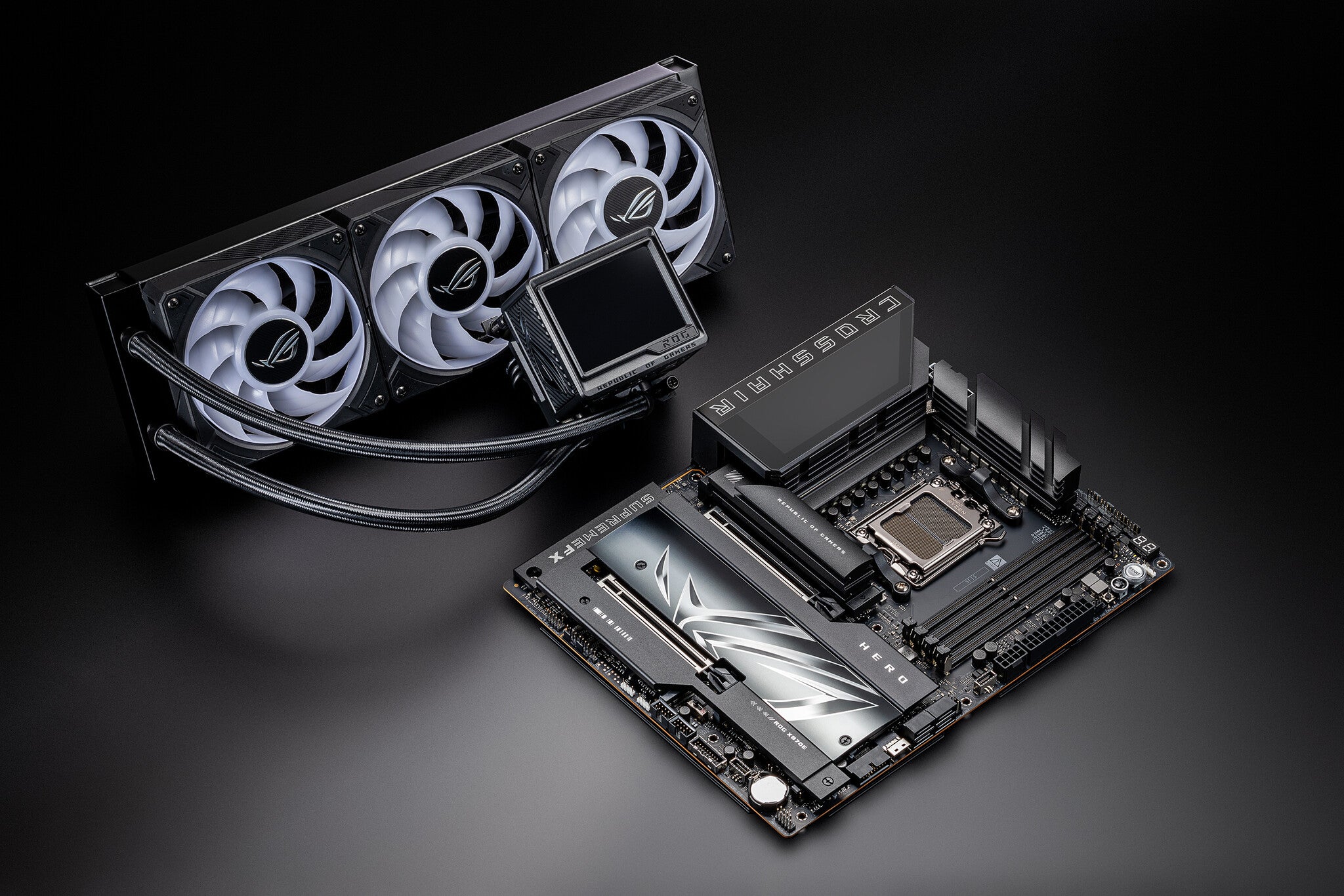

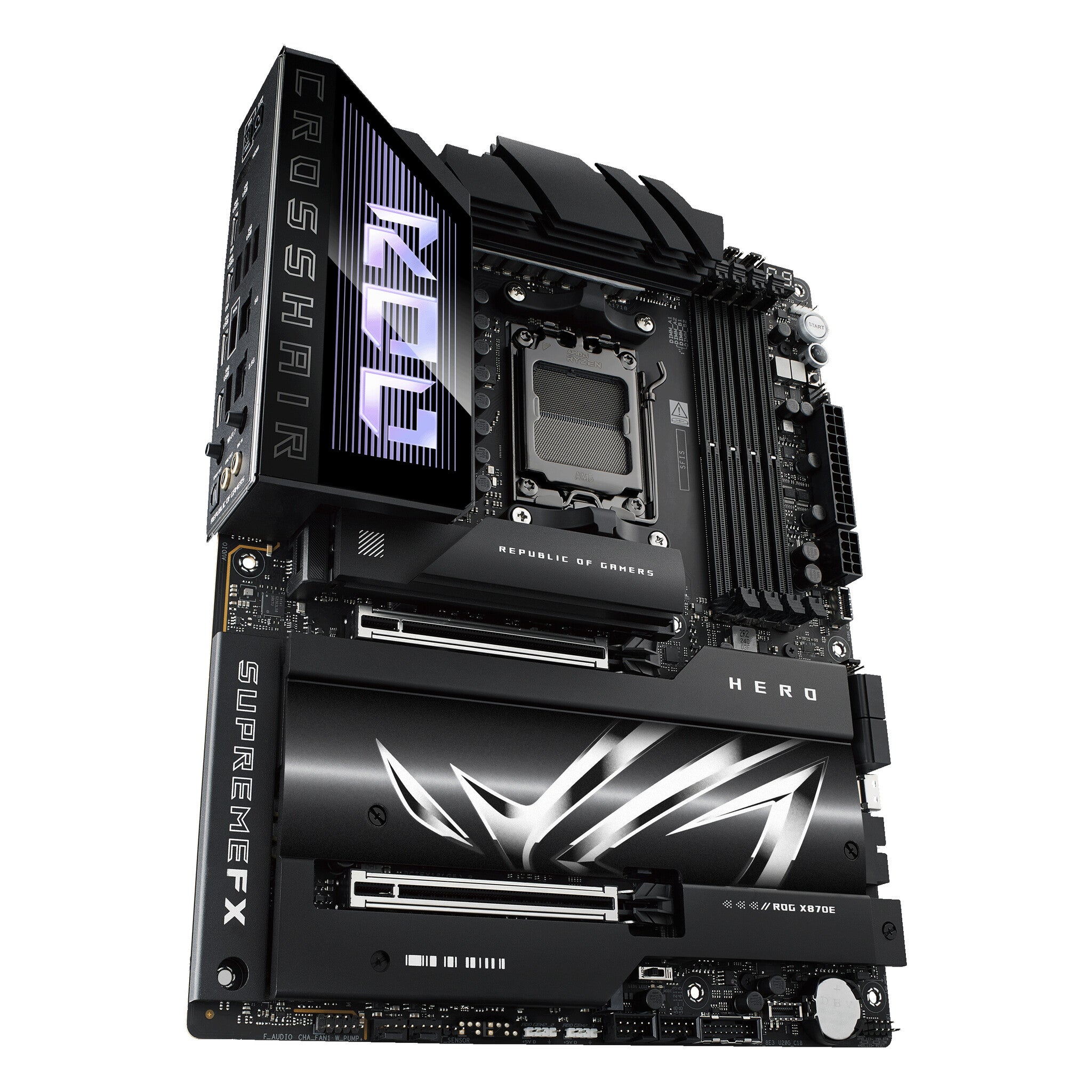

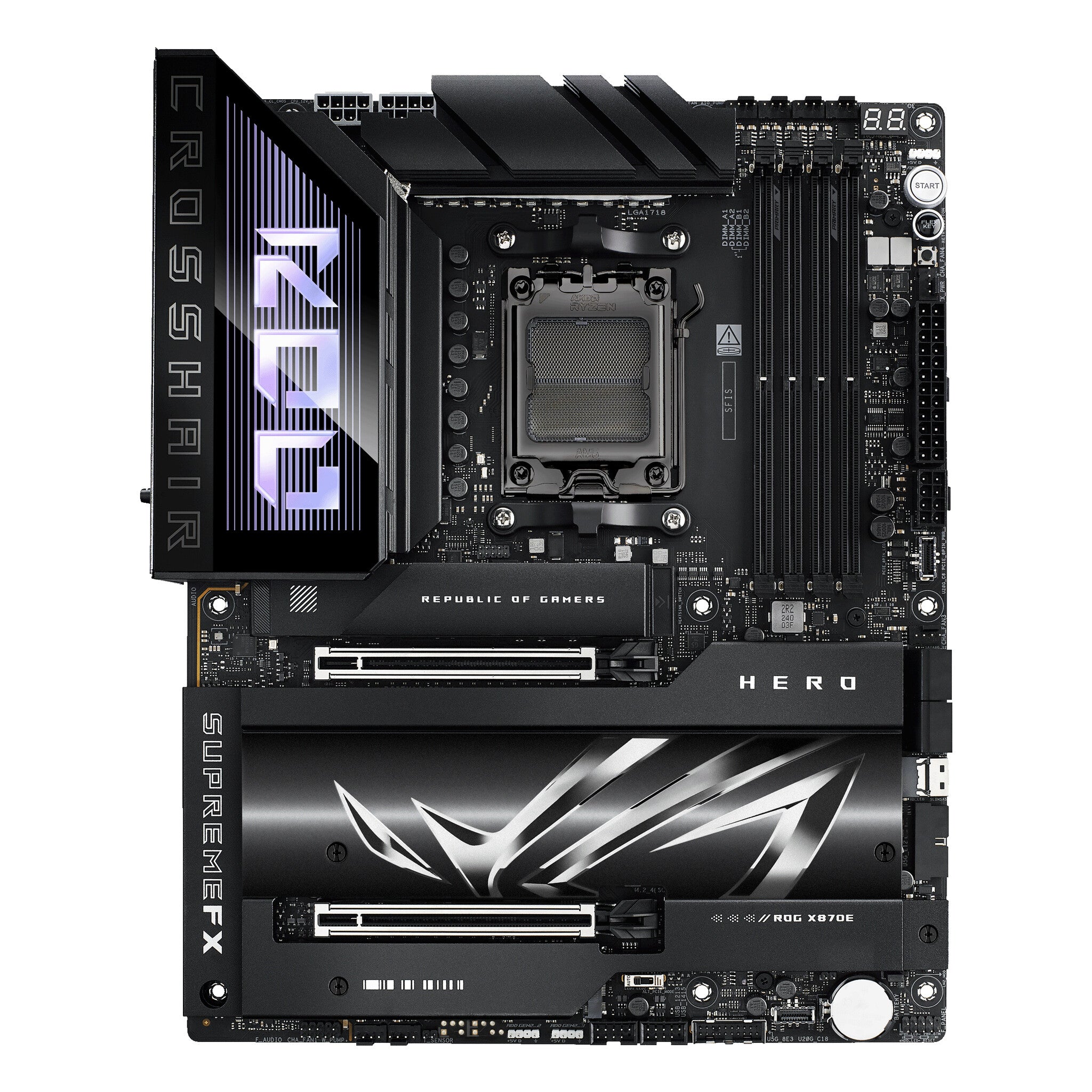

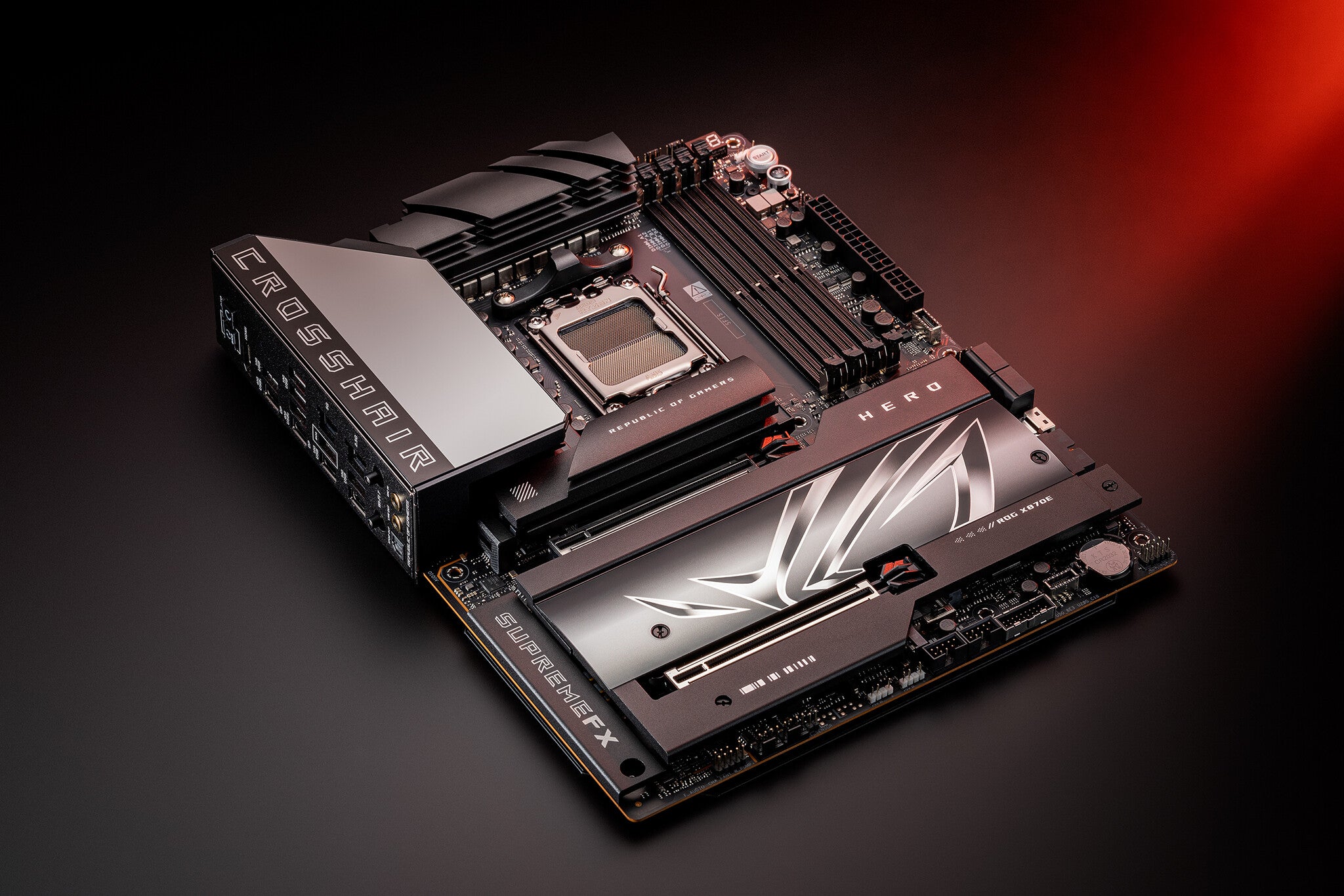

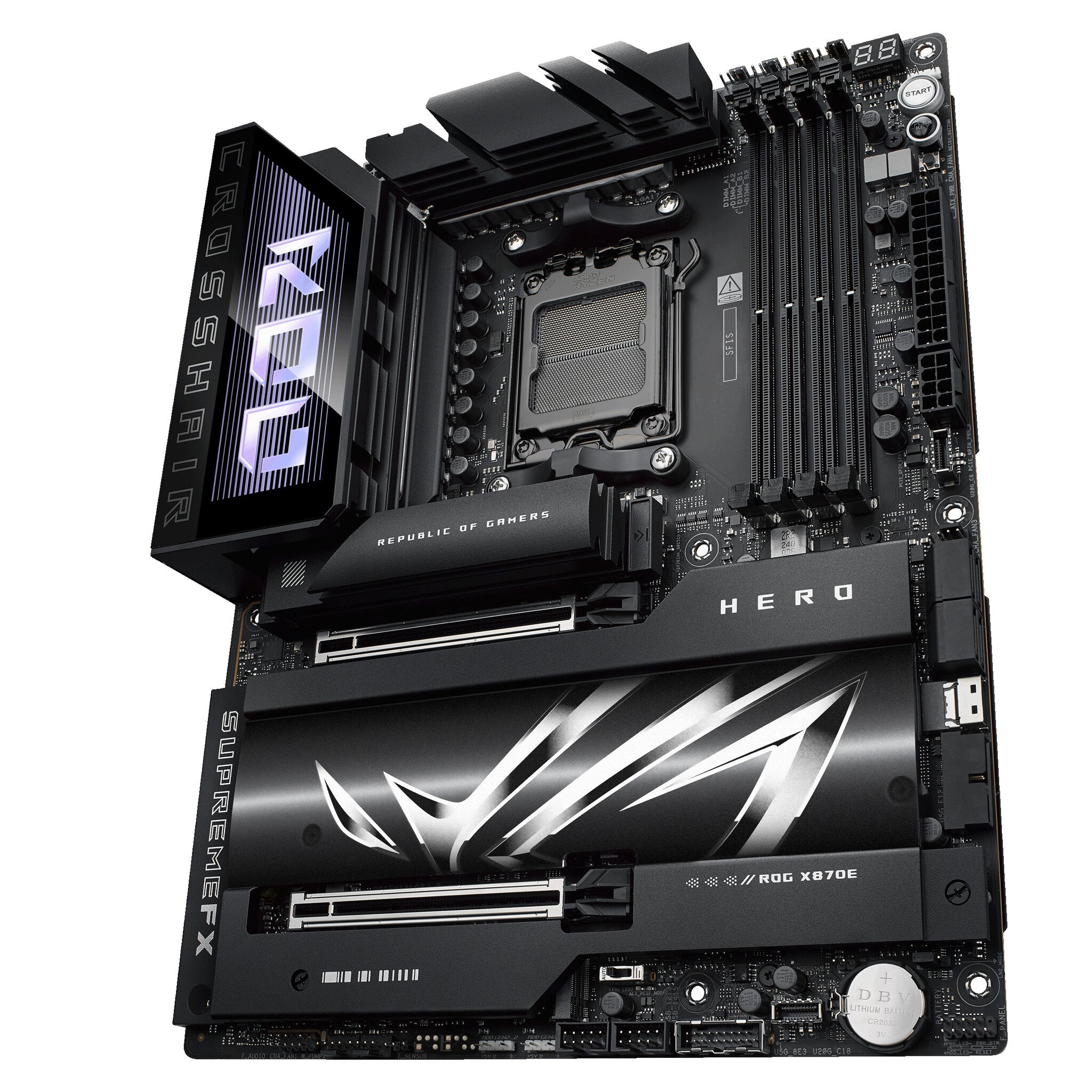

ASUS ROG CROSSHAIR X870E HERO ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5
- PC ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III, SlimSAS RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What type of processor is compatible with the ASUS ROG CROSSHAIR X870E HERO?
How much memory can I install on this motherboard?
Does this motherboard support overclocking?
ASUS ROG CROSSHAIR X870E HERO ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The ASUS ROG Crosshair X870E HERO is an enthusiast-grade ATX motherboard built around AMD's flagship X870E chipset for AM5 processors. This premium board targets serious builders who want maximum performance from Ryzen 9000 and 7000 series CPUs, whether for high-end gaming, content creation, or workstation tasks. The X870E chipset brings the latest connectivity standards including native USB 3.2 Gen 2x2 support and extensive PCIe 5.0 lanes, making this board ready for the most demanding hardware configurations.

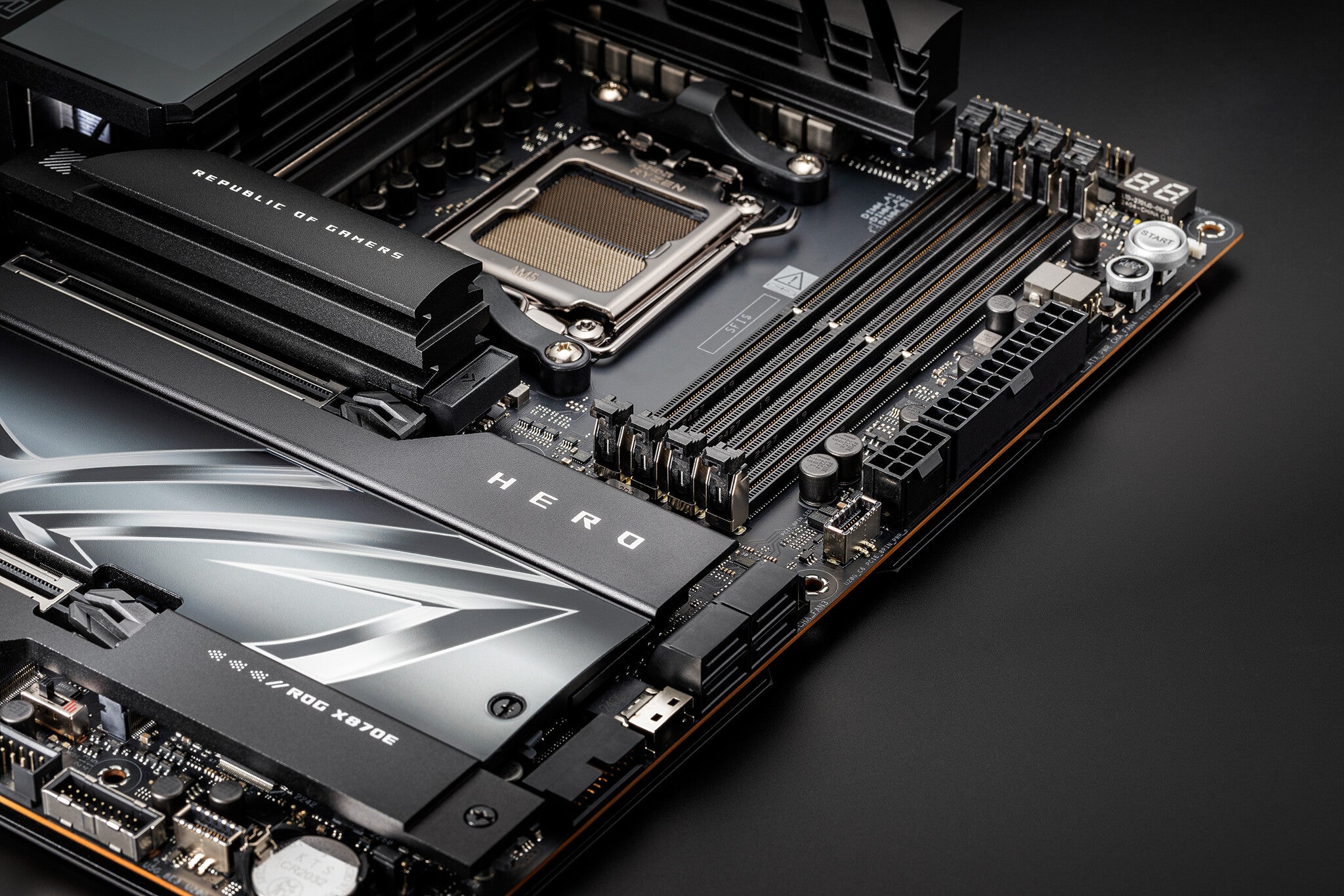

Memory support is comprehensive with four DDR5 slots supporting up to 192GB total capacity, along with both ECC and non-ECC compatibility for professional applications. The board features six PCIe x16 slots total - two running at full PCIe 5.0 speeds for the latest graphics cards and NVMe drives, plus four additional PCIe 4.0 x16 slots for multi-GPU setups or expansion cards. ASUS includes their NitroPath DRAM Technology for improved memory trace routing and AEMP (ASUS Enhanced Memory Profile) for simplified DDR5 overclocking beyond standard JEDEC speeds.

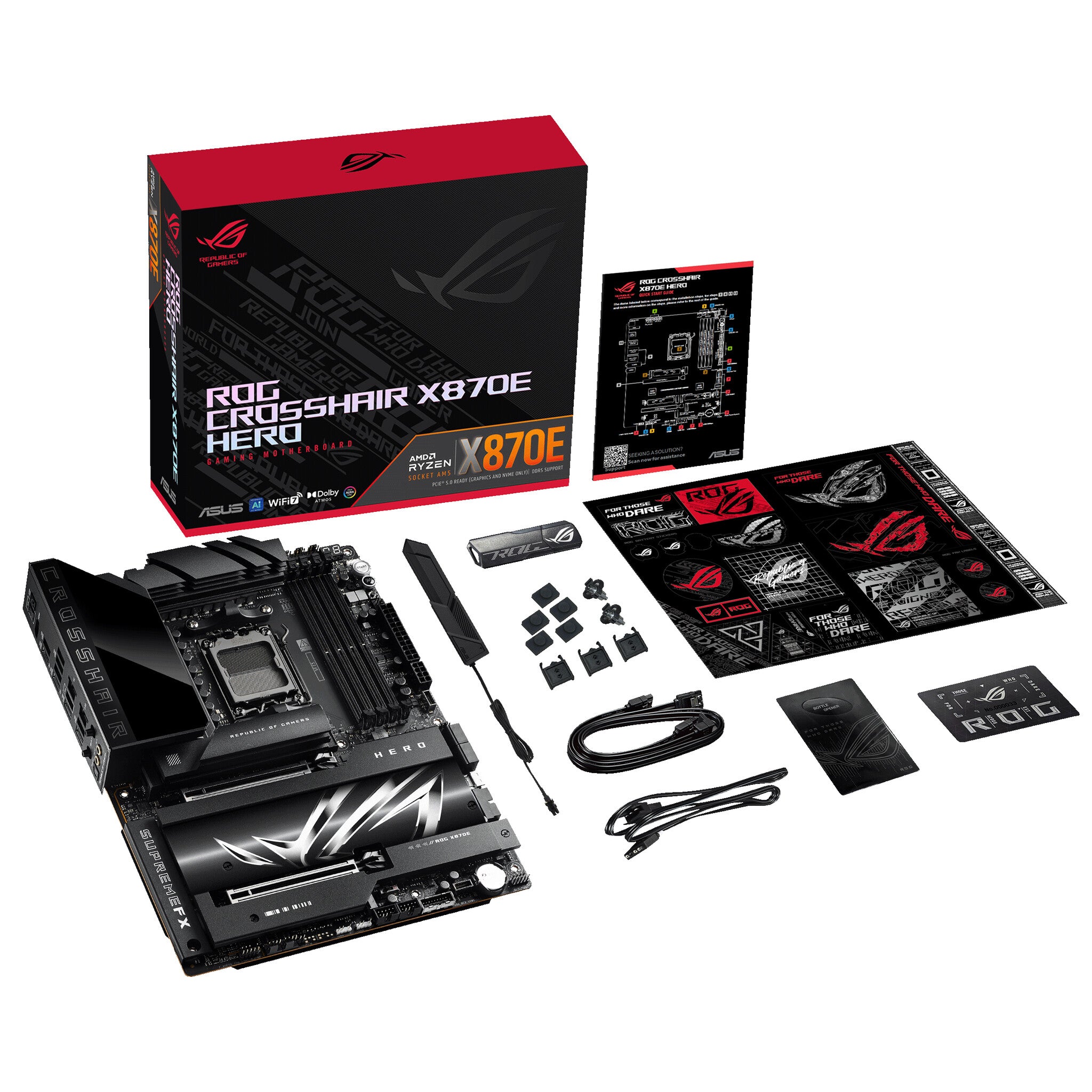

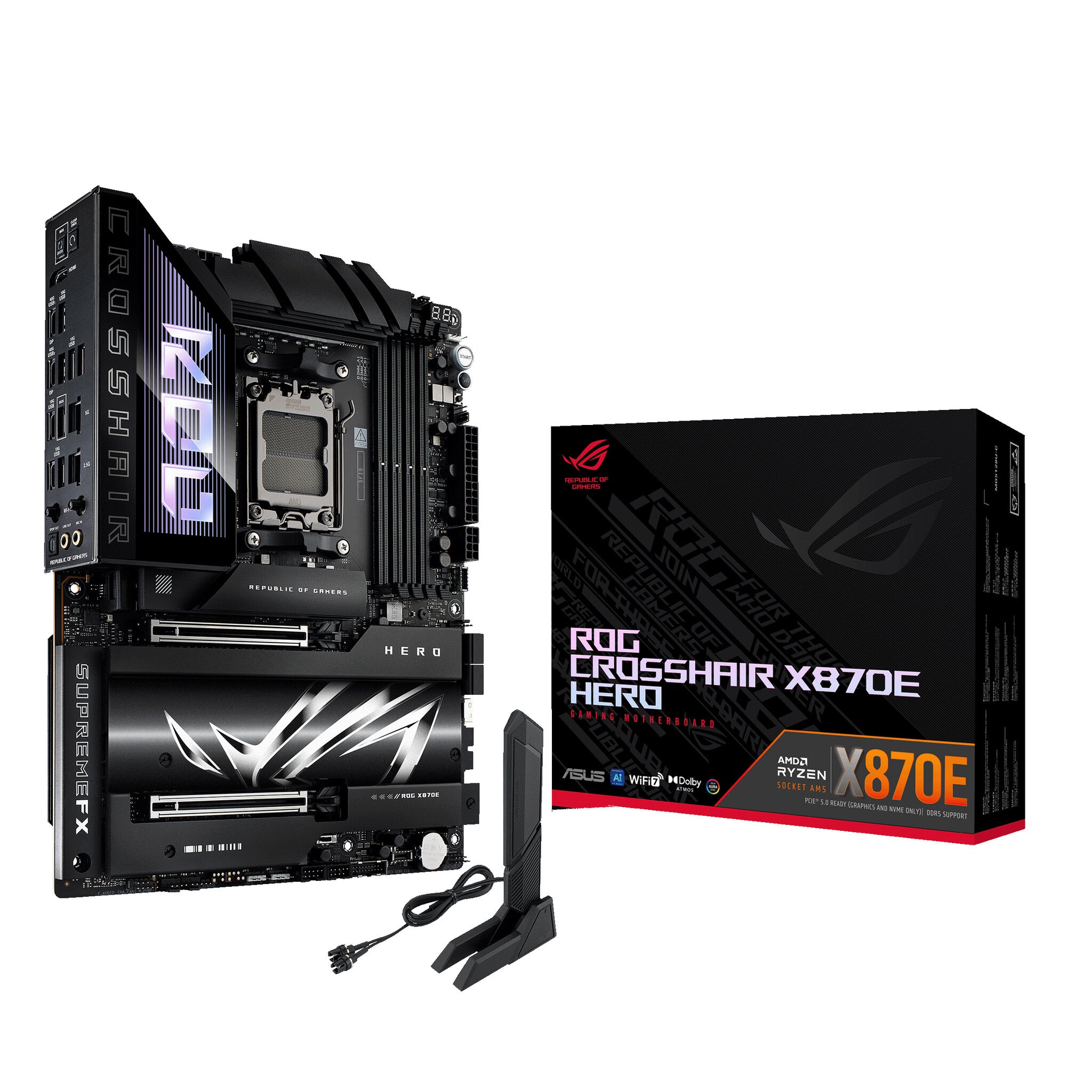

Advanced features include the Teamed Power Solution for robust VRM performance, AI Networking II for intelligent network optimization, and AI Cooling II for automated thermal management. The board supports Wi-Fi 7 for cutting-edge wireless connectivity and includes multiple USB 3.2 Gen 2x2 ports delivering up to 20Gbps transfer speeds. ASUS provides their standard bundle including the rear I/O shield, SATA cables, M.2 mounting hardware, and detailed user documentation to get your high-performance build running smoothly.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of storage drives supported | 10 |
| Number of HDDs supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 10, 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |

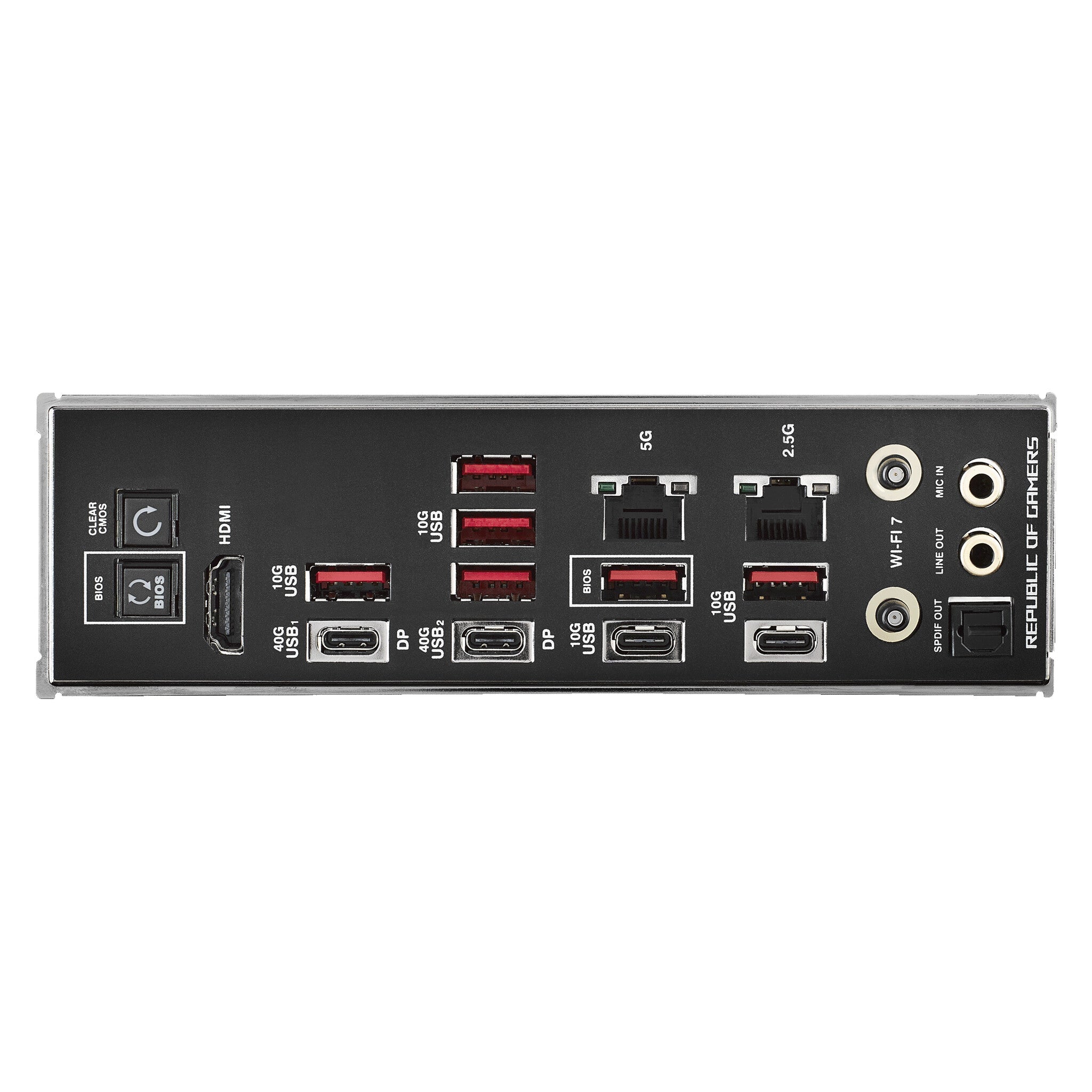

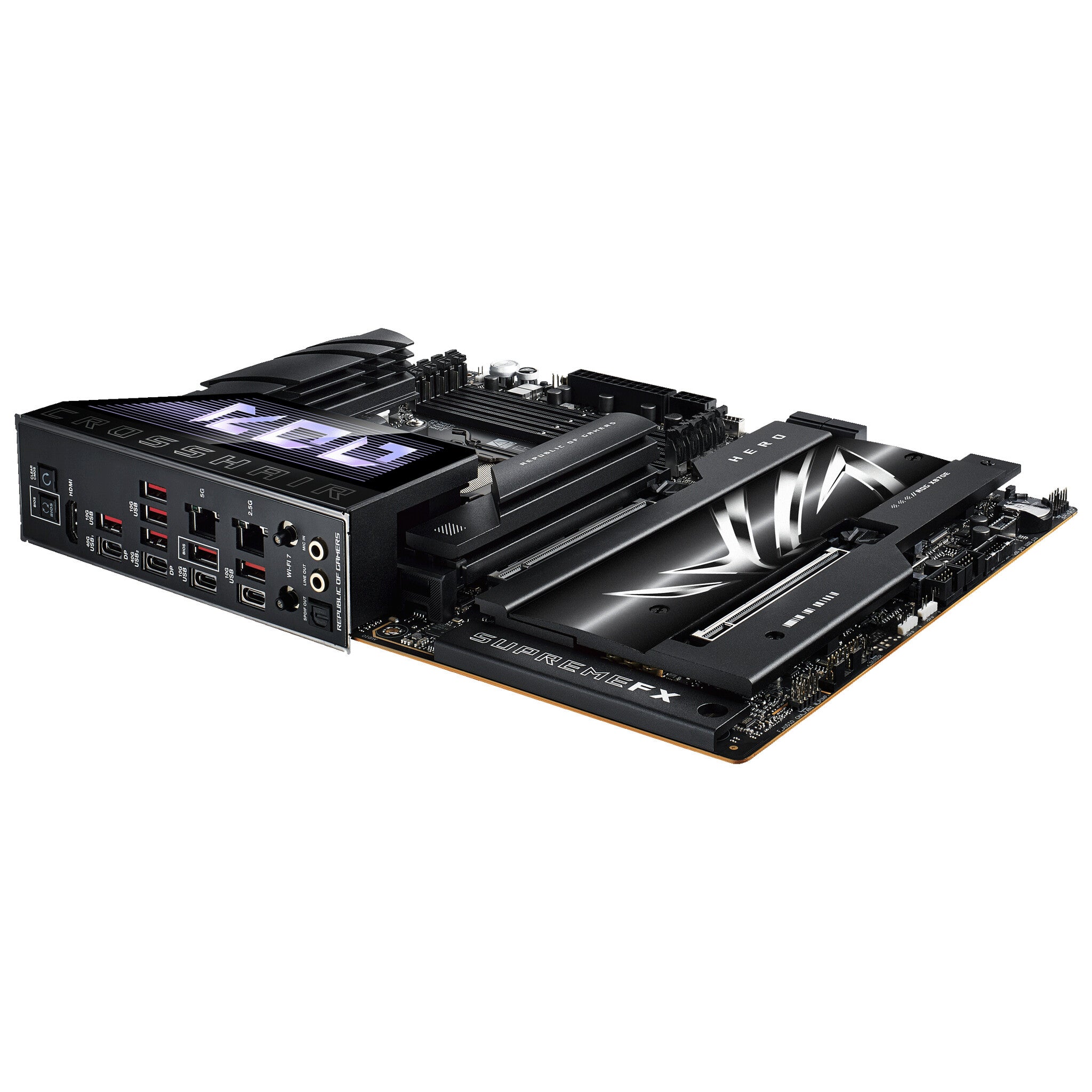

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 5 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.26 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 2.55 kg |
