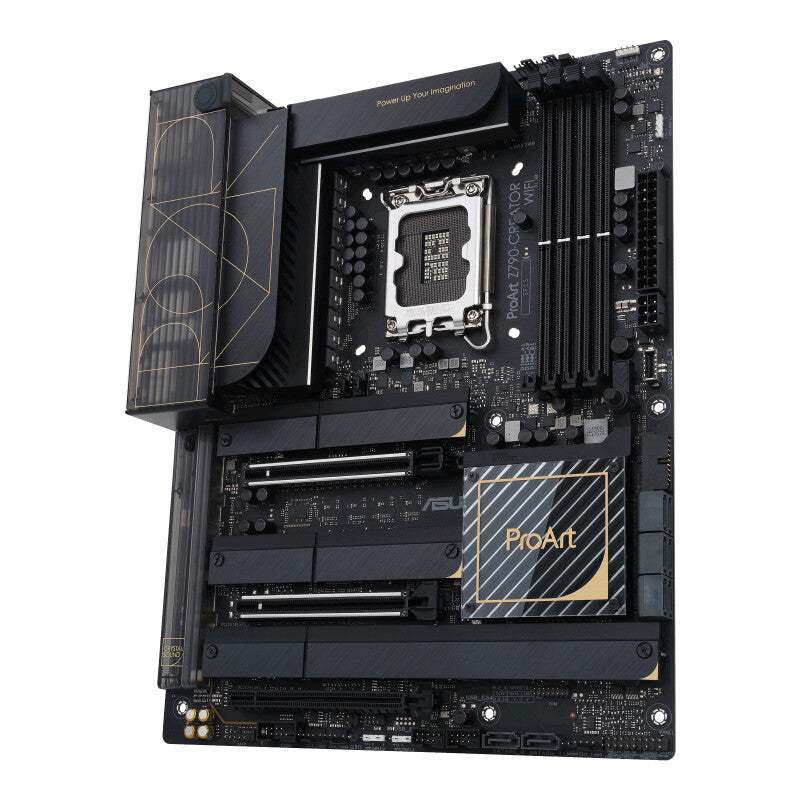

ASUS PROART Z790-CREATOR WIFI ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- AMD LGA 1700 IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ® Gold
- PC ATX Intel Z790 Realtek S1220A 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- 256 Mbit
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does the motherboard have?
What types of storage does this motherboard support?
Does the motherboard support WiFi connectivity?
ASUS PROART Z790-CREATOR WIFI ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description

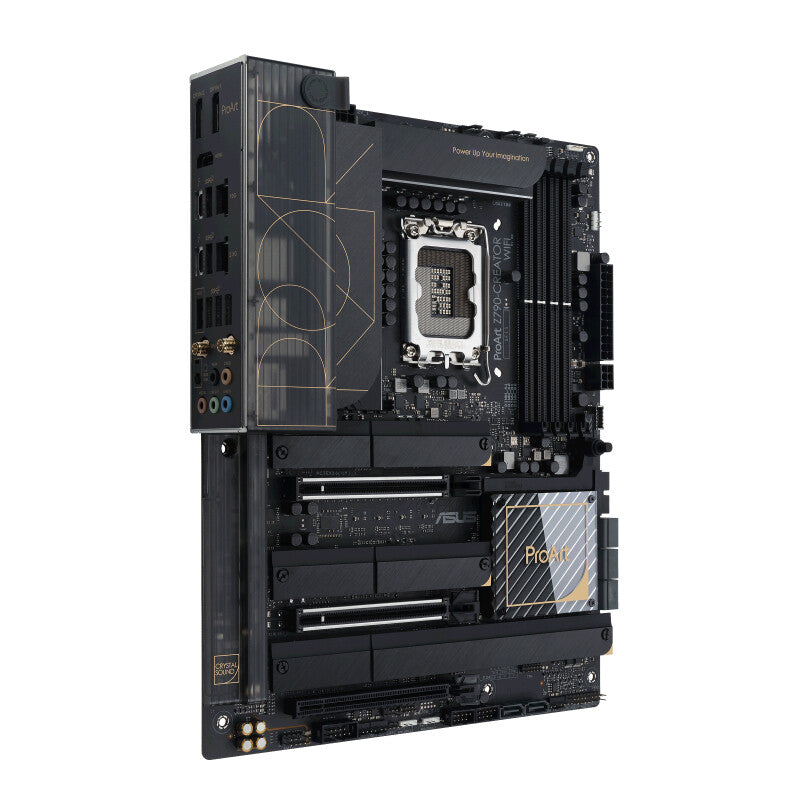

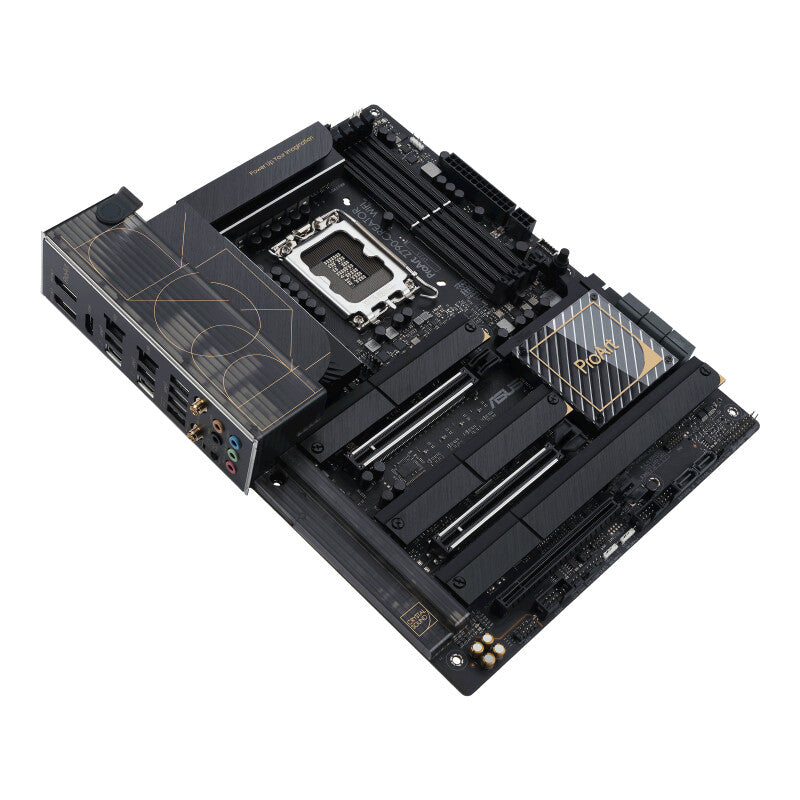

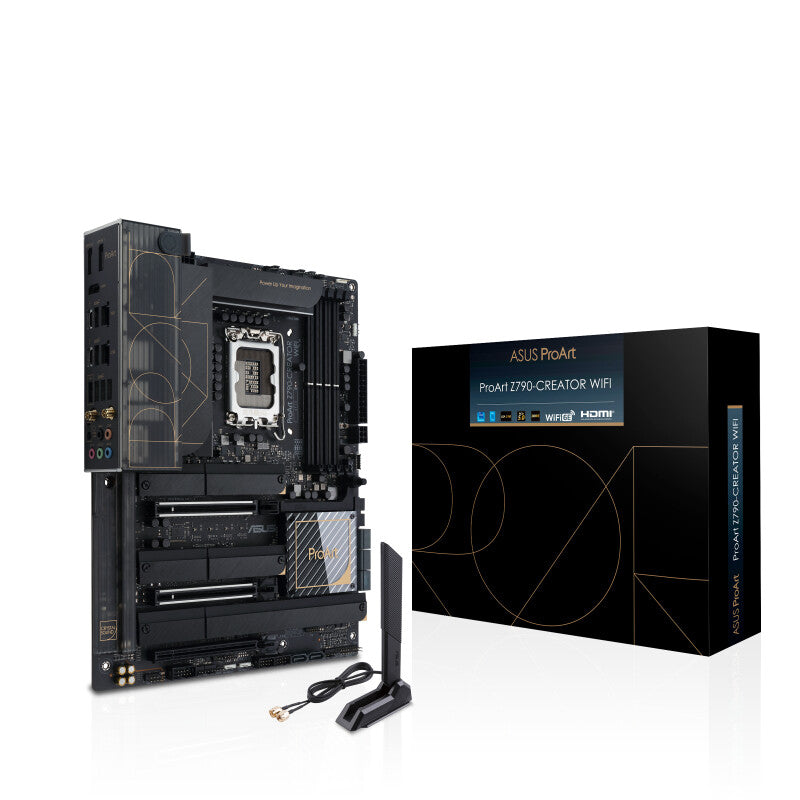

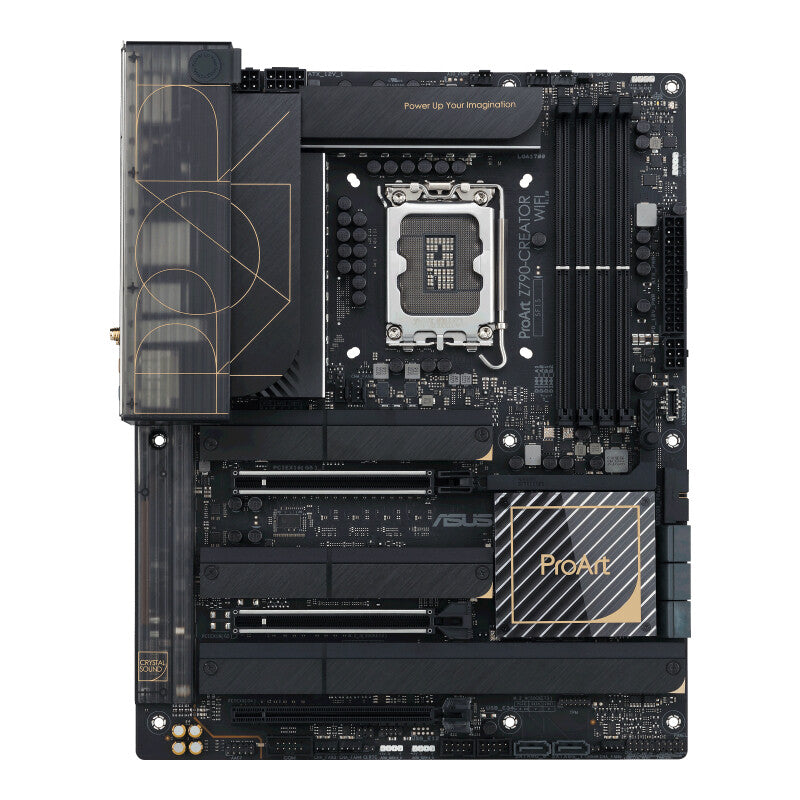

The ASUS PROART Z790-CREATOR WIFI positions itself as a content creator's dream board, built around Intel's flagship Z790 chipset and the versatile LGA1700 socket. This ATX motherboard targets creative professionals, streamers, and enthusiasts who need serious bandwidth for demanding workloads. With support for the full range of 12th and 13th-gen Intel processors from Celeron to Core i9, it scales from budget builds to high-end workstations.
Memory performance gets serious attention with DDR5 support across four DIMM slots, reaching up to 128GB capacity and speeds as high as 7200MHz. Three PCIe x16 slots provide expansion flexibility, with two running at PCIe 5.0 speeds for cutting-edge graphics cards and storage, plus one PCIe 4.0 slot for additional cards. The inclusion of Thunderbolt 4 connectivity sets this apart from standard gaming boards, offering the ultra-fast data transfer and display capabilities that video editors and designers demand. Wi-Fi 6E keeps wireless connections fast and stable.

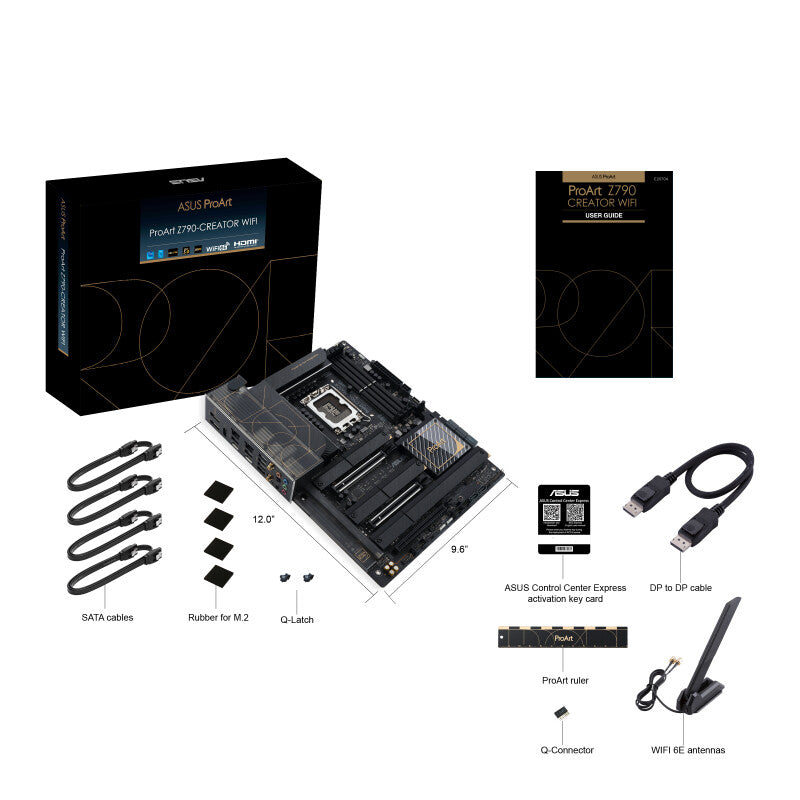

ASUS includes an RGB LED pin header for custom lighting setups, while the black PCB maintains a professional aesthetic. The board ships with essential installation hardware including an I/O shield, SATA cables for storage drives, and M.2 mounting screws. XMP memory profile support ensures easy DDR5 overclocking to rated speeds, while the comprehensive user guide walks through setup for both novice and experienced builders.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

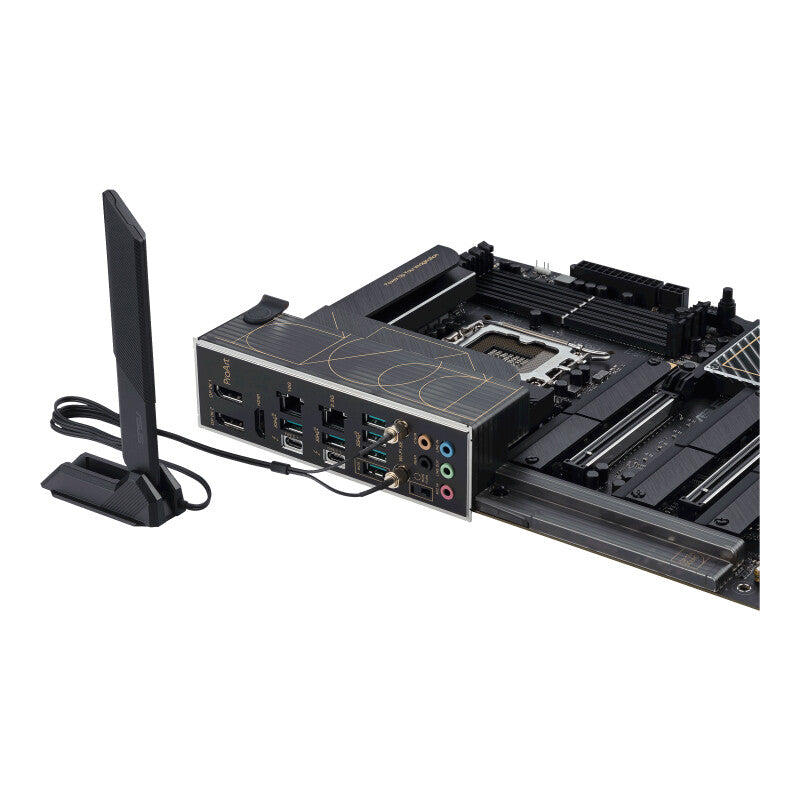

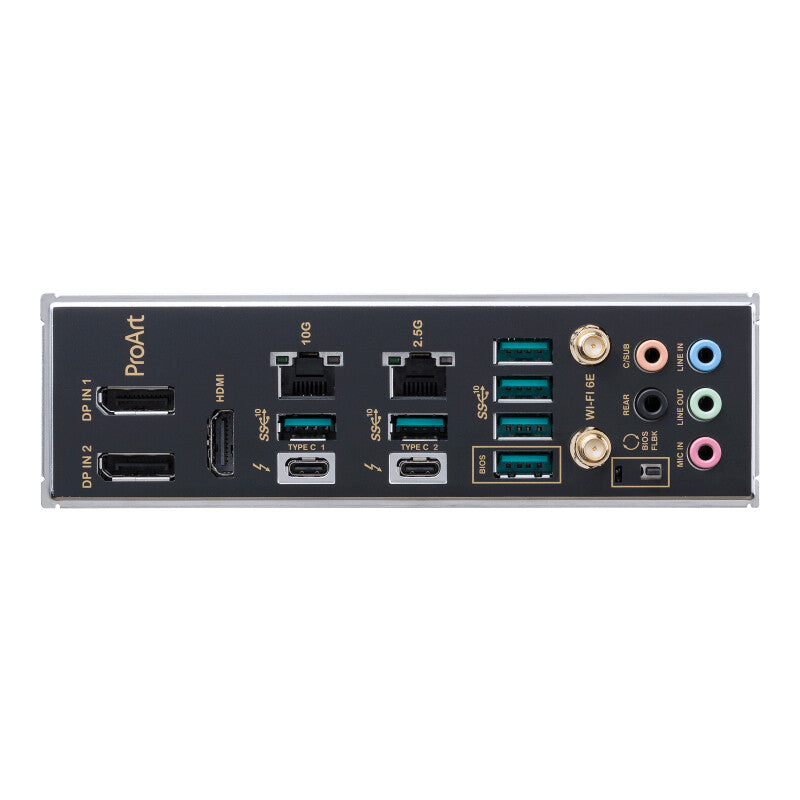

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 331 mm |
| Package depth | 266 mm |
| Package height | 76 mm |
| Package weight | 2.43 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
|---|---|
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
