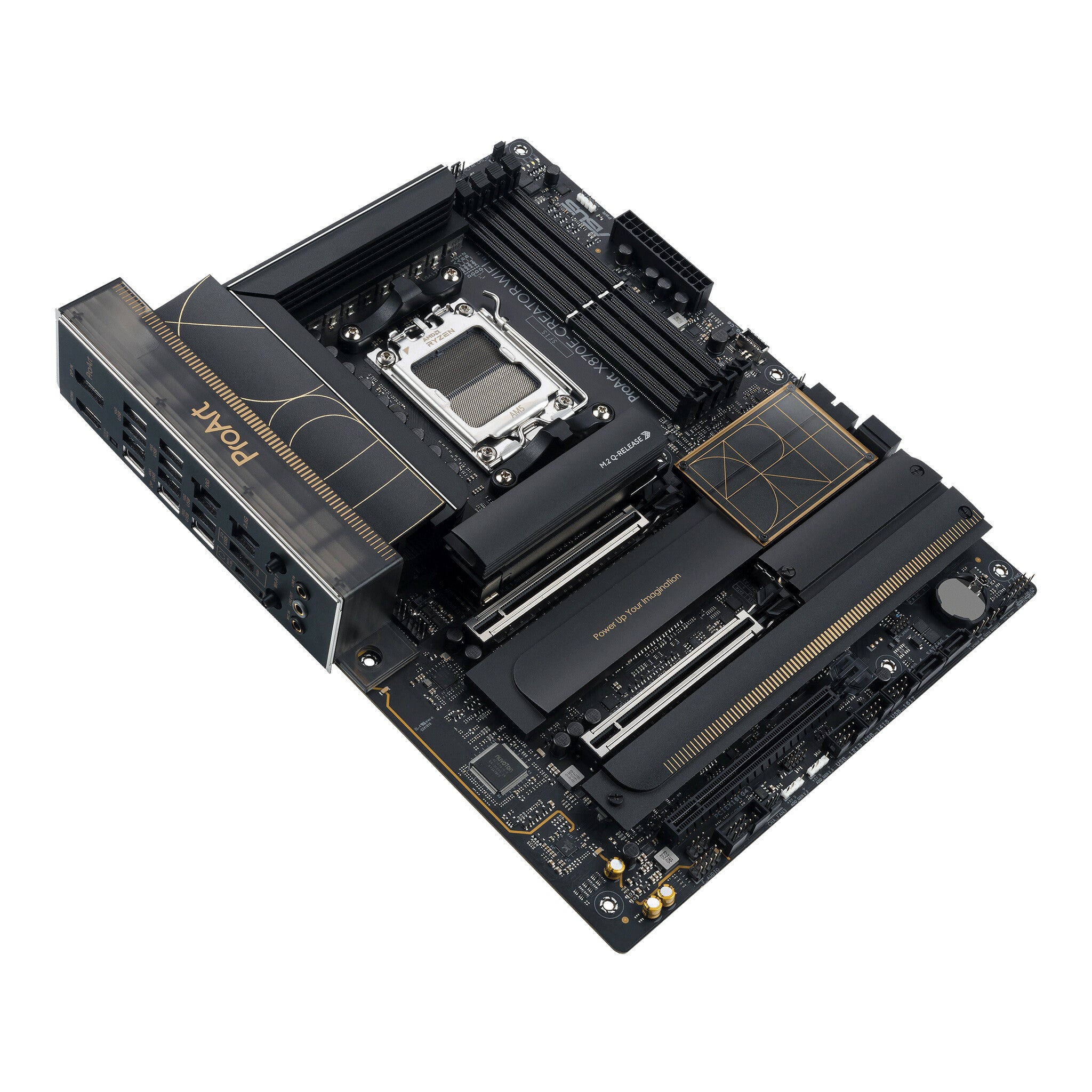

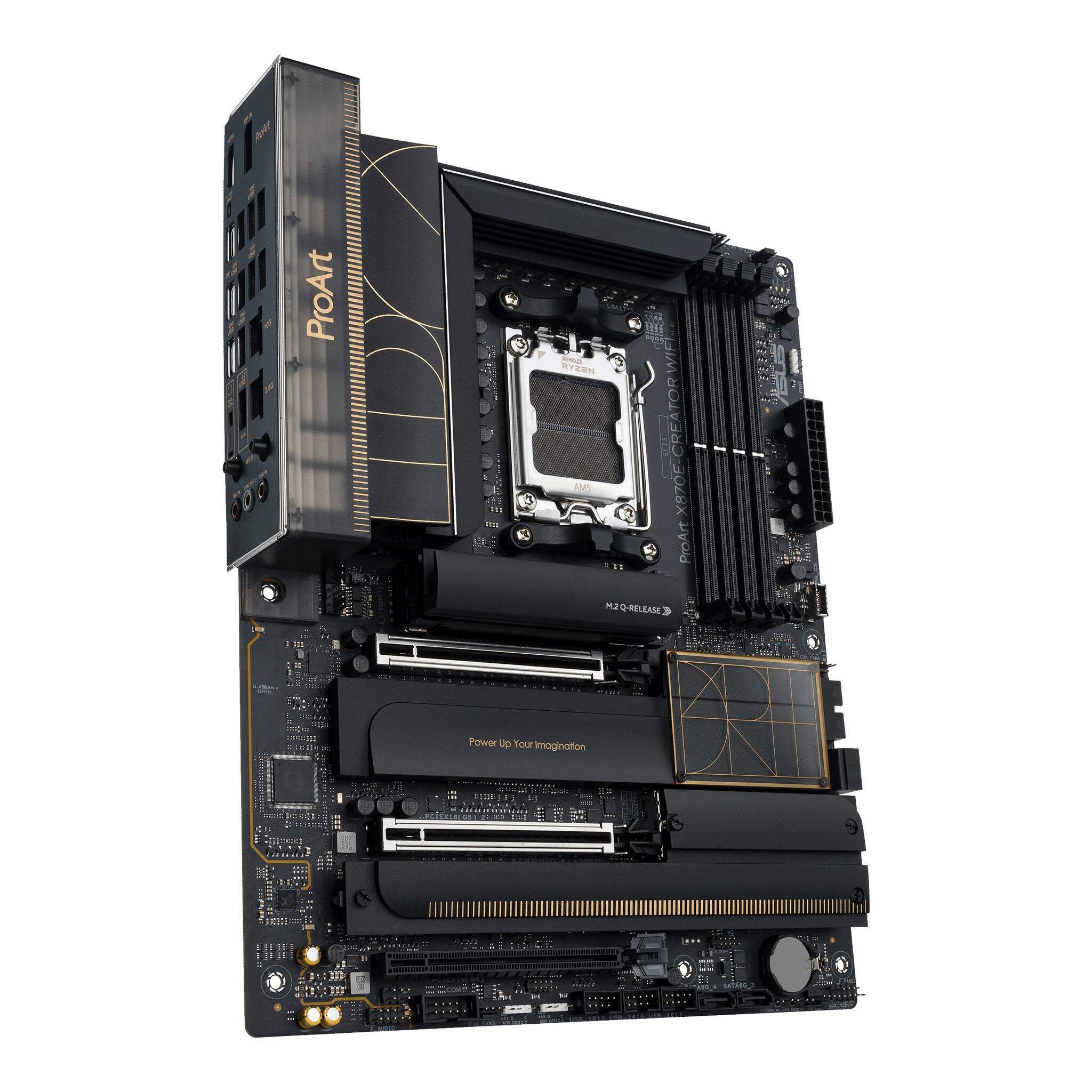

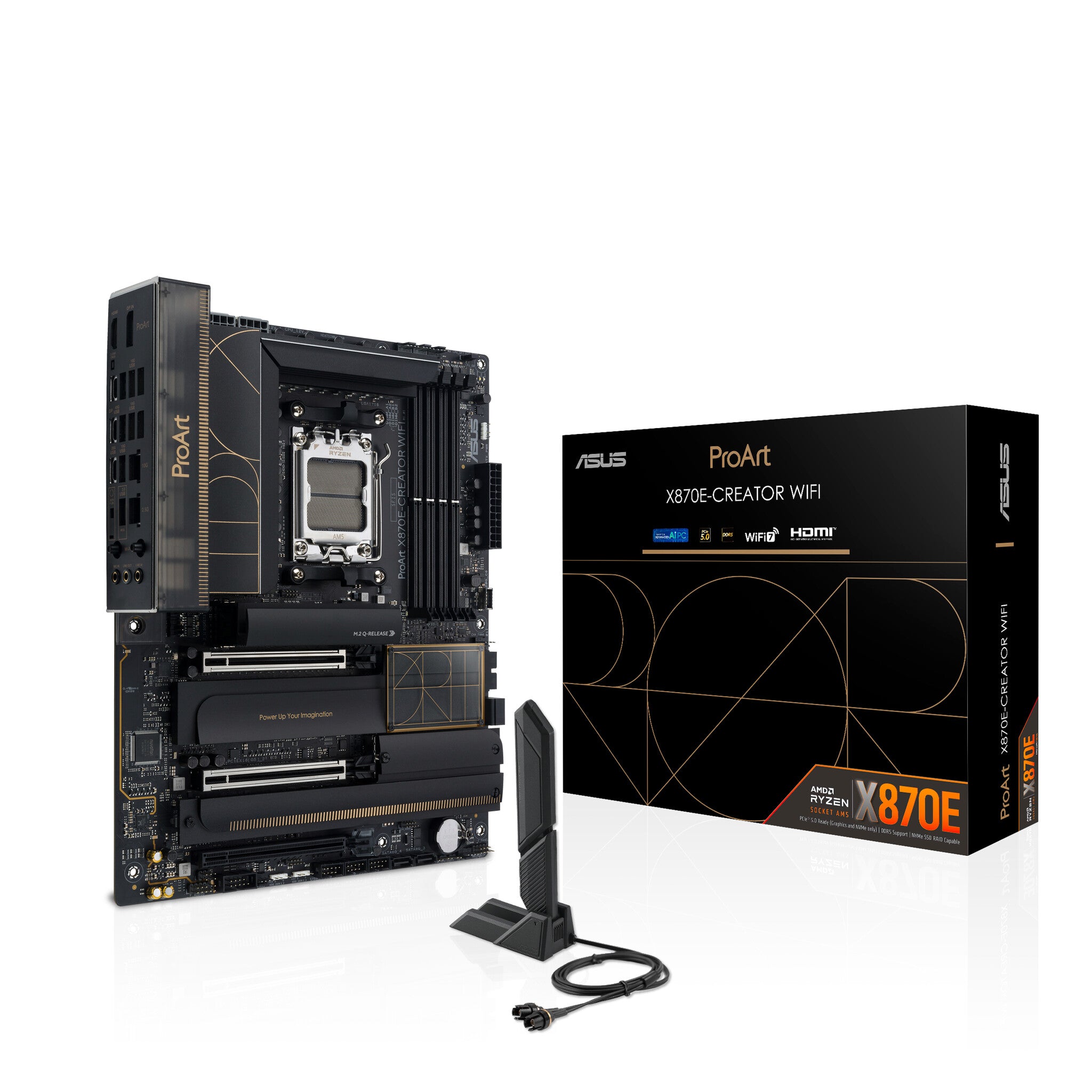

ASUS ProArt X870E-CREATOR WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5
- PC ATX AMD X870E Realtek S1220A 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What type of connectivity options are available?
Can I connect multiple monitors to this motherboard?
ASUS ProArt X870E-CREATOR WIFI ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description

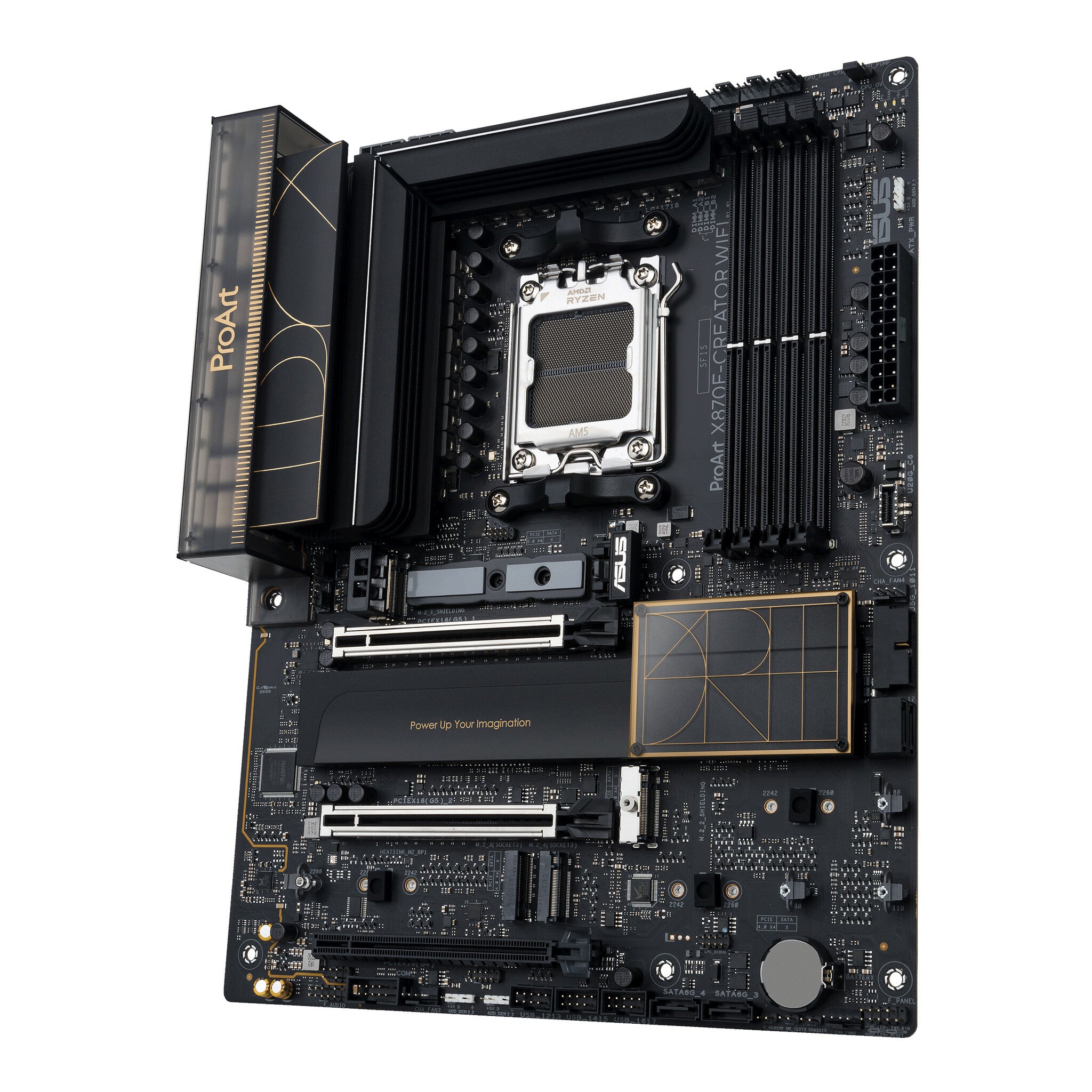

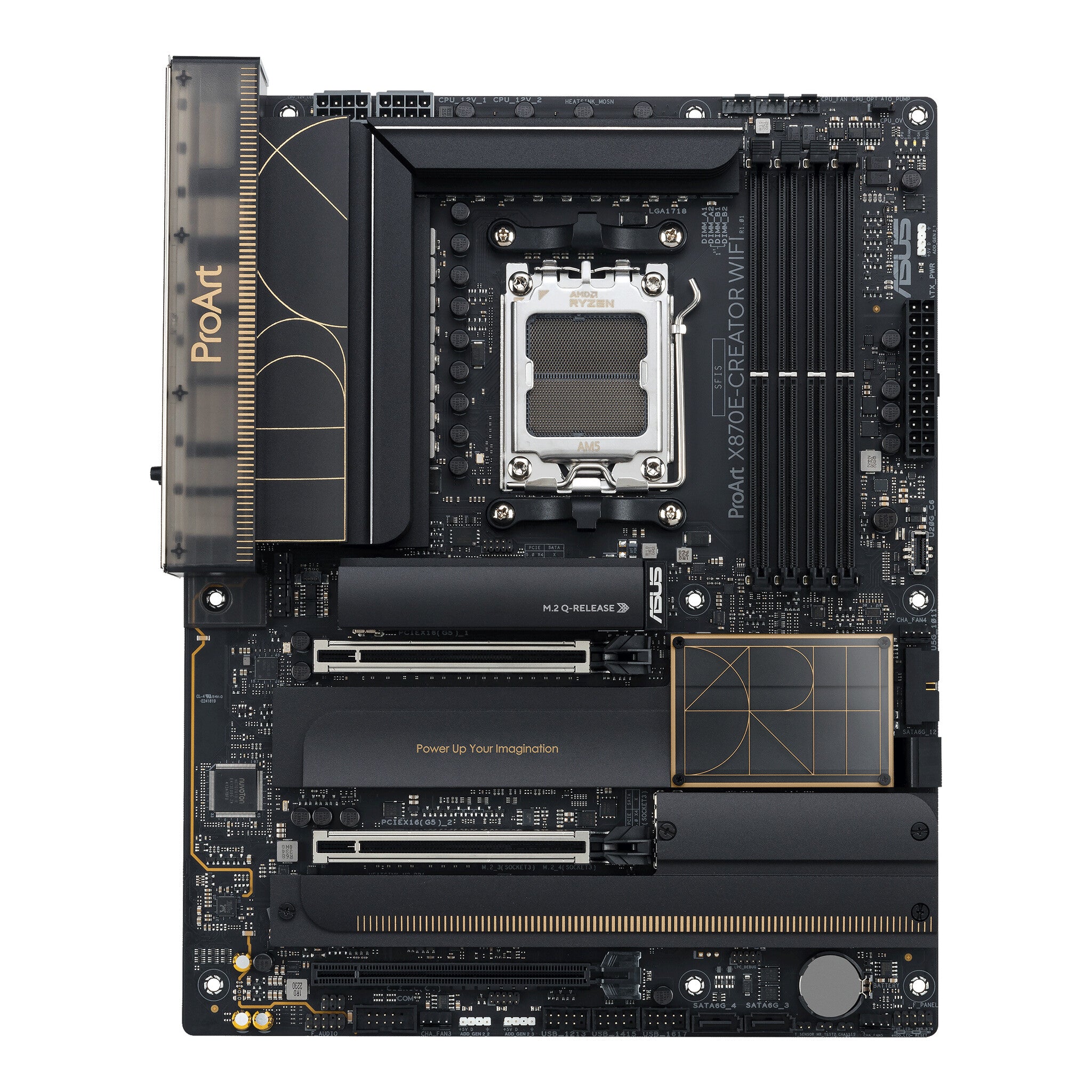

The ASUS ProArt X870E-CREATOR WIFI is a premium ATX motherboard built around AMD's flagship X870E chipset for Socket AM5 processors. This board targets content creators, workstation users, and enthusiasts who need maximum PCIe connectivity and memory capacity. With support for up to 192 GB of DDR5 memory across four DIMM slots, it handles memory-intensive workflows like video editing, 3D rendering, and complex multitasking with ease. The X870E chipset represents the top tier of AMD's platform, delivering cutting-edge features for demanding applications.
PCIe connectivity stands out as a major strength, featuring two PCIe 5.0 x16 slots alongside one PCIe 4.0 x16 slot. This configuration supports multiple high-end graphics cards or professional accelerator cards while maintaining full bandwidth. The board includes both ECC and non-ECC memory compatibility, making it suitable for professional workstations that require error-corrected memory for mission-critical tasks. DDR5 support with EXPO memory profiles ensures you can run high-speed memory kits at their rated specifications for optimal performance in creative applications.

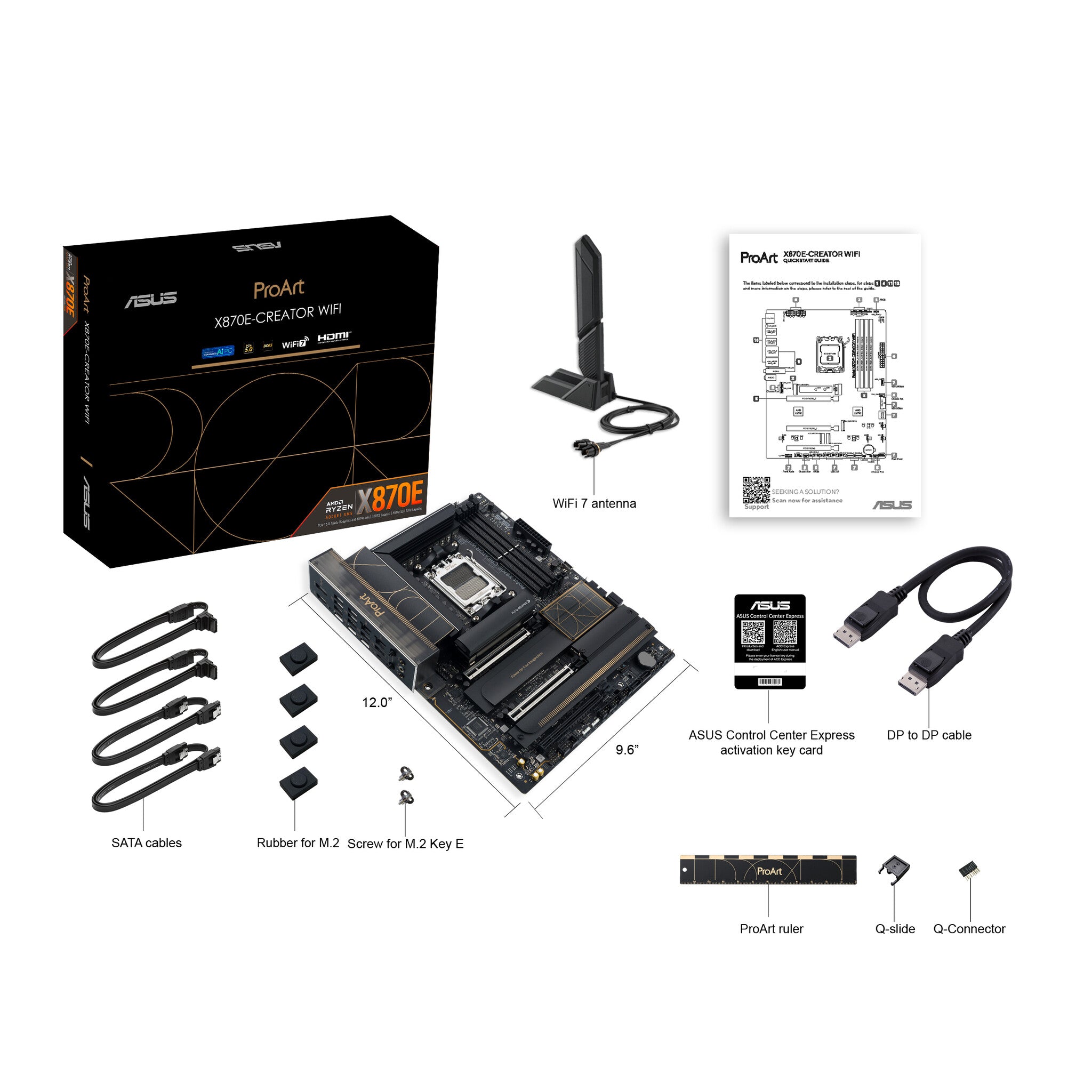

ASUS includes Wi-Fi connectivity built-in, eliminating the need for separate network cards in wireless setups. The ProArt branding signals ASUS's focus on creator-specific features and validated compatibility with professional software suites. USB 3.2 Gen 2x2 connectivity provides fast data transfer for external storage and professional peripherals. The board comes with essential installation hardware including an I/O shield, SATA cables, and mounting hardware for M.2 drives, plus a comprehensive user guide to help with setup and configuration.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10, 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |

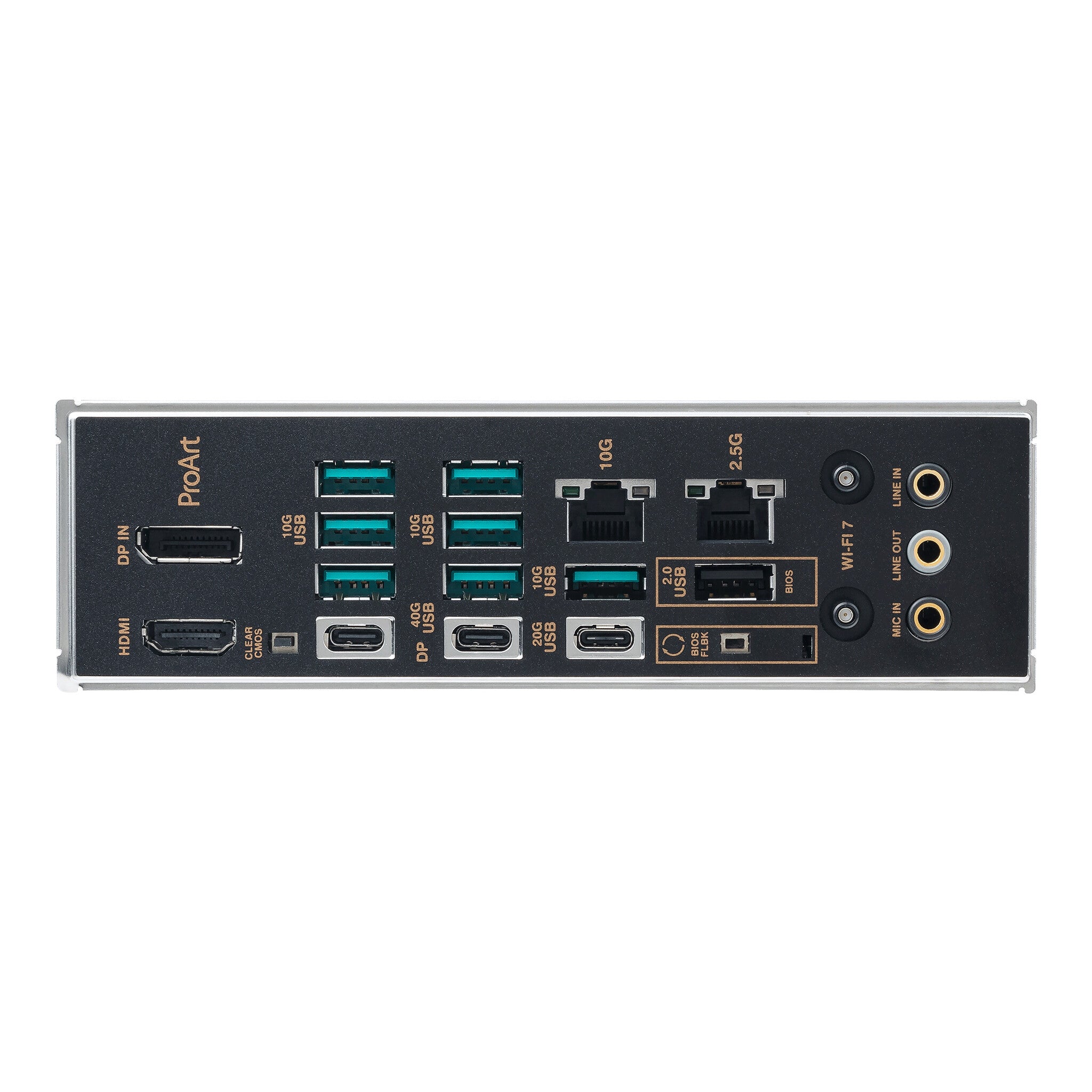

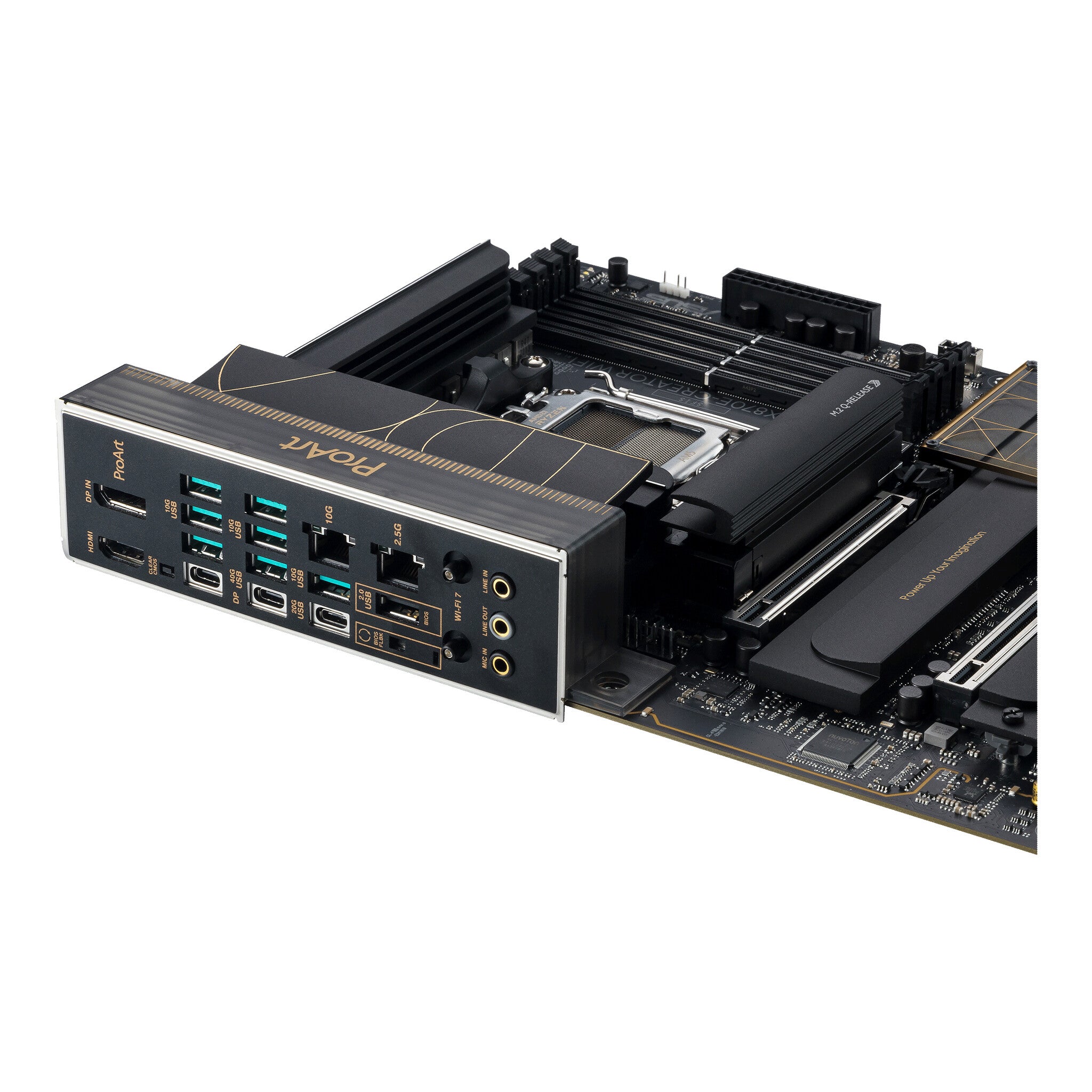

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | DisplayPort, SATA |
