ASUS PROART B760-CREATOR D4 ATX Motherboard | LGA1700 | 4x DDR4 Slots
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC ATX Intel B760 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- 128 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
Does it support PCIe 5.0?
Can I use Thunderbolt 4 with this motherboard?
ASUS PROART B760-CREATOR D4 ATX Motherboard | LGA1700 | 4x DDR4 Slots
Description

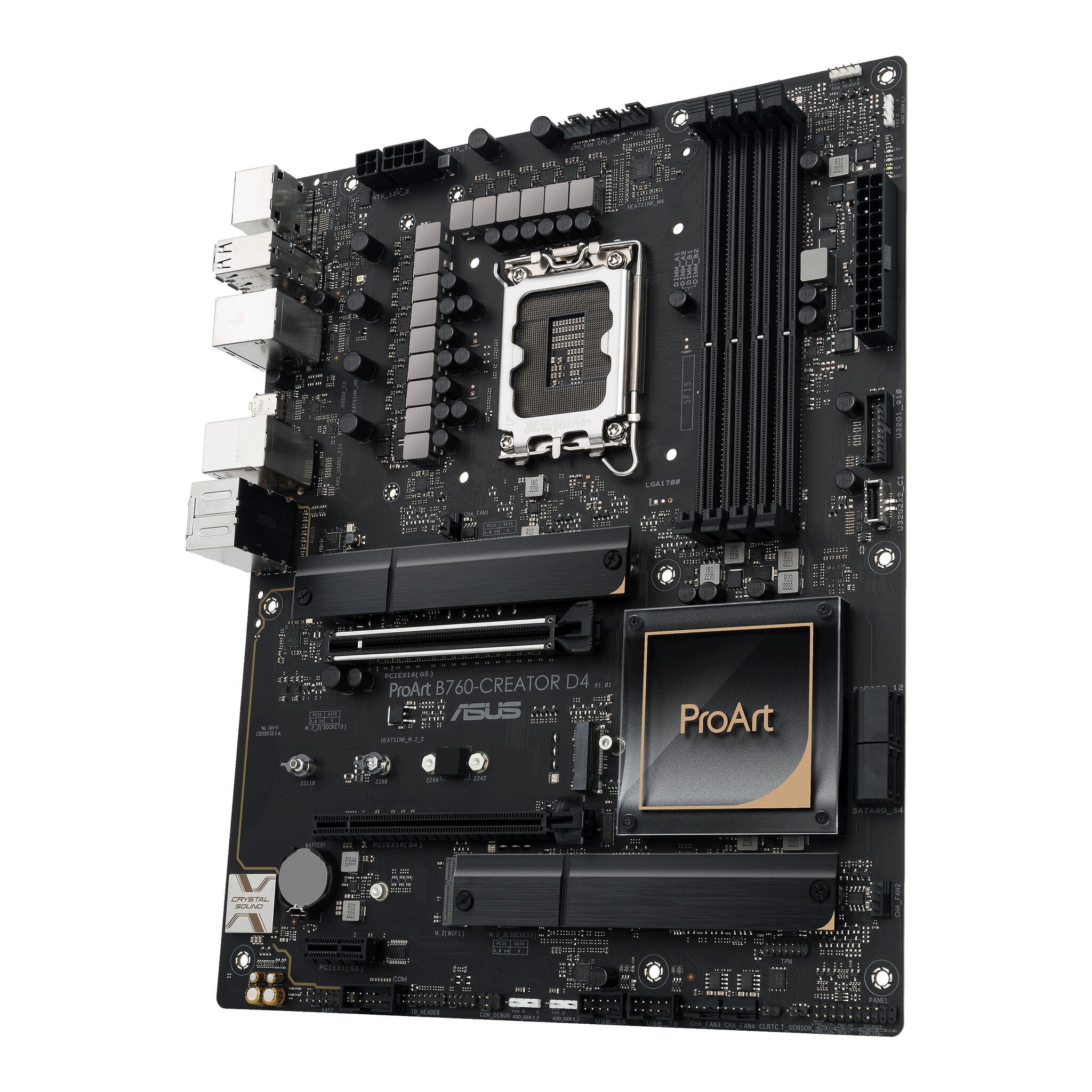

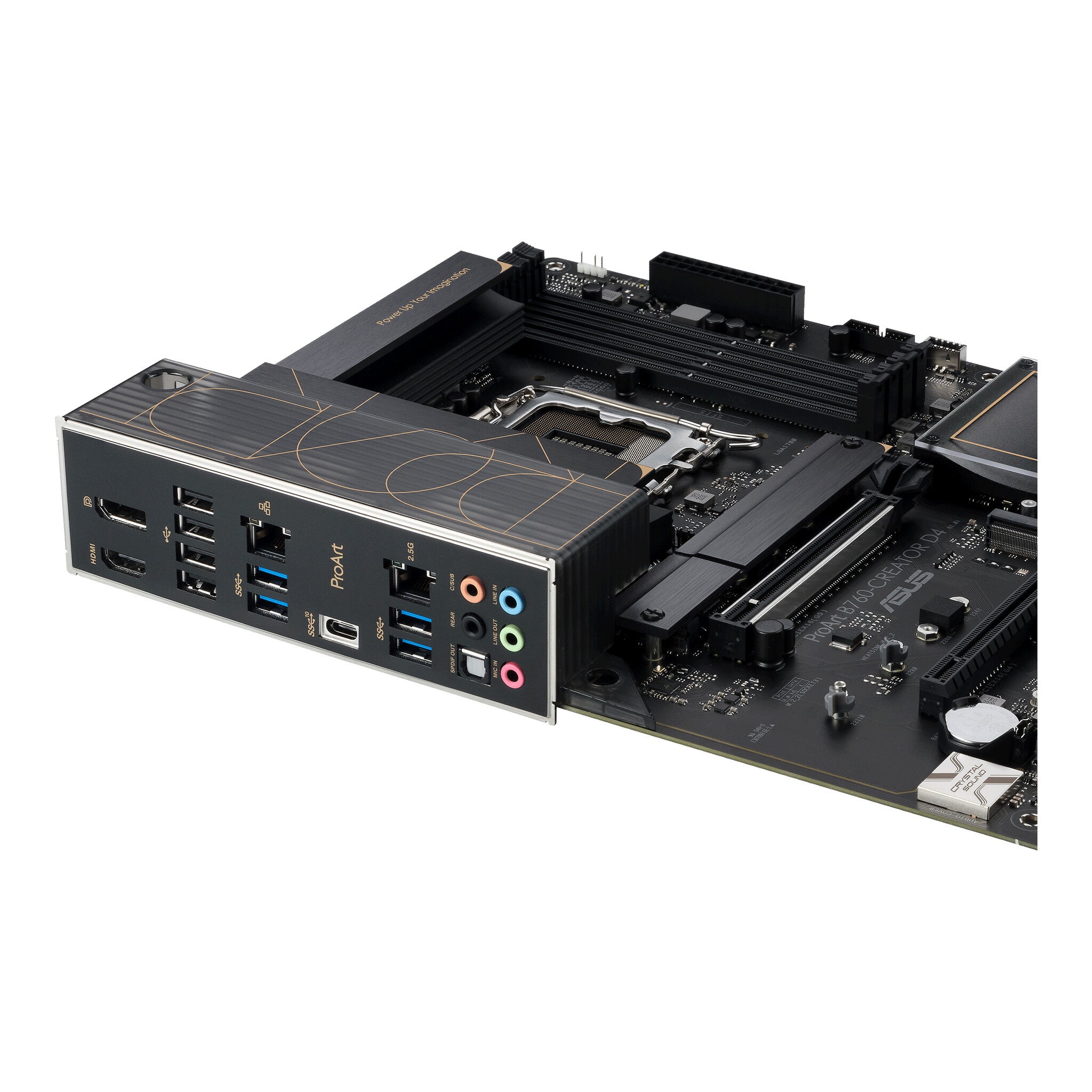

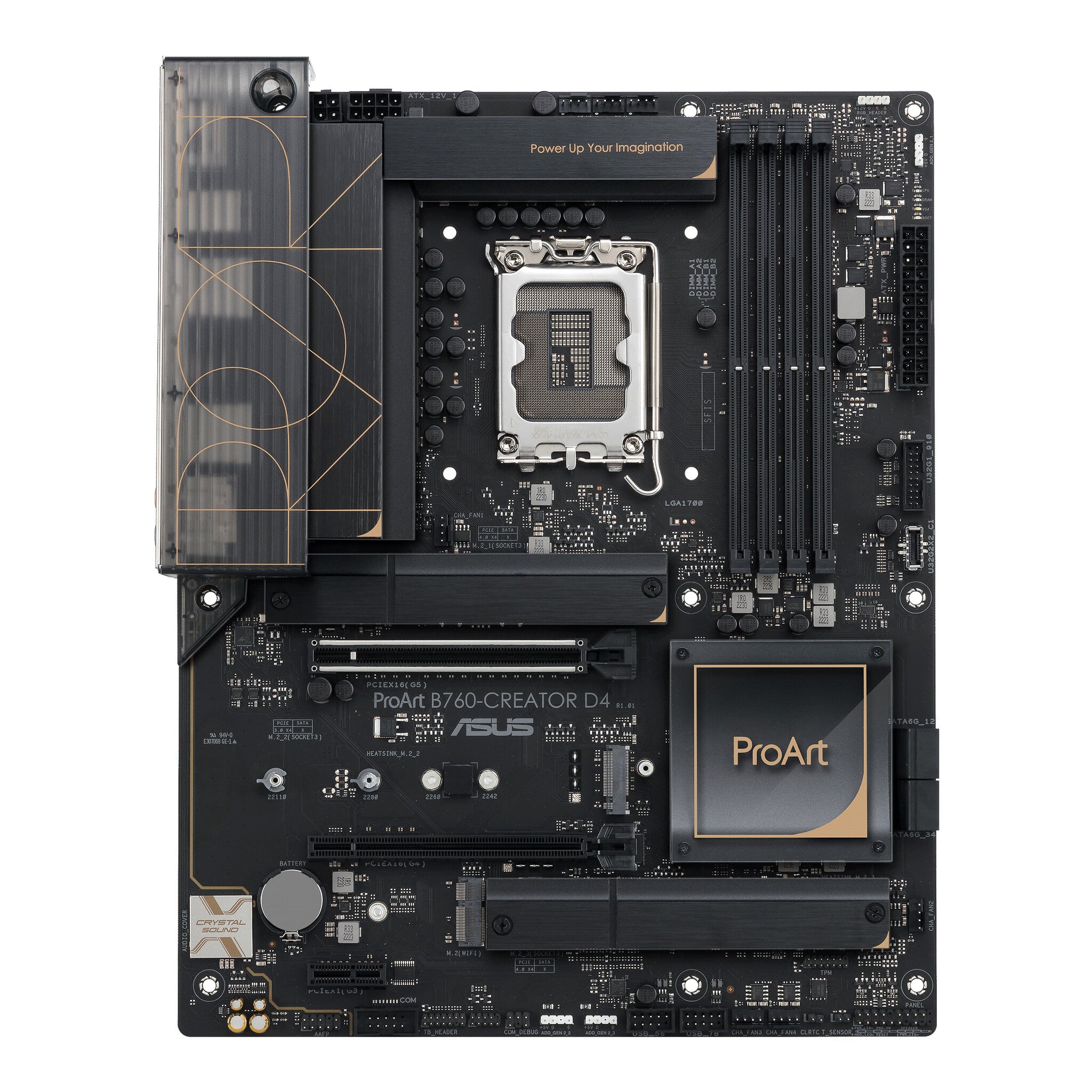

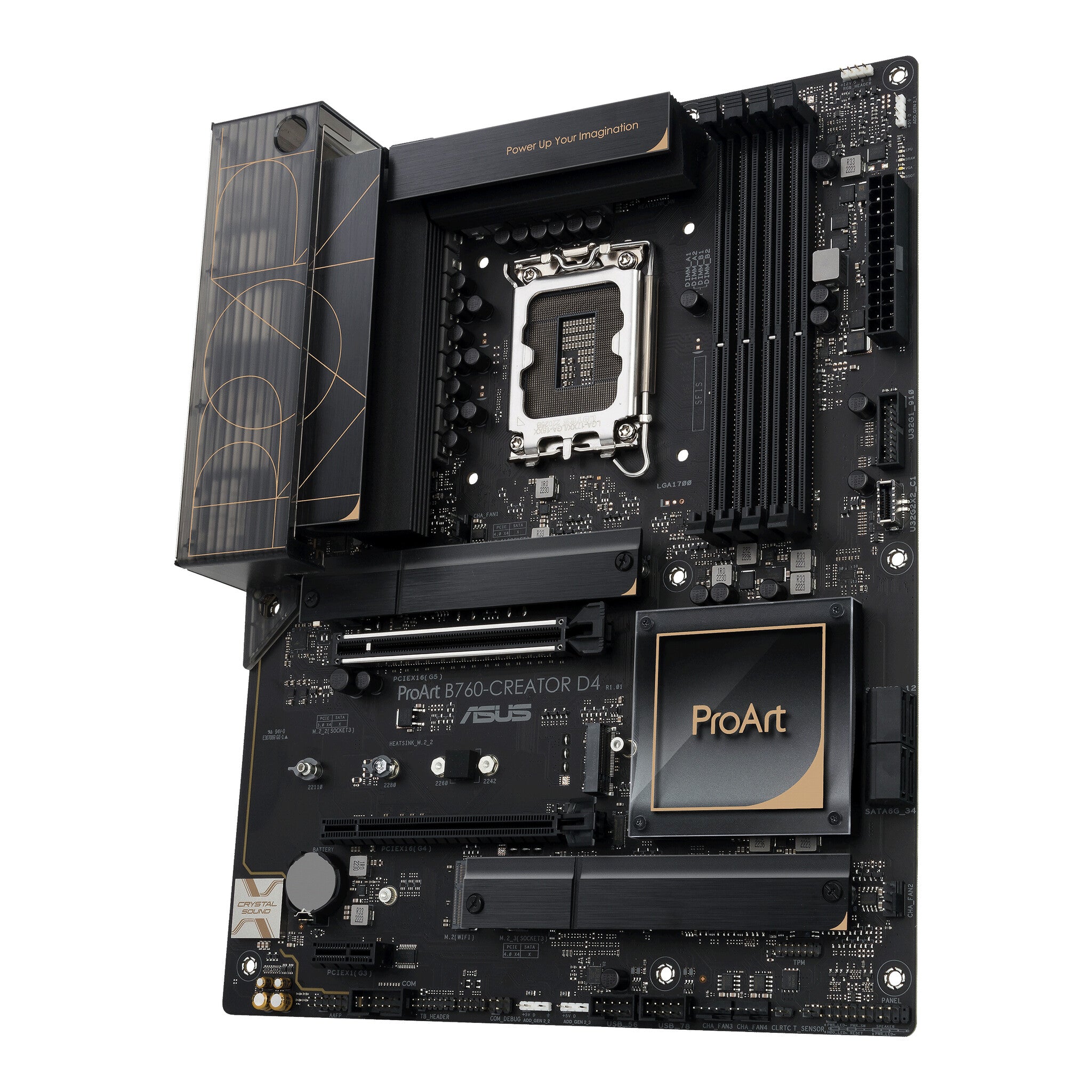

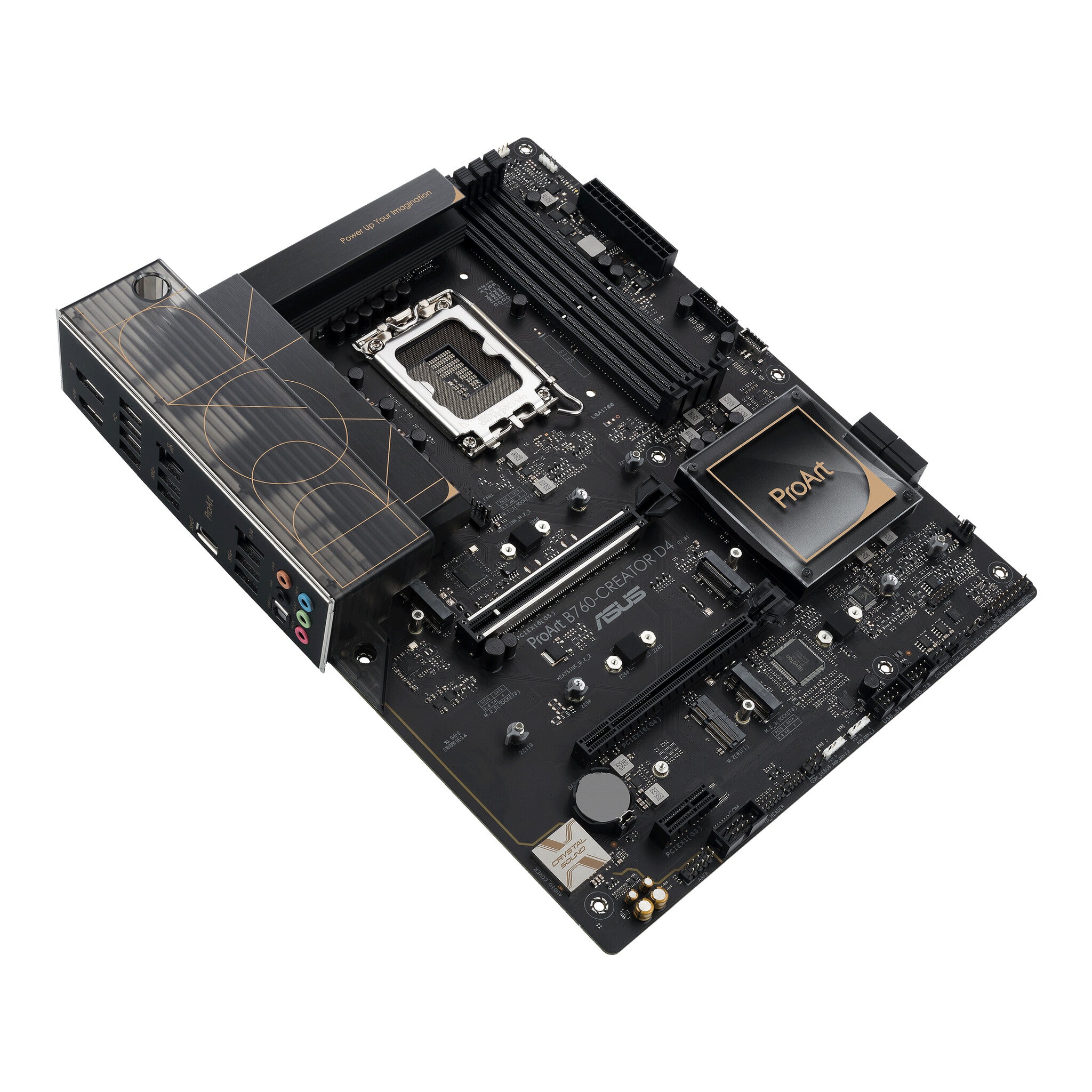

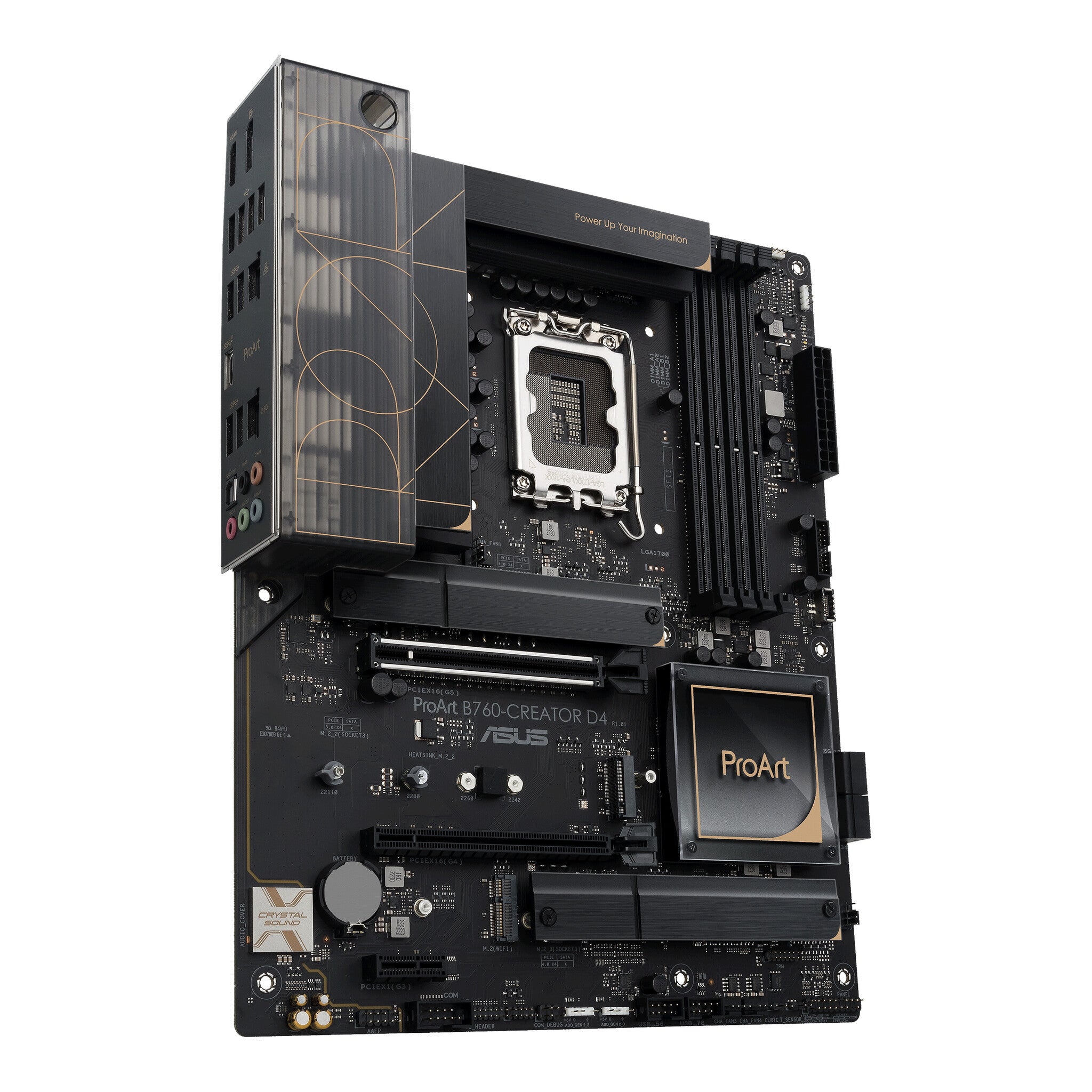

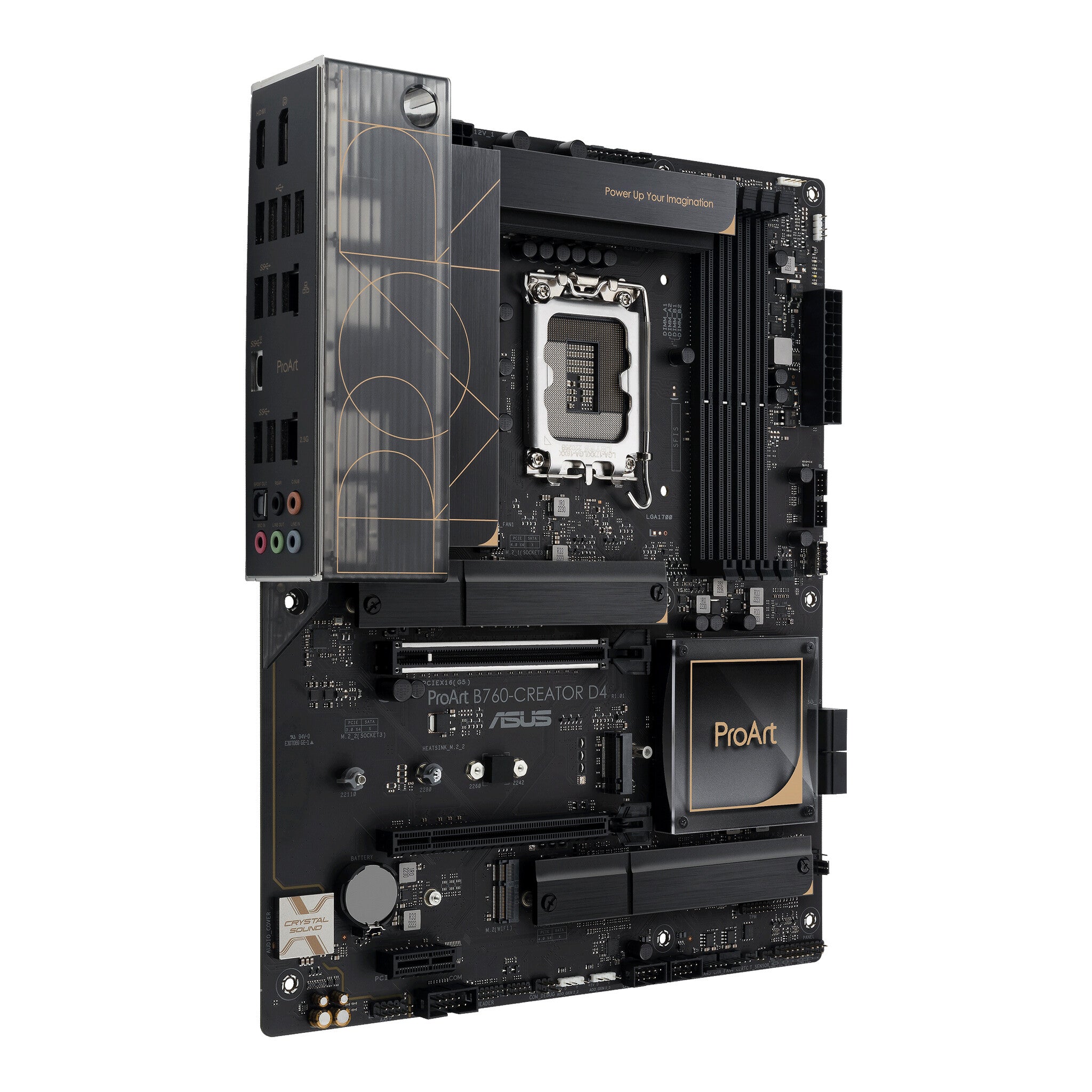

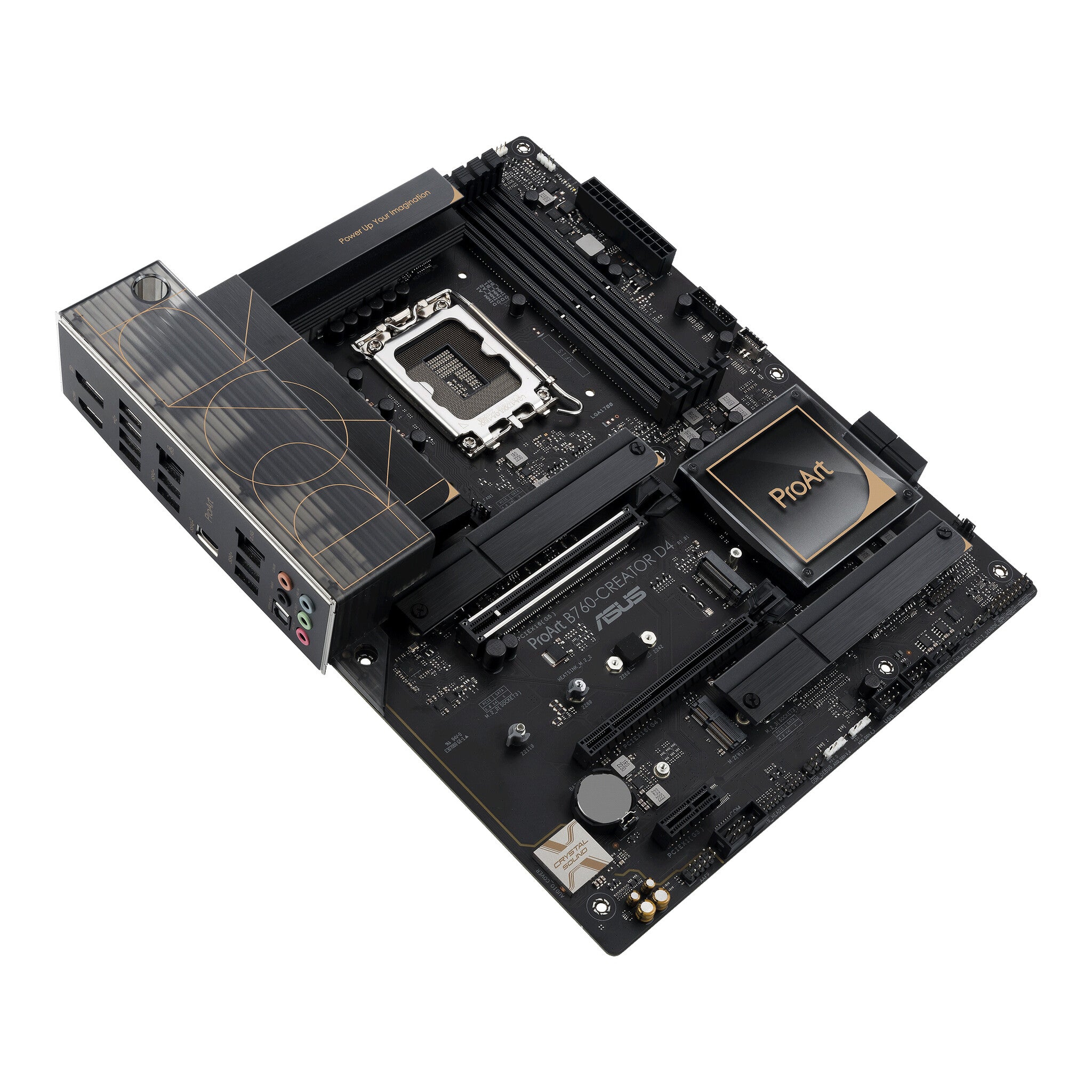

The ASUS PROART B760-CREATOR D4 is an ATX motherboard built on Intel's B760 chipset for the LGA1700 socket, targeting content creators who need reliable performance without flagship pricing. This mainstream platform supports Intel processors from 12th gen Celeron up to 13th gen Core i9 chips, making it suitable for video editing, graphic design, and creative workflows that benefit from strong multi-core performance. The black PCB design fits professional builds while delivering the connectivity creators need.
Memory support centers on DDR4 with four DIMM slots accommodating up to 128GB capacity-plenty for demanding creative applications that work with large files or multiple projects simultaneously. The board provides dual PCIe x16 slots with one running PCIe 5.0 for next-generation graphics cards and another at PCIe 4.0 for additional expansion. Three M.2 slots handle high-speed storage needs, while USB 3.2 Gen2x2 connectivity ensures fast data transfers with external drives and creative peripherals.
Setup features include support for memory overclocking profiles to extract maximum performance from DDR4 kits, while RGB LED pin headers allow for custom lighting integration. The package includes standard essentials like an I/O shield and user documentation to get systems running smoothly. With its focus on creator-oriented connectivity and solid expandability, this B760 platform delivers the foundation needed for content production workstations without the premium cost of enthusiast chipsets.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

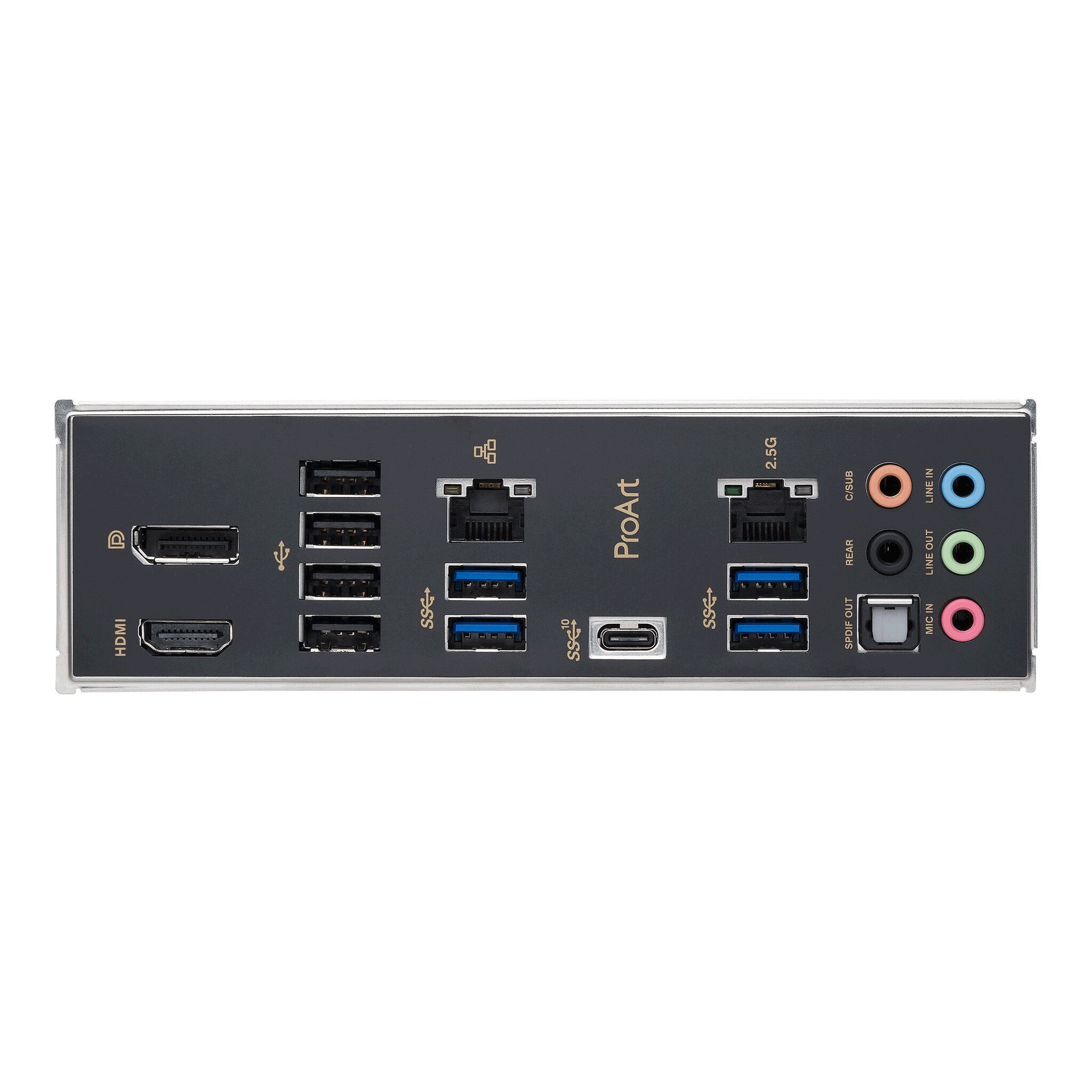

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 368 mm |
| Package depth | 293 mm |
| Package height | 290 mm |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |

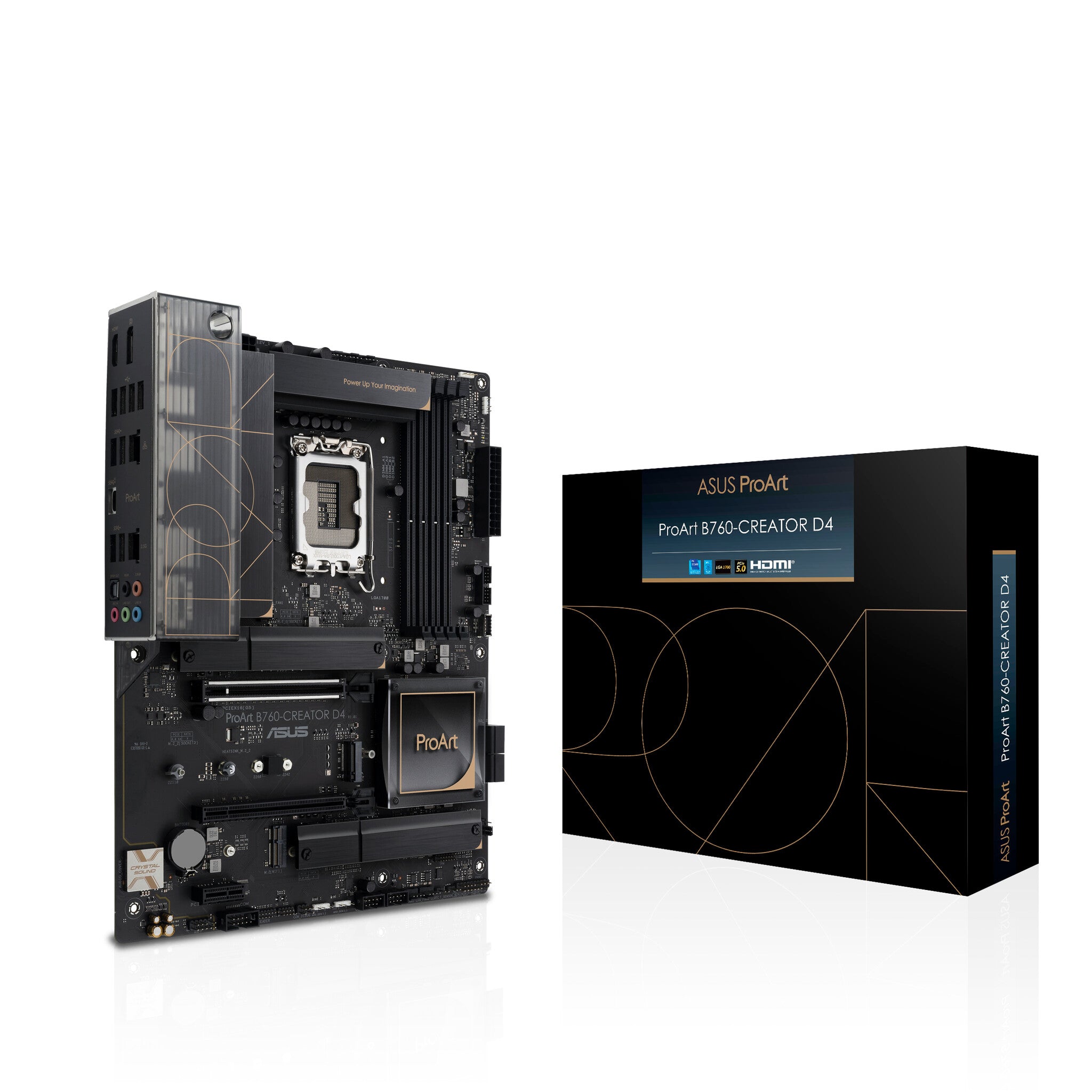

| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Number of M.2 (E) slots | 1 |
