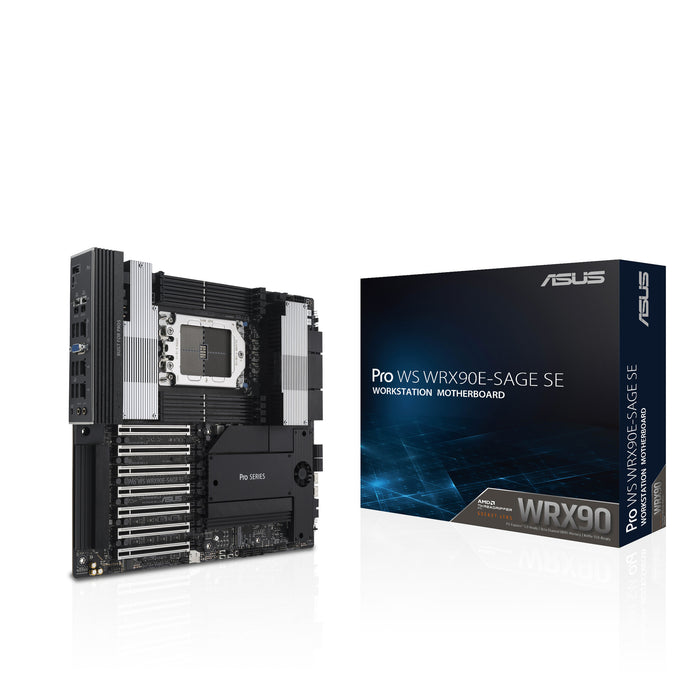

ASUS PRO WS WRX90E-SAGE SE EEB Motherboard | sTR5 | 8x DDR5 Slots
KEY FEATURES
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What type of networking does this motherboard support?
Can I overclock my CPU with this motherboard?
ASUS PRO WS WRX90E-SAGE SE EEB Motherboard | sTR5 | 8x DDR5 Slots
Description
The ASUS PRO WS WRX90E-SAGE SE is a professional workstation motherboard built around AMD's flagship WRX90 chipset and sTR5 socket for Ryzen Threadripper PRO 7000 WX-Series processors. This Extended Extended ATX (EEB) board is engineered for high-performance workstations that demand maximum processing power and memory capacity. With support for up to eight DDR5 memory modules and ECC memory compatibility, it's designed for professionals running memory-intensive applications like 3D rendering, scientific computing, and content creation workflows where data integrity is critical.
Memory configuration options are extensive, with eight DIMM slots supporting DDR5-SDRAM and full ECC compatibility for error correction in mission-critical applications. Seven PCIe 5.0 x16 slots provide exceptional expansion capability for multiple graphics cards, high-speed storage controllers, or specialized accelerator cards. Network connectivity includes both standard Realtek Gigabit Ethernet and dual Intel 10 Gigabit Ethernet ports, essential for bandwidth-heavy workflows and network-attached storage access. Additional features include dual Mini DisplayPort outputs and USB 3.2 Gen 2x2 connectivity for modern peripherals.
Professional features extend to the firmware level with a 256MB Flash ROM housing the UEFI AMI BIOS, providing robust system management tools and extensive configuration options. The EEB form factor requires a compatible workstation chassis but provides the physical space necessary for proper cooling and component spacing in demanding professional environments. This board ships with essential installation hardware including an I/O shield and comprehensive documentation to support professional deployment.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper PRO 7000 WX-Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 2 TB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of storage drives supported | 10 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD WRX90 |
| Audio chip | Realtek ALC1220P |
| Product colour | Aluminium, Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 377 mm |
| Package depth | 362 mm |
| Package height | 79 mm |
| Package weight | 3.62 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
| Height | 50 mm |
| Other features | |
|---|---|
| Mini DisplayPorts quantity | 2 |
| Weight | 3.33 kg |
