ASUS PRO WS W790E-SAGE SE EEB Motherboard | LGA4677 | 8x DDR5 Slots
KEY FEATURES
- Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
- Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRO WS W790E-SAGE SE?
How much memory can the motherboard support?
Does it support multi-GPU setups?
ASUS PRO WS W790E-SAGE SE EEB Motherboard | LGA4677 | 8x DDR5 Slots
Description

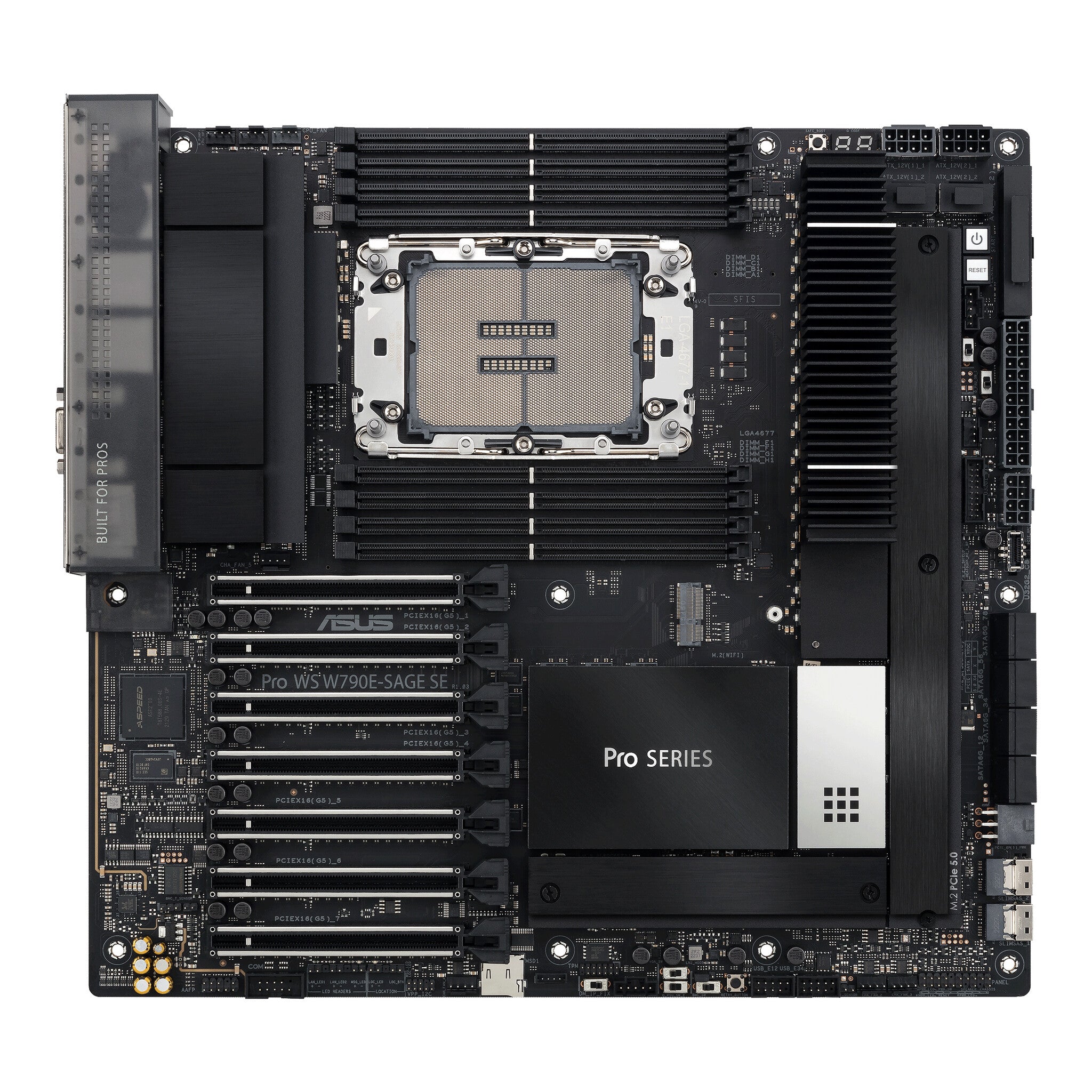

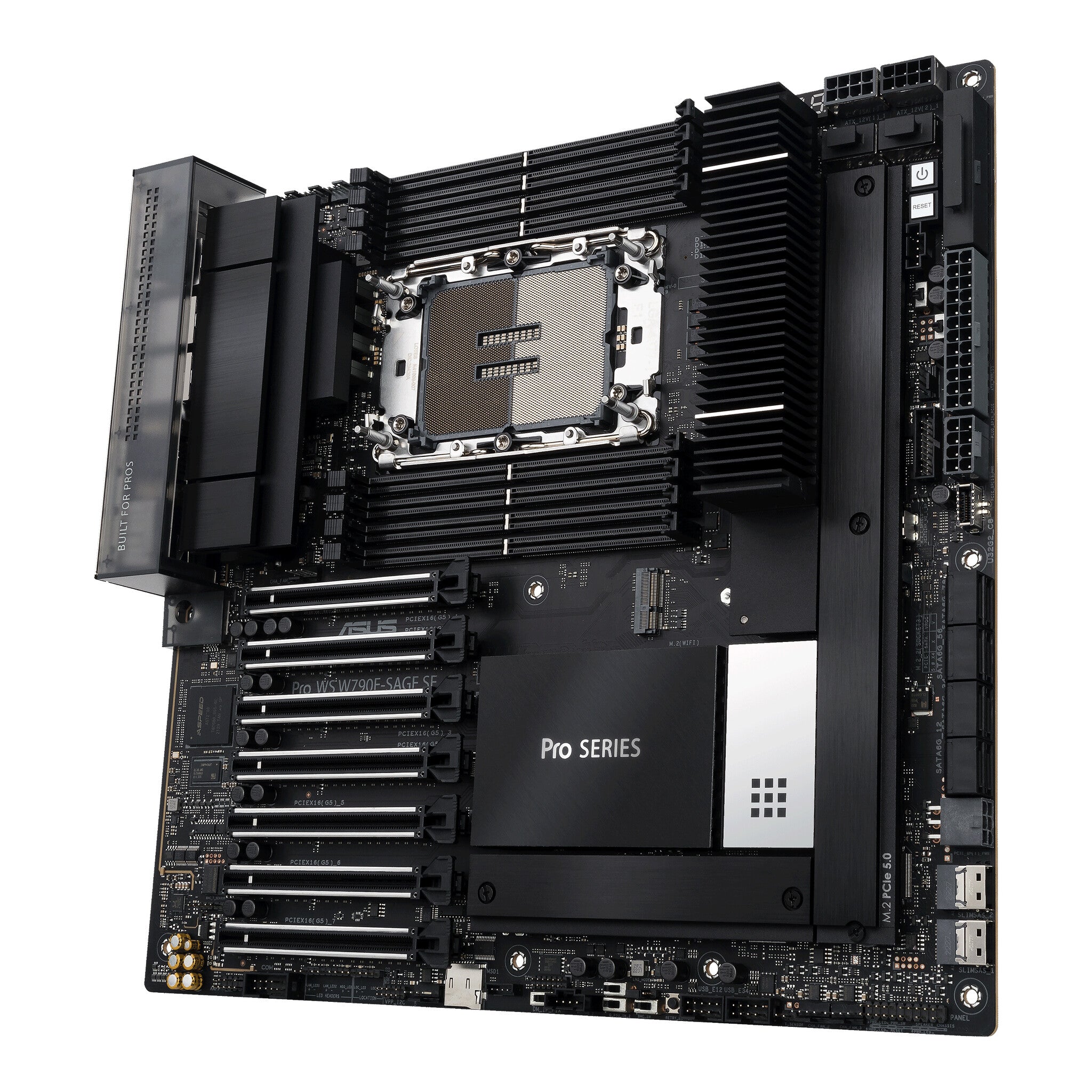

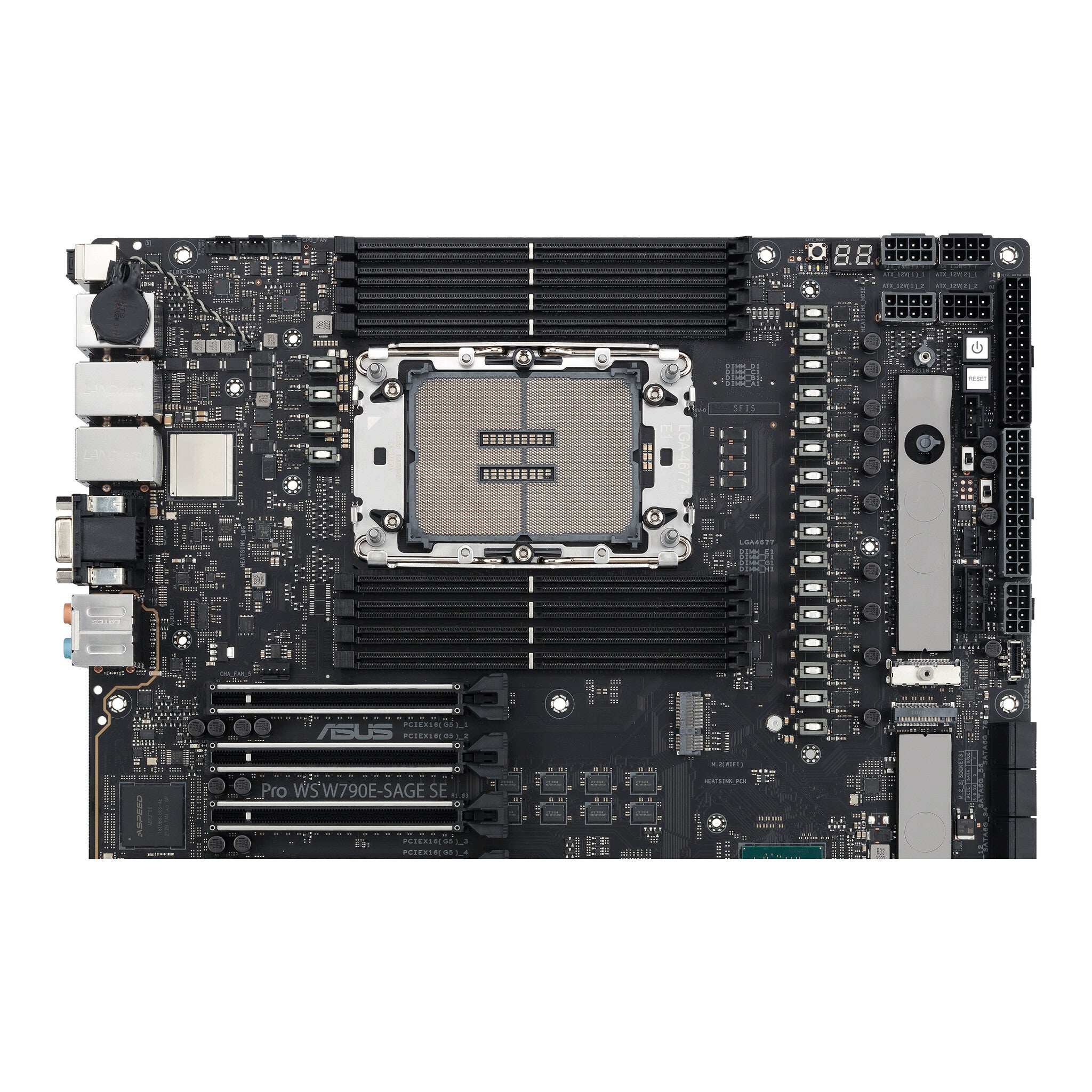

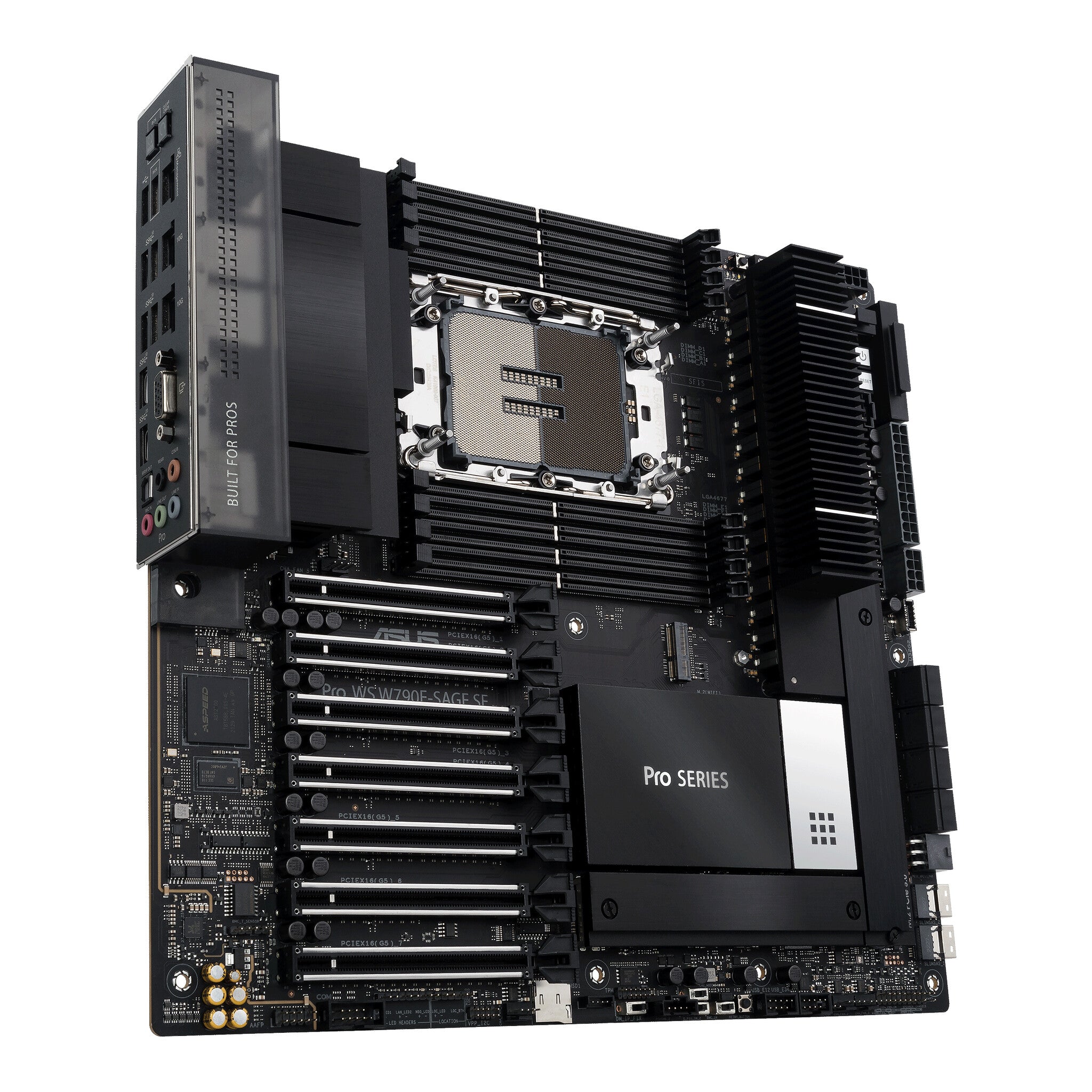

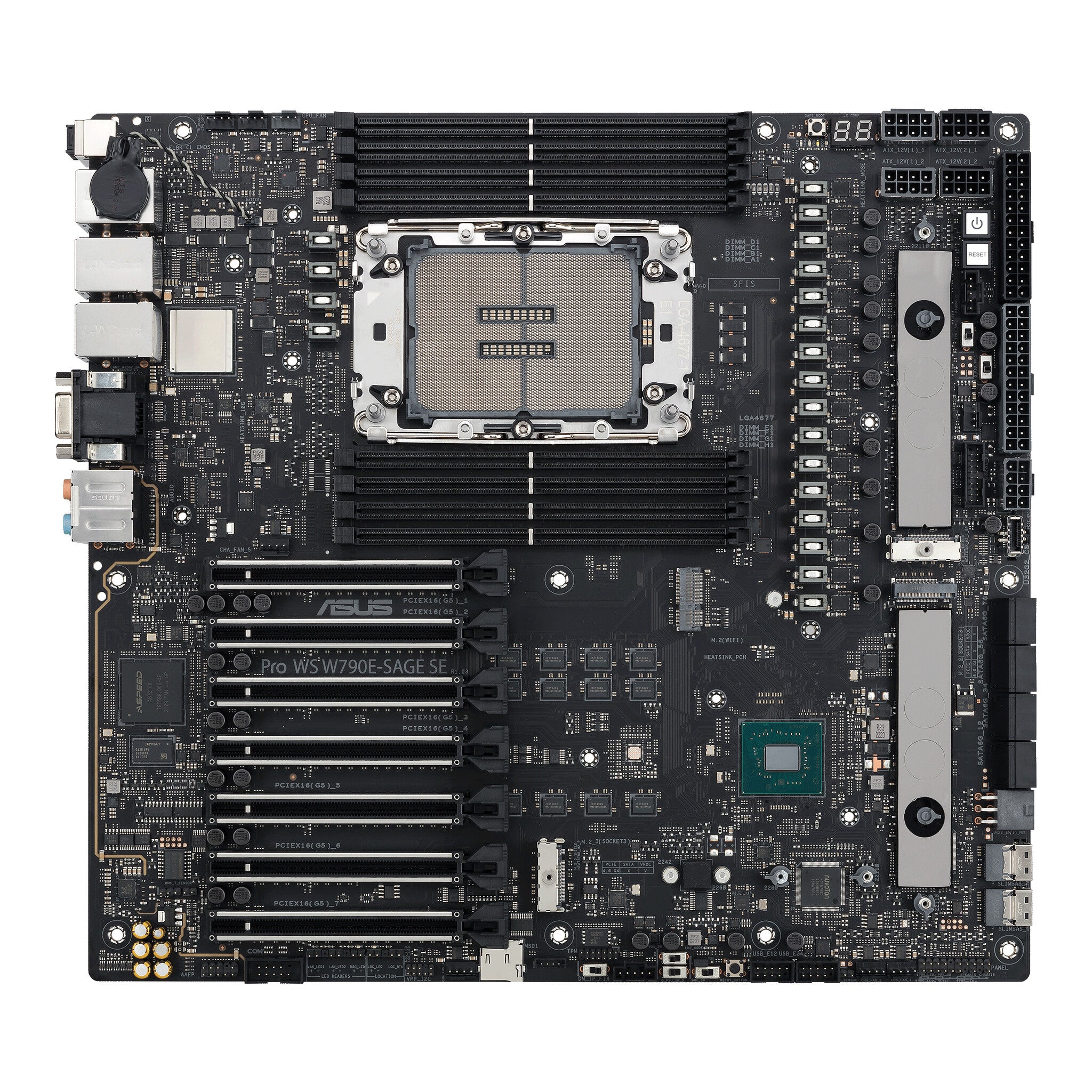

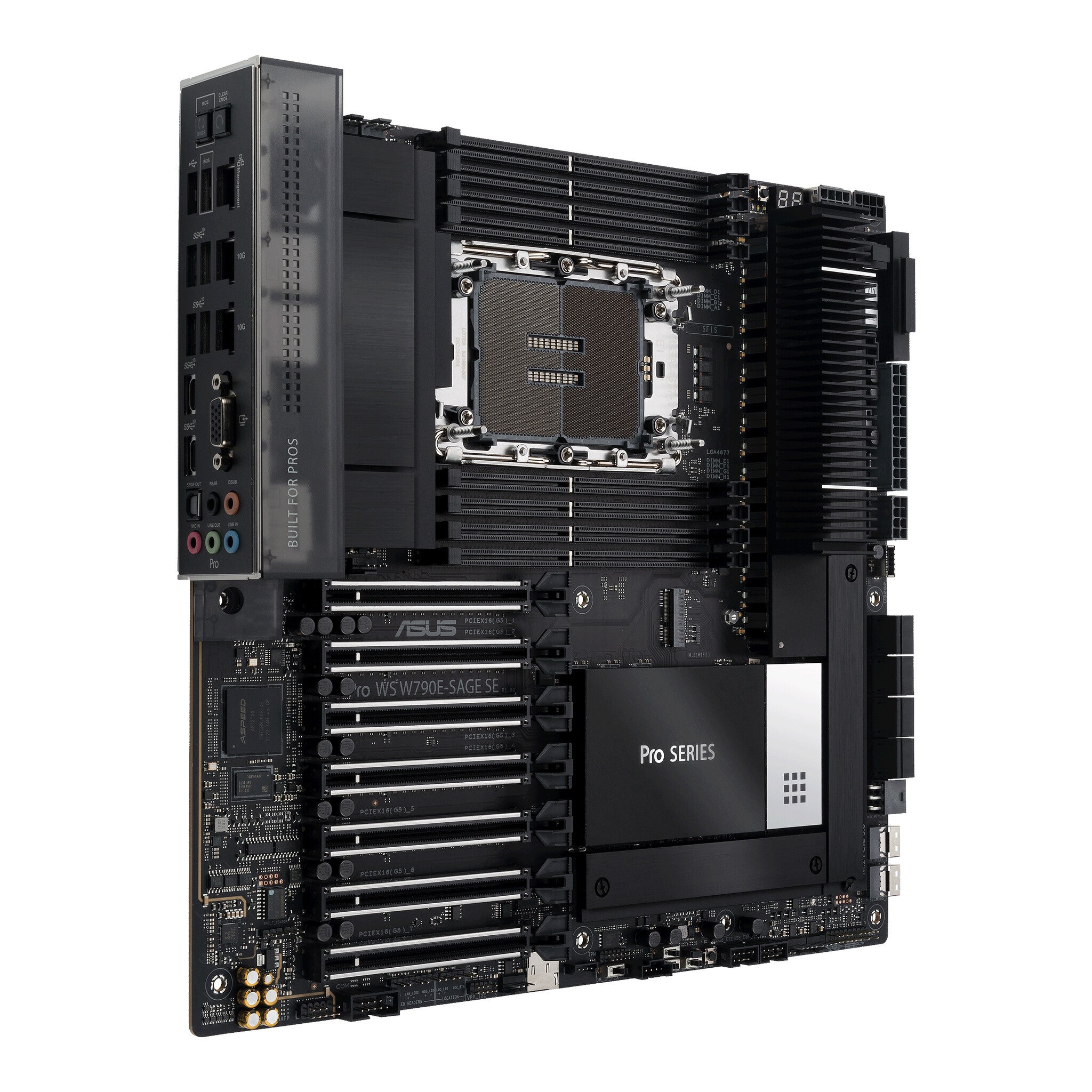

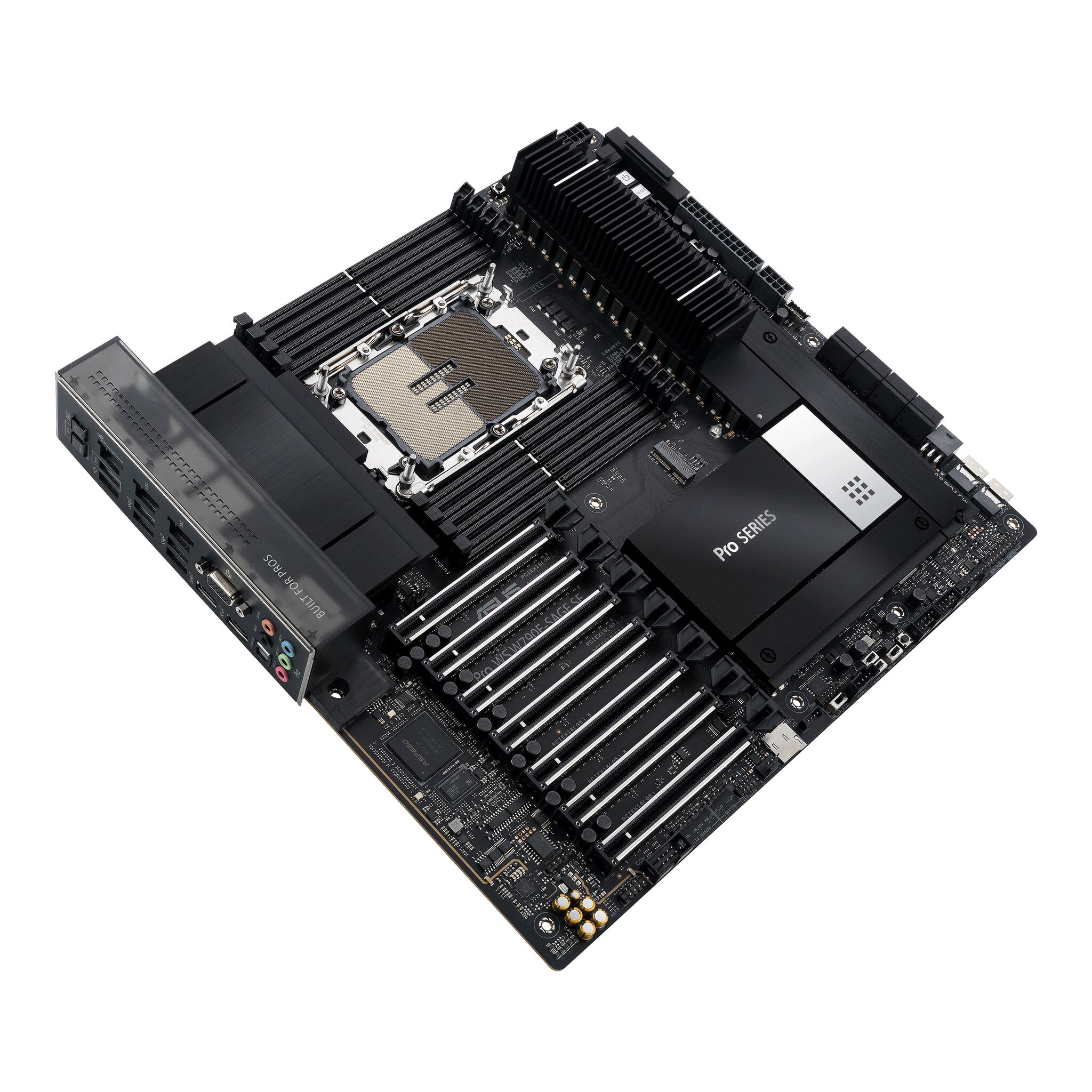

The ASUS PRO WS W790E-SAGE SE is a professional workstation motherboard built around Intel's W790 chipset and LGA4677 socket for Intel Xeon W processors. This EEB form factor board targets demanding workstation applications where raw computational power and memory capacity matter most. The oversized format provides the physical space needed for extensive expansion and cooling solutions that high-end Xeon processors require.
Memory capabilities stand out with eight DDR5 DIMM slots supporting up to 2TB of ECC memory at speeds ranging from DDR5-4800 to DDR5-6800. This massive memory potential makes the board suitable for memory-intensive workloads like 3D rendering, scientific computing, and large dataset analysis. Seven PCIe 5.0 x16 slots provide exceptional expansion flexibility for multiple high-end graphics cards, storage controllers, or specialized compute accelerators that professional applications demand.
The board includes comprehensive connectivity with USB 3.2 Gen 2 ports and all the mounting hardware needed for installation. ECC memory compatibility ensures data integrity during critical workloads, while the robust power delivery system handles the substantial power requirements of multi-core Xeon processors. The black PCB maintains a professional appearance suitable for workstation environments where function takes priority over aesthetics.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Supported memory clock speed (max) | 6800 MHz |
| Maximum internal memory | 2 TB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| Number of storage drives supported | 13 |
| Number of HDDs supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 2 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

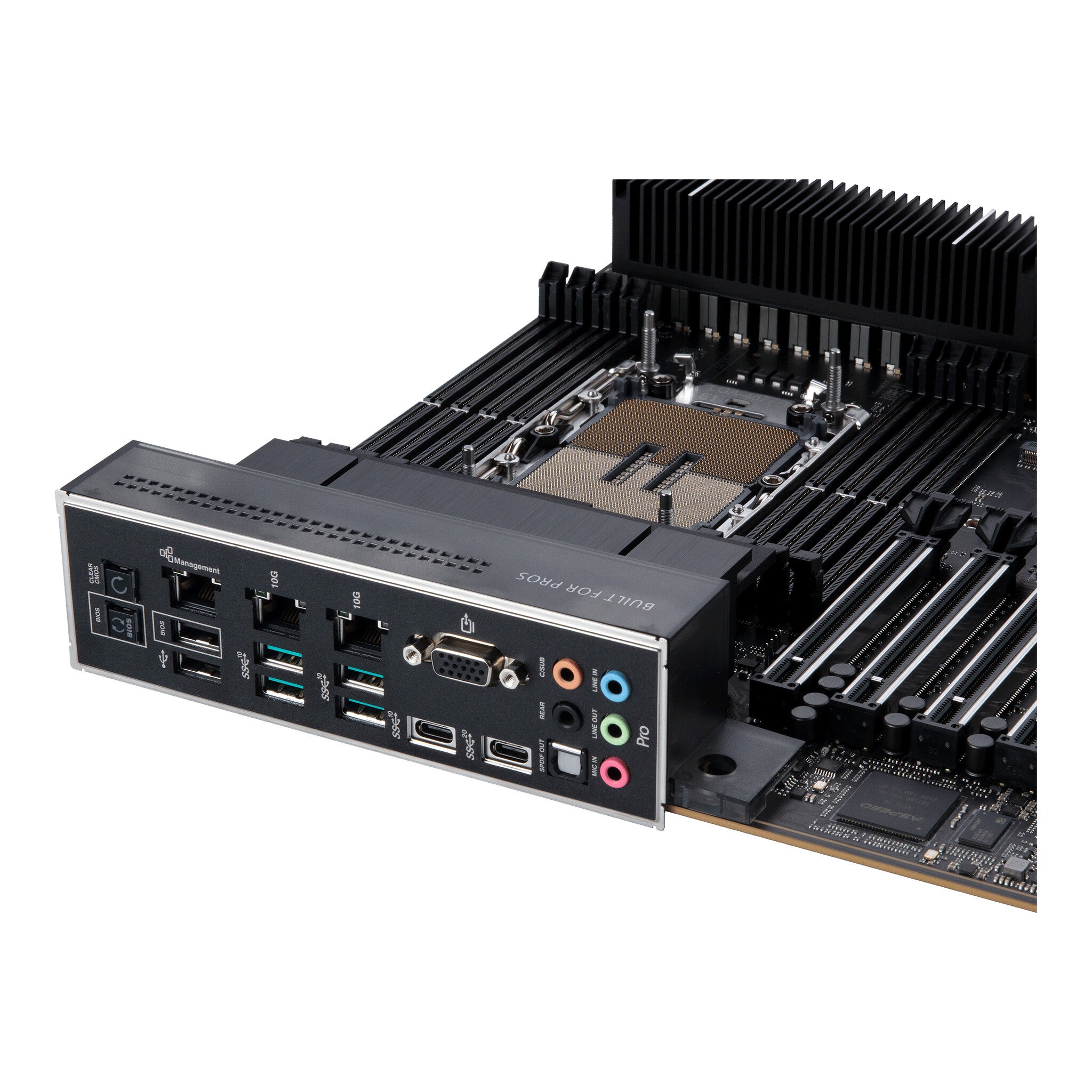

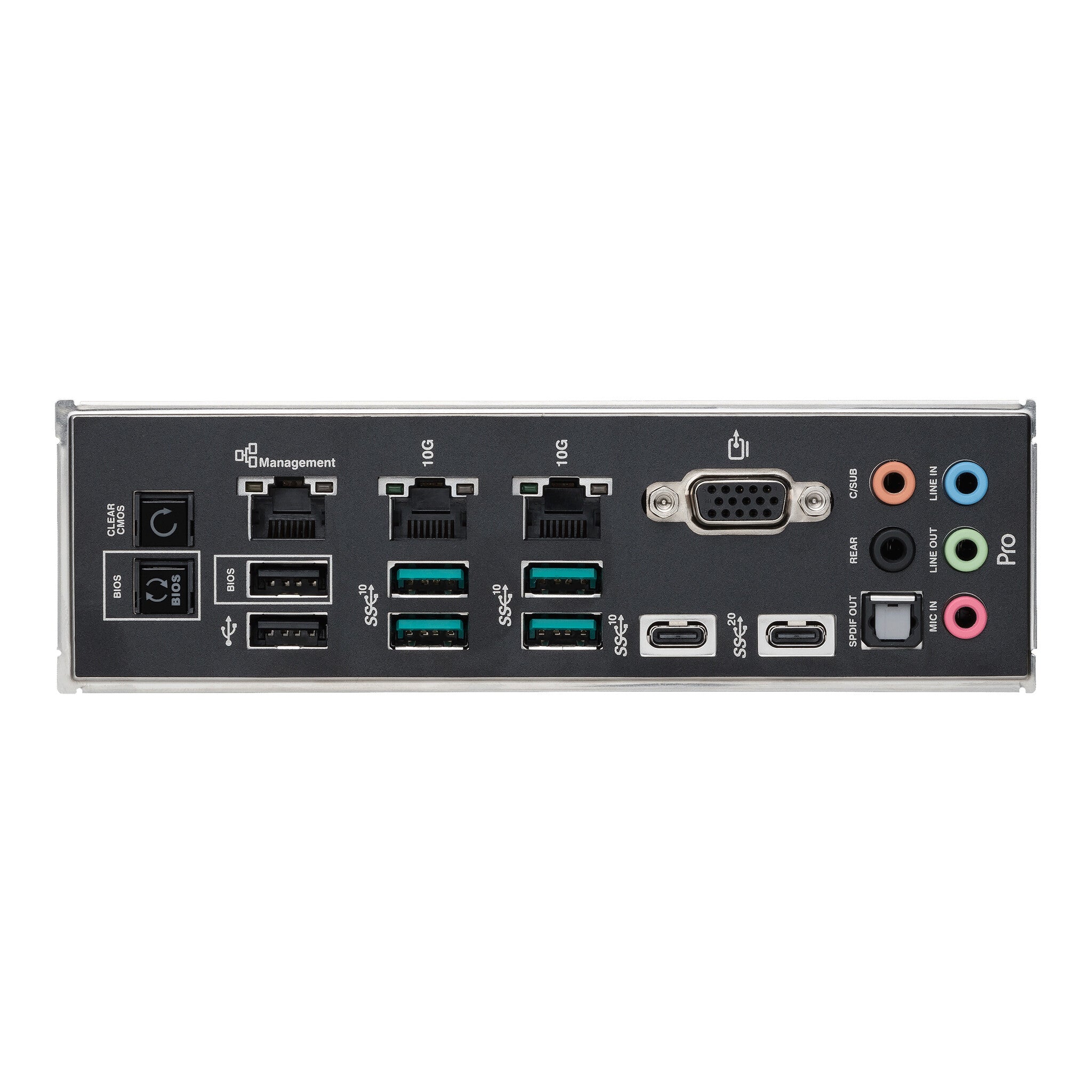

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |

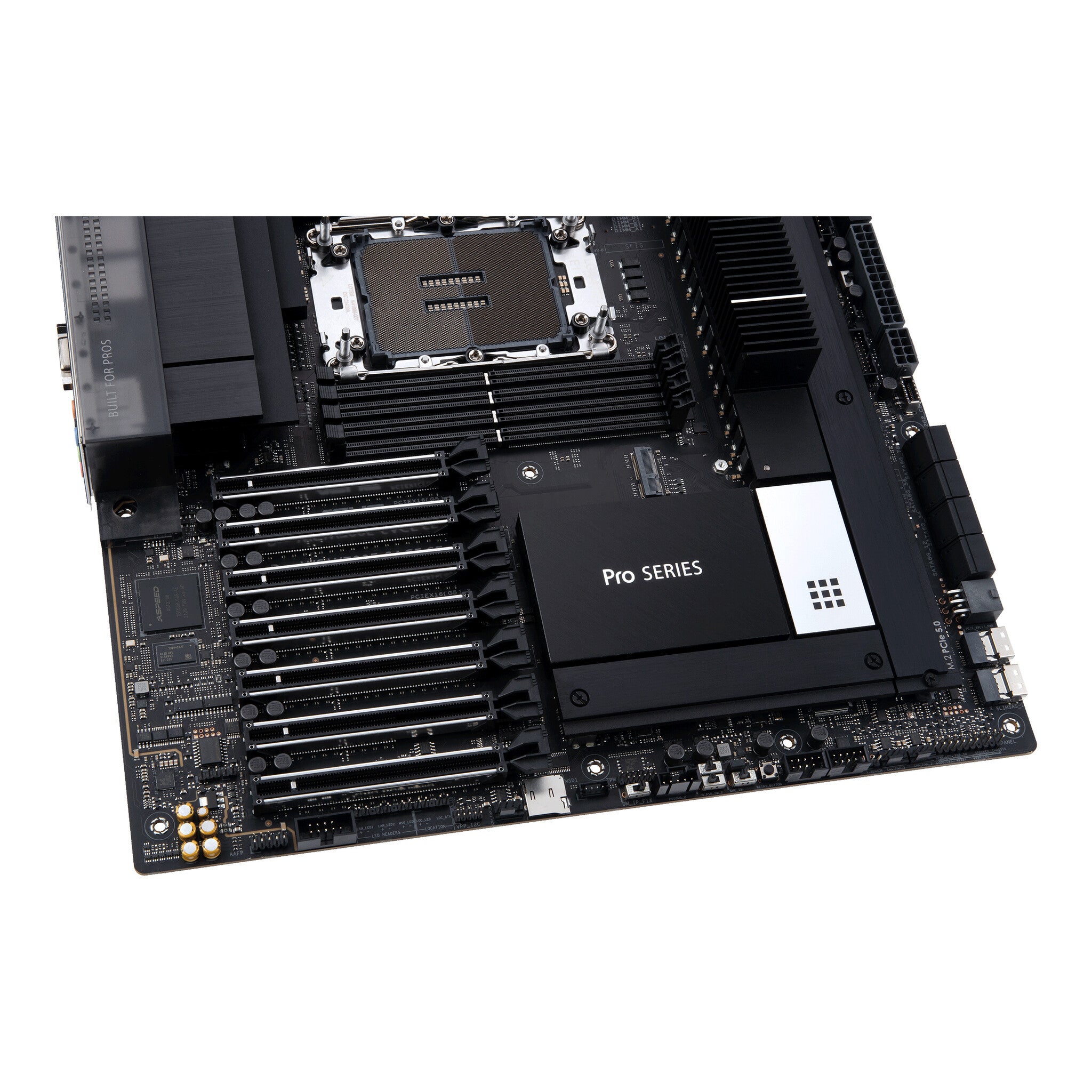

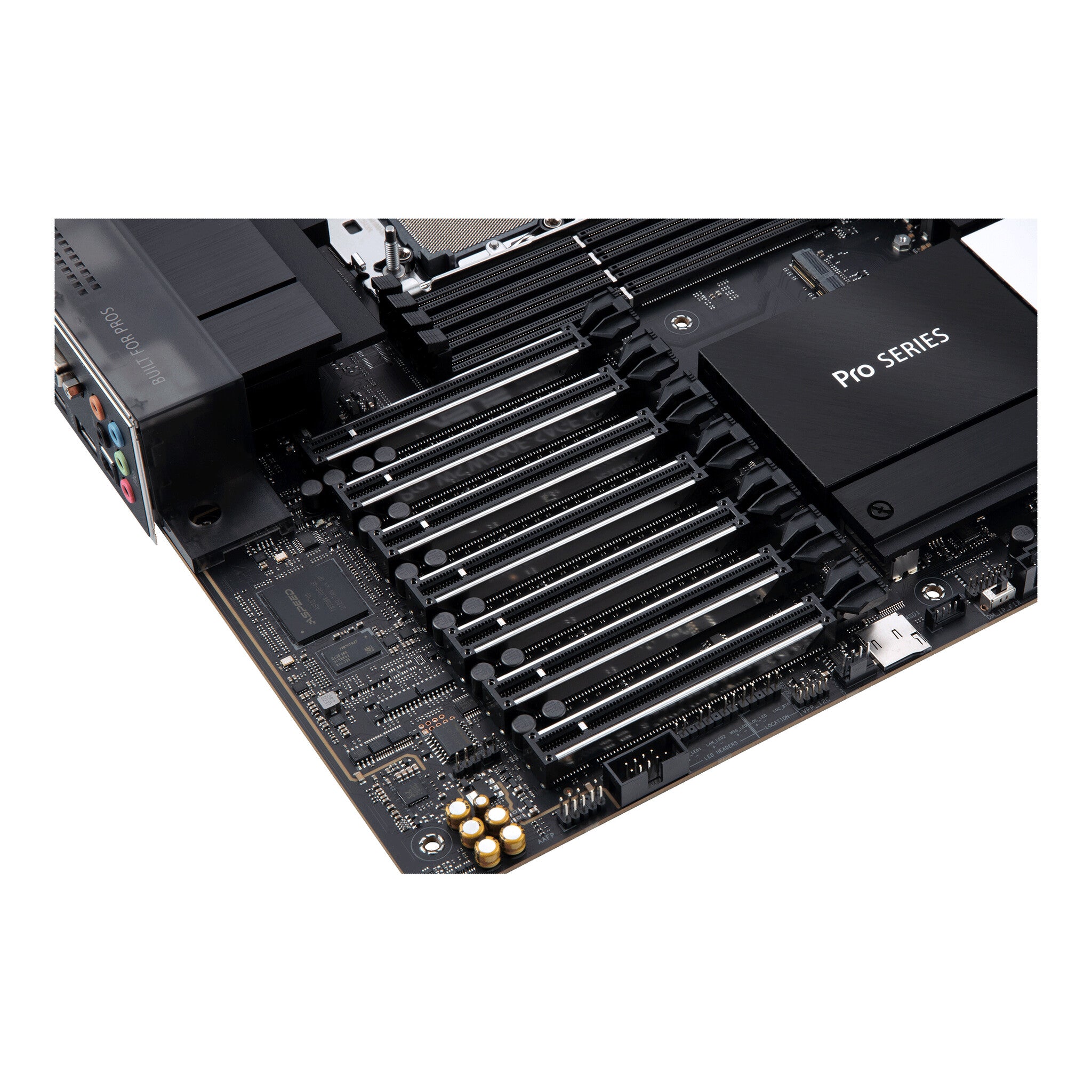

| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 7 |

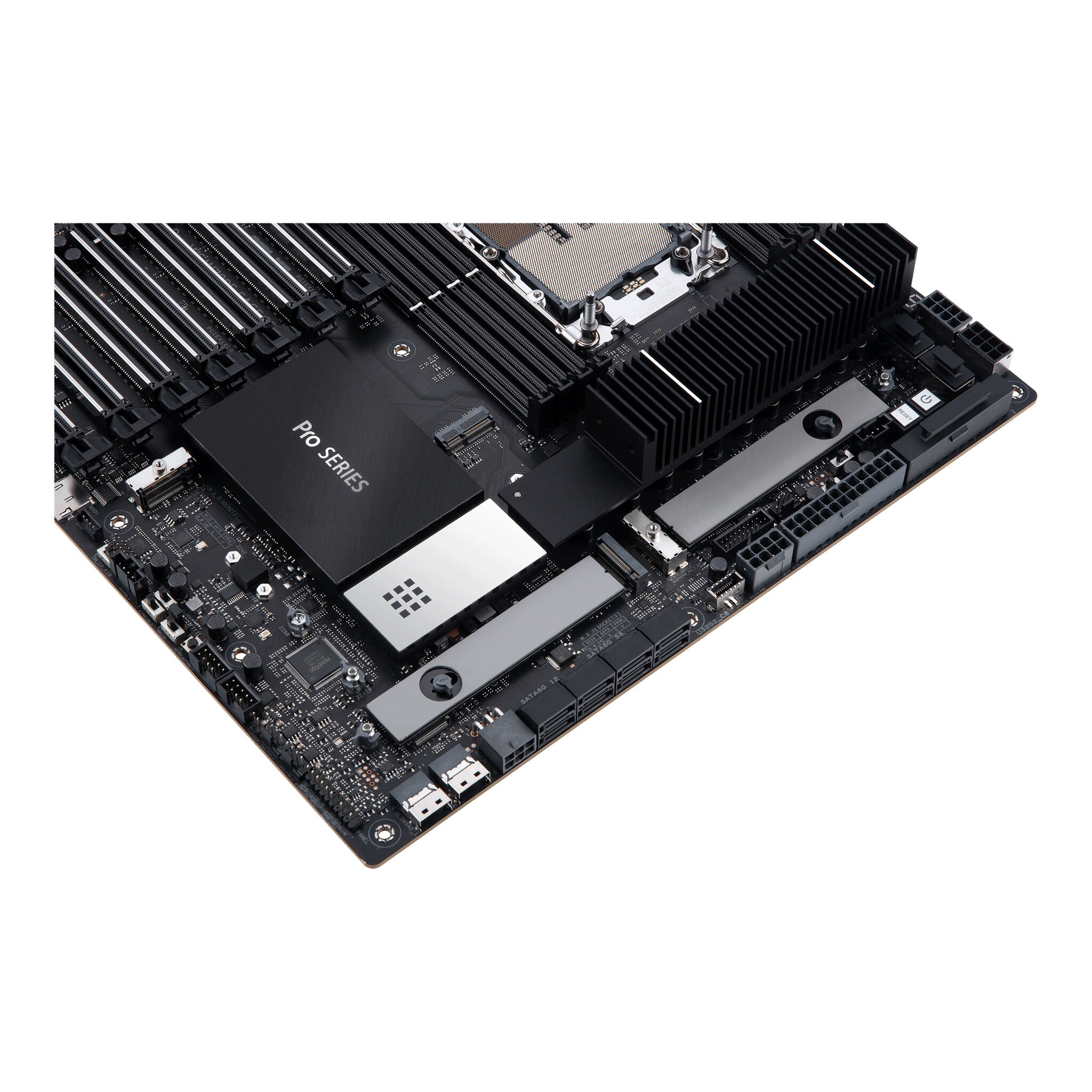

| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |

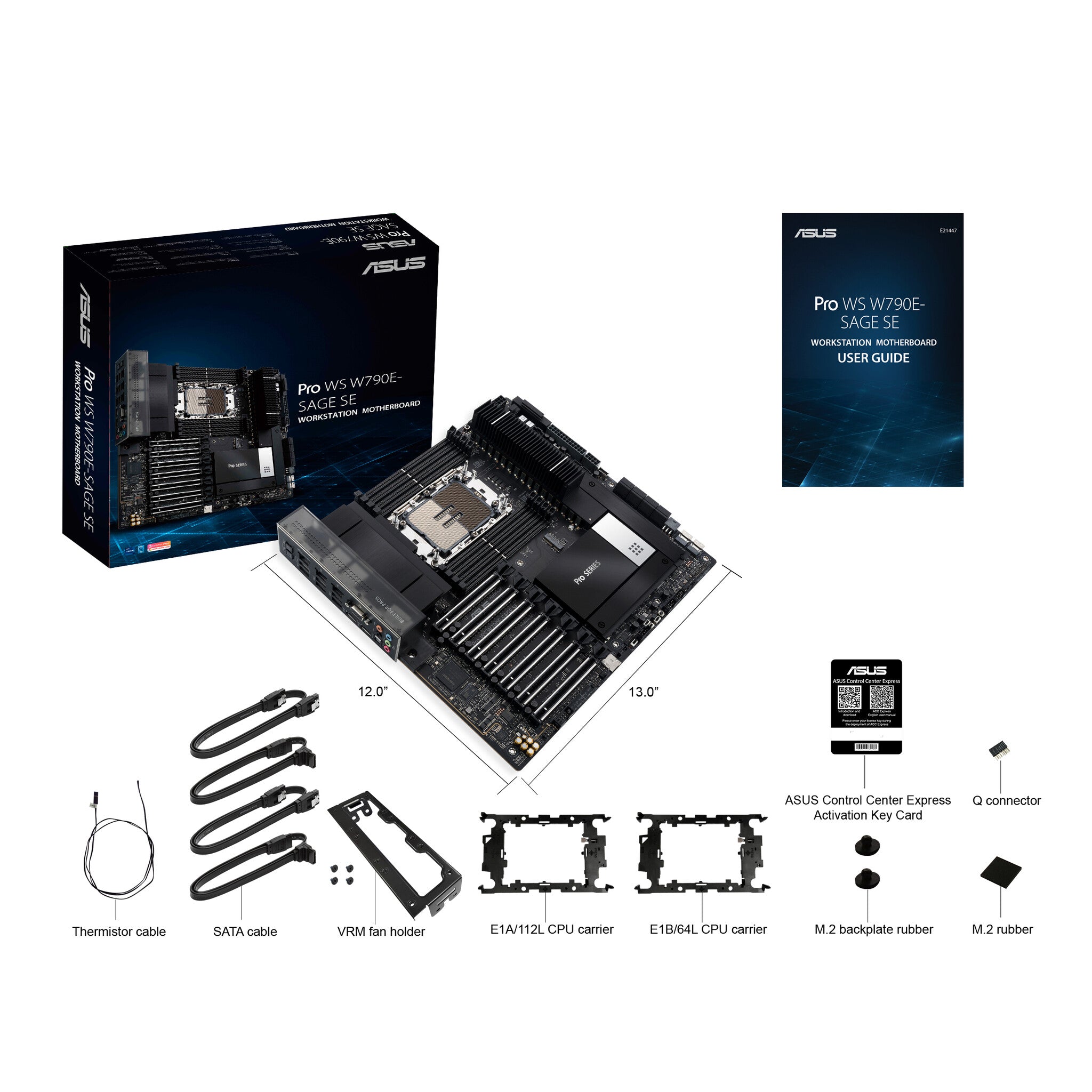

| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
