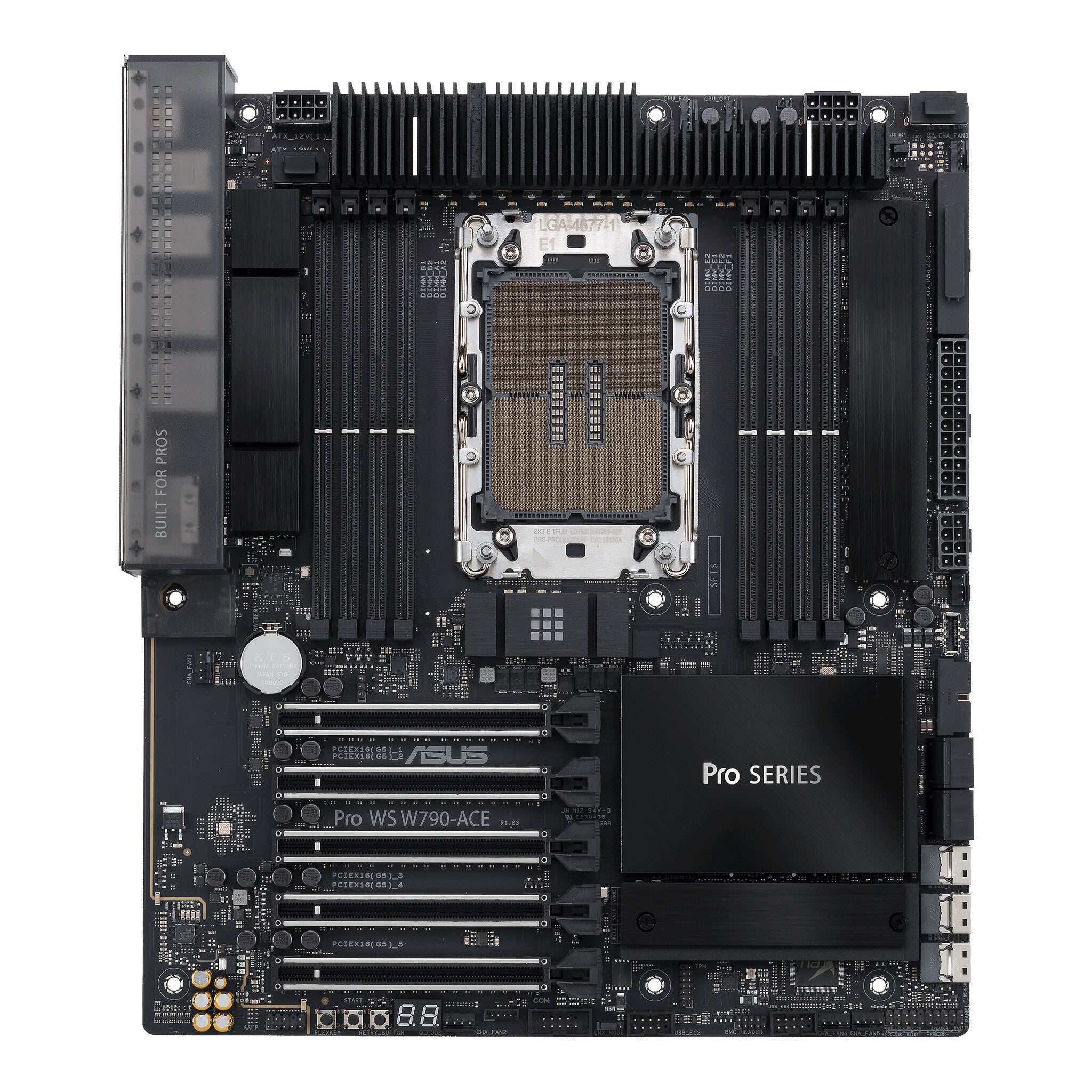

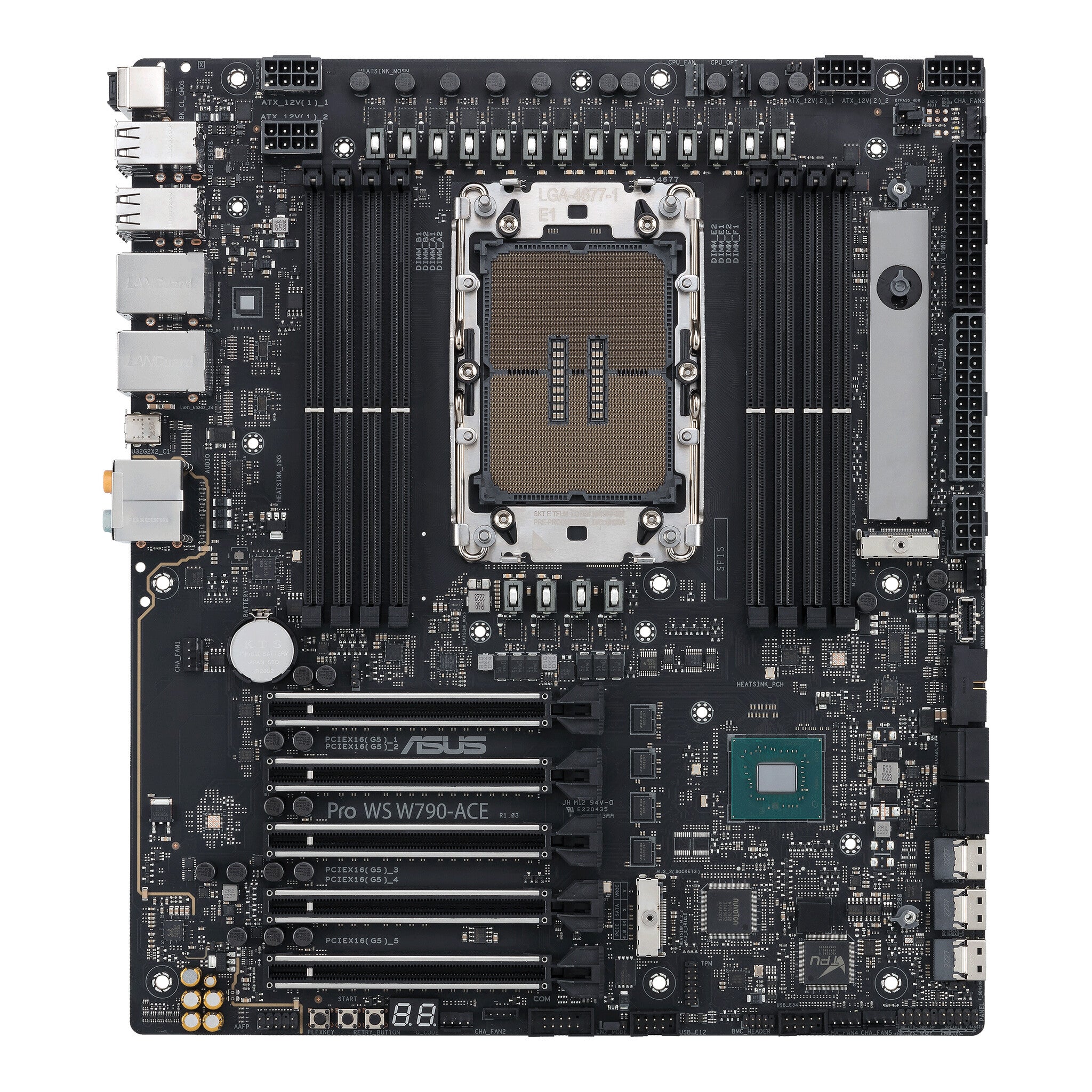

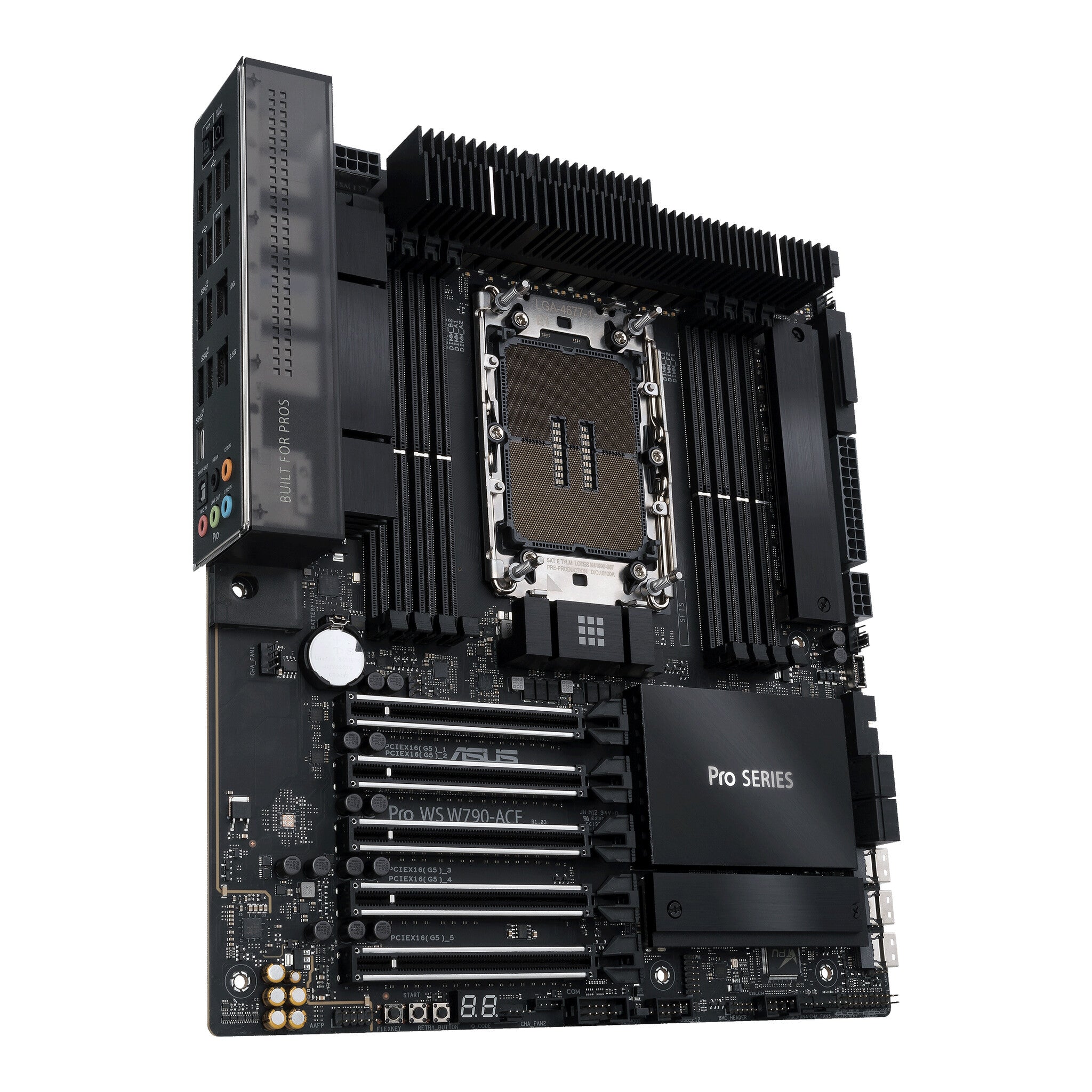

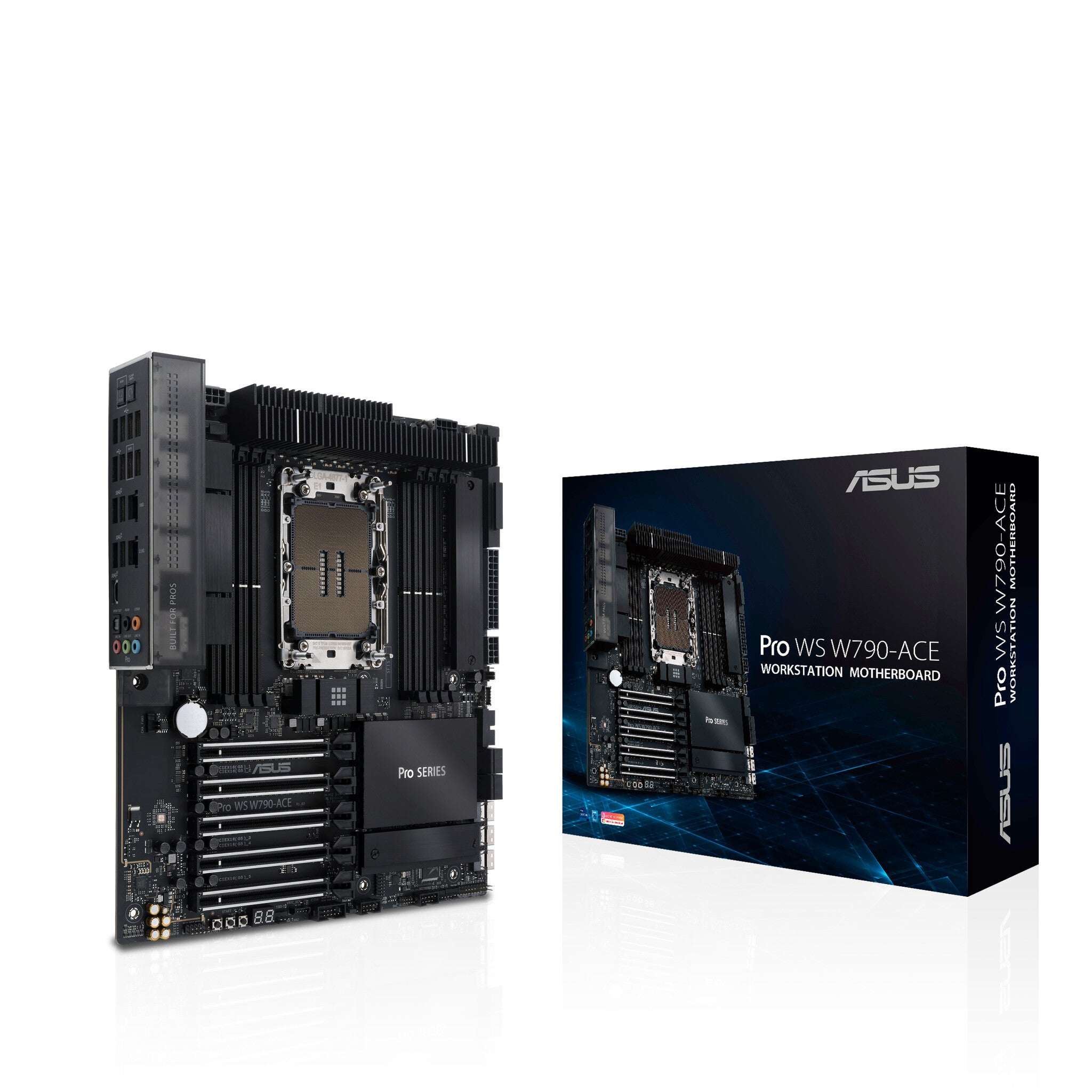

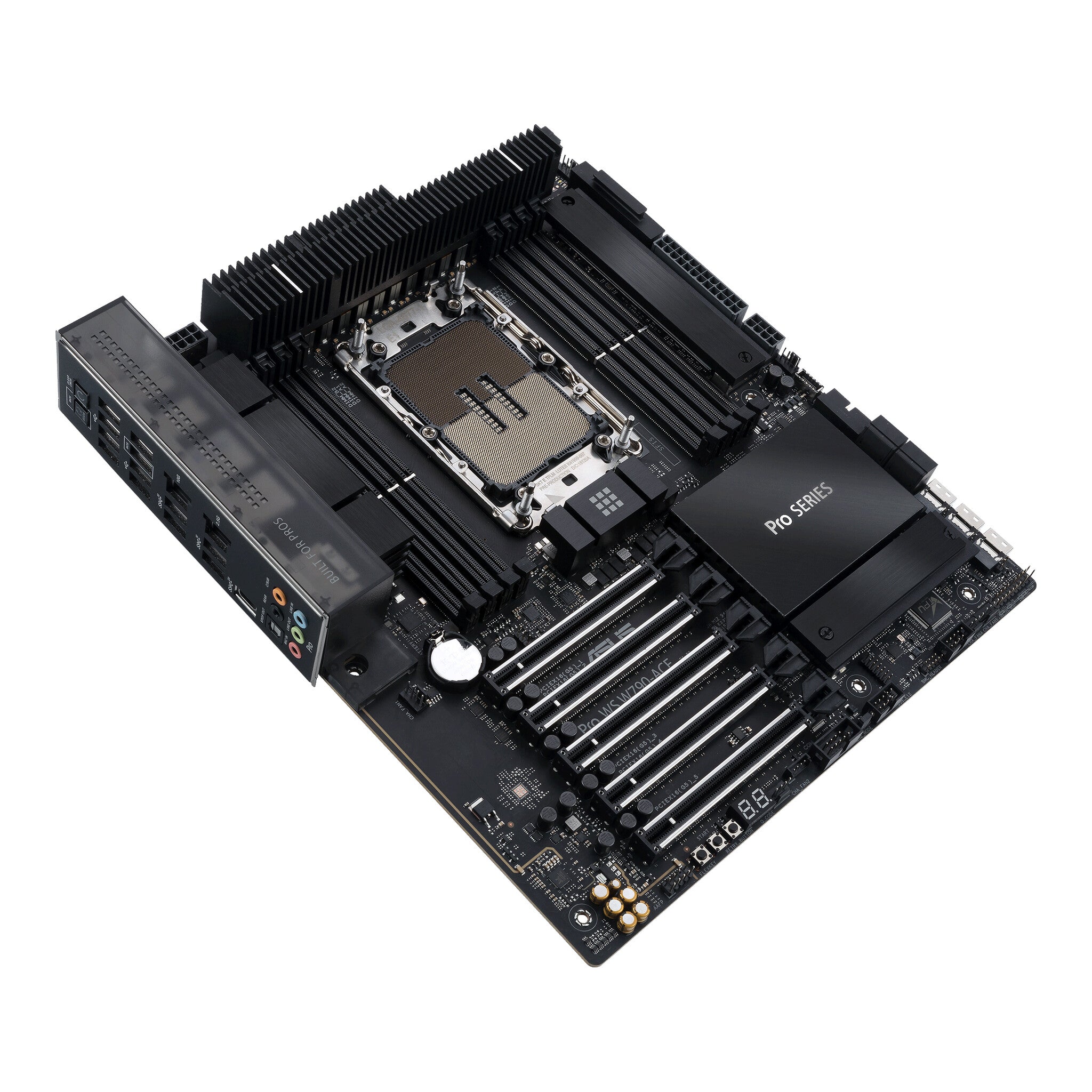

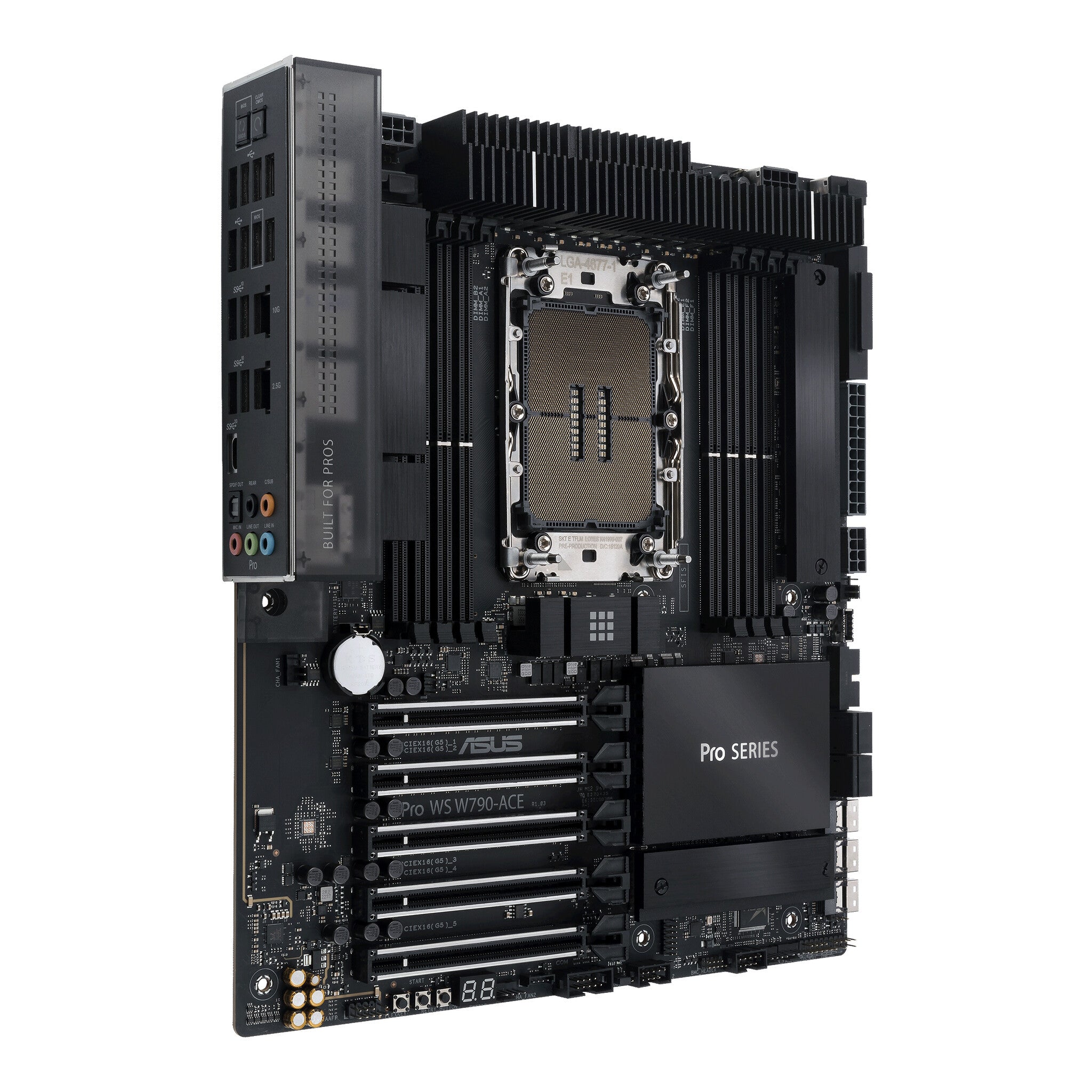

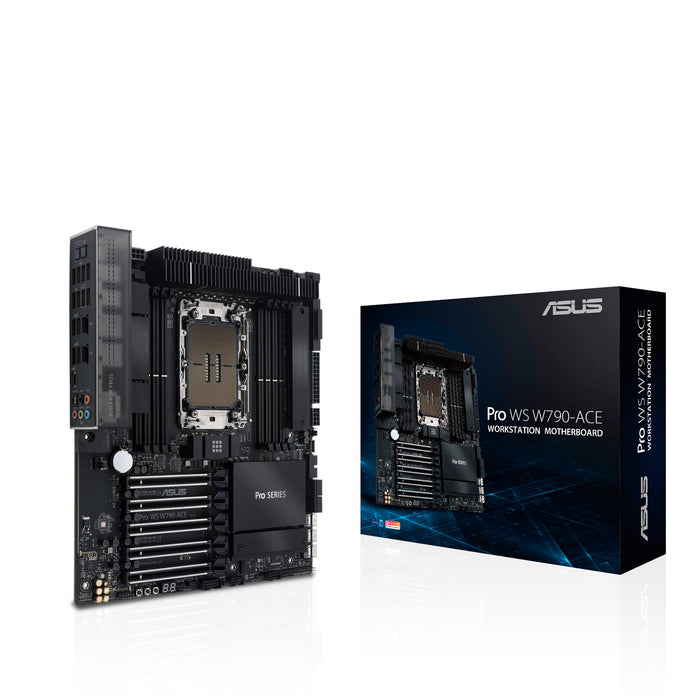

ASUS PRO WS W790-ACE SSI CEB Motherboard | LGA4677 | 8x DDR5 Slots
KEY FEATURES
- Intel LGA 4677 (Socket E) Intel Xeon W
- Workstation SSI CEB Intel W790 Realtek S1220A 7.1 channels
- DDR5-SDRAM 8 DIMM Maximum internal memory: 2 TB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRO WS W790-ACE?
How much memory can the ASUS PRO WS W790-ACE support?
What type of RAID configurations can I use?
ASUS PRO WS W790-ACE SSI CEB Motherboard | LGA4677 | 8x DDR5 Slots
Description
This SSI CEB workstation motherboard brings Intel's flagship W790 chipset to professional environments requiring maximum compute power and memory capacity. Supporting Intel Xeon W processors through the LGA4677 socket, it's engineered for demanding workloads like 3D rendering, scientific computing, CAD design, and server applications where reliability and performance cannot be compromised. The larger SSI CEB form factor provides the real estate needed for enterprise-grade features while maintaining compatibility with most full-tower workstation chassis.

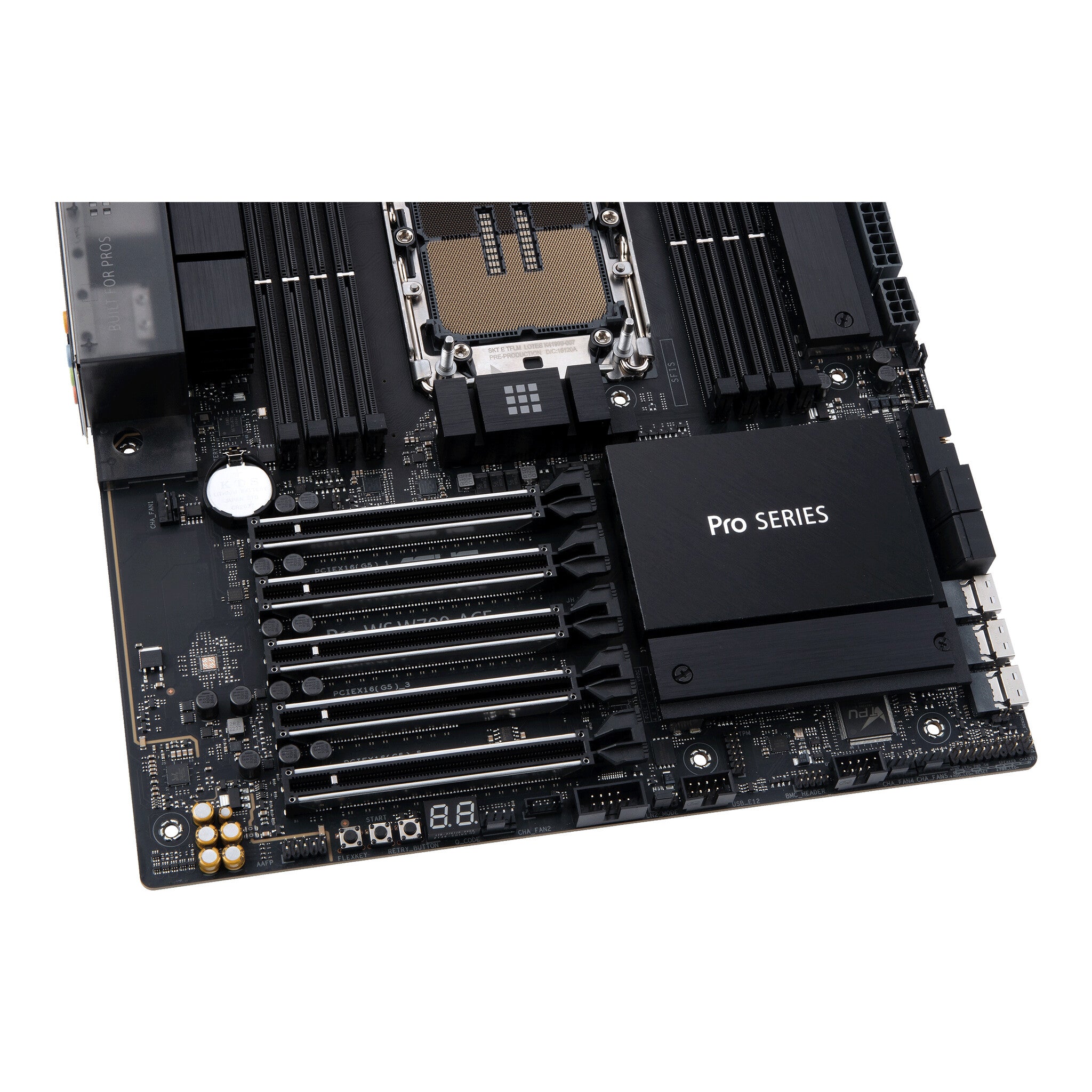

Memory handling reaches professional levels with eight DDR5 slots supporting up to 2TB of ECC memory at speeds from 4800MHz to 6800MHz. This massive capacity paired with error-correcting memory makes it suitable for memory-intensive applications and mission-critical work. Five PCIe 5.0 x16 slots provide exceptional expansion flexibility for multiple high-end graphics cards, professional accelerators, or storage controllers. Network connectivity includes both 10 Gigabit and 2.5 Gigabit Ethernet ports for high-speed data transfer, while IPMI remote management allows IT administrators to monitor and control the system remotely.

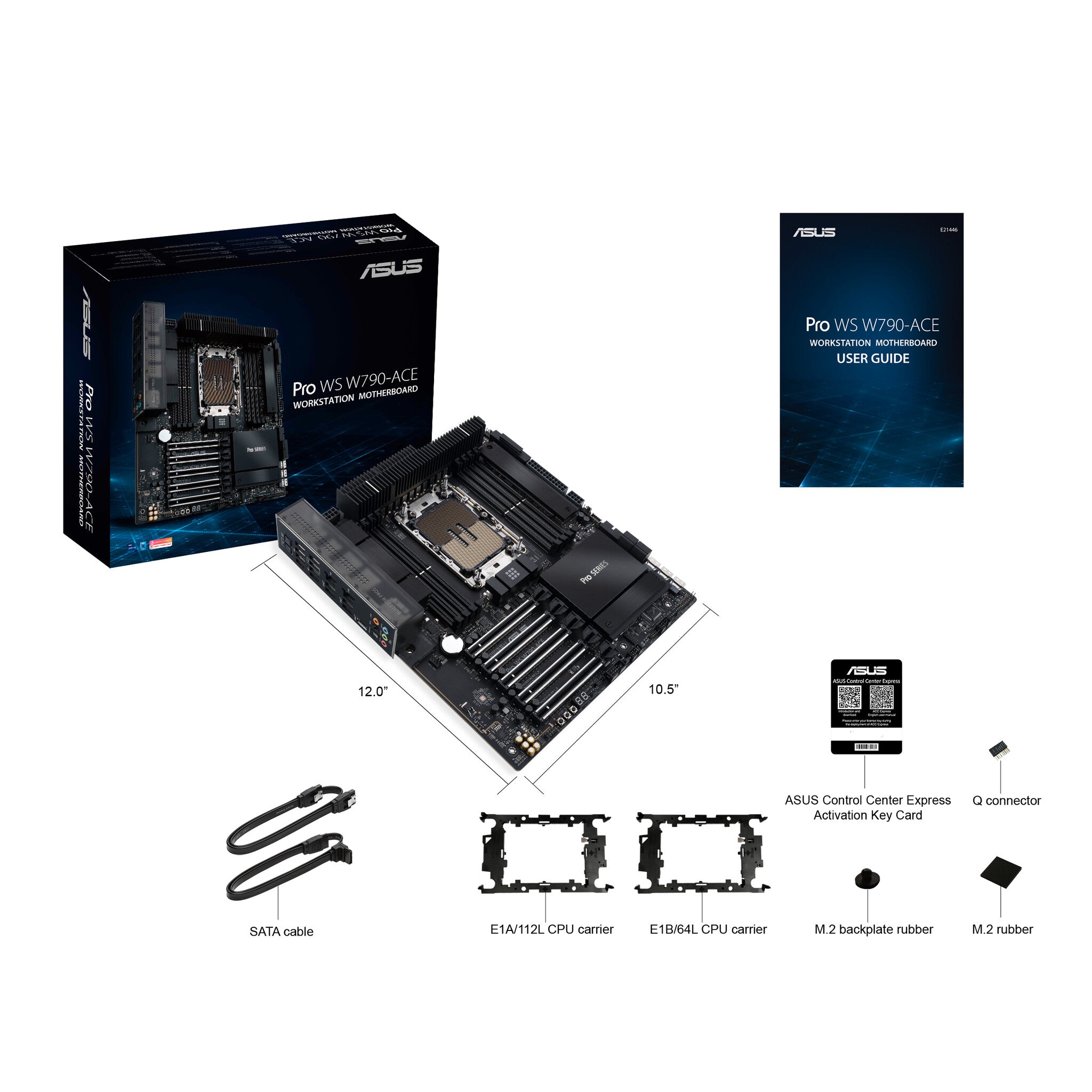

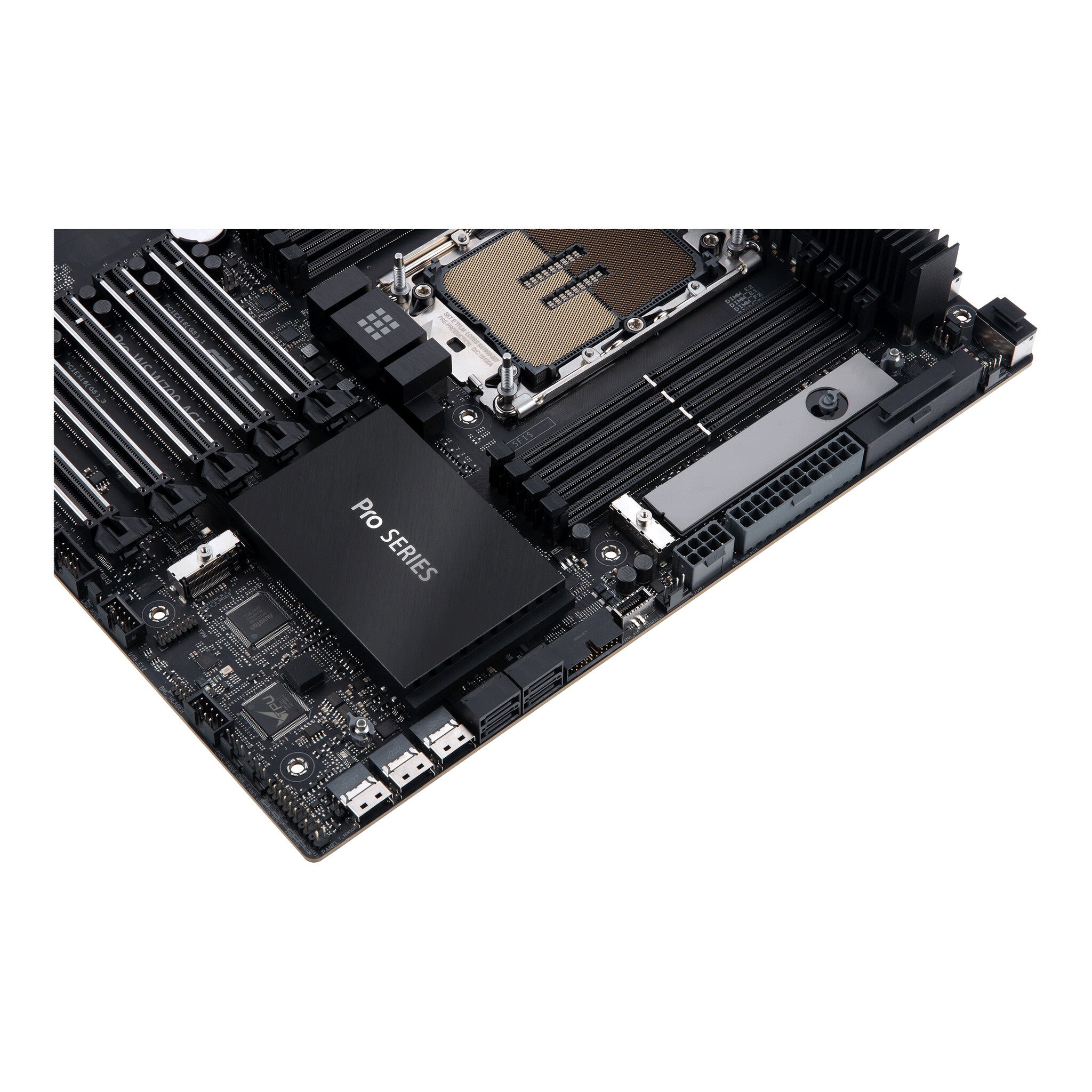

Professional features extend throughout the design with SlimSAS connectors for enterprise storage arrays and robust power delivery to handle high-core-count Xeon processors under sustained loads. The board includes comprehensive documentation for deployment in professional environments, along with the I/O shield and necessary mounting hardware. This combination of massive memory support, extensive PCIe expansion, enterprise networking, and remote management capabilities makes it a foundation for workstations that need to handle the most demanding professional applications.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-3400, W-2400 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 2 TB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

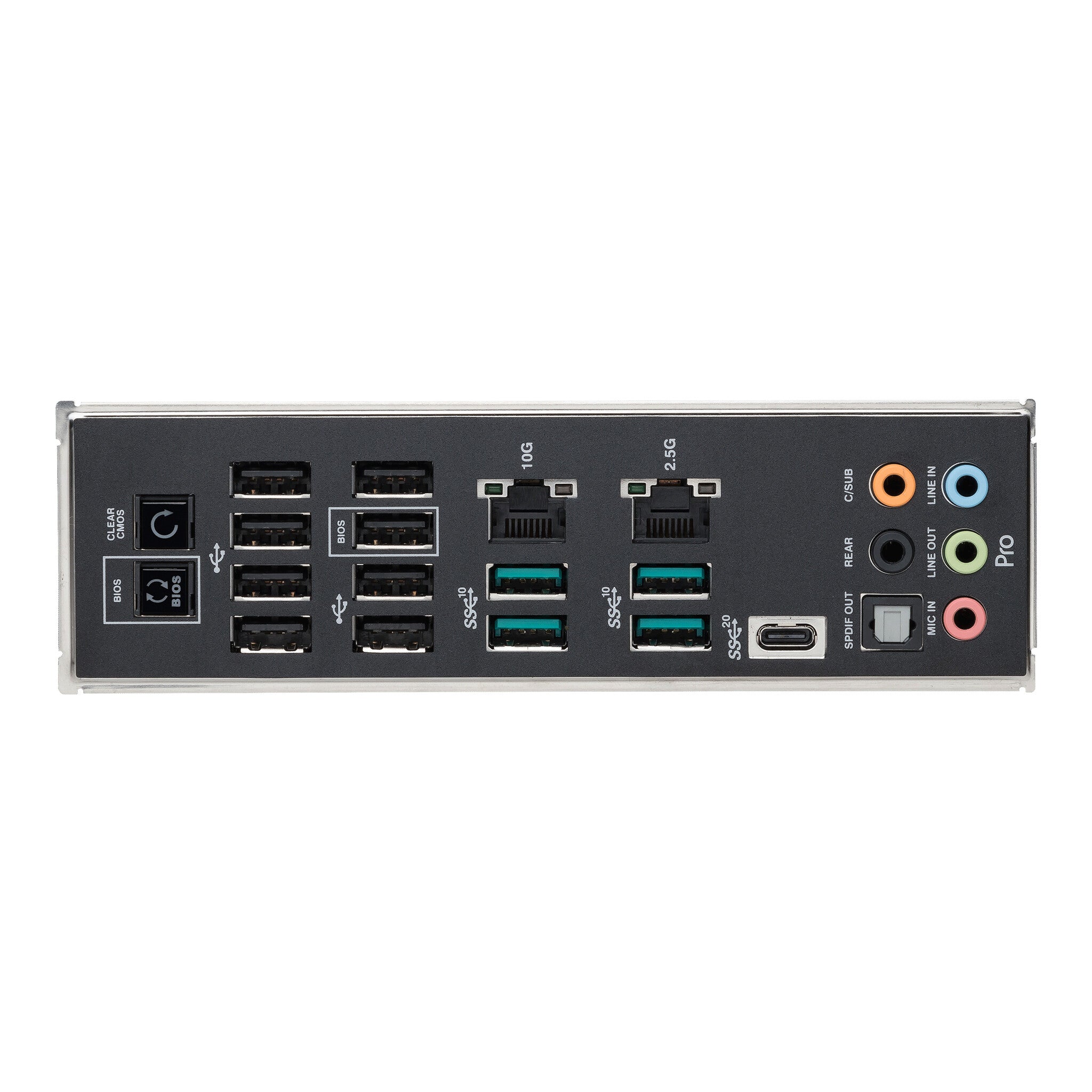

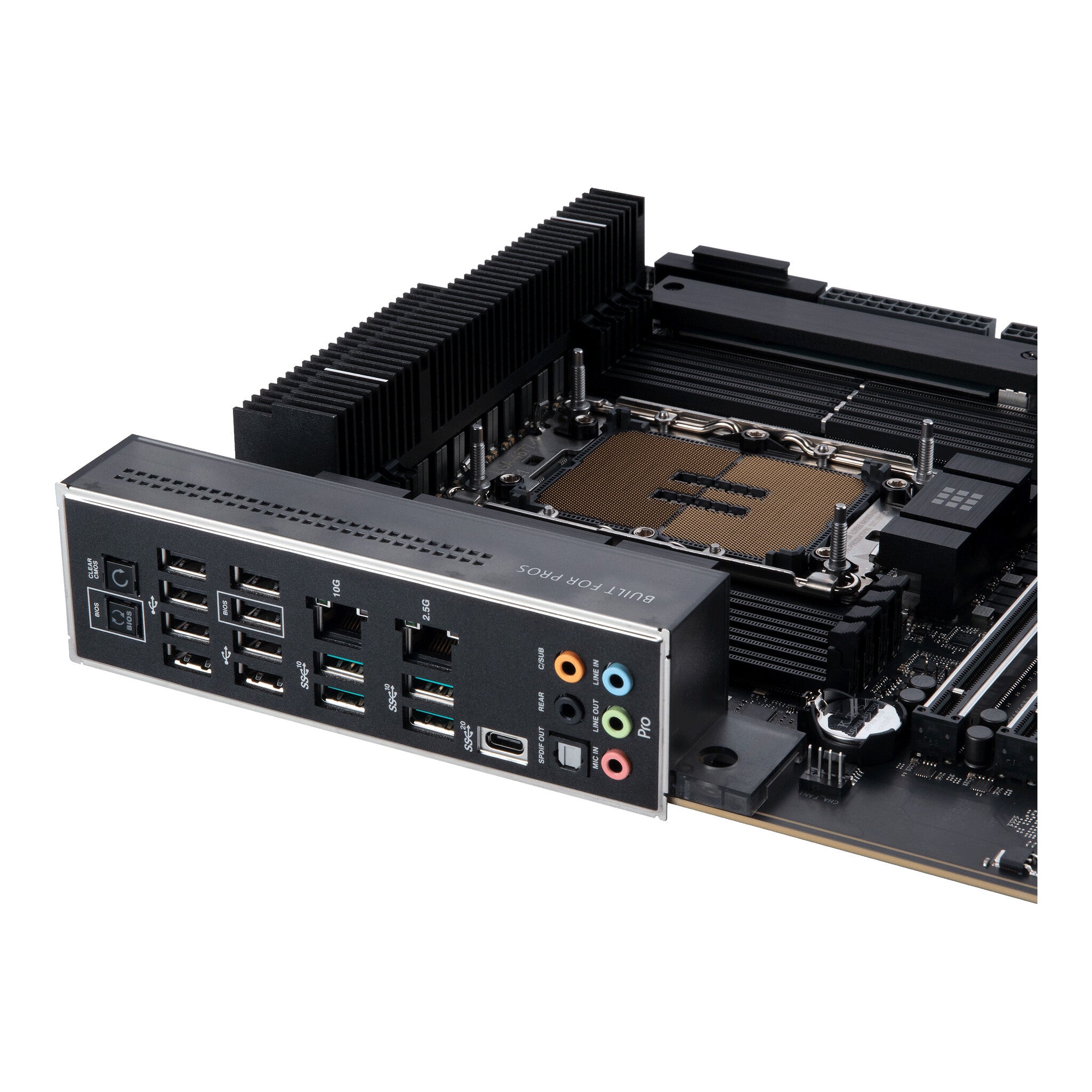

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 |

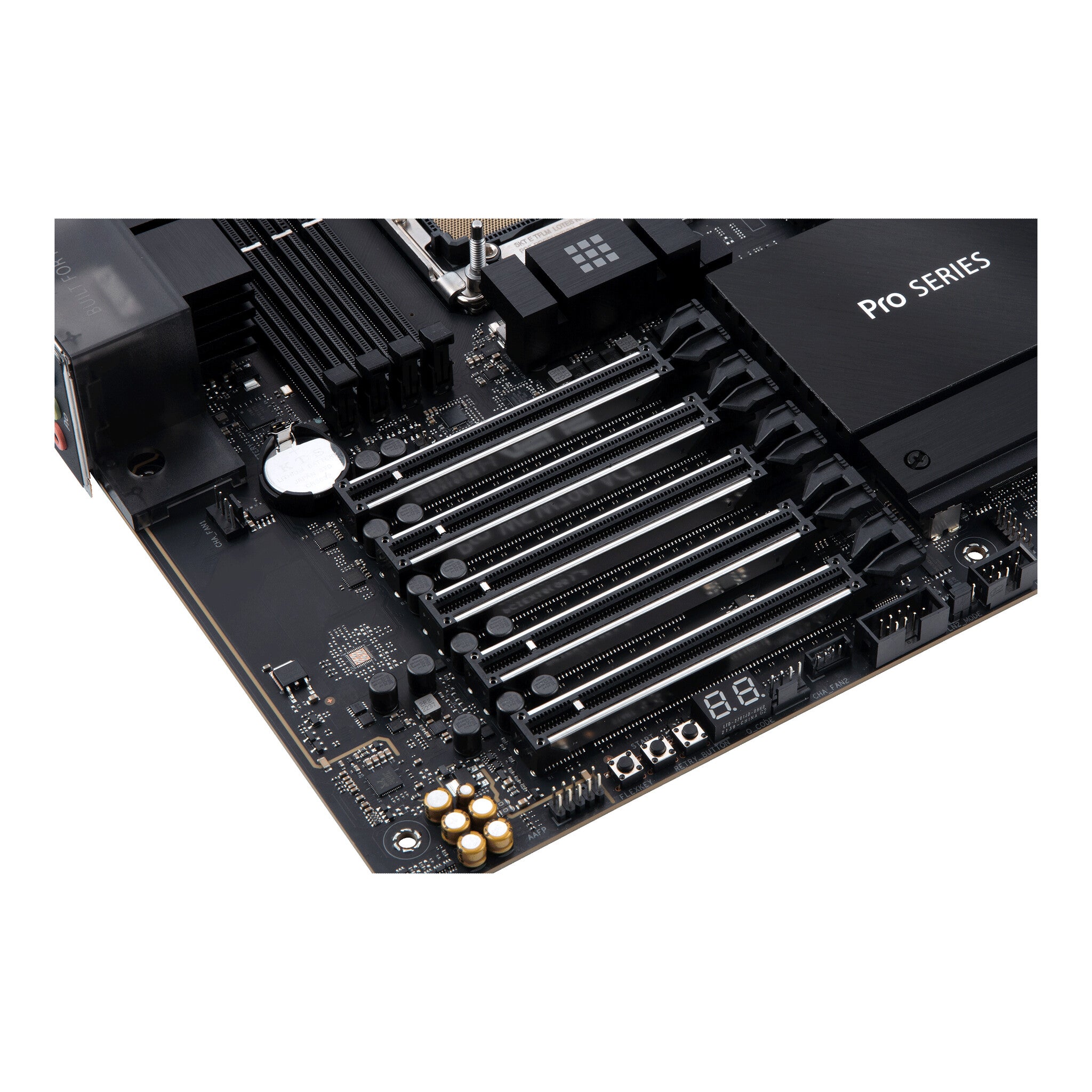

| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 277 mm |
| Height | 50 mm |
| Other features | |
|---|---|
| Weight | 1.81 kg |
