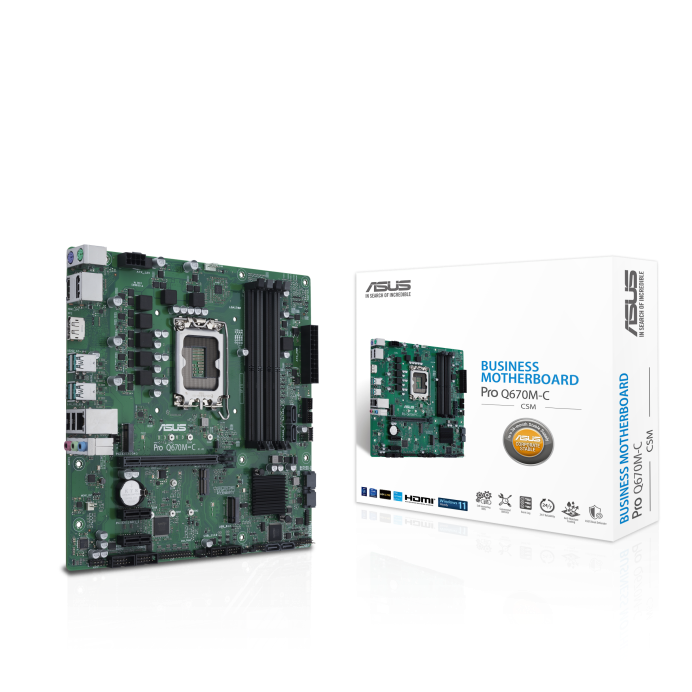

ASUS PRO Q670M-C-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
KEY FEATURES
- IntelĀ® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions

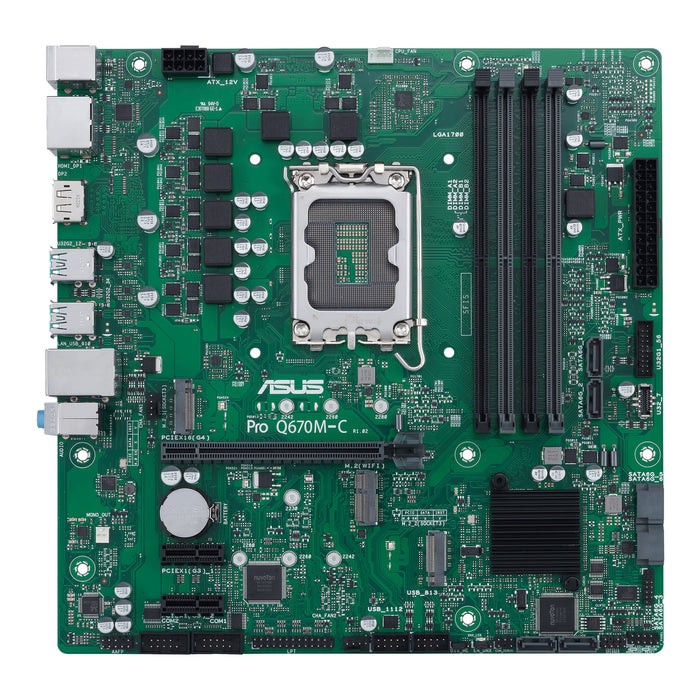

ASUS PRO Q670M-C-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
Description
The ASUS PRO Q670M-C-CSM represents Intel's business-focused chipset in a compact micro ATX design, specifically engineered for professional workstations and commercial deployments. The Q670 chipset brings Intel vPro technology to the table, delivering enhanced security, remote management capabilities, and enterprise-grade reliability that IT departments demand. This LGA1700 socket board accommodates the full range of 12th and 13th generation Intel processors, from budget-conscious Celeron and Pentium chips up to high-performance Core i9 models.
Memory support centers on DDR5 technology with four DIMM slots capable of housing up to 192GB of system RAM. The board validates memory speeds from DDR5-4800 up to DDR5-5600, with Intel's Extreme Memory Profile (XMP) support ensuring straightforward overclocking of compatible modules. For expansion, you get one PCIe 4.0 x16 slot for graphics cards plus two PCIe 3.0 x1 slots for additional cards. The business orientation means rock-solid stability takes priority over gaming-focused extras, though the single full-length slot handles modern graphics cards without issue.
Corporate manageability features include vPro compatibility for remote system administration, hardware-level security enhancements, and the reliability standards that commercial environments require. The package includes the standard I/O shield, user documentation, and essential installation hardware. This board targets system integrators, IT professionals building business workstations, and users who prioritize stability and management features over enthusiast overclocking capabilities.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Maximum internal memory | 192 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Q670 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Active |
| Number of mounting holes | 8 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
