ASUS PRO H610T-CSM Thin Mini ITX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 13th and 12th Gen Intel® processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRO H610T-CSM Thin Mini ITX Motherboard | LGA1700 | 2x DDR5 Slots
Description

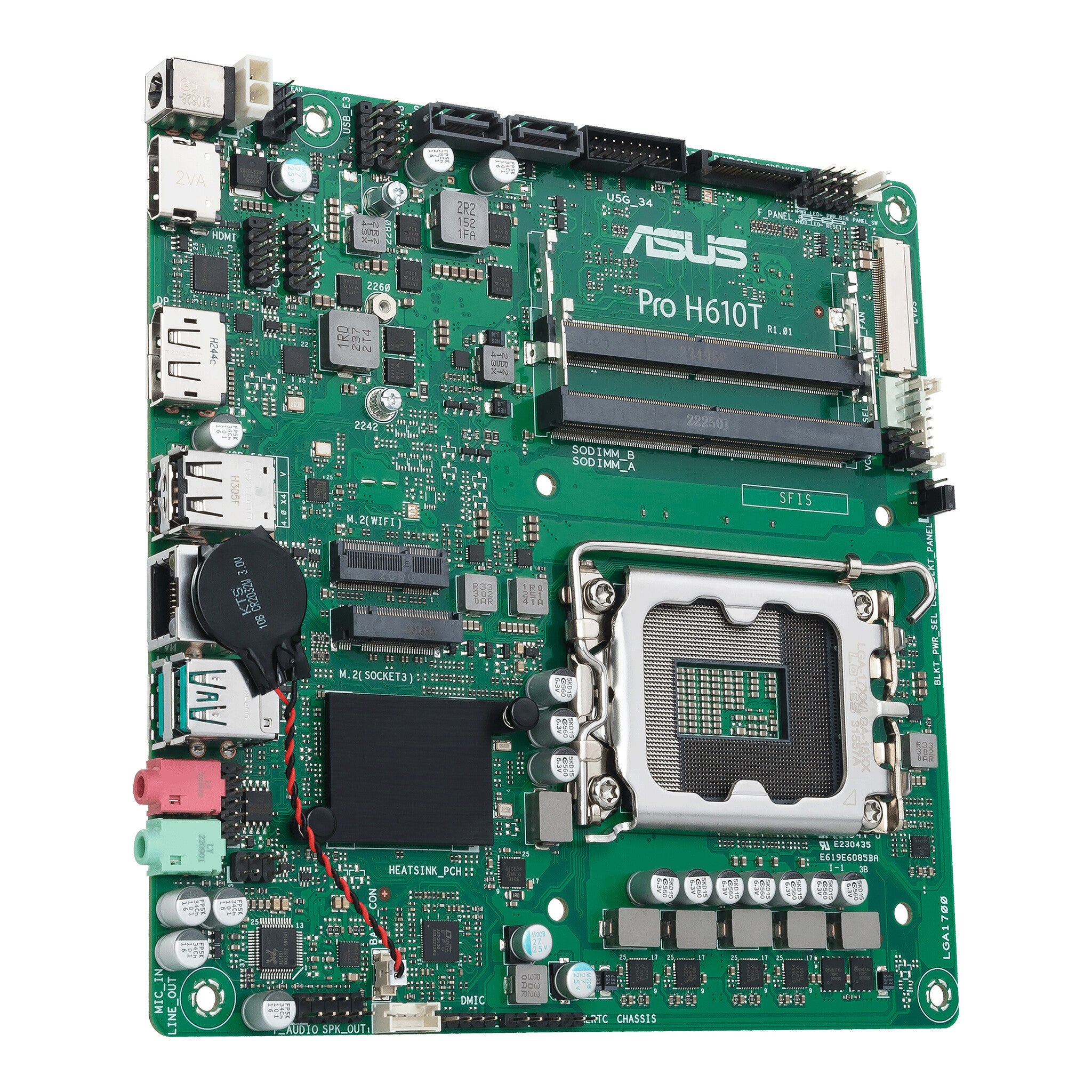

The ASUS PRO H610T-CSM is a Thin Mini-ITX motherboard built around Intel's H610 chipset for LGA1700 socket processors. This compact board measures smaller than standard Mini-ITX, making it ideal for ultra-small form factor builds, embedded systems, and space-constrained commercial applications. It supports Intel processors from budget Celeron and Pentium Gold chips up to high-end Core i9 CPUs, giving you flexibility in balancing performance with the board's compact footprint.
Memory support centers on DDR5 SO-DIMM modules across two slots, with speeds up to 5600 MHz and a maximum capacity of 64 GB. The SO-DIMM format keeps the profile low while still delivering modern DDR5 performance. Essential connectivity includes Gigabit Ethernet for reliable networking, while the board features a 128 MB flash ROM and UEFI AMI BIOS for system management. The H610 chipset provides the core functionality needed for business and embedded applications without unnecessary premium features.

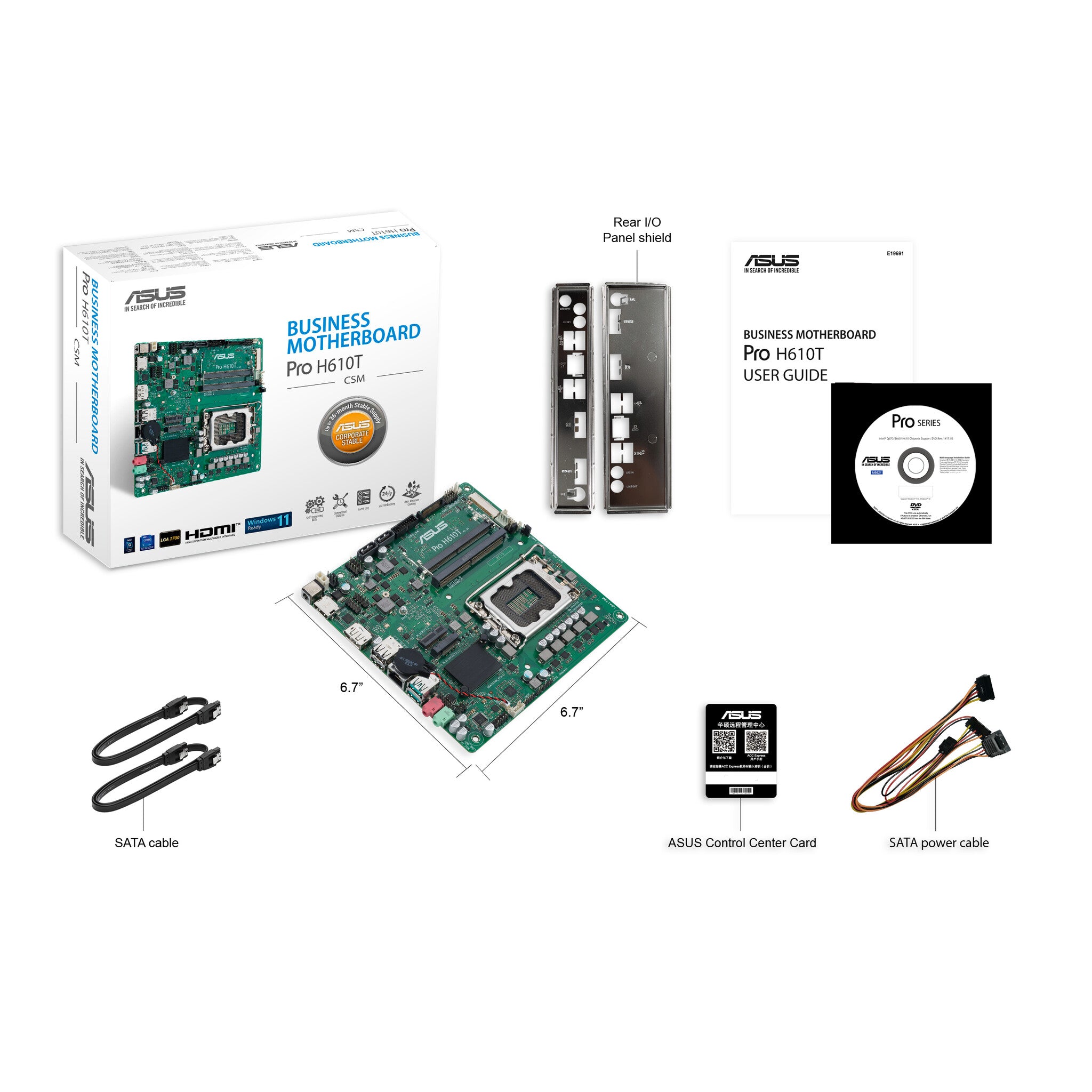

This board comes with standard mounting hardware and documentation to get your compact build running. The Thin Mini-ITX form factor makes it particularly suitable for digital signage, point-of-sale systems, or any application where space is at a premium but you need the flexibility of a full desktop platform. With support for everything from entry-level Celeron processors to powerful Core i9 chips, it adapts to different performance requirements while maintaining its ultra-compact footprint.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 3 |
| Number of HDDs supported | 2 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |

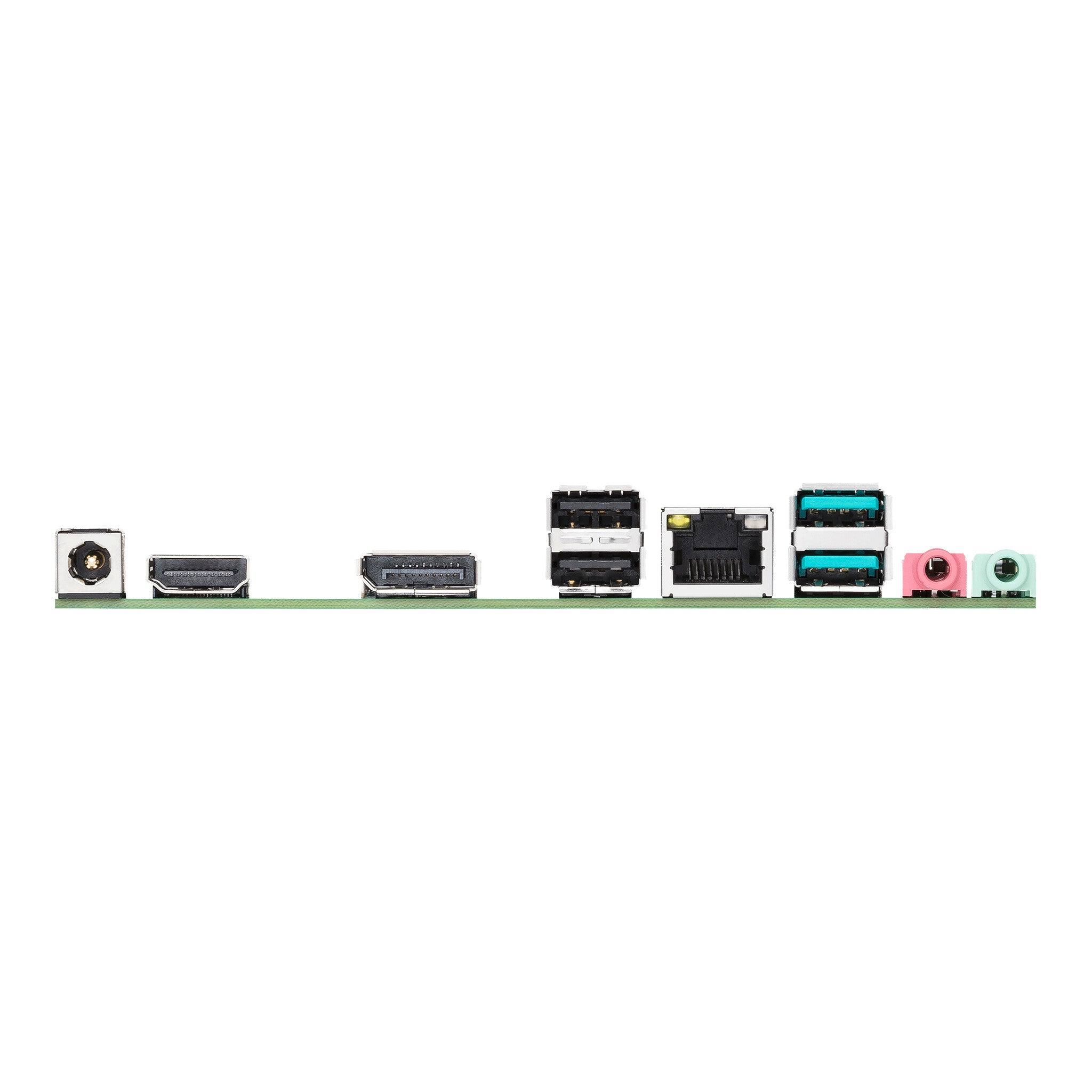

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | Thin Mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 226 mm |
| Package depth | 185 mm |
| Package height | 60 mm |
| Package weight | 742.6 g |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Height | 32 mm |
| Other features | |
|---|---|
| Weight | 311.5 g |
| LVDS connector | Yes |
