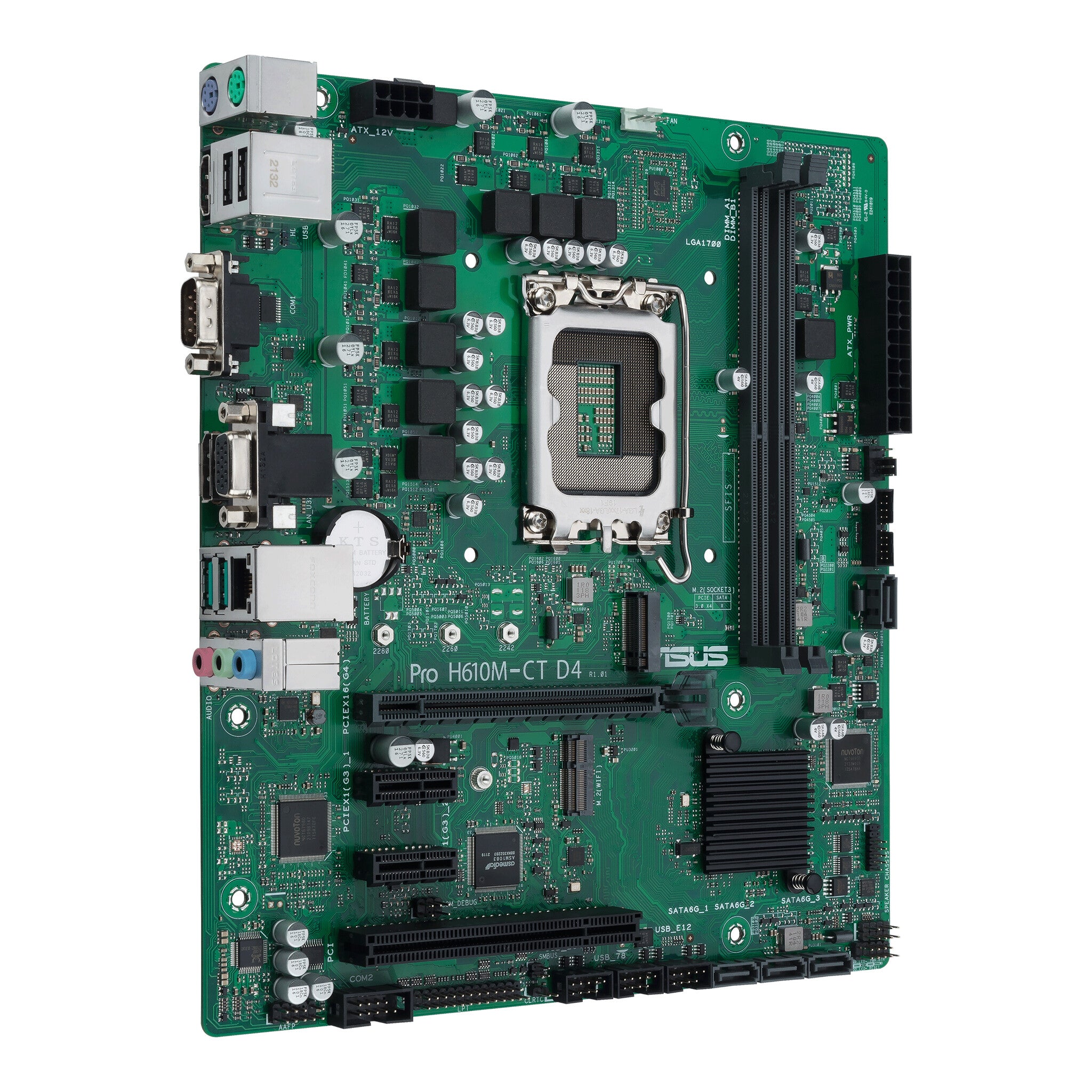

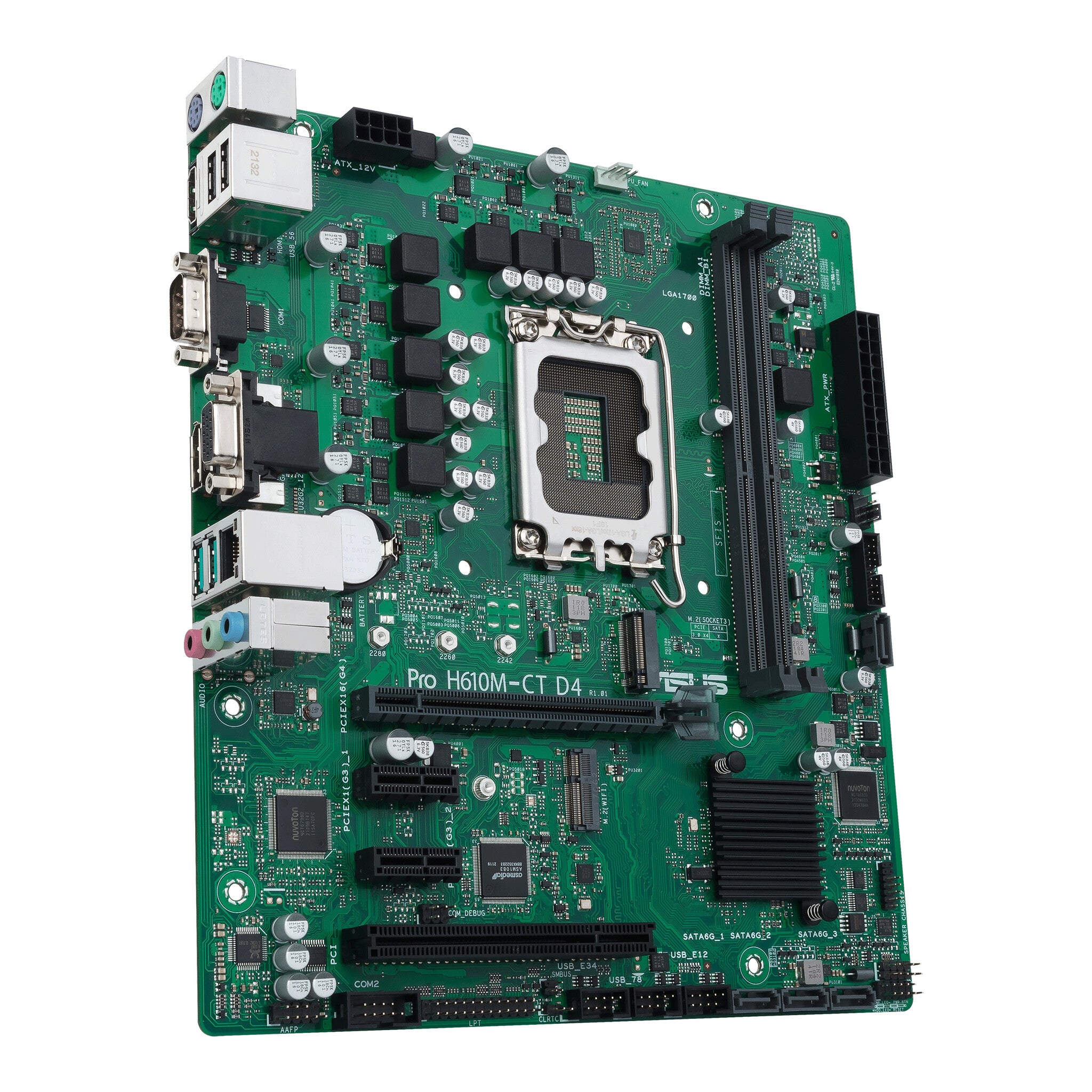

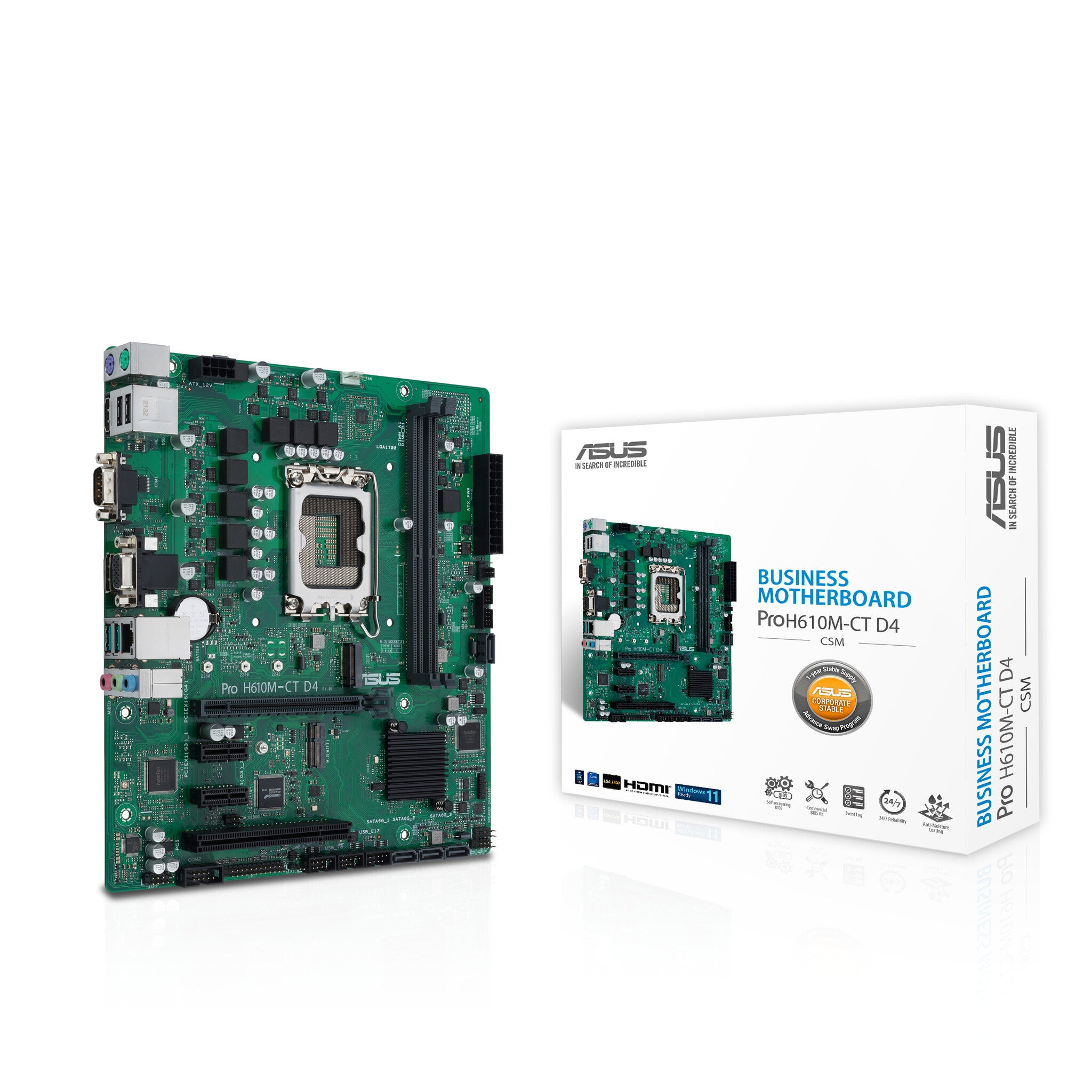

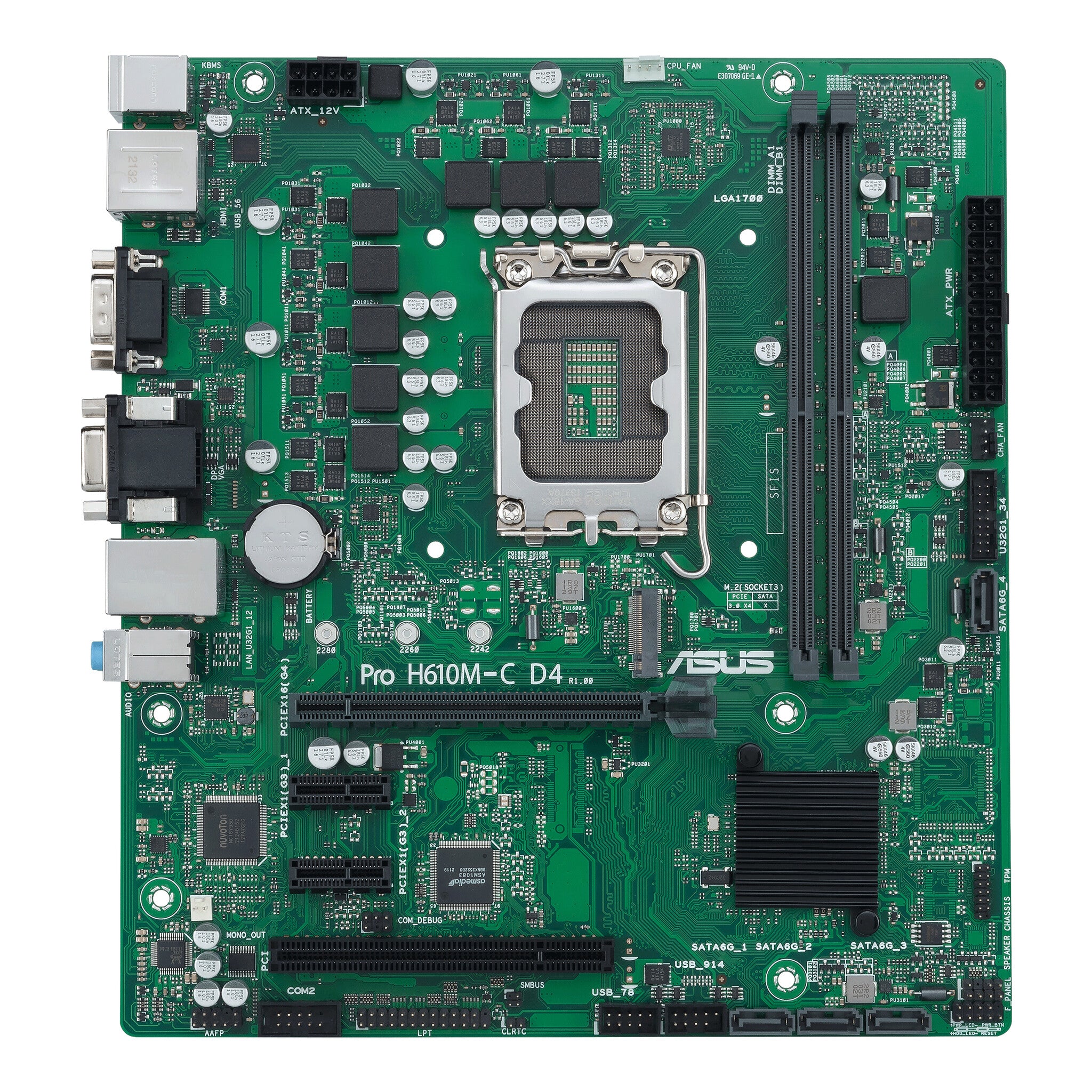

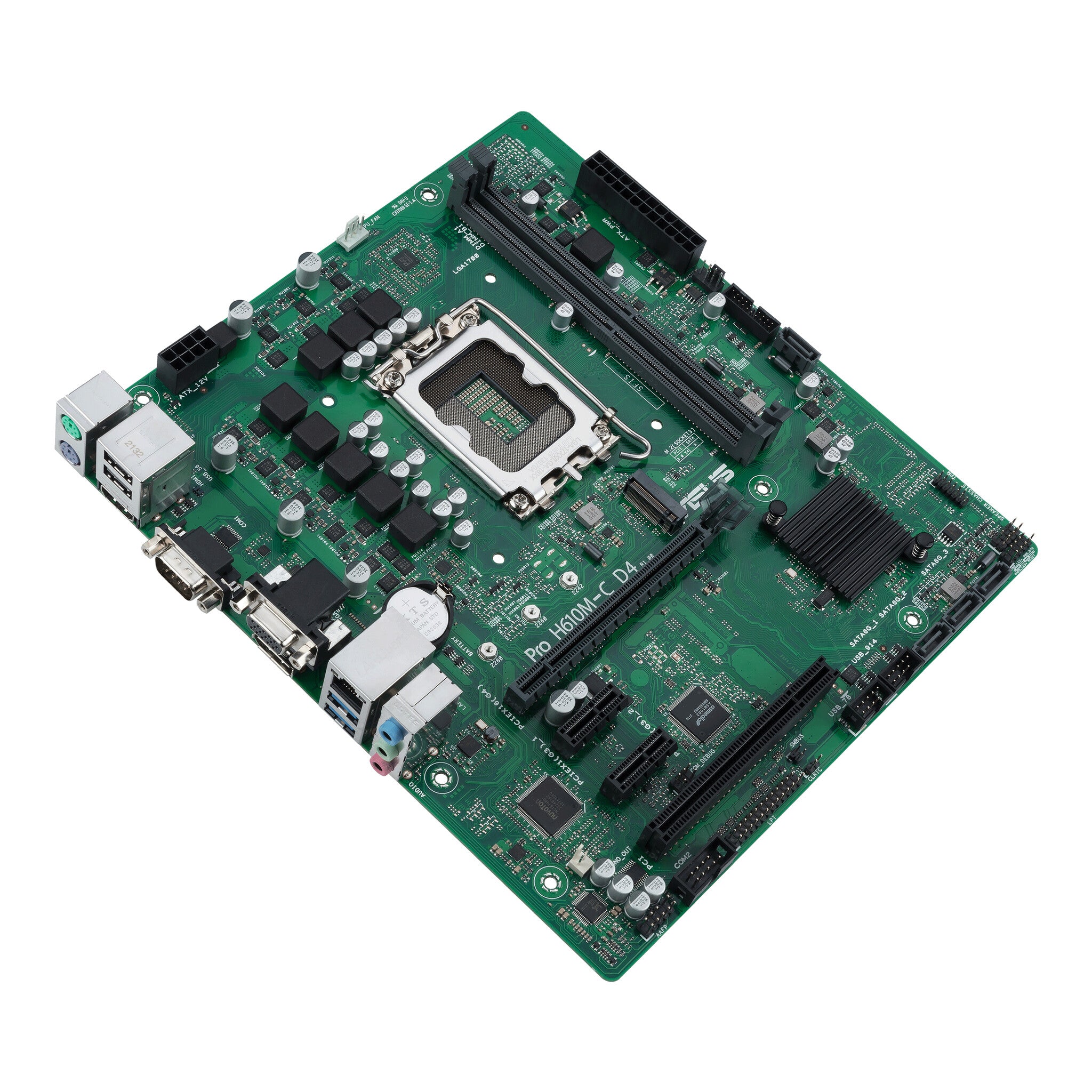

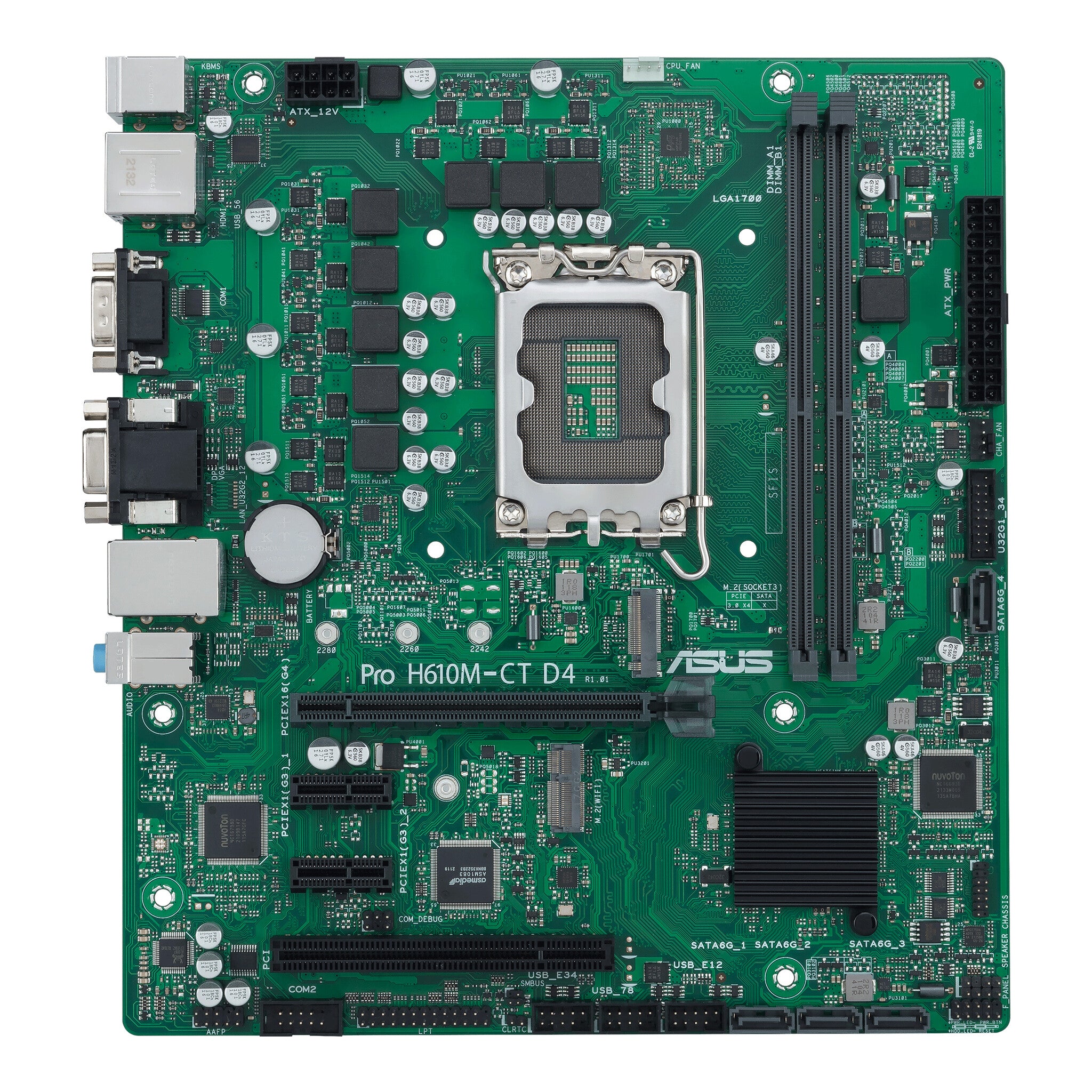

ASUS PRO H610M-C D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- IntelĀ® LGA 1700 socket: Ready for 12th Gen Intel Coreā¢ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What security features are included?
Is this motherboard suitable for continuous operation?
ASUS PRO H610M-C D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The ASUS PRO H610M-C D4-CSM is a micro ATX motherboard built around Intel's entry-level H610 chipset, designed specifically for business and commercial applications rather than gaming or enthusiast builds. This LGA1700 socket board supports 12th and 13th generation Intel processors from Celeron to Core i9, making it suitable for office PCs, workstations, and budget-conscious builds where stability and reliability matter more than cutting-edge performance features.
Memory support covers DDR4 up to 64GB across two DIMM slots, with speeds ranging from standard DDR4-2133 up to DDR4-3200. The board includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for expansion cards. As a business-focused board, it emphasizes enhanced security features, improved manageability, and serviceability over gaming-centric additions like RGB lighting or extreme overclocking capabilities.
The CSM designation indicates this board includes Compatibility Support Module firmware, ensuring compatibility with legacy operating systems and boot methods that some business environments still require. Non-ECC memory support keeps costs down while still providing the professional-grade reliability that commercial users expect. The micro ATX form factor makes it suitable for compact business cases while still offering adequate expansion options for typical office and workstation needs.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ® |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Number of displays supported | 3 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

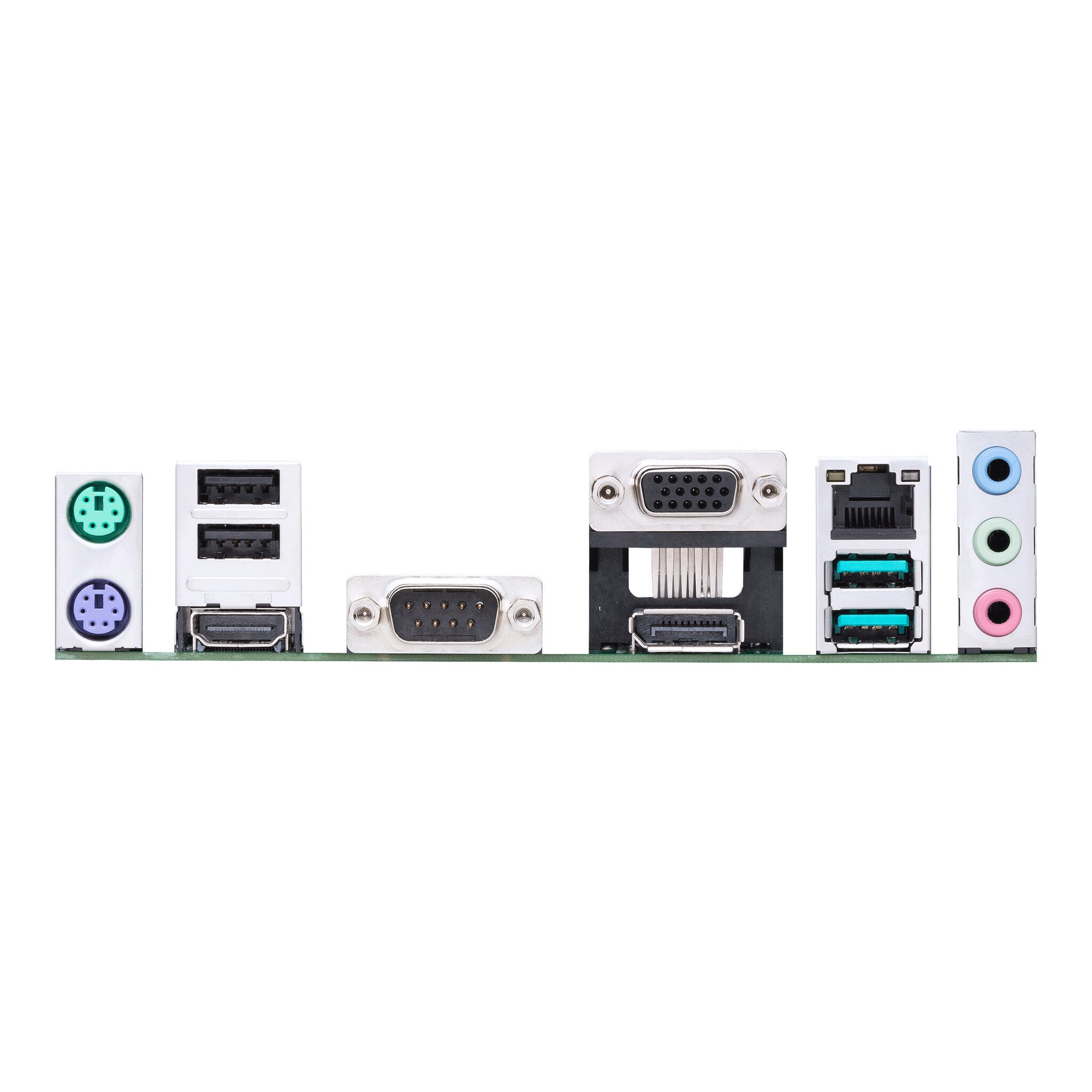

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| COM ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 220 mm |
| Height | 221 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 382 g |
