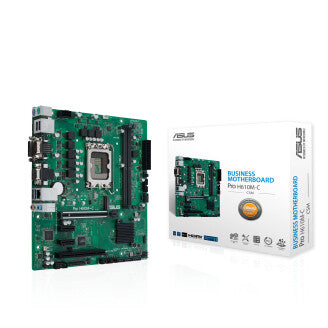

ASUS Pro H610M-C-CSM mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS Pro H610M-C-CSM?
How much memory can the ASUS Pro H610M-C-CSM support?
What security features does this motherboard offer?
ASUS Pro H610M-C-CSM mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description

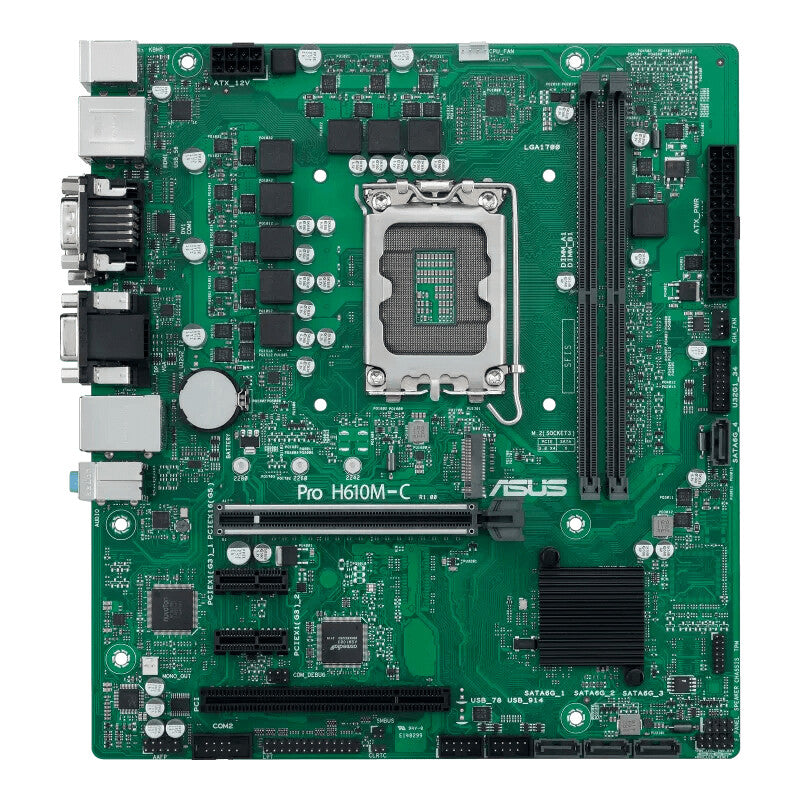

The ASUS Pro H610M-C-CSM is a micro ATX motherboard built around Intel's entry-level H610 chipset for LGA1700 socket processors. This board suits budget-conscious builders who need a reliable foundation for office work, light computing, or basic home systems without demanding high-end features. Despite its budget positioning, it covers essential connectivity well with multiple display outputs including DisplayPort, HDMI, VGA, and DVI-D ports, making it versatile for different monitor setups and workplace environments.
Memory support centres on DDR5 with two DIMM slots accommodating up to 64GB total capacity, running at speeds up to 4800MHz. The board includes one PCIe 5.0 x16 slot for graphics cards, M.2 storage connectivity, and multiple SATA III ports for traditional drives. Networking comes via gigabit Ethernet, while USB ports and a PS/2 connector handle peripherals. The compact 244x220mm footprint fits easily into smaller cases while maintaining good port accessibility.
ASUS includes practical extras in the box such as an I/O shield to seal the rear panel connections, SATA cables for drive installation, and M.2 mounting hardware for solid-state drives. The user guide walks through setup procedures clearly. XMP memory profiles help achieve rated DDR5 speeds without manual timing adjustments. For anyone building a straightforward system that prioritises value over gaming performance, this H610 board delivers the core features needed without unnecessary complexity.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | No |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Number of displays supported | 3 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| COM ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 58 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 382 g |
Frequently Asked Questions
What processors are compatible with the ASUS Pro H610M-C-CSM?
How much memory can the ASUS Pro H610M-C-CSM support?
What security features does this motherboard offer?
Is the ASUS Pro H610M-C-CSM suitable for 24/7 operations?
