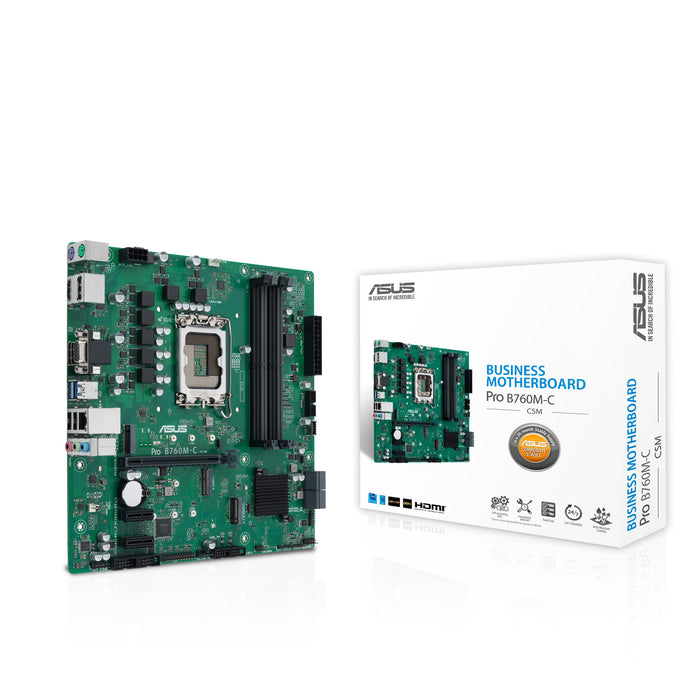

ASUS PRO B760M-C-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What type of processors are compatible with the ASUS PRO B760M-C-CSM?
How much memory can the ASUS PRO B760M-C-CSM support?
What security features does this motherboard offer?
ASUS PRO B760M-C-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
Description
The ASUS PRO B760M-C-CSM is a micro-ATX business motherboard built around Intel's mainstream B760 chipset for LGA1700 processors. Aimed at commercial and professional builds, this board prioritises reliability and security over gaming features. It supports Intel processors from budget Celeron and Pentium chips through to high-end Core i9s, making it suitable for office workstations, business PCs, and commercial deployments where stability matters more than overclocking headroom.
Memory support covers DDR5 with speeds up to 6200 MHz across four DIMM slots, accommodating up to 128 GB total capacity. The board includes one PCIe 4.0 x16 slot for a dedicated graphics card plus two PCIe 3.0 x1 slots for expansion cards. As a business-focused motherboard, it emphasises enhanced security features, serviceability, and long-term reliability over enthusiast extras like RGB lighting or extreme overclocking capabilities.
XMP memory profiles are supported for easy DDR5 setup, allowing compatible memory kits to run at their rated speeds with minimal configuration. The PRO series designation indicates ASUS has designed this board with commercial requirements in mind, including improved component longevity and business-grade support. Standard motherboard accessories are included in the box, along with documentation and the I/O shield for rear port protection.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200 MHz |
| Supported memory clock speed (max) | 6200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
