ASUS PRO B660M-C D4-CSM mATX Motherboard | LGA1700 | 4x DDR4 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS PRO B660M-C D4-CSM support?
What security features does this motherboard offer?
Is the ASUS Control Center Express included with the motherboard?
ASUS PRO B660M-C D4-CSM mATX Motherboard | LGA1700 | 4x DDR4 Slots
Description

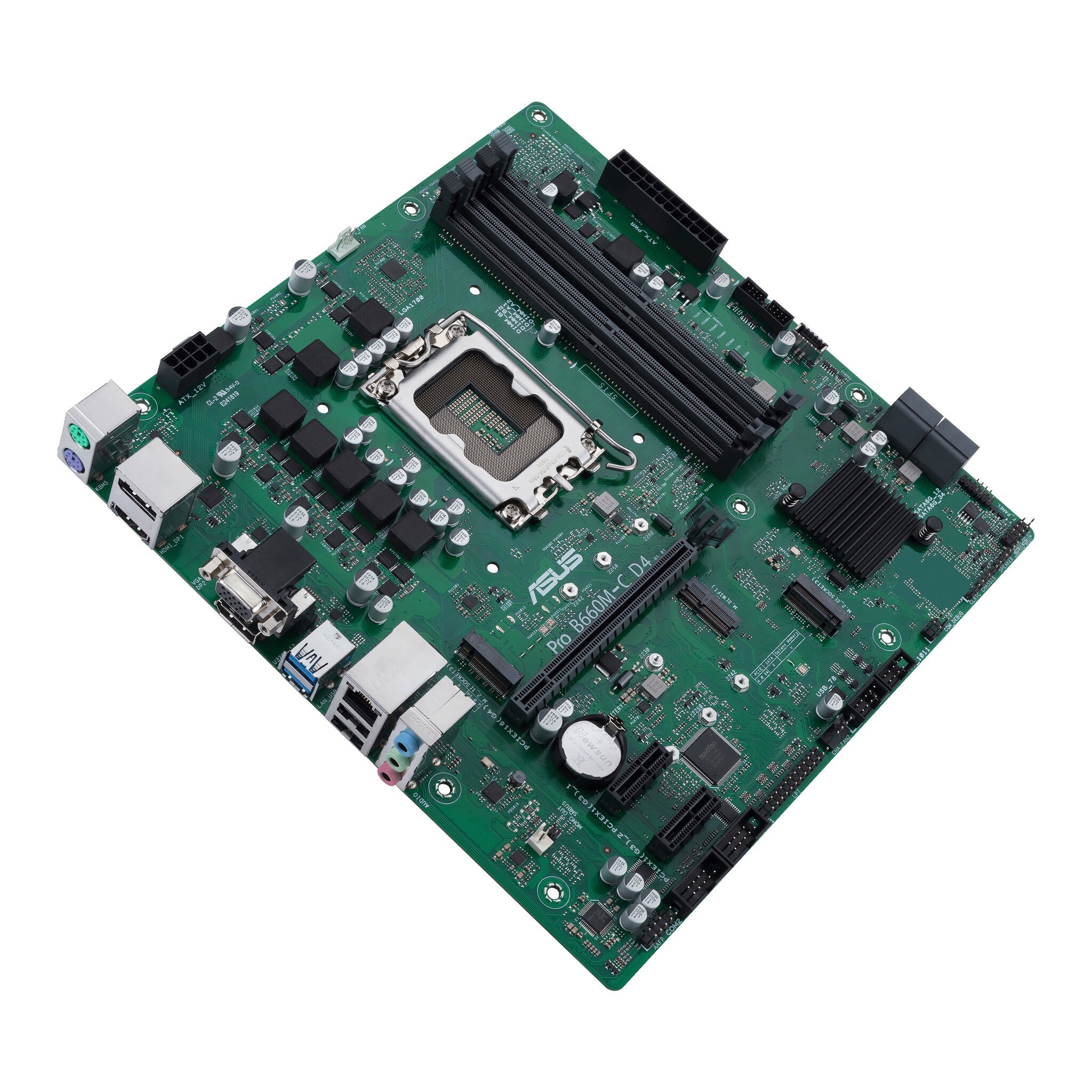

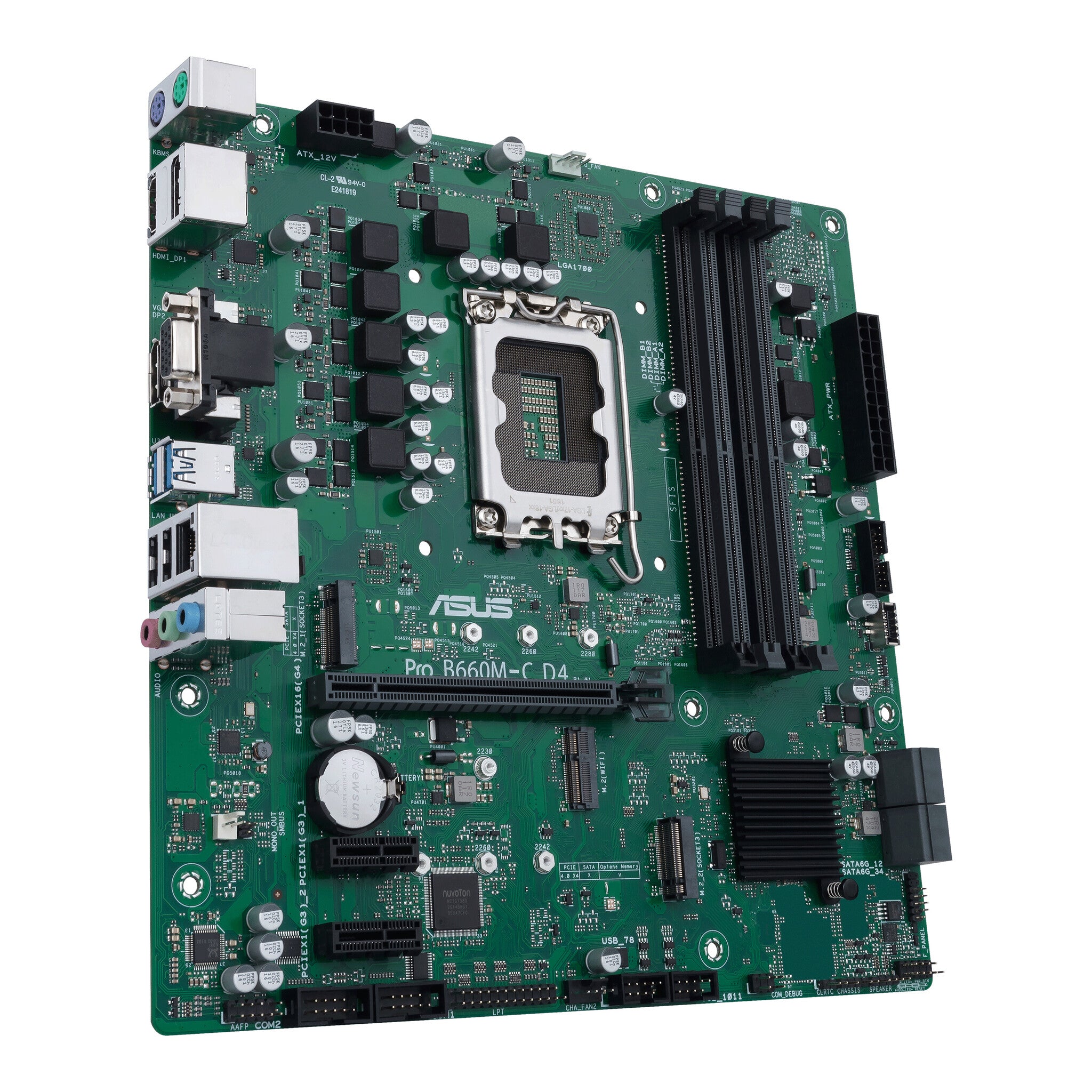

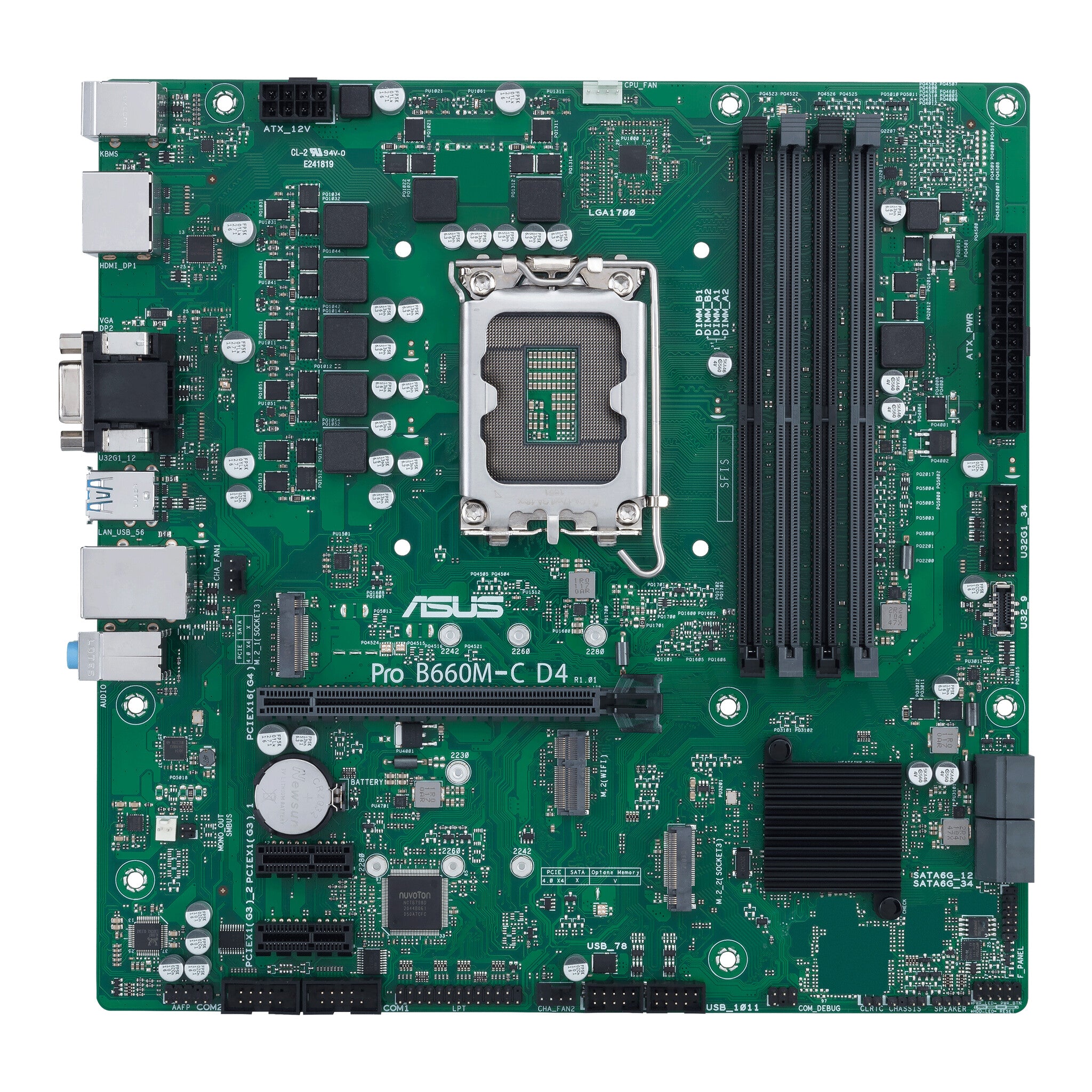

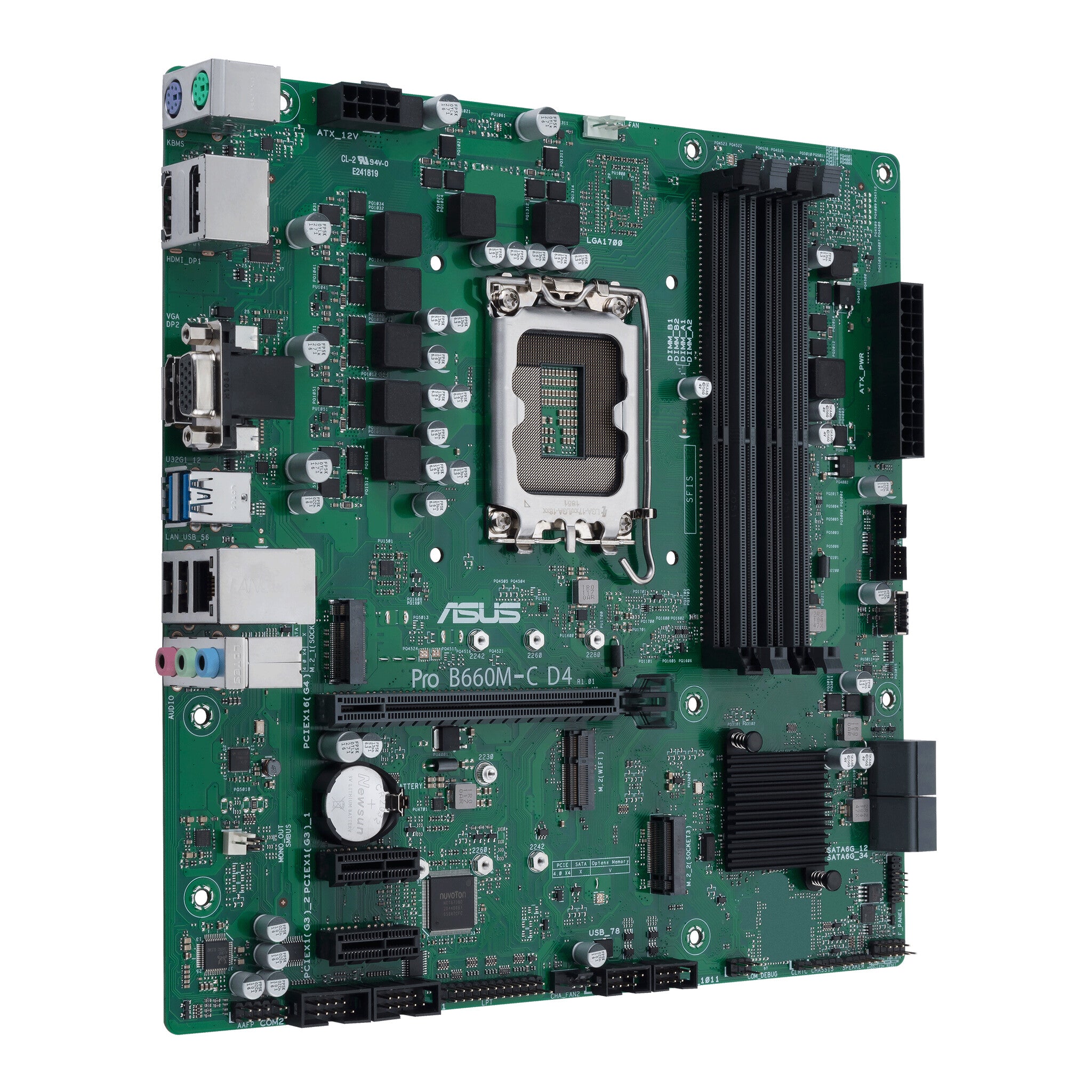

The ASUS PRO B660M-C D4-CSM is a business-focused micro ATX motherboard built around Intel's B660 chipset and LGA1700 socket. This board targets commercial environments and business builds where stability, longevity, and corporate management features take priority over gaming performance. With support for Intel Core processors from 12th generation onwards, including Core i3, i5, i7, and i9 series, it provides a solid foundation for office workstations, point-of-sale systems, and small business computers.
Memory support extends up to 128GB across four DDR4 slots, with speeds reaching 5000MHz when overclocked. The board includes one PCIe 4.0 x16 slot for graphics cards or professional accelerators, plus two PCIe 3.0 x1 slots for expansion cards. ASUS has equipped this model with their CSM (Corporate Stable Model) designation, ensuring consistent availability and longer product lifecycles that businesses require for fleet deployments.
Business-specific features include ASUS Control Center Express for centralized management across multiple systems and a COM debug header for diagnostic purposes. The board supports both standard JEDEC memory profiles and overclocked speeds through XMP, giving flexibility for different performance requirements. An RGB LED pin header allows basic lighting customization, while the green PCB reinforces the professional aesthetic suited to corporate environments.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Number of displays supported | 3 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

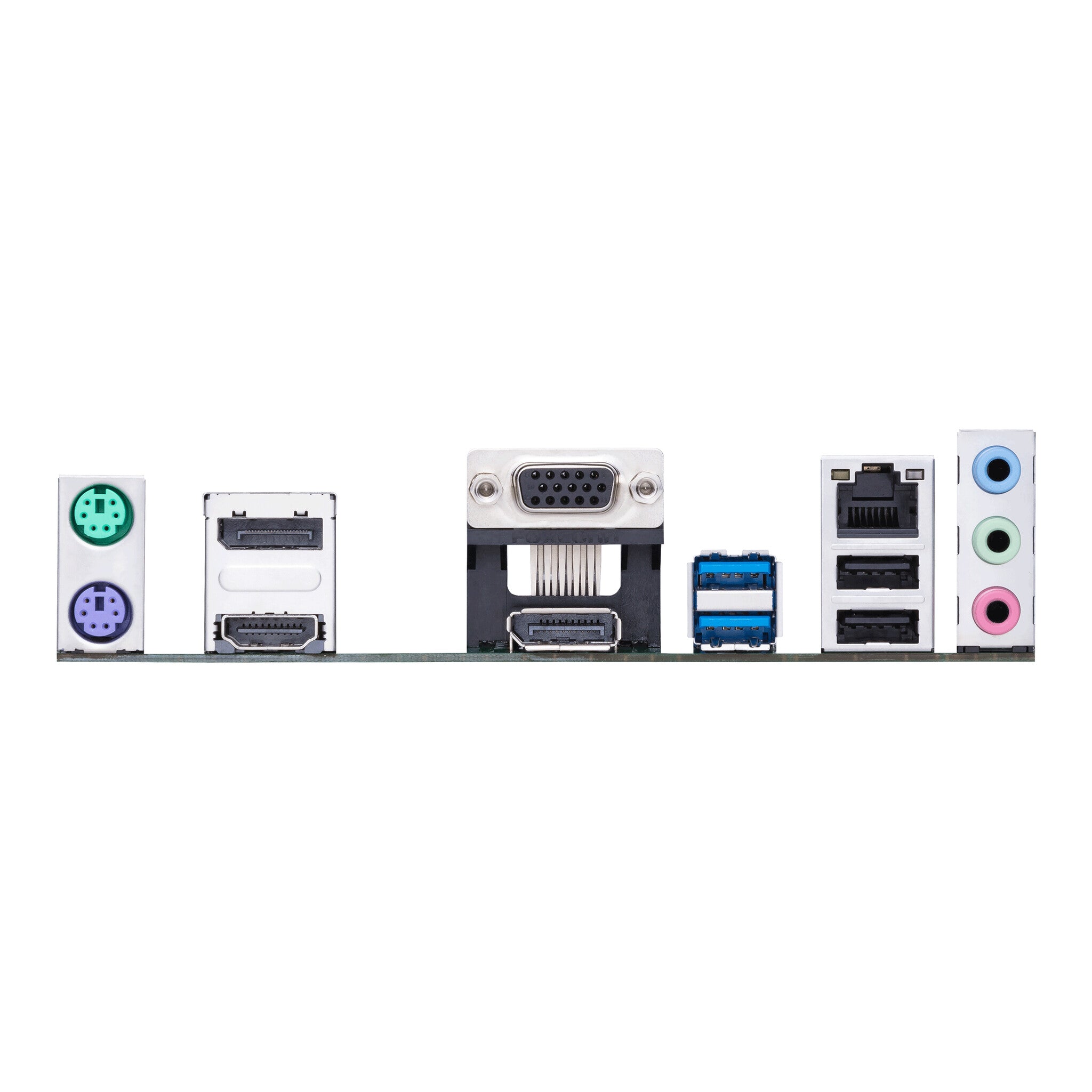

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Green |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 634 g |
