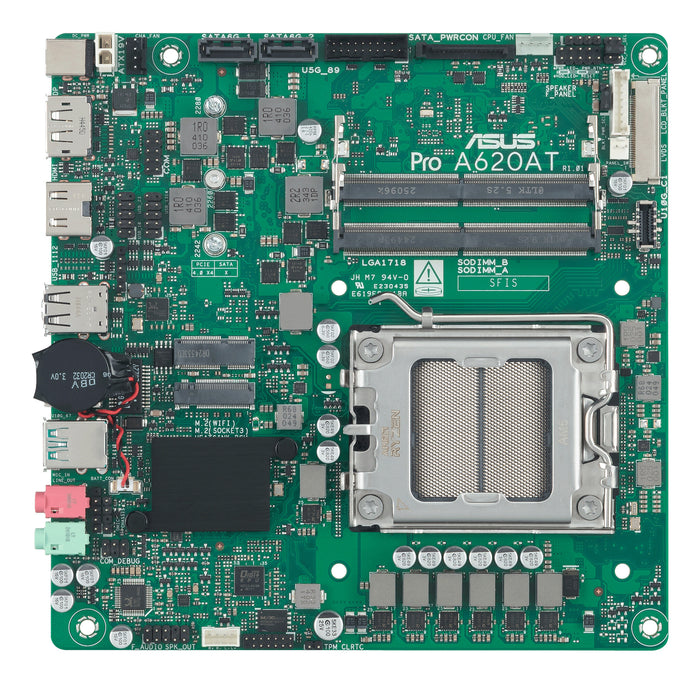

ASUS Pro A620AT-CSM Thin Mini ITX Motherboard | AM5 | 2x DDR5 Slots
KEY FEATURES
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Remote IT management: DASH hardware ready for capable of DASH software
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 4.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 10Gbps Type-C and rear USB 10Gbps Type-A
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS Pro A620AT-CSM Thin Mini ITX Motherboard | AM5 | 2x DDR5 Slots
Description

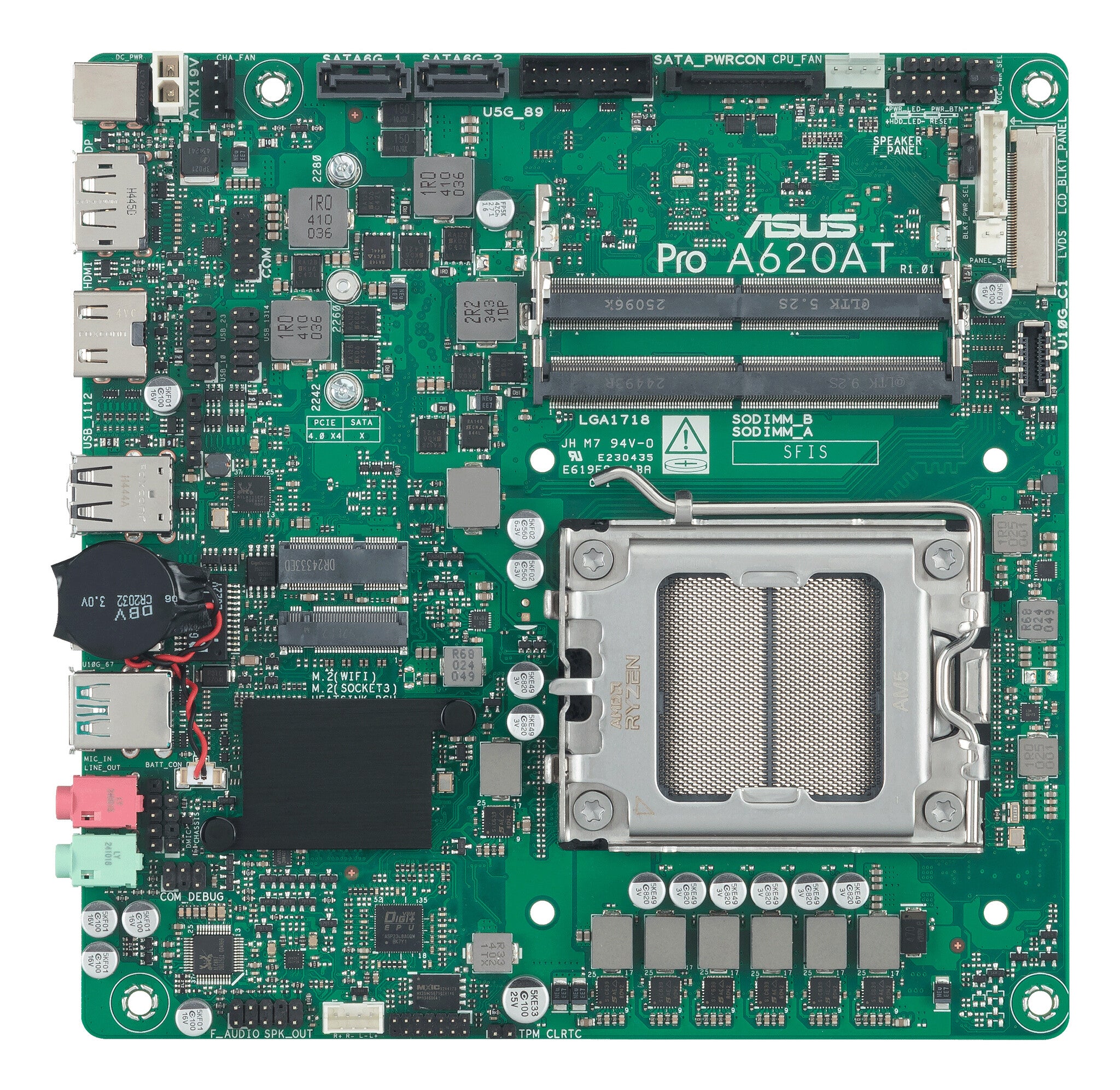

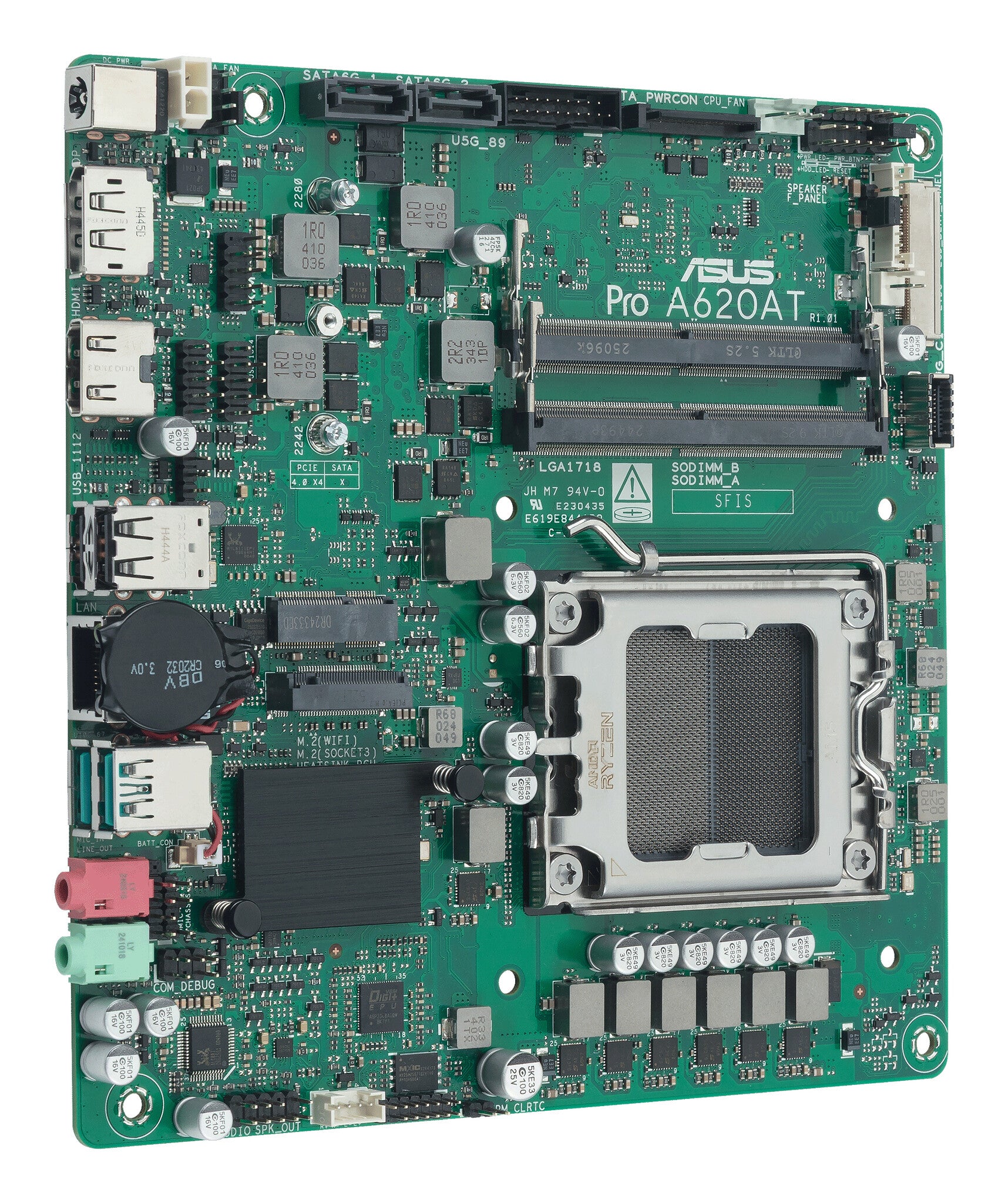

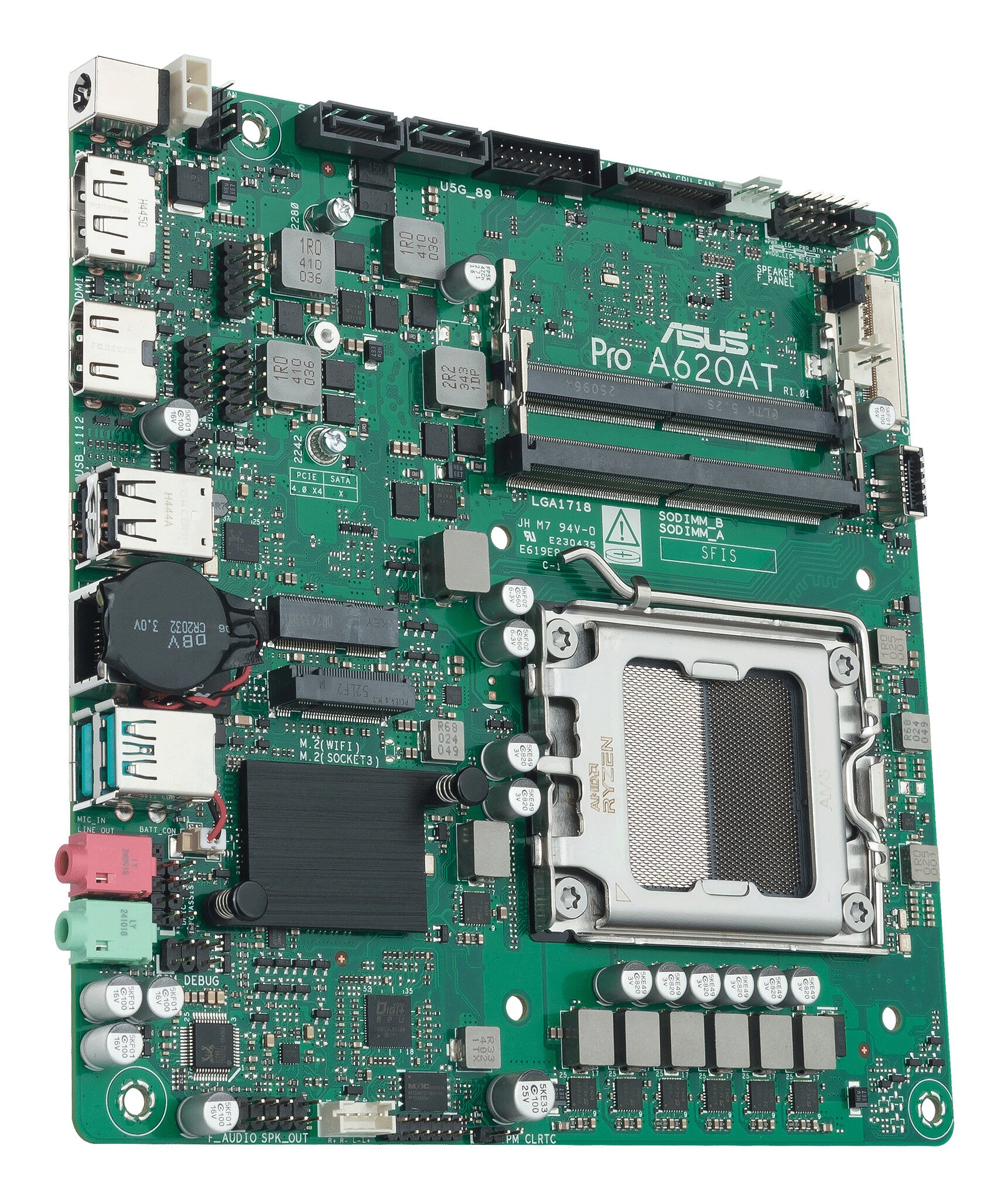

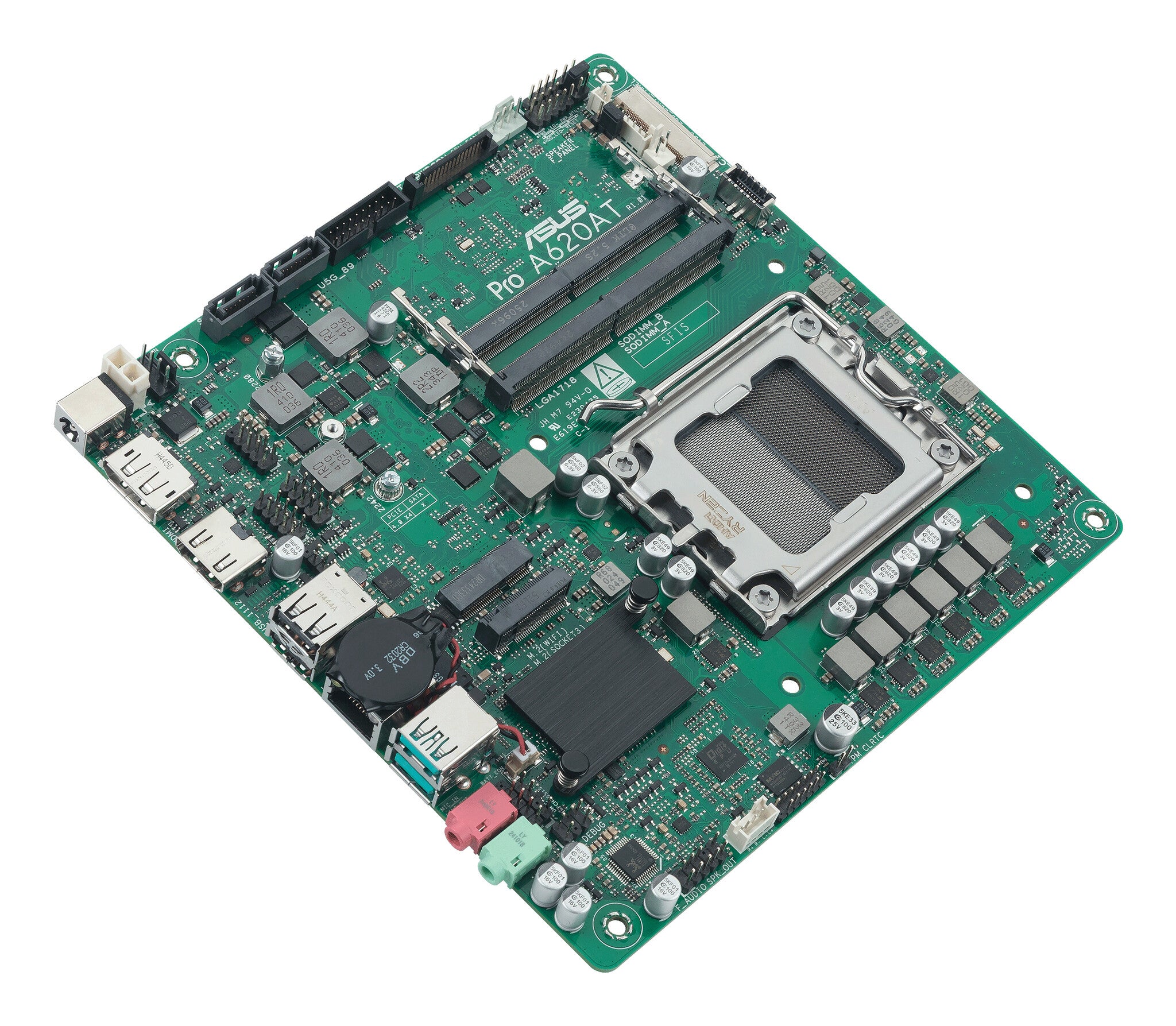

The ASUS Pro A620AT-CSM is a business-focused Thin Mini-ITX motherboard built around the AMD A620A chipset and AM5 socket. This compact board supports AMD Ryzen 7000, 8000, and 9000 series processors, making it suitable for small form factor commercial builds, embedded systems, and space-constrained business applications. The Thin Mini-ITX form factor measures smaller than standard Mini-ITX, allowing integration into ultra-compact cases and specialized commercial enclosures where space is critical.
Memory support centres on DDR5 SO-DIMM modules across two slots, accommodating up to 128GB total capacity with 64GB per slot. The board accepts both ECC and non-ECC memory configurations, giving businesses flexibility for error correction when needed. Storage connectivity includes a single M.2 2280 slot with PCIe 4.0 support, delivering fast SSD performance. The board includes business-oriented features like Q-LED Core diagnostics for troubleshooting, a COM debug header for development work, and ASUS Control Center Express for system management.

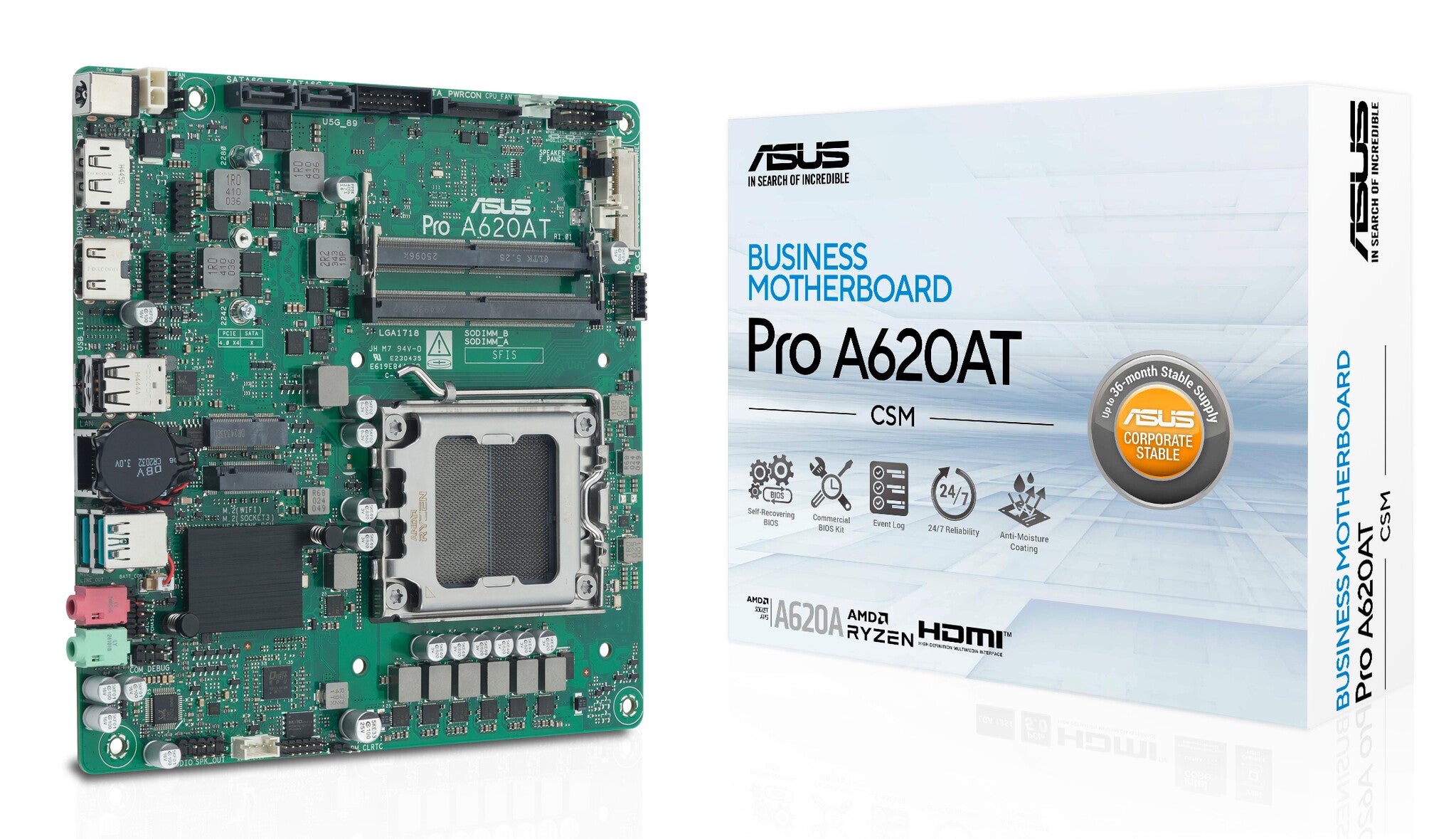

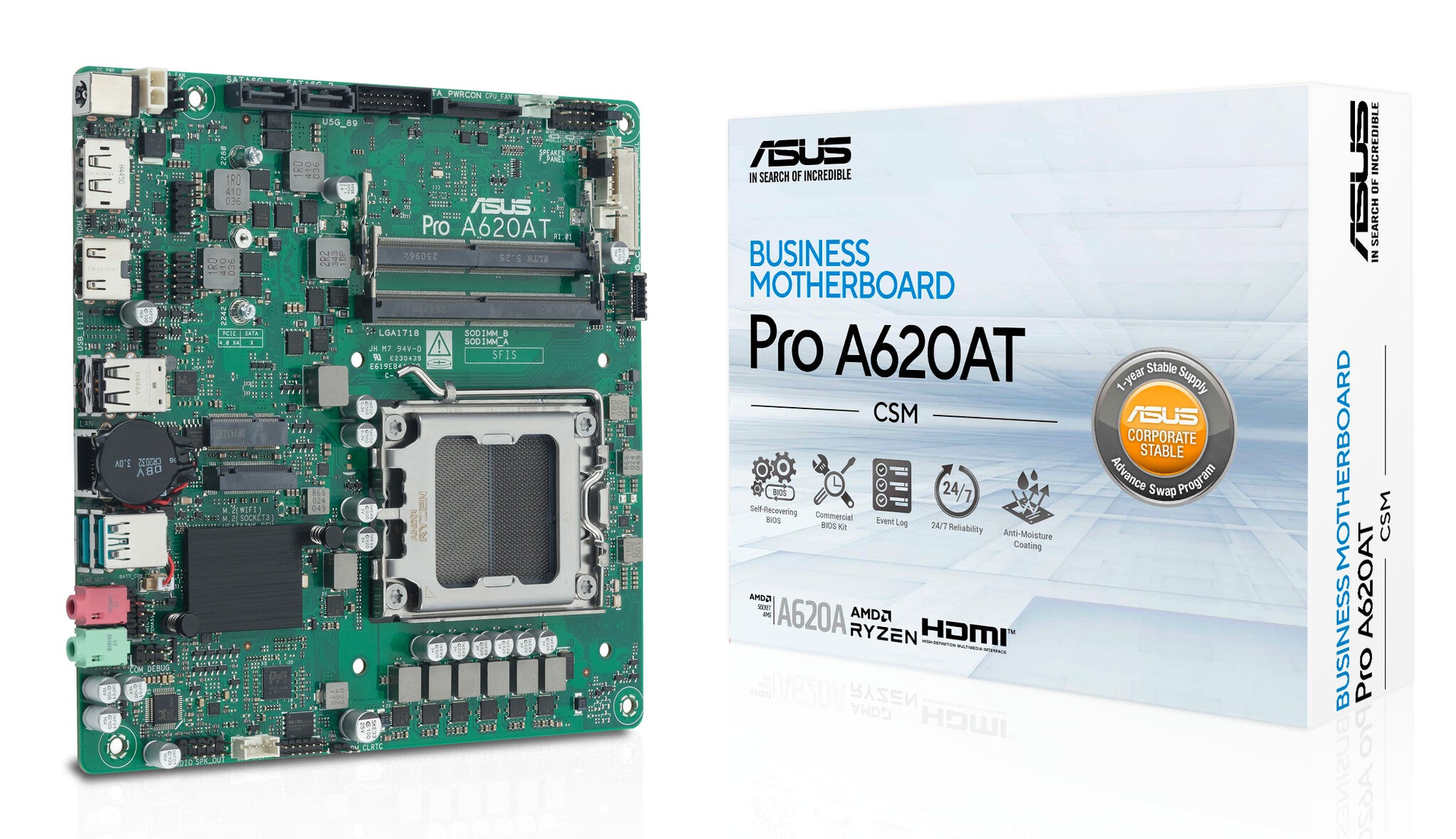

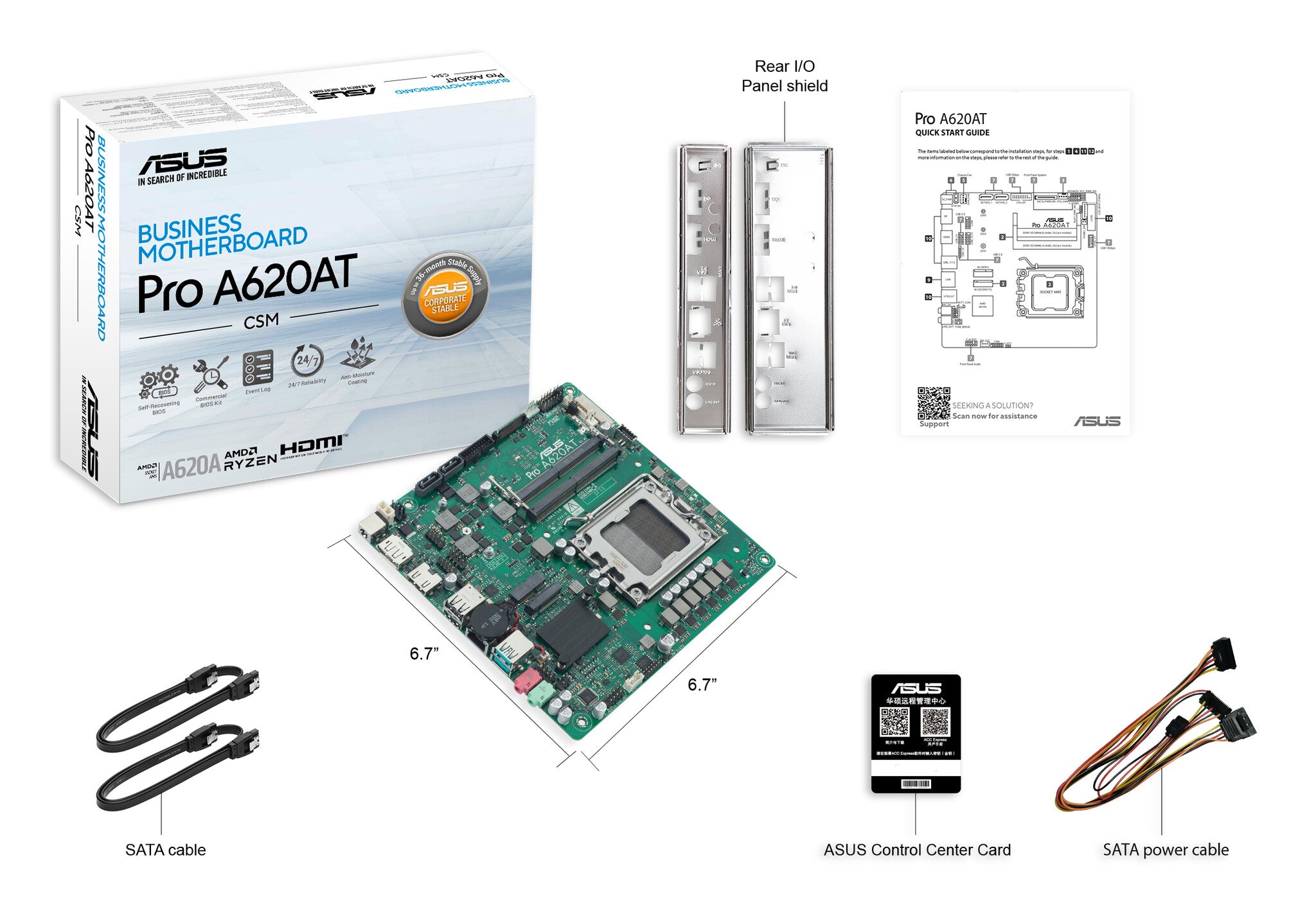

This motherboard ships with essential installation hardware including an I/O shield and user documentation. The single CPU fan connector provides adequate cooling support for the compact design. The green PCB color reflects its commercial positioning, while the comprehensive diagnostic features make it practical for system integrators and IT departments managing multiple deployments. ECC memory compatibility adds data integrity assurance for mission-critical applications.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 3 |
| Number of HDDs supported | 2 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

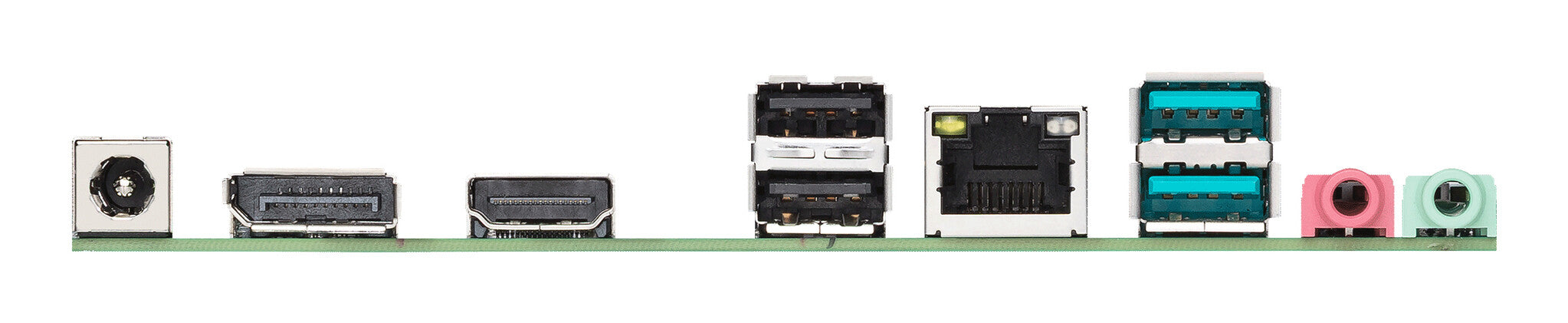

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | Thin Mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Audio output channels | 7.1 channels |
| Product colour | Green |
| Power source type | DC |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Number of Ultra M.2 (M) slots | 1 |
