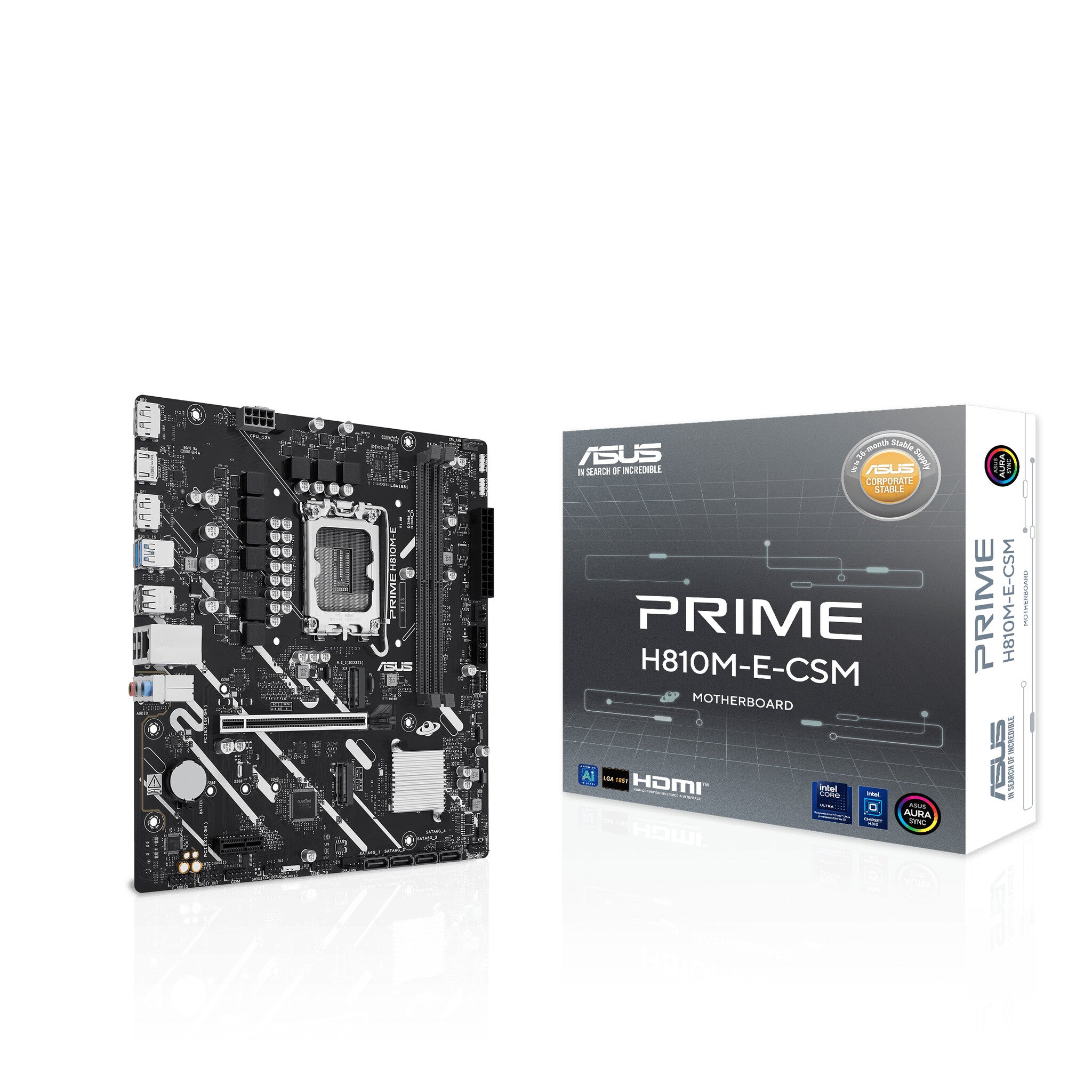

ASUS PRIME H810M-E-CSM mATX Motherboard | LGA1851 | 2x DDR5 Slots
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel H810 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME H810M-E-CSM mATX Motherboard | LGA1851 | 2x DDR5 Slots
Description

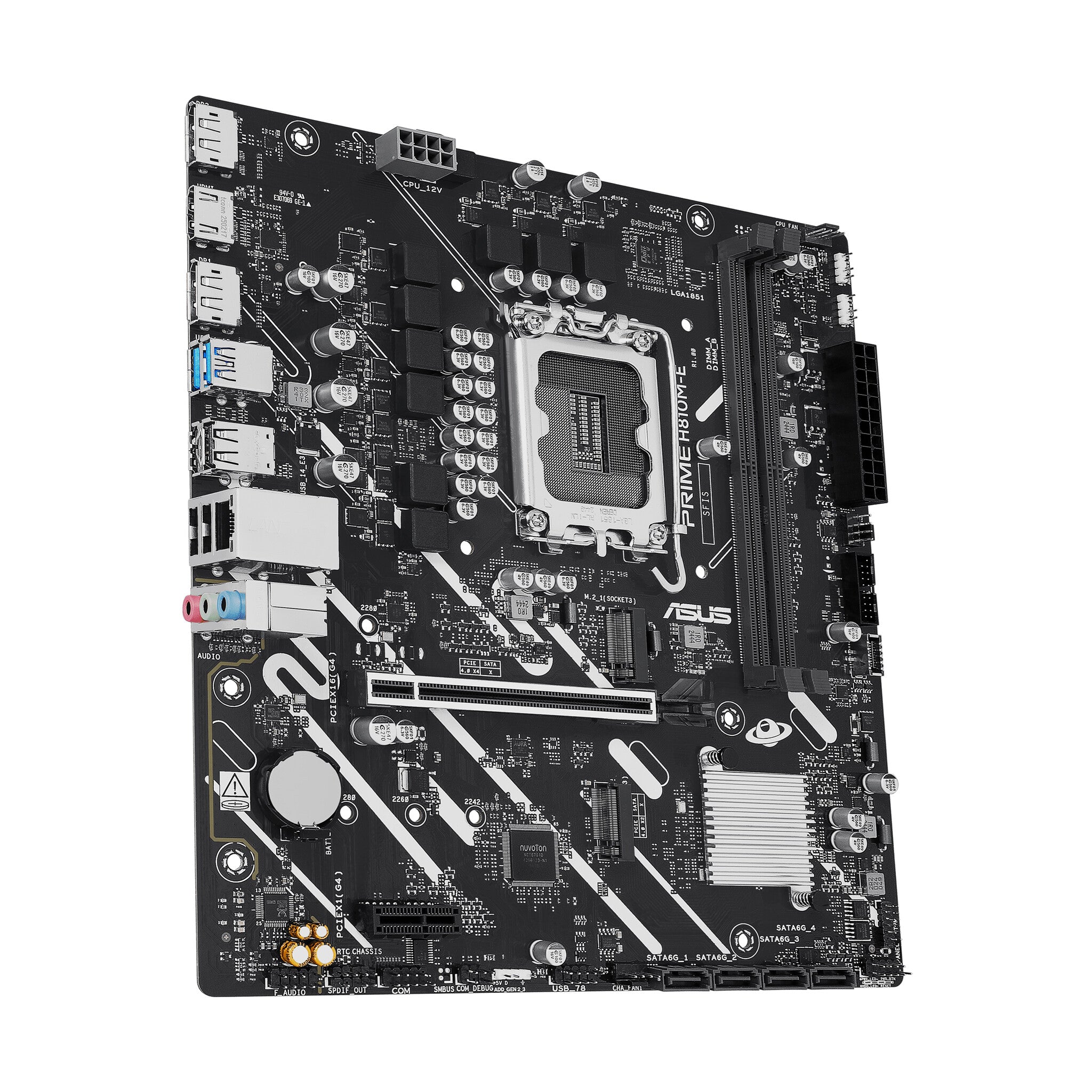

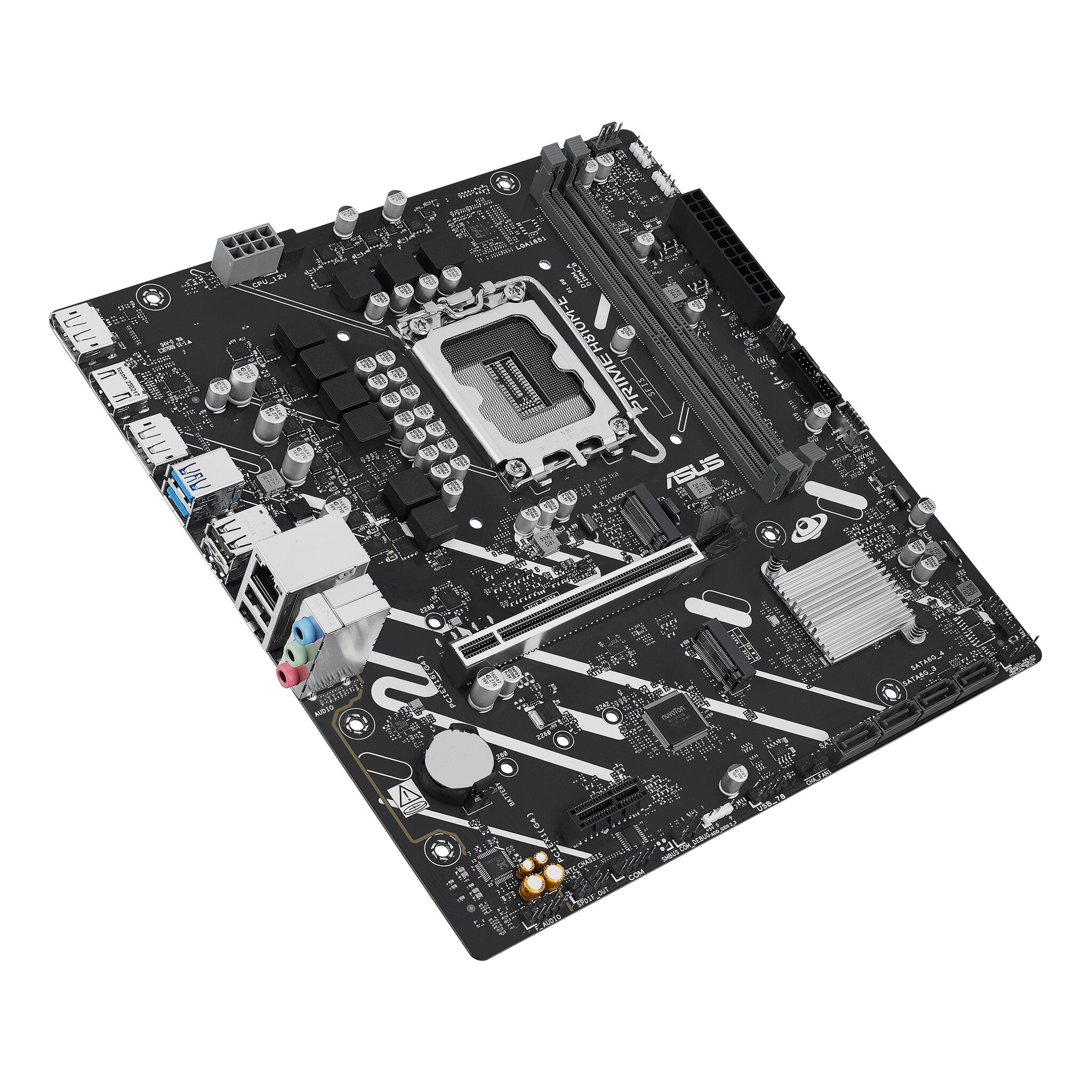

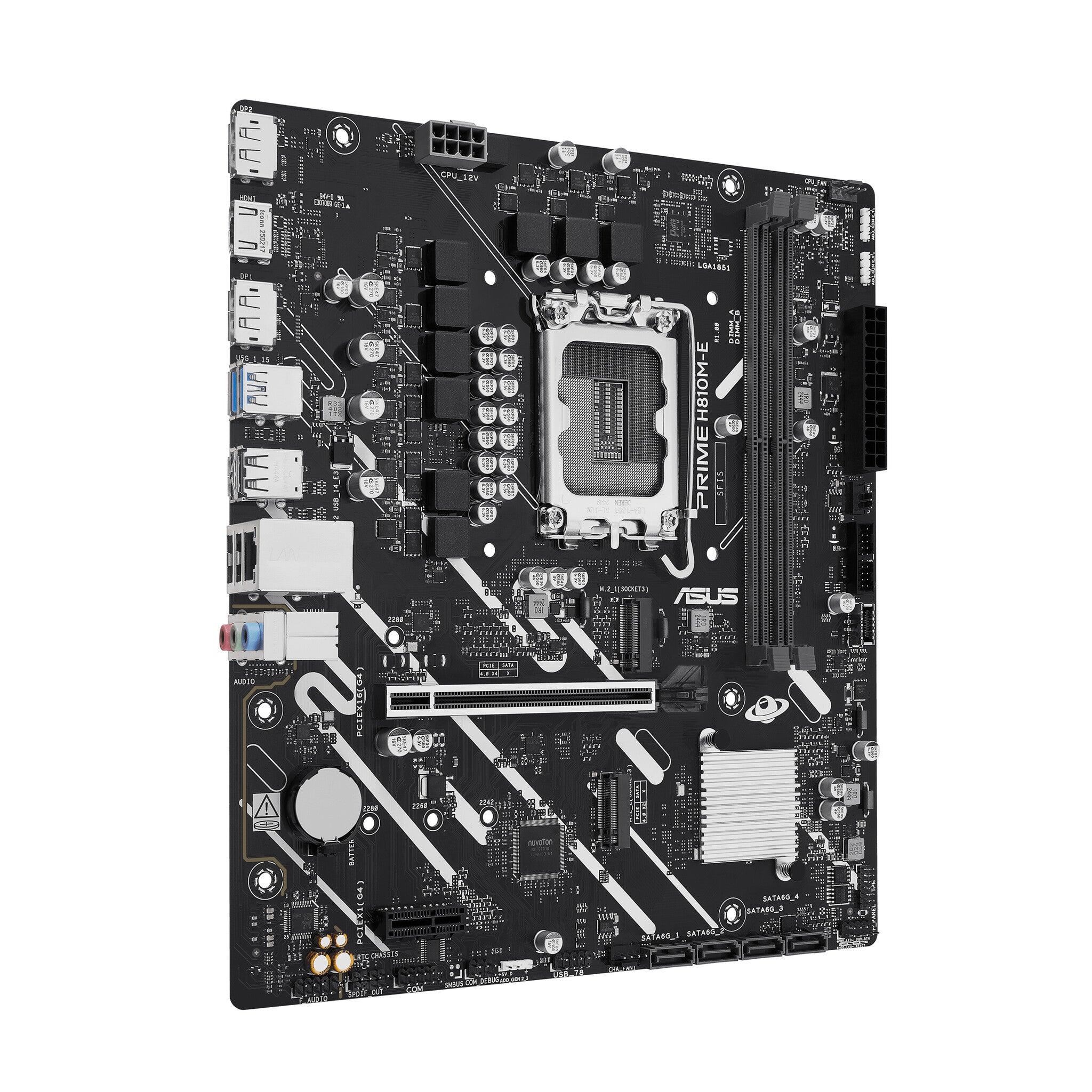

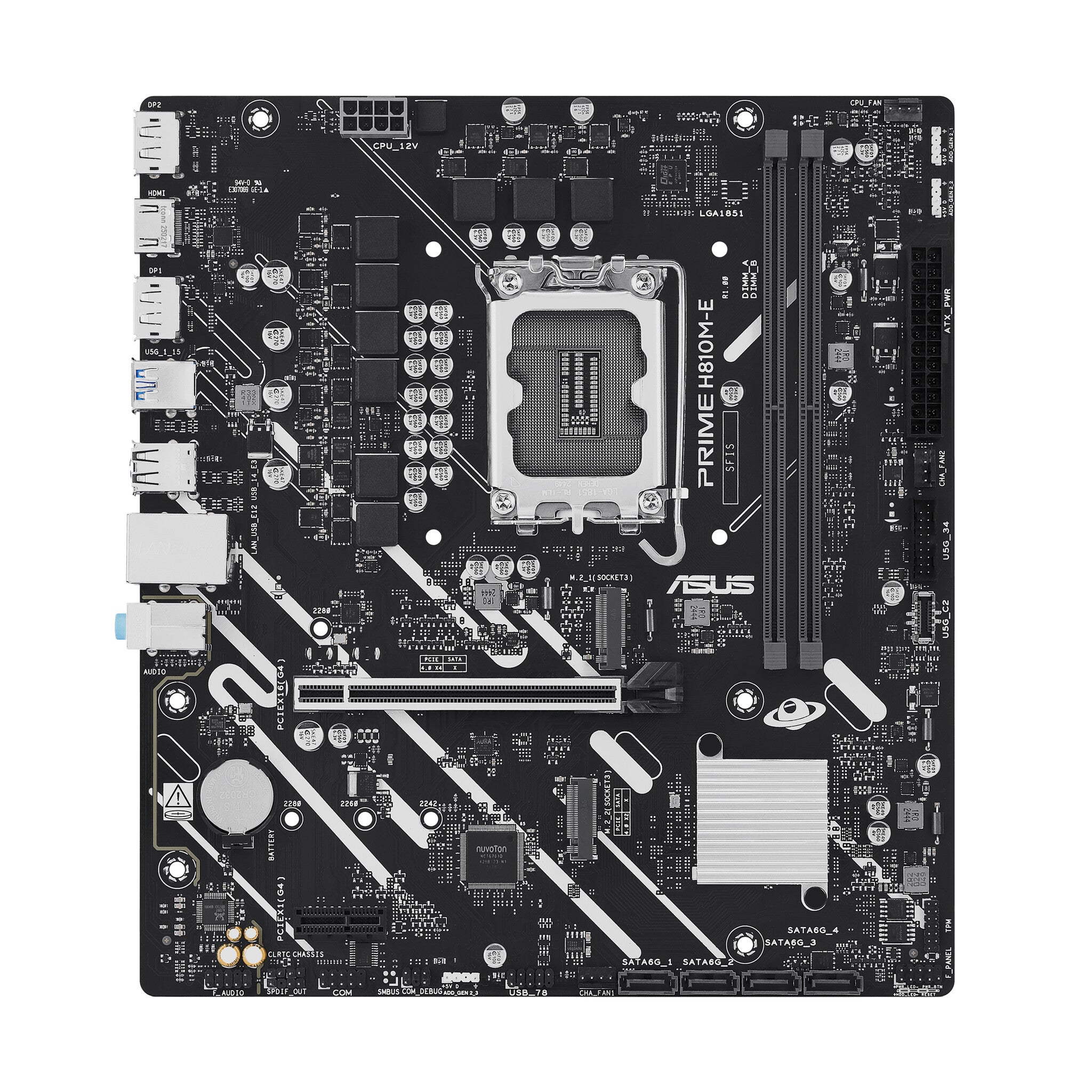

The ASUS PRIME H810M-E-CSM delivers a compact foundation for Intel's latest Core Ultra processors in a space-efficient mATX format. Built around the Intel H810 chipset, this budget-conscious board supports LGA1851 socket processors while maintaining essential features for modern computing. Its smaller footprint makes it ideal for compact builds, office systems, or anyone working within tighter case constraints without sacrificing core functionality.
Memory support centers on DDR5 with two DIMM slots accommodating up to 128GB total capacity, giving you room to grow as your needs evolve. Storage connectivity includes two M.2 slots, both supporting PCIe 4.0 and 2280 form factor drives for fast NVMe SSDs. The single PCIe x16 slot handles discrete graphics cards, while an additional PCIe x1 slot provides expansion flexibility. Integrated graphics users benefit from dual DisplayPort outputs plus HDMI for multi-monitor setups straight from the motherboard.

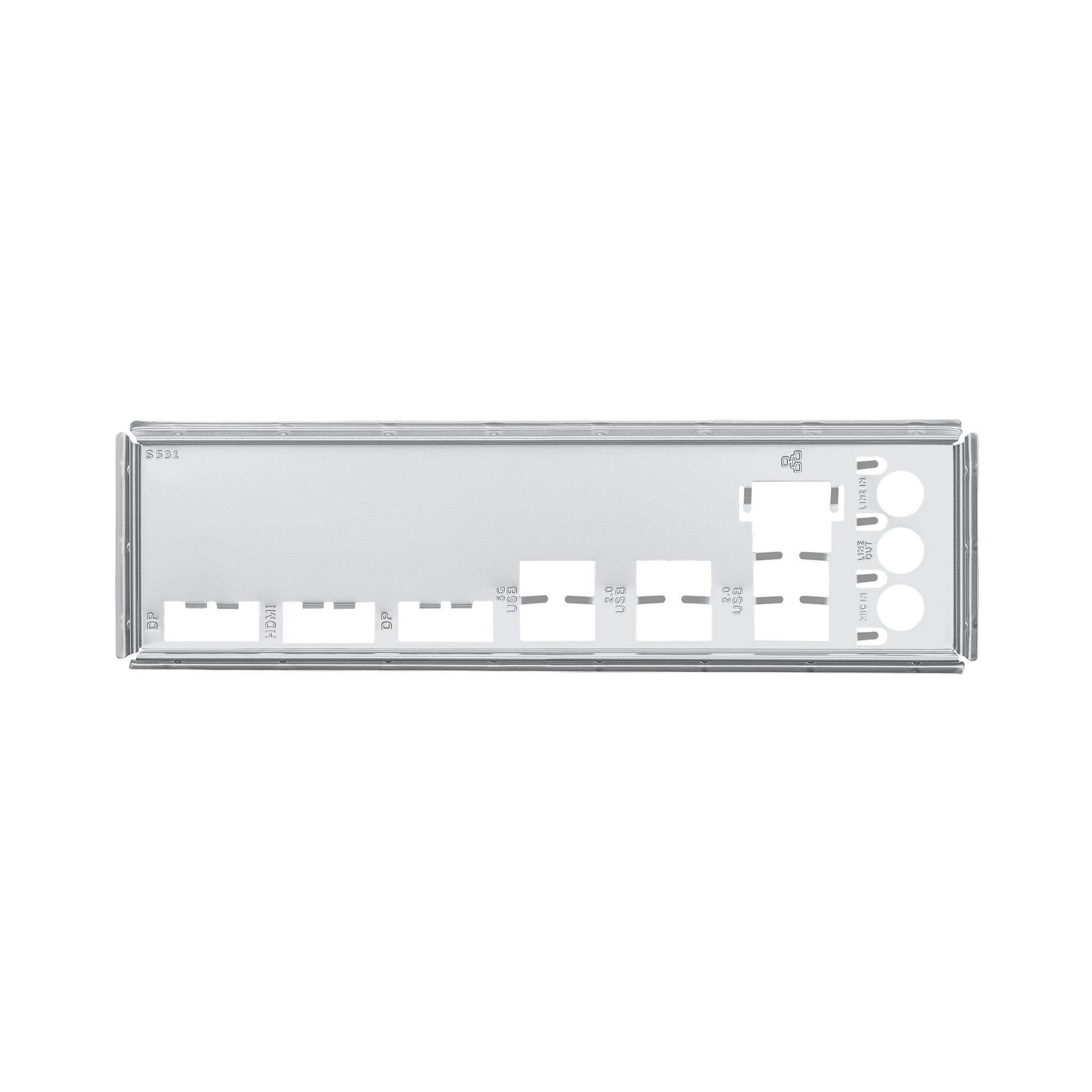

Connectivity features include Gigabit Ethernet via Realtek networking, multiple USB ports including a 5Gbps Type-C connector, and Aura Sync RGB support through three LED headers for subtle lighting customization. The board includes standard accessories like an I/O shield and user documentation to get your build started. With its focus on essential features rather than premium overclocking capabilities, this H810 board suits mainstream users building reliable systems around Intel's newest processor architecture.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |

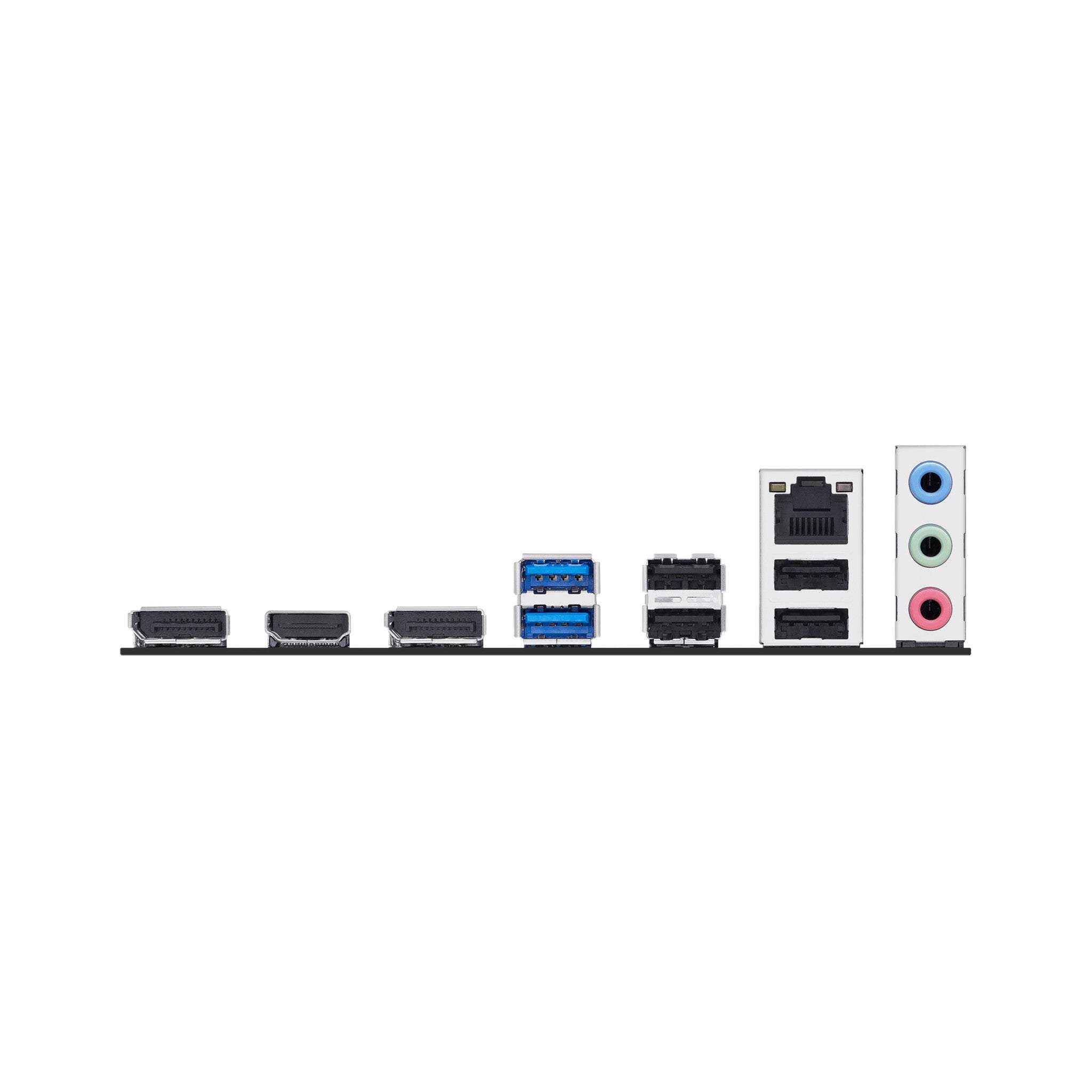

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 747 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 222 mm |
| Packaging content | |
|---|---|

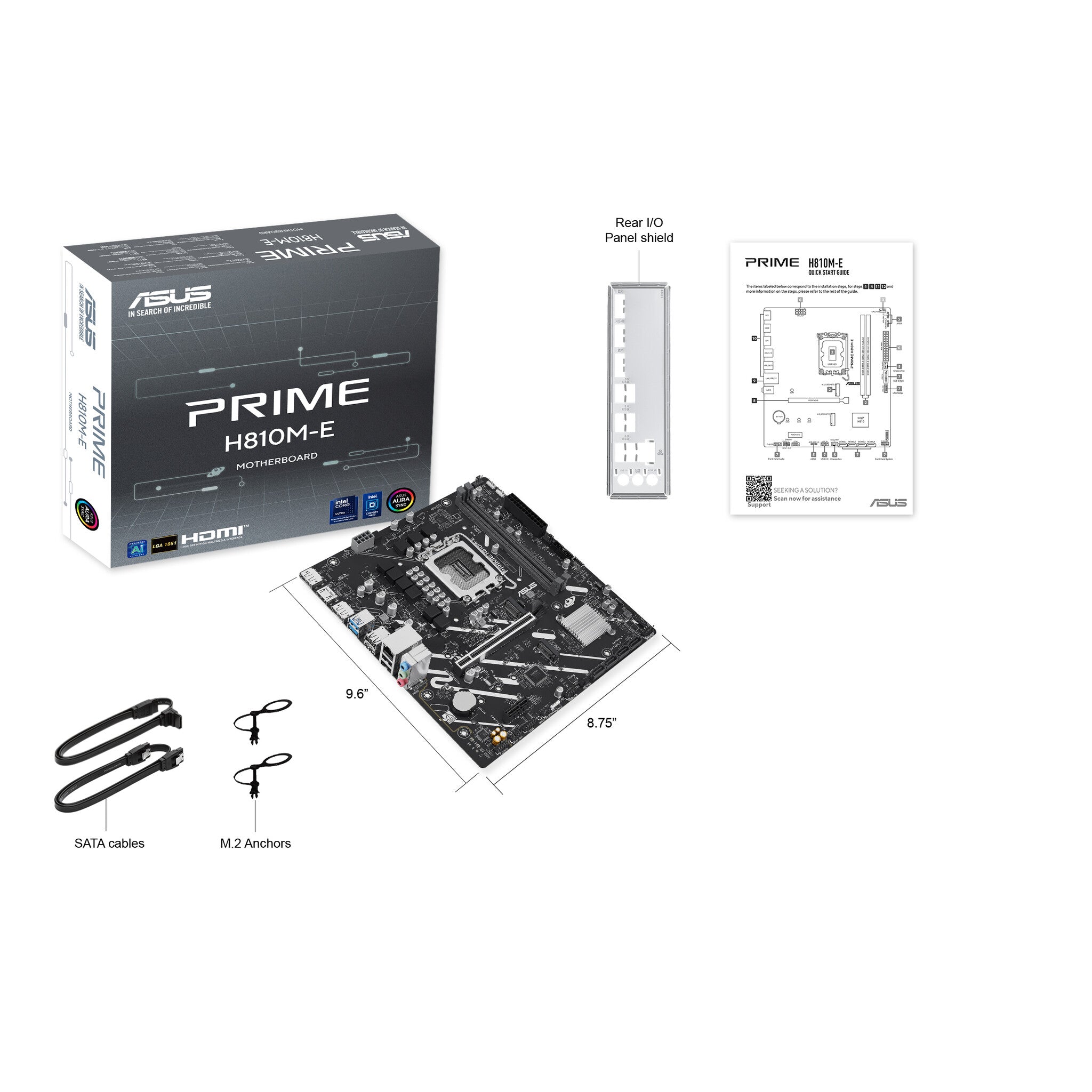

| Cables included | SATA |
