ASUS PRIME H610M-R-SI mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel H610 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 5
- BIOS type: UEFI AMI 128 Mbit
- Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME H610M-R-SI mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description

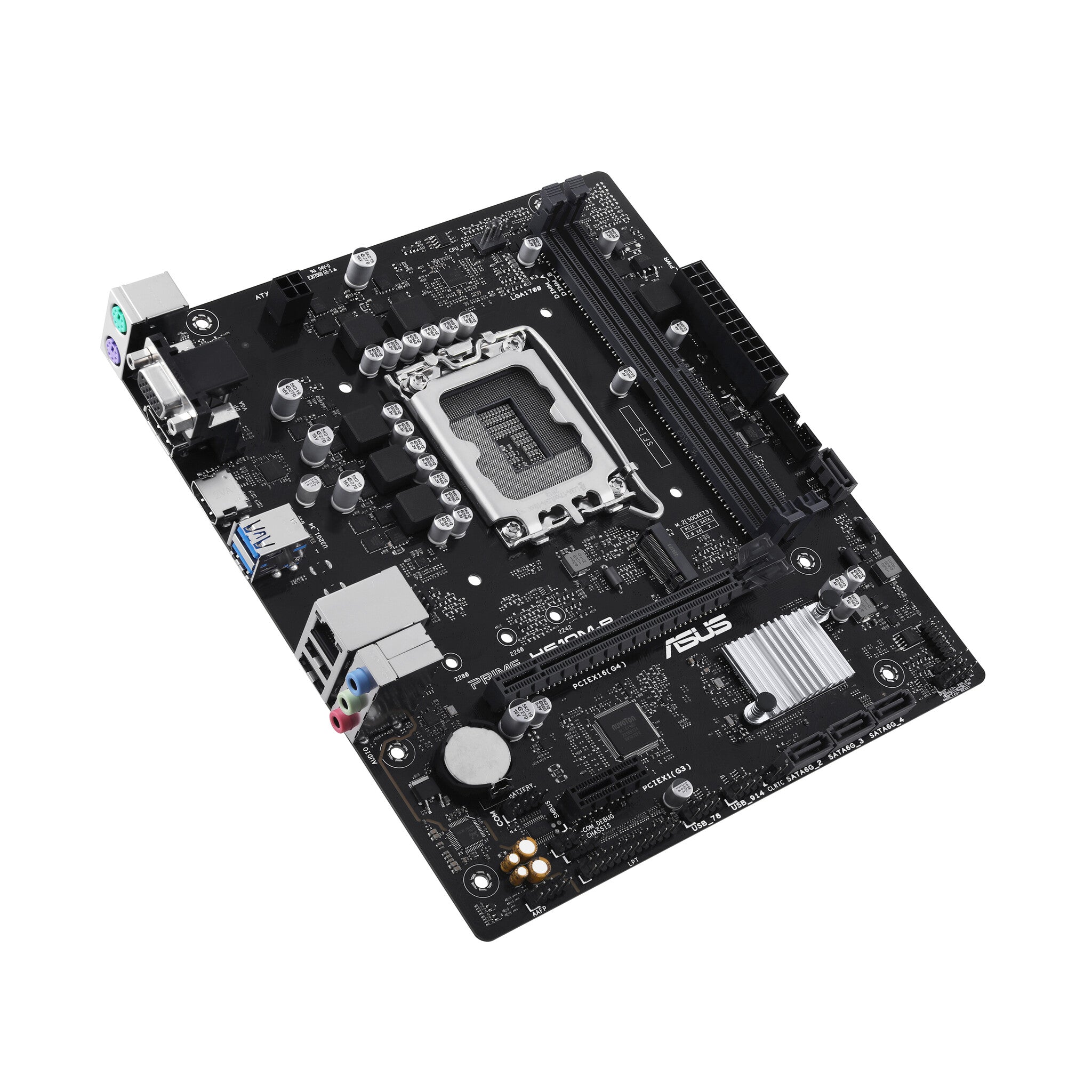

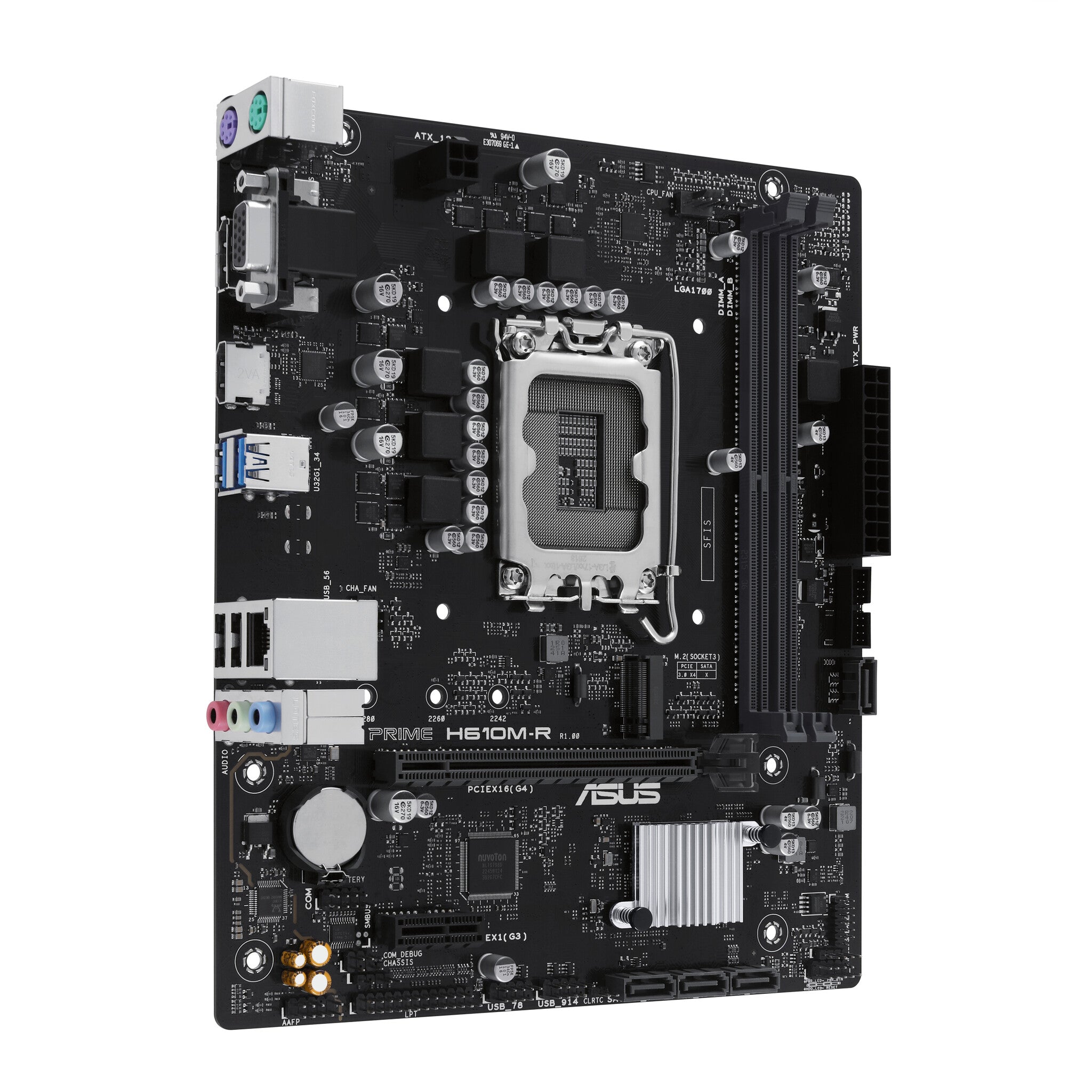

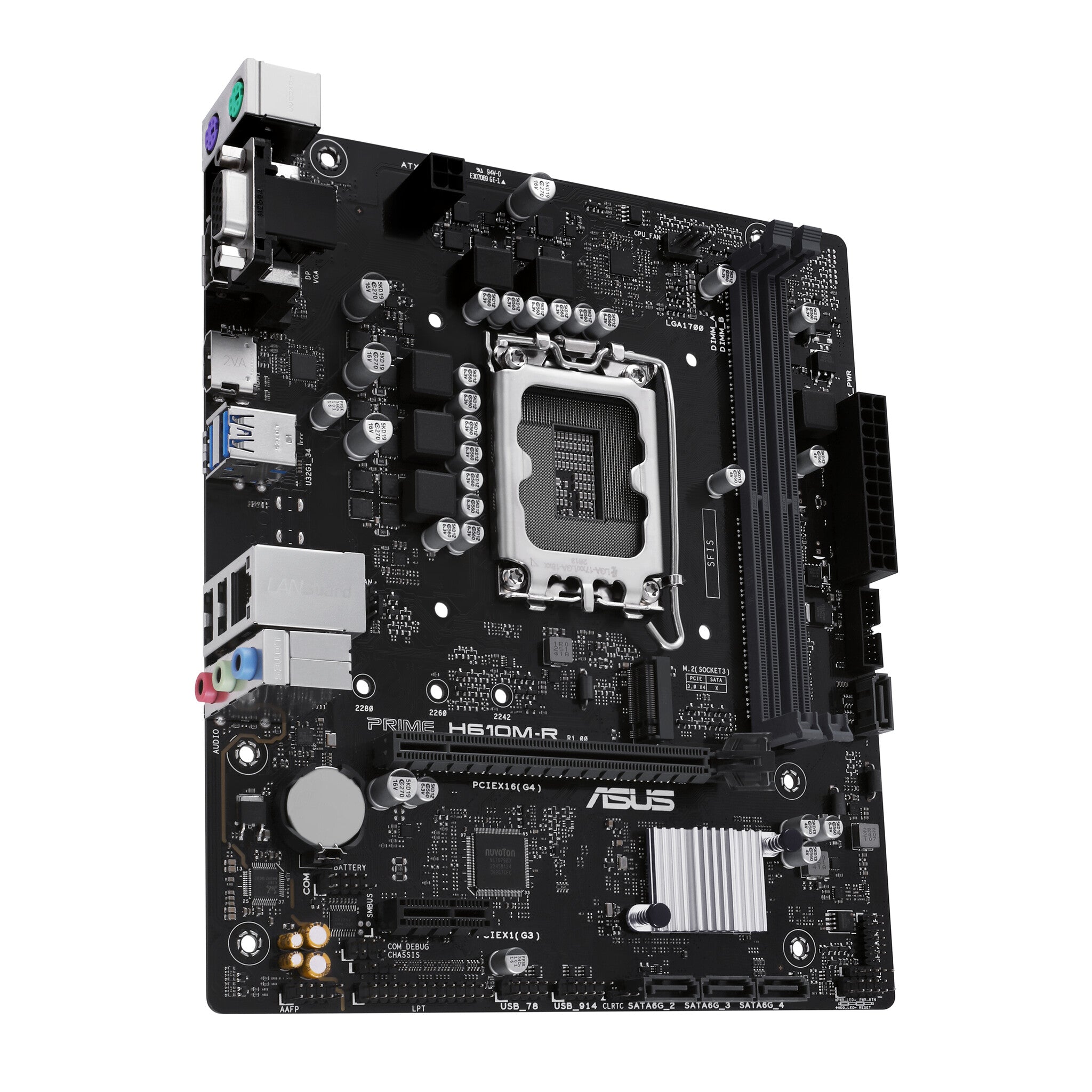

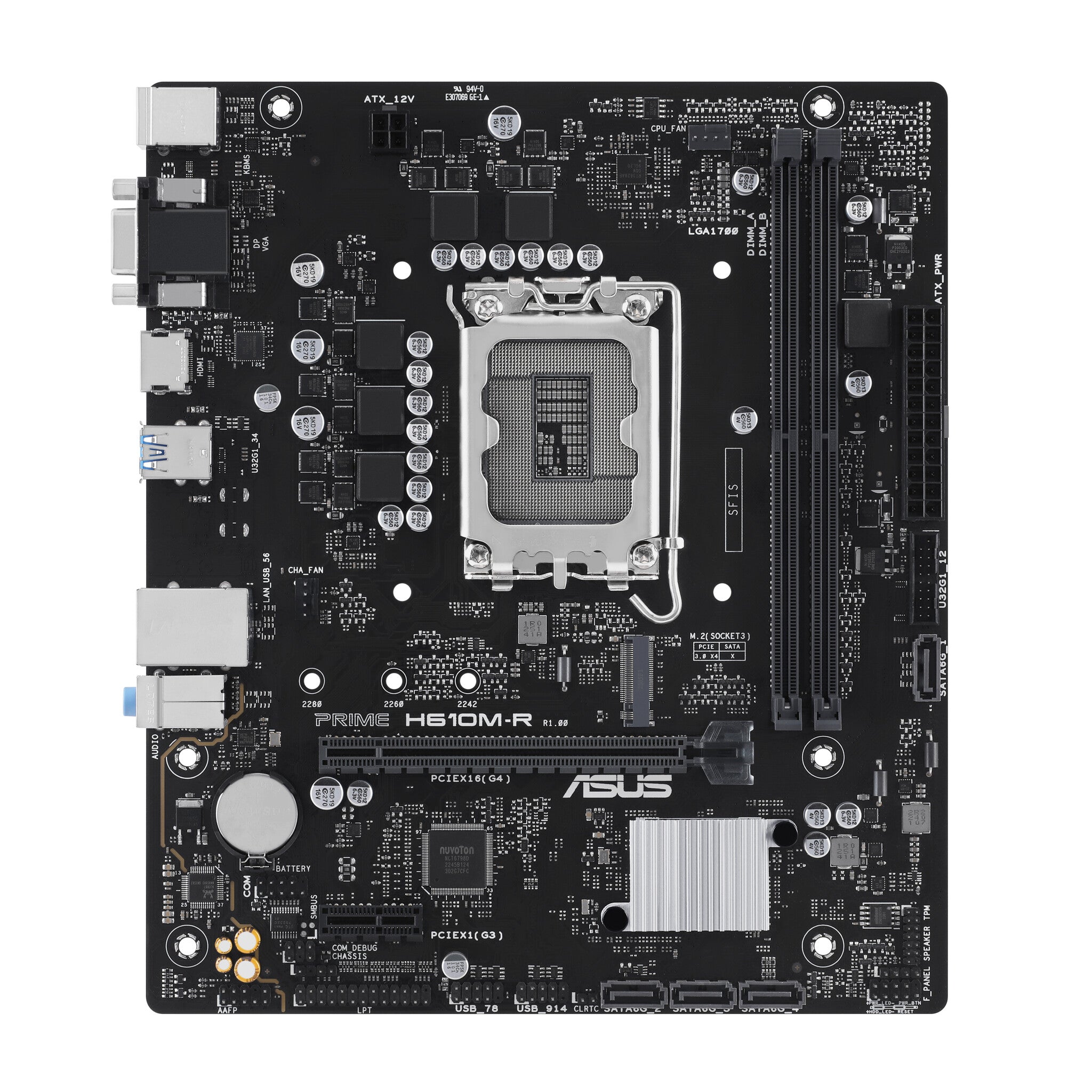

The ASUS PRIME H610M-R-SI is a micro ATX motherboard built around Intel's H610 chipset for budget-conscious builders working with LGA1700 processors. Supporting Intel processors from Celeron and Pentium Gold through to high-end Core i9 models, this board delivers essential features without unnecessary extras. The compact micro ATX design makes it suitable for smaller cases while maintaining full compatibility with modern Intel CPUs.
Memory support centres on DDR5, with two DIMM slots accommodating up to 96GB at speeds reaching 5600MHz. The board provides a single PCIe x16 slot for graphics cards plus one PCIe x1 expansion slot for additional cards. Storage connectivity includes four SATA III ports and one M.2 slot, giving you flexibility for both traditional drives and fast NVMe SSDs. Networking is handled through a standard Gigabit Ethernet port.

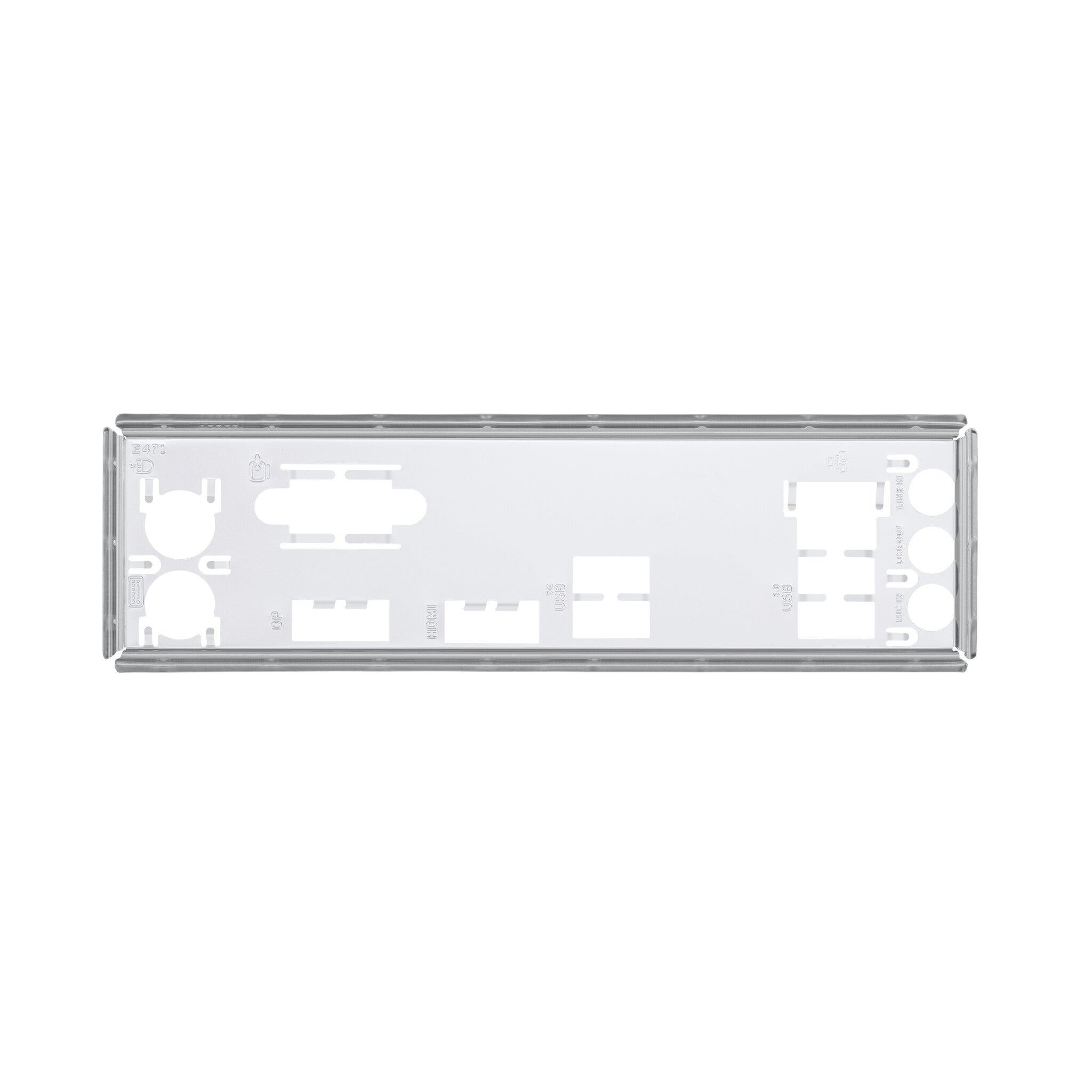

The H610 chipset positions this as an entry-level option that covers the fundamentals well. You get UEFI BIOS with straightforward setup options, and the board includes standard accessories like the I/O shield. The two-slot memory configuration keeps costs down while still allowing decent capacity expansion, and DDR5 support ensures compatibility with current memory standards even at this budget tier.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

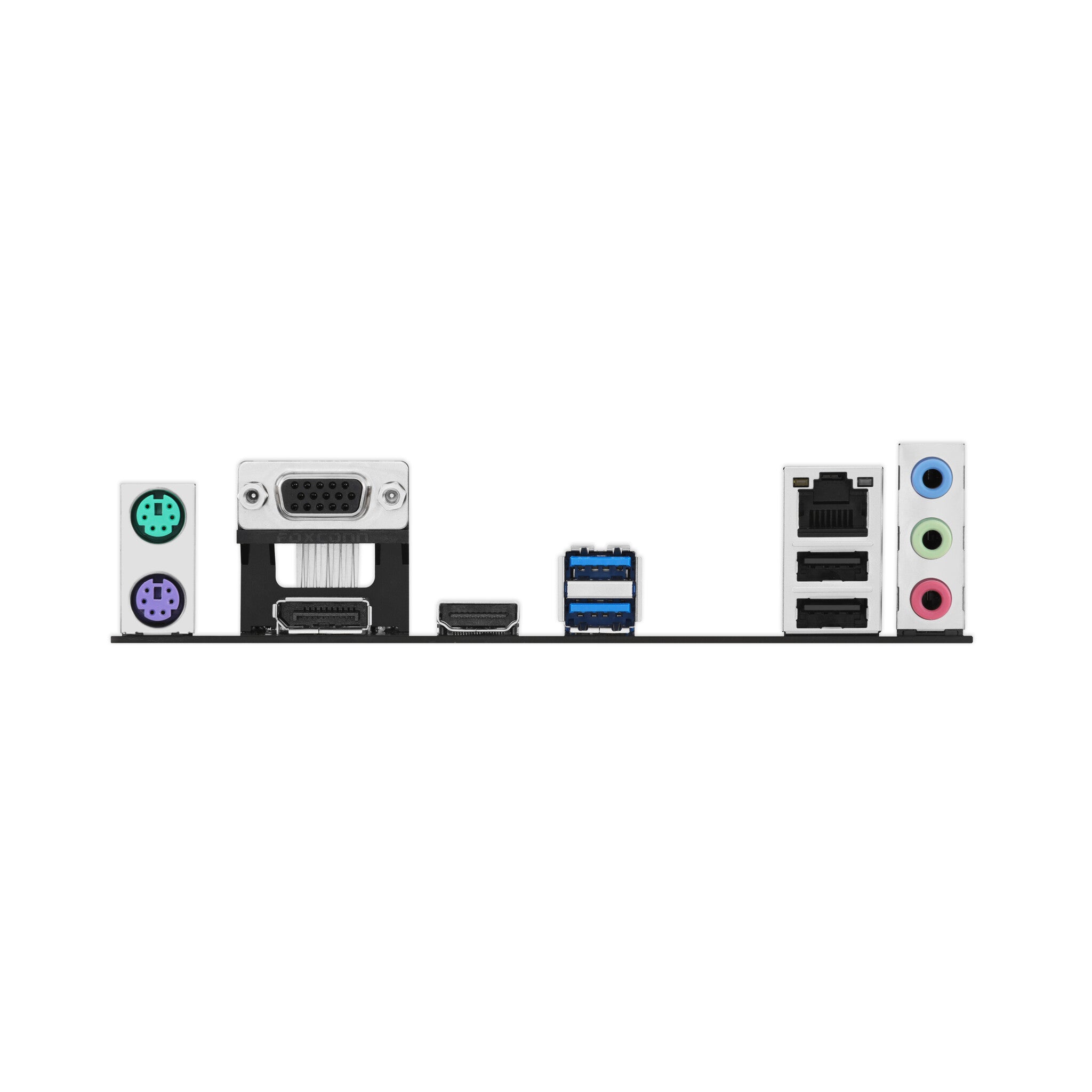

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 246 mm |
| Package depth | 223 mm |
| Package height | 50 mm |
| Package weight | 680 g |
| Weight & dimensions | |
|---|---|
| Width | 226 mm |
| Depth | 195 mm |
| Height | 36.5 mm |

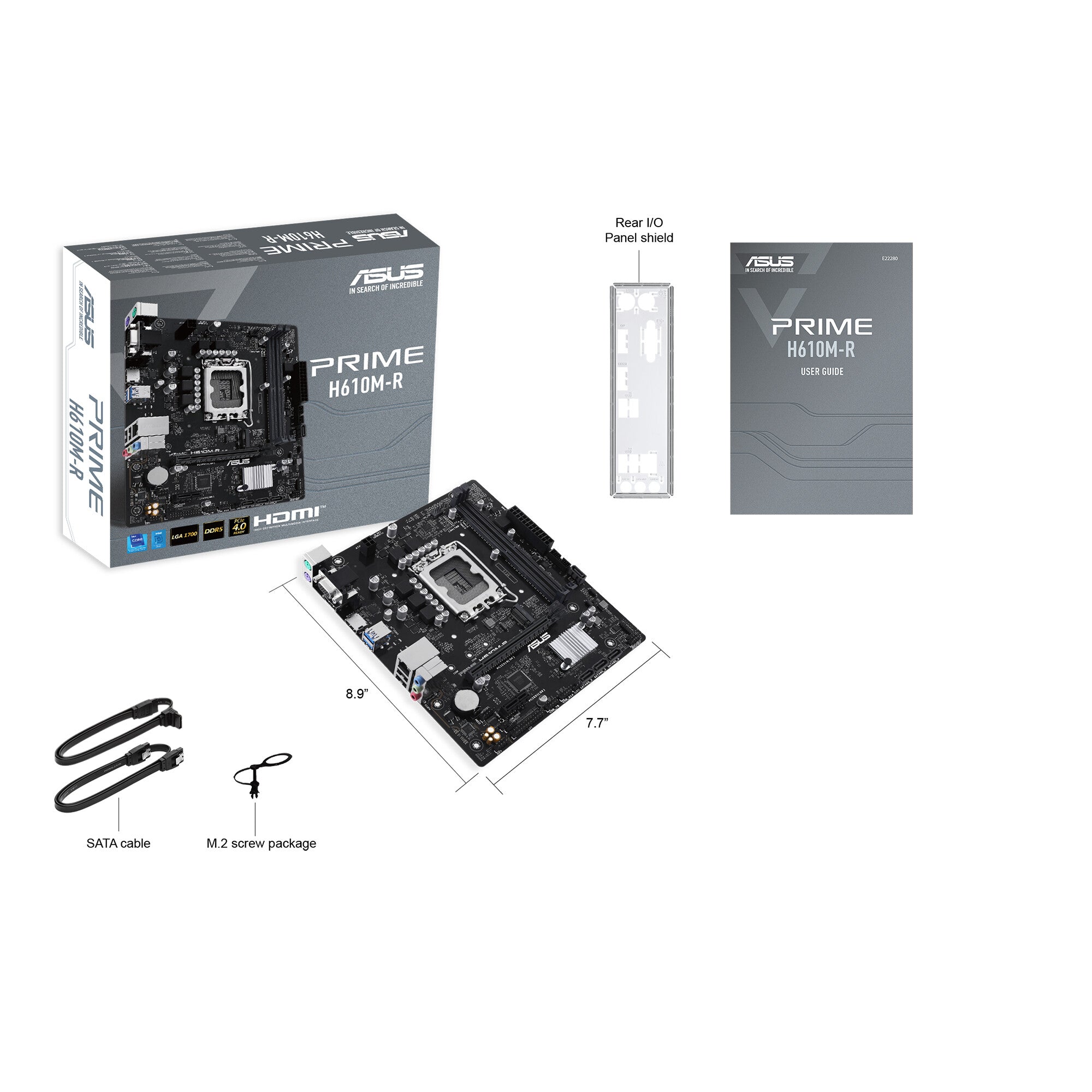

| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 437 g |
