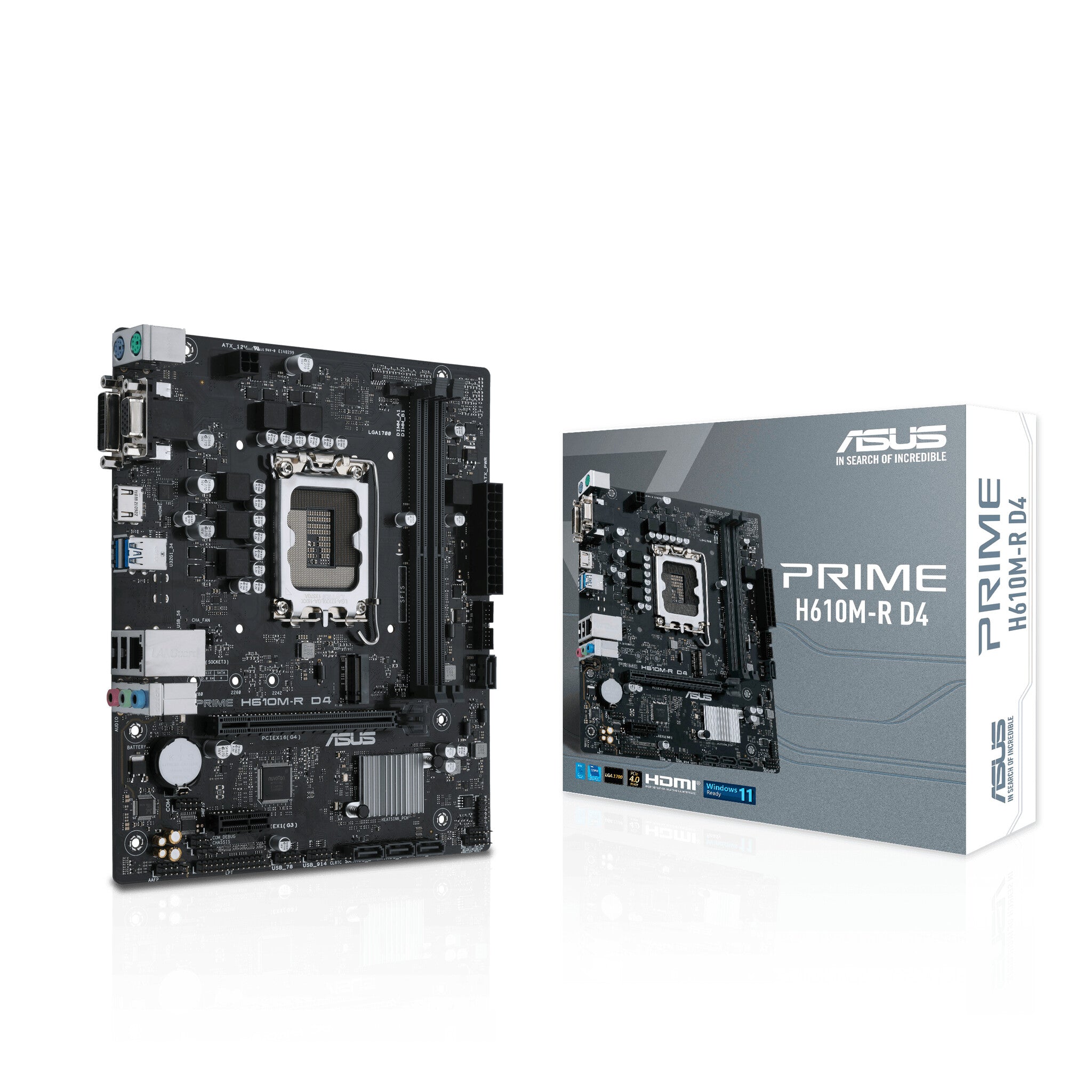

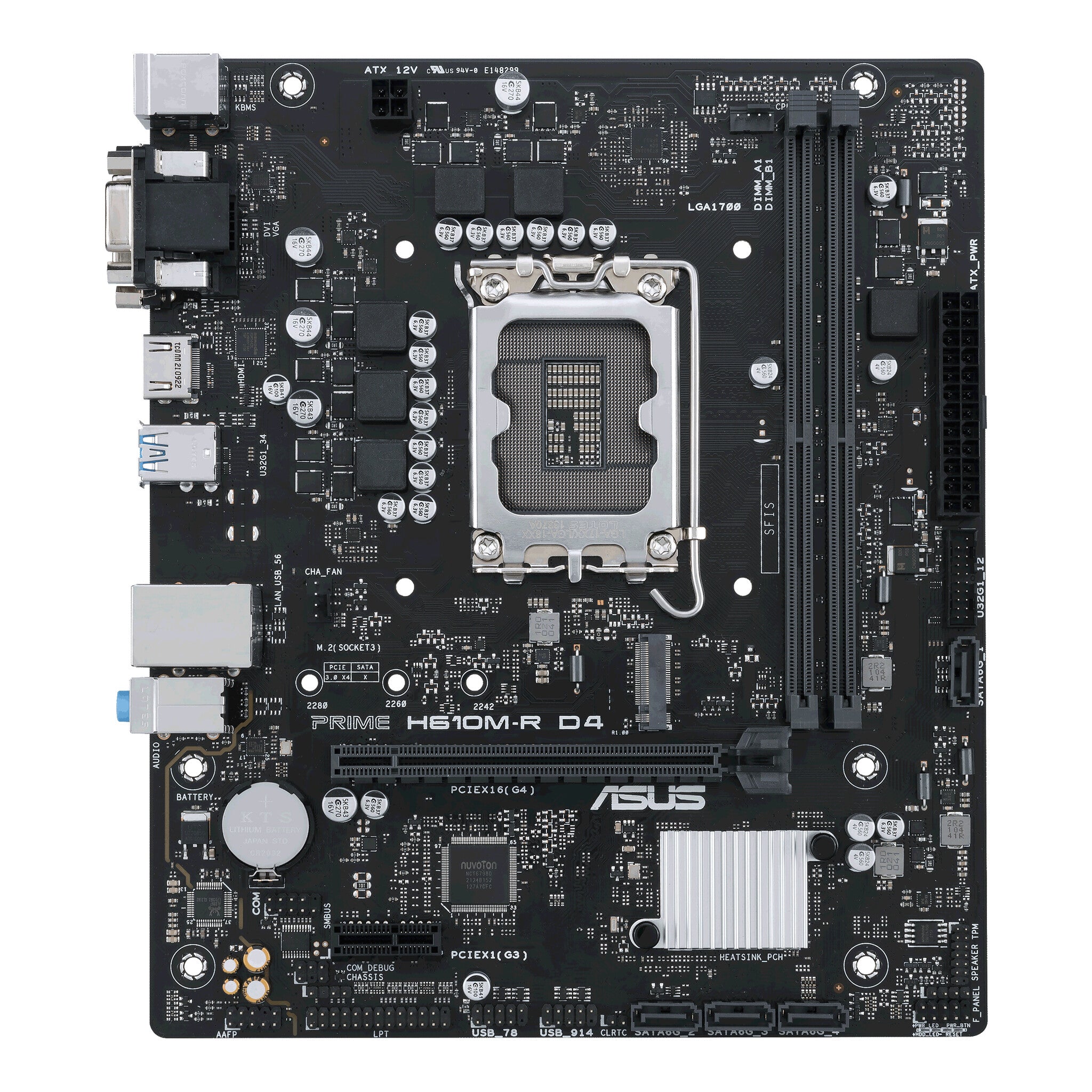

ASUS PRIME H610M-R D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME H610M-R D4?
How much memory can the ASUS PRIME H610M-R D4 support?
What type of cooling solutions does the motherboard offer?
ASUS PRIME H610M-R D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The ASUS PRIME H610M-R D4 is a micro ATX motherboard built around Intel's budget-friendly H610 chipset for LGA1700 processors. This board supports Intel's 12th, 13th, and 14th generation Core processors alongside entry-level Pentium and Celeron chips, making it an economical choice for everyday computing builds, home office systems, and budget-conscious upgrades. The H610 chipset delivers essential functionality without premium features, keeping costs down while maintaining compatibility with modern Intel processors.
Memory support centres on DDR4 with two DIMM slots accommodating up to 64GB total capacity. The board handles DDR4 speeds from 2133MHz up to 3200MHz, with higher speeds achieved through memory overclocking profiles. For expansion, you get one PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for additional cards. The micro ATX form factor fits standard mid-tower cases while leaving room for components, though the compact size means fewer expansion options compared to full ATX boards.
ASUS includes their UEFI AMI BIOS interface for system configuration and memory profile management. The board ships with the necessary mounting hardware and documentation to get your system running. This motherboard suits builders who need reliable Intel platform compatibility without advanced features like multiple GPU support or extensive overclocking capabilities. The H610 chipset's streamlined feature set makes it ideal for productivity systems, basic gaming builds with a single graphics card, or any application where cost-effectiveness matters more than extensive connectivity.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
|---|---|
| Width | 226 mm |
| Depth | 193 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 842 g |
