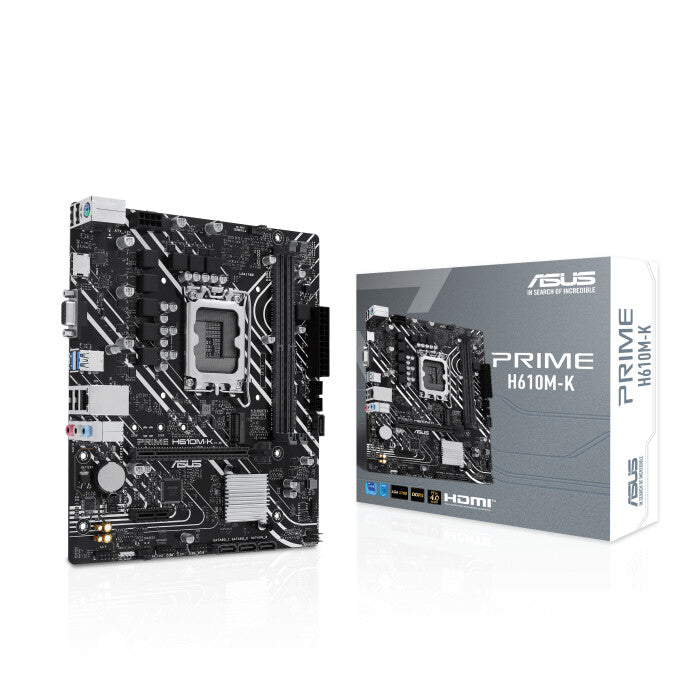

ASUS Prime H610M-K mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- 5X Protection III: Multiple hardware safeguards for all-round protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS Prime H610M-K?
How much memory can I install on this motherboard?
Does this motherboard support RGB lighting?
ASUS Prime H610M-K mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The ASUS Prime H610M-K is a micro ATX motherboard built around Intel's entry-level H610 chipset and LGA1700 socket. This budget-friendly board supports 12th and 13th generation Intel processors from Celeron to Core i9, making it a practical choice for office computers, basic gaming builds, and everyday home systems. The micro ATX form factor fits into smaller cases while still providing room for essential expansion.
Memory support includes DDR5 with speeds up to 5600MHz across two DIMM slots, supporting up to 96GB total capacity. The board features one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for additional expansion cards. For storage, there's an M.2 slot alongside traditional SATA connections. Connectivity includes Realtek Gigabit Ethernet, USB 3.2 Gen 1 ports, and display outputs through both HDMI and VGA ports for integrated graphics users.
The H610M-K includes an RGB LED header for basic lighting customization and a COM header for legacy peripherals. ASUS includes the essential accessories in the box: I/O shield, SATA cables, and user documentation. The board supports Intel's memory overclocking profiles to help DDR5 modules reach their rated speeds easily. While the H610 chipset limits some advanced features found on higher-tier boards, it delivers reliable performance for straightforward builds focused on value and compatibility.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 820 g |
| Weight & dimensions | |
|---|---|
| Width | 234 mm |
| Depth | 203 mm |
| Height | 36.5 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 470 g |
