ASUS PRIME H610M-K D4 ARGB mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 5Gbps support
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME H610M-K D4 ARGB mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description

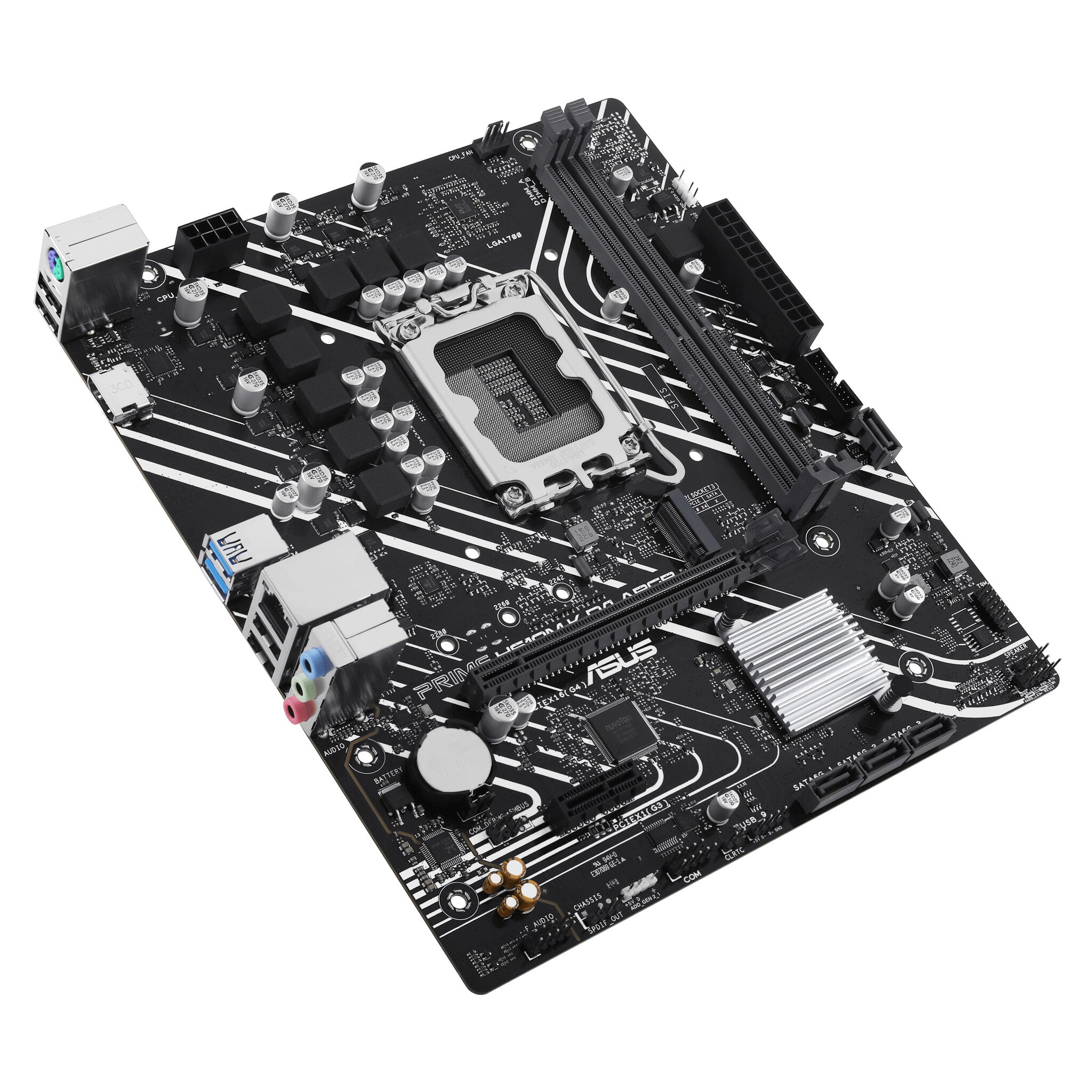

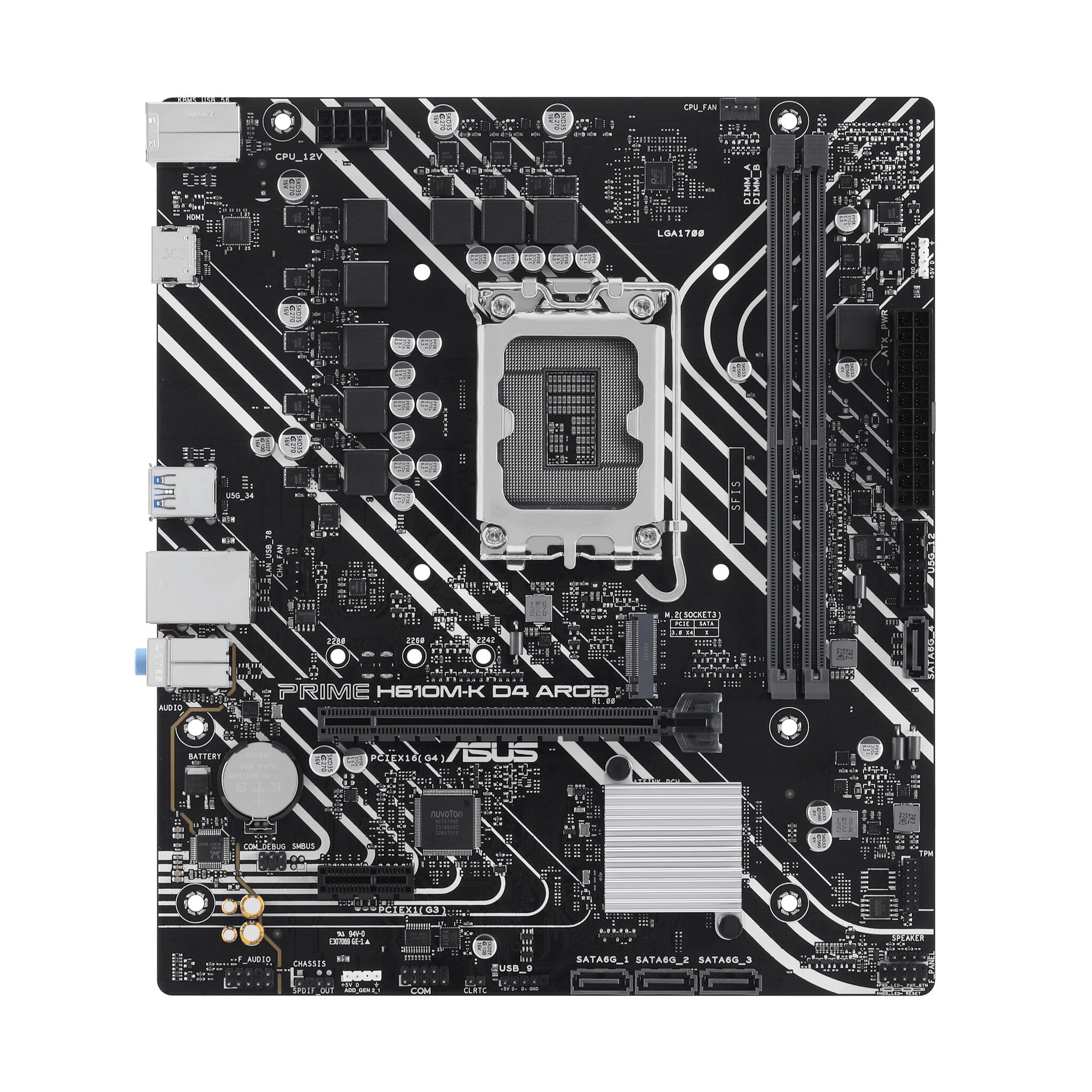

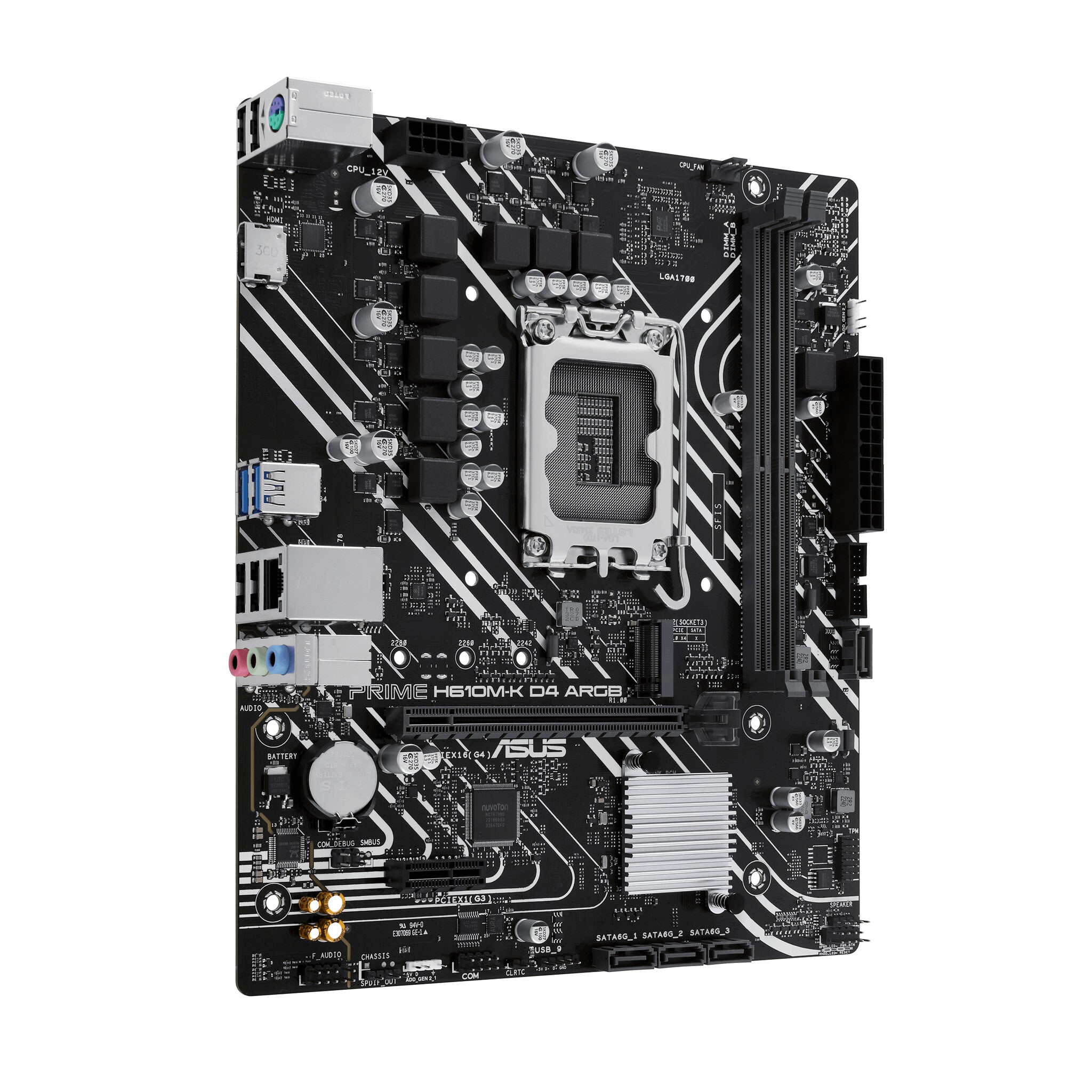

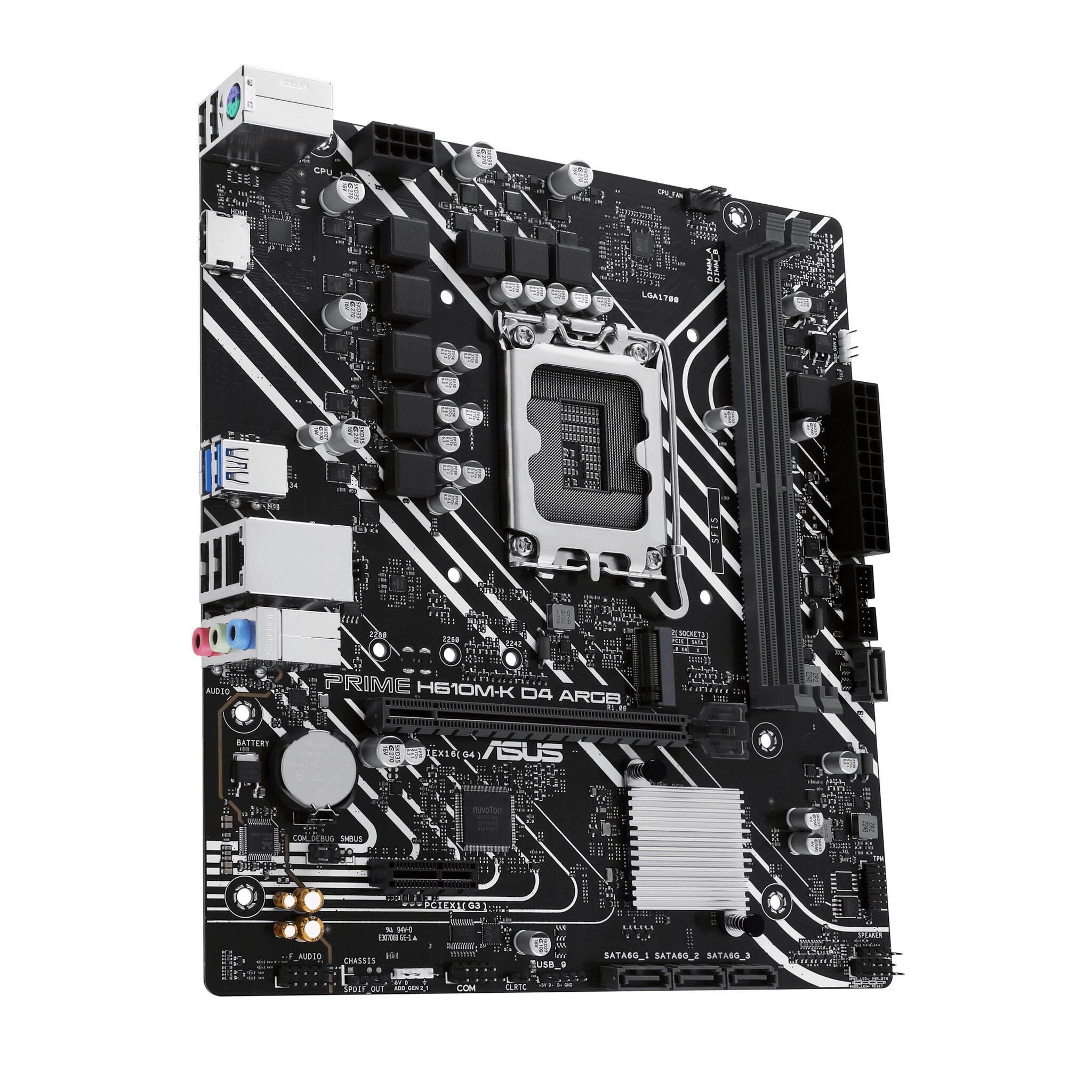

The ASUS PRIME H610M-K D4 ARGB is a micro ATX motherboard built around Intel's budget-focused H610 chipset for LGA1700 processors. This board delivers solid fundamentals for mainstream builds, supporting everything from Intel Celeron and Pentium Gold processors up to Core i9 chips. The compact micro ATX form factor makes it suitable for smaller cases while still providing room for essential components and expansion.
Memory support covers DDR4 up to 3200MHz across two DIMM slots, with a maximum capacity of 64GB - more than enough for most users. The board includes two PCIe x16 slots running at PCIe 4.0 speeds, plus a PCIe x1 slot for additional expansion cards. Connectivity covers the essentials with Realtek 1Gb Ethernet, multiple USB ports including USB 5Gbps, HDMI output for integrated graphics, and SATA 6Gbps ports for storage drives.

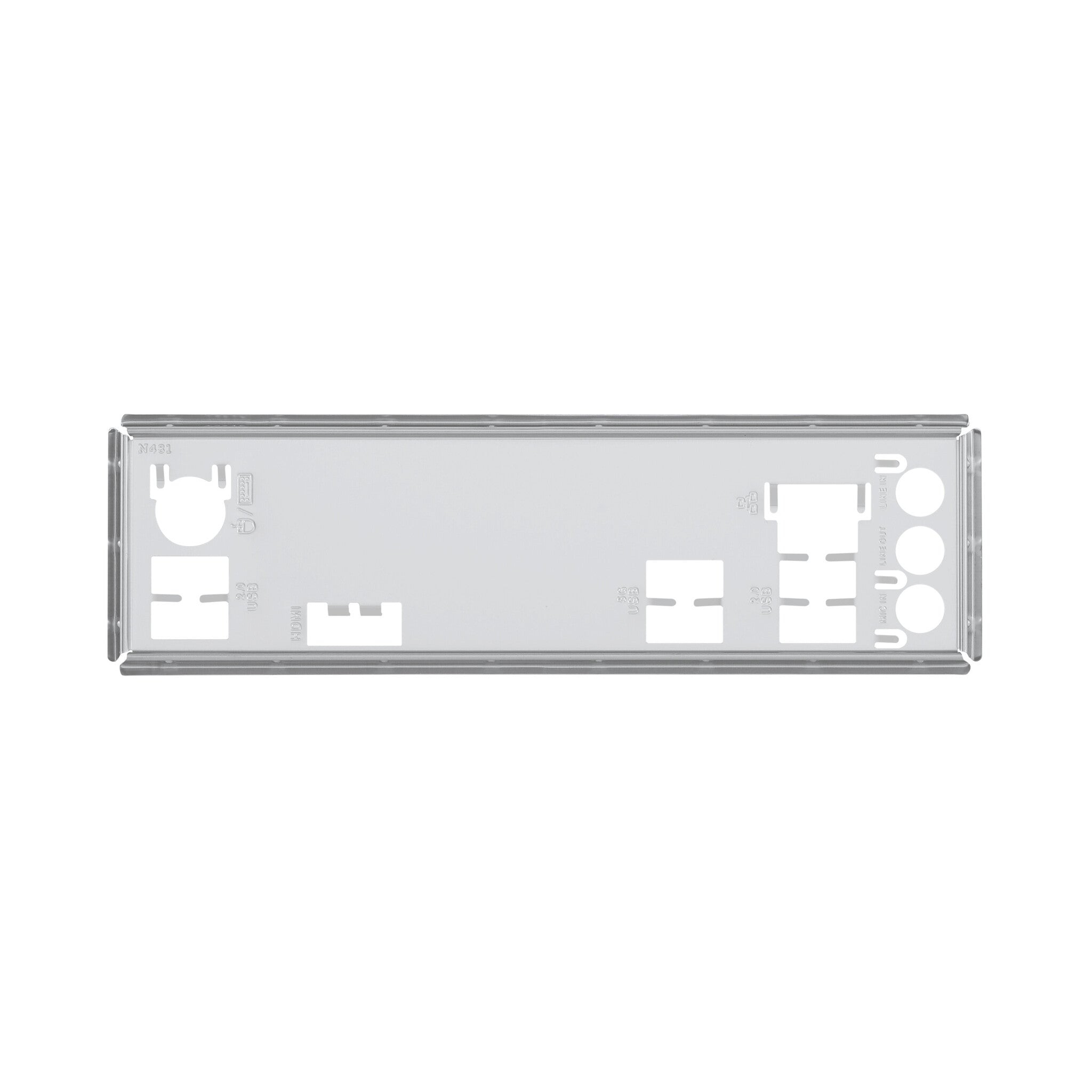

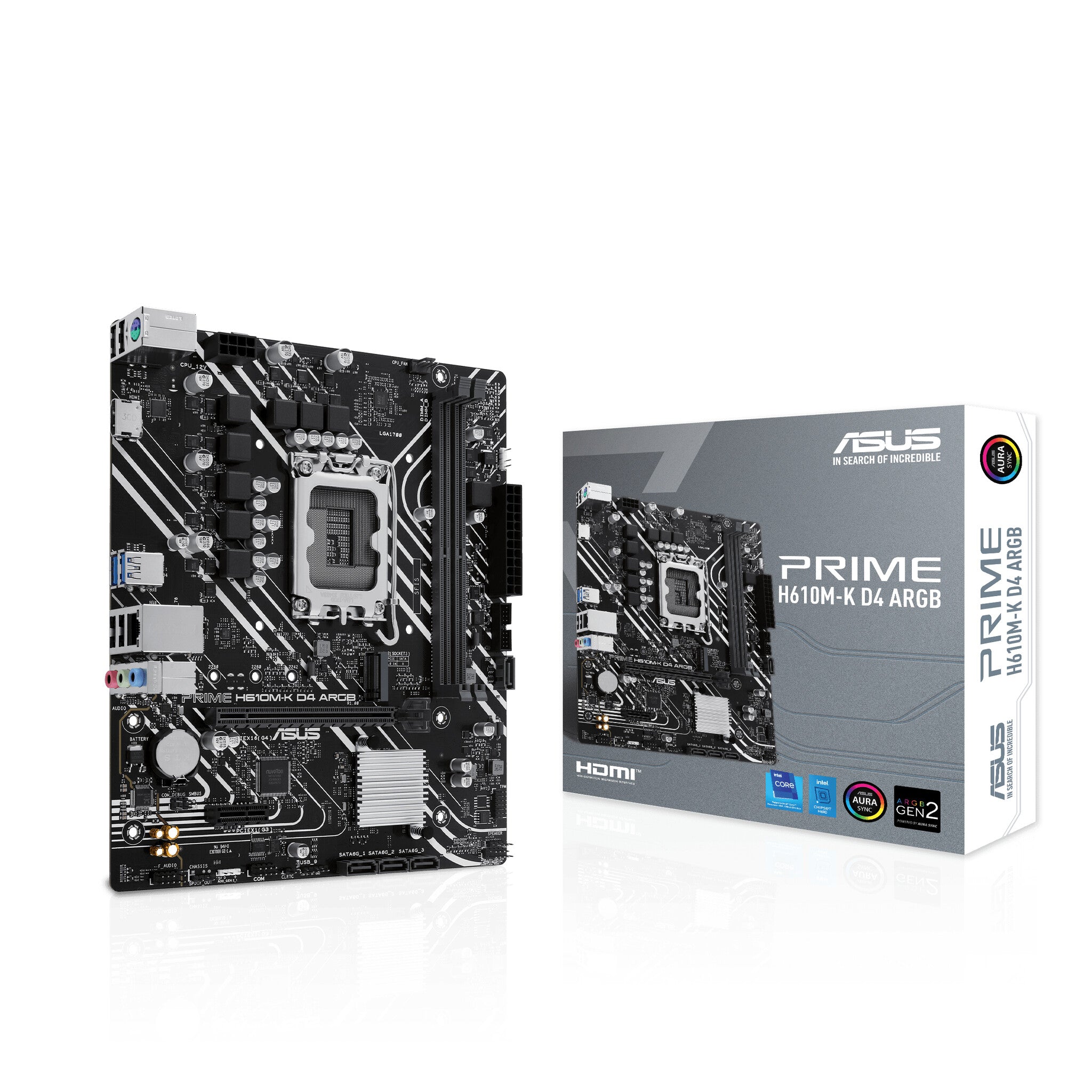

ASUS includes practical features like Two-Way AI Noise Cancelation for cleaner audio and Aura Sync RGB lighting support to coordinate with other compatible components. The board supports memory overclocking profiles to help DDR4 modules reach their rated speeds beyond JEDEC standards. In the box, you'll find the motherboard, I/O shield, SATA cables, and installation hardware needed to get your build up and running.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3200,3000,2933,2800,2666,2400,2133 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

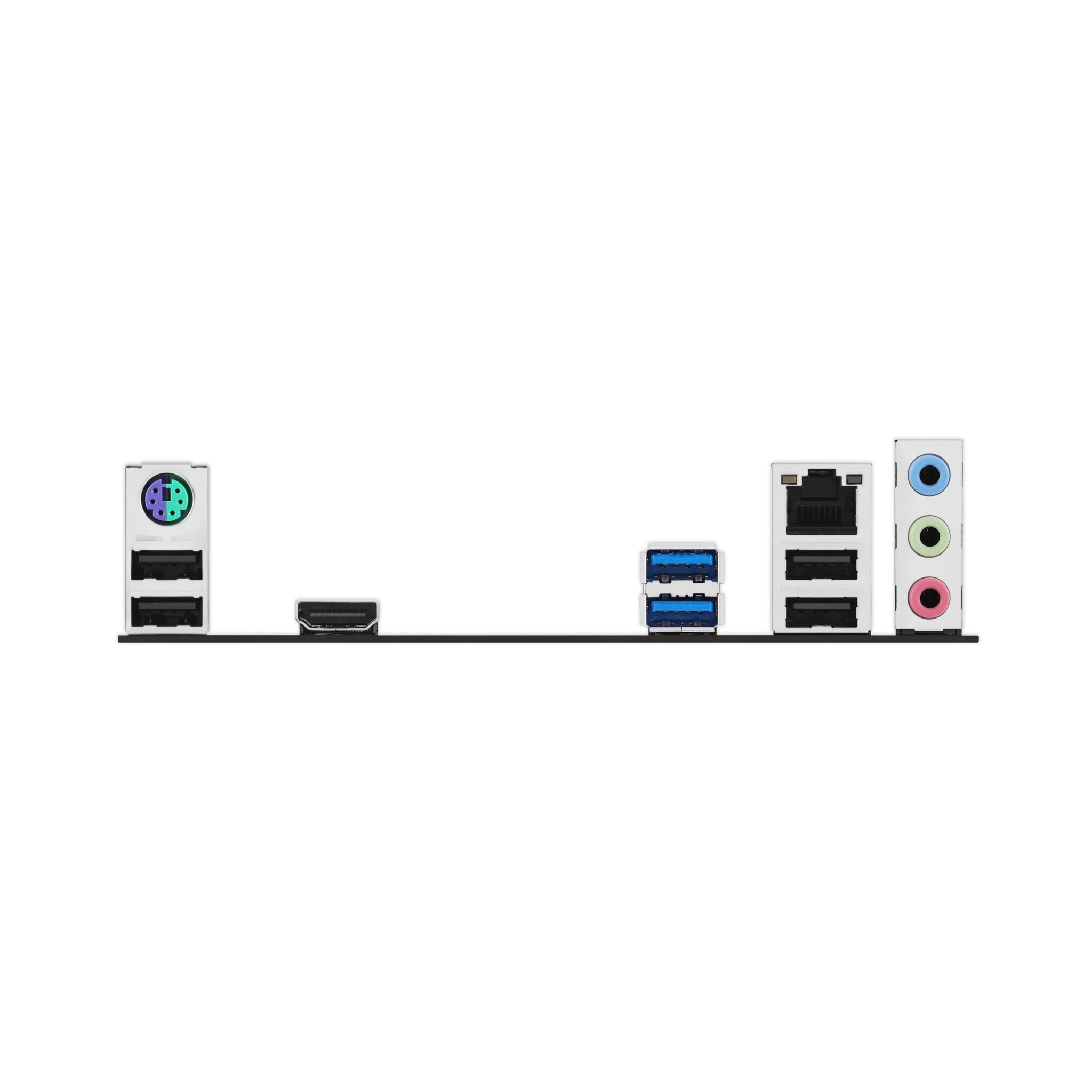

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 800 g |
| Weight & dimensions | |
|---|---|
| Width | 234 mm |
| Depth | 203 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
