ASUS PRIME H610M-E D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Comprehensive cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS Control Center Express (ACCE) for easier IT endpoint management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
What is the form factor of this motherboard?
Does this motherboard support overclocking?
ASUS PRIME H610M-E D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description

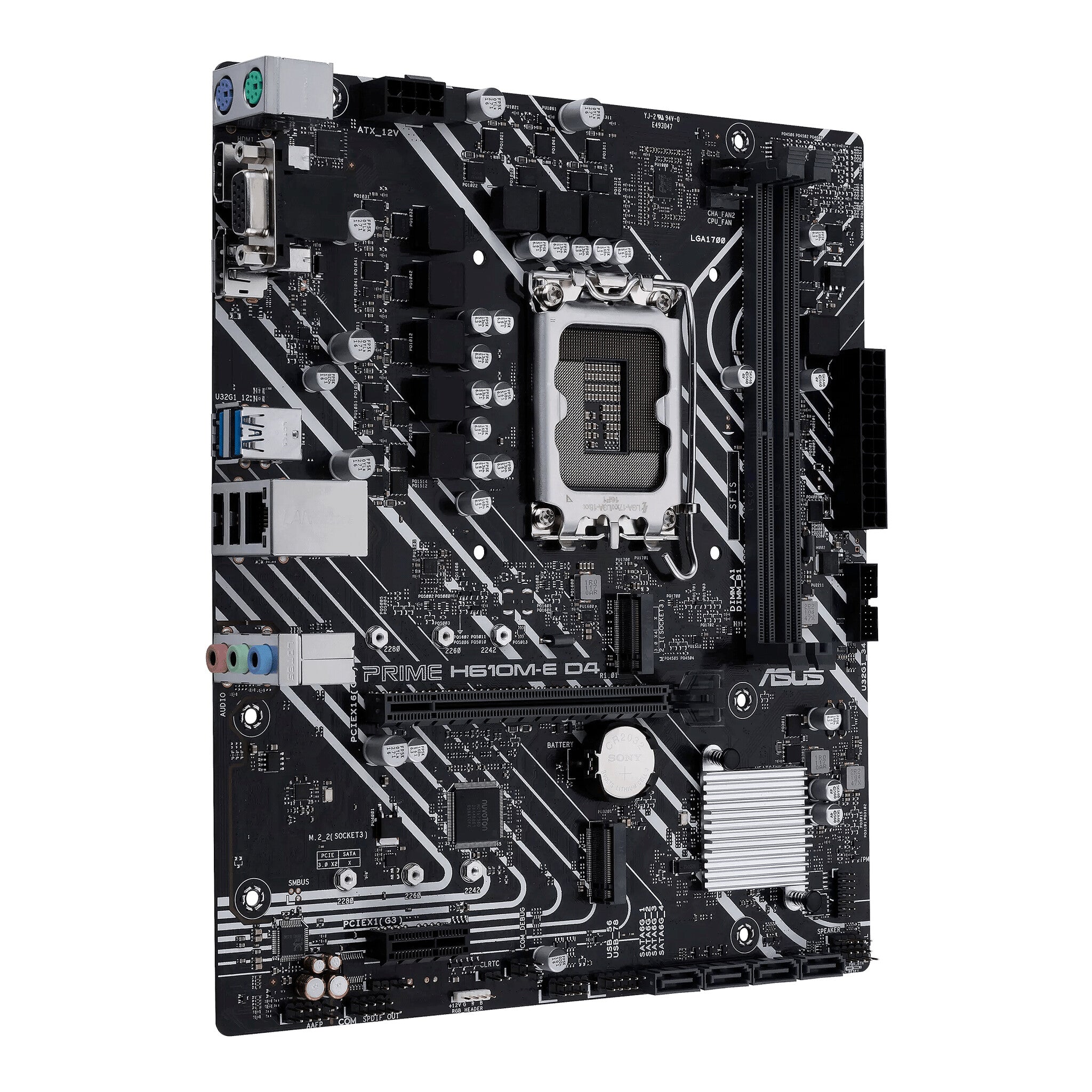

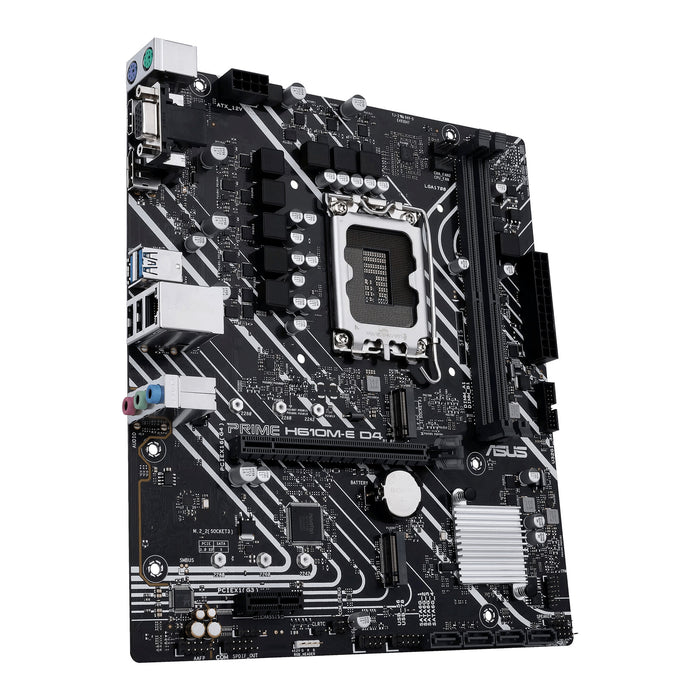

The ASUS PRIME H610M-E D4-CSM is a budget-friendly micro ATX motherboard built around Intel's H610 chipset and LGA1700 socket. This entry-level platform supports 12th and 13th generation Intel processors from Celeron and Pentium up to Core i9, making it a cost-effective foundation for basic office systems, light gaming builds, or everyday computing needs. The compact mATX form factor fits most standard cases while keeping costs down for builders who don't need premium features.
Memory support covers DDR4 with two DIMM slots accommodating up to 64GB total capacity, with speeds from standard 2133MHz up to 3200MHz. The single PCIe 4.0 x16 slot handles modern graphics cards for budget gaming, while one PCIe 3.0 x1 slot provides room for expansion cards. Display connectivity comes built-in with VGA, HDMI, and DisplayPort outputs for integrated graphics setups. USB 3.2 ports handle fast data transfers, and gigabit Ethernet provides reliable network connectivity.
This CSM (Corporate Stable Model) variant offers extended availability and validation for business environments that need consistent hardware over time. The board includes essential connectivity without unnecessary extras, keeping the focus on reliable operation rather than enthusiast features. ASUS includes an I/O shield and user documentation in the box, along with the basic hardware needed to get your system running.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 211 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Drivers included | Yes |
