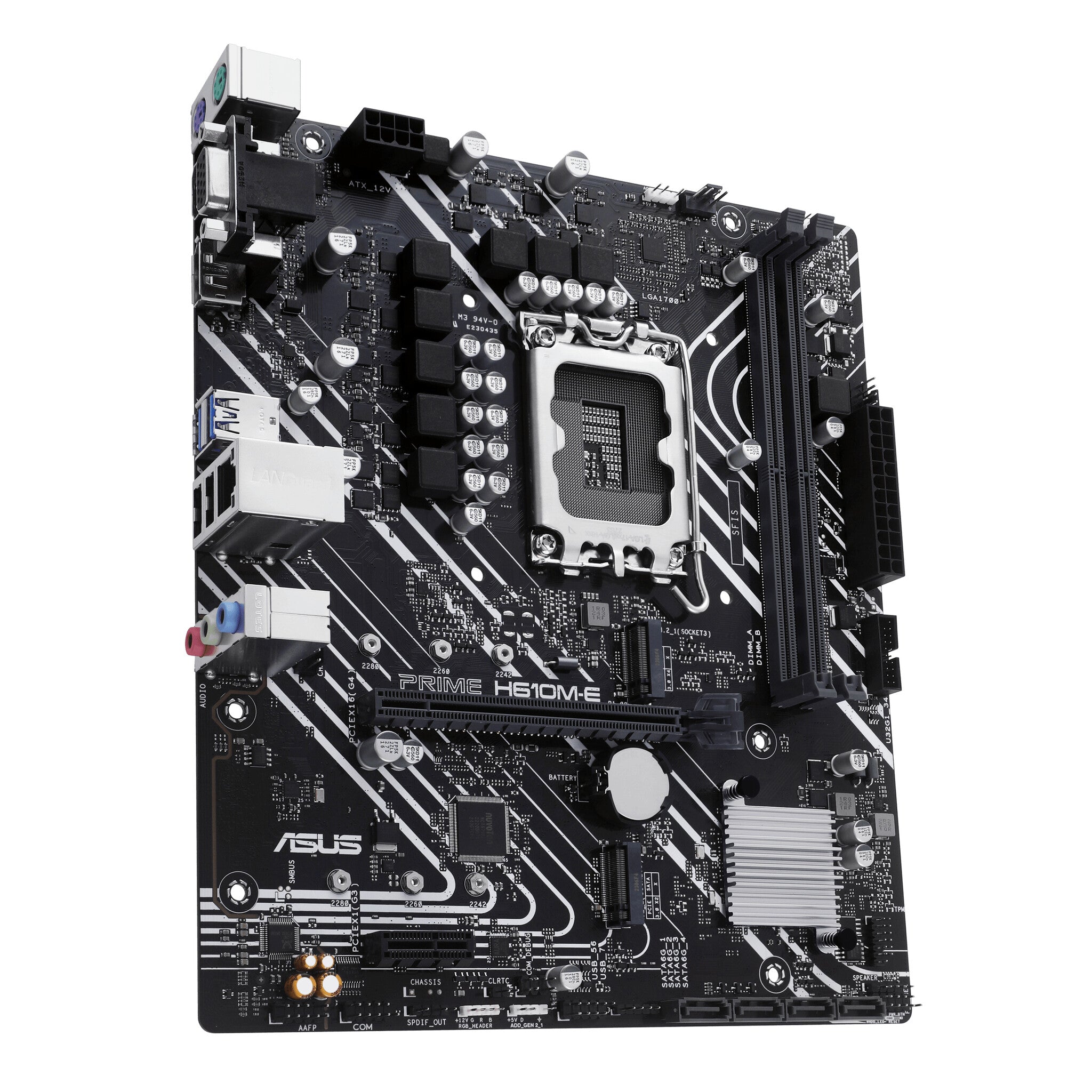

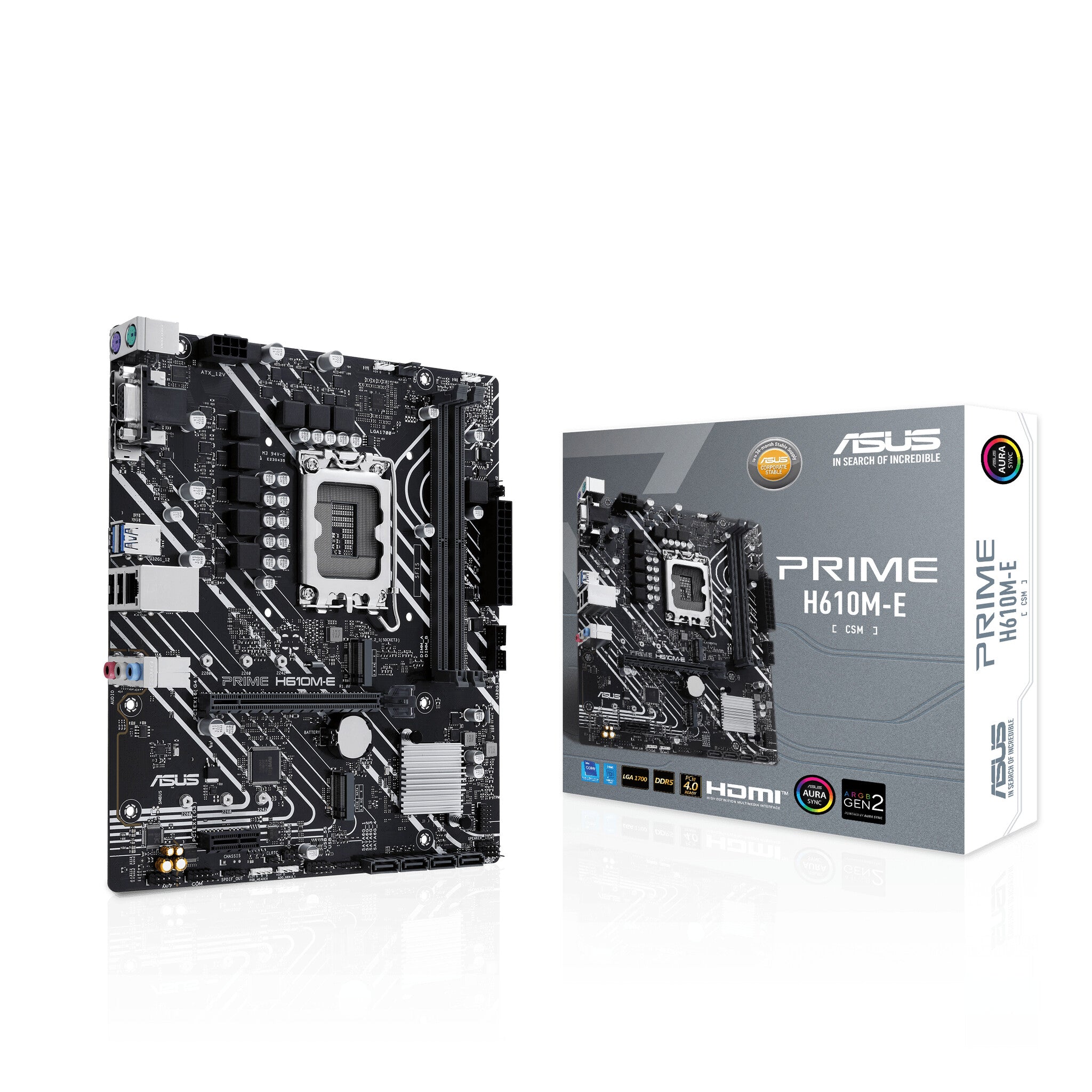

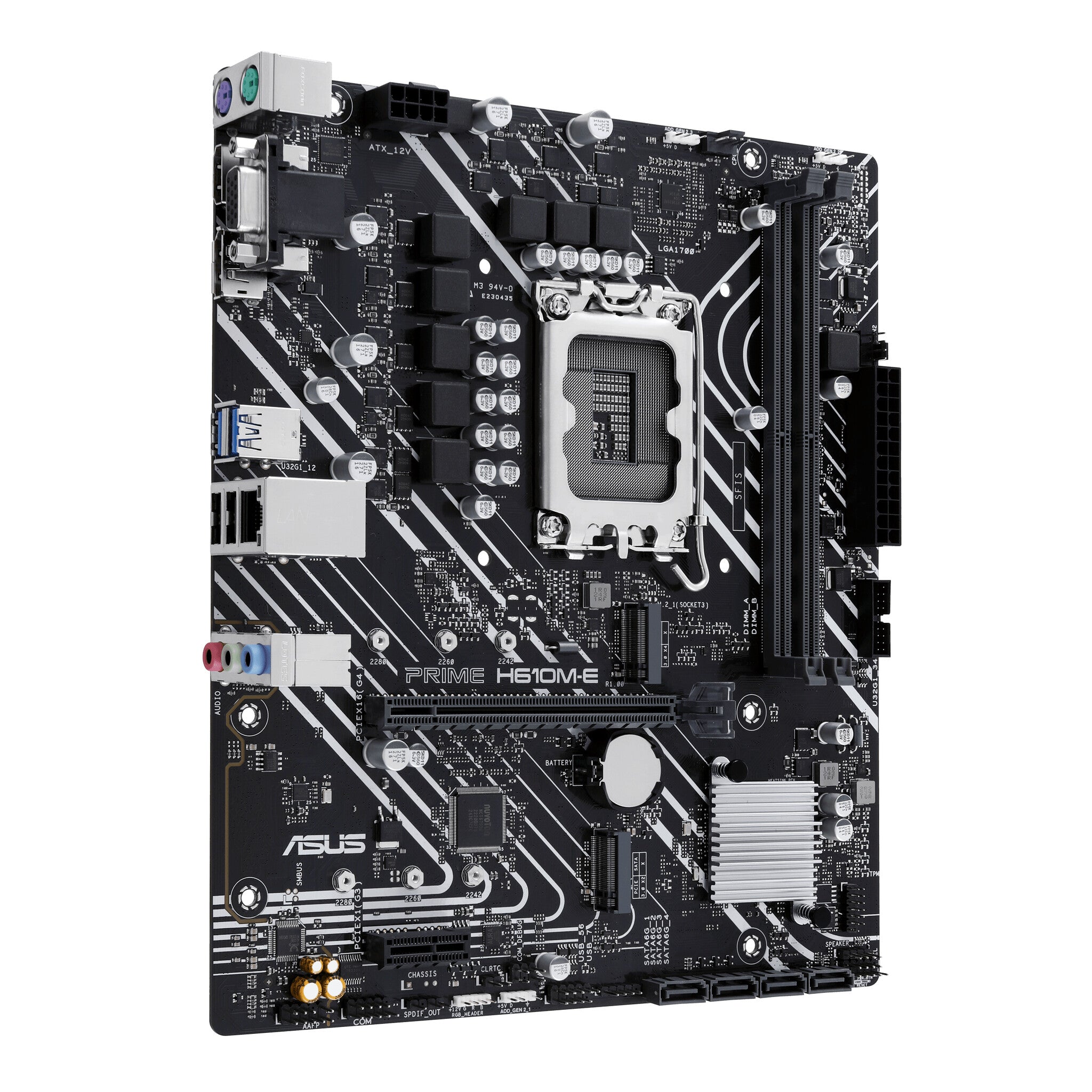

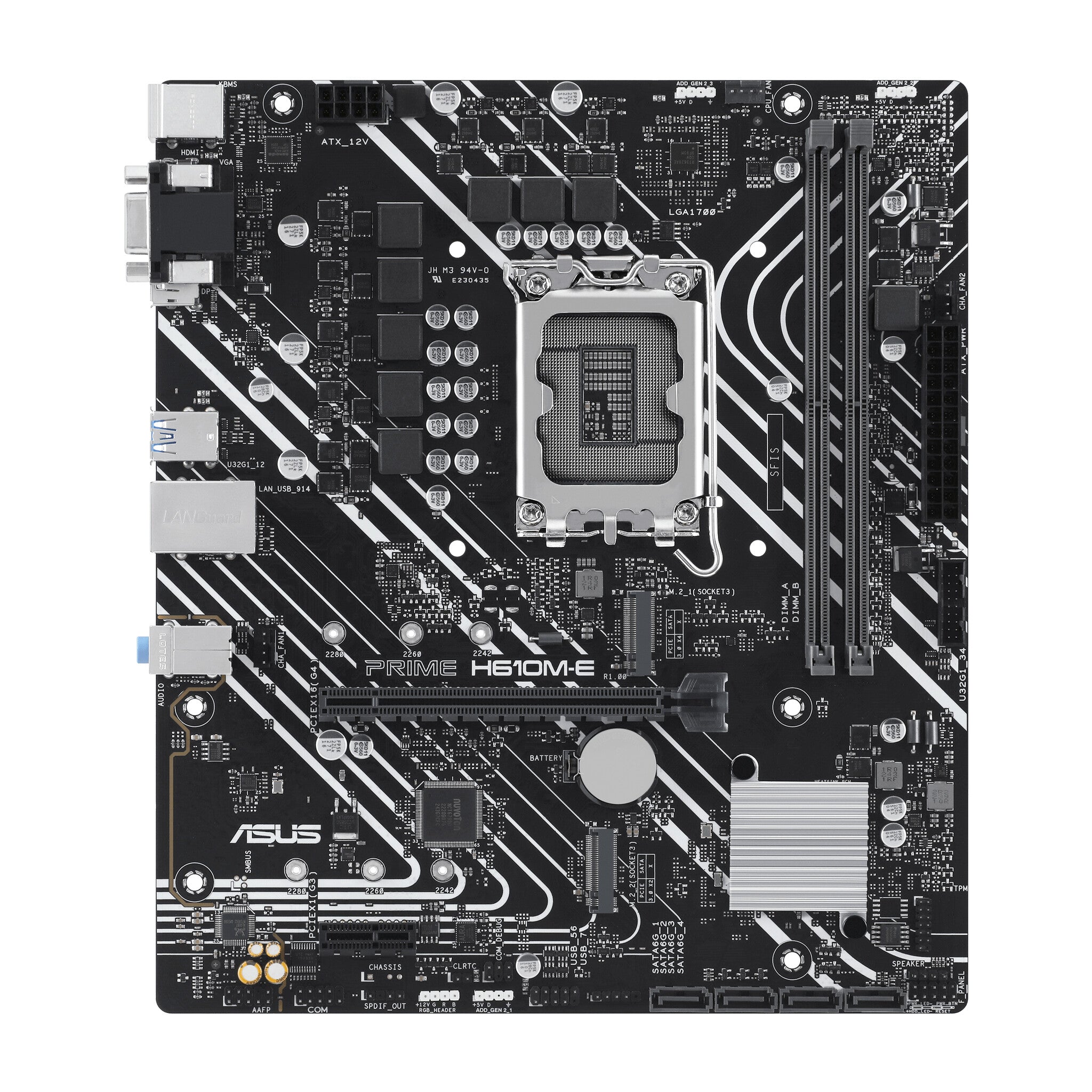

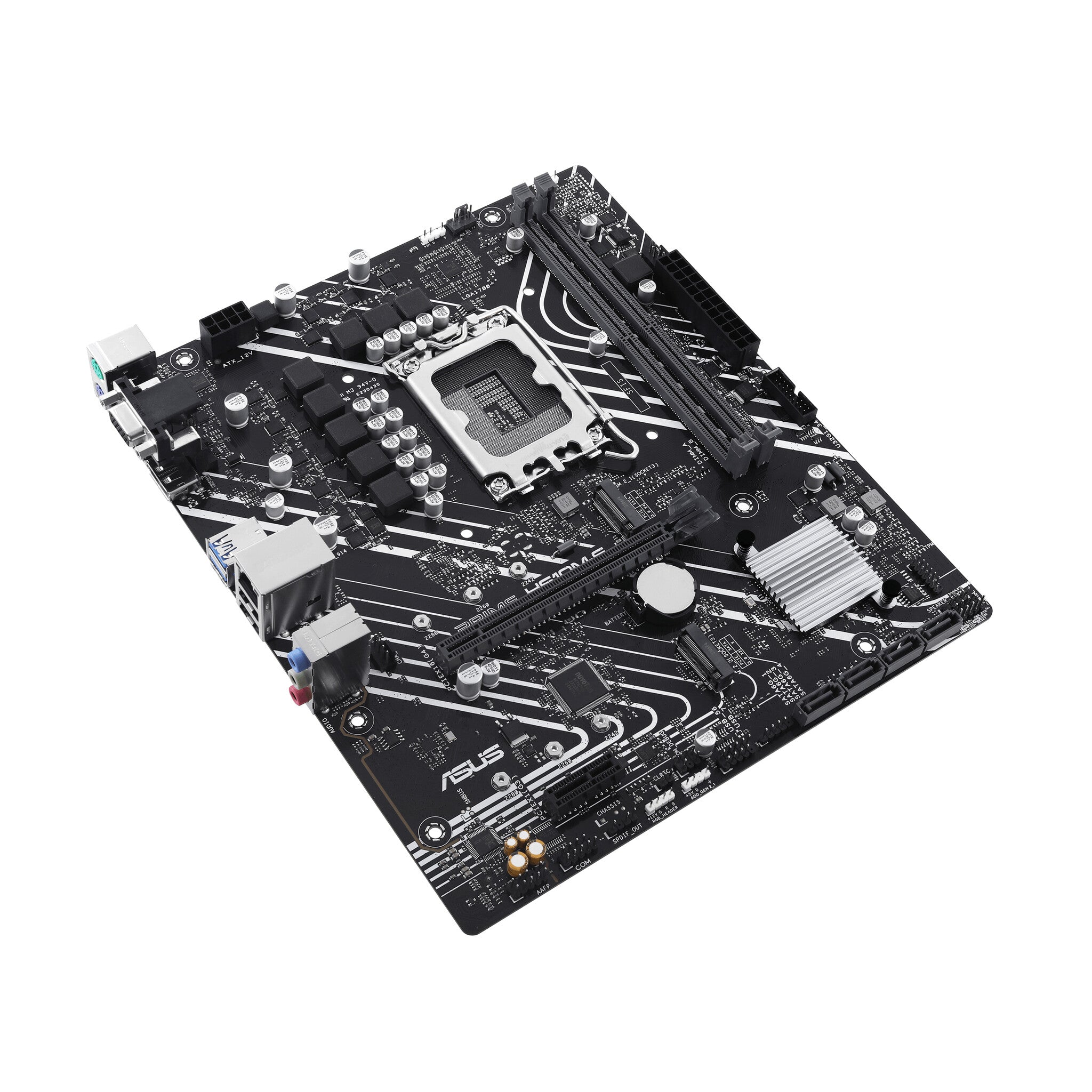

ASUS PRIME H610M-E-CSM mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME H610M-E-CSM?
How many memory slots does the ASUS PRIME H610M-E-CSM have?
What cooling solutions are included with this motherboard?
ASUS PRIME H610M-E-CSM mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The ASUS PRIME H610M-E-CSM brings Intel's H610 chipset to a compact mATX form factor, making it an excellent entry point for budget-conscious builders working with 12th, 13th, or 14th-generation Intel processors. This board covers the essentials without unnecessary complexity, supporting everything from Celeron and Pentium chips up to Core i9 processors through the LGA1700 socket. Its straightforward design focuses on reliability and compatibility rather than premium features, making it particularly suitable for office builds, home systems, or first-time PC projects where cost control matters most.
Memory support centers on DDR5 technology with two DIMM slots accommodating up to 96GB total capacity. The board handles DDR5 speeds up to 5600MHz, giving you access to modern memory performance even at this budget tier. For expansion, you get one PCIe 4.0 x16 slot for your graphics card plus a PCIe 3.0 x1 slot for additional peripherals. The inclusion of both M.2 storage support and a COM header shows ASUS hasn't forgotten about practical connectivity needs, whether you're building a standard home computer or a specialized business system.

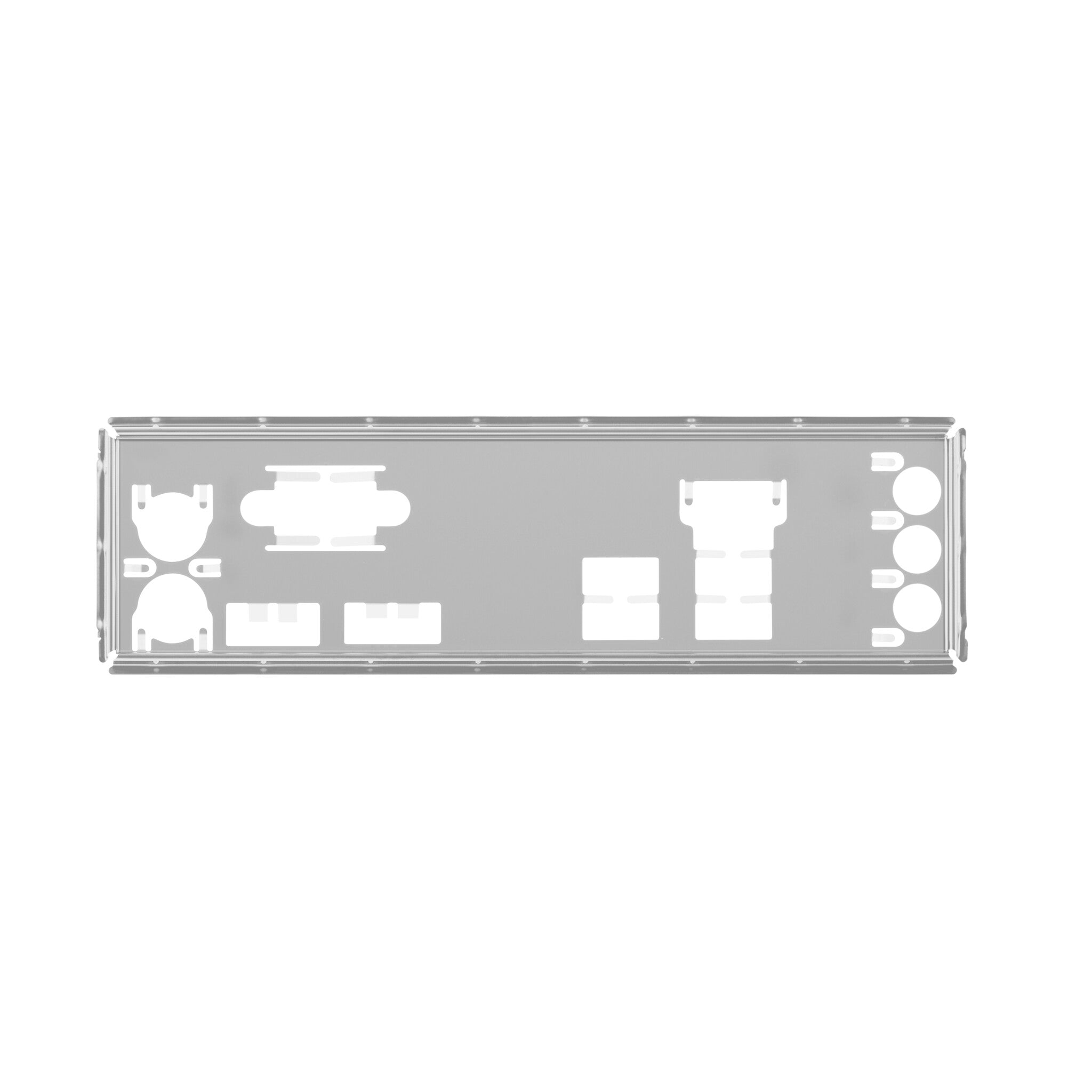

Setup remains straightforward with standard motherboard accessories including the rear I/O shield, user documentation, and necessary installation hardware. The RGB LED header adds a touch of customization potential without pushing the board into enthusiast territory. ASUS has designed this as a dependable platform that handles core computing tasks efficiently while keeping costs reasonable, making it a practical choice for builders who need modern Intel compatibility without paying for features they won't use.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

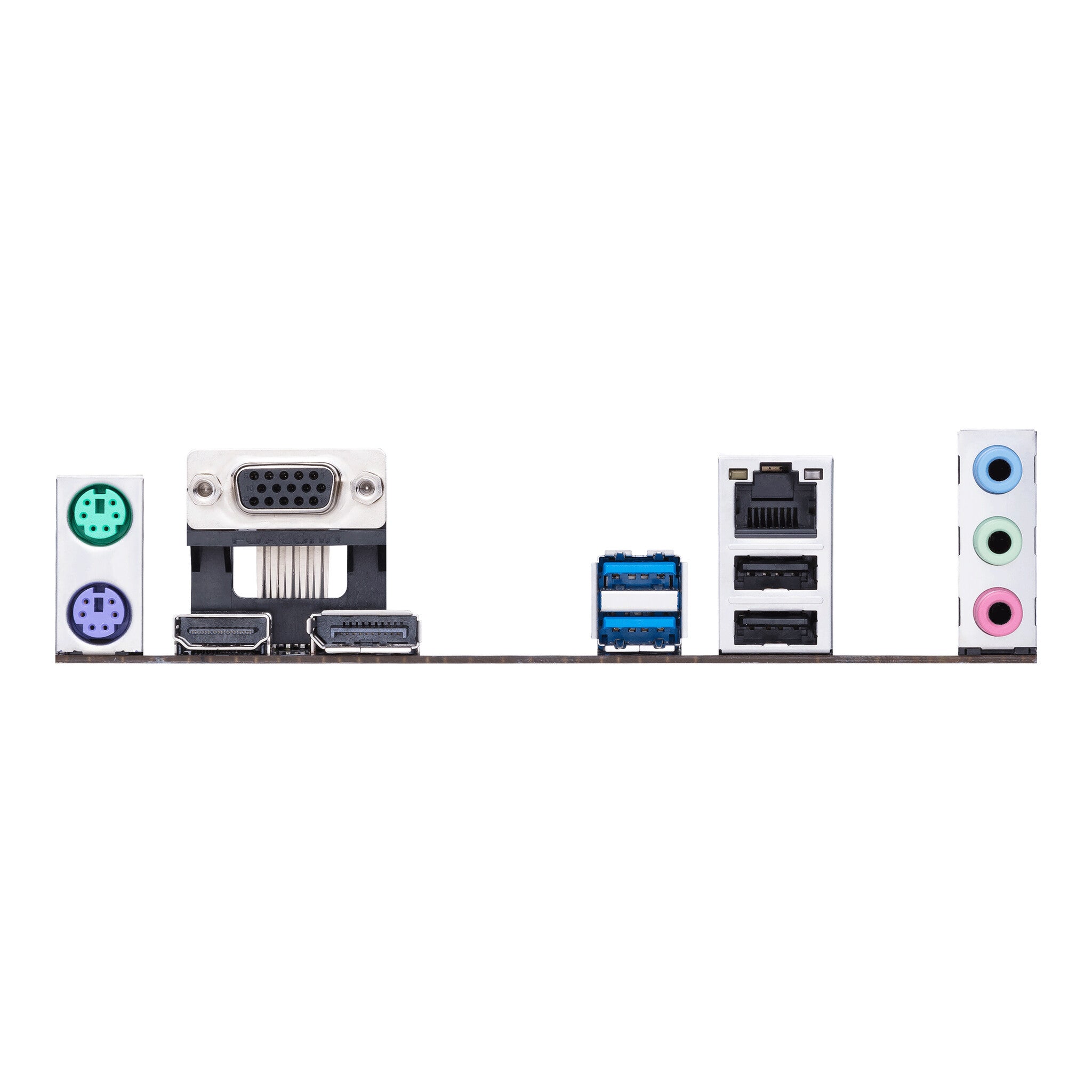

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 890 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 211 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
