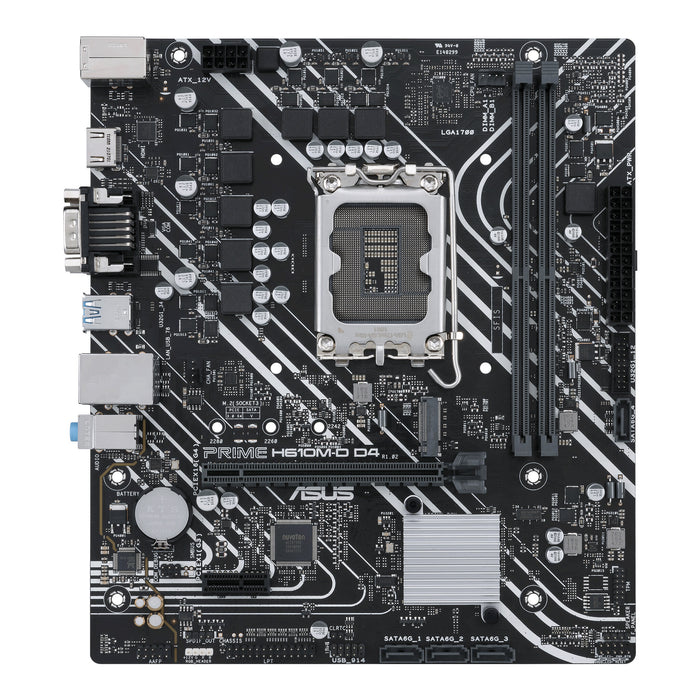

ASUS PRIME H610M-D D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS PRIME H610M-D D4 support?
What cooling features does the motherboard offer?
Does the motherboard support high-speed data transfer?
ASUS PRIME H610M-D D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The ASUS PRIME H610M-D D4 brings Intel's H610 chipset to a compact mATX design, making it an economical foundation for LGA1700 builds that prioritise value and essential features. This budget-friendly board accommodates Intel processors from 12th gen onwards, including Core i3, i5, i7, and i9 series, plus Pentium and Celeron options. Its micro ATX footprint fits smaller cases while retaining the connectivity most users need for everyday computing, light gaming, and office work.
Memory support centres on DDR4 with two DIMM slots supporting up to 64GB total capacity and speeds reaching 3200MHz through standard JEDEC profiles. The single PCIe 4.0 x16 slot handles modern graphics cards effectively, while an M.2 slot provides space for fast NVMe storage. Connectivity covers the essentials with Realtek Gigabit Ethernet, multiple USB 3.2 Gen 1 ports, and display outputs including HDMI and D-Sub for integrated graphics. The board also includes legacy features like COM port support and LPT header for specialist applications.
Setup benefits from ASUS's straightforward BIOS interface, and the board ships with standard accessories including the rear I/O shield and user documentation. An RGB header adds a touch of customisation for builders wanting basic lighting effects. While this H610 board lacks advanced overclocking features and premium connectivity of higher-tier chipsets, it delivers reliable performance for budget-conscious builds where stability and core functionality matter more than enthusiast features.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Number of displays supported | 2 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 234 mm |
| Depth | 203 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 842 g |
