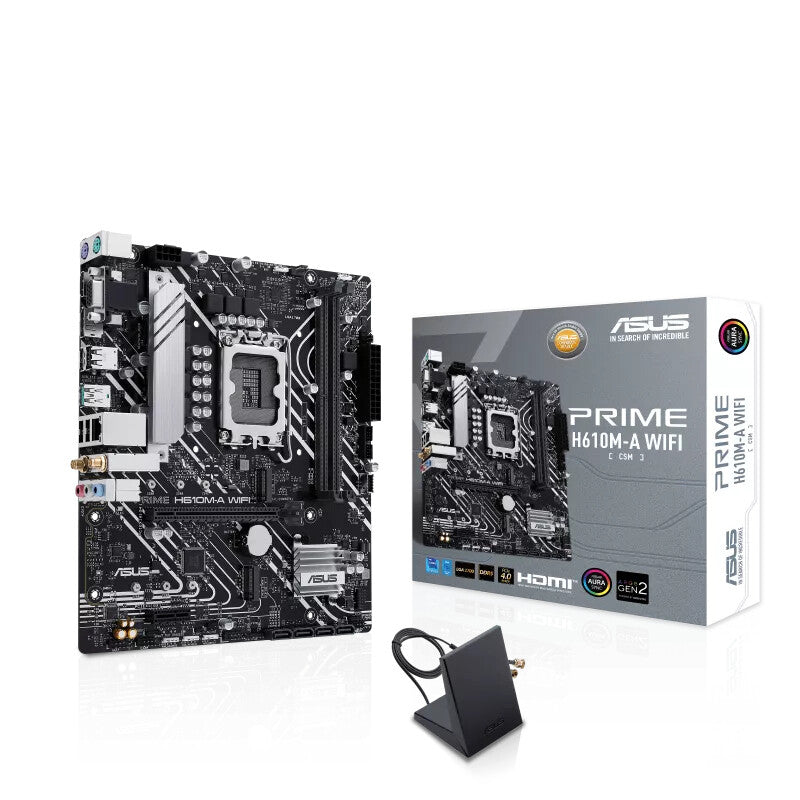

ASUS PRIME H610M-A WIFI mATX Motherboard | LGA1700 | 2x DDR5 Slots | Wi-Fi 5
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does this motherboard support RGB lighting?
What type of cooling solutions does this motherboard offer?
ASUS PRIME H610M-A WIFI mATX Motherboard | LGA1700 | 2x DDR5 Slots | Wi-Fi 5
Description
The ASUS PRIME H610M-A WIFI is a compact mATX motherboard built around Intel's H610 chipset for LGA1700 processors. This budget-friendly board supports a wide range of Intel CPUs from Celeron through to Core i9, making it a practical choice for office builds, home systems, and light gaming setups where space is at a premium. The H610 chipset delivers essential features without unnecessary complexity, keeping costs down while covering the basics effectively.
Memory support centers on DDR5 with speeds up to 5600MHz across two DIMM slots, supporting up to 96GB total capacity. The board includes dual M.2 slots for fast NVMe storage alongside traditional SATA connections. Expansion options include one PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional cards. Built-in WiFi 5 handles wireless connectivity, while Intel Gigabit Ethernet provides wired networking. Display outputs include HDMI, DisplayPort, and VGA for integrated graphics setups.
ASUS includes practical extras like USB 3.2 Gen 2 ports and addressable RGB headers with Aura Sync compatibility for custom lighting. The board ships with an I/O shield, SATA cables, M.2 mounting hardware, and a comprehensive user guide to get systems running quickly. XMP memory profiles automate DDR5 overclocking, letting users access higher memory speeds without manual tweaking.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1.07 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 216 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
