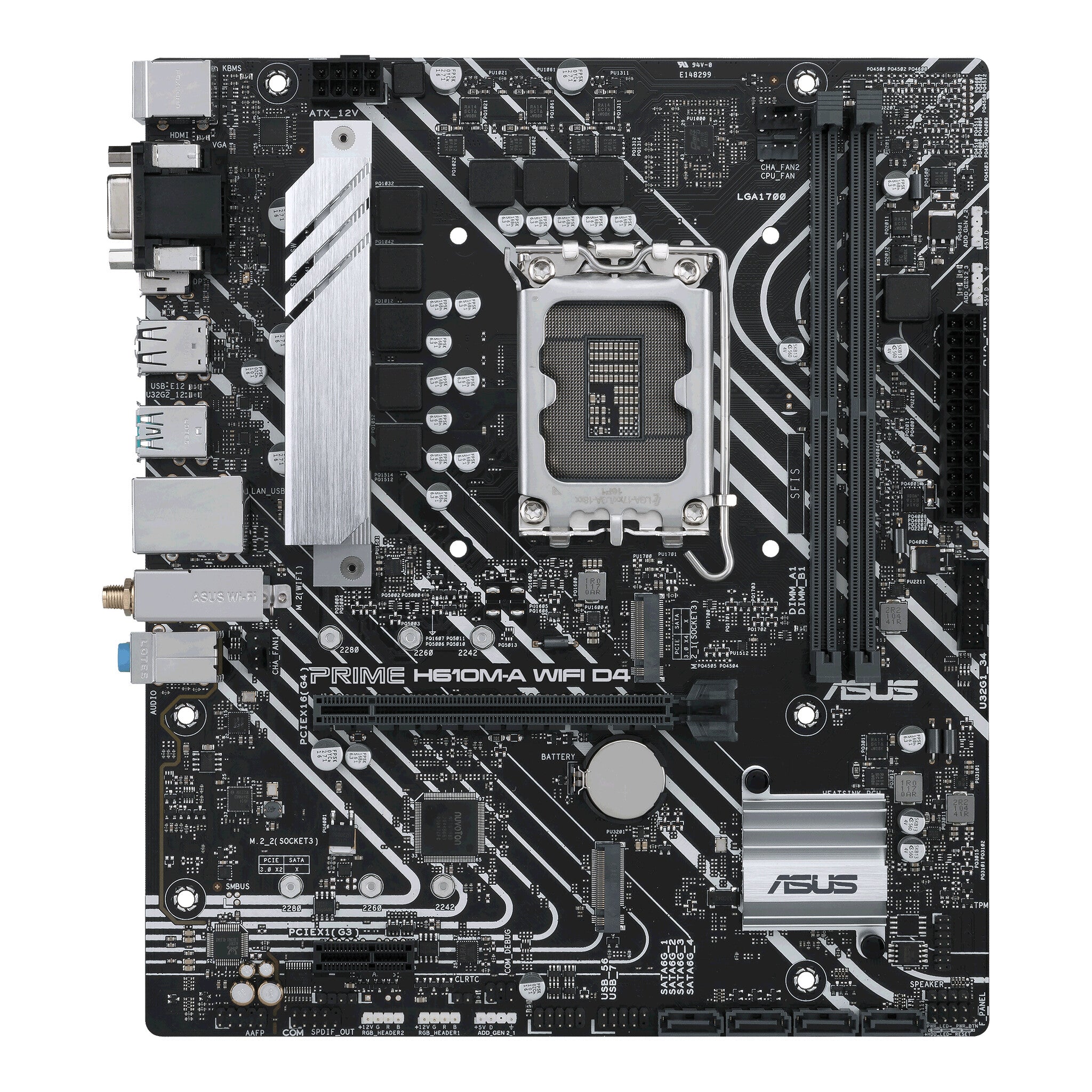

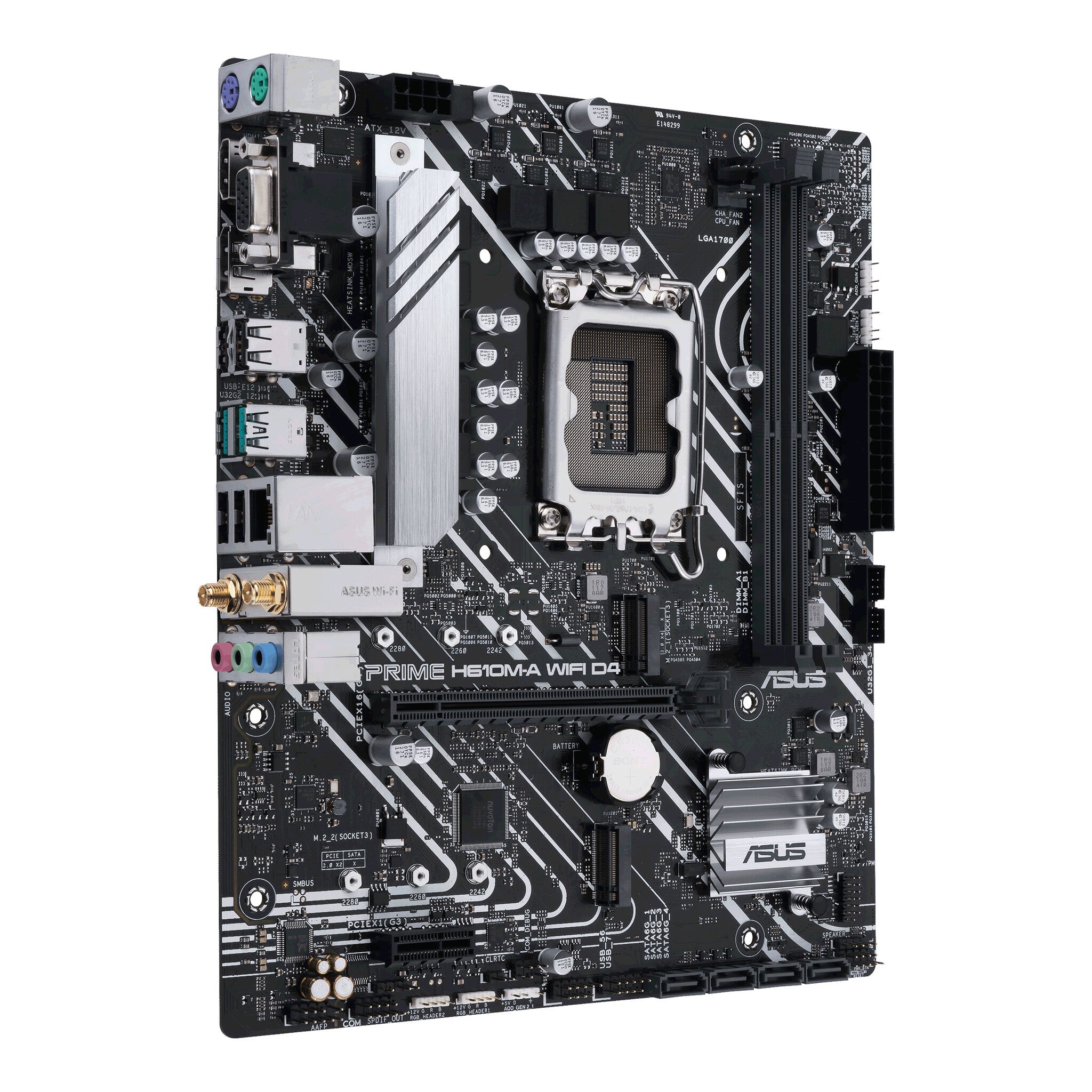

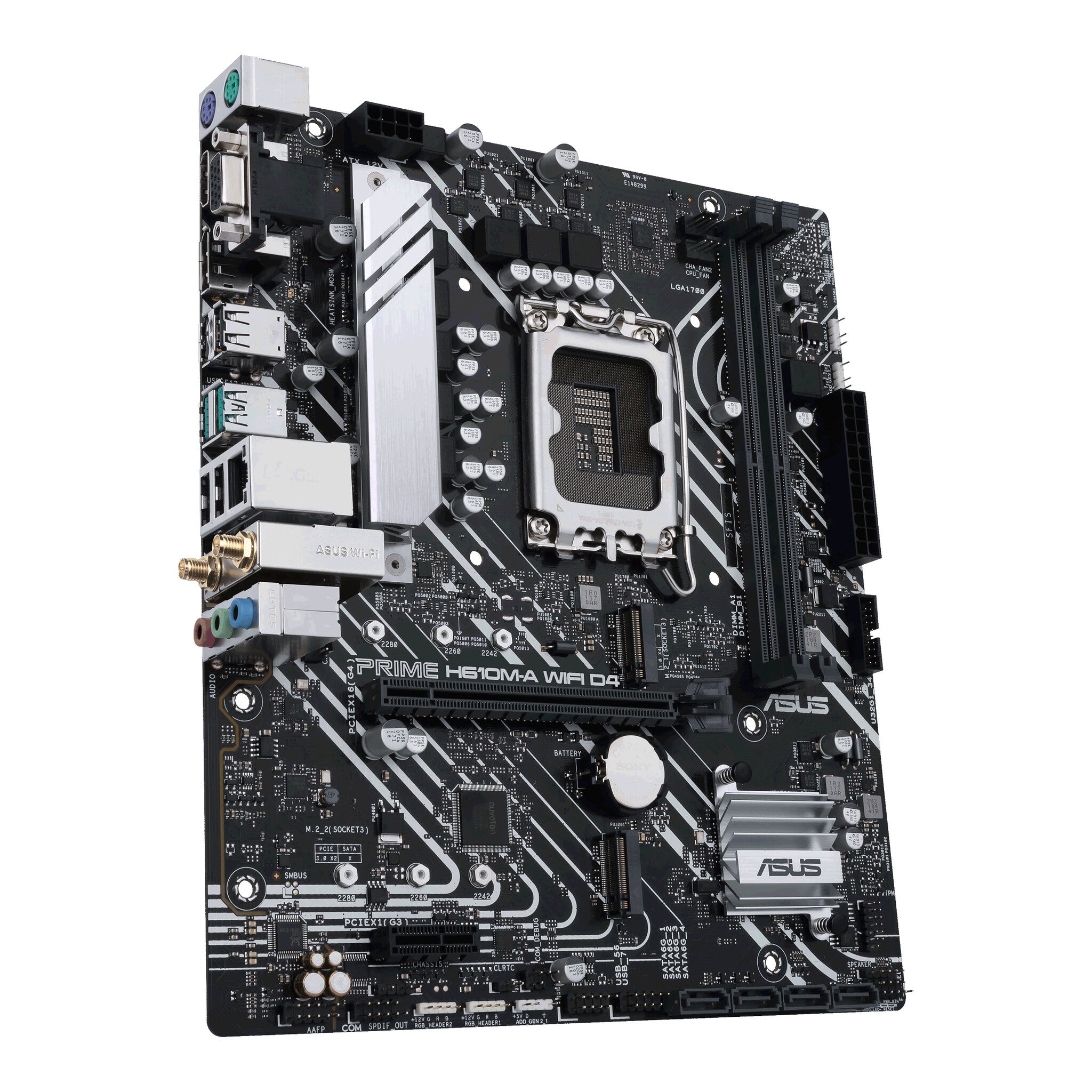

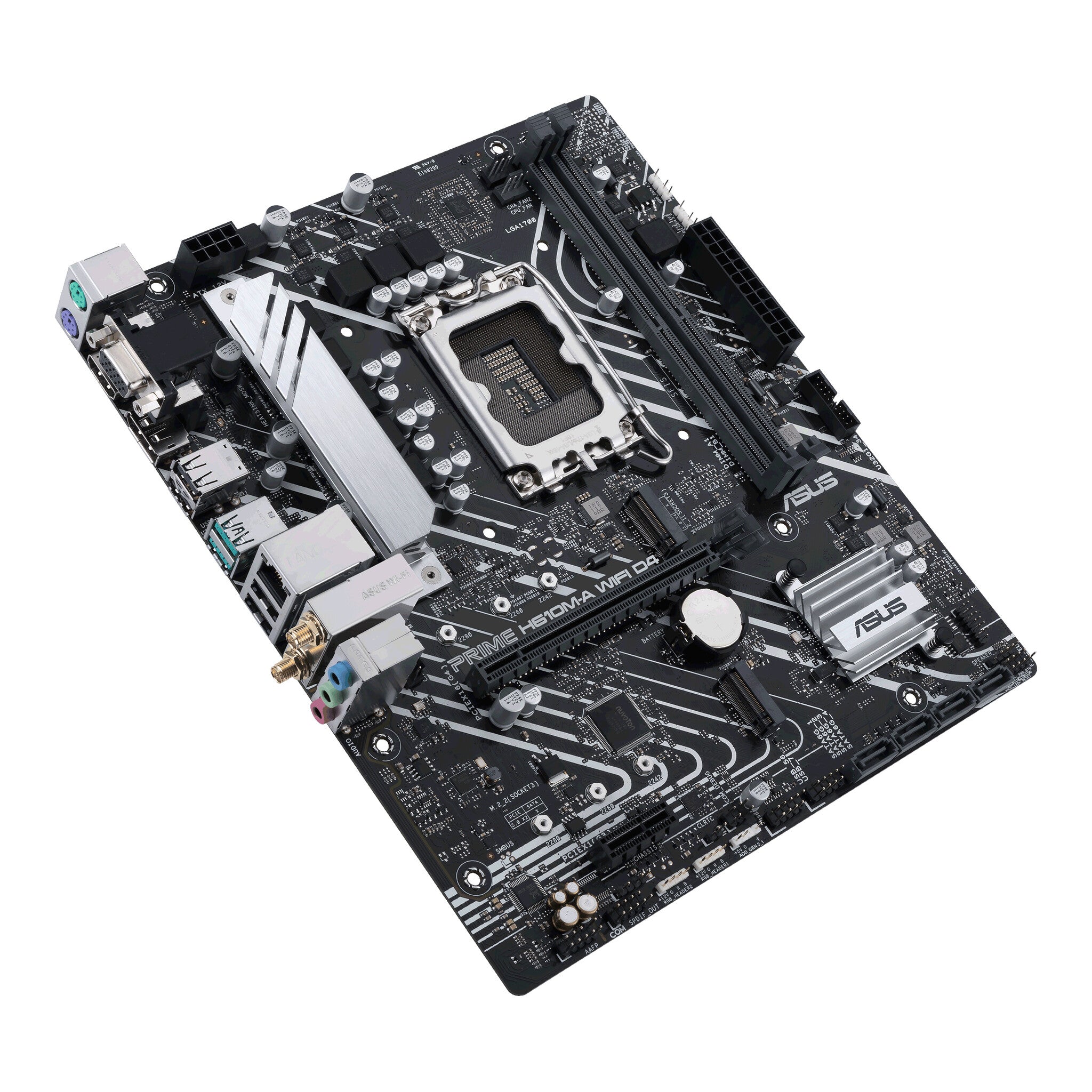

ASUS PRIME H610M-A WIFI D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots | Wi-Fi 5
KEY FEATURES
- IntelĀ® LGA 1700 socket: Ready for 12th Gen IntelĀ® processors
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, IntelĀ® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
- Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME H610M-A WIFI D4?
How much memory can the motherboard support?
Does it have built-in Wi-Fi?
ASUS PRIME H610M-A WIFI D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots | Wi-Fi 5
Description
The ASUS PRIME H610M-A WIFI D4 is an Intel H610 micro ATX motherboard built around the LGA1700 socket, making it a practical entry-level option for budget-conscious builders who still want solid modern features. This board supports 12th and 13th gen Intel processors from Celeron up to Core i9, though as a budget H610 chipset it's best matched with more modest CPUs like Core i3 or i5 processors. The compact micro ATX form factor fits smaller cases while still providing room for essential components and future upgrades.
Memory support covers DDR4 across two DIMM slots with a maximum capacity of 64GB and speeds up to DDR4-3200 through Intel's memory profiles. For expansion, you get one PCIe 4.0 x16 slot for a graphics card plus a PCIe 3.0 x1 slot for additional cards. Built-in WiFi 5 handles wireless connectivity alongside Intel Gigabit Ethernet for wired connections. Display outputs include HDMI, DisplayPort, and D-Sub for integrated graphics setups, while USB 3.2 Gen 2 ports provide fast peripheral connections.
The board includes dual M.2 slots for NVMe storage drives, allowing you to run a fast boot drive plus additional storage without occupying SATA ports. ASUS ships this motherboard with the pre-installed I/O shield, SATA cables for connecting drives, and the user manual to get your build started. RGB lighting support comes through addressable Gen 2 headers that work with ASUS Aura Sync, letting you coordinate case lighting with other compatible components for a unified look.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ®, IntelĀ® PentiumĀ® Gold |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 6 |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

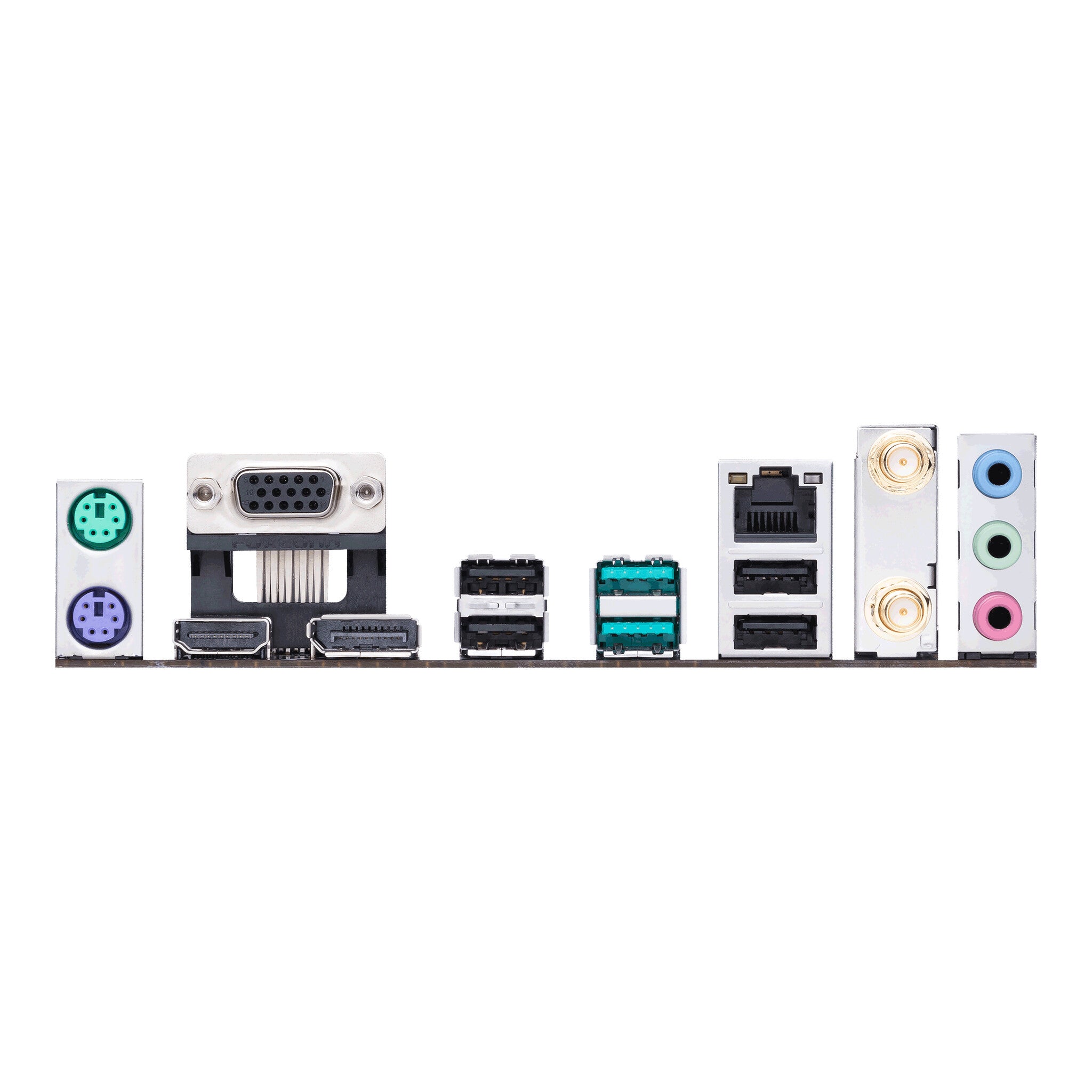

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 211 mm |
| Height | 58 mm |

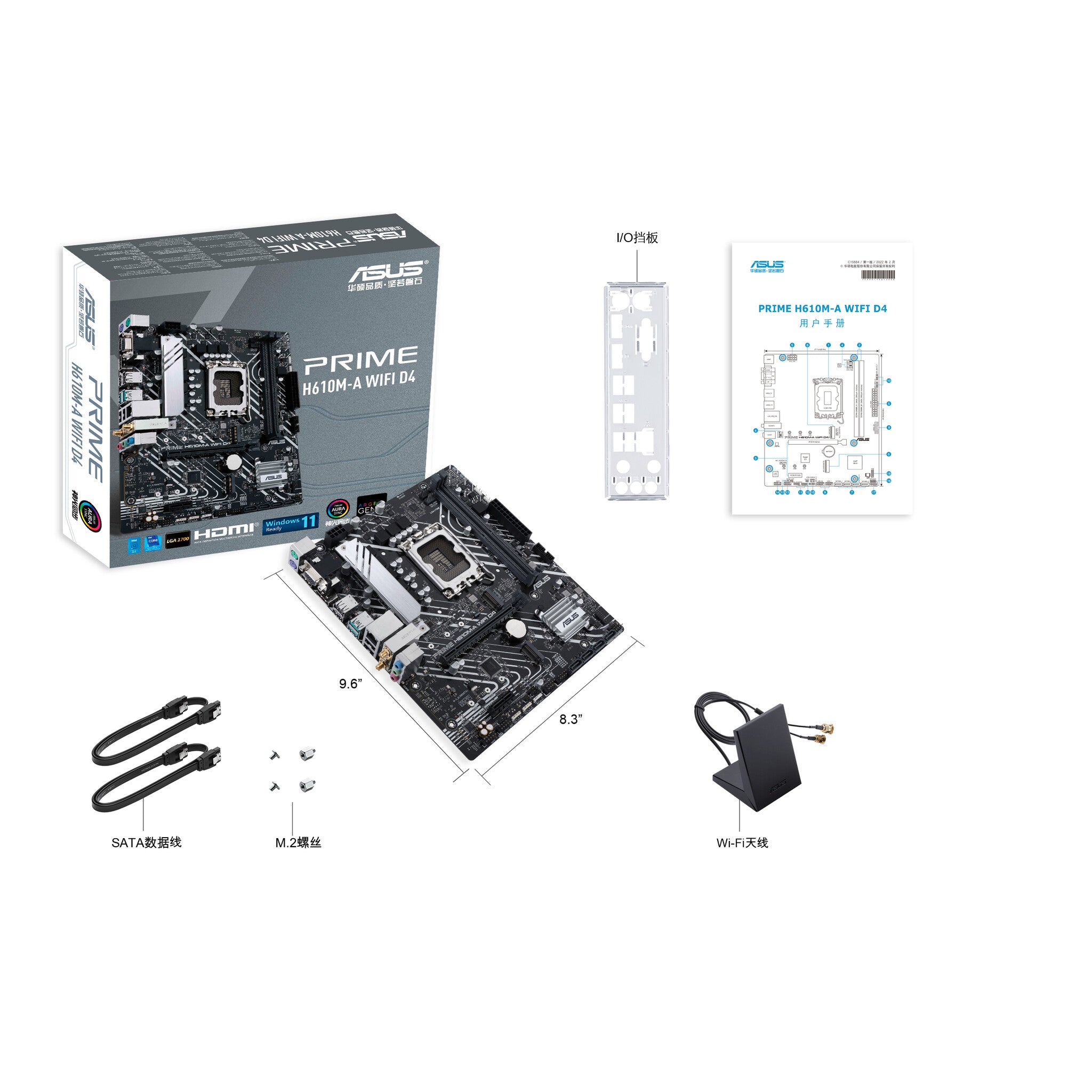

| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 815 g |
