ASUS PRIME H610I-PLUS D4-CSM Mini-ITX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® Core™ processors
- Enhanced power solution: 5+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 ports
- 5X Protection III:Multiple hardware safeguards for all-round protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What type of cooling solutions does this motherboard offer?
Can I use this motherboard for gaming?
ASUS PRIME H610I-PLUS D4-CSM Mini-ITX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The ASUS PRIME H610I-PLUS D4-CSM is a Mini-ITX motherboard built around Intel's H610 chipset for LGA1700 processors. This compact board works with 12th and 13th generation Intel Core processors from Celeron to Core i9, making it suitable for space-conscious builds where full-size performance isn't the priority. The H610 chipset sits at the budget end of Intel's lineup, focusing on essential connectivity rather than enthusiast features like overclocking support.

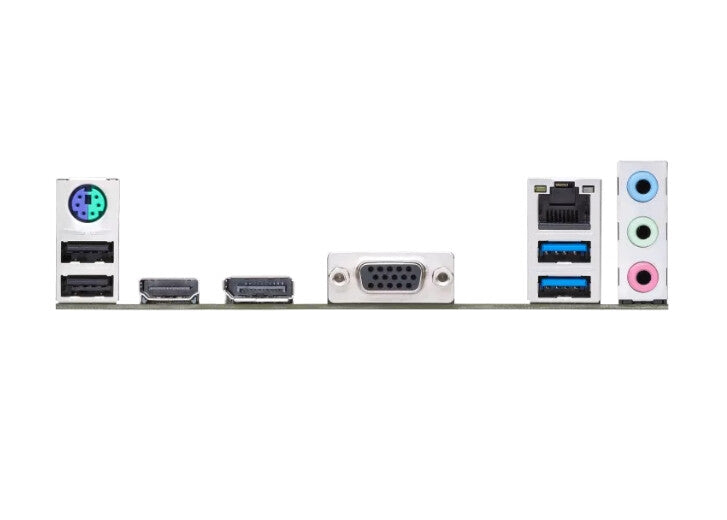

Memory support covers DDR4 from 2133MHz up to 3200MHz across two DIMM slots, with a maximum capacity of 64GB. The board includes one PCIe 4.0 x16 slot for a graphics card and provides M.2 storage connectivity alongside traditional SATA ports. For display output, you get DisplayPort, HDMI, and legacy D-Sub connections built into the rear I/O, plus Realtek Gigabit Ethernet and multiple USB 3.2 Gen 1 ports for peripherals.
This CSM variant includes commercial-grade validation and extended lifecycle support, making it appropriate for business deployments or industrial applications where stability and long-term availability matter. The board ships with the standard package including I/O shield, SATA cables, and installation guide. Memory profiles support DDR4-3200 operation when paired with compatible modules, though the H610 chipset doesn't support Intel's XMP overclocking profiles.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Compatible operating systems | Windows® 11 64-bit, Windows® 10 64-bit |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 226 mm |
| Package depth | 182 mm |
| Package height | 60 mm |
| Weight & dimensions | |
|---|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Height | 71 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Weight | 382 g |
