ASUS PRIME H510M-K R2.0 mATX Motherboard | LGA1200 | 2x DDR4 Slots
KEY FEATURES
- Intel LGA 1200 (Socket H5) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC micro ATX Intel H510 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 5
- BIOS type: EFI AMI 128 Mbit
- Fast Ethernet, Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much RAM can I install on this motherboard?
What type of storage does the ASUS PRIME H510M-K R2.0 support?
Is this motherboard suitable for gaming?
ASUS PRIME H510M-K R2.0 mATX Motherboard | LGA1200 | 2x DDR4 Slots
Description

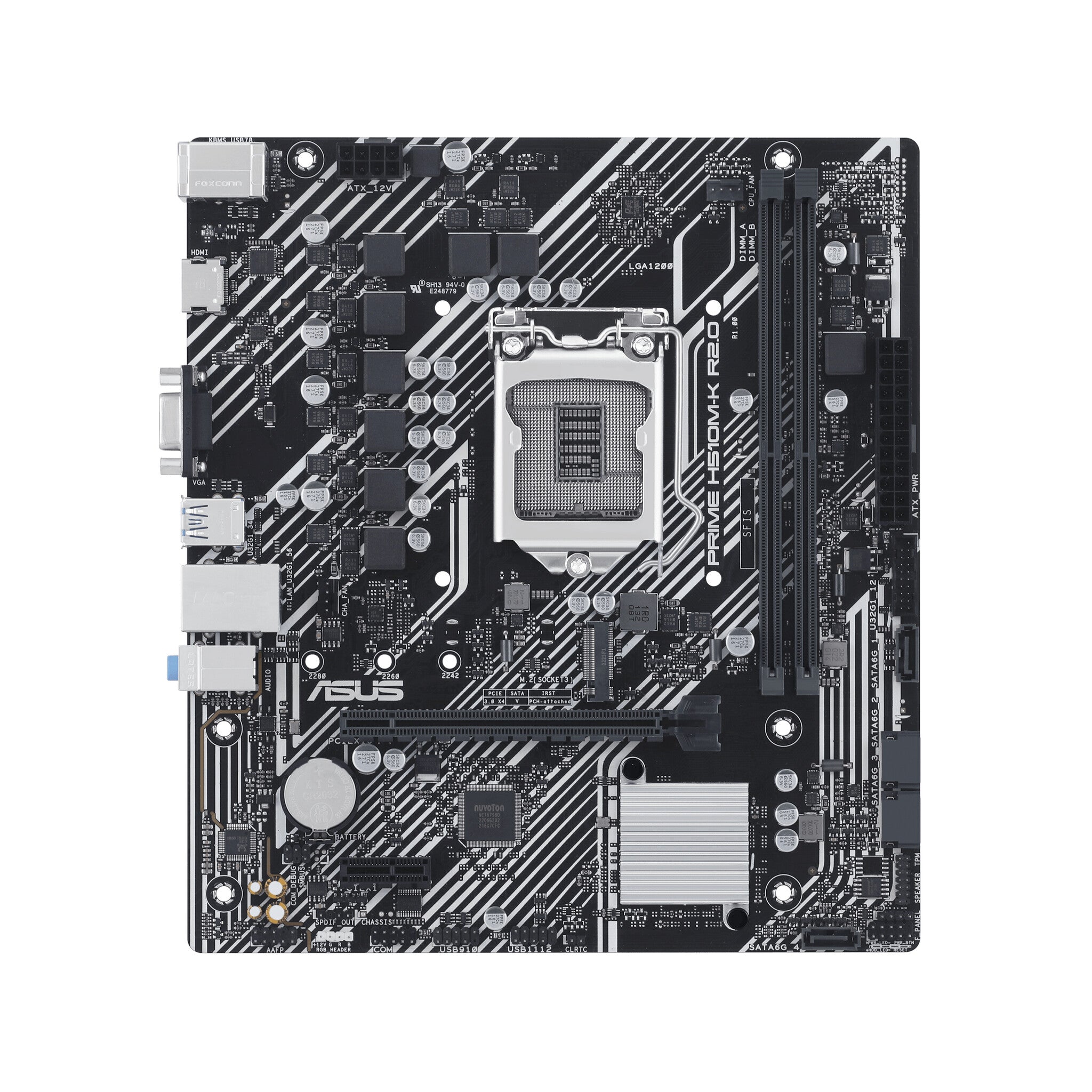

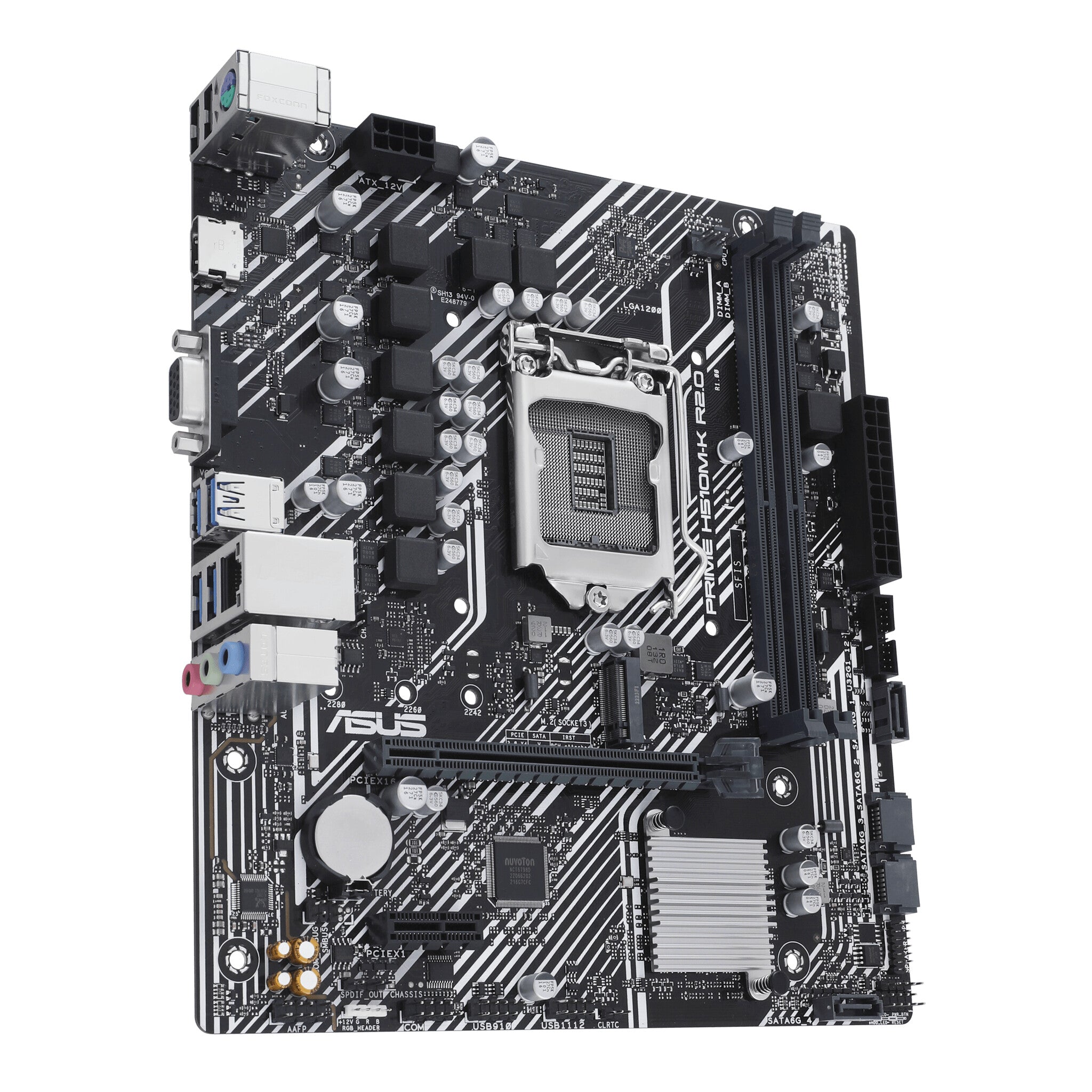

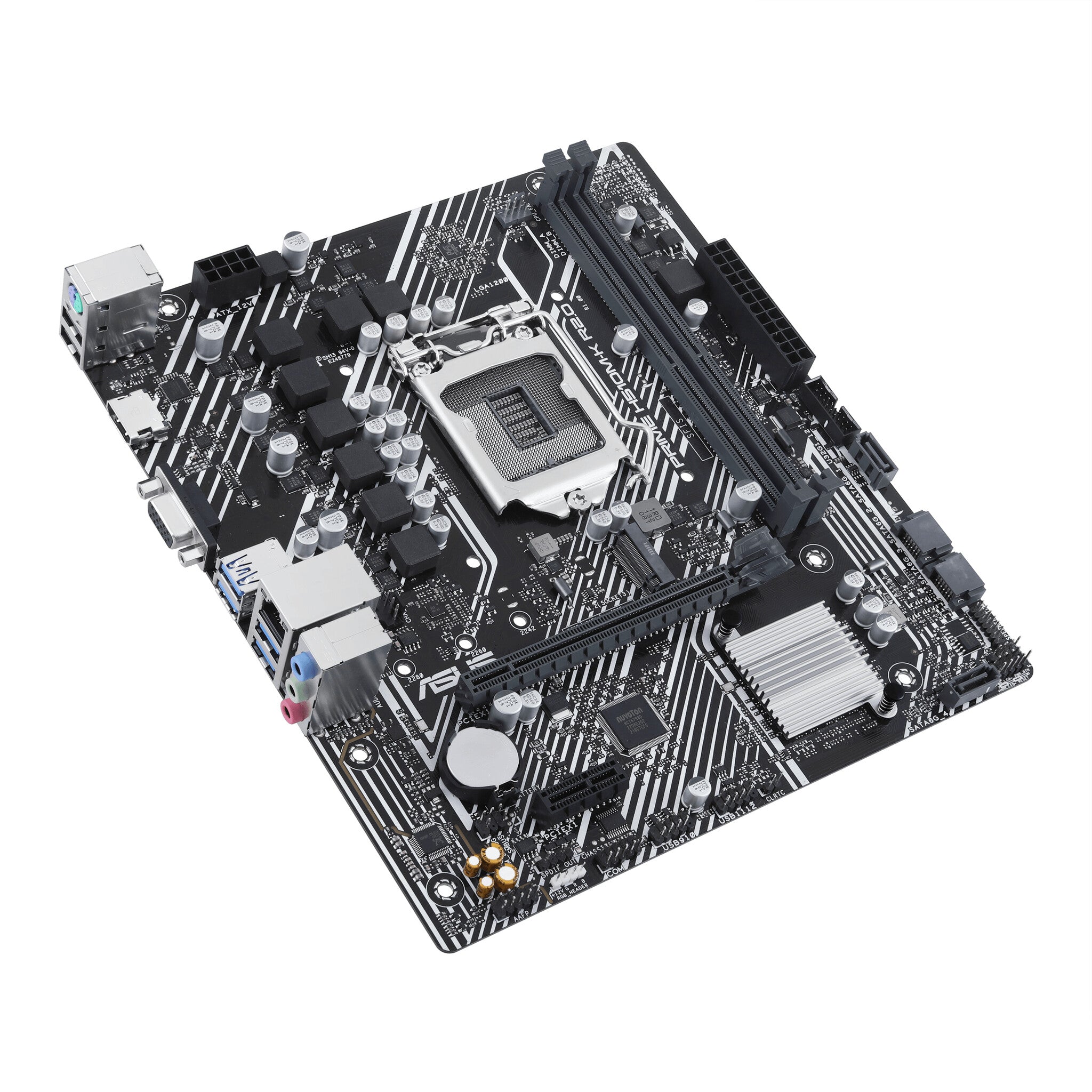

The ASUS PRIME H510M-K R2.0 is a micro ATX motherboard built around Intel's budget-friendly H510 chipset for LGA1200 processors. This no-nonsense board supports 10th and 11th generation Intel Core processors, from Celeron and Pentium Gold up to Core i9, making it a practical foundation for budget office builds, basic gaming systems, or everyday home computers where simplicity and value take priority over high-end features.
Memory support centers on DDR4 with two DIMM slots accommodating up to 64GB total capacity. The board handles speeds from DDR4-2133 up to DDR4-3200, with XMP profiles available to easily achieve rated speeds on compatible memory kits. Connectivity includes essential expansion with one PCIe x16 slot for a graphics card and one PCIe x1 slot for additional cards, plus standard rear I/O with USB ports and audio connections.
Setup remains straightforward with the included I/O shield and comprehensive user guide walking through installation basics. The H510 chipset keeps things simple - this board focuses on delivering reliable core functionality rather than enthusiast features like overclocking or extensive RGB lighting. For builders seeking a dependable micro ATX platform that handles everyday computing tasks without unnecessary complexity, this PRIME board delivers exactly what's needed at an accessible price point.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |

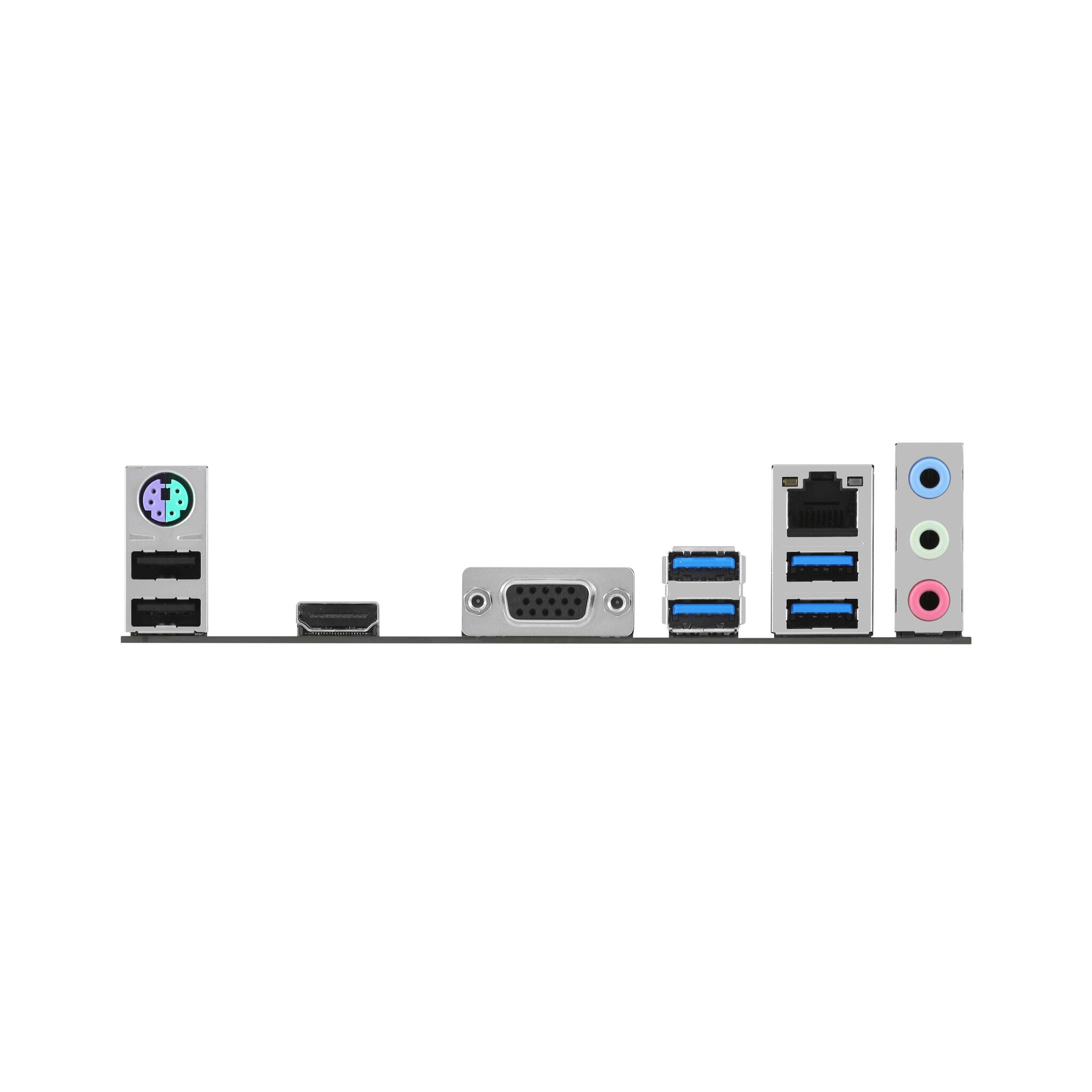

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| COM ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H510 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 226 mm |
| Depth | 203 mm |
Frequently Asked Questions
How much RAM can I install on this motherboard?
What type of storage does the ASUS PRIME H510M-K R2.0 support?
Is this motherboard suitable for gaming?
What processors are compatible with the ASUS PRIME H510M-K R2.0?
