ASUS PRIME B860M-A WIFI mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel B860 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME B860M-A WIFI?
How much memory can the ASUS PRIME B860M-A WIFI support?
Does the motherboard support Wi-Fi?
ASUS PRIME B860M-A WIFI mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
Description

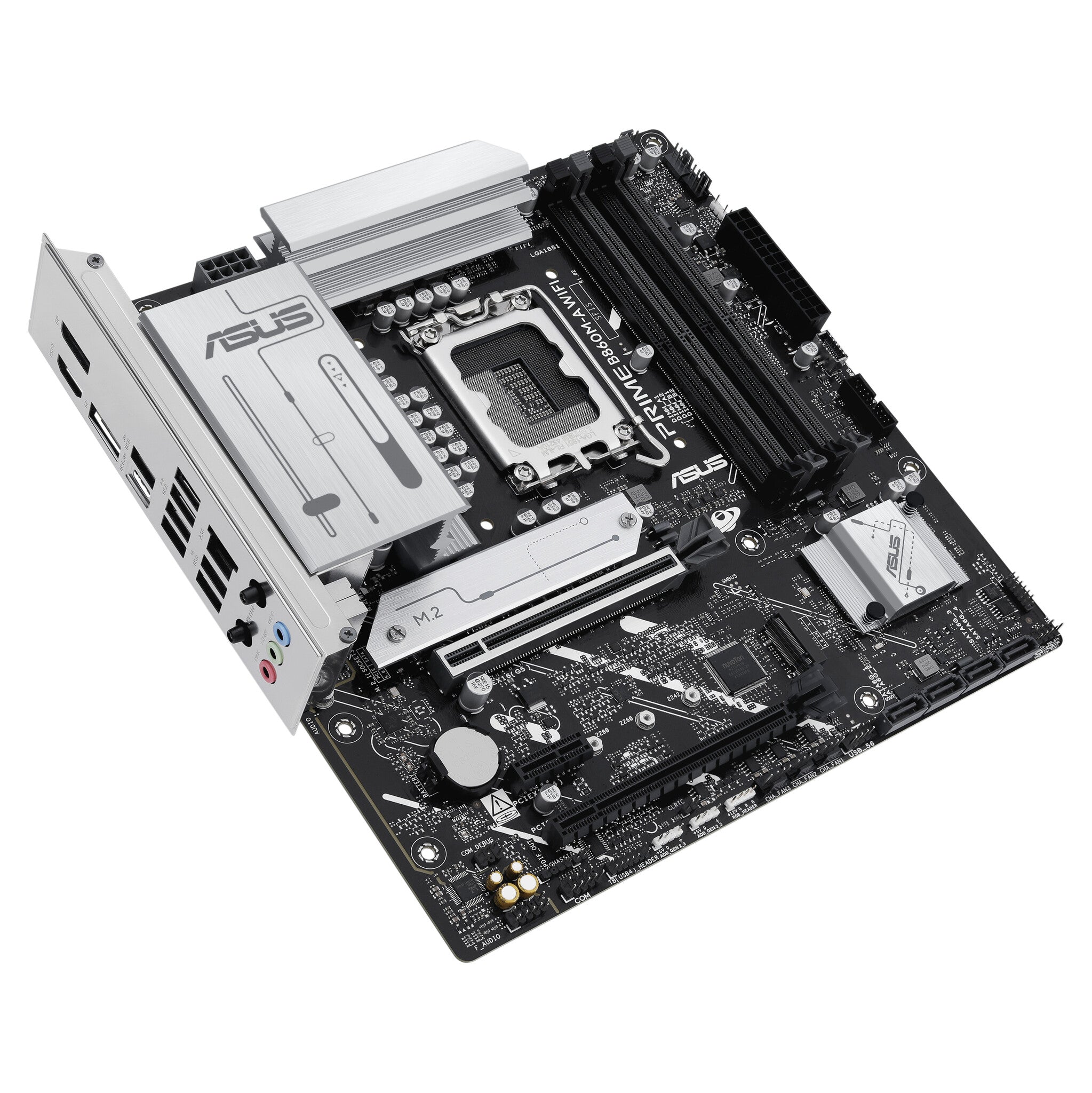

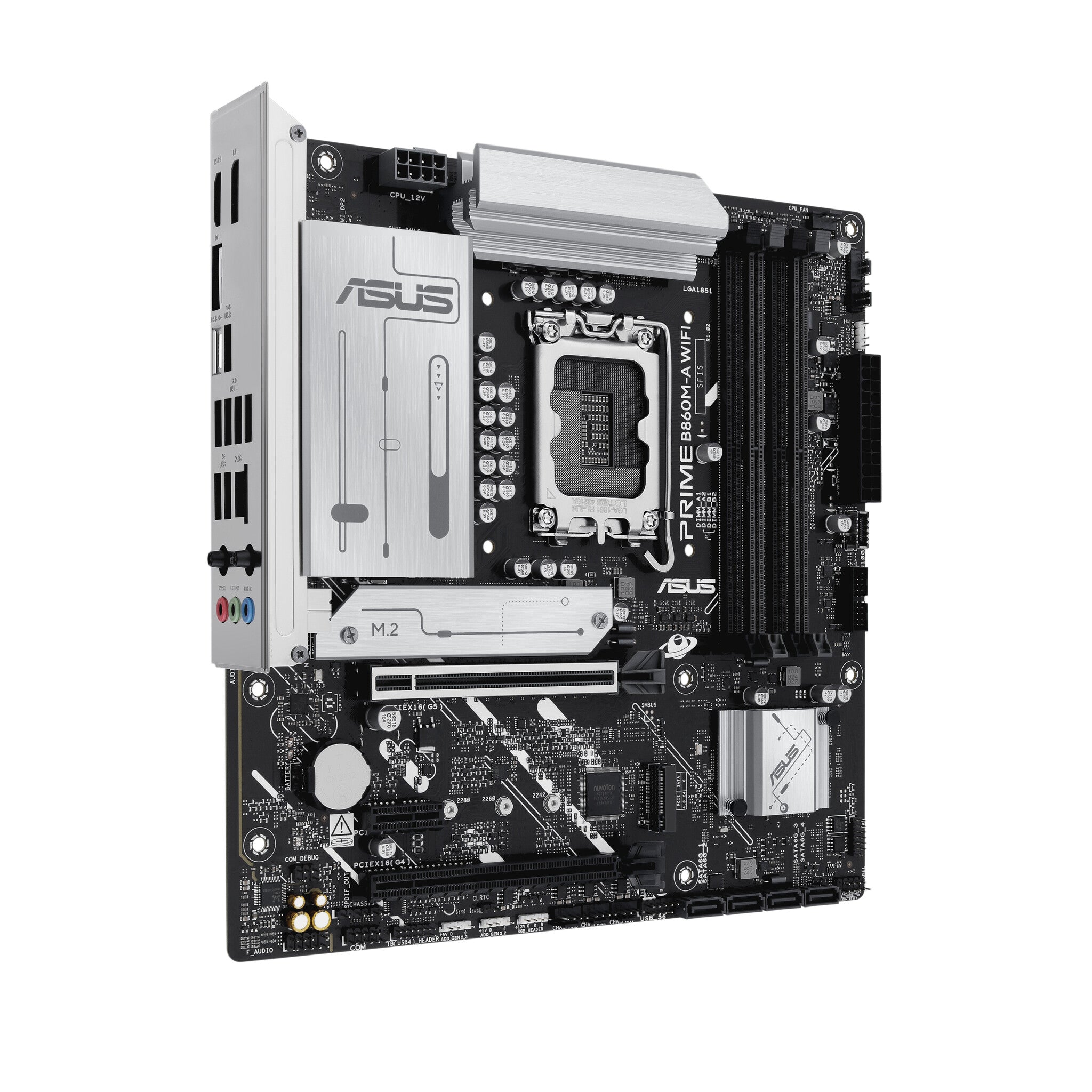

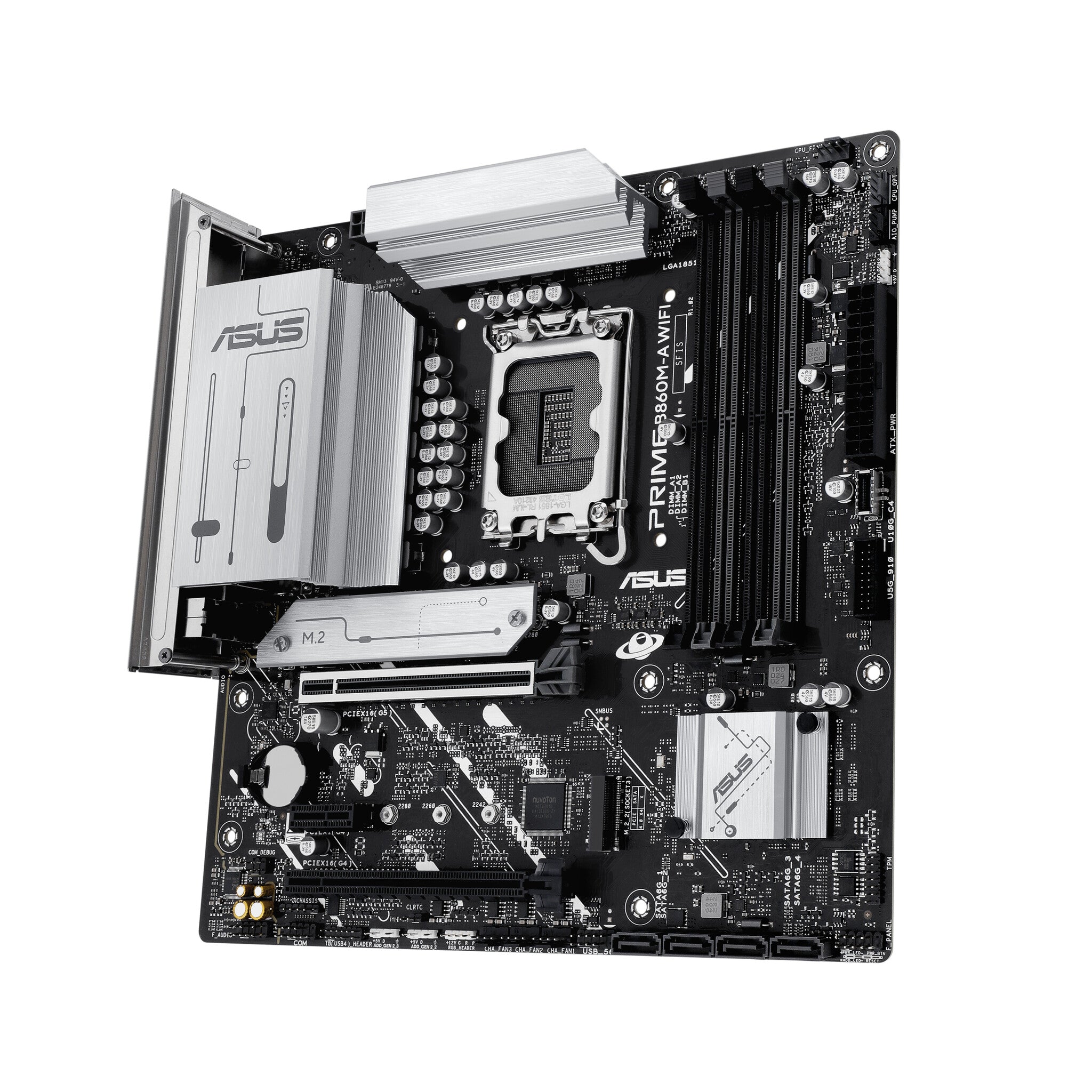

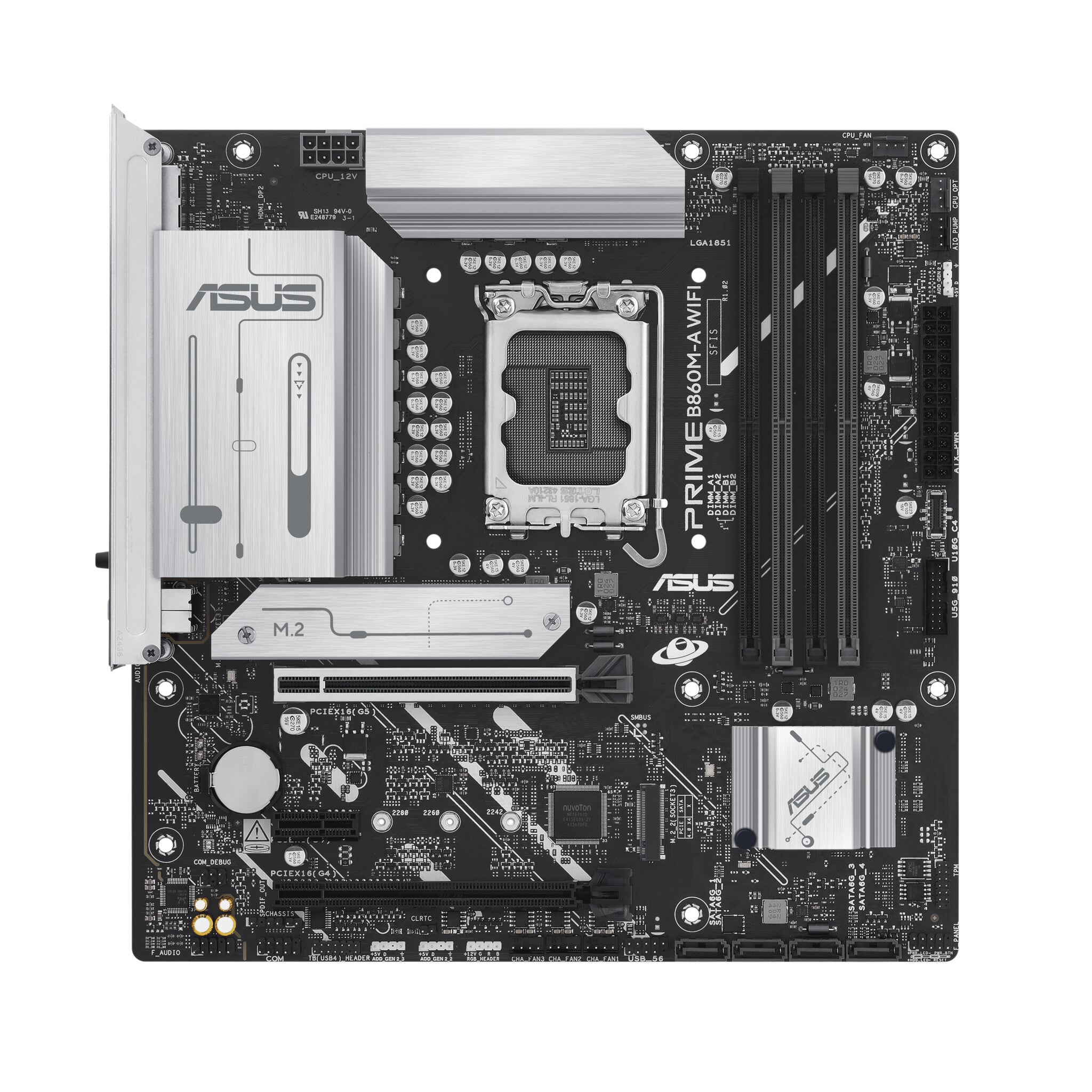

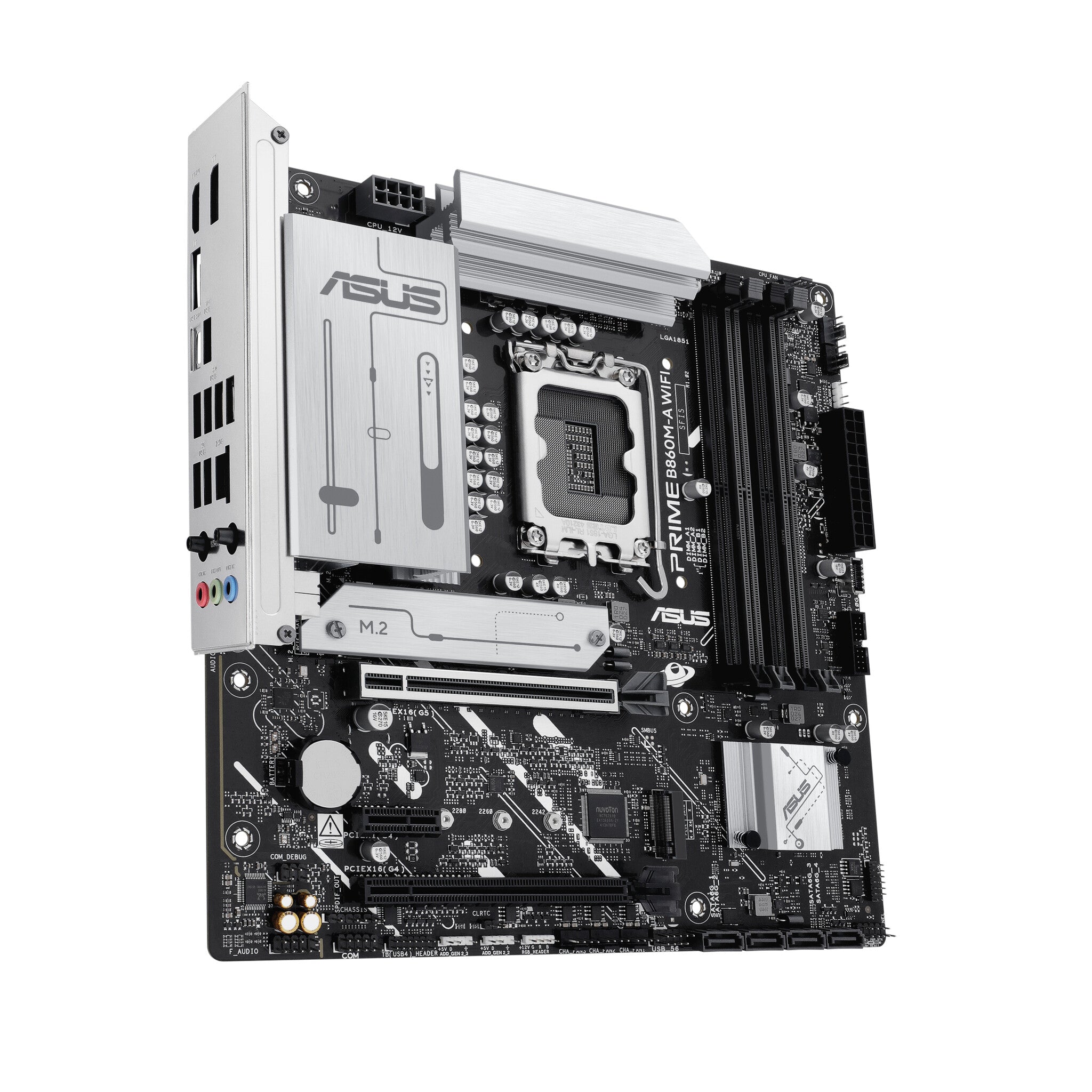

The ASUS PRIME B860M-A WIFI is a micro ATX motherboard built around Intel's B860 chipset for the latest LGA1851 socket, supporting Intel's Core Ultra Series 2 processors. This mainstream board delivers solid fundamentals for compact builds that don't need enthusiast-grade features but still want modern connectivity and performance. The B860 chipset strikes a practical balance between capability and cost, making it suitable for general computing, productivity work, and mid-range gaming systems where space efficiency matters.
Memory support is comprehensive with four DDR5 DIMM slots supporting up to 256GB of system RAM, with speeds reaching 8666+ MT/s through overclocking profiles. For expansion, you get two PCIe x16 slots - one PCIe 5.0 and one PCIe 4.0 - plus a single PCIe 4.0 x1 slot for additional cards. Storage connectivity includes two M.2 slots: the primary slot supports PCIe 5.0 for the fastest NVMe SSDs, while the secondary slot runs at PCIe 4.0 speeds. Built-in Wi-Fi eliminates the need for a separate wireless card, and an RGB LED header lets you add some lighting if desired.

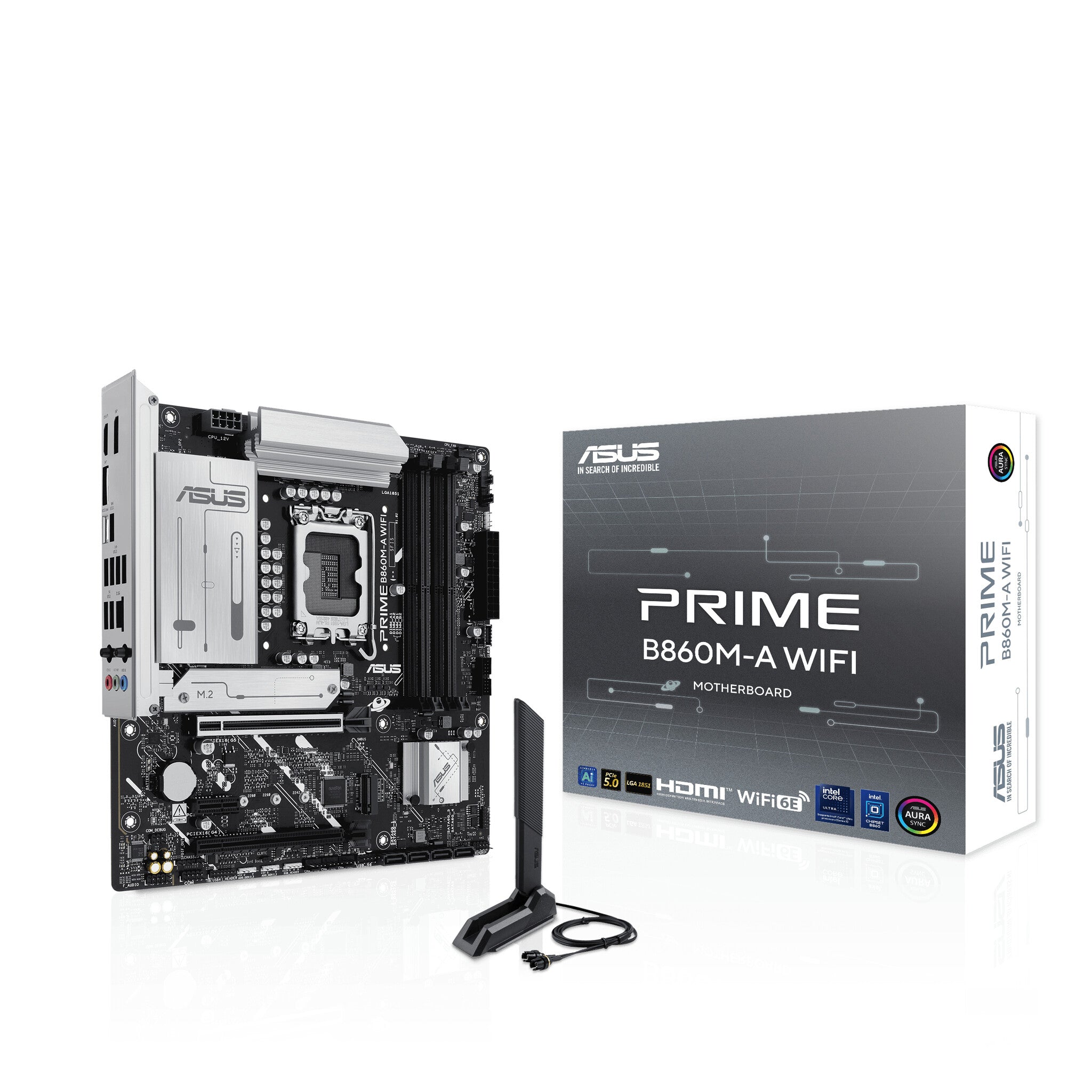

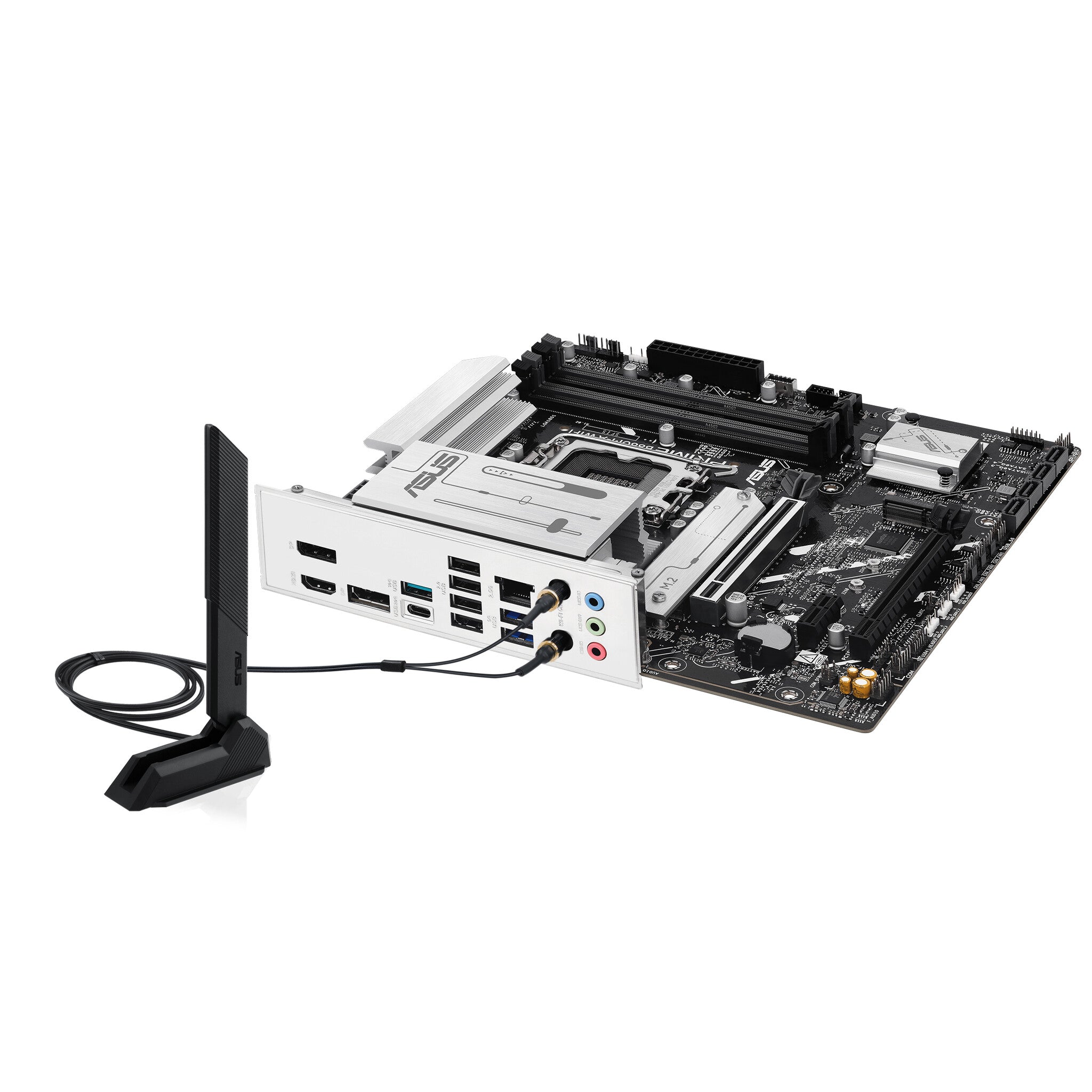

ASUS includes practical extras to simplify assembly: mounting screws, a Wi-Fi antenna, and the essential I/O shield. The board supports XMP memory profiles for easy DDR5 overclocking, letting you run high-speed memory without manual tuning. This combination of modern standards, compact form factor, and thoughtful inclusions makes the PRIME B860M-A WIFI a straightforward choice for builders who want current-generation performance in a space-conscious package.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

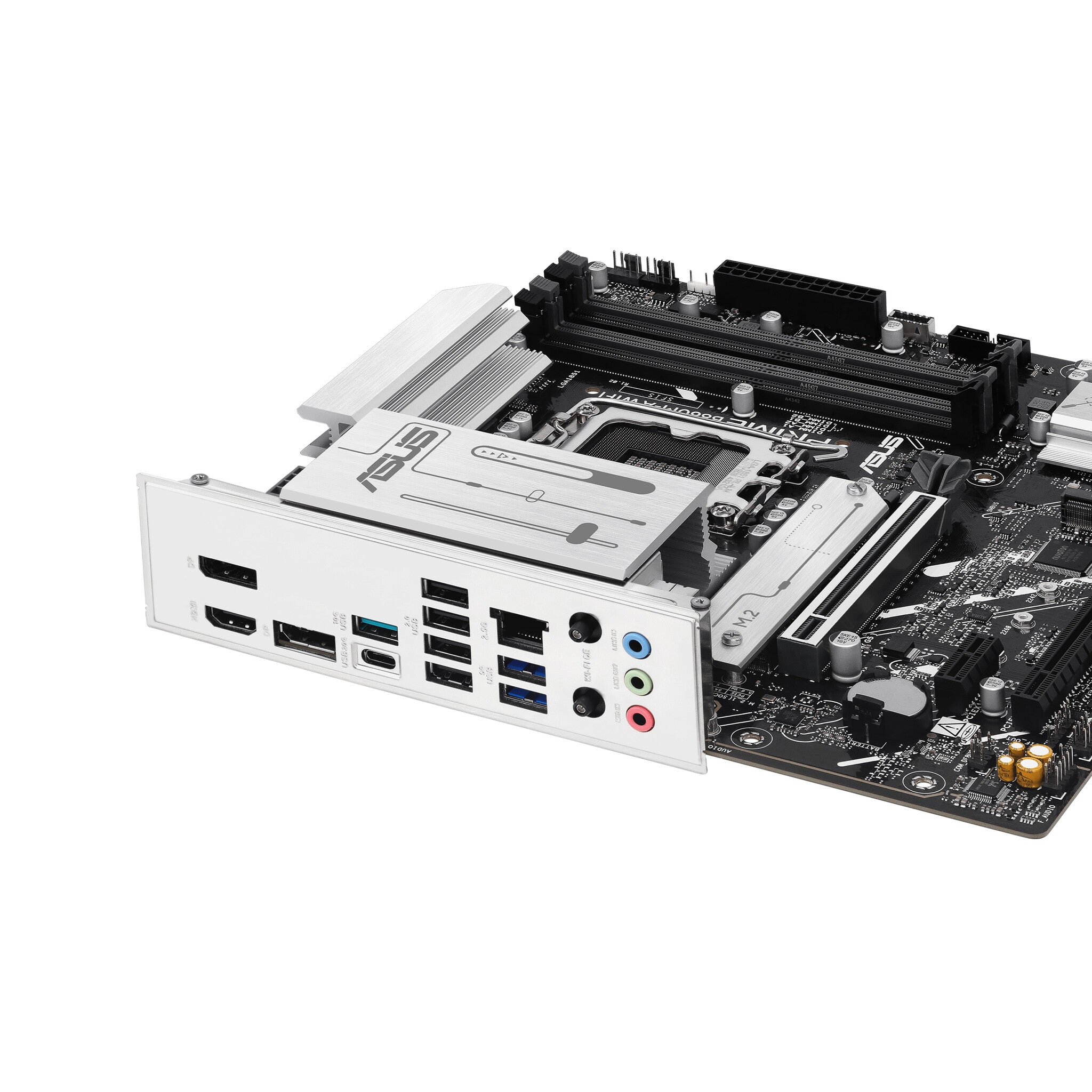

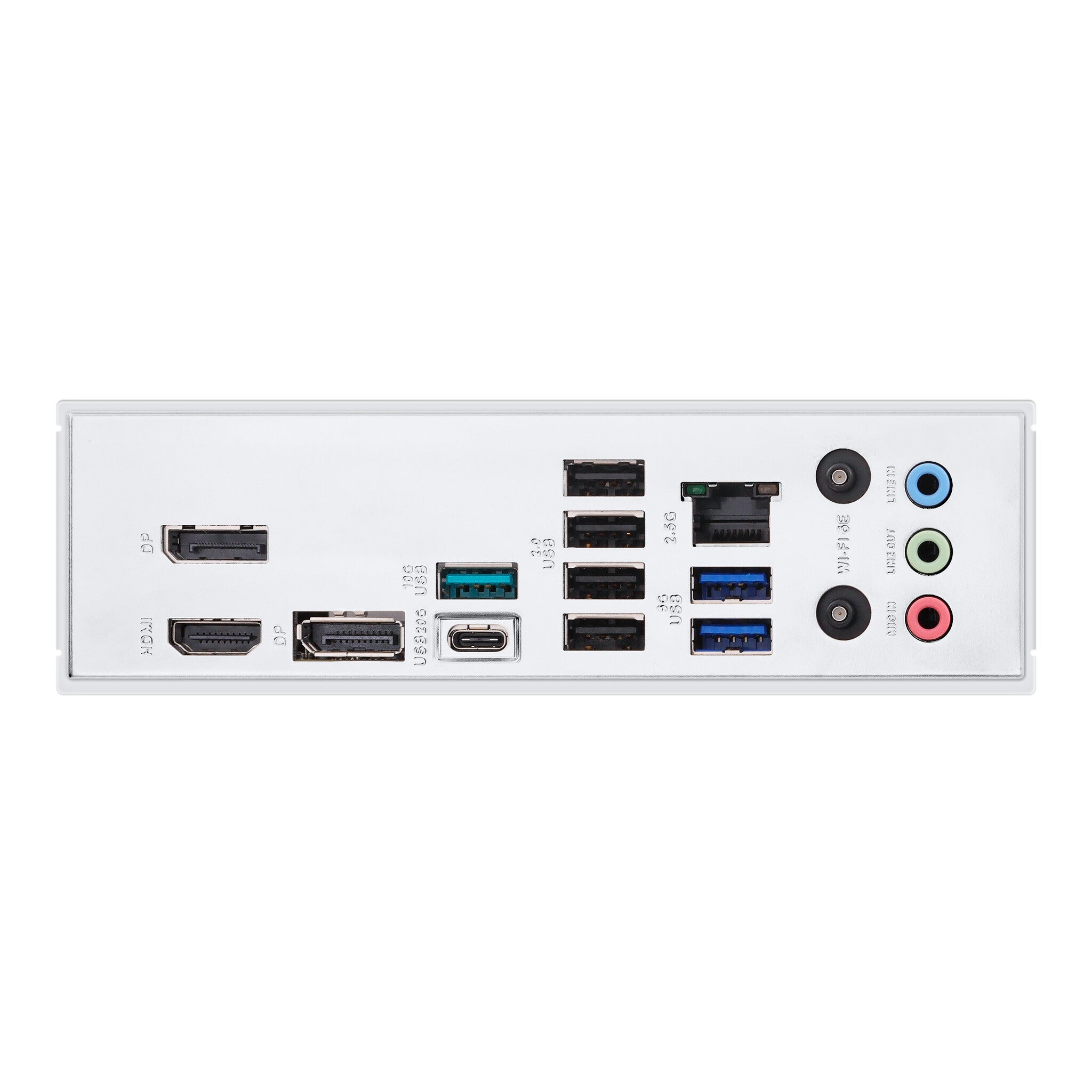

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.44 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
