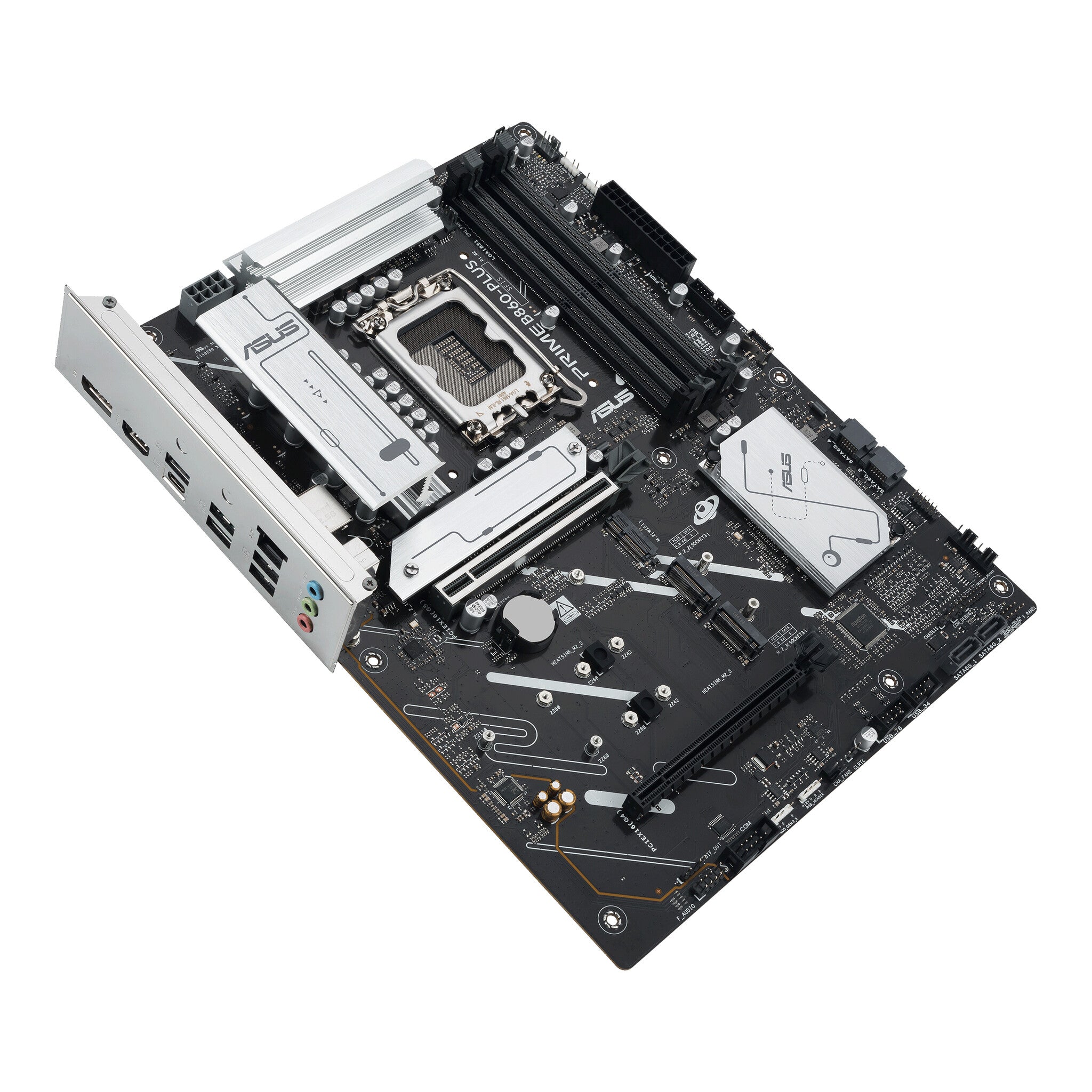

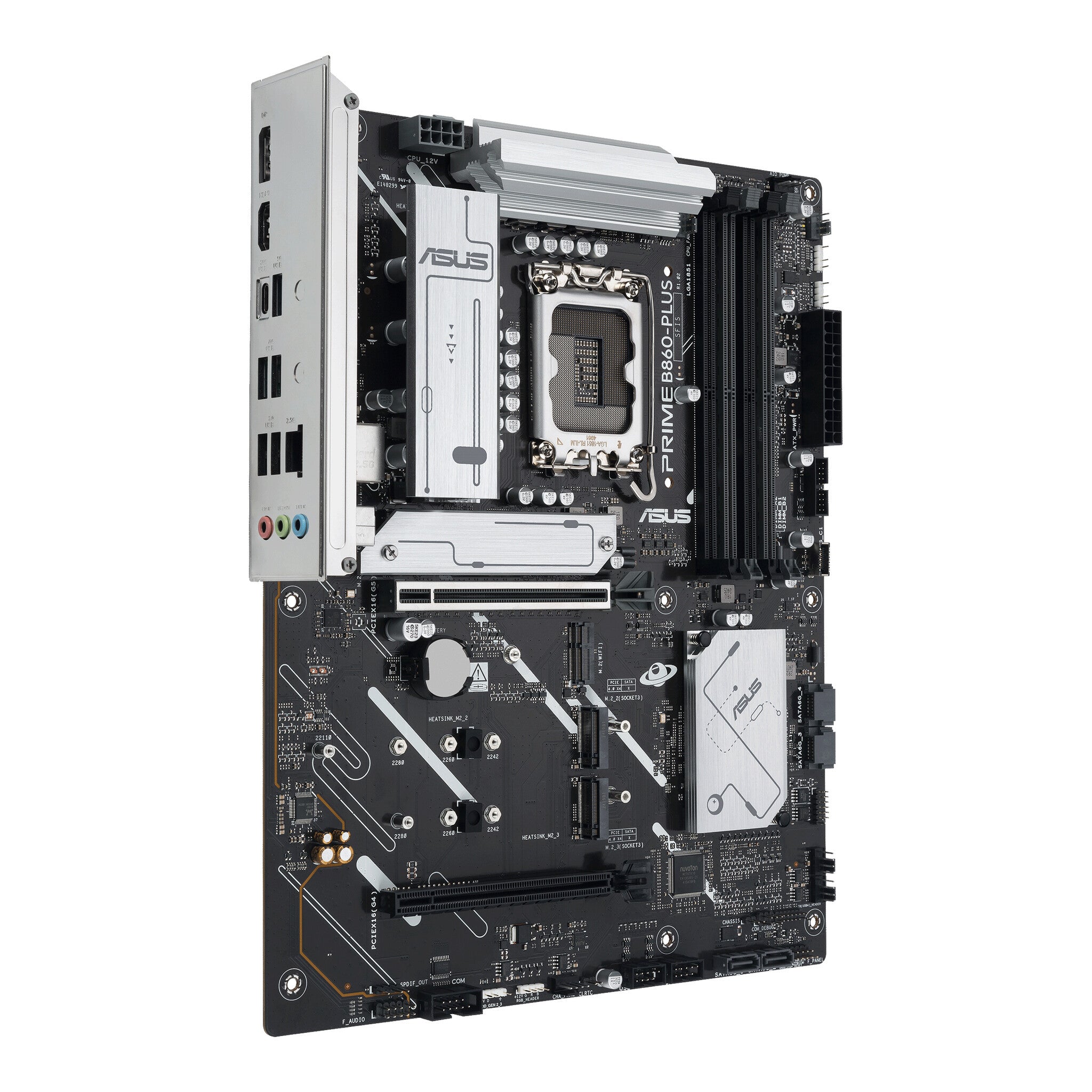

ASUS PRIME B860-PLUS-CSM ATX Motherboard | LGA1851 | 4x DDR5 Slots
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel B860 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME B860-PLUS-CSM ATX Motherboard | LGA1851 | 4x DDR5 Slots
Description

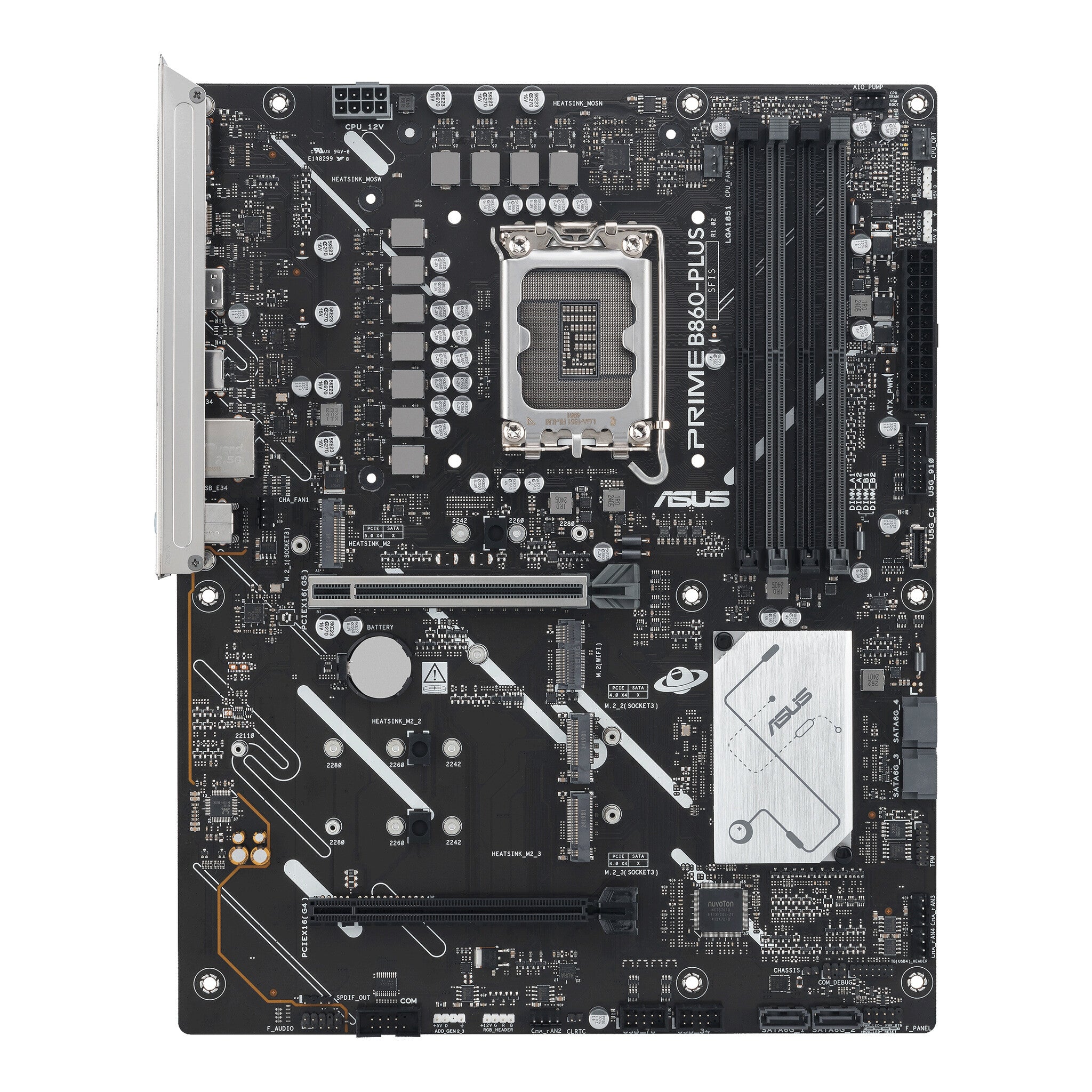

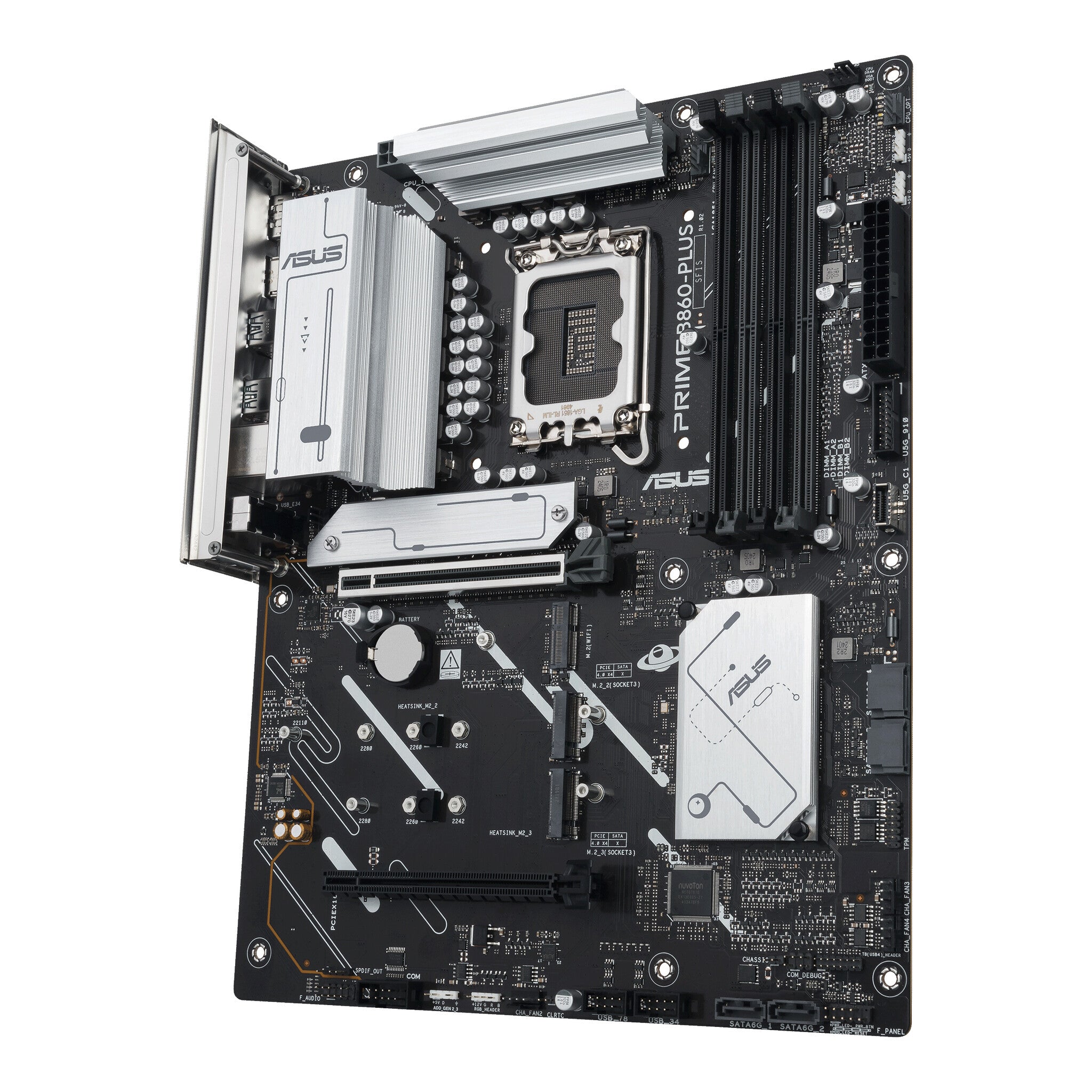

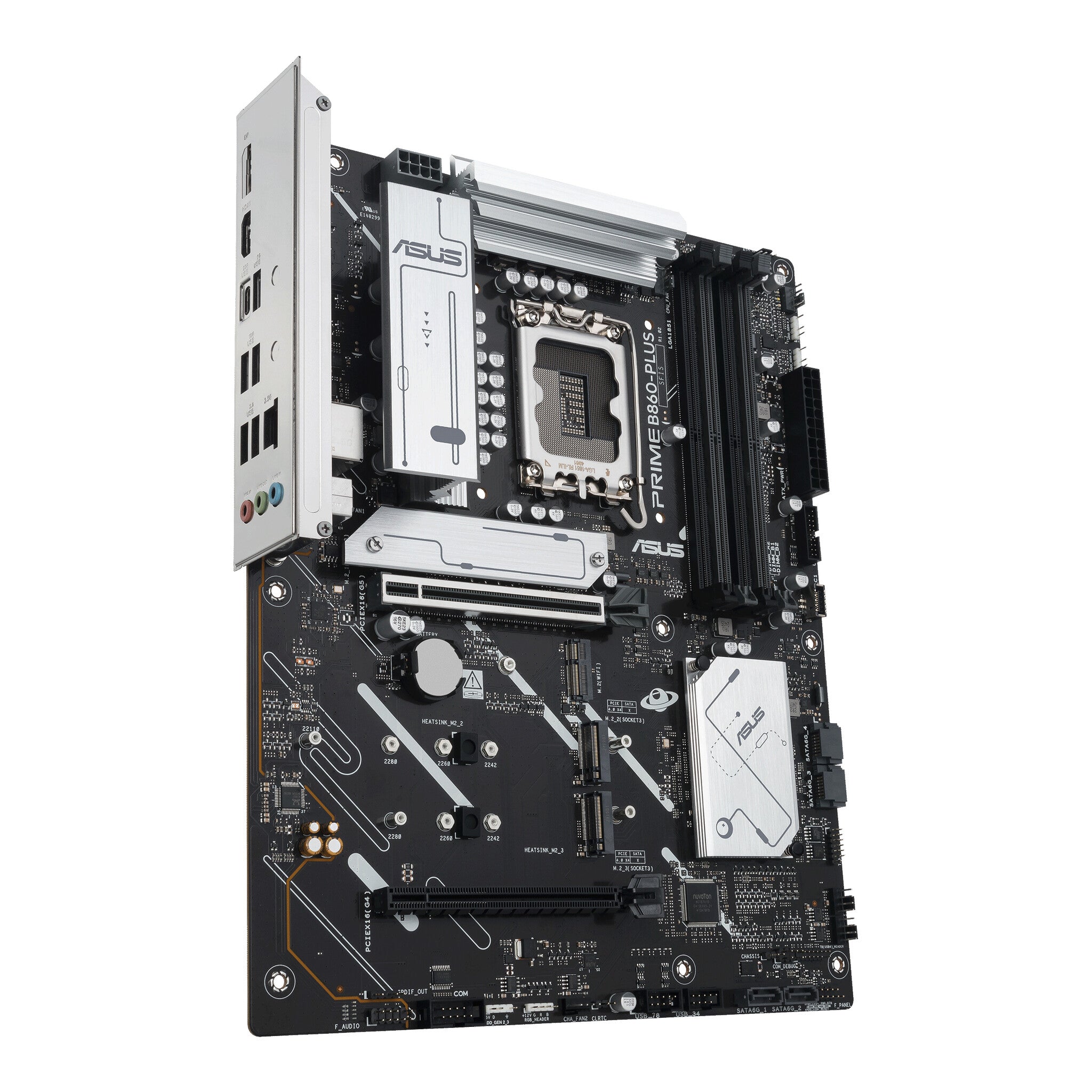

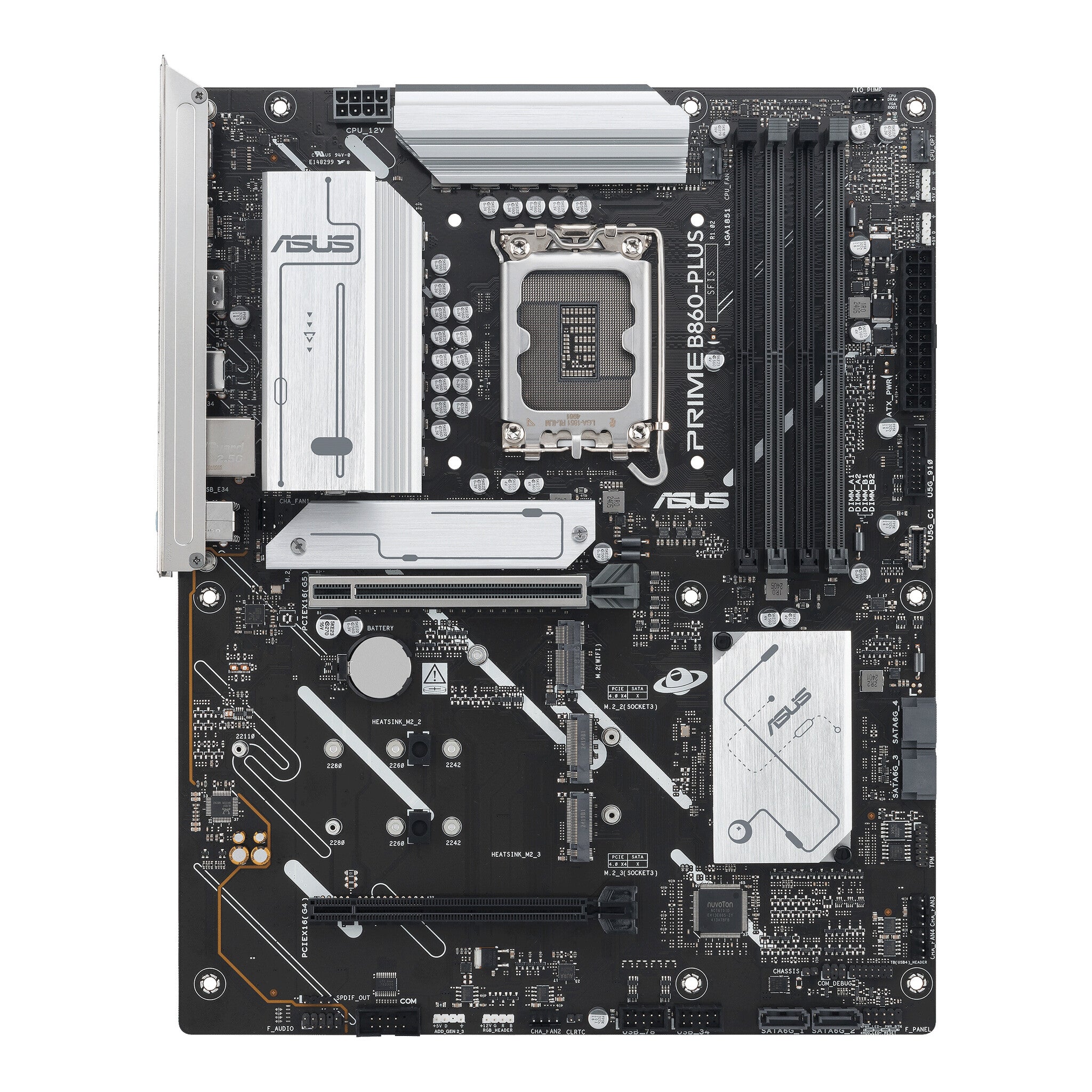

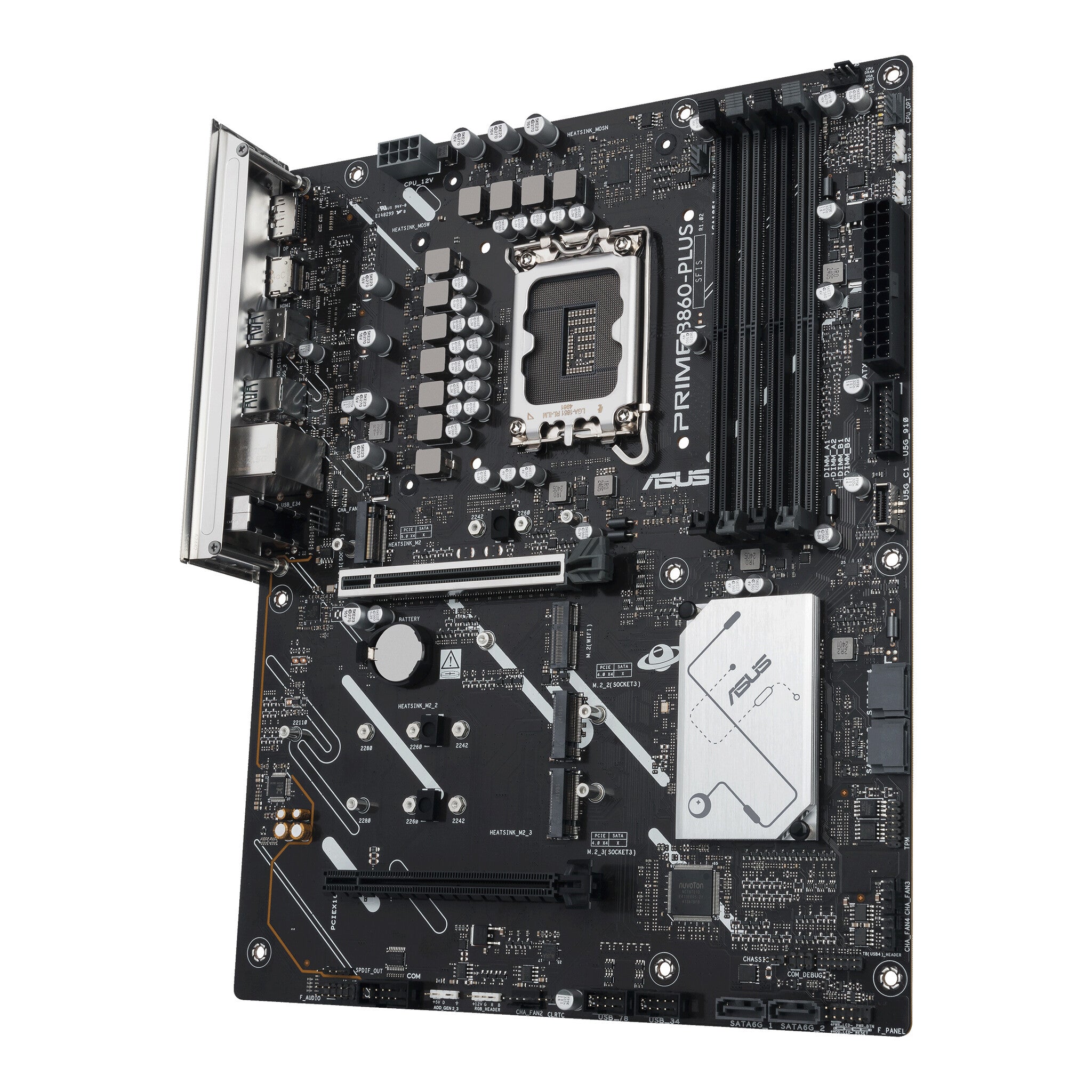

The ASUS PRIME B860-PLUS-CSM delivers solid fundamentals for Intel Core Ultra Series 2 builds in a full ATX package. This Intel B860 chipset motherboard targets mainstream users who want reliable performance without premium pricing, making it well-suited for productivity workstations, general computing, and modest gaming systems. The LGA1851 socket supports Intel's latest Core Ultra processors, while the full-size ATX form factor provides plenty of room for expansion and better cooling airflow compared to smaller boards.
Memory support stands out with four DDR5 DIMM slots accommodating up to 256GB of system RAM - substantially more than most users will need, but valuable for content creators working with large datasets or running multiple virtual machines. DDR5 speeds reach up to 8666MHz with proper memory kits, delivering the bandwidth modern processors demand. The single PCIe x16 Gen 4.0 slot handles current graphics cards effectively, while 2.5Gigabit Ethernet provides faster network connectivity than standard gigabit connections.

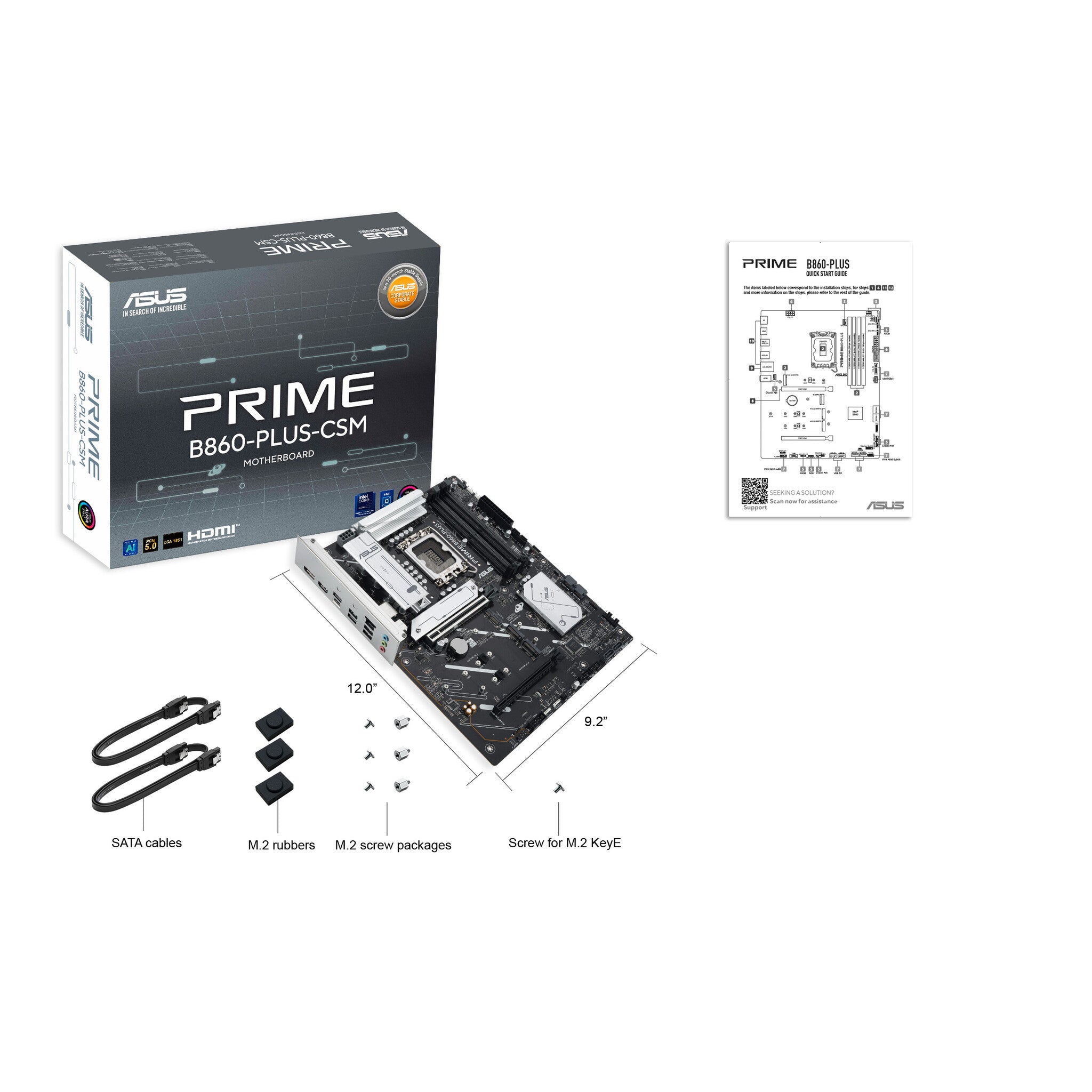

Setup stays straightforward with UEFI AMI BIOS that supports XMP memory profiles for easy DDR5 overclocking. The board includes practical touches like an RGB LED pin header for lighting customization and dedicated CPU fan connector for proper cooling management. ASUS typically includes an I/O shield, SATA cables, and installation guide in the box, covering the basics needed to get your system running. The 256MB Flash ROM provides ample space for BIOS features and future updates.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8666 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

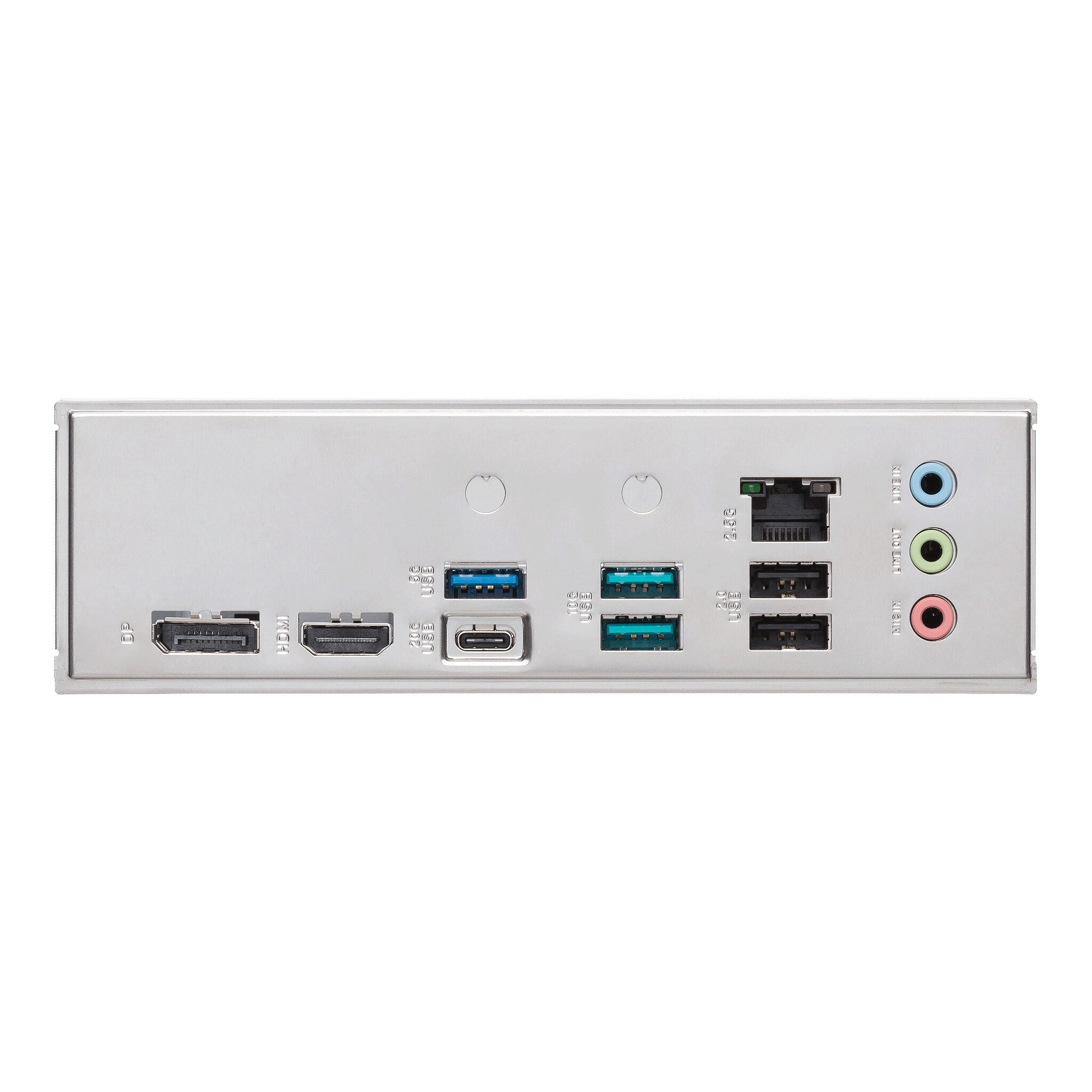

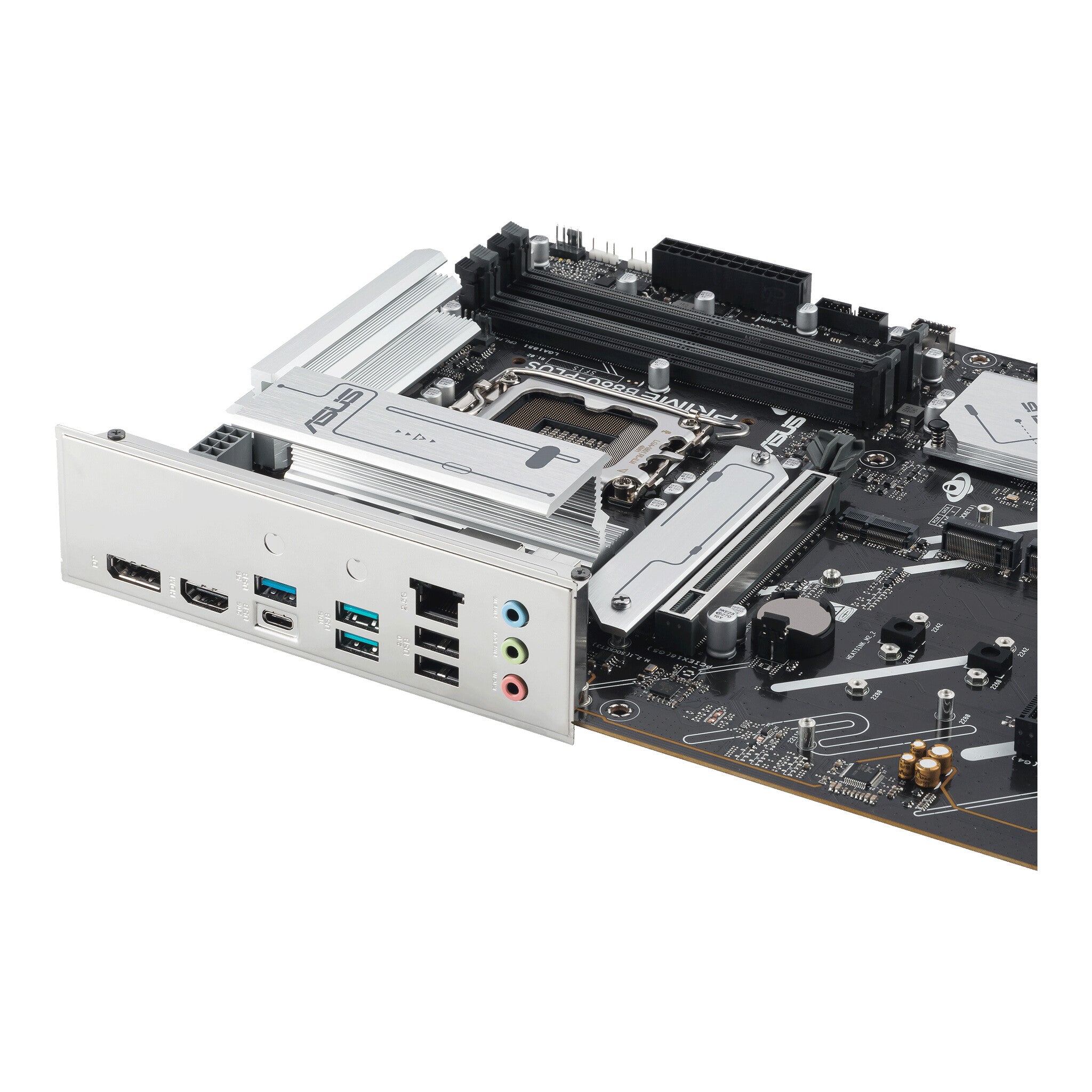

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 377 mm |
| Package depth | 372 mm |
| Package height | 302 mm |
| Package weight | 1.56 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 49 mm |
| Other features | |
|---|---|
| Weight | 896 g |
