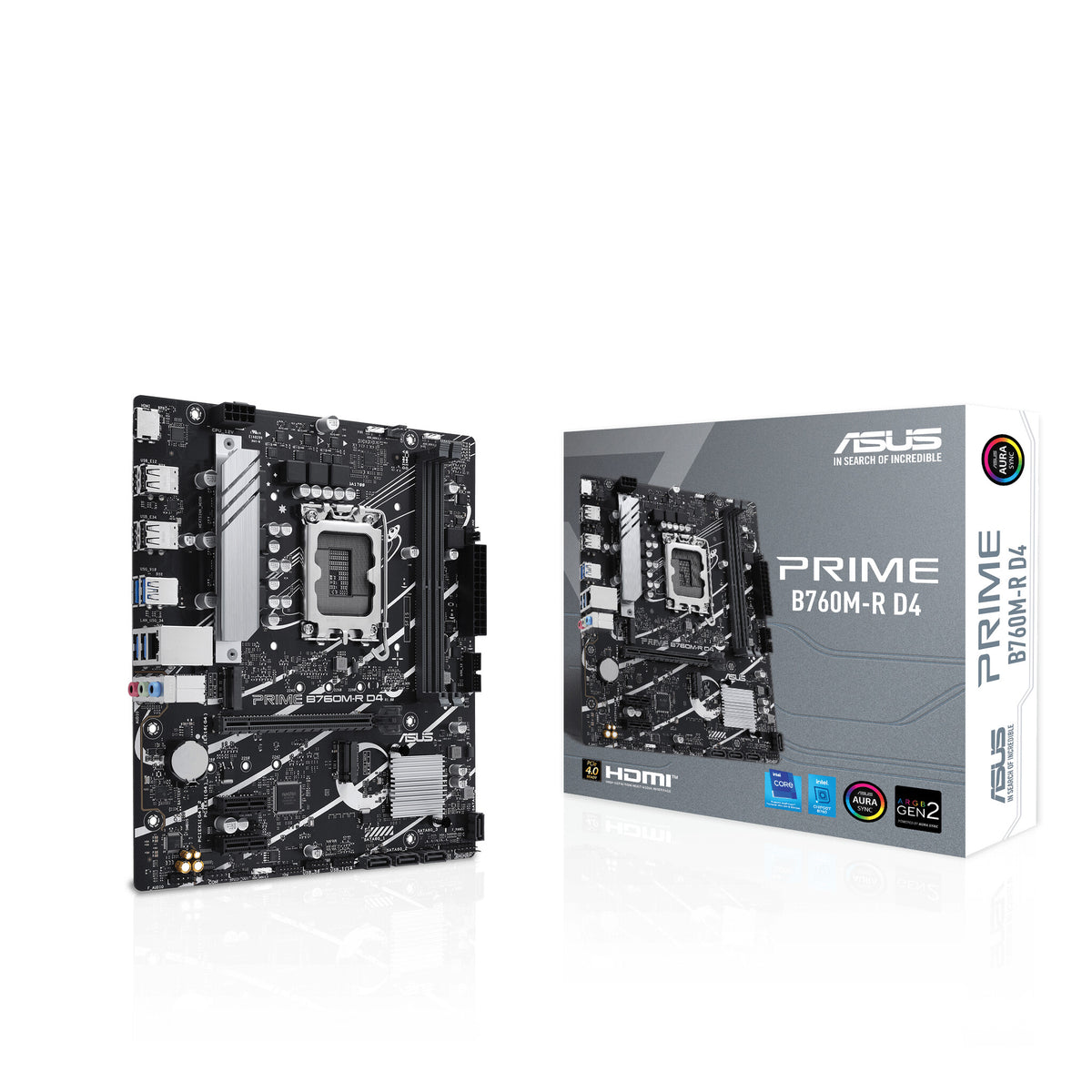

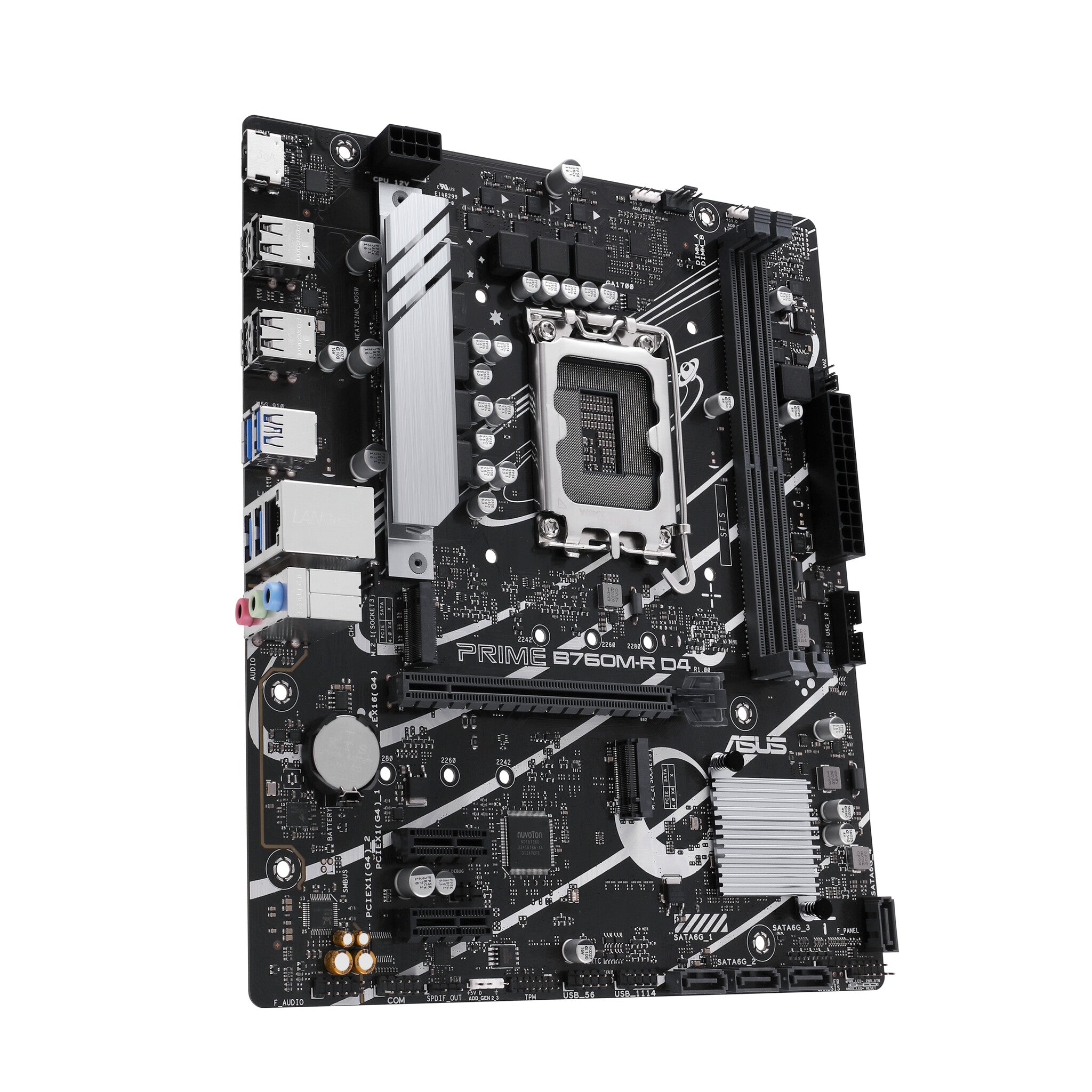

ASUS PRIME B760M-R D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel LGA 1700 Socket: Ready for 14th,13th and 12th Gen Intel processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME B760M-R D4?
How many memory slots does the ASUS PRIME B760M-R D4 have?
Does the motherboard support RGB lighting?
ASUS PRIME B760M-R D4 mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description

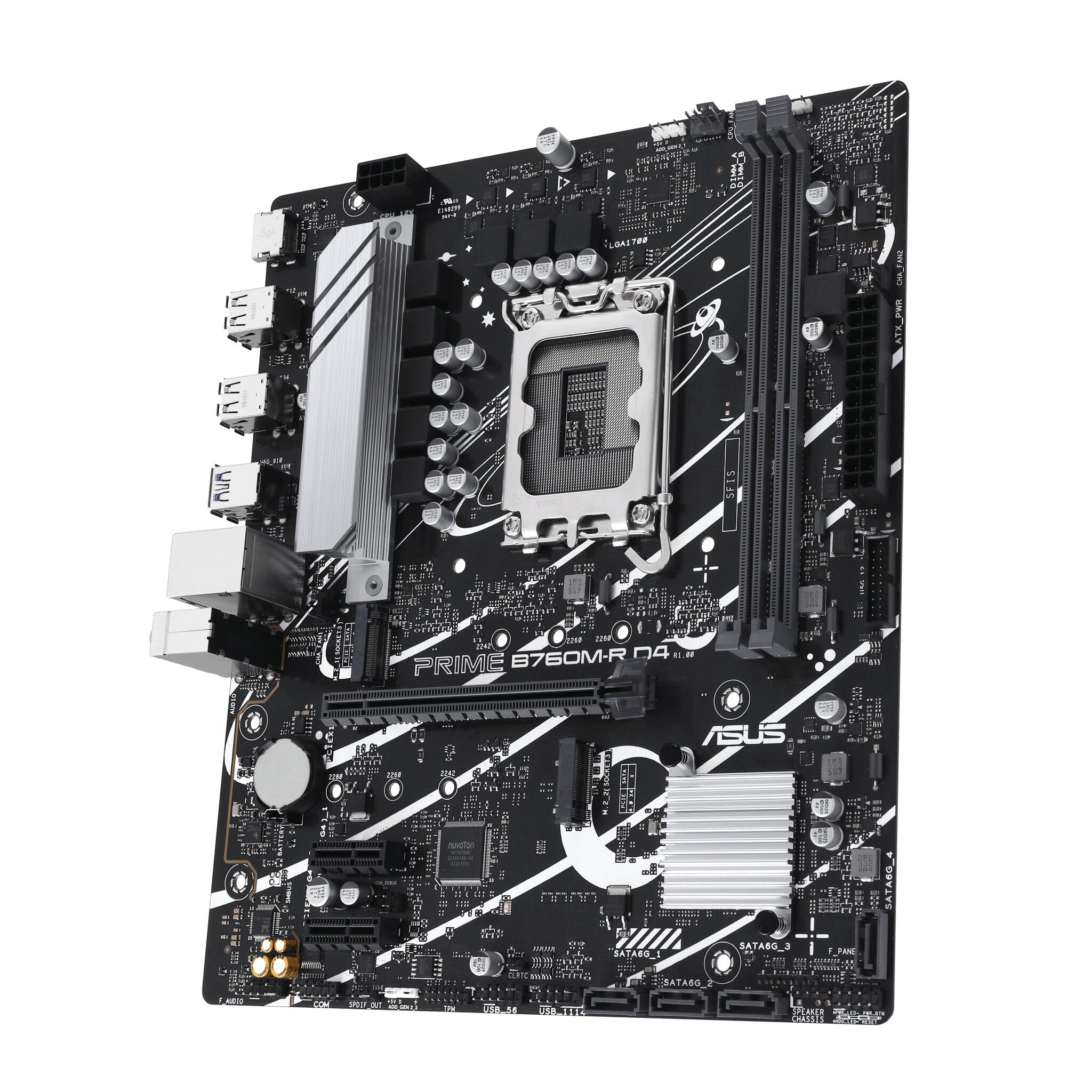

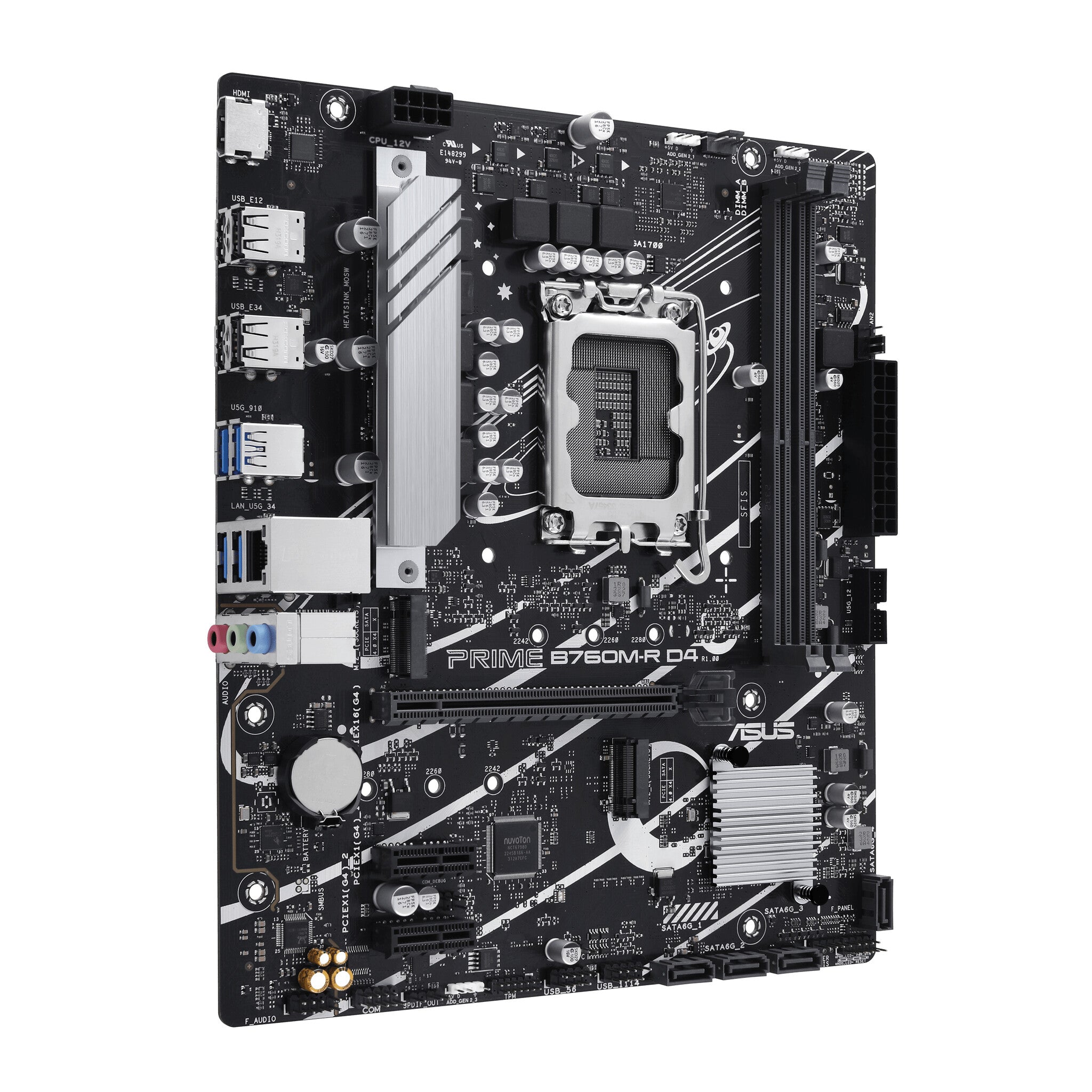

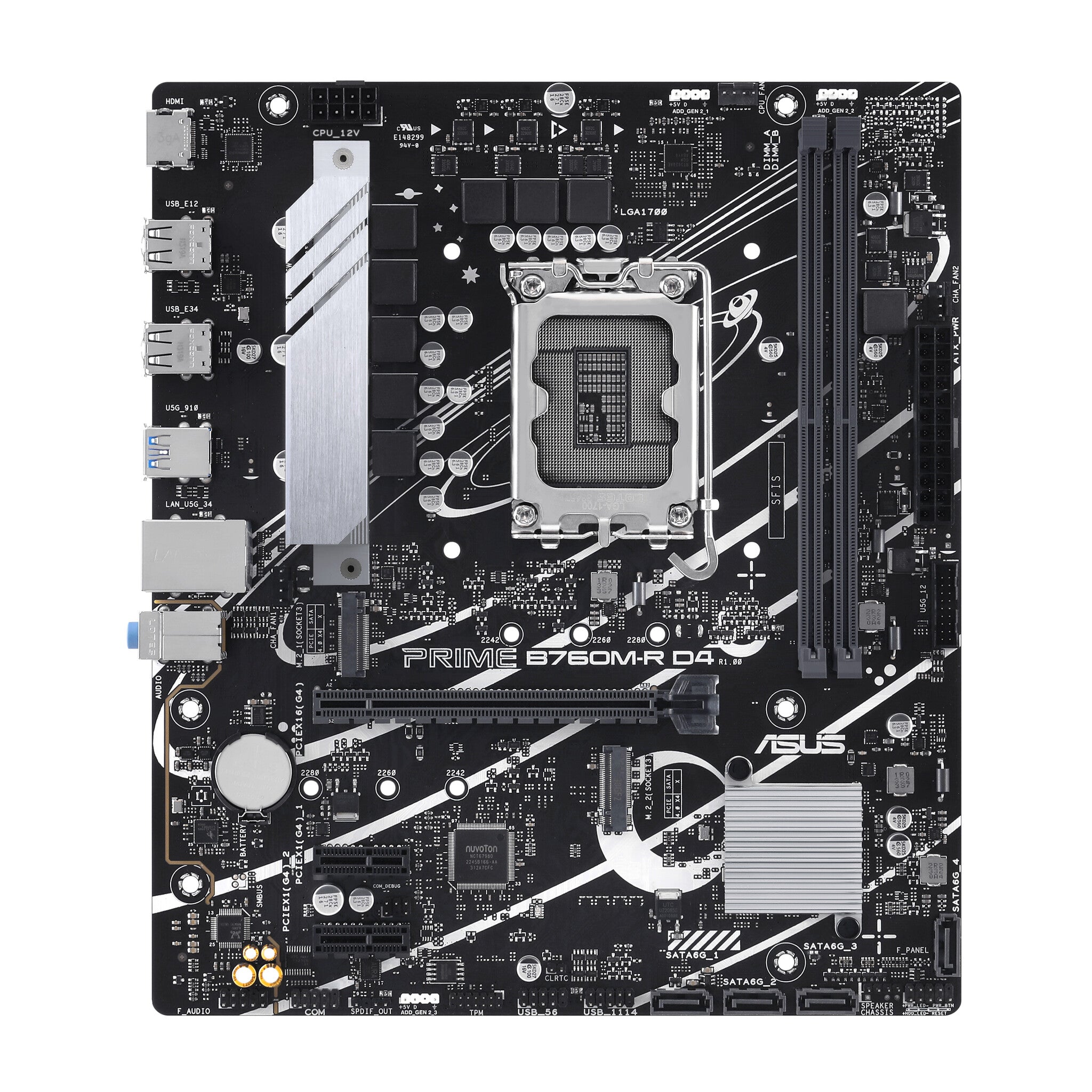

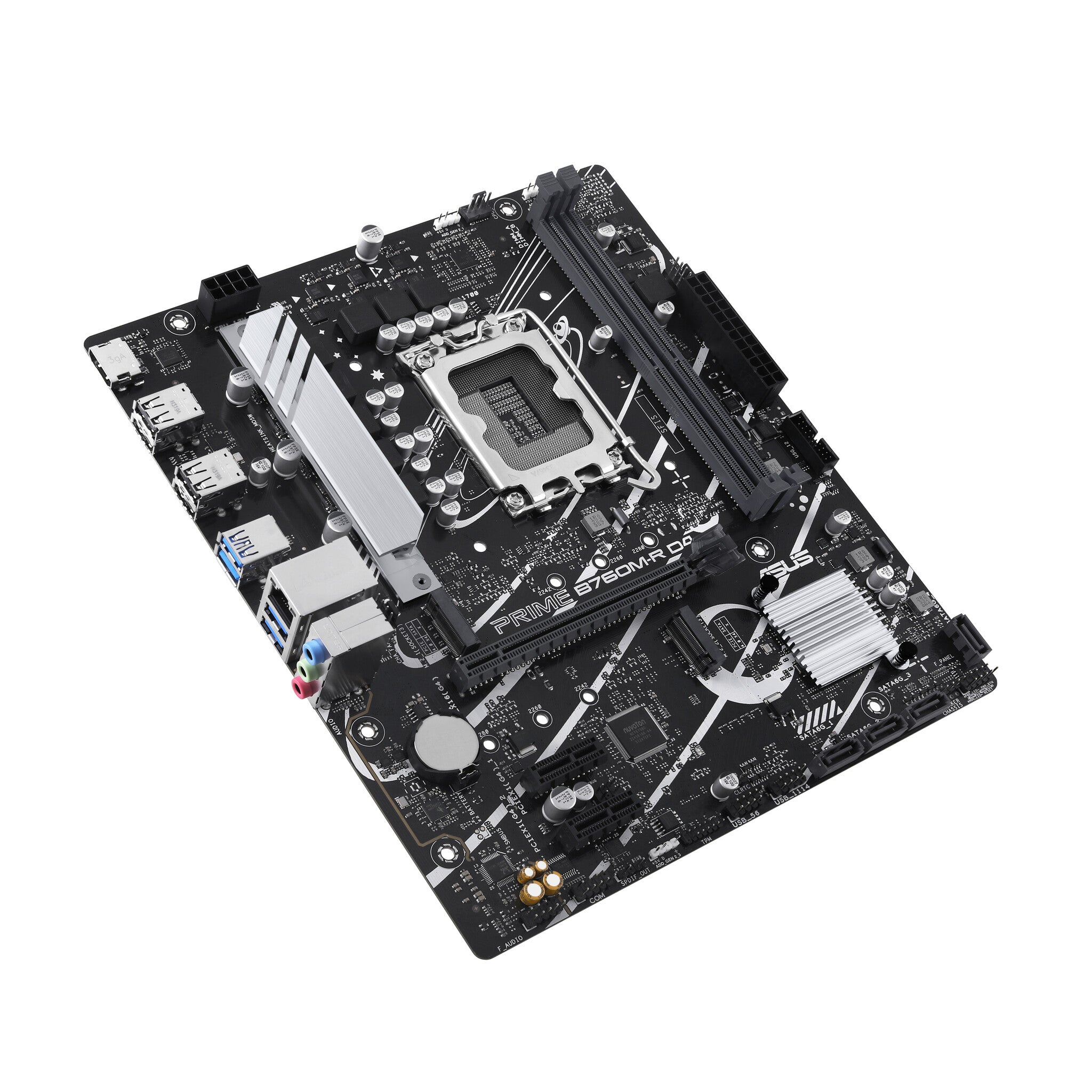

The ASUS PRIME B760M-R D4 is a micro ATX motherboard that brings Intel's mainstream B760 chipset to a compact, cost-effective package. With its LGA1700 socket, it supports Intel's 12th, 13th, and 14th generation Core processors, from budget-friendly i3s through powerful i9s. The micro ATX form factor makes it an excellent choice for space-conscious builds while still offering room for expansion, and the black PCB provides a clean foundation for any system.
Memory support centres on DDR4 with two DIMM slots accommodating up to 64GB of RAM. The board handles DDR4 speeds from standard JEDEC specifications right up to 5333MHz with XMP profiles, giving you flexibility whether you're running basic system memory or high-performance kits. For expansion, you get one PCIe 4.0 x16 slot for your graphics card plus two PCIe 4.0 x1 slots for additional cards. Connectivity includes 2.5Gb Ethernet for faster network speeds and HDMI output for integrated graphics users.

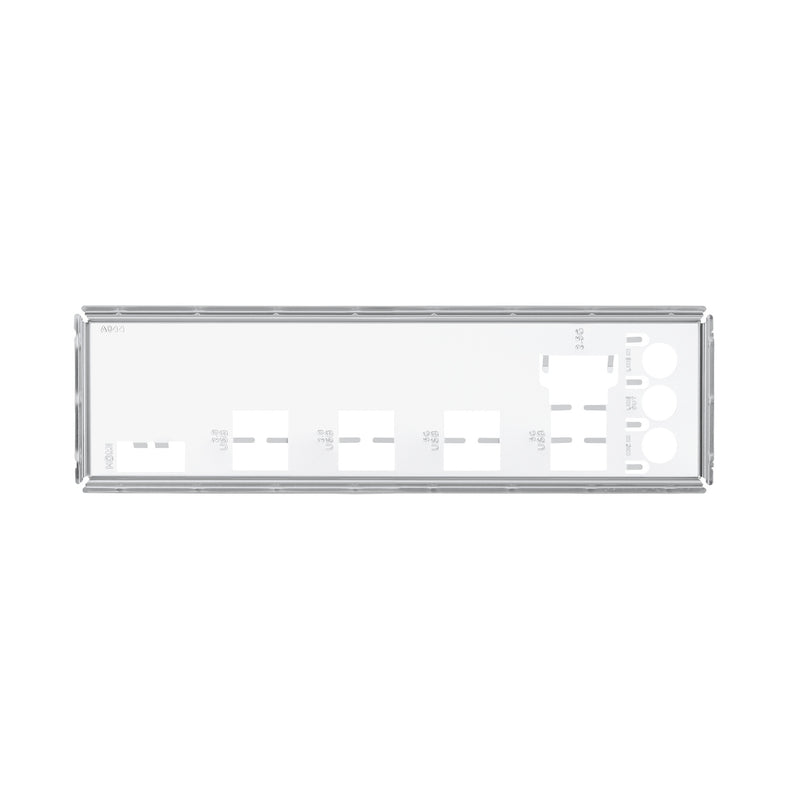

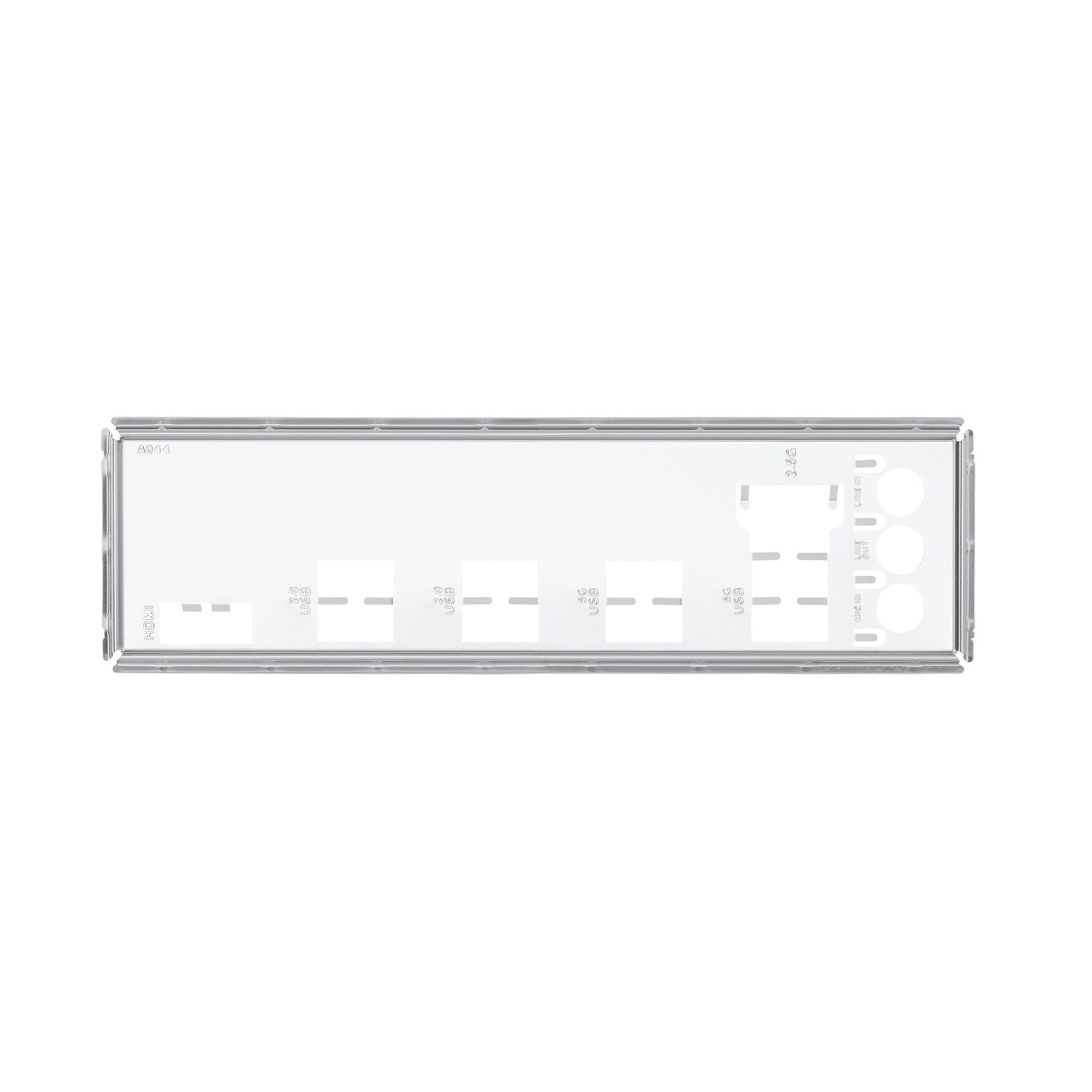

Setup is straightforward with the included I/O shield and user documentation. The RGB LED pin header lets you connect compatible LED strips for lighting effects that sync with ASUS Aura Sync. SATA 6Gb/s ports handle your storage drives, while the PCIe 4.0 support ensures your components can take advantage of the latest high-speed standards. This board delivers solid mainstream performance in a compact footprint without unnecessary complexity.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

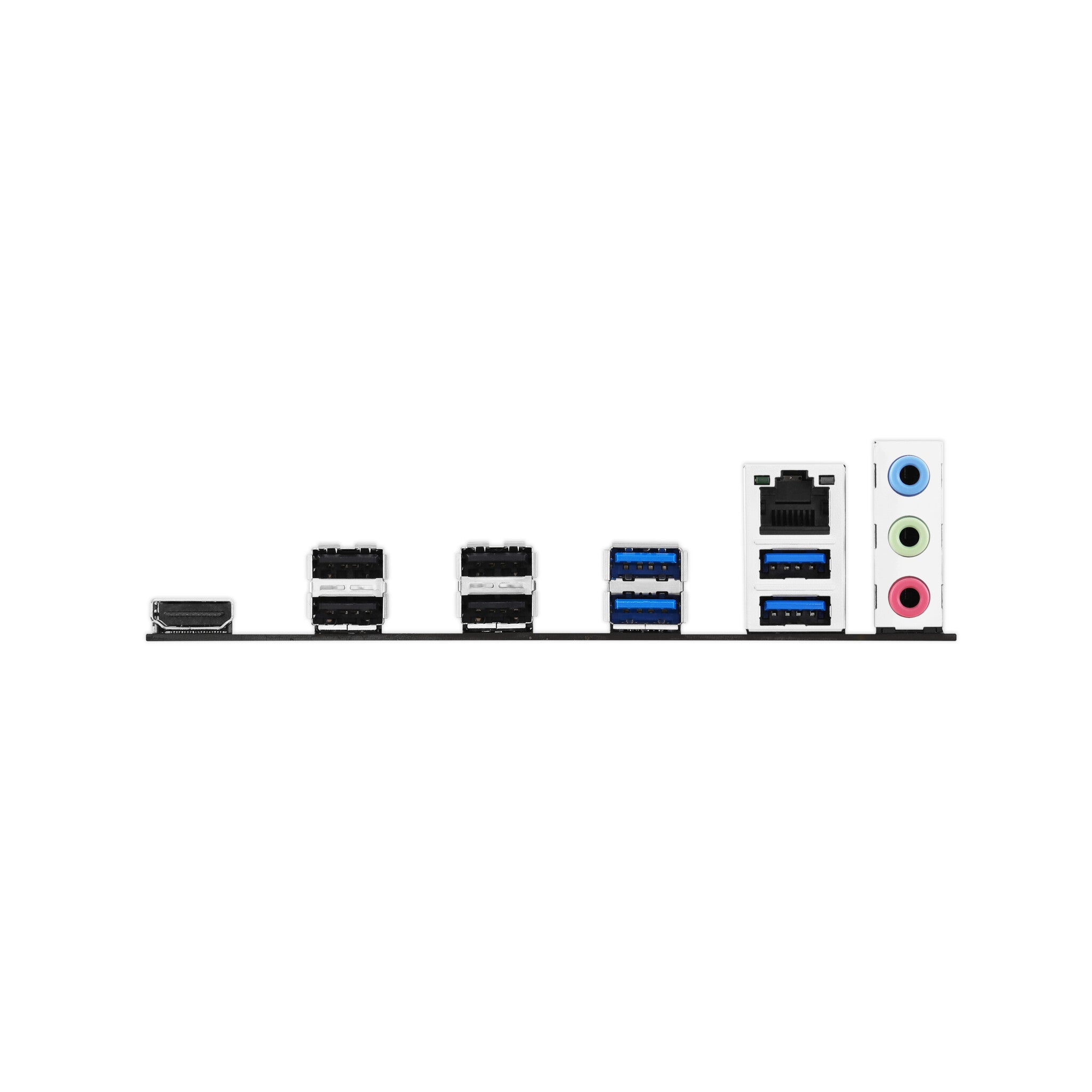

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 903 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 211 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
