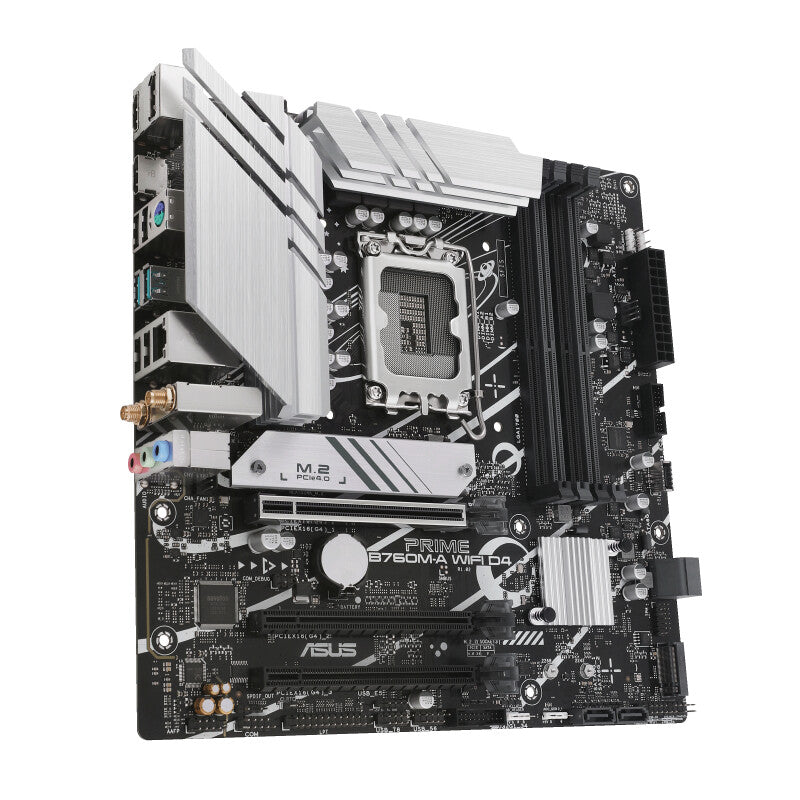

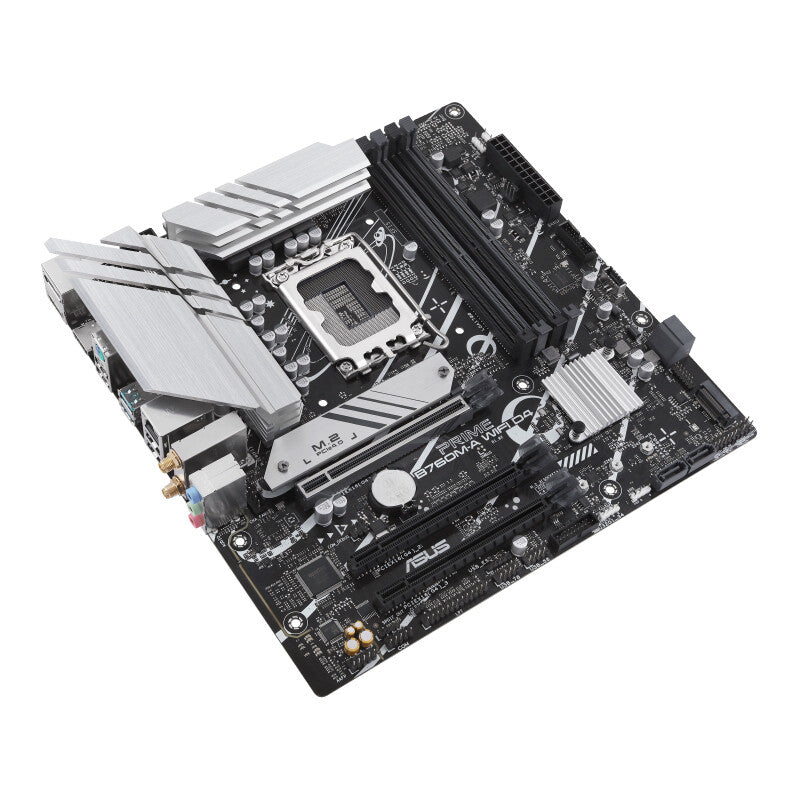

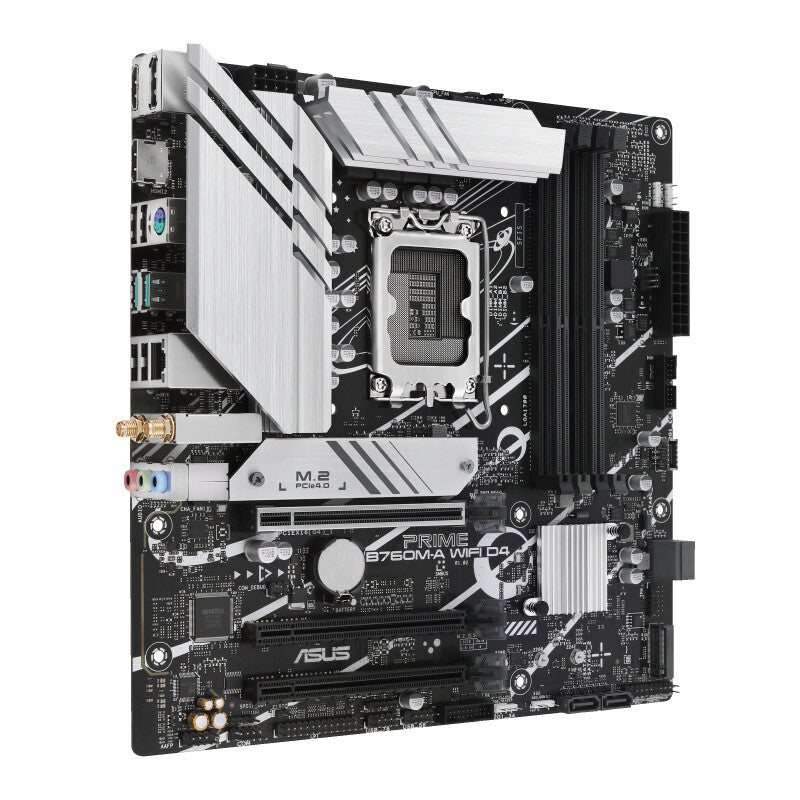

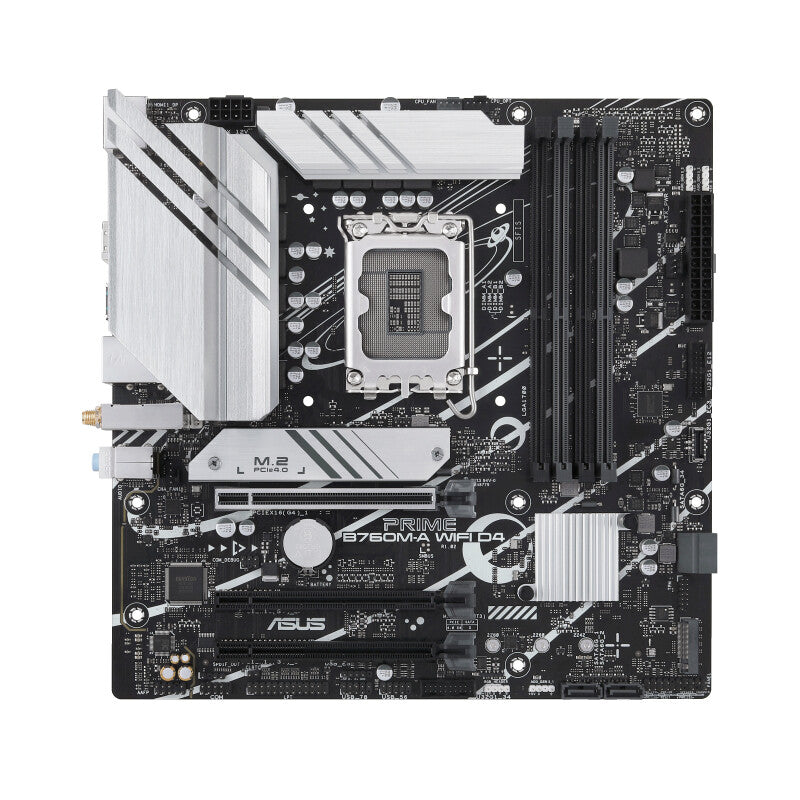

ASUS PRIME B760M-A WIFI D4 mATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME B760M-A?
How much memory can the motherboard support?
Does the motherboard have built-in Wi-Fi?
ASUS PRIME B760M-A WIFI D4 mATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6
Description
The ASUS PRIME B760M-A WIFI D4 delivers mainstream Intel platform features in a compact mATX design that suits smaller builds without sacrificing connectivity. This B760 chipset motherboard accommodates Intel 12th and 13th generation processors through the LGA1700 socket, making it a practical choice for home office systems, media centres, or compact gaming rigs where space matters but performance doesn't take a back seat.
Memory support extends to DDR4 speeds up to 5333 MHz across four DIMM slots with a maximum capacity of 128 GB, while XMP profiles ensure easy overclocking setup. The board includes two M.2 slots for NVMe storage expansion alongside traditional SATA connections. Three PCIe x16 slots provide flexibility for graphics cards and expansion cards, though the compact form factor means careful planning for multi-GPU configurations.

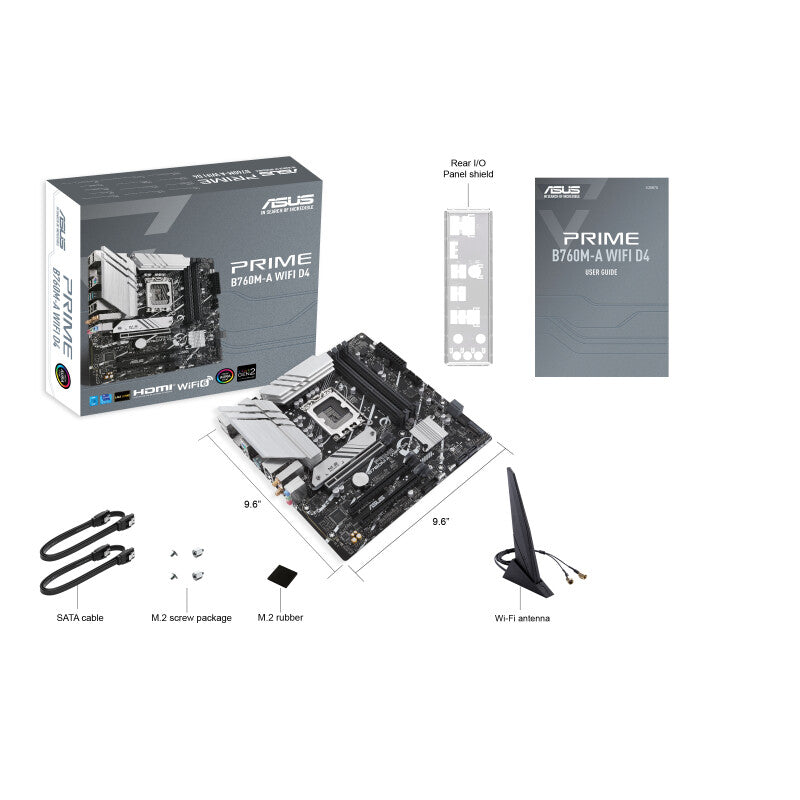

Connectivity covers both wired and wireless needs with Realtek 2.5 Gigabit Ethernet and built-in Wi-Fi 6, plus a comprehensive selection of USB ports including rear USB 3.2 Gen 2 and front-panel USB 3.2 Gen 1 Type-C. Display outputs include DisplayPort and dual HDMI for multi-monitor setups. The package includes mounting screws, Wi-Fi antenna, and an I/O shield for straightforward installation, while Aura Sync RGB support adds customisation options for builders who want lighting effects.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
