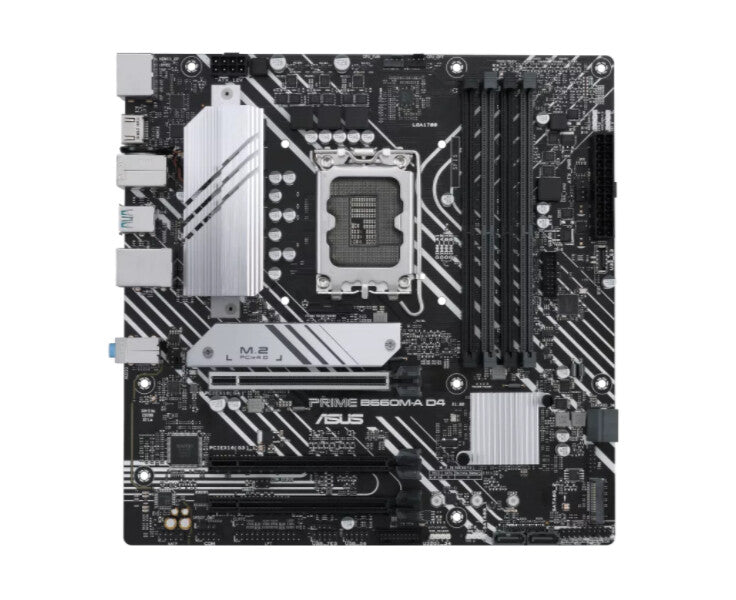

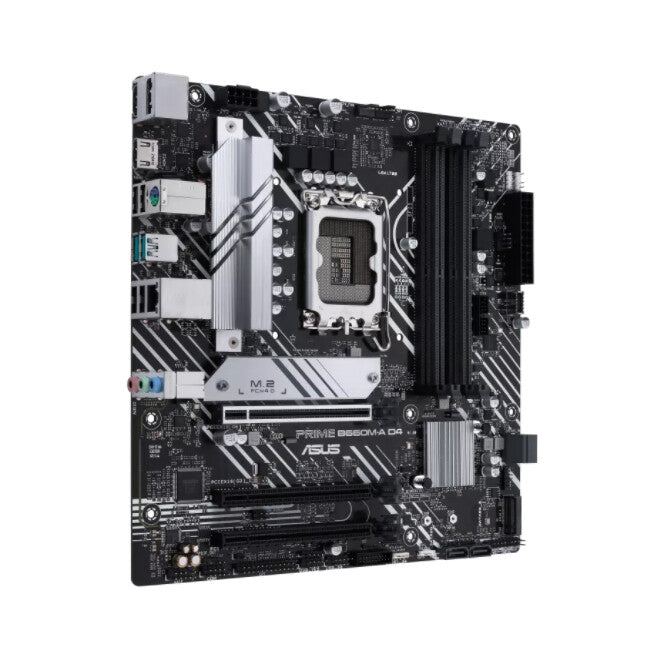

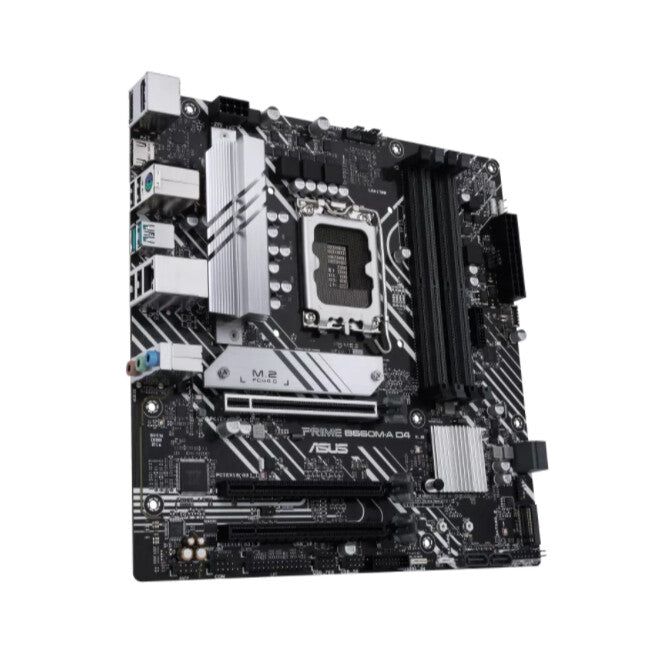

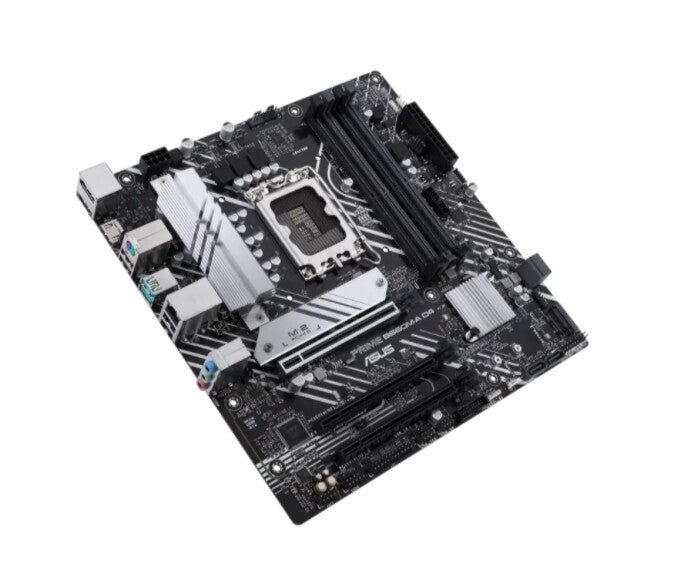

ASUS PRIME B660M-A D4-CSM mATX Motherboard | LGA1700 | 4x DDR4 Slots
KEY FEATURES
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Ultrafast connectivity : PCIe 4.0, Intel 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS Control Center Express(ACCE) to make IT endpoint management easier
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS PRIME B660M-A D4-CSM support?
What cooling options does this motherboard provide?
Is there RGB lighting support on this motherboard?
ASUS PRIME B660M-A D4-CSM mATX Motherboard | LGA1700 | 4x DDR4 Slots
Description
The ASUS PRIME B660M-A D4-CSM delivers mainstream Intel performance in a compact micro ATX package. Built on Intel's B660 chipset with LGA1700 socket compatibility, it supports 12th and 13th generation Intel processors from budget-friendly Celeron chips through to high-performance Core i9 models. The board's compact footprint makes it ideal for smaller builds where space matters, while still providing the connectivity and features needed for a capable desktop system.
Memory support centres around DDR4 technology with four DIMM slots supporting up to 128GB of RAM. The board handles DDR4 speeds up to 5333MHz when using XMP profiles, giving you plenty of headroom for both current applications and future upgrades. Storage connectivity comes through two M.2 slots for fast NVMe SSDs, while PCIe 4.0 support ensures compatibility with the latest graphics cards. Integrated graphics outputs include DisplayPort and two HDMI ports for multi-monitor setups without a dedicated GPU.
Connectivity covers both front and rear panel needs with USB 3.2 Gen 2 ports at the back and a convenient USB 3.2 Gen 1 Type-C connector on the front panel. Intel Gigabit Ethernet handles wired networking, while ASUS Aura Sync RGB support adds customisable lighting effects. The board includes standard accessories like the rear I/O shield, SATA cables for storage drives, and mounting hardware for M.2 SSDs. A comprehensive user guide walks you through the installation process and BIOS setup options.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ® Gold |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

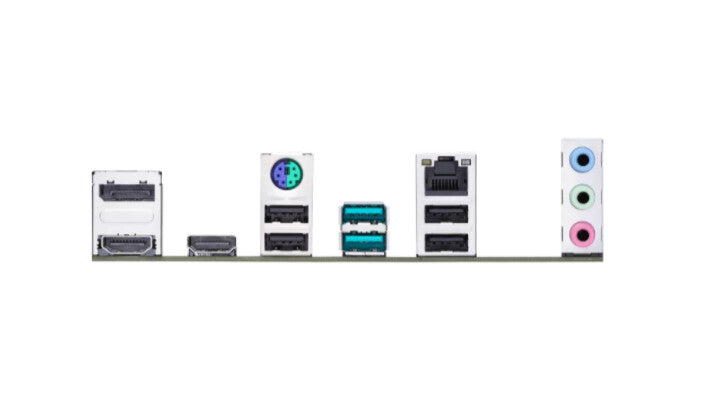

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
