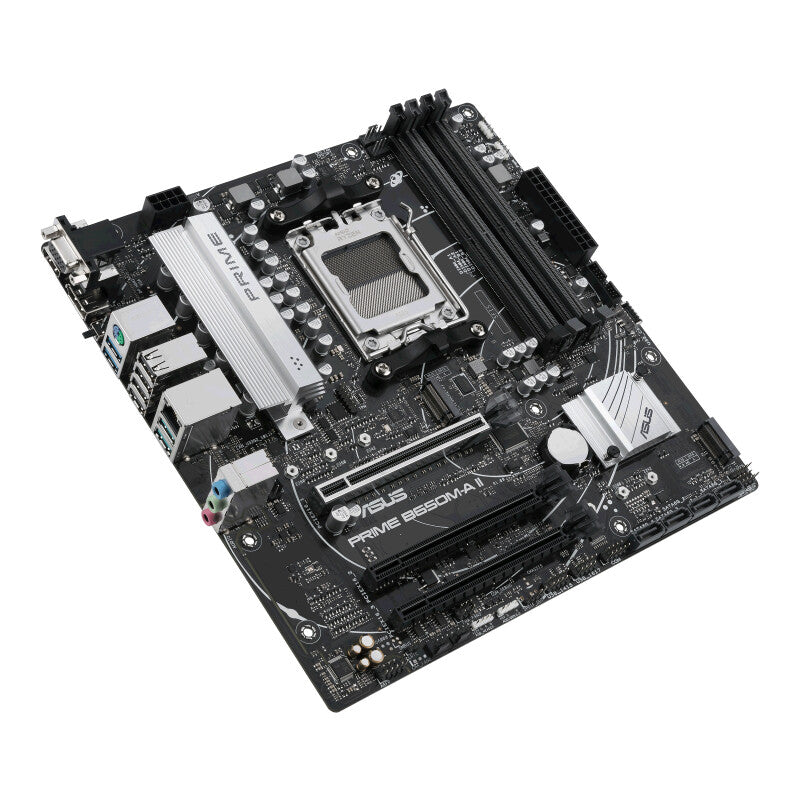

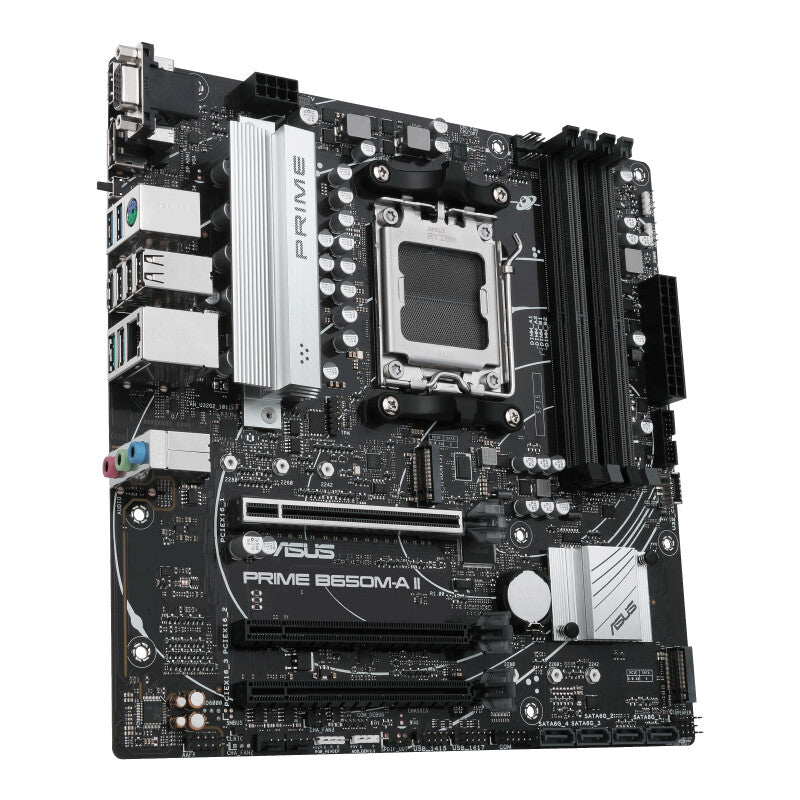

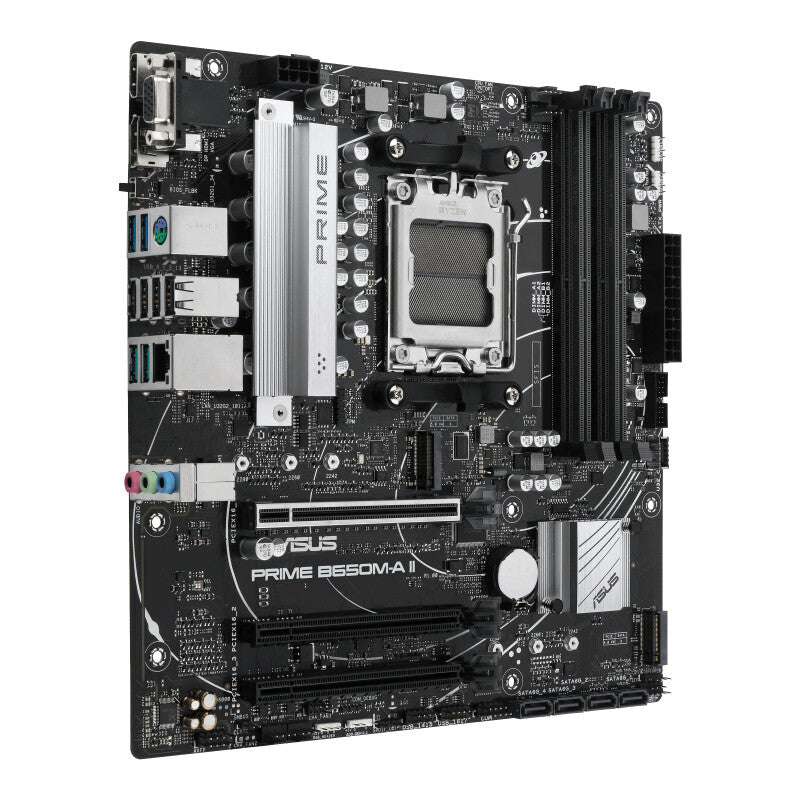

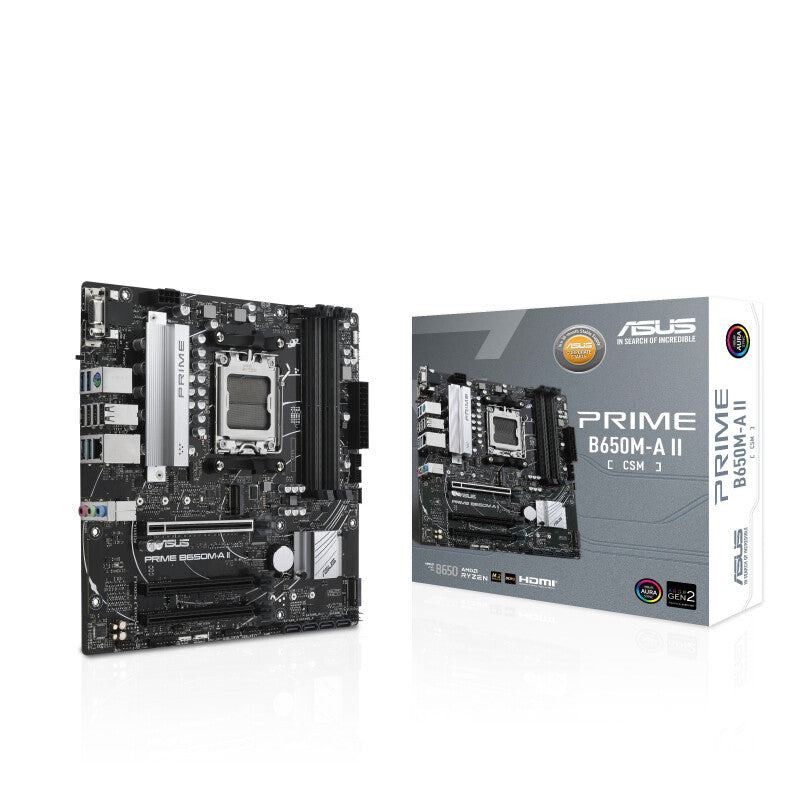

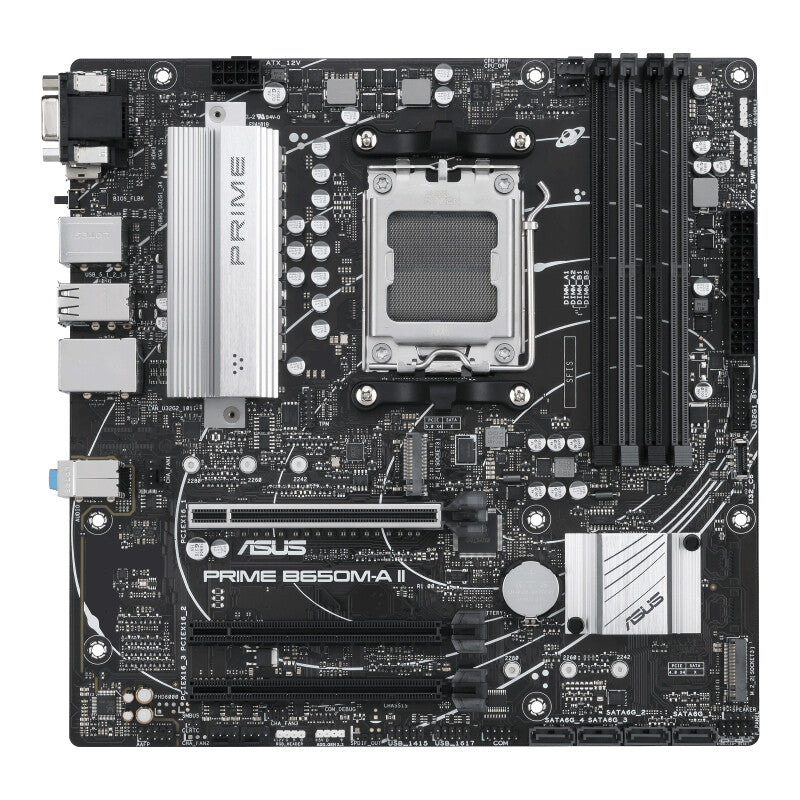

ASUS PRIME B650M-A II-CSM mATX Motherboard | AM5 | 4x DDR5 Slots
KEY FEATURES
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME B650M-A II-CSM mATX Motherboard | AM5 | 4x DDR5 Slots
Description
The ASUS PRIME B650M-A II-CSM brings AMD's B650 chipset to a compact micro-ATX format, making it an excellent choice for builders who need modern AM5 platform features in a smaller footprint. This board supports the full range of AMD Ryzen 7000 series processors and handles DDR5 memory up to 6400 MHz across four DIMM slots, with a maximum capacity of 128 GB. The inclusion of both ECC and non-ECC memory compatibility gives users flexibility for workstation or gaming builds.
Connectivity options are comprehensive for a mainstream board, featuring 2.5 Gigabit Ethernet for fast network performance alongside multiple display outputs including DisplayPort, HDMI, and VGA for versatile monitor setups. USB connectivity spans both front and rear, with USB 3.2 Gen 2 ports at the back and a modern USB 3.2 Gen 1 Type-C connector on the front panel. PCIe 5.0 M.2 support ensures compatibility with the latest high-speed NVMe drives.
ASUS includes practical features like BIOS FlashBack for easy firmware updates without a CPU installed, plus Aura Sync RGB lighting support through the onboard LED header. The board supports memory overclocking profiles to help DDR5 kits reach their rated speeds, and the micro-ATX size makes it suitable for compact cases while retaining full-sized expansion capabilities. An I/O shield comes included along with the standard documentation and mounting hardware.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

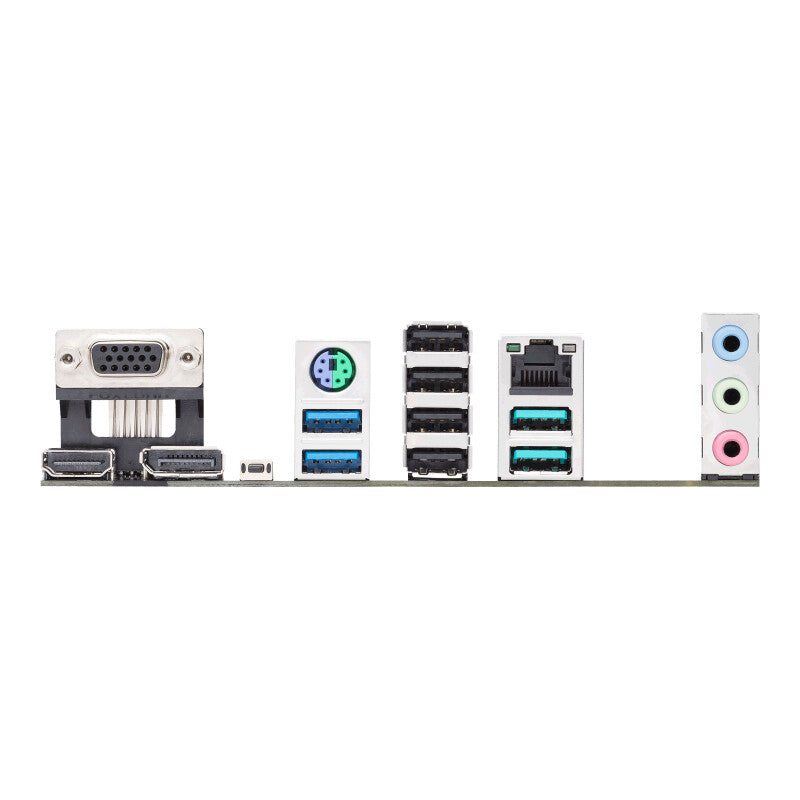

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
