ASUS PRIME B550-PLUS ATX Motherboard | AM4 | 4x DDR4 Slots
KEY FEATURES
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS PRIME B550-PLUS support?
Does the ASUS PRIME B550-PLUS support RGB lighting?
What is the maximum data transfer speed of the PCIe 4.0 M.2 slot?
ASUS PRIME B550-PLUS ATX Motherboard | AM4 | 4x DDR4 Slots
Description

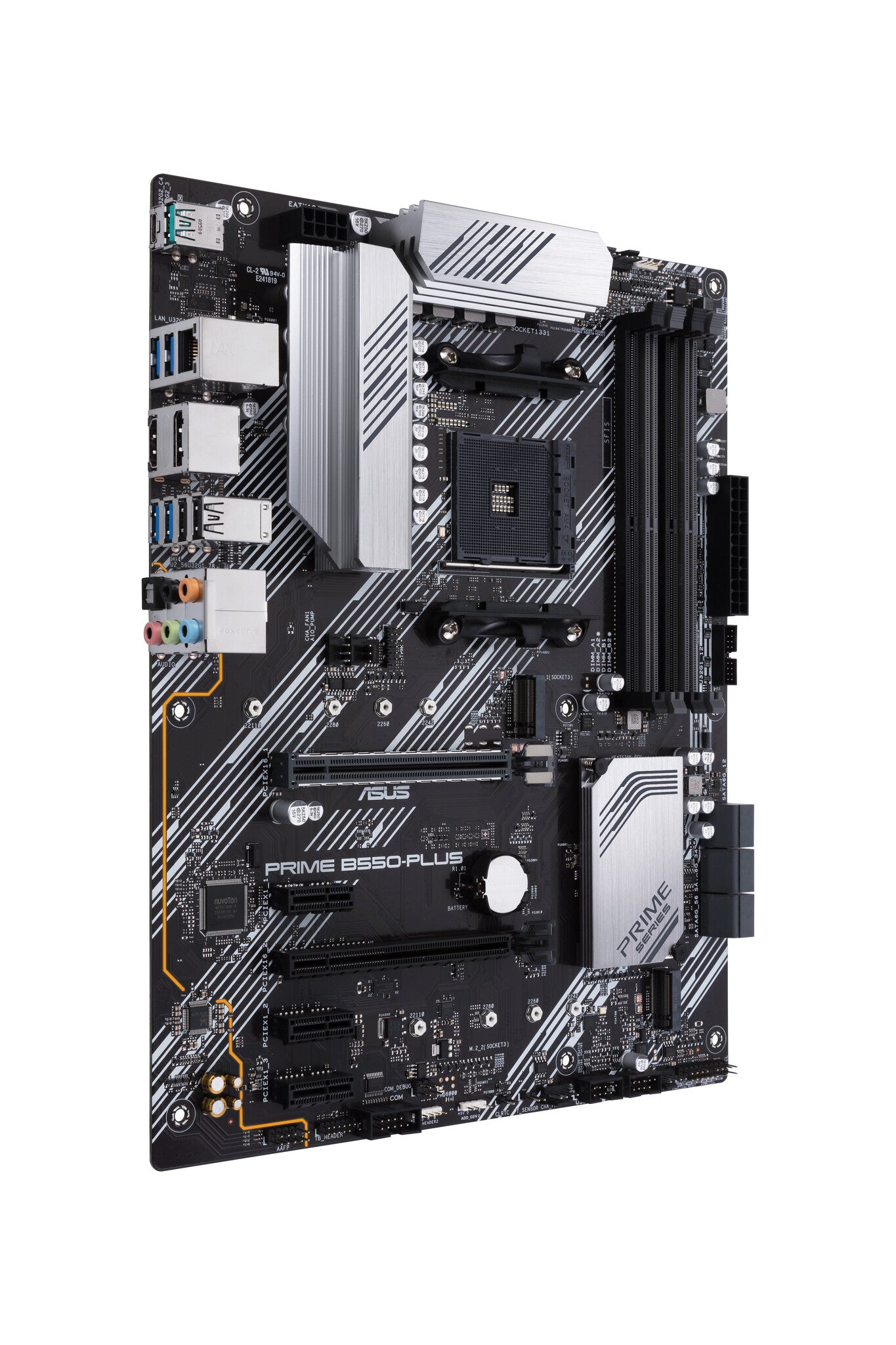

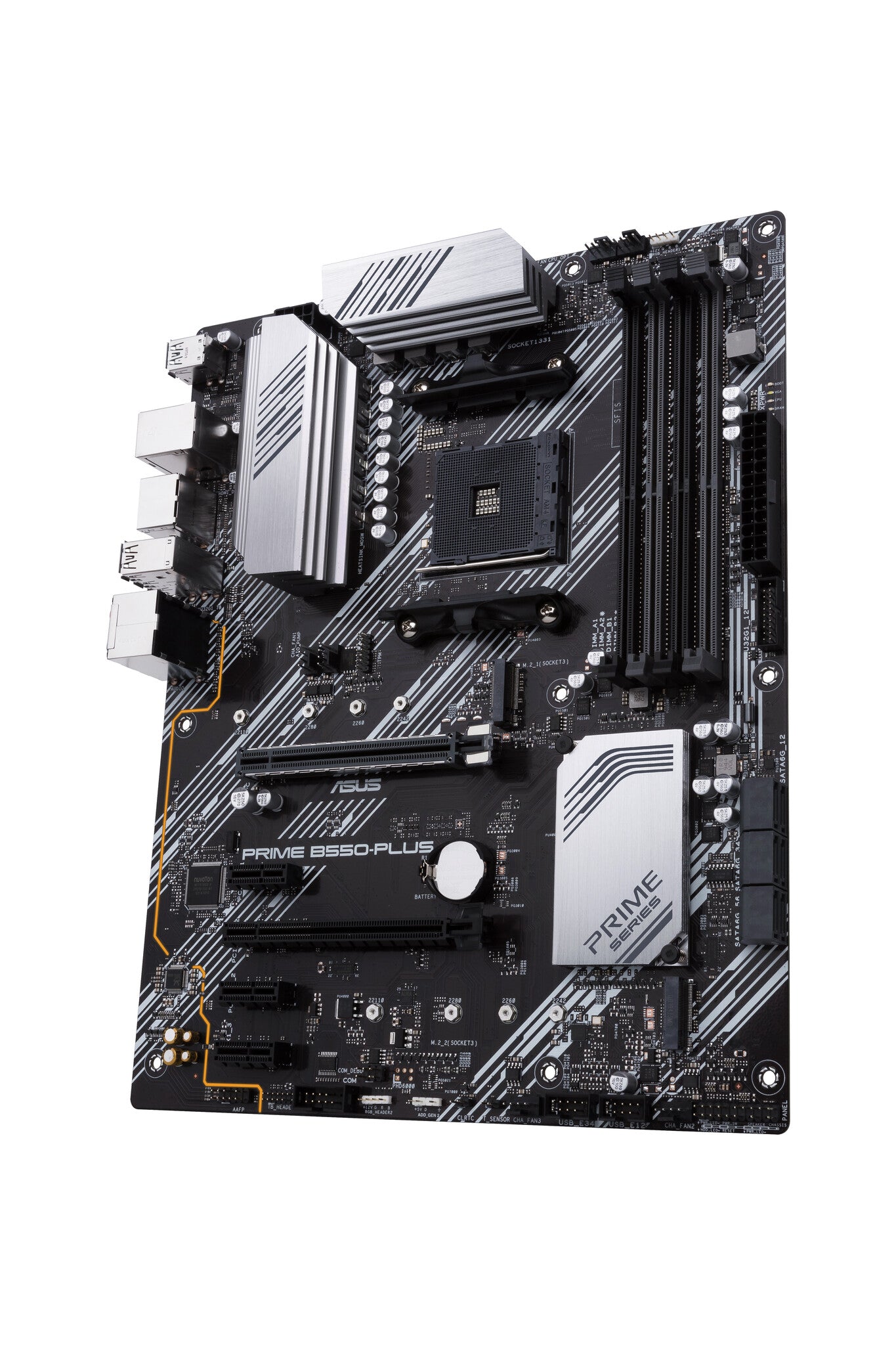

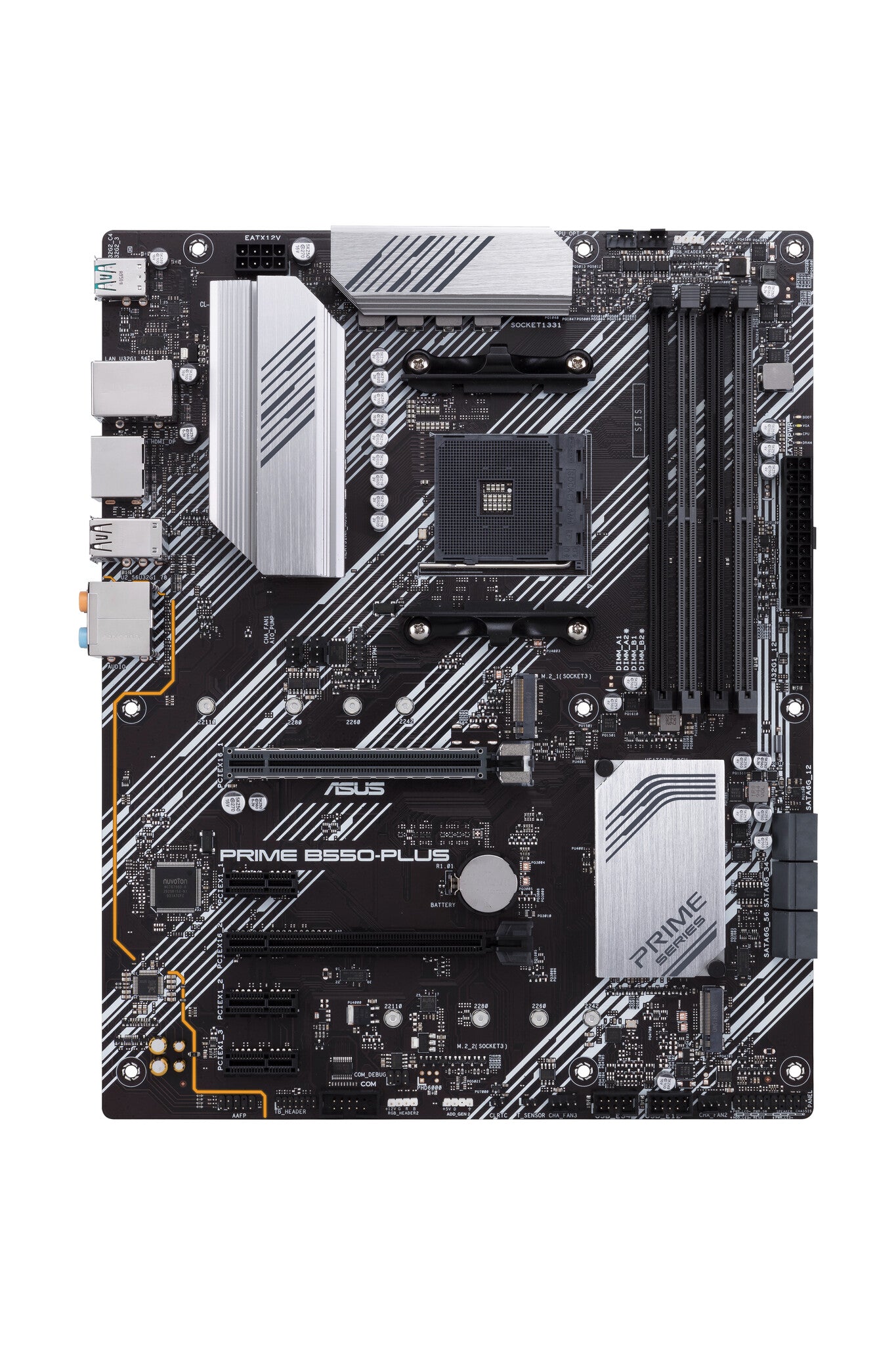

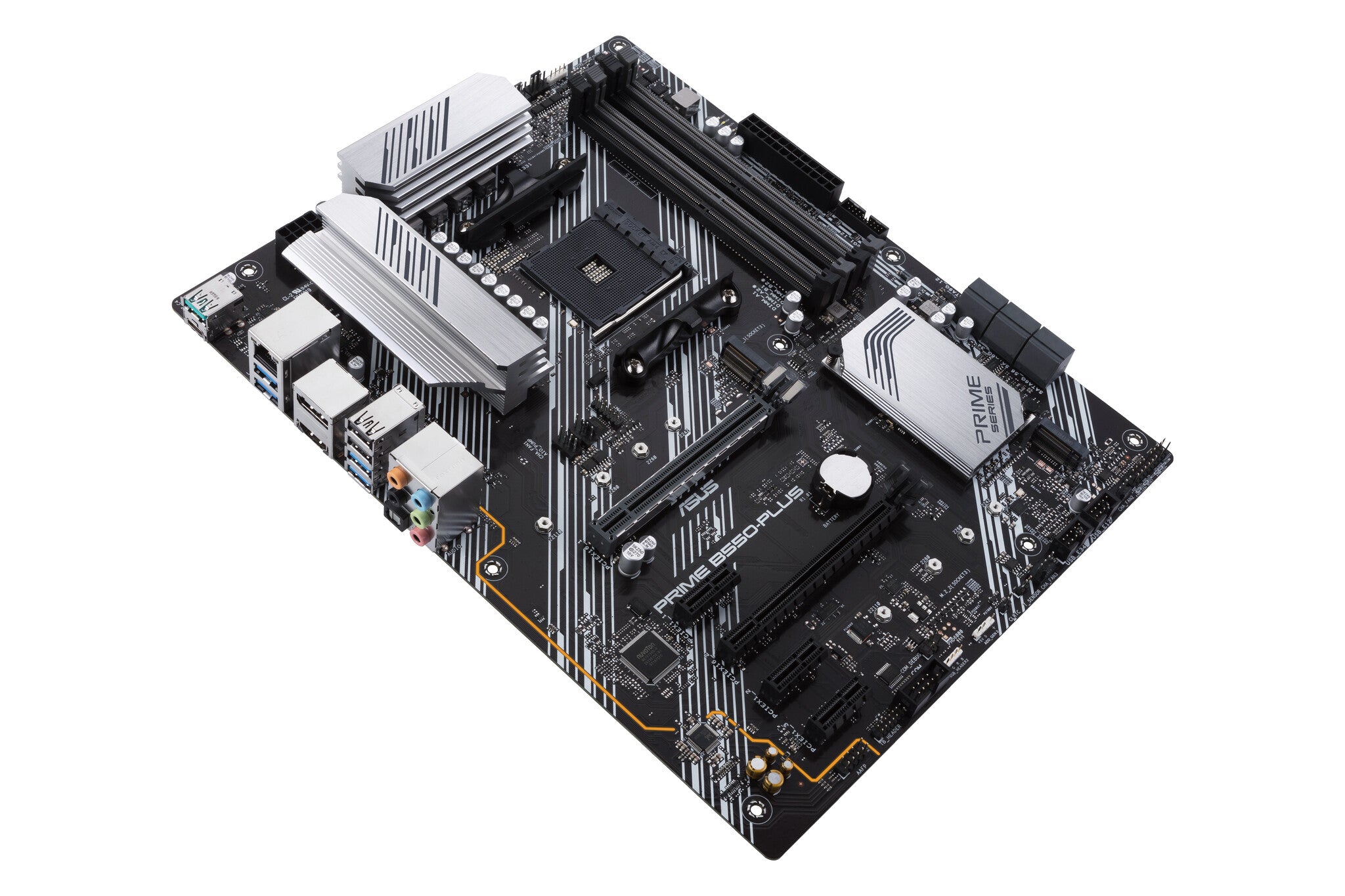

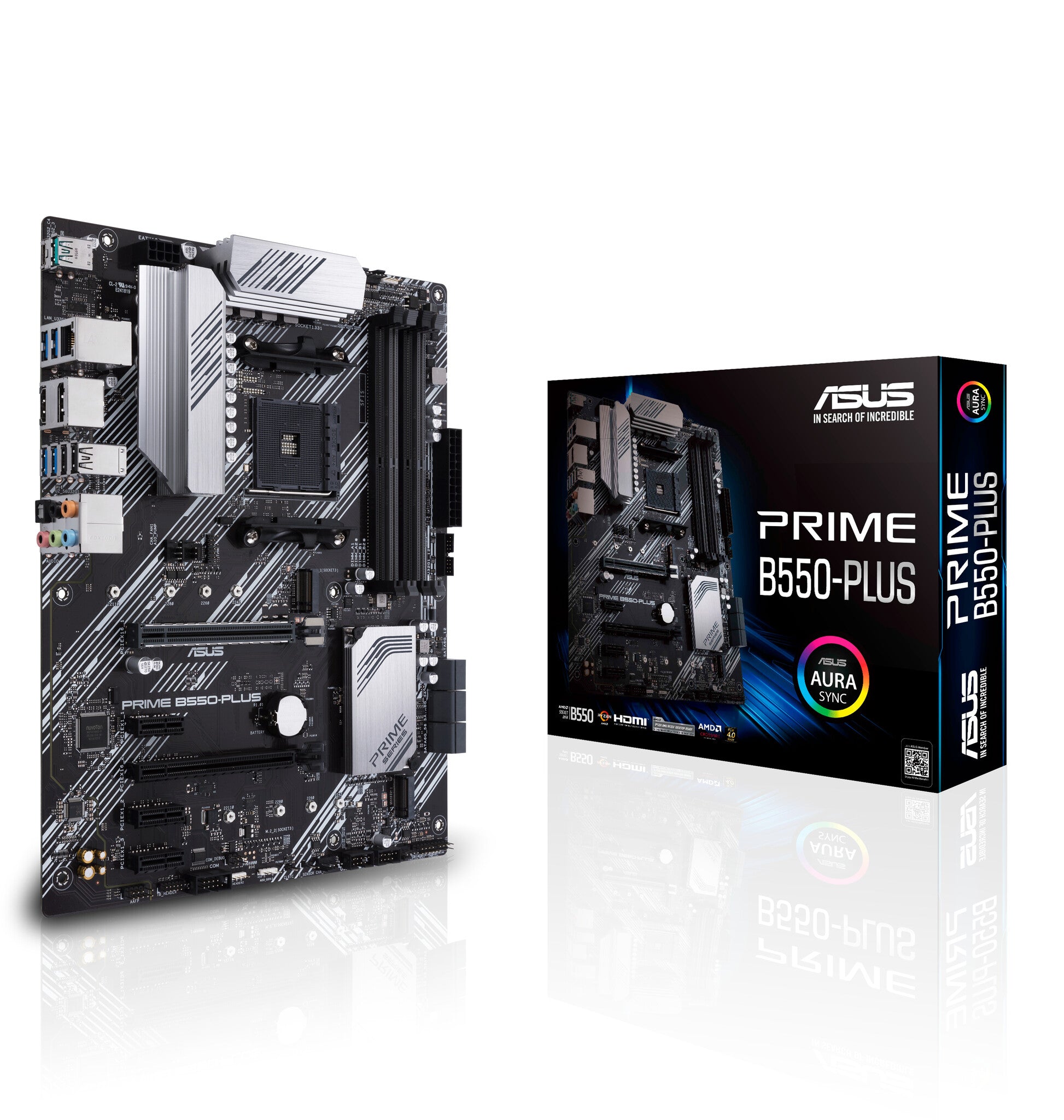

The ASUS PRIME B550-PLUS delivers mainstream AMD performance in a full-sized ATX package. Built around the B550 chipset, this motherboard supports AMD Ryzen 3000 series processors through the AM4 socket, making it an excellent choice for builders seeking solid features without premium pricing. The black and silver design fits cleanly into most builds, while the ATX form factor provides ample room for expansion and component access.

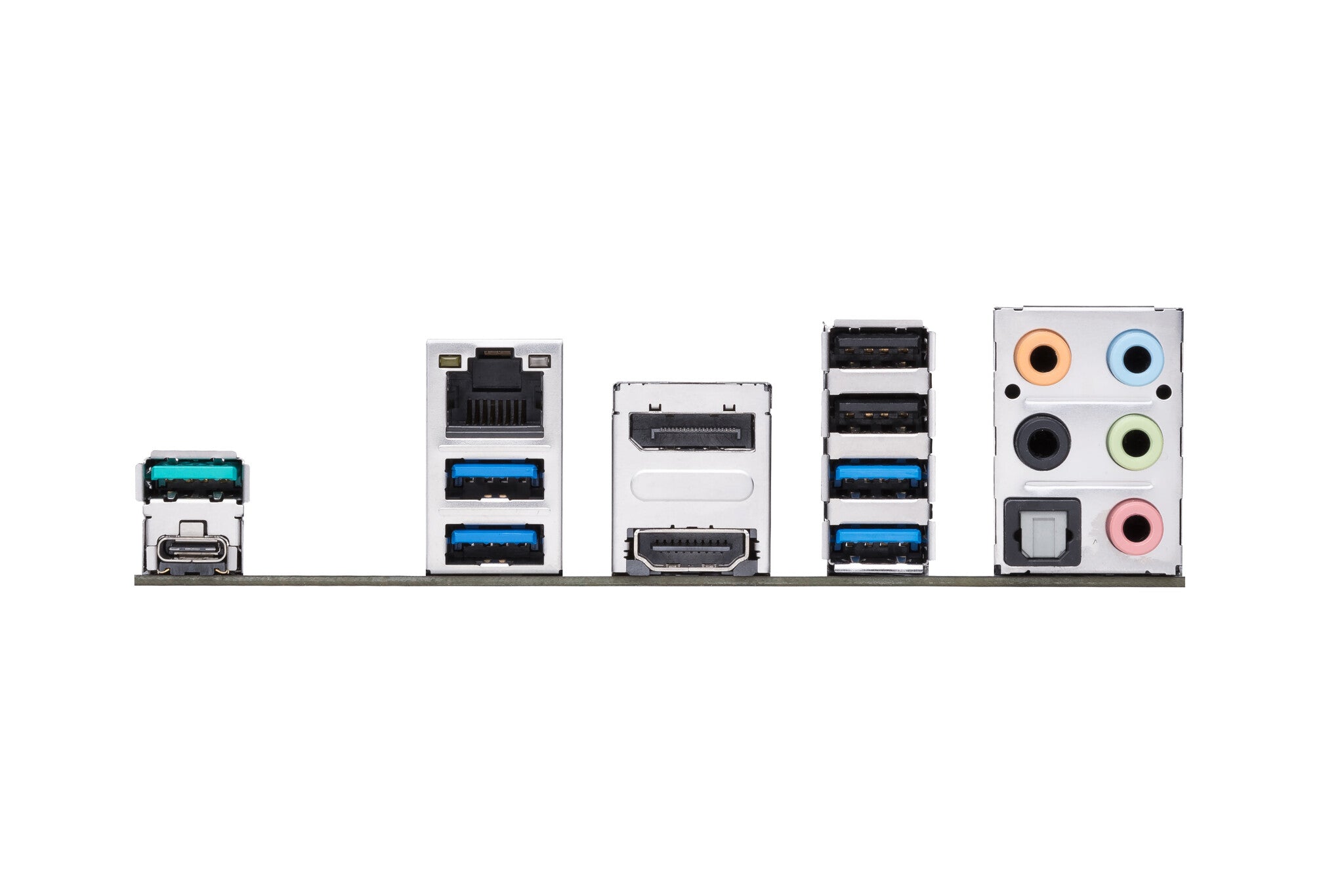

Memory support extends up to 128GB of DDR4 across four DIMM slots, with speeds reaching 4600MHz when using compatible modules and memory profiles. Two M.2 slots handle modern NVMe storage with PCIe 4.0 support for maximum transfer speeds. Connectivity covers the essentials with Gigabit Ethernet, multiple USB 3.2 ports including both Type-A and Type-C, plus DisplayPort and HDMI outputs for integrated graphics. The board also includes Aura Sync RGB headers for synchronized lighting effects.

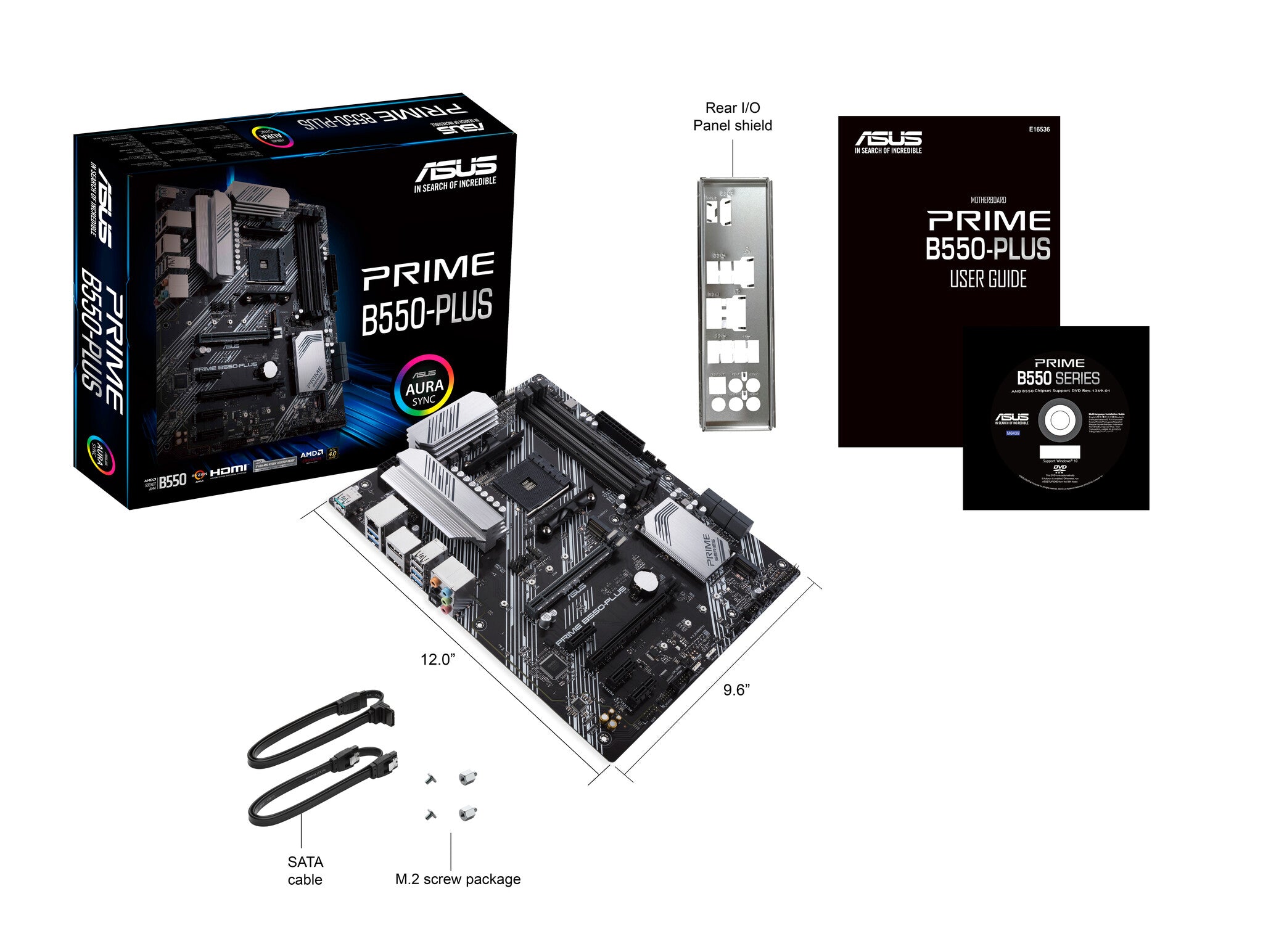

Installation stays straightforward with standard ATX mounting and clear component labeling. The package includes the rear I/O shield, SATA cables for storage connections, and a detailed user guide. Memory overclocking works through standard profiles, letting you unlock the full potential of higher-speed DDR4 kits. Two PCIe x16 slots provide room for graphics cards and expansion cards, while multiple SATA 6Gbps ports handle traditional storage drives.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Features | |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| Product colour | Black, Silver |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Height | 67 mm |
| Other features | |
|---|---|
| Weight | 1 kg |
