ASUS PRIME A620M-E-CSM mATX Motherboard | AM5 | 2x DDR5 Slots
KEY FEATURES
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME A620M-E-CSM?
How many memory slots does the motherboard have?
What cooling solutions does this motherboard offer?
ASUS PRIME A620M-E-CSM mATX Motherboard | AM5 | 2x DDR5 Slots
Description

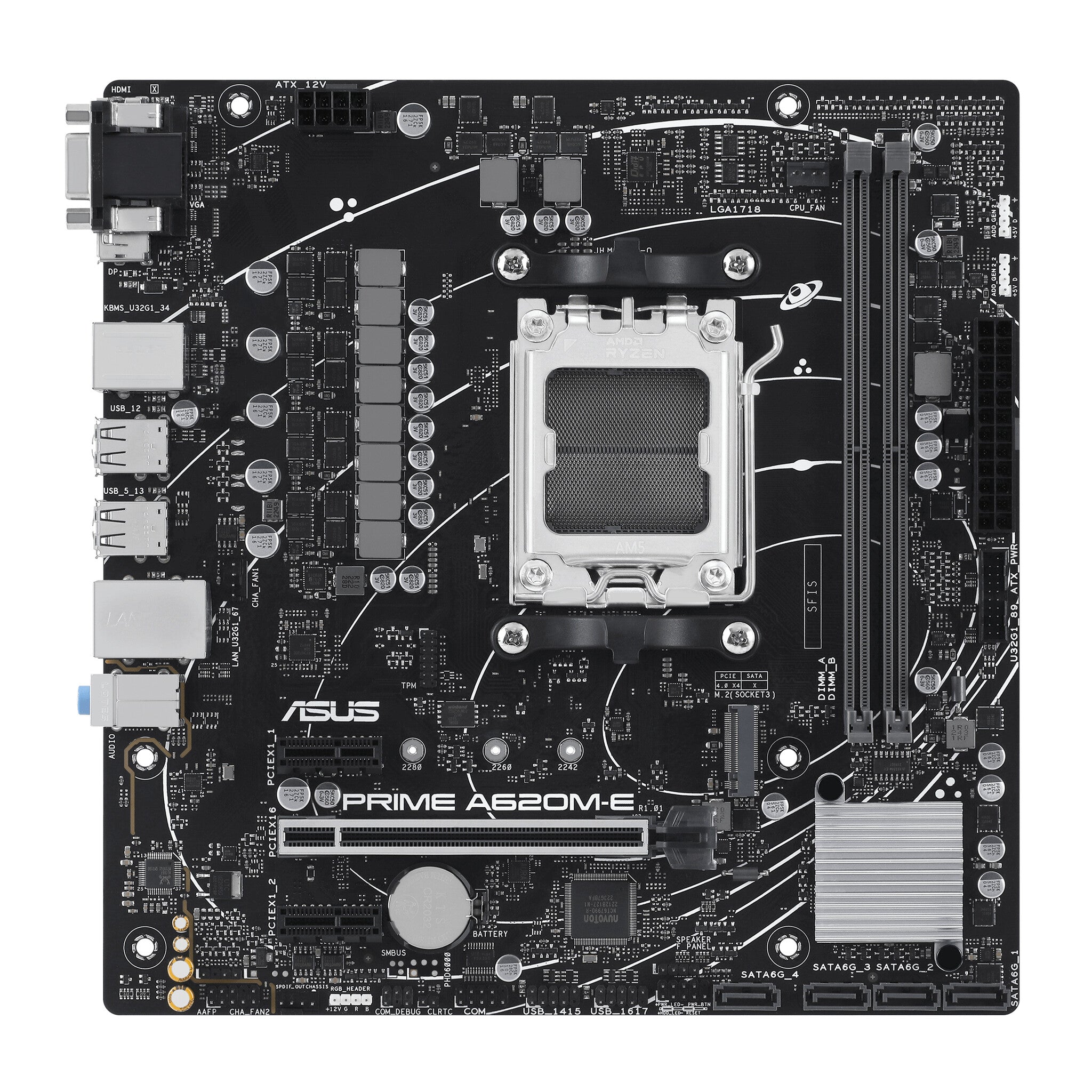

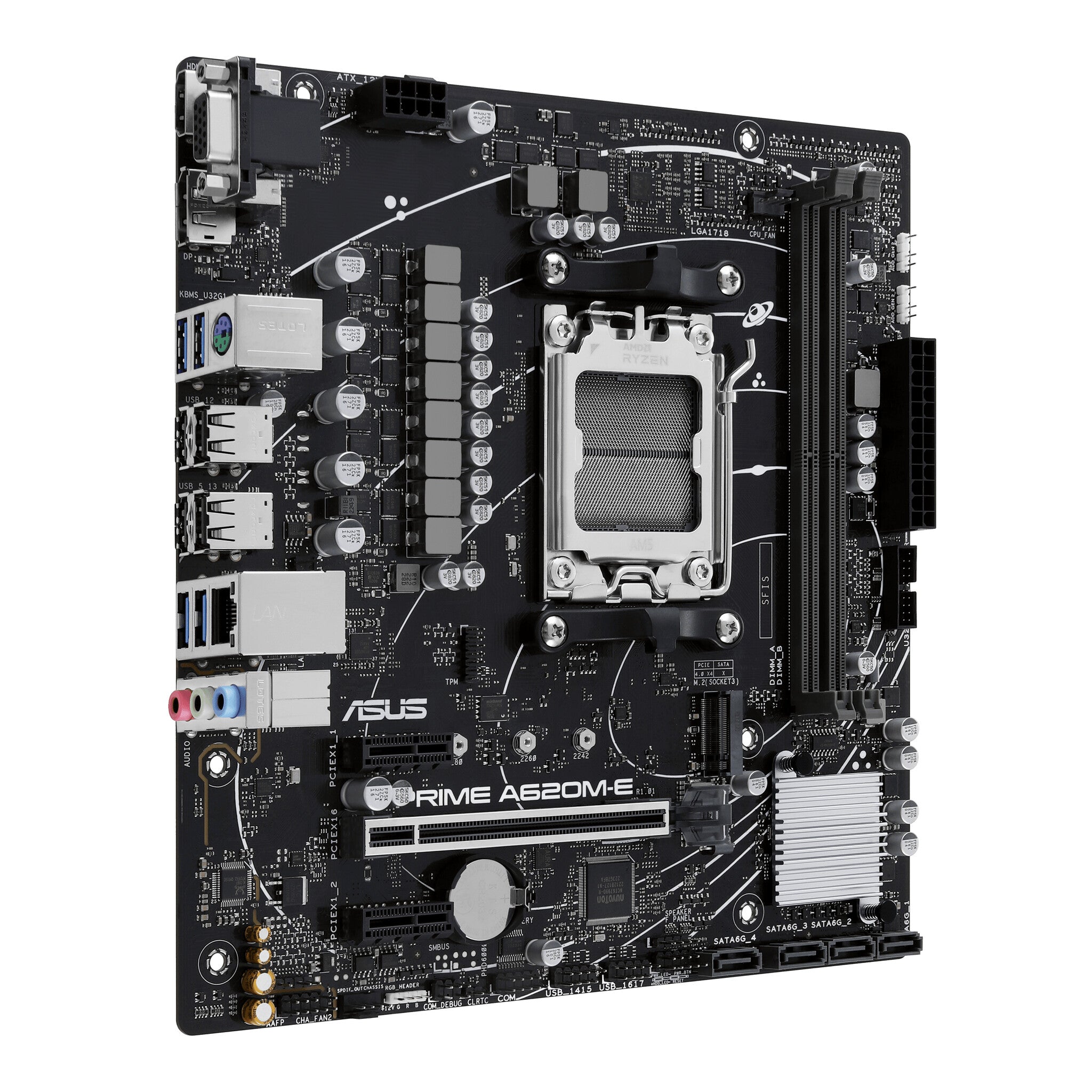

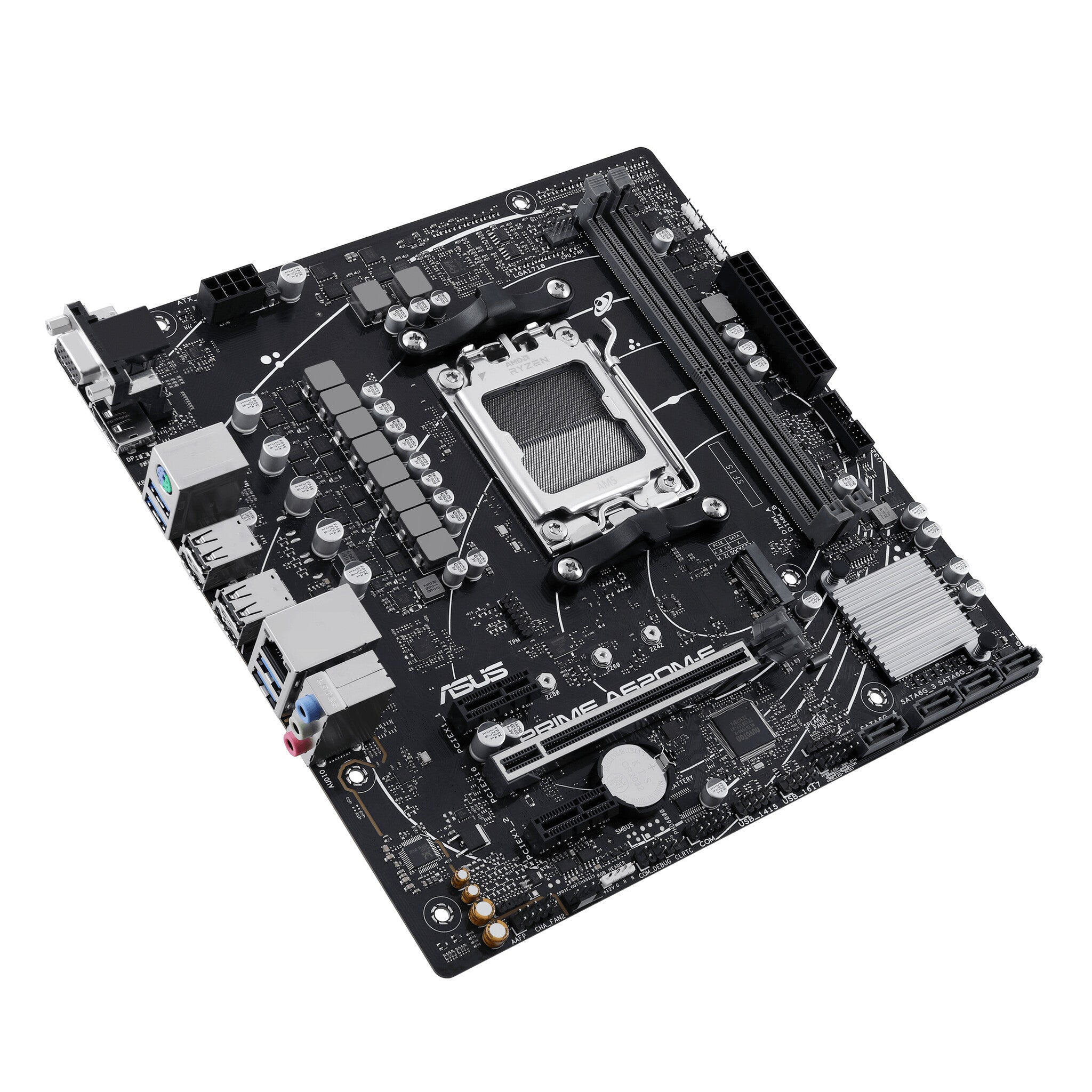

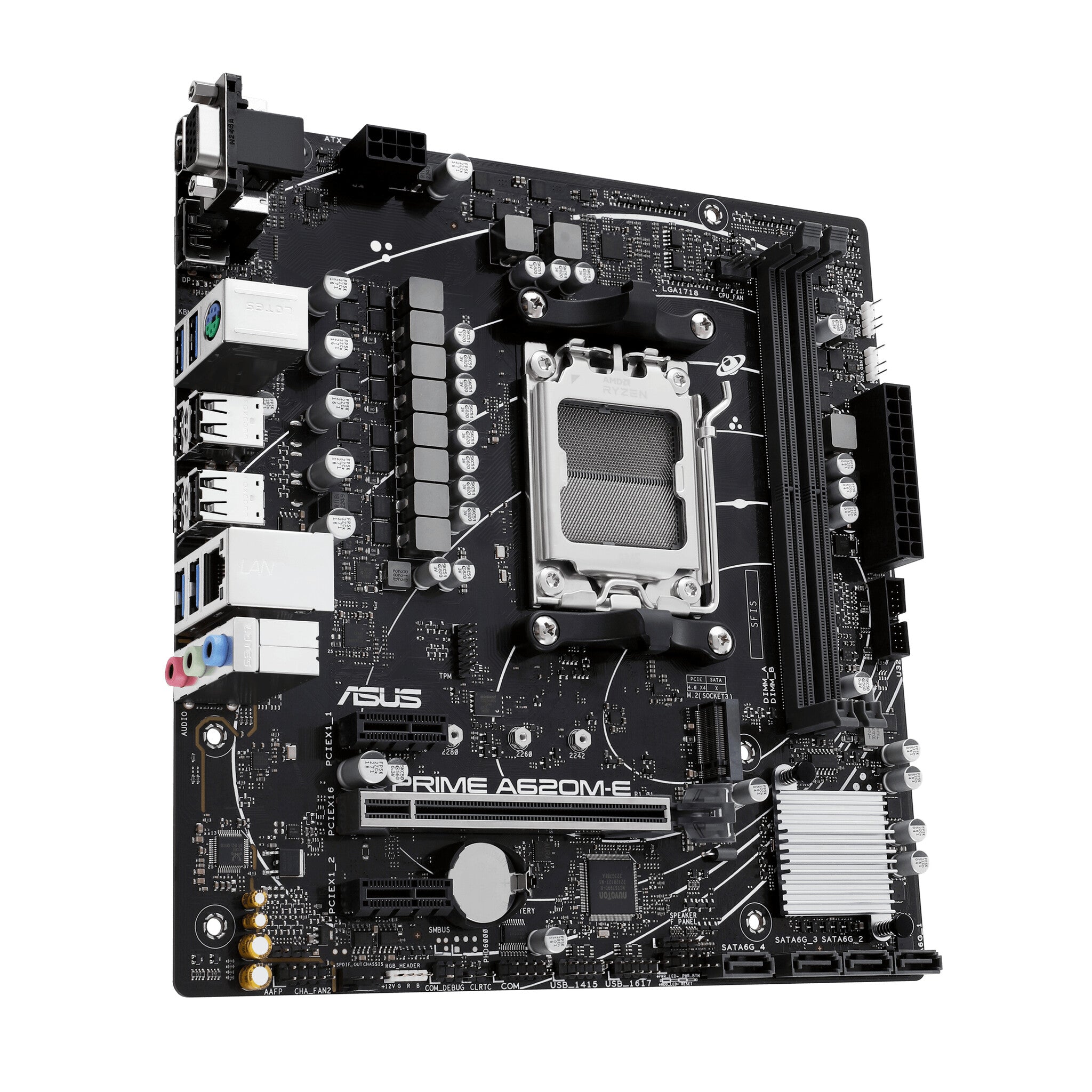

The ASUS PRIME A620M-E-CSM is a micro ATX motherboard built around AMD's entry-level A620 chipset, designed for budget-conscious builders who want to access AMD's Ryzen 7000 series processors without paying premium prices. This board supports all current Ryzen 7000 CPUs on the AM5 socket, making it a practical entry point into AMD's latest platform. The micro ATX form factor fits into most standard PC cases while keeping costs down, making it suitable for office builds, home computers, and budget gaming systems where high-end features aren't essential.
Memory support covers DDR5 with speeds up to 6400 MHz across two DIMM slots, with a maximum capacity of 96 GB - more than enough for typical home and office use. The board includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for expansion cards. Connectivity covers the essentials with USB 3.2 Gen 2 ports for fast data transfer, while BIOS Flashback lets you update the firmware without needing a CPU installed. RGB LED pin headers support Aura Sync lighting if you want to add some visual flair to your build.

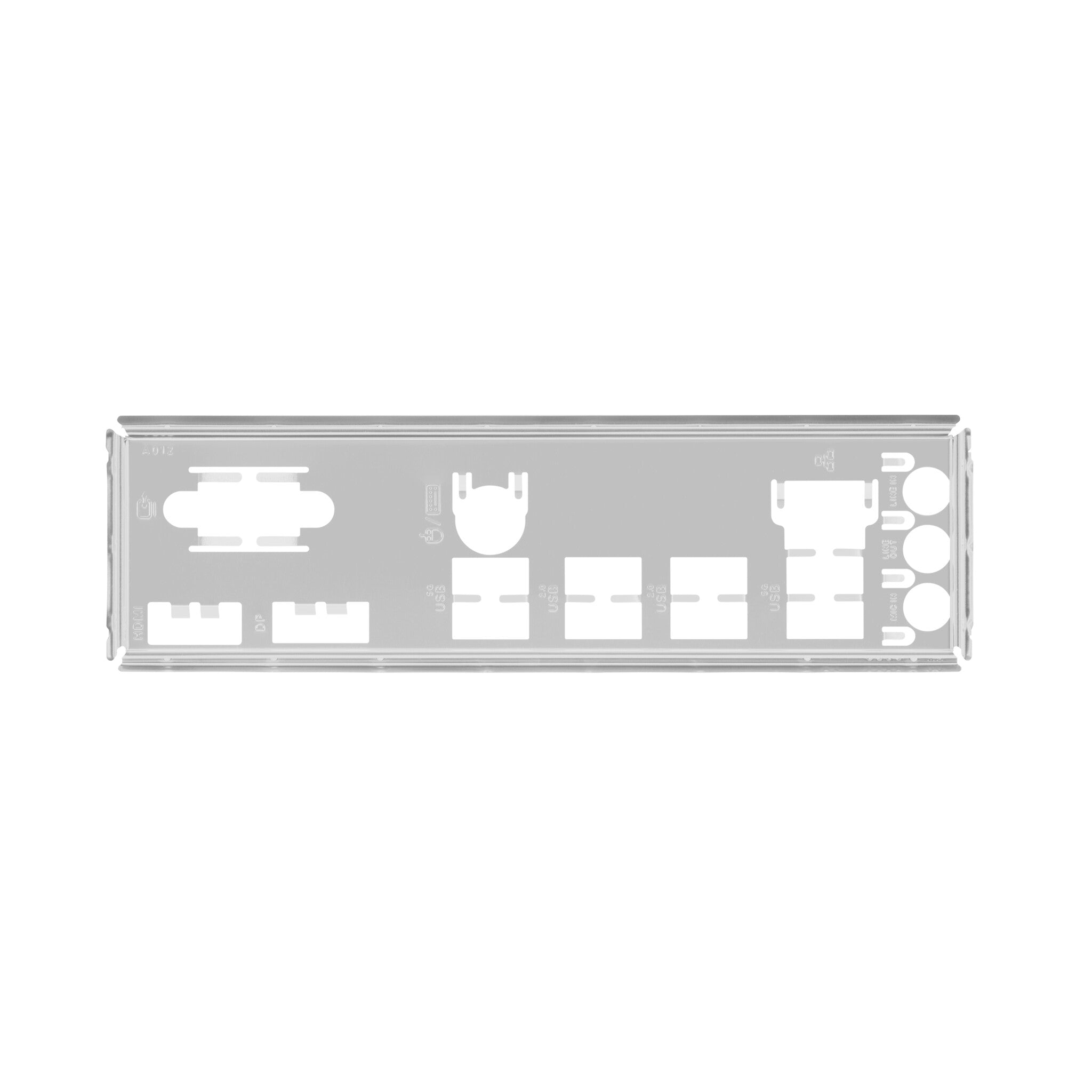

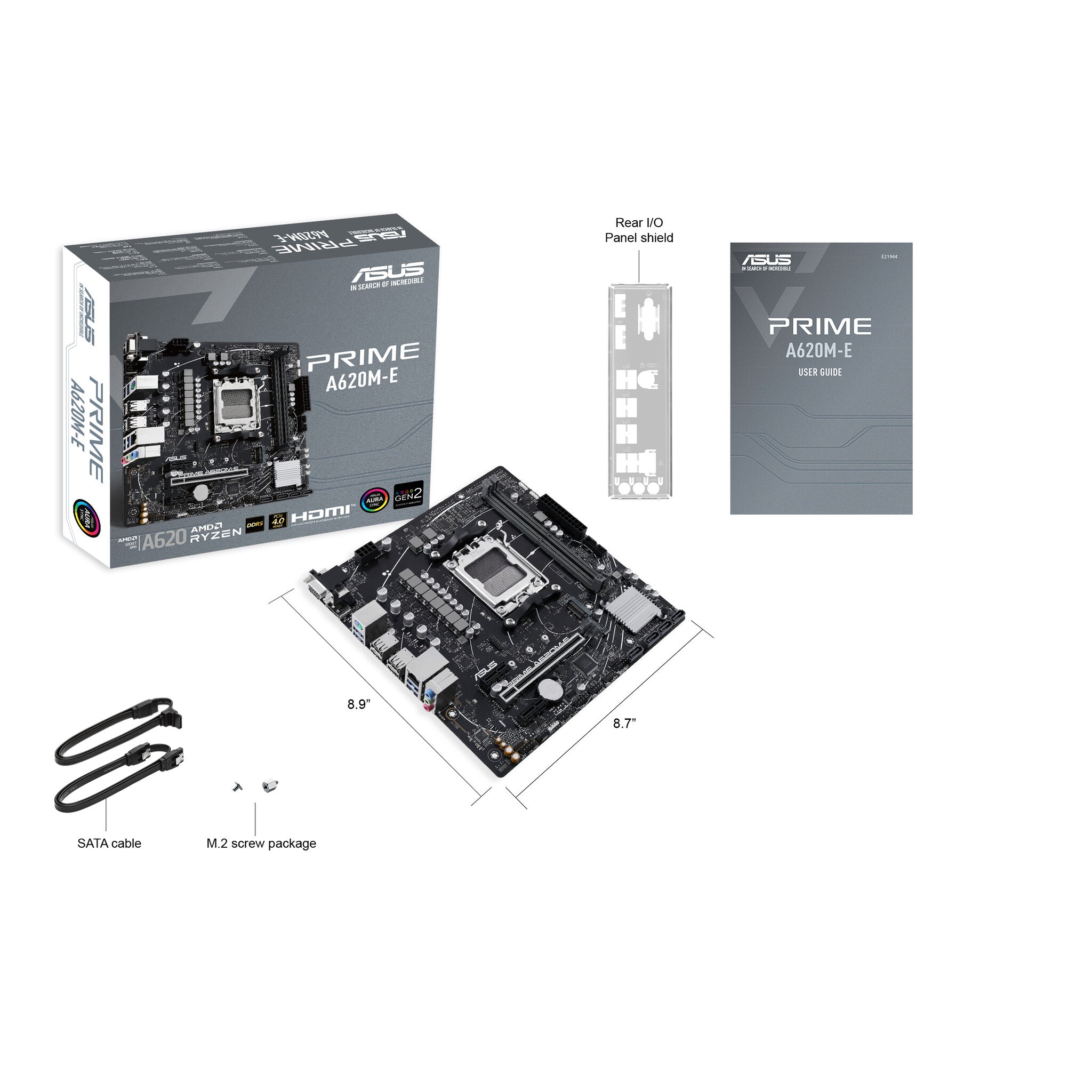

ASUS includes the standard package of an I/O shield and user documentation to get you started. The A620 chipset focuses on core functionality rather than enthusiast features, which keeps the price down while still delivering solid performance for everyday computing tasks. EXPO memory profiles ensure you can run your DDR5 at rated speeds with simple one-click setup, taking the guesswork out of memory configuration.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

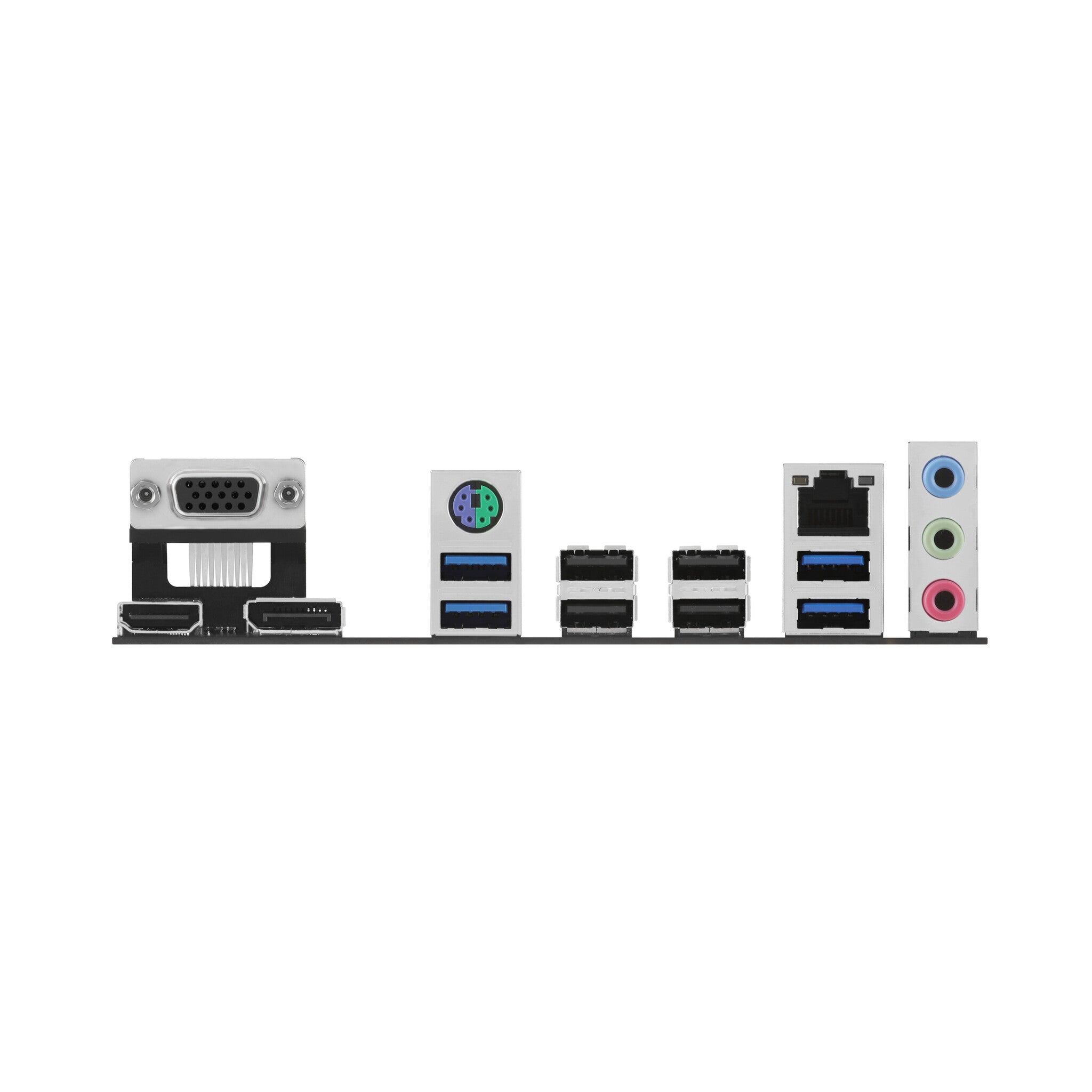

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 940 g |
| Weight & dimensions | |
|---|---|
| Width | 226 mm |
| Depth | 221 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
