ASUS P13R-M mATX Motherboard | LGA1700 | 4x DDR5 Slots
KEY FEATURES
- Powered by eight-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
- Dual Intel I210-AT gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS P13R-M mATX Motherboard | LGA1700 | 4x DDR5 Slots
Description

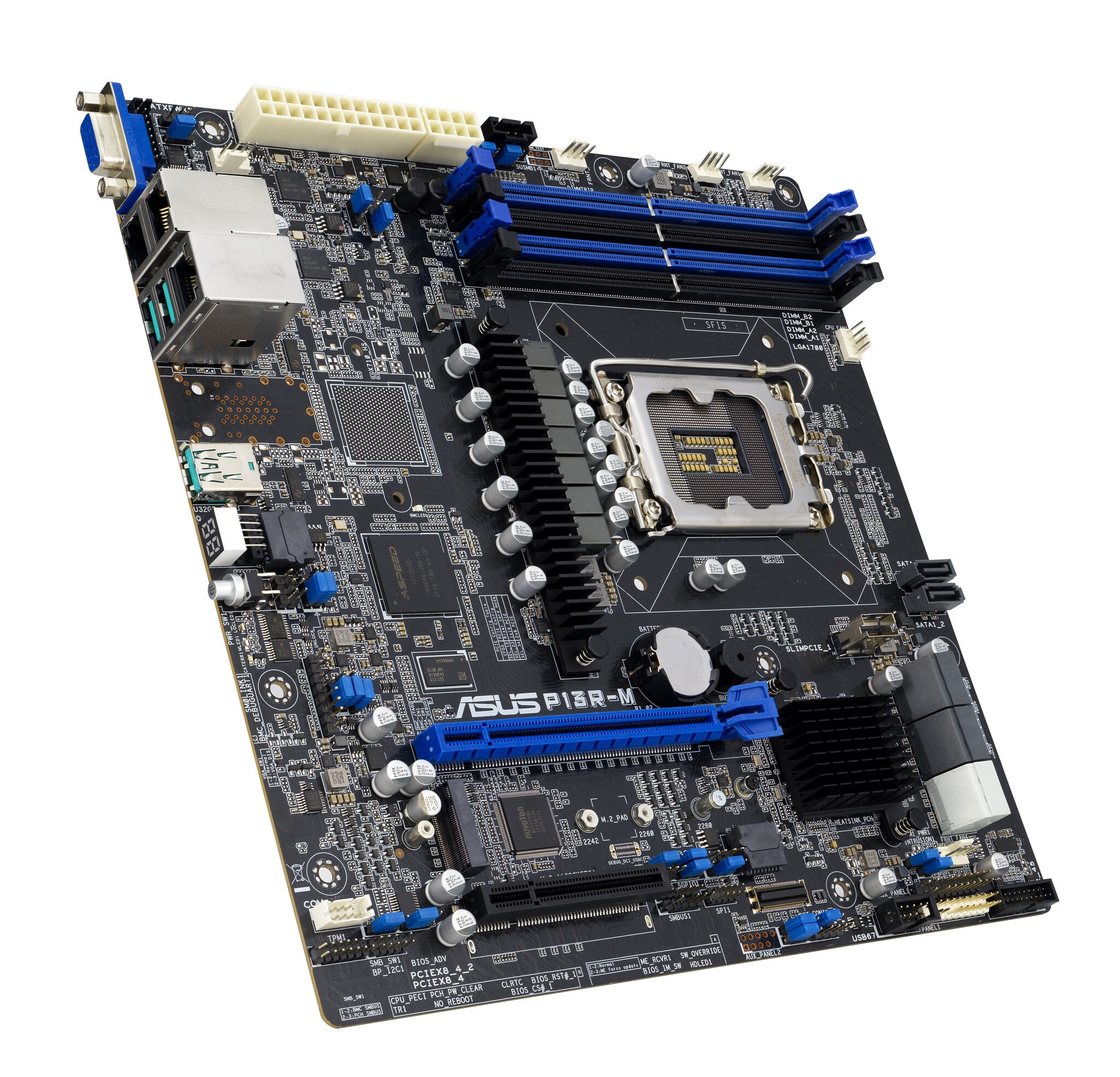

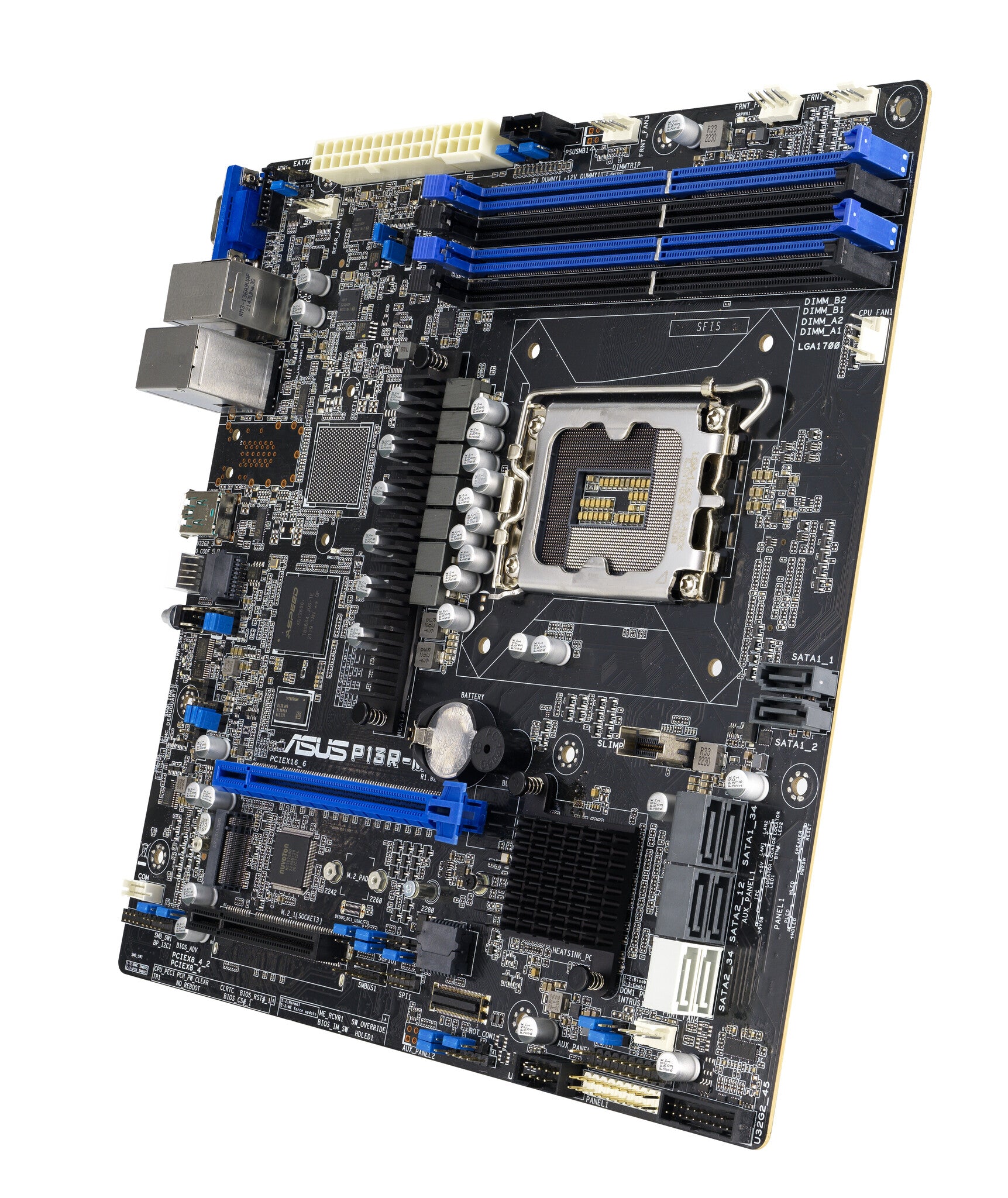

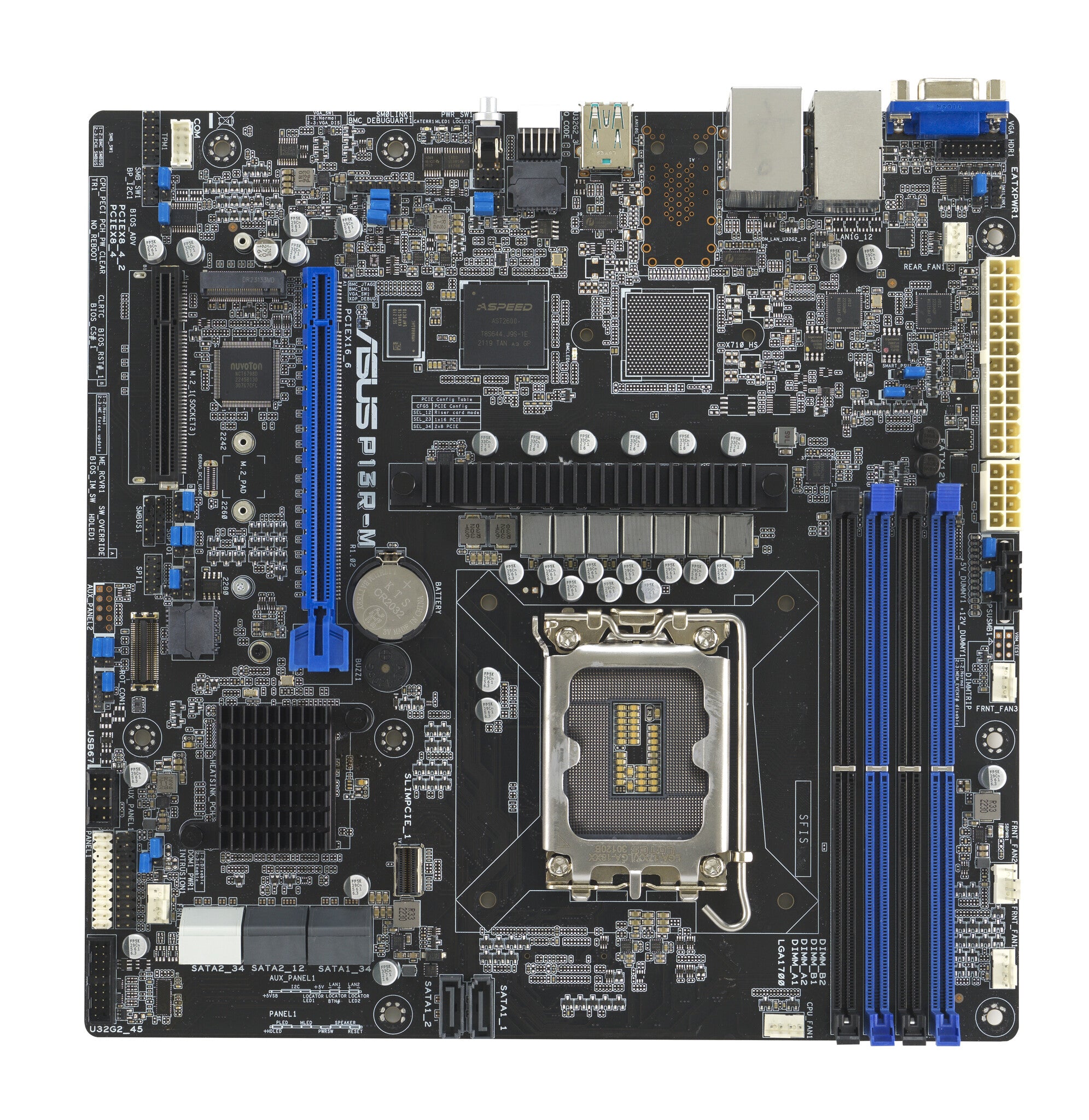

The ASUS P13R-M is a micro ATX server motherboard built around Intel's C262 chipset for LGA1700 socket processors. Specifically engineered for Intel Xeon E-2400 and Xeon 6300 series processors, this board targets small business servers and workstations where space is at a premium but server-grade reliability remains essential. The compact form factor makes it suitable for rack-mount chassis or smaller server builds without sacrificing the features needed for professional applications.
Memory capabilities centre on DDR5 ECC support across four DIMM slots, accommodating up to 128GB of error-correcting memory at speeds up to 4400MHz. This ECC support provides the data integrity critical for server workloads. Expansion options include one PCIe 5.0 x16 slot for high-bandwidth cards like network adapters or storage controllers, plus one PCIe 4.0 x8 slot for additional peripherals. Storage connectivity comes through eight SATA ports and one M.2 slot supporting 2280 form factor drives.
Server-specific features distinguish this board from consumer offerings, including dual LAN ports for network redundancy, Platform Firmware Resilience for enhanced security, and onboard ASUS ASMB11-iKVM for remote management capabilities. Three USB 3.2 Gen 2 ports provide modern connectivity speeds. The board comes with essential accessories including the I/O shield, SATA cables for storage connections, and a comprehensive user guide covering server configuration requirements.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Graphics | |
|---|---|
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

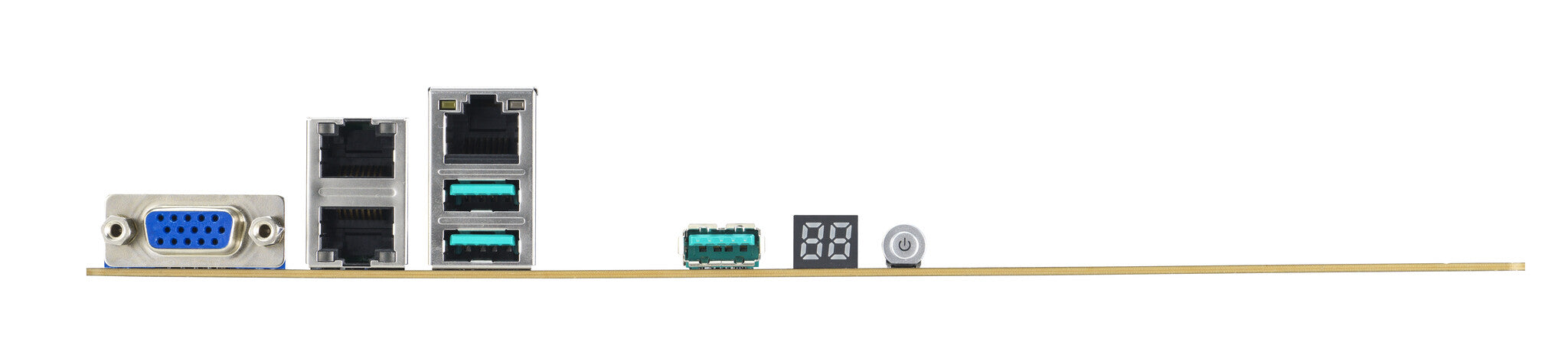

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C262 |
| Expansion slots | |
|---|---|
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
|---|---|
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.3 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 760 g |
