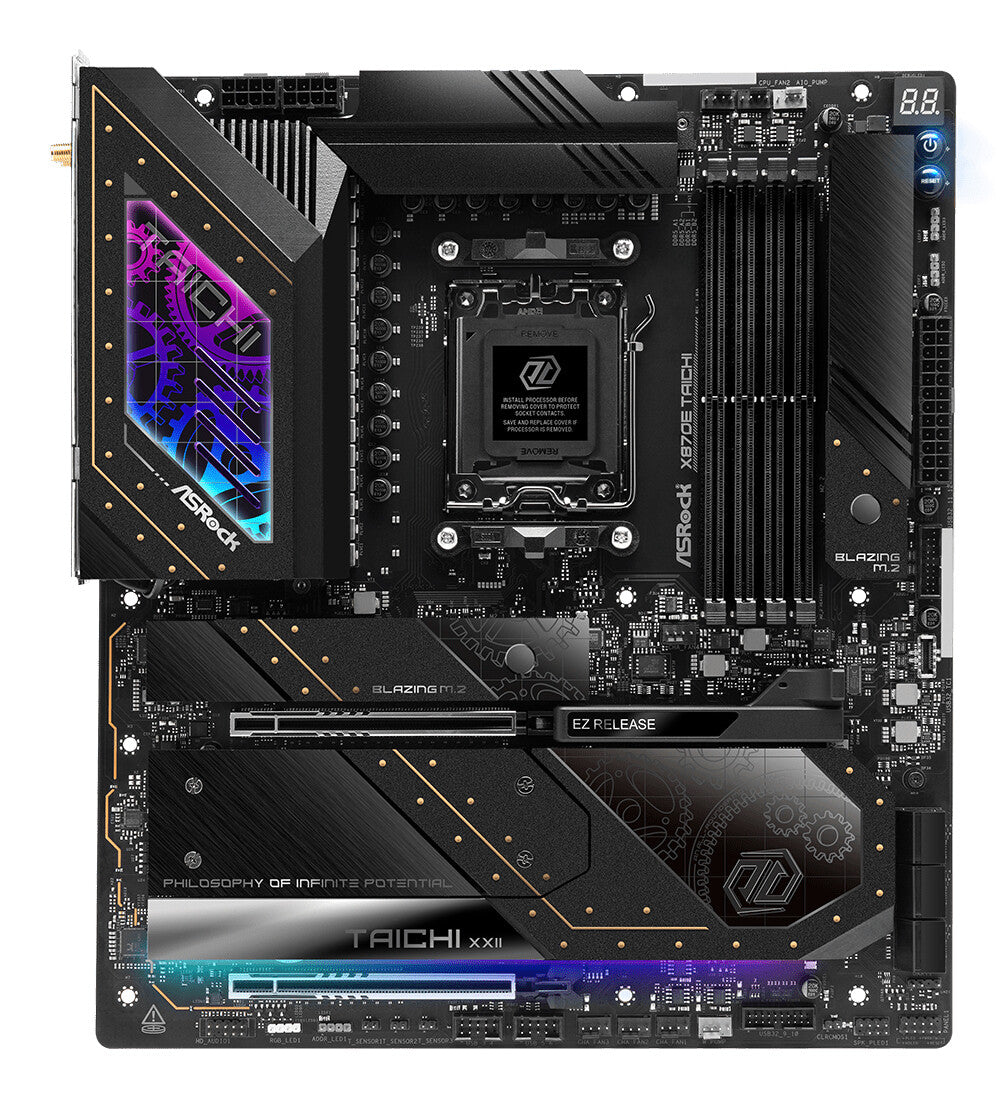

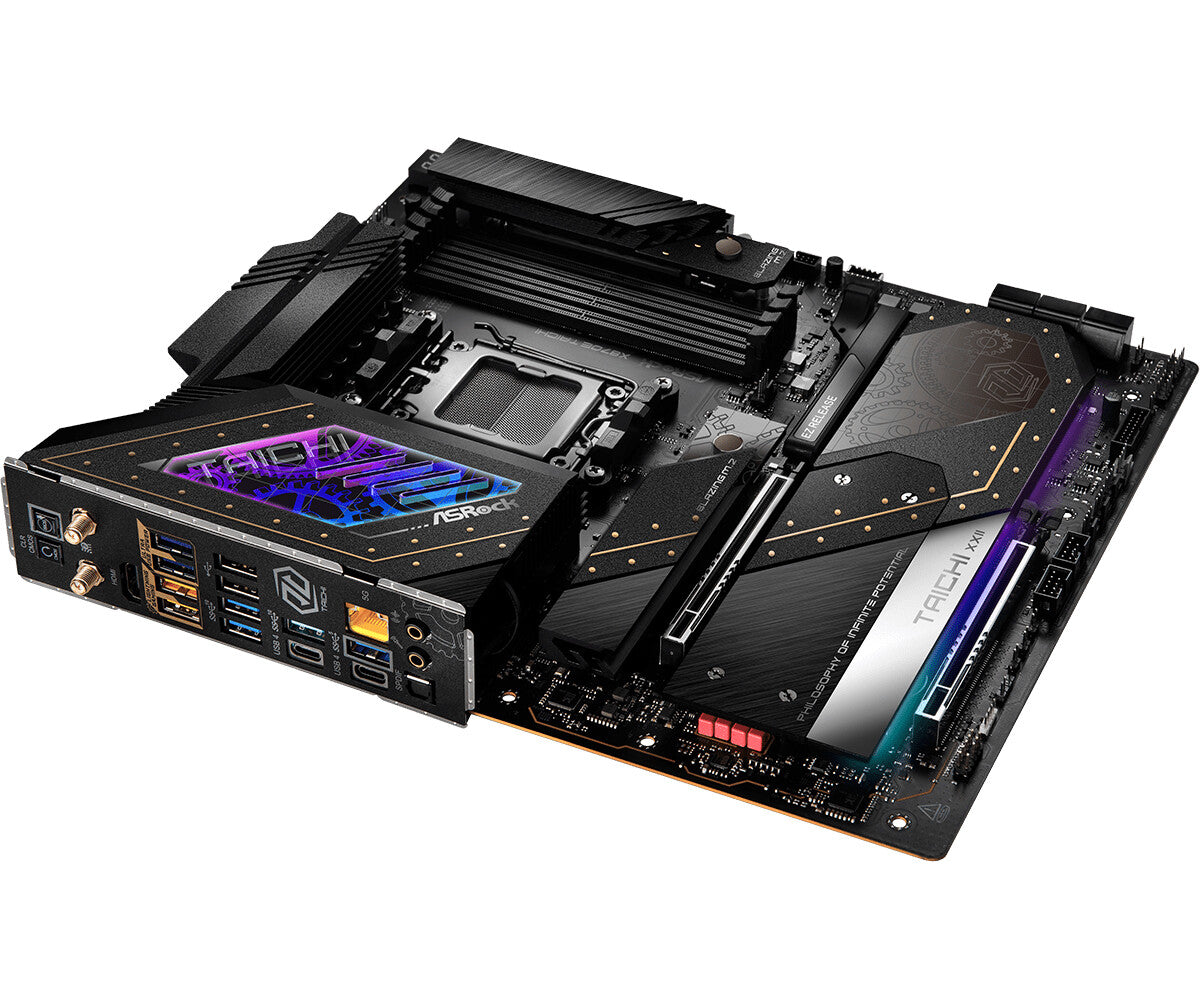

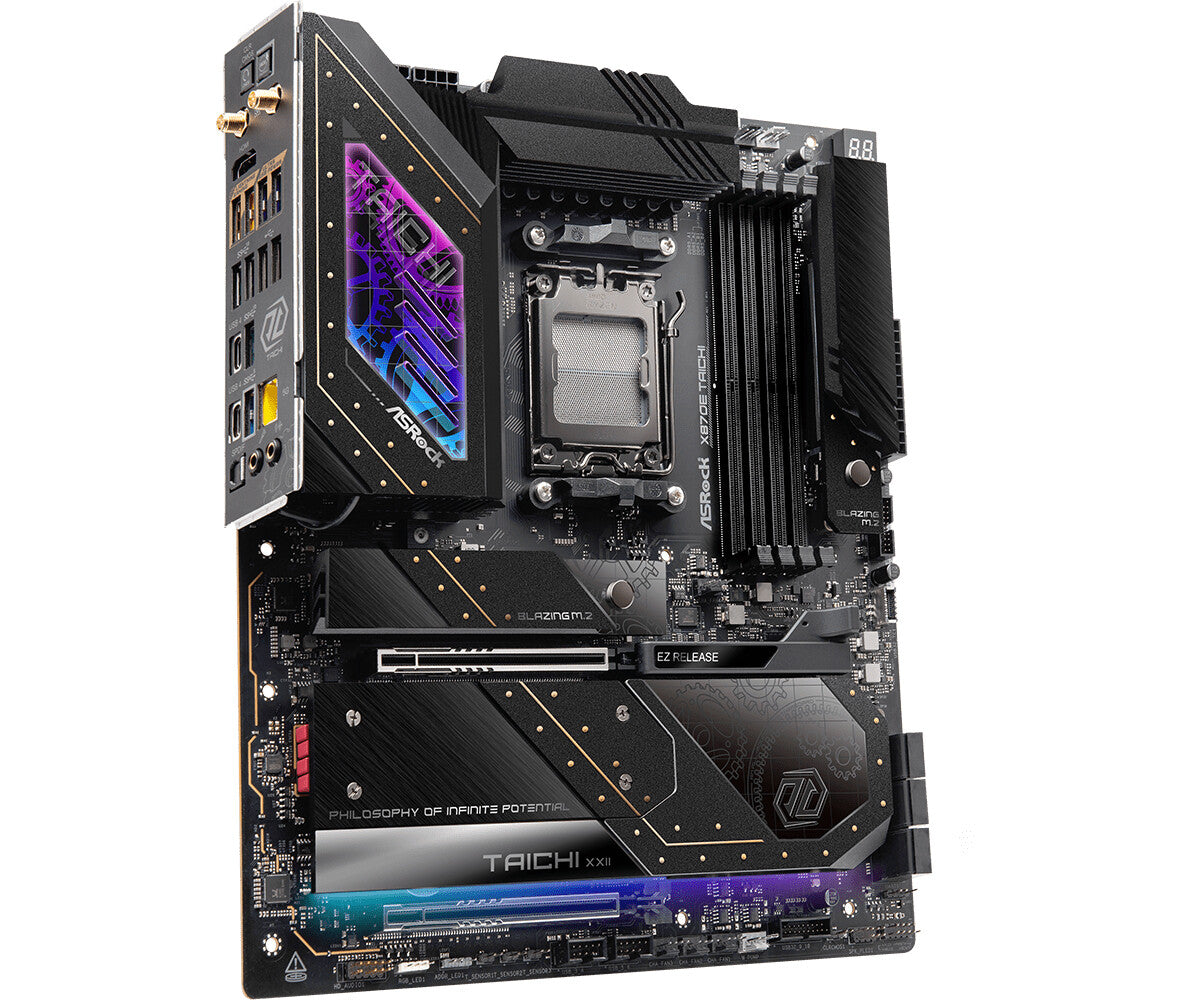

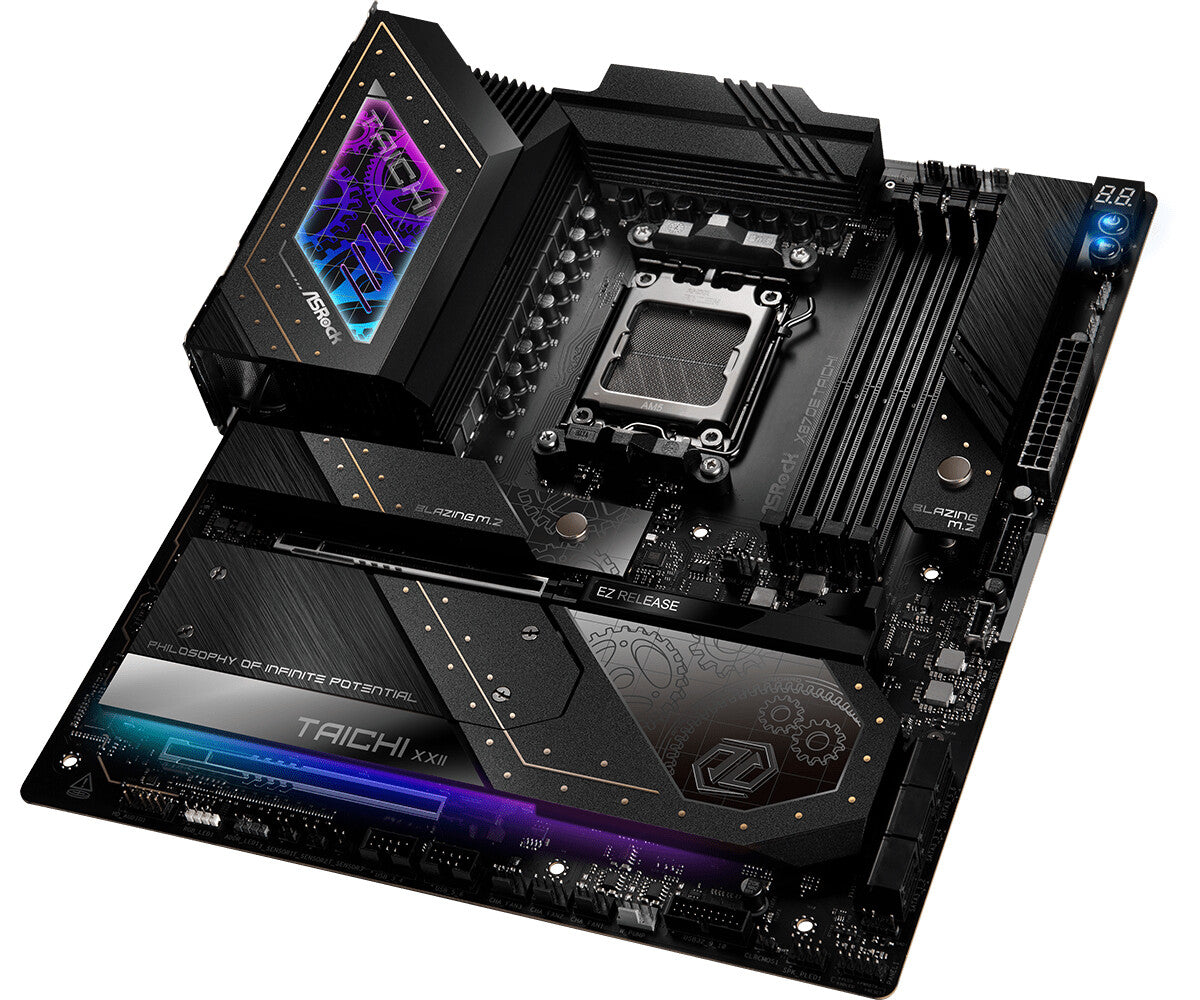

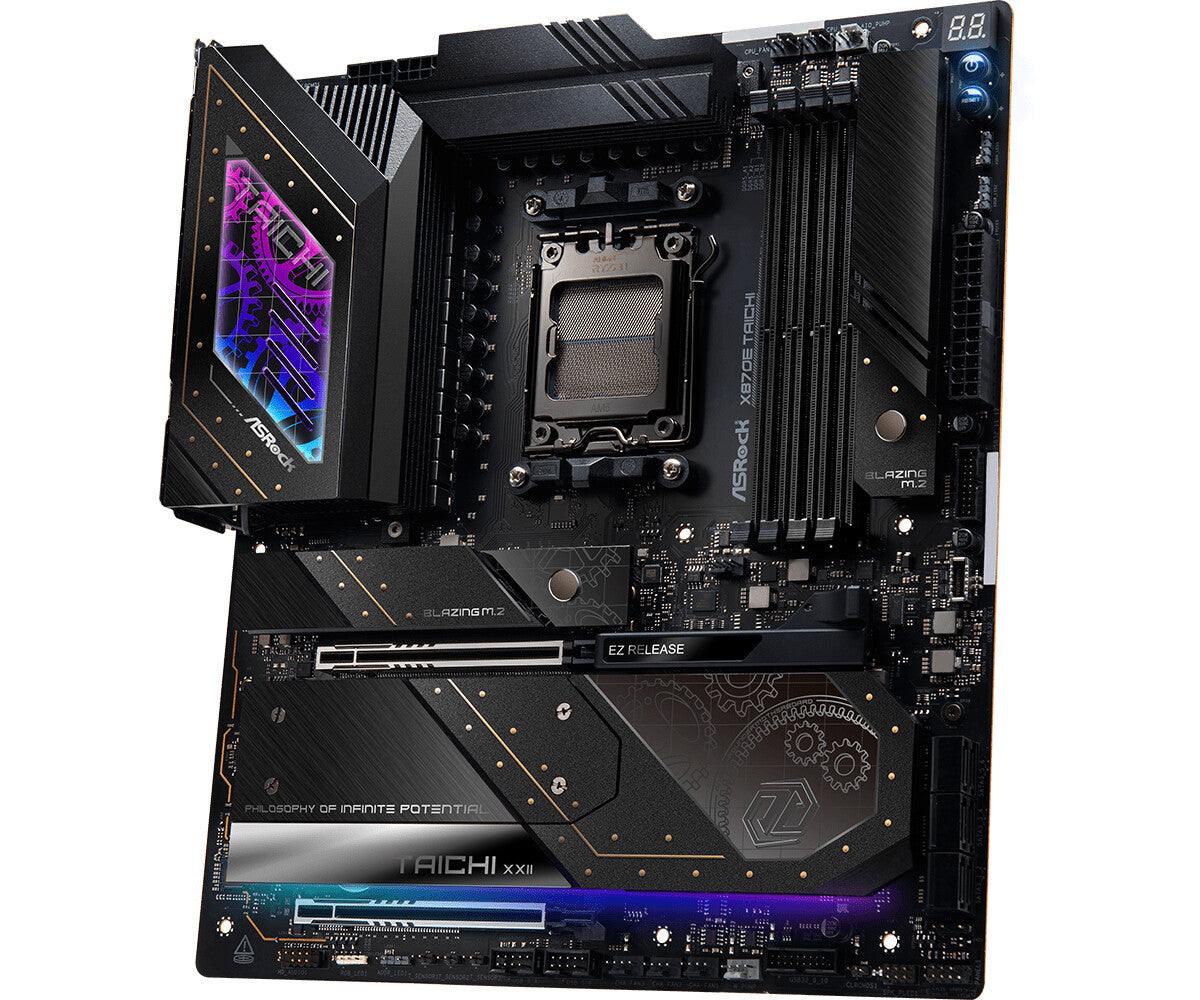

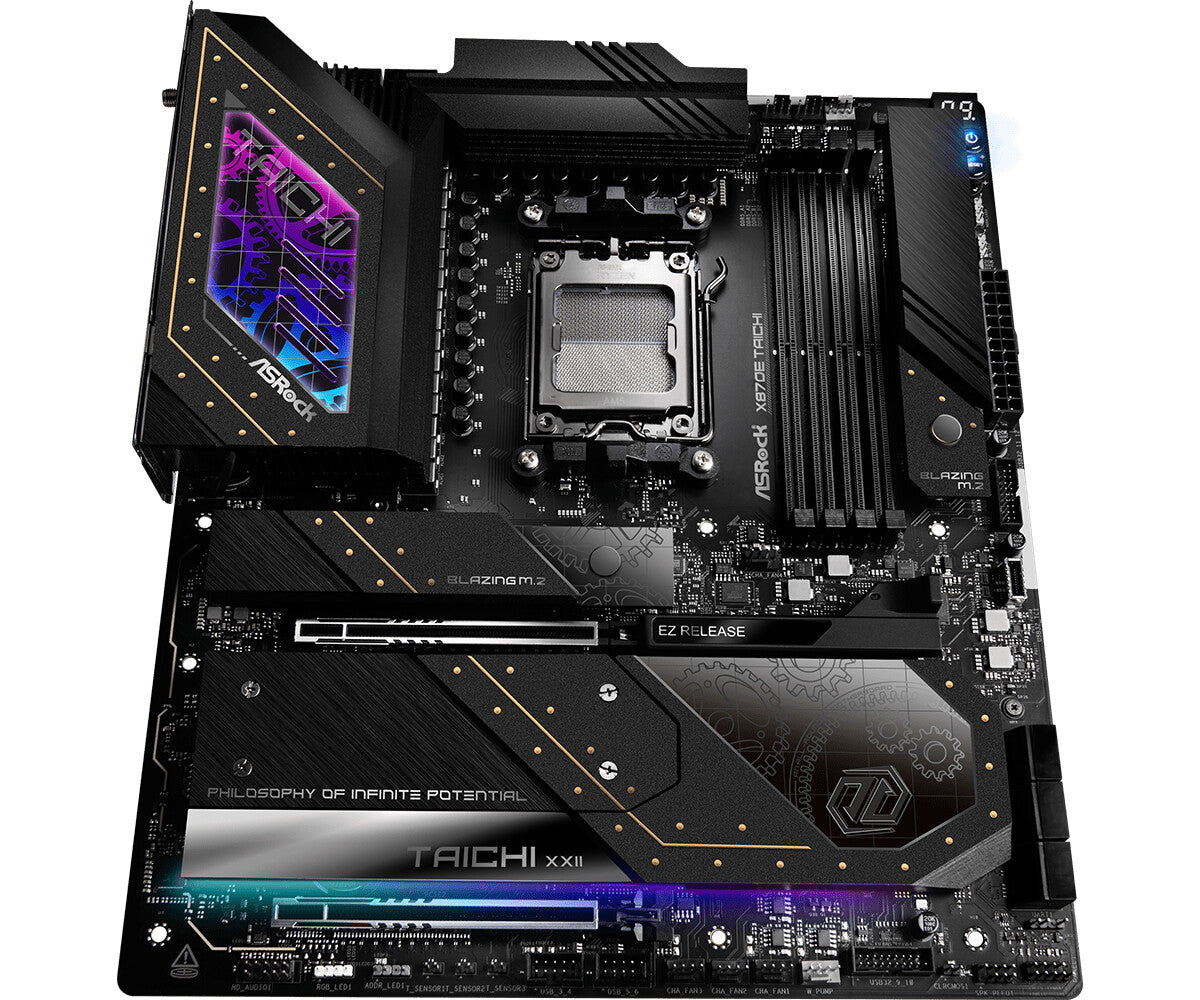

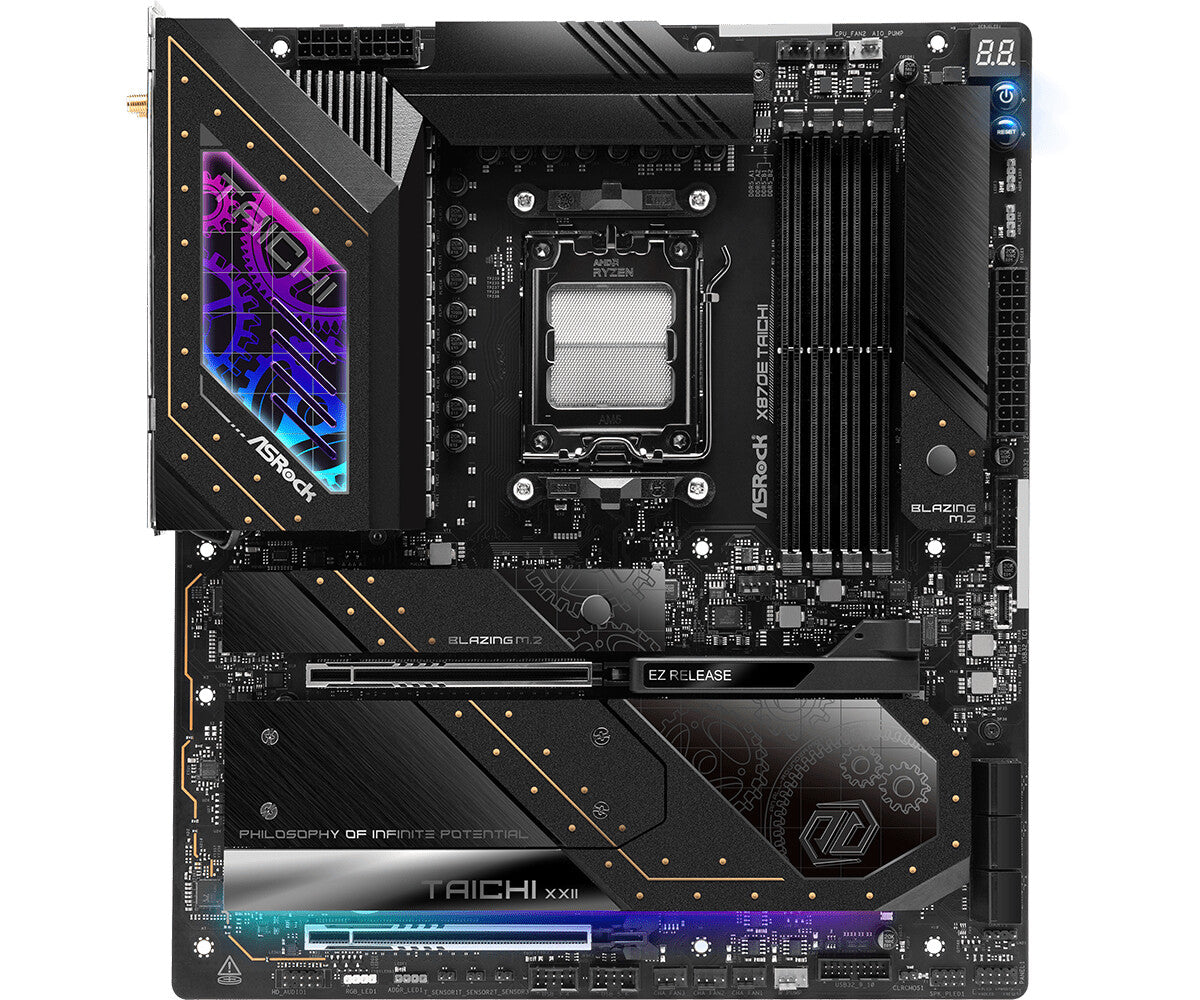

Asrock X870E Taichi EATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 24+2+1 Phase Power Design, 110A SPS
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8200+ (OC)
- 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec
- ESS SABRE9219 DAC, WIMA Audio Caps
- 1 Blazing M.2 (PCIe Gen5x4)
- 3 Hyper M.2 (PCIe Gen4x4)
- 6 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 5 USB 3.2 Gen2 Type-A (Rear)
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Graphics Card EZ Release, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock X870E Taichi?
How many memory slots does the motherboard have?
Does this motherboard support overclocking?
Asrock X870E Taichi EATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The Asrock X870E Taichi brings AMD's flagship X870E chipset to an EATX form factor, targeting enthusiasts and professionals who need maximum expansion and connectivity. This premium board pairs with AMD Ryzen 7000, 8000, and 9000 series processors through the AM5 socket, offering extensive room for high-end builds with its larger Extended ATX layout that requires a full tower case.
Memory performance reaches impressive heights with DDR5 support up to 8200 MHz across four DIMM slots, accommodating up to 256 GB total capacity. The board provides two PCIe 5.0 x16 slots for graphics cards or other high-bandwidth expansion, while connectivity stays cutting-edge with Wi-Fi 7 support, USB 3.2 Gen 2x2 for ultra-fast peripheral connections, and integrated RGB LED headers for custom lighting setups. ECC memory compatibility adds professional-grade reliability for workstation applications.
Setup benefits from AMD's EXPO memory profiles for easy DDR5 overclocking, while the included antenna ensures optimal wireless performance out of the box. The multicolour design scheme and RGB integration suit builds where aesthetics matter as much as performance. With dual CPU fan connectors and the robust VRM design expected from the Taichi series, this board handles demanding processors and extended operation with confidence.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

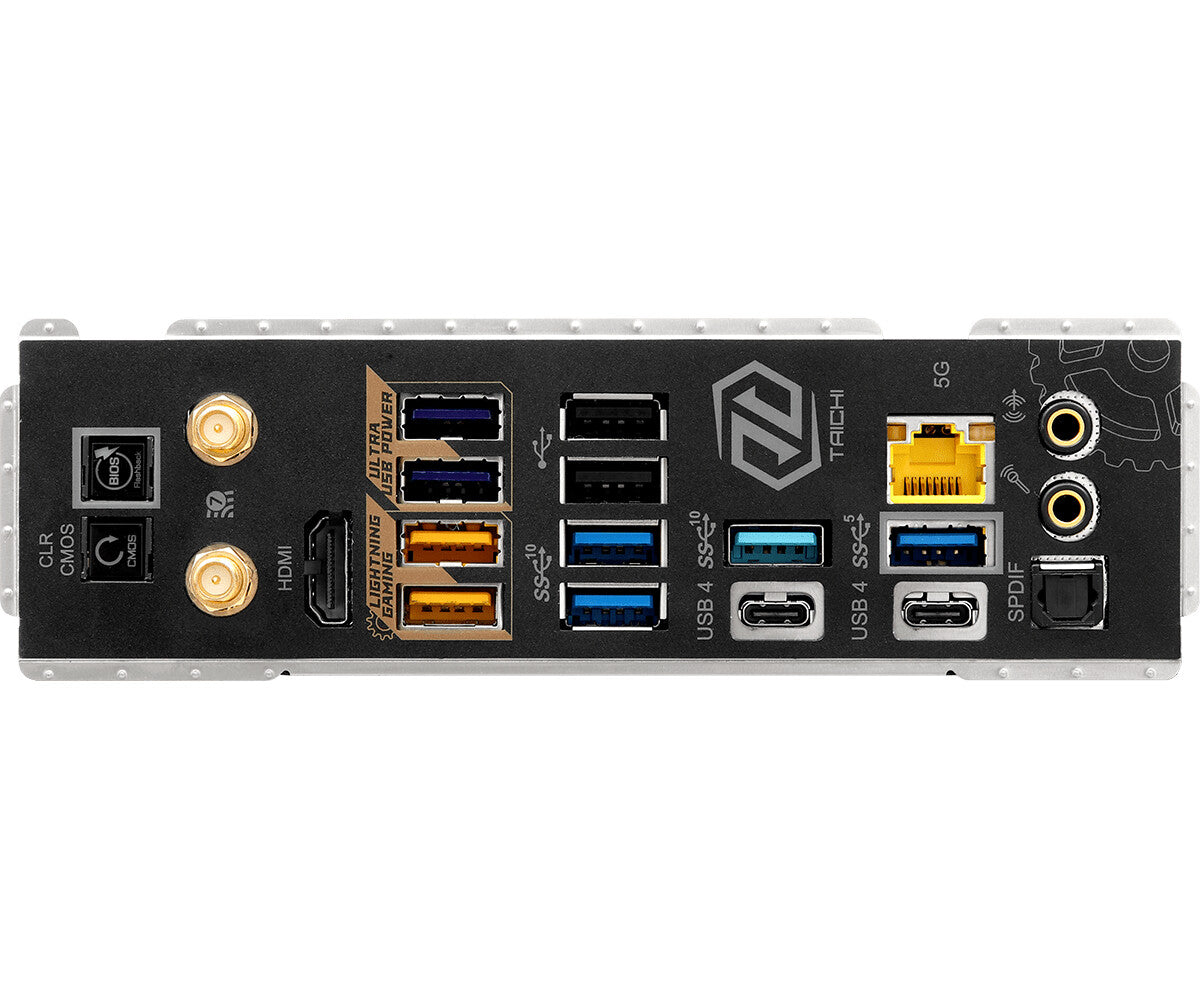

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 5.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Certification | - FCC, CE- ErP/EuP ready |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
| Packaging content | |
|---|---|

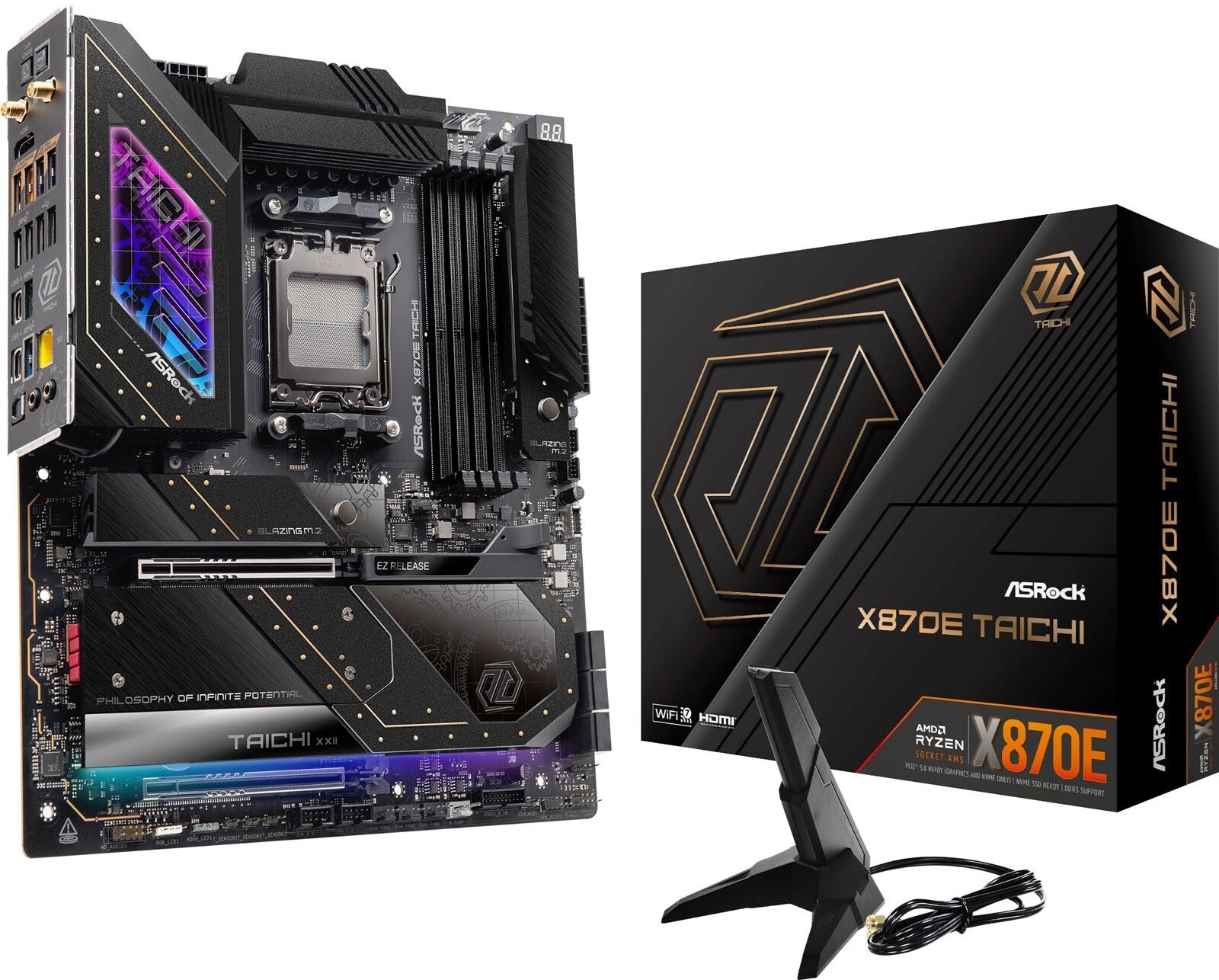

| Antenna included | Yes |
