Asrock H810M-H mATX Motherboard | LGA1851 | 2x DDR5 Slots
KEY FEATURES
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel H810 Realtek ALC897 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 5
- BIOS type: UEFI AMI 256 Mbit
- Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Asrock H810M-H mATX Motherboard | LGA1851 | 2x DDR5 Slots
Description

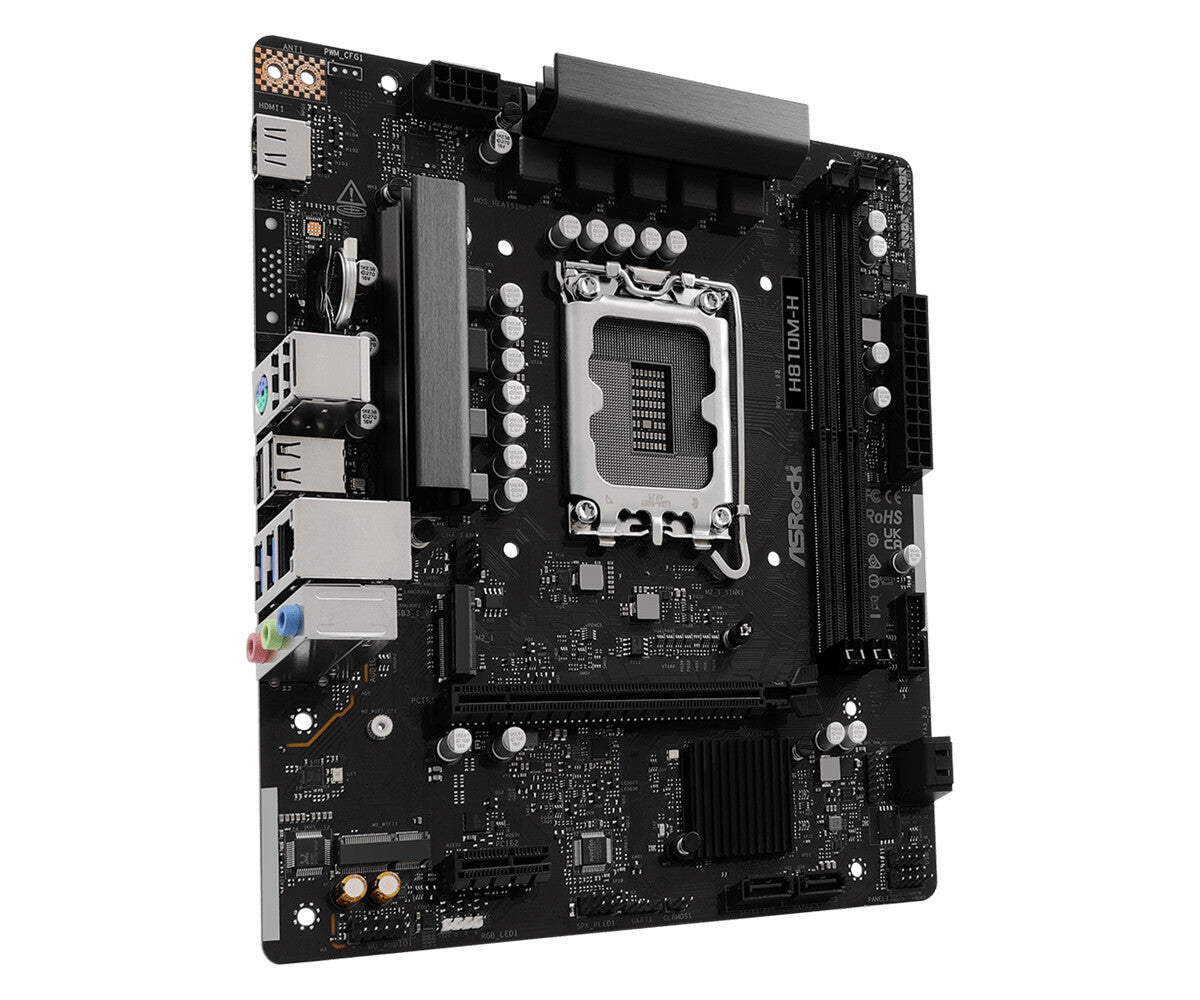

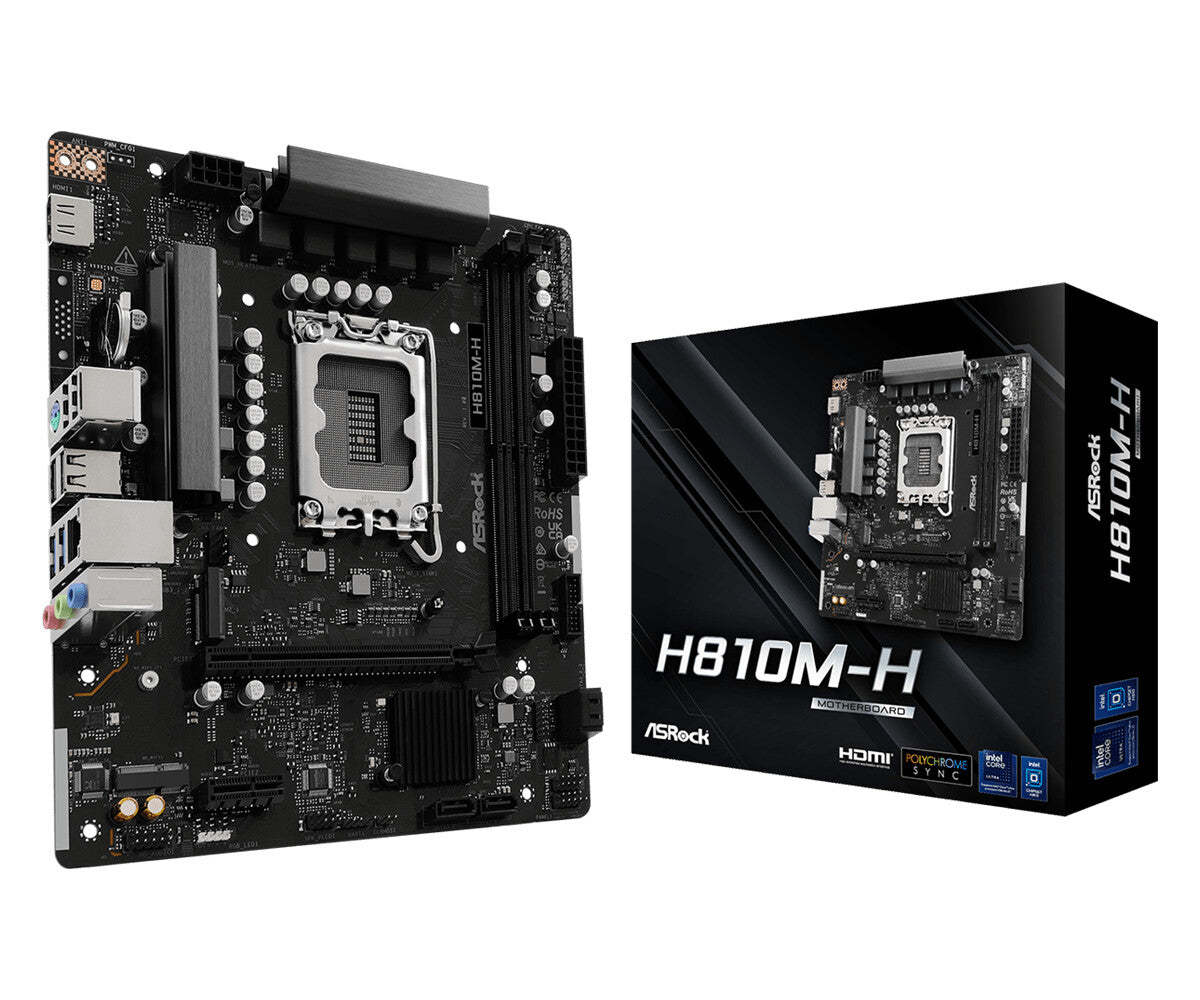

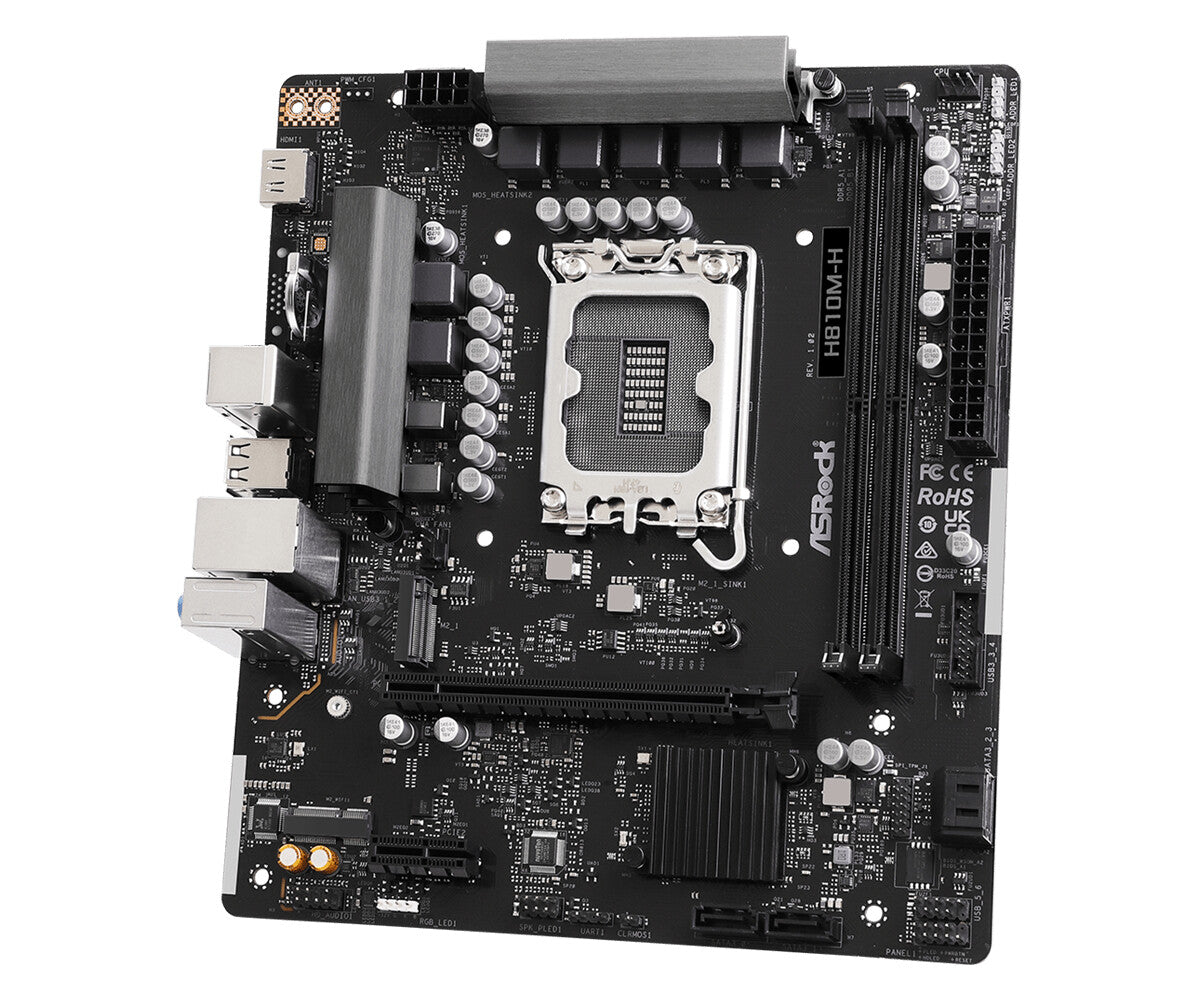

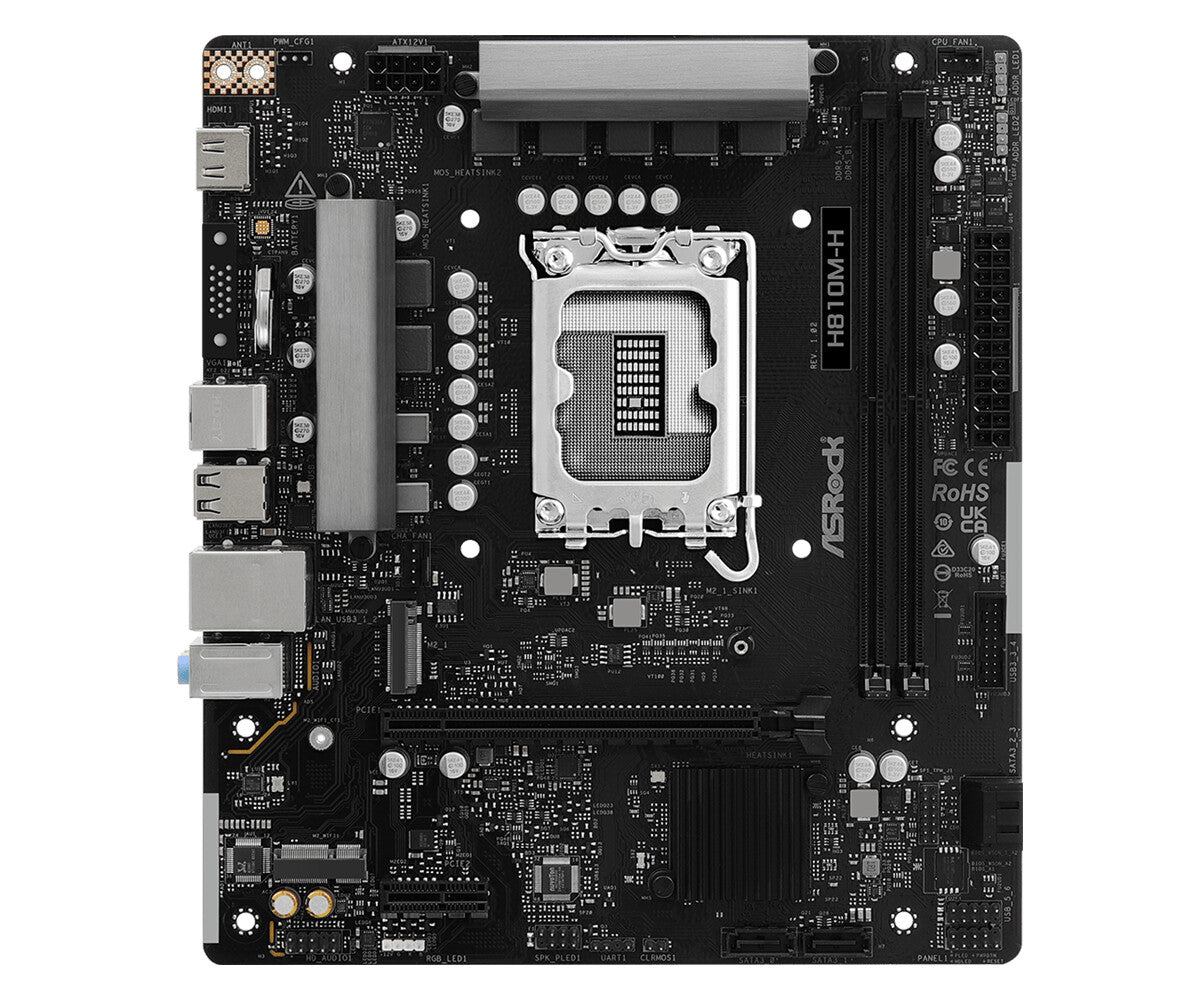

The ASRock H810M-H is a micro ATX motherboard built around Intel's H810 chipset, designed for the new LGA1851 socket and Intel Core Ultra Series 2 processors. This board sits in the budget-friendly segment while still offering modern features that matter for everyday computing and light gaming builds. The compact micro ATX form factor makes it suitable for smaller cases while maintaining essential connectivity and expansion options.
Memory support covers DDR5 up to 6400MHz across two DIMM slots, with a maximum capacity of 128GB and support for both ECC and non-ECC modules. The board includes one PCIe 4.0 x16 slot for graphics cards and one PCIe 4.0 x1 slot for additional expansion cards. Storage connectivity includes four SATA 6Gb/s ports and one M.2 slot supporting PCIe 4.0 drives up to 2280 form factor. Network connectivity comes via integrated Gigabit Ethernet using the Realtek RTL8111H controller.
USB connectivity is comprehensive with four USB 3.2 Gen1 Type-A ports and six USB 2.0 ports providing plenty of options for peripherals and storage devices. The board includes modern display support with HDCP 2.3 and HDR compatibility for integrated graphics users. ASRock includes essential accessories in the box such as mounting screws, and the board features a single RGB LED header for those wanting to add some lighting to their build. The 256MB AMI UEFI BIOS provides a user-friendly interface for system configuration and memory profile setup.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| HDCP version | 2.3 |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 1 |

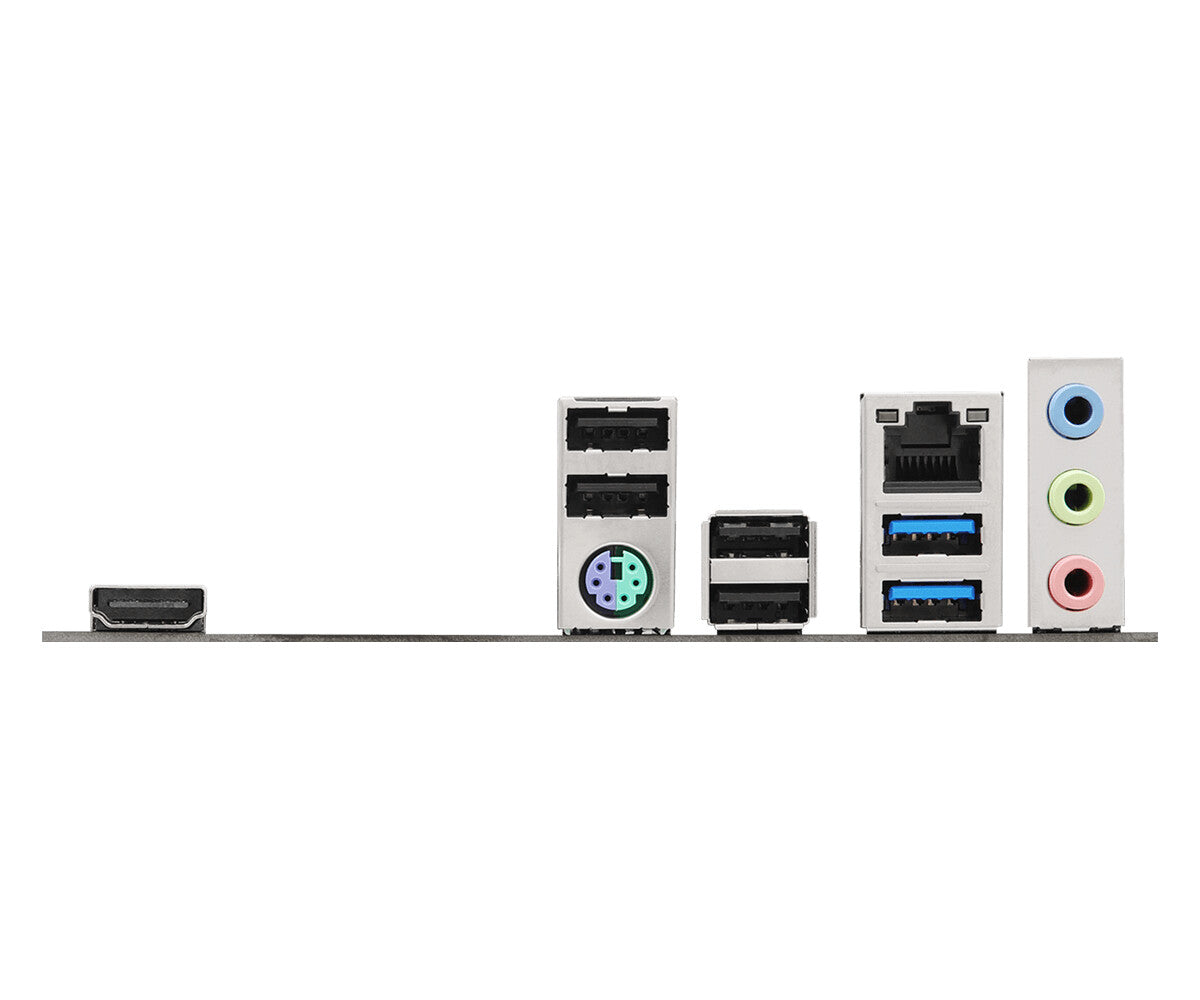

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
| Certification | FCC, CE, ErP/EuP ready |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 193 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
